AT-232

< SERVICE INFORMATION >

ON-VEHICLE SERVICE

9.

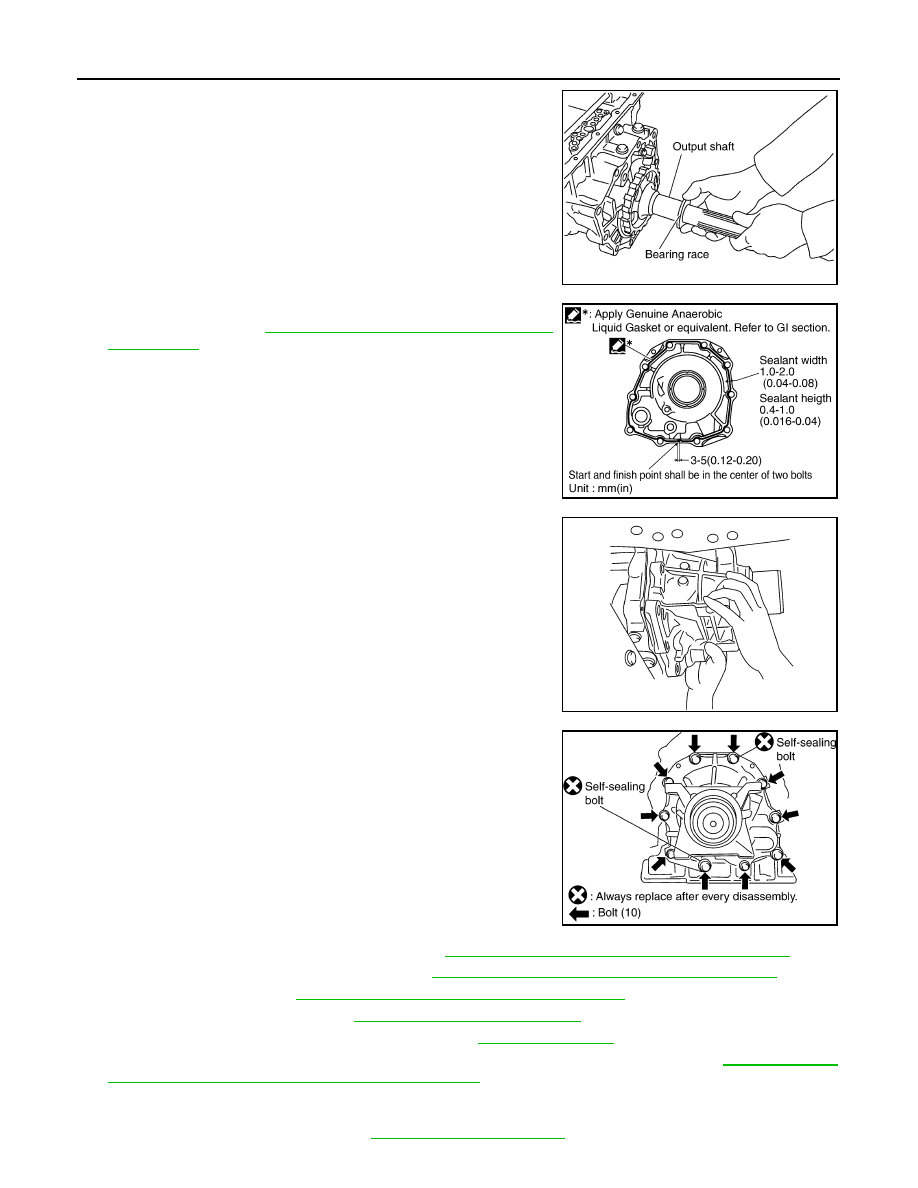

Install bearing race to output shaft.

10. Apply recommended sealant (Genuine Anaerobic Liquid Gasket

or equivalent. Refer to

GI-44, "Recommended Chemical Product

and Sealant"

.) to rear extension assembly as shown in the fig-

ure.

CAUTION:

Completely remove all moisture, oil and old sealant, etc.
from the transmission case and rear extension assembly
mounting surfaces.

11. Install rear extension assembly to transmission case. (With nee-

dle bearing.)

CAUTION:

Insert the tip of parking rod between the parking pawl and
the parking actuator support when assembling the rear
extension assembly.

12. Tighten rear extension assembly mounting bolts to specified

torque. Refer to "COMPONENTS".

CAUTION:

Do not reuse self-sealing bolts.

13. Install engine mounting insulator (rear). Refer to

AT-241, "Removal and Installation (2WD Models)"

.

14. Install rear engine mounting member. Refer to

AT-241, "Removal and Installation (2WD Models)"

.

15. Install control rod. Refer to

AT-206, "Control Rod Removal and Installation"

.

16. Install rear propeller shaft. Refer to

PR-9, "Removal and Installation"

.

17. Install exhaust front tube and center muffler. Refer to

EX-3, "Component"

.

18. Install drain plug in oil pan, and then tighten drain plug to the specified torque. Refer to

AT-215, "Control

Valve with TCM and A/T Fluid Temperature Sensor 2"

.

CAUTION:

Do not reuse drain plug gasket.

19. Pour ATF into A/T assembly. Refer to

AT-11, "Changing A/T Fluid"

.

SCIA5245E

SCIA8228E

SCIA3431E

SCIA6941E

ON-VEHICLE SERVICE

AT-233

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

Rear Oil Seal

INFOID:0000000001327395

REMOVAL

1.

Remove center muffler with power tool. Refer to

EX-3, "Compo-

nent"

.

2.

Remove rear propeller shaft. Refer to

PR-9, "Removal and

Installation"

.

3.

Remove front propeller shaft (AWD models). Refer to

PR-4,

"Removal and Installation"

.

4.

Remove transfer assembly from A/T assembly (AWD models).
Refer to

TF-40, "Removal and Installation"

.

5.

Remove rear oil seal using a flat-bladed screwdriver.

CAUTION:

Be careful not to scratch rear extension assembly (2WD
models) or adapter case assembly (AWD models).

INSTALLATION

CAUTION:

After completing installation, check A/T fluid leakage and A/T fluid level. Refer to

AT-11, "Checking A/T

Fluid"

.

1.

As shown in the figure, use the drift to drive rear oil seal into rear
extension assembly (2WD models) or adapter case assembly
(AWD models) until it is flush.

CAUTION:

• Do not reuse rear oil seal.
• Apply ATF to rear oil seal.

2.

Install transfer assembly to A/T assembly (AWD models). Refer
to

TF-40, "Removal and Installation"

.

3.

Install front propeller shaft (AWD models). Refer to

PR-4,

"Removal and Installation"

.

4.

Install rear propeller shaft. Refer to

PR-9, "Removal and Installa-

tion"

.

5.

Install center muffler. Refer to

EX-3, "Component"

.

Revolution Sensor Component (2WD Models Only)

INFOID:0000000001327396

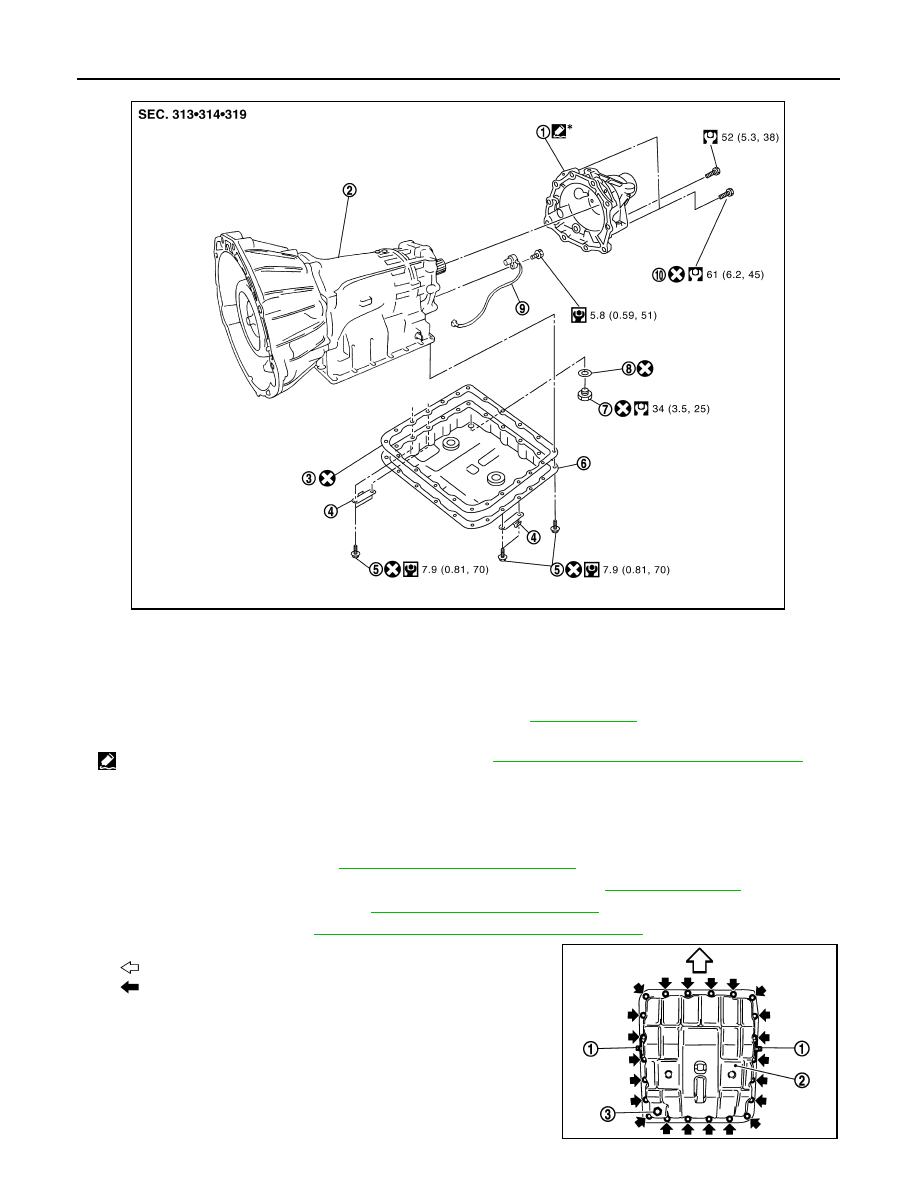

COMPONENTS

SCIA5410E

SCIA5411E

AT-234

< SERVICE INFORMATION >

ON-VEHICLE SERVICE

REMOVAL

1.

Disconnect the battery cable from the negative terminal.

2.

Drain ATF through drain plug.

3.

Remove front cross bar. Refer to

FSU-6, "Removal and Installation"

.

4.

Remove exhaust front tube and center muffler with power tool. Refer to

EX-3, "Component"

.

5.

Remove rear propeller shaft. Refer to

PR-9, "Removal and Installation"

.

6.

Remove control rod. Refer to

AT-206, "Control Rod Removal and Installation"

.

7.

Remove clips (1), oil pan (2) and oil pan gasket.

: Vehicle front

: Bolt (22)

• Drain plug (3)

1.

Rear extension

2.

A/T

3.

Oil pan gasket

4.

Clip

5.

Oil pan mounting bolt

6.

Oil pan

7.

Drain plug

8.

Drain plug gasket

9.

Revolution sensor

10.

Self-sealing bolt

Refer to GI section to make sure icons (symbol marks) in the figure. Refer to

GI-8, "Component"

.

However, refer to the following symbol for others.

*

: Apply Genuine Anaerobic Liquid Gasket or equivalent. Refer to

GI-44, "Recommended Chemical Product and Sealant"

SCIA8043E

SCIA8117E

ON-VEHICLE SERVICE

AT-235

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

8.

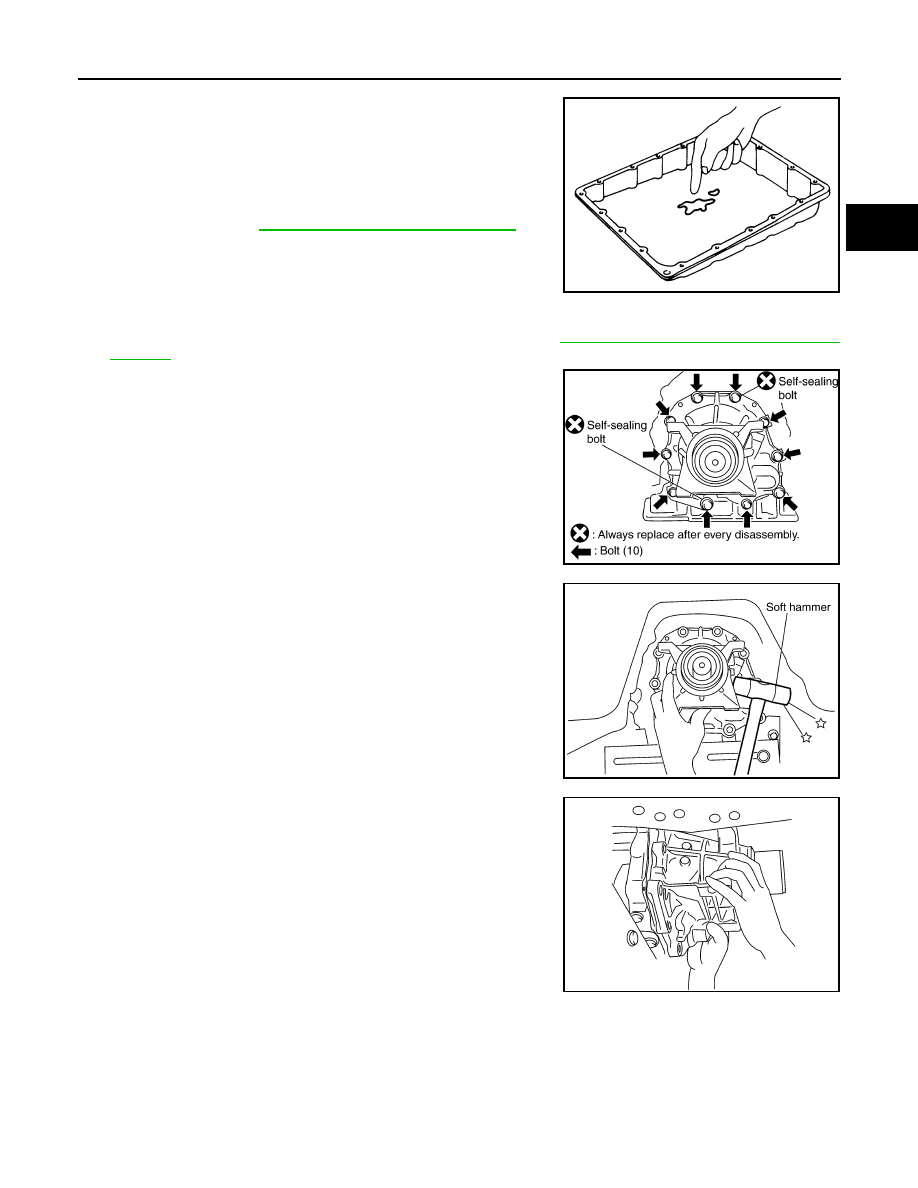

Check foreign materials in oil pan to help determine causes of
malfunction. If the ATF is very dark, smells burned, or contains
foreign particles, the frictional material (clutches, band) may
need replacement. A tacky film that will not wipe clean indicates
varnish build up. Varnish can cause valves, servo, and clutches
to stick and can inhibit pump pressure.
• If frictional material is detected, perform A/T fluid cooler

cleaning. Refer to

AT-13, "A/T Fluid Cooler Cleaning"

.

9.

Support A/T assembly with a transmission jack.

CAUTION:

When setting transmission jack, place wooden blocks to
prevent from damaging control valve with TCM and trans-
mission case.

10. Remove rear engine mounting member with power tool. Refer to

AT-241, "Removal and Installation (2WD

Models)"

.

11. Remove tightening bolts for rear extension assembly and trans-

mission case.

12. Tap rear extension assembly with soft hammer.

13. Remove rear extension assembly from transmission case. (With

needle bearing.)

SCIA5199E

SCIA6941E

SCIA3432E

SCIA3431E
