AT-28

< SERVICE INFORMATION >

A/T CONTROL SYSTEM

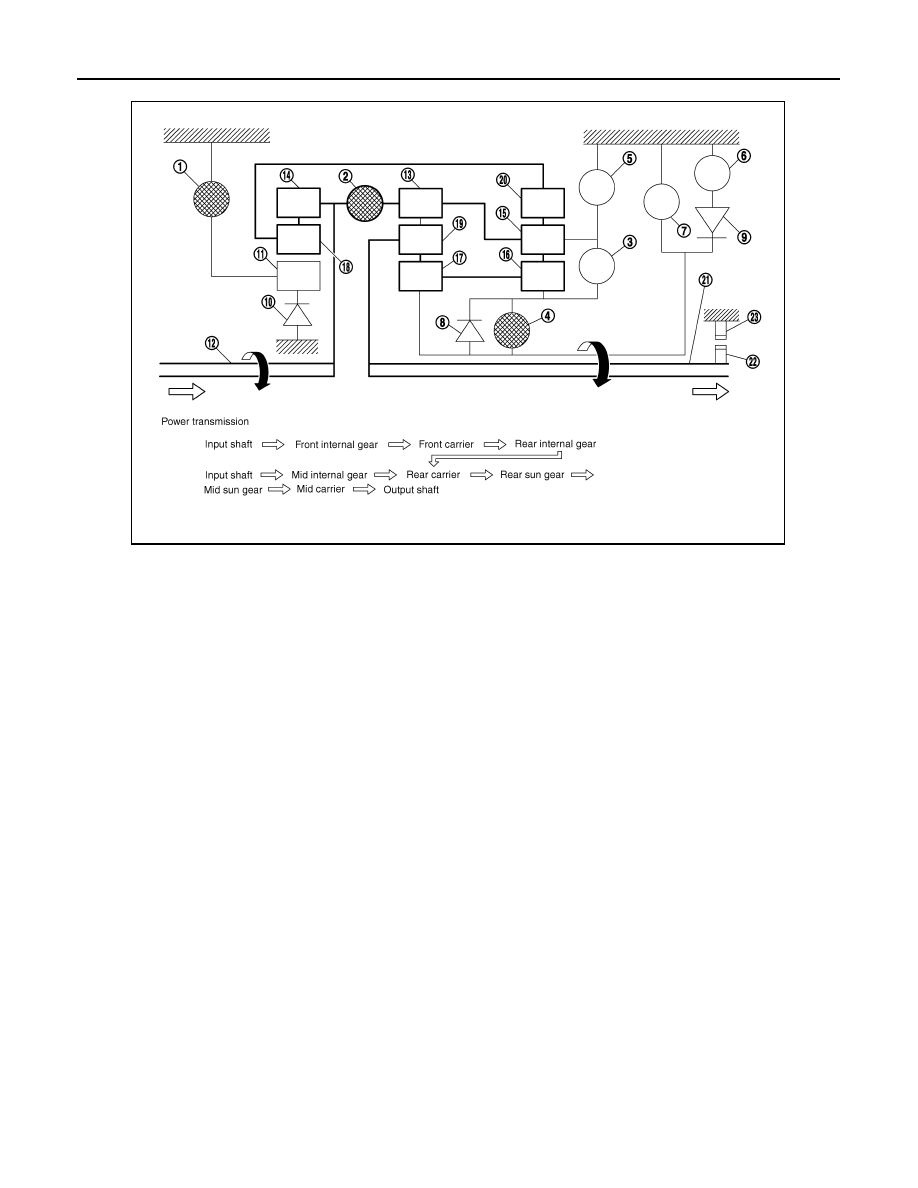

“R” Position

• The front brake fastens the front sun gear.
• The high and low reverse clutch is coupled, and the mid sun gear and rear sun gear are connected.
• The reverse brake fastens the rear carrier.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11.

Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA4984E

A/T CONTROL SYSTEM

AT-29

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

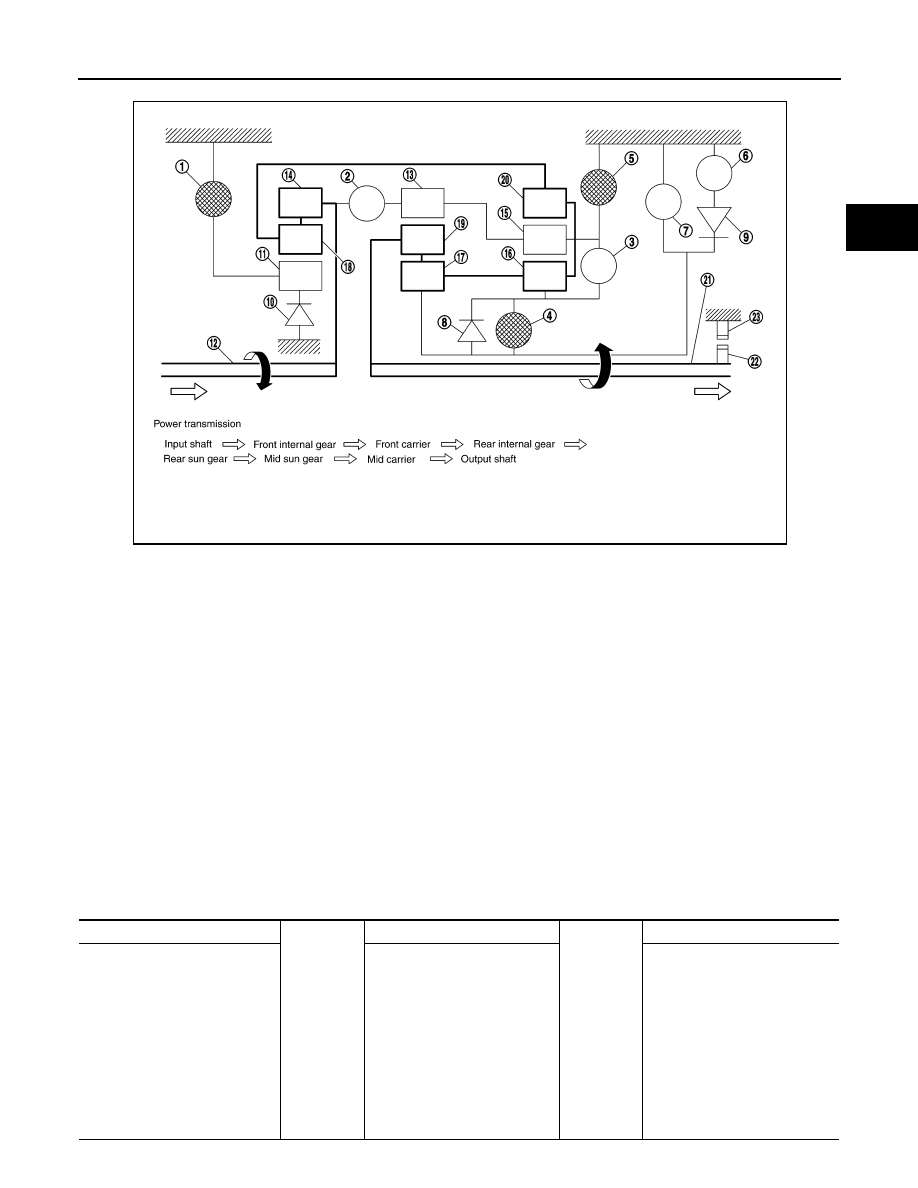

TCM Function

INFOID:0000000001327135

The function of the TCM is to:
• Receive input signals sent from various switches and sensors.
• Determine required line pressure, shifting point, lock-up operation, and engine brake operation.
• Send required output signals to the respective solenoids.

CONTROL SYSTEM OUTLINE

The automatic transmission senses vehicle operating conditions through various sensors or signals. It always
controls the optimum shift position and reduces shifting and lock-up shocks.

1.

Front brake

2.

Input clutch

3.

Direct clutch

4.

High and low reverse clutch

5.

Reverse brake

6.

Forward brake

7.

Low coast brake

8.

1st one-way clutch

9.

Forward one-way clutch

10. 3rd one-way clutch

11.

Front sun gear

12. Input shaft

13. Mid internal gear

14. Front internal gear

15. Rear carrier

16. Rear sun gear

17. Mid sun gear

18. Front carrier

19. Mid carrier

20. Rear internal gear

21. Output shaft

22. Parking gear

23. Parking pawl

SCIA1519E

SENSORS (or SIGNALS)

⇒

TCM

⇒

ACTUATORS

PNP switch
Accelerator pedal position signal
Closed throttle position signal
Wide open throttle position signal
Engine speed signal
A/T fluid temperature sensor
Revolution sensor
Vehicle speed signal
Manual mode switch signal
Stop lamp switch signal
Turbine revolution sensor
ATF pressure switch

Shift control
Line pressure control
Lock-up control
Engine brake control
Timing control
Fail-safe control
Self-diagnosis
CONSULT-III communication
line
Duet-EA control
CAN system

Input clutch solenoid valve
Direct clutch solenoid valve
Front brake solenoid valve
High and low reverse clutch sole-
noid valve
Low coast brake solenoid valve
Torque converter clutch solenoid
valve
Line pressure solenoid valve
A/T CHECK indicator lamp
Starter relay
Back-up lamp relay

AT-30

< SERVICE INFORMATION >

A/T CONTROL SYSTEM

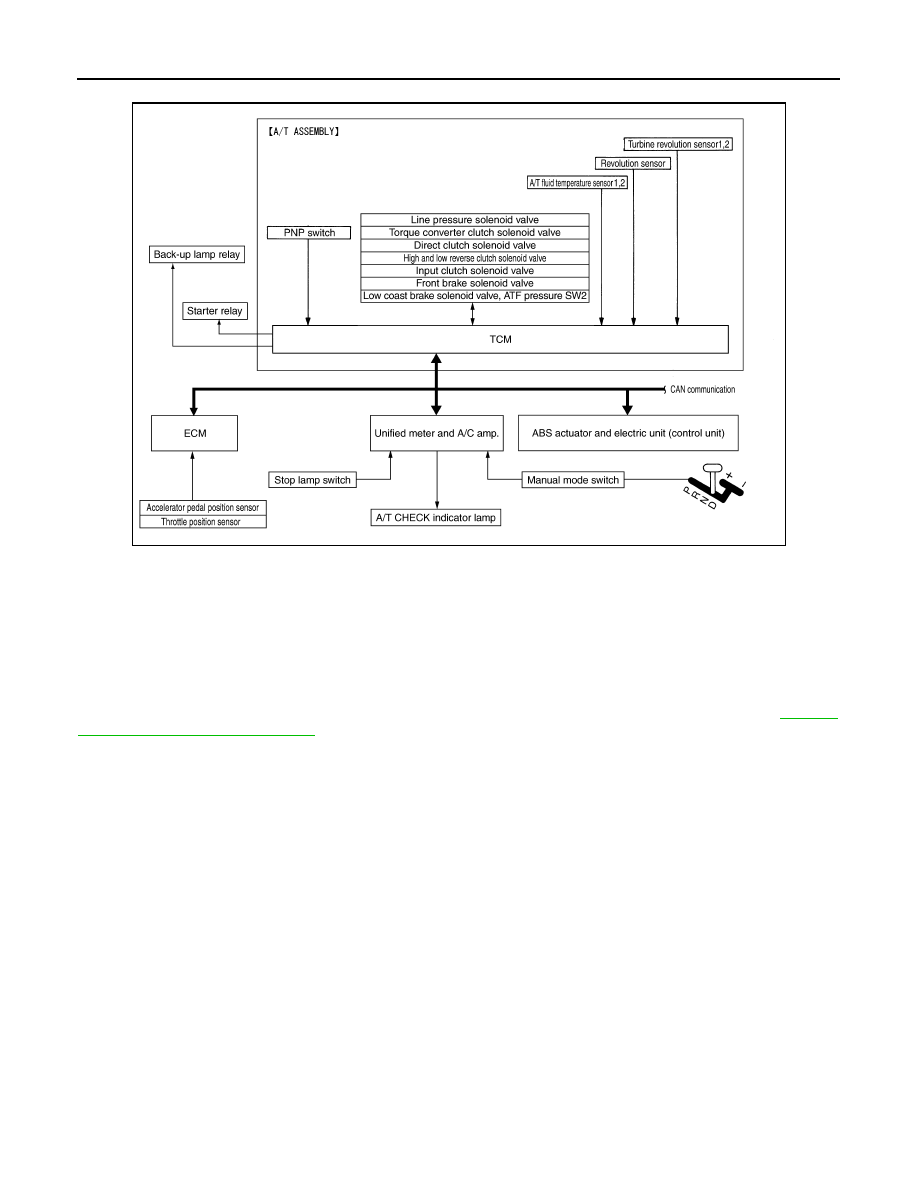

CONTROL SYSTEM DIAGRAM

CAN Communication

INFOID:0000000001327136

SYSTEM DESCRIPTION

CAN (Controller Area Network) is a serial communication line for real time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independent). In CAN communication, control units are connected with 2
communication lines (CAN-H line, CAN-L line) allowing a high rate of information transmission with less wiring.
Each control unit transmits/receives data but selectively reads required data only. For details, refer to

LAN-43,

"CAN System Specification Chart"

.

JPDIA0484GB

A/T CONTROL SYSTEM

AT-31

< SERVICE INFORMATION >

D

E

F

G

H

I

J

K

L

M

A

B

AT

N

O

P

Input/Output Signal of TCM

INFOID:0000000001327137

*1: Spare for vehicle speed sensor·A/T (revolution sensor)

*2: Spare for accelerator pedal position signal

*3: If these input and output signals are different, the TCM triggers the fail-safe function.

*4: Used as a condition for starting self-diagnostics; if self-diagnostics are not started, it is judged that there is some kind of error.

*5: Input by CAN communications

*6: Output by CAN communications

Line Pressure Control

INFOID:0000000001327138

• When an input torque signal equivalent to the engine drive force is sent from the ECM to the TCM, the TCM

controls the line pressure solenoid.

Control item

Line

pressure

control

Vehicle

speed

control

Shift

control

Lock-up

control

Engine

brake

control

Fail-safe

function

(*3)

Self-diag-

nostics

function

Input

Accelerator pedal position signal

(*5)

X

X

X

X

X

X

X

Vehicle speed sensor A/T
(revolution sensor)

X

X

X

X

X

X

X

Vehicle speed sensor MTR

(*1) (*5)

X

Closed throttle position signal

(*5)

X (*2)

X

X

X

X (*4)

Wide open throttle position signal

(*5)

X

X  (*4)

Turbine revolution sensor 1

X

X

X

X

X

Turbine revolution sensor 2
(for 4th speed only)

X

X

X

X

X

Engine speed signals

(*5)

X

X

X

X

X

X

X

Stop lamp switch signal

(*5)

X

X

X

X  (*4)

A/T fluid temperature sensors 1, 2

X

X

X

X

X

X

ASCD or
ICC

Operation signal

(*5)

X

X

X

Overdrive cancel sig-

nal

(*5)

X

Out-
put

Direct clutch solenoid

X

X

X

X

Input clutch solenoid

X

X

X

X

High and low reverse clutch sole-
noid

X

X

X

X

Front brake solenoid

X

X

X

X

Low coast brake solenoid (ATF
pressure switch 2)

X

X

X

X

X

Line pressure solenoid

X

X

X

X

X

X

X

TCC solenoid

X

X

X

Self-diagnostics table

(*6)

X

Starter relay

X

X
