Infiniti FX35 / FX45. Manual - part 1





ACC-2

< SERVICE INFORMATION >

PRECAUTIONS

SERVICE INFORMATION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000001612922

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SUPPLEMENTAL RESTRAINT SYS-
TEM” and “SEAT BELTS” of this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SUPPLEMENTAL RESTRAINT SYSTEM”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

ACCELERATOR CONTROL SYSTEM

ACC-3

< SERVICE INFORMATION >

C

D

E

F

G

H

I

J

K

L

M

A

ACC

N

P

O

ACCELERATOR CONTROL SYSTEM

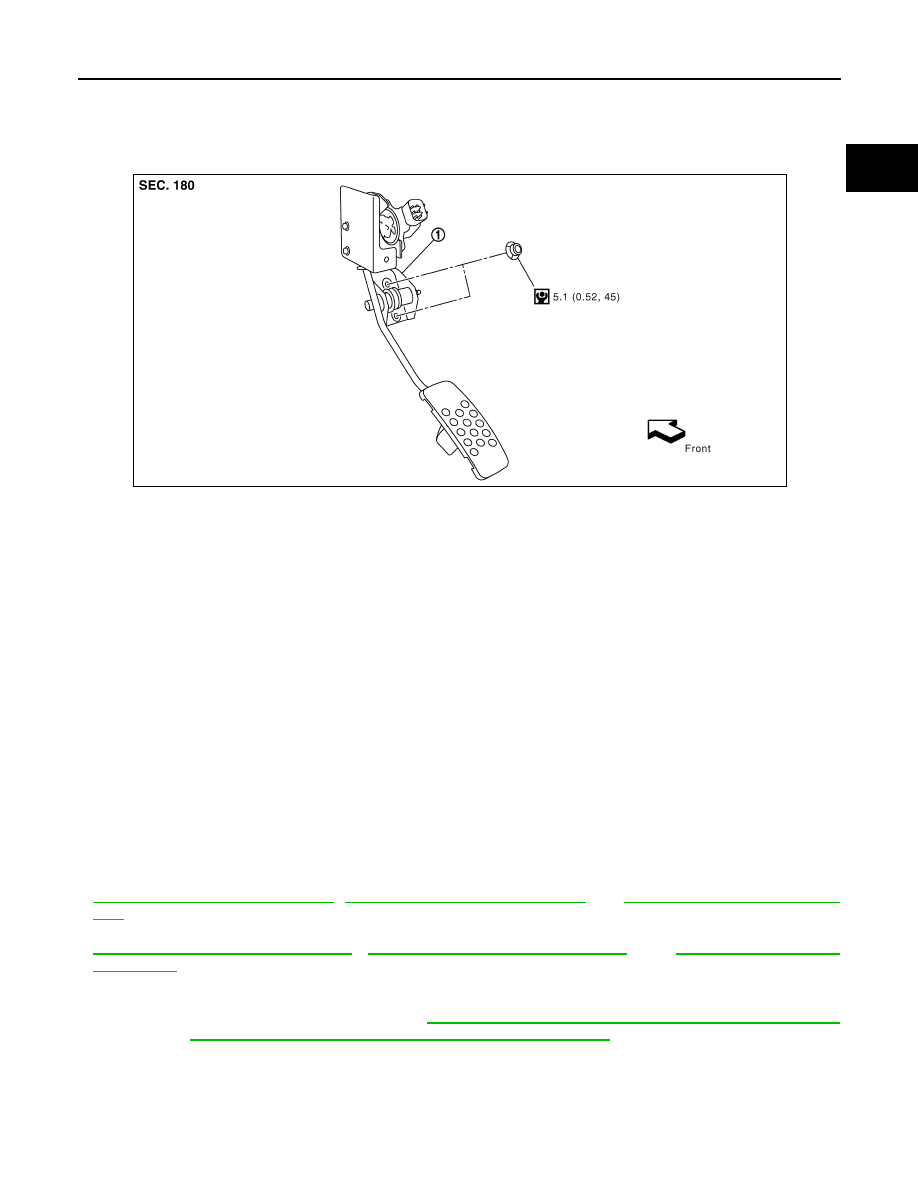

Component

INFOID:0000000001327118

Removal and Installation

INFOID:0000000001327119

REMOVAL

1.

Disconnect accelerator pedal position sensor harness connector.

2.

Loosen mounting nuts, and remove accelerator pedal assembly.

CAUTION:

• Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sen-

sor from accelerator pedal assembly.

• Avoid impact from dropping etc. during handling.
• Be careful to keep accelerator pedal assembly away from water.

INSTALLATION

Installation is the reverse order of removal.

INSPECTION AFTER INSTALLATION

• Make sure accelerator pedal moves smoothly within the whole operation range when it is fully depressed

and released.

• Make sure accelerator pedal securely returns to the fully released position.
• For the electrical inspection of accelerator pedal position sensor, refer to the following.
- VQ35DE

EC-506, "Component Description"

,

EC-512, "Component Description"

 and

EC-524, "Component Descrip-

tion"

- VK45DE

EC-1104, "Component Description"

,

EC-1110, "Component Description"

 and

EC-1122, "Component

Description"

CAUTION:

When harness connector of accelerator pedal position sensor is disconnected, perform “Accelerator
Pedal Released Position Learning”. Refer to

EC-85, "Accelerator Pedal Released Position Learning"

(VQ35DE) or

EC-662, "Accelerator Pedal Released Position Learning"

 (VK45DE).

1.

Accelerator pedal assembly

JPBIA0991GB

ACS-1

ELECTRICAL

C

D

E

F

G

H

I

J

L

M

SECTION

ACS

A

B

ACS

N

O

P

CONTENTS

AUTO CRUISE CONTROL SYSTEM

ASCD

SERVICE INFORMATION  ............................

3

AUTOMATIC SPEED CONTROL DEVICE
(ASCD) ................................................................

3

Description ................................................................

3

ICC

SERVICE INFORMATION  ............................

4

DTC INDEX ..........................................................

4

DTC 11 - 65 ...............................................................

4

DTC 74 - 109 .............................................................

4

PRECAUTIONS ...................................................

5

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" ...................................................................

5

Precaution for ICC System Service ...........................

5

PREPARATION ...................................................

6

Special Service Tool  .................................................

6

DESCRIPTION ....................................................

7

Outline .......................................................................

7

Functional Diagram  ...................................................

7

Component Description .............................................

9

CAN Communication .................................................

9

Switch Operation .....................................................

10

ICC System Display  ................................................

10

ACTION TEST  ....................................................

11

ICC System Running Test .......................................

11

LASER BEAM AIMING ADJUSTMENT .............

14

Outline .....................................................................

14

Preparation ..............................................................

14

Outline of Adjustment Procedure  ............................

14

Setting the ICC Target Board ..................................

14

Aiming Adjustment  ..................................................

16

ELECTRICAL UNITS LOCATION  ....................

18

Component Parts and Harness Connector Loca-
tion ...........................................................................

18

WIRING DIAGRAM  ...........................................

19

Schematic ................................................................

19

Wiring Diagram - ICC -  ............................................

20

TERMINALS AND REFERENCE VALUE .........

27

Terminal and Reference Value for ICC Unit  ............

27

Terminal and Reference Value for ICC Sensor  .......

28

TROUBLE DIAGNOSIS — GENERAL DE-
SCRIPTION .......................................................

29

Work Flow ................................................................

29

CONSULT-III Function (ICC) ...................................

29

Self-Diagnostic Function ..........................................

32

TROUBLE DIAGNOSIS FOR SELF-DIAG-
NOSTIC ITEMS  .................................................

35

Diagnostic Trouble Code (DTC) Chart  ....................

35

DTC 11 CONTROL UNIT  ........................................

36

DTC 20 CAN COMM CIRCUIT ................................

36

DTC 31 POWER SUPPLY CIR, DTC 34 POWER
SUPPLY CIR 2  ........................................................

37

DTC 41 VHCL SPEED SE CIRC .............................

37

DTC 43 ABS/TCS/VDC CIRC .................................

38

DTC 45 BRAKE SW/STOP L SW ............................

38

DTC 46 OPERATION SW CIRC  .............................

40

DTC 61 PRESS SEN CIRCUIT ...............................

41

DTC 62 BOOSTER SOL/V CIRCUIT  ......................

42

DTC 63 RELEASE SW CIRCUIT ............................

43

DTC 65 PRESSURE CONTROL .............................

45

DTC 74 LASER BEAM OFF CNTR  .........................

45

DTC 90 STOP LAMP RLY FIX  ................................

46

DTC 92 ECM CIRCUIT ............................................

50

DTC 96 NP RANGE  ................................................

51

DTC 97 AT CIRCUIT  ...............................................

52

DTC 98 GEAR POSITION .......................................

52

DTC 102 RADAR STAIN  .........................................

53

DTC 103 LASER SENSOR FAIL .............................

53
