Precaution for Procedure without Cowl Top Cover

INFOID:0000000003140118

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc.

Precaution for Work

INFOID:0000000003140119

• After removing and installing the opening/closing parts, be sure to carry out fitting adjustments to check their

operation.

• Check the lubrication level, damage, and wear of each part. If necessary, grease or replace it.

PIIB3706J

INT-10

< PREPARATION >

PREPARATION

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000003140120

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Commercial Service Tools

INFOID:0000000003140121

Tool number
(Kent-Moore No.)
Tool name

Description

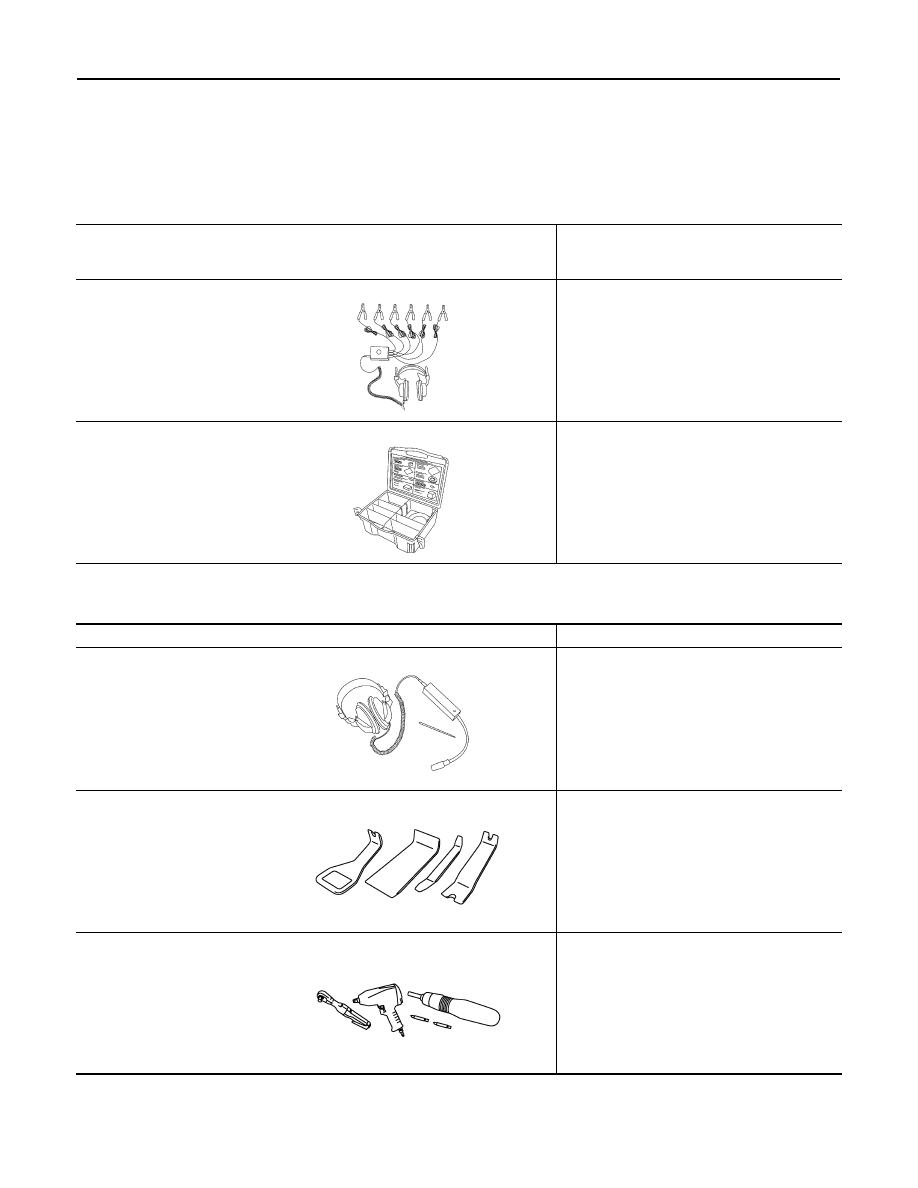

(J-39570)
Chassis ear

Location the noise

(J-43980)
NISSAN Squeak and Rattle
Kit

Repairing the cause of noise

SIIA0993E

SIIA0994E

Tool name

Description

Engine ear

Location the noise

Remover tool

Remove clips, pawls, metal clips

Power tool

SIIA0995E

PIIB7923J

PIIB1407E
