Infiniti EX35. Manual - part 965





COMBINATION METER

INL-97

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

DTC Index

INFOID:0000000003757124

Refer to

MWI-101, "DTC Index"

.

Function

Specifications

Speedometer

Reset to zero by suspending communication.

Tachometer

Fuel gauge

Water temperature gauge

Illumination control

When suspending communication, change to nighttime mode.

Information display

The display turns off by suspending communication.

Buzzer

The buzzer turns off by suspending communication.

Warning lamp/indicator
lamp

ABS warning lamp

The lamp turns on by suspending communication.

VDC OFF indicator lamp

SLIP indicator lamp

Brake warning lamp

CRUISE warning lamp

High beam indicator

The lamp turns off by suspending communication.

Turn signal indicator lamp

Light indicator lamp

Oil pressure warning lamp

Malfunction indicator lamp

A/T CHECK warning lamp

AWD warning lamp

Low tire pressure warning lamp

Key warning lamp

AFS OFF indicator lamp

Lane departure warning lamp

LDP ON indicator lamp

Master warning lamp

INL-98

< SYMPTOM DIAGNOSIS >

INTERIOR LIGHTING SYSTEM SYMPTOMS

SYMPTOM DIAGNOSIS

INTERIOR LIGHTING SYSTEM SYMPTOMS

Symptom Table

INFOID:0000000003135173

CAUTION:

Perform the self-diagnosis with CONSULT-III before the symptom diagnosis. Perform the trouble diag-
nosis if any DTC is detected.

Symptom

Possible cause

Inspection item

All the following lamps do not turn ON.
• Map  lamp
• Personal  lamp
• Foot  lamp
• Luggage room lamp
• Step  lamp
• Vanity mirror lamp

• Harness between BCM and each

interior room lamp

• BCM

Interior room lamp power supply cir-
cuit
Refer to

INL-20

.

• Interior room lamp does not turn ON even

though the door is open.
(It turns ON when turning the interior room
lamp ON.)

• Interior room lamp does not turn OFF even

though the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and each

interior room lamp

• BCM

Door switch circuit
Refer to

DLK-63

.

Interior room lamp control circuit
Refer to

INL-22

.

• Puddle lamp does not turn ON even though the

door is open.

• Puddle lamp does not turn OFF even though

the door is closed.

• Harness between BCM and each

door switch

• Harness between BCM and puddle

lamp

• BCM

Door switch circuit
Refer to

DLK-63

.

Puddle lamp circuit
Refer to

INL-22

.

Interior room lamp timer does not activate.
(It turns ON/ OFF when the door opens/closes.)

Check the interior room lamp setting.
Refer to

INL-16

.

Step lamps (driver side and passenger side) do
not turn ON.
(The map lamp and the personal lamp turn ON.)

• Harness between BCM and each

step lamp

• BCM

Step lamp circuit
Refer to

INL-24

.

Step lamps (driver side and passenger side) do
not turn OFF.
(The map lamp and the personal lamp turn OFF.)

Push-button ignition switch illumination does not
illuminate.

• Harness between BCM and push-

button ignition switch

• BCM

Push-button ignition switch illumina-
tion circuit
Refer to

INL-27

.

Interior room lamp battery saver does not acti-
vate.

Check the interior room lamp battery
saver setting.
Refer to

INL-17

.

PRECAUTIONS

INL-99

< PRECAUTION >

C

D

E

F

G

H

I

J

K

M

A

B

INL

N

O

P

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003135174

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

INL-100

< ON-VEHICLE REPAIR >

MAP LAMP

ON-VEHICLE REPAIR

MAP LAMP

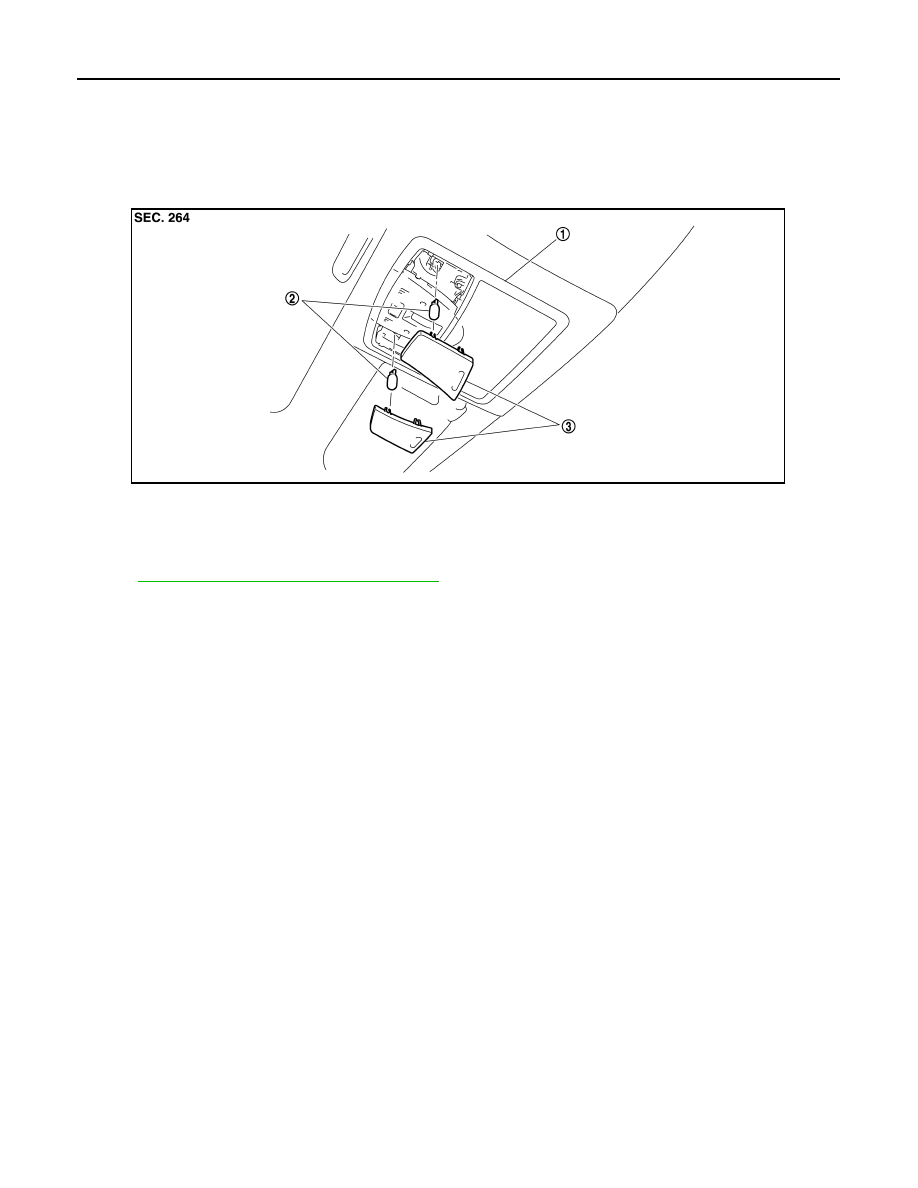

Exploded View

INFOID:0000000003135175

Removal and Installation

INFOID:0000000003135176

Refer to

INT-26, "NORMAL ROOF : Exploded View"

 for the map lamp assembly installation/removal.

Replacement

INFOID:0000000003135177

CAUTION:

• Disconnect the battery negative terminal or remove the fuse.
• Never touch the glass of bulb directly by hand. Keep grease and other oily matters away from it.

Never touch bulb by hand while it is lit or right after being turned off.

• Never leave bulb out of lamp reflector for a long time because dust, moisture smoke, etc. may affect

the performance of lamp. When replacing bulb, be sure to replace it with new one.

MAP LAMP BULB

1.

Insert any appropriate tool into the gap between the lens. Remove the lens.

2.

Remove the bulb.

1.

Map lamp assembly

2.

Bulb

3.

Lens

JPLIA0059ZZ
