Infiniti EX35. Manual - part 885





GW-26

< ON-VEHICLE REPAIR >

REAR REGULATOR

REAR REGULATOR

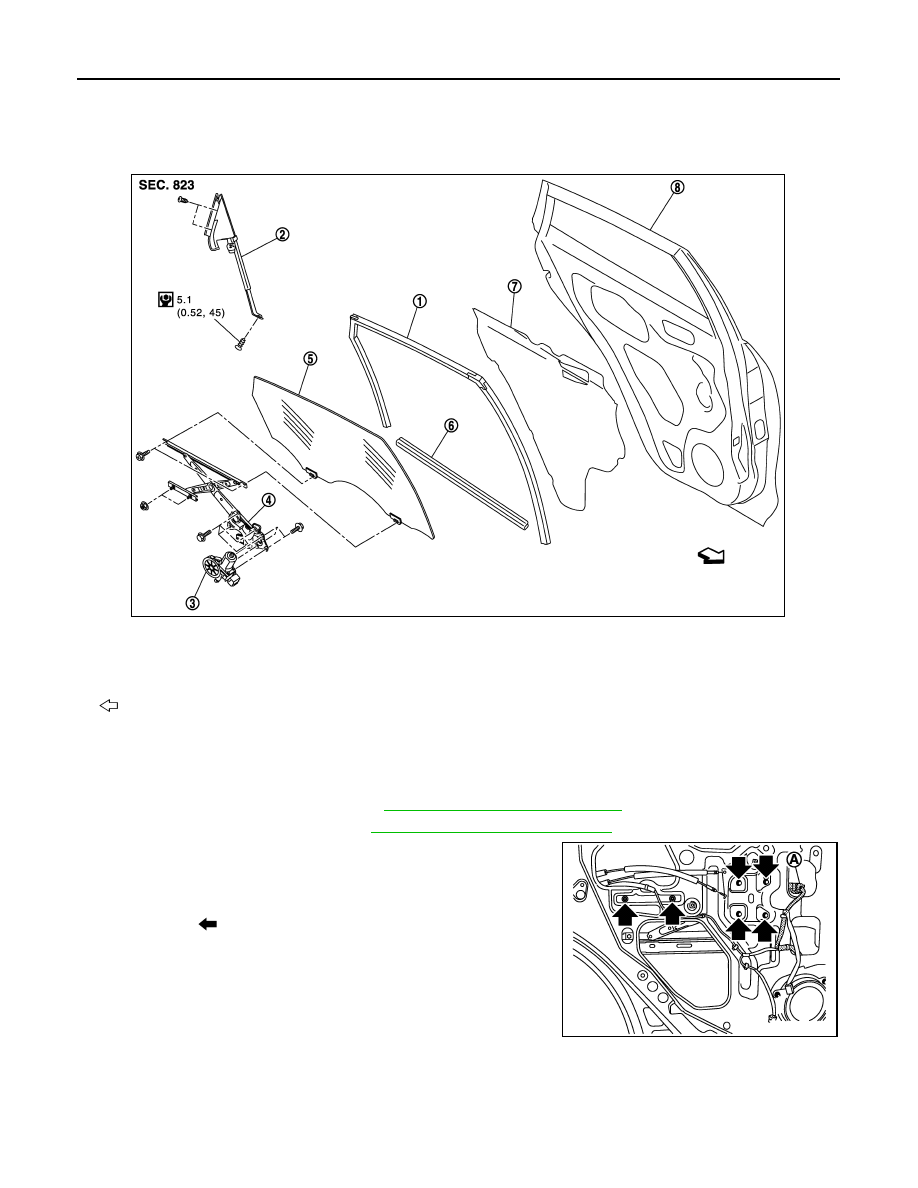

Exploded View

INFOID:0000000003744111

Removal and Installation

INFOID:0000000003566741

REMOVAL

1.

Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2.

Remove the rear door glass. Refer to

GW-23, "Removal and Installation"

.

3.

Remove the regulator mounting bolts, disconnect the power win-
dow motor harness connector (A) and then remove the regulator
from the door panel.

4.

Remove the rear door glass run.

INSTALLATION

Install in the reverse order of removal.

1.

Rear door glass run

2.

Corner piece assembly

3.

Power window motor

4.

Regulator assembly

5.

Rear door glass

6.

Rear door inside seal

7.

Sealing screen

8.

Rear door panel

: Vehicle front

JMKIA1950GB

: Bolt

JMKIA1790ZZ

REAR REGULATOR

GW-27

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

Disassembly and Assembly

INFOID:0000000003566742

DISASSEMBLY

Remove power window motor from regulator assembly.

ASSEMBLY

Assemble in the reverse order of disassembly.

Inspection and Adjustment

INFOID:0000000003566743

Inspection after Removal

Check the regulator assembly for the following items. Replace or grease it if a malfunction is detected.
• Wire wear
• Regulator deformation

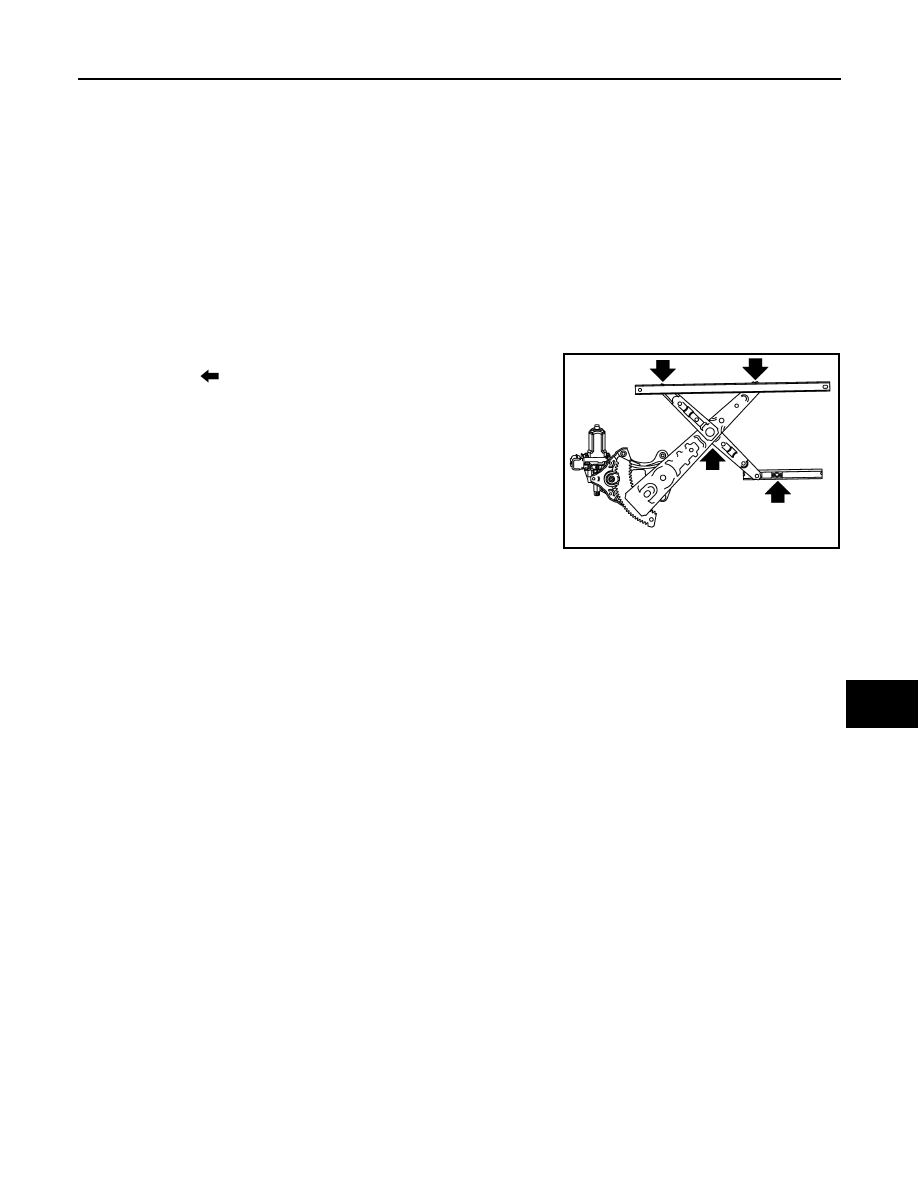

The arrows in the figure show the application points of the multi-purpose grease.

FITTING INSPECTION

• Check that the glass is fit securely into the sash groove.
• Lower the glass slightly [approximately 10 to 20 mm (0.394 to 0.787 in)], and check that the clearance to the

sash is parallel. Loosen the regulator mounting bolts, guide rail mounting bolts, and glass and carrier plate
mounting bolts to correct the glass position if the clearance between the glass and sash is not parallel.

 : Grease application point

JMKIA1791ZZ

HA-1

VENTILATION, HEATER & AIR CONDITIONER

C

D

E

F

G

H

J

K

L

M

SECTION

HA

A

B

HA

N

O

P

CONTENTS

HEATER & AIR CONDITIONING SYSTEM

BASIC INSPECTION  ....................................

3

DIAGNOSIS AND REPAIR WORKFLOW  ..........

3

Work Flow  .................................................................

3

FUNCTION DIAGNOSIS ...............................

4

REFRIGERATION SYSTEM  ...............................

4

System Diagram ........................................................

4

System Description  ...................................................

4

Component Parts Location ........................................

5

Component Description .............................................

6

SYMPTOM DIAGNOSIS  ...............................

7

REFRIGERATION SYSTEM SYMPTOMS ..........

7

Trouble Diagnosis For Unusual Pressure  .................

7

Symptom Table  .........................................................

7

PRECAUTION ..............................................

11

PRECAUTIONS ..................................................

11

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................

11

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................

11

Precaution for Procedure without Cowl Top Cover

....

12

Precautions For Xenon Headlamp Service  .............

12

Working with HFC-134a (R-134a)  ...........................

12

General Refrigerant Precaution  ..............................

13

Refrigerant Connection  ...........................................

13

Service Equipment  ..................................................

17

COMPRESSOR  ..................................................

20

General Precautions  ...............................................

20

LEAK DETECTION DYE  ....................................

21

General Precautions  ...............................................

21

PREPARATION ...........................................

22

PREPARATION ..................................................

22

Special Service Tool ................................................

22

Commercial Service Tool  ........................................

25

Sealant or/and Lubricant  .........................................

25

ON-VEHICLE MAINTENANCE ....................

26

REFRIGERANT .................................................

26

Collection and Charge  .............................................

26

LUBRICANT ......................................................

30

Maintenance of Lubricant Quantity ..........................

30

Lubricant Adjusting Procedure for Components
Replacement Except Compressor ...........................

30

Lubricant Adjusting Procedure for Compressor
Replacement ...........................................................

31

REFRIGERATION SYSTEM  .............................

33

Inspection ................................................................

33

Performance Chart  ..................................................

33

Refrigerant Leakages  ..............................................

34

FLUORESCENT LEAK DETECTOR  ................

35

Inspection ................................................................

35

ELECTRICAL LEAK DETECTOR  ....................

36

Inspection ................................................................

36

ON-VEHICLE REPAIR .................................

39

COMPRESSOR .................................................

39

Exploded View .........................................................

39

Removal and Installation  .........................................

39

Inspection ................................................................

40

LOW-PRESSURE FLEXIBLE HOSE ................

41

Exploded View .........................................................

41

Removal and Installation  .........................................

41

HIGH-PRESSURE FLEXIBLE HOSE  ...............

43

Exploded View .........................................................

43

Removal and Installation  .........................................

43

HIGH-PRESSURE PIPE 1 .................................

45

HA-2

Exploded View  ........................................................

45

Removal and Installation  ........................................

45

LOW-PRESSURE PIPE 2  ..................................

48

Exploded View  ........................................................

48

Removal and Installation  ........................................

48

LOW-PRESSURE PIPE 1 AND HIGH-PRES-
SURE PIPE 2  .....................................................

50

Exploded View  ........................................................

50

Removal and Installation  ........................................

50

CONDENSER ....................................................

53

Exploded View  ........................................................

53

Removal and Installation  ........................................

53

CONDENSER PIPE ASSEMBLY  ......................

55

Exploded View  ........................................................

55

Removal and Installation  ........................................

55

LIQUID TANK  ....................................................

57

Exploded View  ........................................................

57

Removal and Installation  ........................................

57

REFRIGERANT PRESSURE SENSOR  ............

58

Exploded View  ........................................................

58

Removal and Installation .........................................

58

EVAPORATOR ..................................................

59

Exploded View  ........................................................

59

Removal and Installation .........................................

60

EXPANSION VALVE  .........................................

61

Exploded View  ........................................................

61

Removal and Installation .........................................

62

SERVICE DATA AND SPECIFICATIONS
(SDS) ..........................................................

63

SERVICE DATA AND SPECIFICATIONS
(SDS) .................................................................

63

Compressor ............................................................

63

Lubricant .................................................................

63

Refrigerant ..............................................................

63

Engine Idling Speed ................................................

63

Belt Tension  ............................................................

63
