BACK DOOR WINDOW GLASS

BACK DOOR WINDOW GLASS

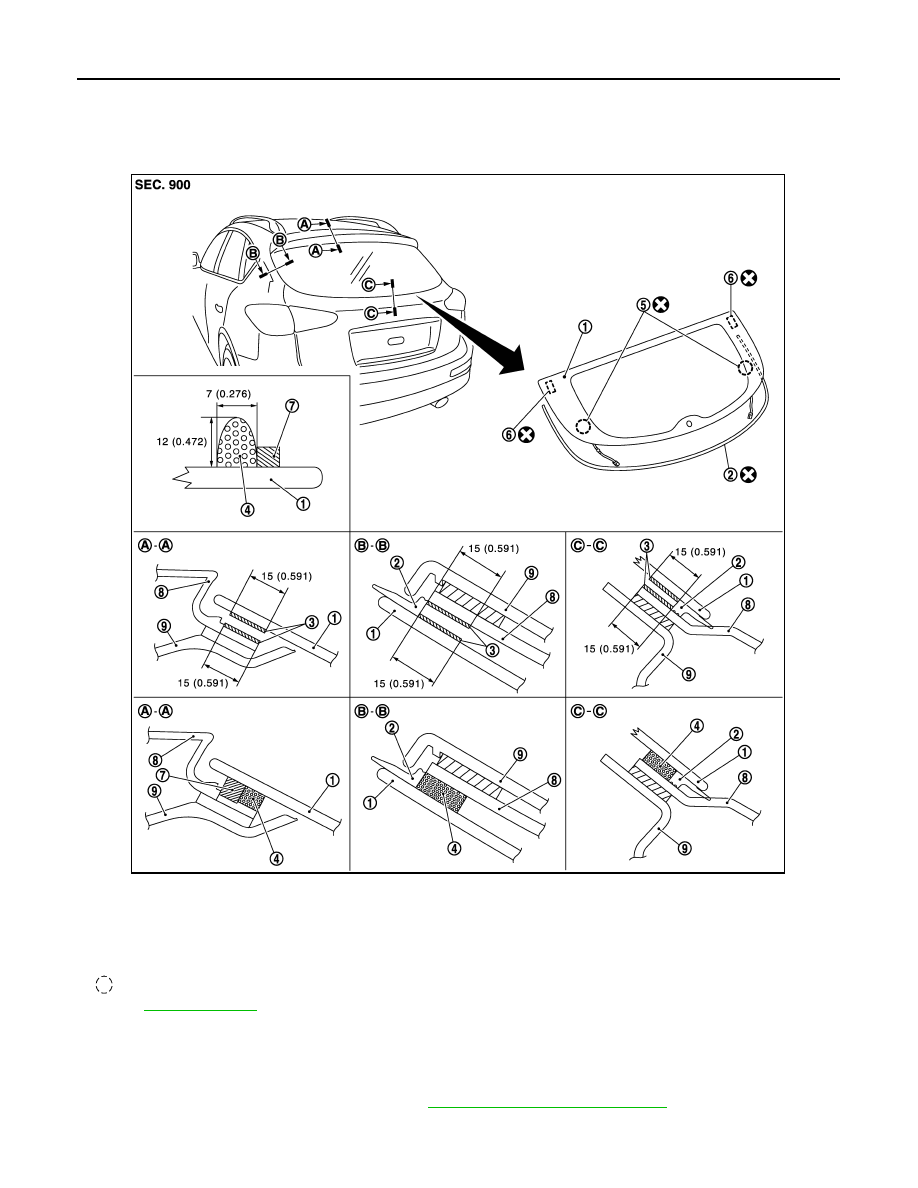

Exploded View

INFOID:0000000003566727

Removal and Installation

INFOID:0000000003566728

REMOVAL

1.

Remove the back door finisher inner. Refer to

INT-38, "Removal and Installation"

.

2.

Remove the connectors and grounds for the back door window defogger.

1.

Back door glass window

2.

Back door window molding

3.

Primer

4.

Adhesive

5.

Back door glass holder

6.

Fastener

7.

Dam-rubber

8.

Back door outer

9.

Back door inner

Unit: mm (in)

Clip

Refer to

GI-4, "Components"

 for symbols in the figure.

JMKIA1943GB

BACK DOOR WINDOW GLASS

GW-15

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

3.

Remove the rear wiper arm and motor. Refer to

WW-111, "Removal and Installation"

and

WW-113,

"Removal and Installation"

.

4.

Apply protective tape around the back door window glass to protect the painted surface from damage.

5.

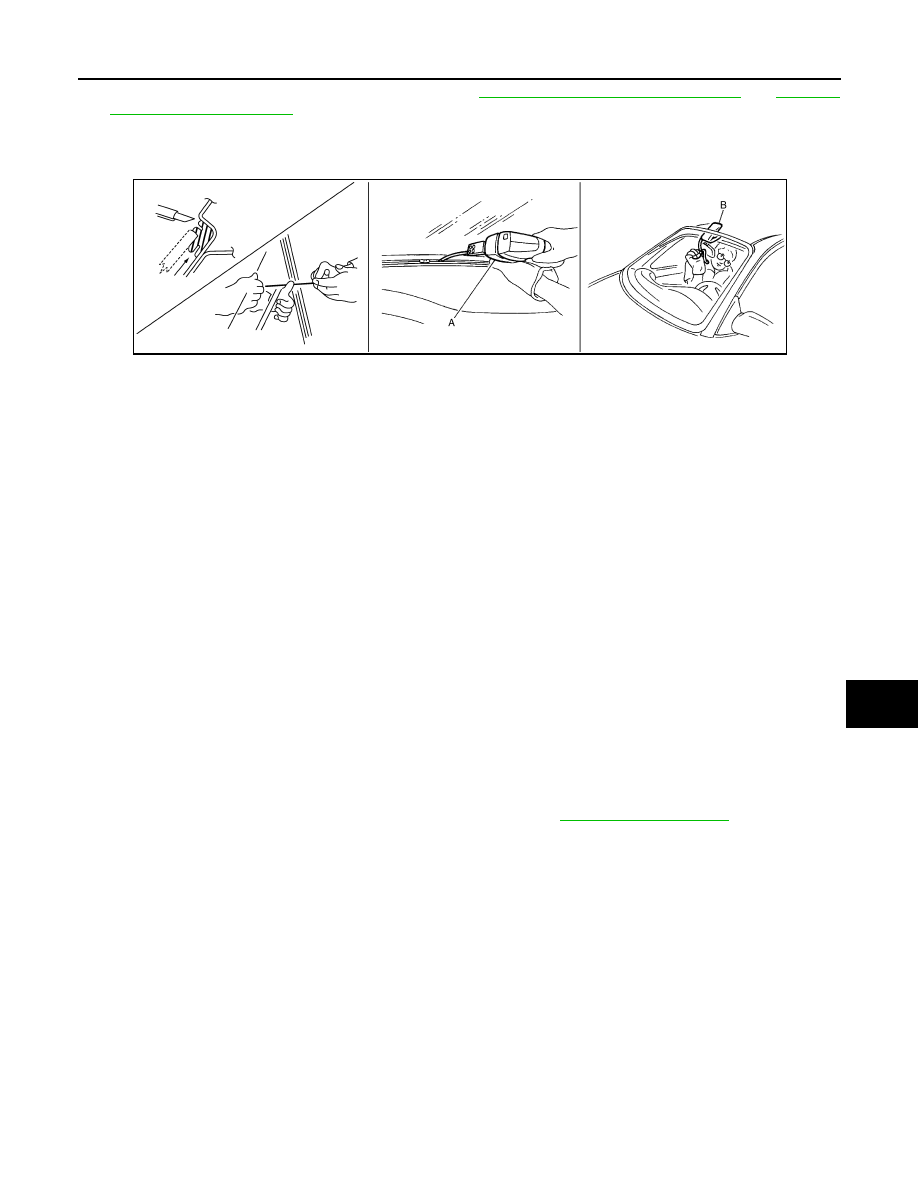

Remove glass using piano wire or power cutting tool (A) and an inflatable pump bag (B) after removing
molding using pliers.

• NOTE:

Mark the body and the glass with matching marks if the back door window glass is reused.

WARNING:

Always wear safety glasses and heavy gloves to prevent injury.

CAUTION:

• Never use a cutting knife or power cutting tool when the back door window glass is reused.
• Be careful not to scratch the glass when removing.
• Never set or stand the glass on its edge. Small chips may develop into cracks.

INSTALLATION

• The dam rubber should be installed in position.
• Use a genuine Nissan Urethane Adhesive Kit (if available) or an equivalent and follow the instructions fur-

nished with it.

• Open a door window while the urethane adhesive is curing. This prevents the glass from being forced out by

passenger compartment air pressure when all door windows are closed.

• Inform the customer that the vehicle should remain stationary until the urethane adhesive has completely

cured (approximately 24 hours). Curing time varies with temperature and humidity.

WARNING:

• Keep heat and open flames away as primers and adhesive are flammable.
• The materials contained in the kit are harmful if swallowed, and may irritate skin and eyes. Never

let them in contact with the skin and eyes.

• Use in an open, well ventilated location. Never breathe the vapors. They may be harmful if inhaled.

Move immediately to an area with fresh air if affected by vapor inhalation.

• Driving the vehicle before the urethane adhesive has completely cured may affect the performance

of the rear window in case of an accident.

CAUTION:

• Perform adjustment of rear wiper arm stop location. Refer to

WW-111, "Adjustment"

.

• Never use an adhesive which is past its usable term. Shelf life of this product is limited to six

months after the date of manufacture. Carefully adhere to the expiration or manufacture date
printed on the box.

• Keep primers and adhesive in a cool, dry place. Ideally, they should be stored in a refrigerator.
• Never leave primers or adhesive cartridge unattended with their caps open or off.
• The vehicle should not be driven for at least 24 hours or until the urethane adhesive has com-

pletely cured. Curing time varies depending on temperature and humidity. The curing time
increases under lower temperature and lower humidity.

• If the substrate of the glass joining surface on the back door panel side is exploded to the air,

exchange the back door assembly without recoating.

• Never apply paint on the back door panel surface which is in contact with the glass when replacing

the back door assembly.

Inspection

INFOID:0000000003566729

REPAIRING WATER LEAKAGE FOR BACK DOOR WINDOW GLASS

Leakage can be repaired without removing the glass.
Determine the extent of leakage if water is leaking between the urethane adhesive material and body or glass.

PIIB5779E

GW-16

< ON-VEHICLE REPAIR >

BACK DOOR WINDOW GLASS

This can be done by applying water to the back door window glass area while pushing glass outward.
Apply primer (if necessary) and then urethane adhesive to the leakage point to stop the leakage.

FRONT DOOR GLASS

GW-17

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

L

M

A

B

GW

N

O

P

FRONT DOOR GLASS

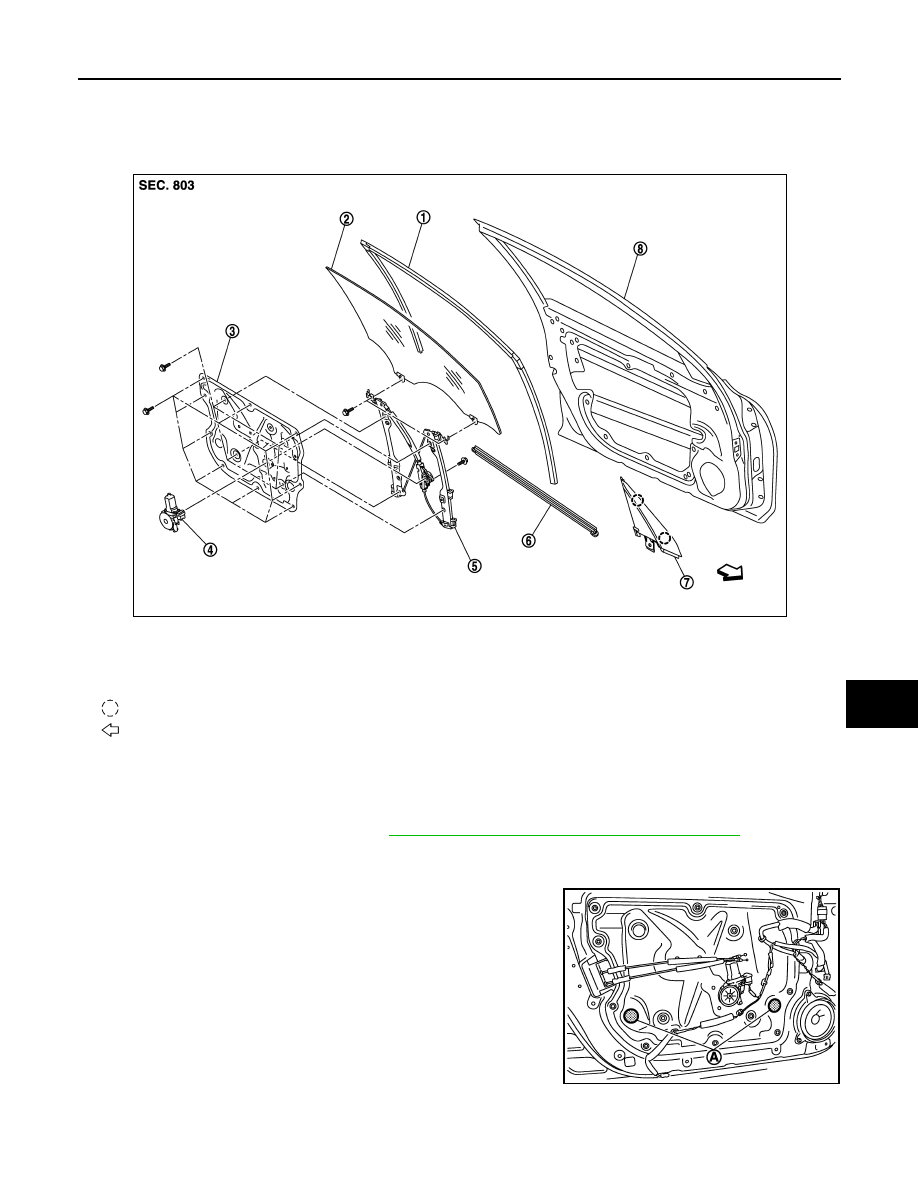

Exploded View

INFOID:0000000003566730

Removal and Installation

INFOID:0000000003566731

REMOVAL

1.

Remove the front door finisher. Refer to

INT-11, "DRIVER SIDE : Removal and Installation"

.

2.

Remove the front door mirror inner cover.

3.

Remove the front door inside seal.

4.

Remove both seals (A) as shown in the figure.

1.    Front door glass run

2.

Front door glass

3.

Module base

4.

Power window motor

5.

Regulator assembly

6.

Front door inside seal

7.

Corner cover

8.

Front door panel

: Clip

: Vehicle front

JMKIA1944ZZ

JMKIA1945ZZ
