ON-VEHICLE REPAIR

FRONT COIL SPRING AND STRUT

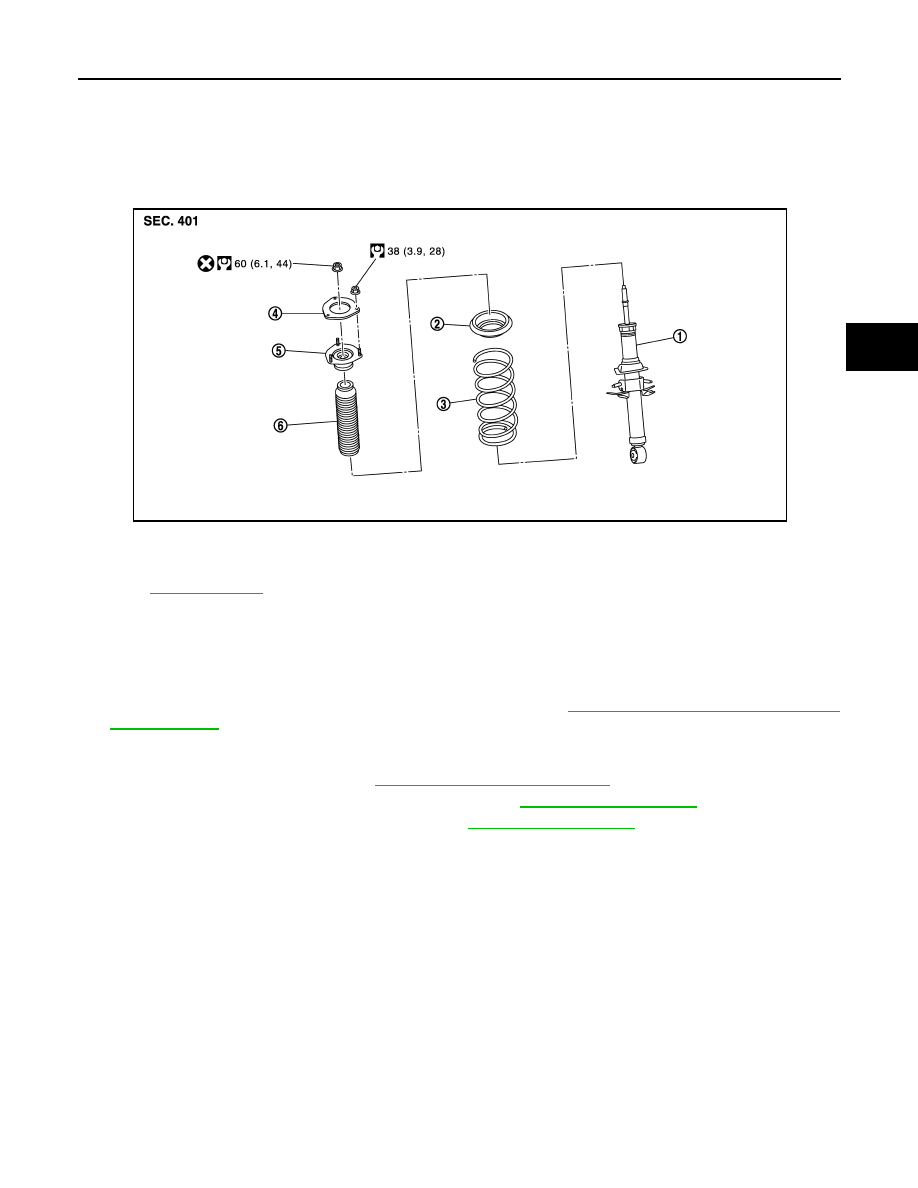

Exploded View

INFOID:0000000003129903

Removal and Installation

INFOID:0000000003129904

REMOVAL

1.

Remove tires with power tool.

2.

Remove wheel sensor and harness connector from strut. Refer to

BRC-107, "FRONT WHEEL SENSOR :

Exploded View"

.

CAUTION:

Never pull on wheel sensor harness.

3.

Remove brake hose bracket. Refer to

BR-20, "FRONT : Exploded View"

.

4.

Remove stabilizer connecting rod with power tool. Refer to

FSU-17, "Exploded View"

.

5.

Separate upper link from steering knuckle. Refer to

FAX-6, "Exploded View"

6.

Remove strut mounting bracket mounting nuts, and remove strut assembly.
NOTE:
If removing strut is difficult, loosen upper link mounting bolts (vehicle side).

INSTALLATION

Note the following, and install in the reverse order of removal.
• Never tap on the ball joint cap of the stabilizer connecting rod with a hammer or a similar item when inserting

the stabilizer connecting rod into the transverse link.

• Perform final tightening of bolts and nuts at the strut lower side (rubber bushing), under unladen conditions

with tires on level ground.

Disassembly and Assembly

INFOID:0000000003129905

DISASSEMBLY

CAUTION:

Never damage strut piston rod when removing components from strut.

1.

Strut

2.

Rubber seat

3.

Coil spring

4.

Mounting seal

5.

 Strut mounting bracket

6.

 Bound bumper

Refer to

GI-4, "Components"

 for symbols in the figure.

JPEIA0082GB

FSU-10

< ON-VEHICLE REPAIR >

[2WD]

FRONT COIL SPRING AND STRUT

1.

Install strut attachment (A) [SST: ST35652000 (

–

)] to strut

and secure it in a vise.

CAUTION:

When installing the strut attachment to strut, wrap a shop
cloth around strut to protect it from damage.

2.

Using a spring compressor (A) (commercial service tool), com-
press coil spring between rubber seat and strut until coil spring
with a spring compressor is free.

CAUTION:

Be sure a spring compressor is securely attached coil
spring. Compress coil spring.

3.

Make sure coil spring with a spring compressor between rubber
seat and strut is free. And then remove piston rod lock nut while
securing the piston rod tip so that piston rod does not turn.

4.

Remove mounting seal, strut mounting bracket, rubber seat,
bound bumper from strut.

5.

After remove coil spring with a spring compressor, and then
gradually release a spring compressor.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

6.

Remove the strut attachment from strut.

ASSEMBLY

1.

Install strut attachment (A) [SST: ST35652000 (

–

)] to strut and secure it in a vise.

CAUTION:

When installing the strut attachment to strut, wrap a shop cloth around strut to protect it from
damage.

2.

Compress coil spring using a spring compressor (commercial service tool), and install it onto strut.

CAUTION:

• Install with the large-diameter side (A) facing up and the

small-diameter side (B) facing down.

• Be sure a spring compress or is securely attached to coil

spring. Compress coil spring.

3.

Install the strut mounting bracket and rubber seat.

CAUTION:

Align the paint mark (A) to the stud bolt (1) position when
assembling.

4.

Apply soapy water to bound bumper.

CAUTION:

Never use machine oil.

JPEIA0006ZZ

JPEIA0007ZZ

PEIA0108E

JPEIA0009ZZ

FRONT COIL SPRING AND STRUT

FSU-11

< ON-VEHICLE REPAIR >

[2WD]

C

D

F

G

H

I

J

K

L

M

A

B

FSU

N

O

P

5.

Insert bound bumper into strut mounting bracket, and then install it to strut together with rubber seat.

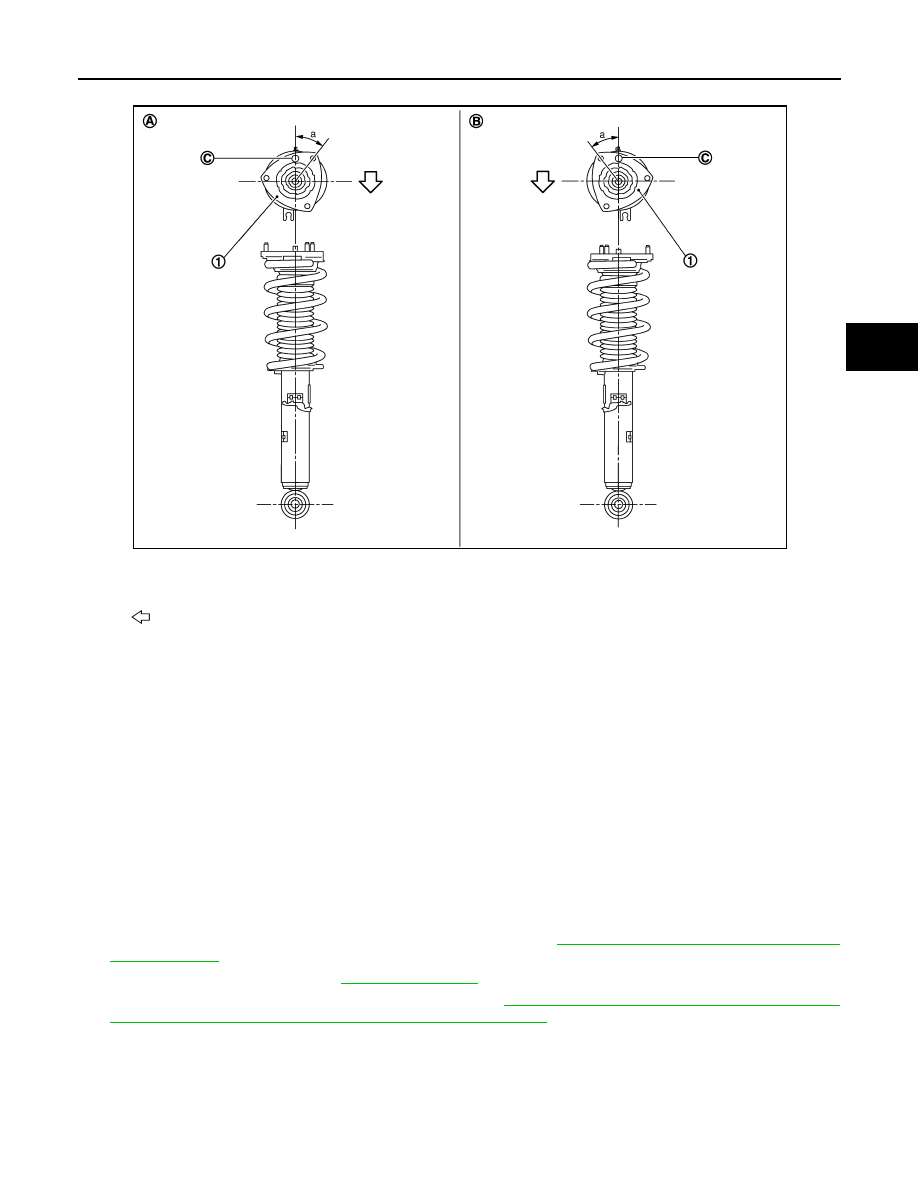

• Install the strut mounting bracket as shown in the figure.

• Check that the lower end of the coil spring (C) is positioned at the spring lower seat of the strut.

6.

Secure piston rod tip so that piston rod does not turn, then tighten piston rod lock nut with specified
torque.

7.

Gradually release a spring compressor, and remove coil spring.

CAUTION:

Loosen while making sure coil spring attachment position does not move.

8.

Remove the strut attachment from strut.

9.

Install the mounting seal to strut mounting bracket.

Inspection

INFOID:0000000003129906

INSPECTION AFTER INSTALLATION

1.

Check wheel sensor harness for proper connection. Refer to

BRC-107, "FRONT WHEEL SENSOR :

Exploded View"

.

2.

Check wheel alignment. Refer to

FSU-8, "Inspection"

.

3.

Adjust neutral position of steering angle sensor. Refer to

BRC-8, "ADJUSTMENT OF STEERING ANGLE

SENSOR NEUTRAL POSITION : Special Repair Requirement"

.

INSPECTION AFTER DISASSEMBLY

Strut

Check the following items, and replace the part if necessary.
• Strut for deformation, cracks or damage.
• Piston rod for damage, uneven wear or distortion.

1. Strut mounting bracket

A. Right side

B. Left side

: Vehicle front

Angle (a)

: 35.4

°

JPEIA0072ZZ

FSU-12

< ON-VEHICLE REPAIR >

[2WD]

FRONT COIL SPRING AND STRUT

• Oil leakage.

Strut Mounting Bracket and Rubber Parts Inspection

Check strut mounting bracket for cracks and rubber parts for wear. Replace it if necessary.

Coil Spring

Check coil spring for cracks, wear or damage. Replace it if necessary.
