Infiniti EX35. Manual - part 737





SERVICE DATA AND SPECIFICATIONS (SDS)

EM-147

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

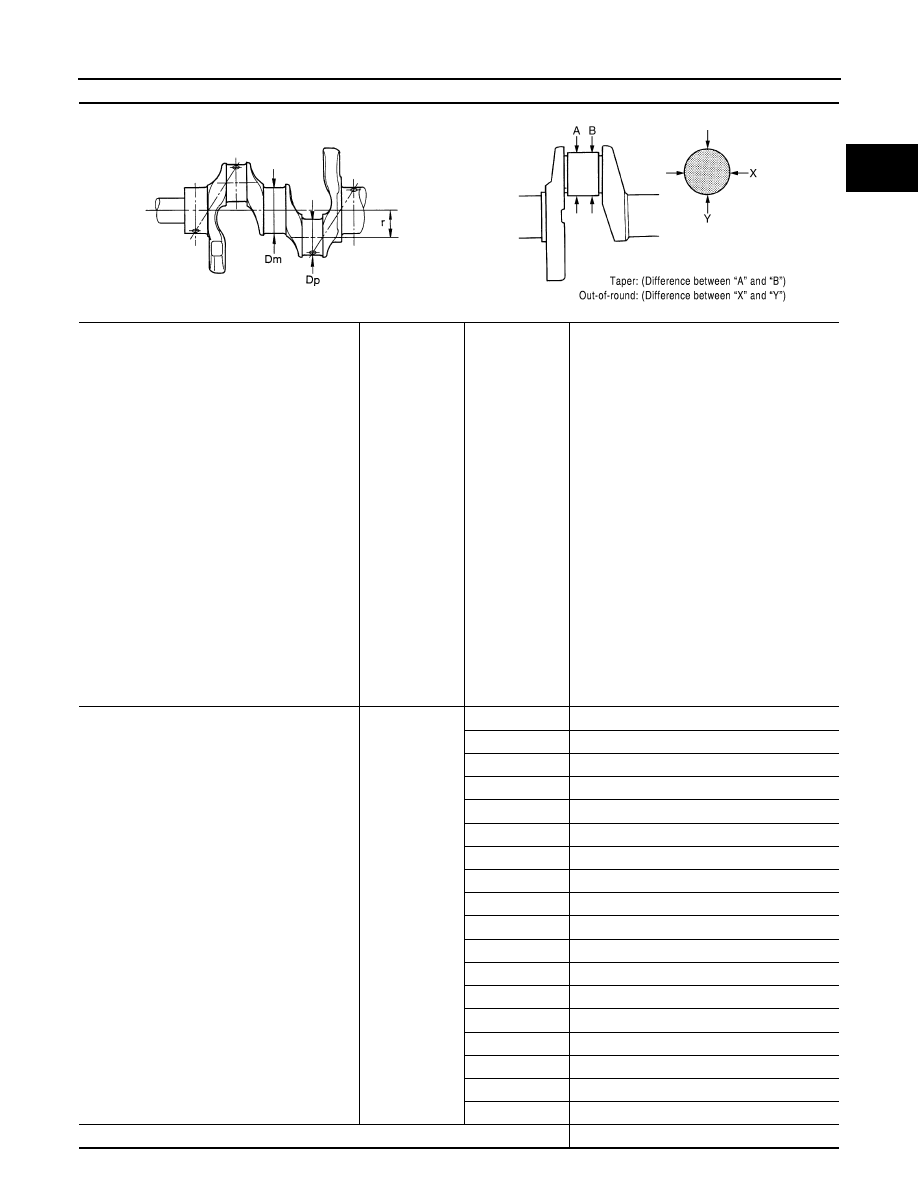

Main journal diameter. “Dm” grade

Standard

Grade No. A
Grade No. B
Grade No. C
Grade No. D
Grade No. E
Grade No. F
Grade No. G
Grade No. H
Grade No. J
Grade No. K
Grade No. L
Grade No. M
Grade No. N
Grade No. P
Grade No. R
Grade No. S
Grade No. T
Grade No. U
Grade No. V
Grade No. W
Grade No. X
Grade No. Y
Grade No. 4
Grade No. 7

64.975 - 64.974 (2.5581 - 2.5580)
64.974 - 64.973 (2.5580 - 2.5580)
64.973 - 64.972 (2.5580 - 2.5579)
64.972 - 64.971 (2.5579 - 2.5579)
64.971 - 64.970 (2.5579 - 2.5579)
64.970 - 64.969 (2.5579 - 2.5578)
64.969 - 64.968 (2.5578 - 2.5578)
64.968 - 64.967 (2.5578 - 2.5578)
64.967 - 64.966 (2.5578 - 2.5577)
64.966 - 64.965 (2.5577 - 2.5577)
64.965 - 64.964 (2.5577 - 2.5576)
64.964 - 64.963 (2.5576 - 2.5576)
64.963 - 64.962 (2.5576 - 2.5576)
64.962 - 64.961 (2.5576 - 2.5575)
64.961 - 64.960 (2.5575 - 2.5575)
64.960 - 64.959 (2.5575 - 2.5574)
64.959 - 64.958 (2.5574 - 2.5574)
64.958 - 64.957 (2.5574 - 2.5574)
64.957 - 64.956 (2.5574 - 2.5573)
64.956 - 64.955 (2.5573 - 2.5573)
64.955 - 64.954 (2.5573 - 2.5572)
64.954 - 64.953 (2.5572 - 2.5572)
64.953 - 64.952 (2.5572 - 2.5572)
64.952 - 64.951 (2.5572 - 2.5571)

Pin journal diameter. “Dp” grade

Standard

Grade No. A

53.974 - 53.973 (2.1250 - 2.1249)

Grade No. B

53.973 - 53.972 (2.1249 - 2.1249)

Grade No. C

53.972 - 53.971 (2.1249 - 2.1248)

Grade No. D

53.971 - 53.970 (2.1248 - 2.1248)

Grade No. E

53.970 - 53.969 (2.1248 - 2.1248)

Grade No. F

53.969 - 53.968 (2.1248 - 2.1247)

Grade No. G

53.968 - 53.967 (2.1247 - 2.1247)

Grade No. H

53.967 - 53.966 (2.1247 - 2.1246)

Grade No. J

53.966 - 53.965 (2.1246 - 2.1246)

Grade No. K

53.965 - 53.964 (2.1246 - 2.1246)

Grade No. L

53.964 - 53.963 (2.1246 - 2.1245)

Grade No. M

53.963 - 53.962 (2.1245 - 2.1245)

Grade No. N

53.962 - 53.961 (2.1245 - 2.1244)

Grade No. P

53.961 - 53.960 (2.1244 - 2.1244)

Grade No. R

53.960 - 53.959 (2.1244 - 2.1244)

Grade No. S

53.959 - 53.958 (2.1244 - 2.1243)

Grade No. T

53.958 - 53.957 (2.1243 - 2.1243)

Grade No. U

53.957 - 53.956 (2.1243 - 2.1242)

Center distance “r”

40.66 - 40.74 (1.6008 - 1.6039)

SEM645

SBIA0535E

EM-148

< SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

*: Total indicator reading

Main Bearing

INFOID:0000000003139162

MAIN BEARING

Unit: mm (in)

UNDERSIZE

Taper (Difference between “A” and “B”)

Limit

0.0025 (0.0001)

Out-of-round (Difference between “X” and “Y”)

0.0025 (0.0001)

Crankshaft runout [TIR*]

Standard

Less than 0.05 (0.0020)

Limit

0.10 (0.0039)

Crankshaft end play

Standard

0.10 - 0.25 (0.0039 - 0.0098)

Limit

0.30 (0.0118)

Grade number

Thickness

Width

Identification color

Remarks

0

2.500 - 2.503 (0.0984 - 0.0985)

19.9 - 20.1

(0.783 - 0.791)

Black

Grade is the same
for upper and lower
bearings.

1

2.503 - 2.506 (0.0985 - 0.0987)

Brown

2

2.506 - 2.509 (0.0987 - 0.0988)

Green

3

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

4

2.512 - 2.515 (0.0989 - 0.0990)

Blue

5

2.515 - 2.518 (0.0990 - 0.0991)

Pink

6

2.518 - 2.521 (0.0991 - 0.0993)

Purple

7

2.521 - 2.524 (0.0993 - 0.0994)

White

01

UPR

2.503 - 2.506 (0.0985 - 0.0987)

Brown

Grade and color are
different for upper
and lower bearings.

LWR

2.500 - 2.503 (0.0984 - 0.0985)

Black

12

UPR

2.506 - 2.509 (0.0987 - 0.0988)

Green

LWR

2.503 - 2.506 (0.0985 - 0.0987)

Brown

23

UPR

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

LWR

2.506 - 2.509 (0.0987 - 0.0988)

Green

34

UPR

2.512 - 2.515 (0.0989 - 0.0990)

Blue

LWR

2.509 - 2.512 (0.0988 - 0.0989)

Yellow

45

UPR

2.515 - 2.518 (0.0990 - 0.0991)

Pink

LWR

2.512 - 2.515 (0.0989 - 0.0990)

Blue

56

UPR

2.518 - 2.521 (0.0991 - 0.0993)

Purple

LWR

2.515 - 2.518 (0.0990 - 0.0991)

Pink

67

UPR

2.521 - 2.524 (0.0993 - 0.0994)

White

LWR

2.518 - 2.521 (0.0991 - 0.0993)

Purple

PBIC2969E

SERVICE DATA AND SPECIFICATIONS (SDS)

EM-149

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

Unit: mm (in)

MAIN BEARING OIL CLEARANCE

Unit: mm (in)

*: Actual clearance

Connecting Rod Bearing

INFOID:0000000003139163

CONNECTING ROD BEARING

Unit: mm (in)

UNDERSIZE

Unit: mm (in)

CONNECTING ROD BEARING OIL CLEARANCE

Unit: mm (in)

*: Actual clearance

Items

Thickness

Main journal diameter

0.25 (0.0098)

2.633 - 2.641 (0.1037 - 0.1040)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Main bearing oil clearance

0.035 - 0.045 (0.0014 - 0.0018)*

0.065 (0.0026)

Grade number

Thickness

Identification color (mark)

0

1.497 - 1.500 (0.0589 - 0.0591)

Black

1

1.500 - 1.503 (0.0591 - 0.0592)

Brown

2

1.503 - 1.506 (0.0592 - 0.0593)

Green

3

1.506 - 1.509 (0.0593 - 0.0594)

Yellow

4

1.509 - 1.512 (0.0594 - 0.0595)

Blue

Items

Thickness

Crank pin journal diameter

0.25 (0.0098)

1.626 - 1.634 (0.0640 - 0.0643)

Grind so that bearing clearance is the specified value.

Items

Standard

Limit

Connecting rod bearing oil clearance

0.040 - 0.053 (0.0016 - 0.0021)*

0.070 (0.0028)
