OIL PAN (UPPER) AND OIL STRAINER

EM-99

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

c.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to the cylinder block mating surface of
oil pan (upper) to a limited portion as shown in the figure.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

CAUTION:

• For bolt holes with   marks (7 locations), apply liquid

gasket outside the holes.

• Attaching should be done within 5 minutes after coating.

d.

Install oil pan (upper).

CAUTION:

Install avoiding misalignment of both O-rings.
• Tighten mounting bolts in numerical order as shown in the fig-

ure.

• There are two types of mounting bolts. Refer to the following

for locating bolts.

2.

Install oil strainer to oil pump.

3.

Install oil pan (lower). Refer to

EM-43, "Exploded View (2WD)"

.

4.

Install oil pan drain plug.
• Refer to the figure of components of former page for installation direction of drain plug washer. Refer to

EM-43, "Exploded View (2WD)"

.

5.

Install in the reverse order of removal after this step.
NOTE:
At least 30 minutes after oil pan is installed, pour engine oil.

2WD : Inspection

INFOID:0000000003139139

INSPECTION AFTER REMOVAL

Clean oil strainer if any object attached.

INSPECTION AFTER INSTALLATION

1.

Check the engine oil level and adjust engine oil. Refer to

LU-6, "Inspection"

.

2.

Start engine, and check there is no leakage of engine oil.

3.

Stop engine and wait for 10 minutes.

4.

Check the engine oil level again. Refer to

LU-6, "Inspection"

.

AWD

a

:

φ

4.0 - 5.0 mm (0.157 - 0.197 in)

: Engine front

: Engine front

M8

×

 90 mm (3.54 in)

: 7, 10, 13

M8

×

 25 mm (0.98 in)

: Except the above

JPBIA0388ZZ

JPBIA0022ZZ

EM-100

< DISASSEMBLY AND ASSEMBLY >

OIL PAN (UPPER) AND OIL STRAINER

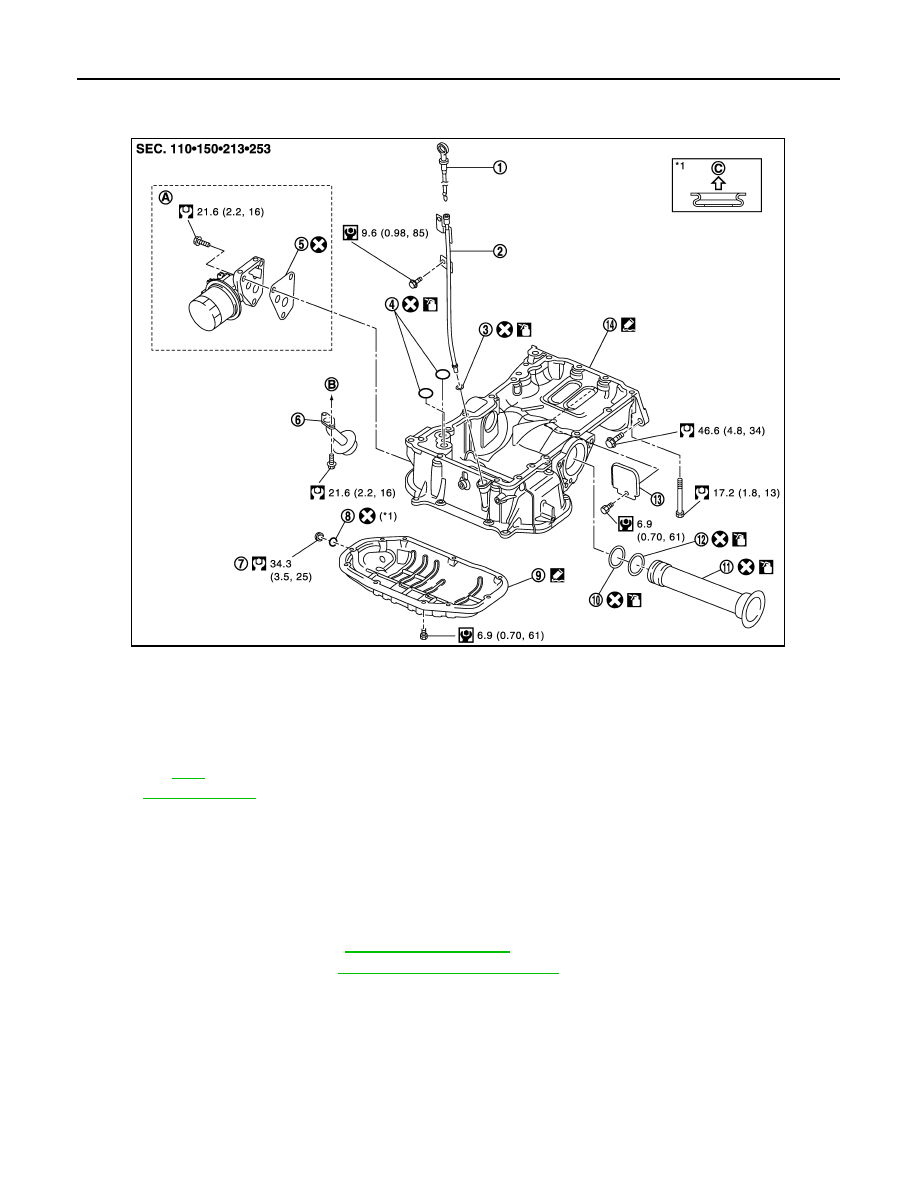

AWD : Exploded View

INFOID:0000000003139140

AWD : Disassembly and Assembly

INFOID:0000000003139141

REMOVAL

CAUTION:

Never drain engine oil when the engine is hot to avoid the danger of being scalded.

1.

Remove oil level gauge, oil pressure switch and oil temperature sensor.

2.

Remove oil filter bracket. Refer to

LU-11, "Exploded View"

.

3.

Remove oil pan (lower). Refer to

EM-44, "Exploded View (AWD)"

.

4.

Remove oil strainer.

1.

Oil level gauge

2.

Oil level gauge guide

3.

O-ring

4.

O-ring

5.

Gasket

6.

Oil strainer

7.

Drain plug

8.

Drain plug washer

9.

Oil pan (lower)

10. O-ring (small)

11.

Axle pipe

12. O-ring (large)

13. Rear plate cover

14. Oil pan (upper)

A.

Refer to

LU-11

B.

To oil pump

C.

Oil pan side

Refer to

GI-4, "Components"

 for symbols in the figure.

JPBIA1825GB

OIL PAN (UPPER) AND OIL STRAINER

EM-101

< DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

J

K

L

M

A

EM

N

P

O

5.

Loosen mounting bolts in the reverse order as shown in the fig-
ure with power tool to remove.

• Insert the seal cutter [SST: KV10111100 (J37228)] between oil

pan (upper) and lower cylinder block. Slide seal cutter by tap-
ping on the side of tool with a hammer. Remove oil pan
(upper).

CAUTION:

• Be careful not to damage the mating surfaces.
• Never insert a screwdriver, this will damage the mating

surfaces.

6.

Remove O-rings (2) from bottom of lower cylinder block (1) and
oil pump (3).

7.

Remove axle pipe, as necessary.
• Remove axle pipe from oil pan (upper) using a suitable drift (A)

[outer diameter: 37 mm (1.46 in)].

INSTALLATION

1.

Install axle pipe (3) to oil pan (upper), if removed.
• Lubricate O-ring groove of axle pipe, O-rings (1), (2), and O-

ring joint of oil pan with new engine oil.

Unit: mm (in)

: Engine front

JPBIA0022ZZ

: Engine front

JPBIA1330ZZ

JPBIA0028ZZ

Items

O-ring inner diameter

Final drive side (right side)

31.4 (1.236)

Axle pipe flange side (left side)

33.6 (1.323)

JPBIA0452ZZ

EM-102

< DISASSEMBLY AND ASSEMBLY >

OIL PAN (UPPER) AND OIL STRAINER

• Install axle pipe (1) to oil pan (upper) from axle pipe flange

side (left side) using a suitable drift (A) [outer diameter: 43 to
57 mm (1.69 to 2.24 in)].

CAUTION:

Insert it with care to prevent O-ring from sliding.

2.

Install oil pan (upper) as follows:

a.

Use a scraper (A) to remove old liquid gasket from mating sur-
faces.

CAUTION:

Never scratch or damage the mating surfaces when clean-
ing off old liquid gasket.
• Also remove old liquid gasket from mating surface of lower cyl-

inder block.

• Remove old liquid gasket from the bolt holes and threads.

b.

Install new O-rings (2) on the bottom of lower cylinder block (1)
and oil pump (3).

c.

Apply a continuous bead of liquid gasket with the tube presser
(commercial service tool) to the cylinder block mating surface of
oil pan (upper) to a limited portion as shown in the figure.

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Products and Sealants"

.

CAUTION:

• For bolt holes with   marks (7 locations), apply liquid

gasket outside the holes.

• Attaching should be done within 5 minutes after coating.

d.

Install oil pan (upper).

CAUTION:

Install avoiding misalignment of O-rings.

JPBIA0029ZZ

JPBIA0027ZZ

: Engine front

JPBIA1330ZZ

a

:

φ

4.0 - 5.0 mm (0.157 - 0.197 in)

: Engine front

JPBIA0388ZZ
