EC-518

< ECU DIAGNOSIS >

[VQ35HR]

ECM

*1: 1st trip DTC No. is the same as DTC No.

*2: This number is prescribed by SAE J2012.

*3: In Diagnostic Test Mode II (Self-diagnostic results), this number is controlled by NISSAN.

*4: The troubleshooting for this DTC needs CONSULT-III.

*5: When the fail-safe operations for both self-diagnoses occur, the MIL illuminates.

*6: SRT code will not be set if the self-diagnostic result is NG.

*7: When the ECM is in the mode of displaying SRT status, MIL may flash. For the details, refer to “How to Display SRT Status”.

How to Set SRT Code

INFOID:0000000003133672

To set all SRT codes, self-diagnosis for the items indicated above must be performed one or more times. Each
diagnosis may require a long period of actual driving under various conditions.

WITH CONSULT-III

Perform corresponding DTC Confirmation Procedure one by one based on Performance Priority in the table
on “SRT Item”.

WITHOUT CONSULT-III

The most efficient driving pattern in which SRT codes can be properly set is explained on the next page. The
driving pattern should be performed one or more times to set all SRT codes.

P2101

2101

ETC FNCTN/CIRC-B1

1

×

EC-360

P2103

2103

ETC MOT PWR

1

×

EC-372

P2118

2118

ETC MOT-B1

1

×

EC-364

P2119

2119

ETC ACTR-B1

1

×

EC-367

P2122

2122

APP SEN 1/CIRC

1

×

EC-421

P2123

2123

APP SEN 1/CIRC

1

×

EC-421

P2127

2127

APP SEN 2/CIRC

1

×

EC-425

P2128

2128

APP SEN 2/CIRC

1

×

EC-425

P2132

2132

TP SEN 1/CIRC-B2

1

×

EC-240

P2133

2133

TP SEN 1/CIRC-B2

1

×

EC-240

P2135

2135

TP SENSOR-B1

1

×

EC-369

P2138

2138

APP SENSOR

1

×

EC-430

P2A00

2A00

A/F SENSOR1 (B1)

2

×

EC-435

P2A03

2A03

A/F SENSOR1 (B2)

2

×

EC-435

DTC*

1

Items

 (CONSULT-III screen terms)

SRT code

Trip

MIL

Reference

page

CONSULT-III

GST*

2

ECM*

3

ECM

EC-519

< ECU DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

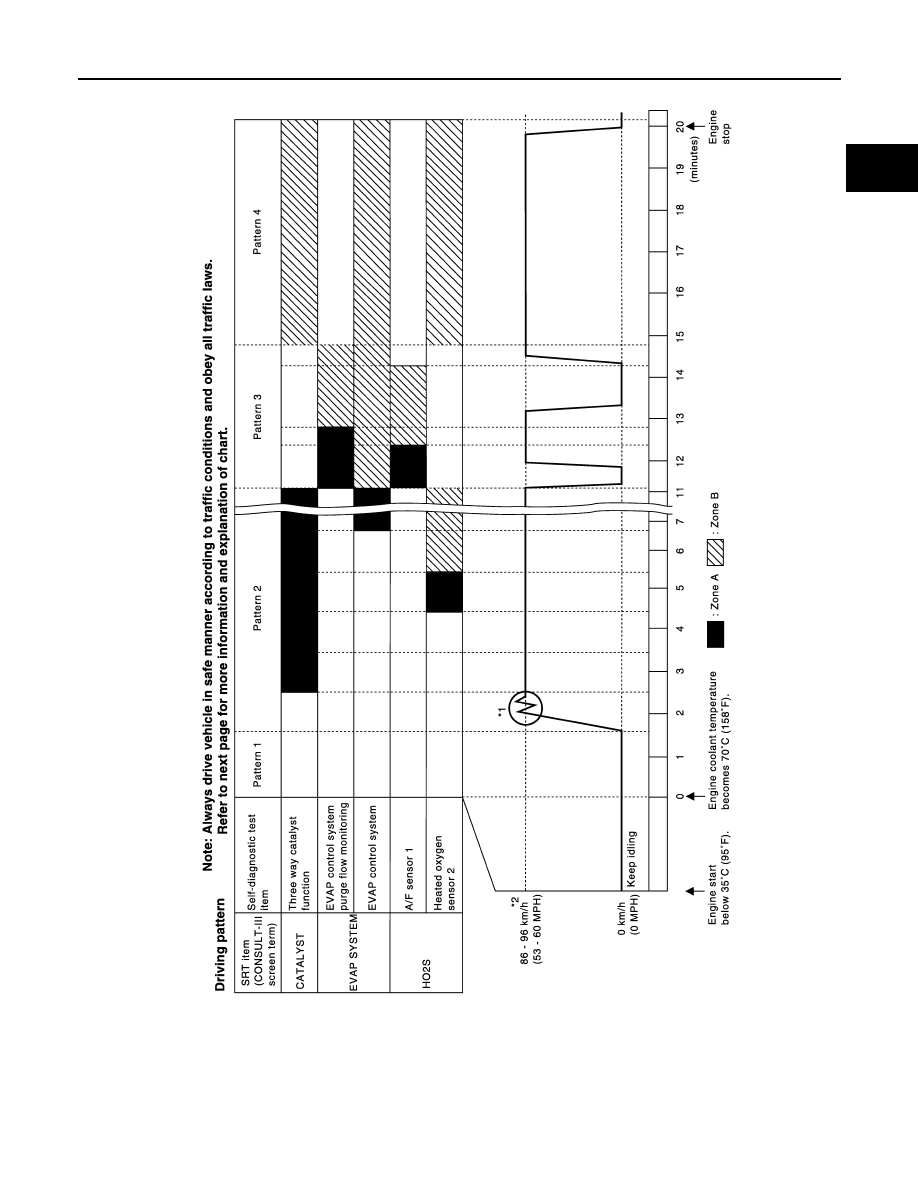

DRIVING PATTERN

• The time required for each diagnosis varies with road surface conditions, weather, altitude, individual driving

habits, etc.
Zone A refers to the range where the time, required for the diagnosis under normal conditions*, is the short-
est.
Zone B refers to the range where the diagnosis can still be performed if the diagnosis is not completed within
zone A.

*: Normal conditions refer to the following:

PBIB3622E

EC-520

< ECU DIAGNOSIS >

[VQ35HR]

ECM

• Sea level
• Flat road
• Ambient air temperature: 20 - 30

°

C (68 - 86

°

F)

• Diagnosis is performed as quickly as possible under normal conditions.

Under different conditions [For example: ambient air temperature other than 20 - 30

°

C (68 - 86

°

F)], diagno-

sis may also be performed.

Pattern 1:
• The engine is started at the engine coolant temperature of

10 to 35

°

C (14 to 95

°

F)

(where the voltage between the ECM terminal 71 and ground is 3.0 - 4.3 V).

• The engine must be operated at idle speed until the engine coolant temperature is greater than 70

°

C

(158

°

F) (where the voltage between the ECM terminal 71 and ground is lower than 1.4 V).

• The engine is started at the fuel tank temperature of warmer than 0

°

C (32

°

F) (where the voltage

between the ECM terminal 106 and ground is less than 4.1 V).

Pattern 2:
• When steady-state driving is performed again even after it is interrupted, each diagnosis can be conducted.

In this case, the time required for diagnosis may be extended.

Pattern 3:
• Operate vehicle following the driving pattern shown in the figure.
• Release the accelerator pedal during decelerating vehicle speed

from 90 km/h (56 MPH) to 0 km/h (0 MPH).

Pattern 4:
• The accelerator pedal must be held very steady during steady-

state driving.

• If the accelerator pedal is moved, the test must be conducted all

over again.

*1: Depress the accelerator pedal until vehicle speed is 90 km/h (56
MPH), then release the accelerator pedal and keep it released for
more than 10 seconds. Depress the accelerator pedal until vehicle
speed is 90 km/h (56 MPH) again.
*2: Checking the vehicle speed with GST is advised.

Suggested Transmission Gear Position for A/T Models

Set the selector lever in the D position with the overdrive switch turned ON.

Test Value and Test Limit

INFOID:0000000003786299

The following is the information specified in Service $06 of SAE J1979.
The test value is a parameter used to determine whether a system/circuit diagnostic test is OK or NG while
being monitored by the ECM during self-diagnosis. The test limit is a reference value which is specified as the
maximum or minimum value and is compared with the test value being monitored.
These data (test value and test limit) are specified by On Board Monitor ID(OBDMID), Test ID (TID), Unit and
Scaling ID and can be displayed on the GST screen.
The items of the test value and test limit will be displayed with GST screen which items are provided by the
ECM. (eg., if the bank 2 is not applied on this vehicle, only the items of the bank 1 is displayed)

PBIB2244E

ECM

EC-521

< ECU DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Item

OBD-

MID

Self-diagnostic test item

DTC

Test value and Test

limit

(GST display)

Description

TID

Unit and

Scaling

ID

HO2S

01H

Air fuel ratio (A/F) sensor 1
(Bank 1)

P0131

83H

0BH

Minimum sensor output voltage for test
cycle

P0131

84H

0BH

Maximum sensor output voltage for test
cycle

P0130

85H

0BH

Minimum sensor output voltage for test
cycle

P0130

86H

0BH

Maximum sensor output voltage for test
cycle

P0133

87H

04H

Response rate: Response ratio (Lean to
Rich)

P0133

88H

04H

Response rate: Response ratio (Rich to
Lean)

P2A00

89H

84H

The amount of shift in air fuel ratio

P2A00

8AH

84H

The amount of shift in air fuel ratio

P0130

8BH

0BH

Difference in sensor output voltage

P0133

8CH

83H

Response gain at the limited frequency

02H

Heated oxygen sensor 2
(Bank 1)

P0138

07H

0CH

Minimum sensor output voltage for test
cycle

P0137

08H

0CH

Maximum sensor output voltage for test
cycle

P0138

80H

0CH

Sensor output voltage

P0139

81H

0CH

Difference in sensor output voltage

03H

Heated oxygen sensor 3
(Bank 1)

P0143

07H

0CH

Minimum sensor output voltage for test
cycle

P0144

08H

0CH

Maximum sensor output voltage for test
cycle

P0146

80H

0CH

Sensor output voltage

P0145

81H

0CH

Difference in sensor output voltage
