EC-158

< COMPONENT DIAGNOSIS >

[VQ35HR]

P0101, P010B MAF SENSOR

1.

Start engine and warm it up to normal operating temperature.

2.

Run engine for at least 10 seconds at idle speed.

3.

Check 1st trip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-159, "Diagnosis Procedure"

.

NO-1

>> With CONSULT-III: GO TO 3.

NO-2

>> Without CONSULT-III: GO TO 5.

3.

CHECK MASS AIR FLOW SENSOR FUNCTION

1.

Turn ignition switch ON.

2.

Start engine and warm it up to normal operating temperature.
If engine cannot be started, go to

EC-159, "Diagnosis Procedure"

.

3.

Select “MAS A/F SE-B1/B2” in “DATA MONITOR” mode with CONSULT-III.

4.

Check the voltage of “MAS A/F SE-B1/B2”.

5.

Increases engine speed to about 4,000 rpm.

6.

Monitor the linear voltage rise in response to engine speed
increases.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Go to

EC-159, "Diagnosis Procedure"

.

4.

PERFORM DTC CONFIRMATION PROCEDURE FOR MALFUNCTION B

1.

Maintain the following conditions for at least 10 consecutive seconds.

CAUTION:

Always drive vehicle at a safe speed.

2.

Check 1st rip DTC.

Is 1st trip DTC detected?

YES

>> Go to

EC-159, "Diagnosis Procedure"

.

NO

>> INSPECTION END

5.

PERFORM COMPONENT FUNCTION CHECK FOR MALFUNCTION B

Perform component function check. Refer to

EC-159, "Component Function Check"

.

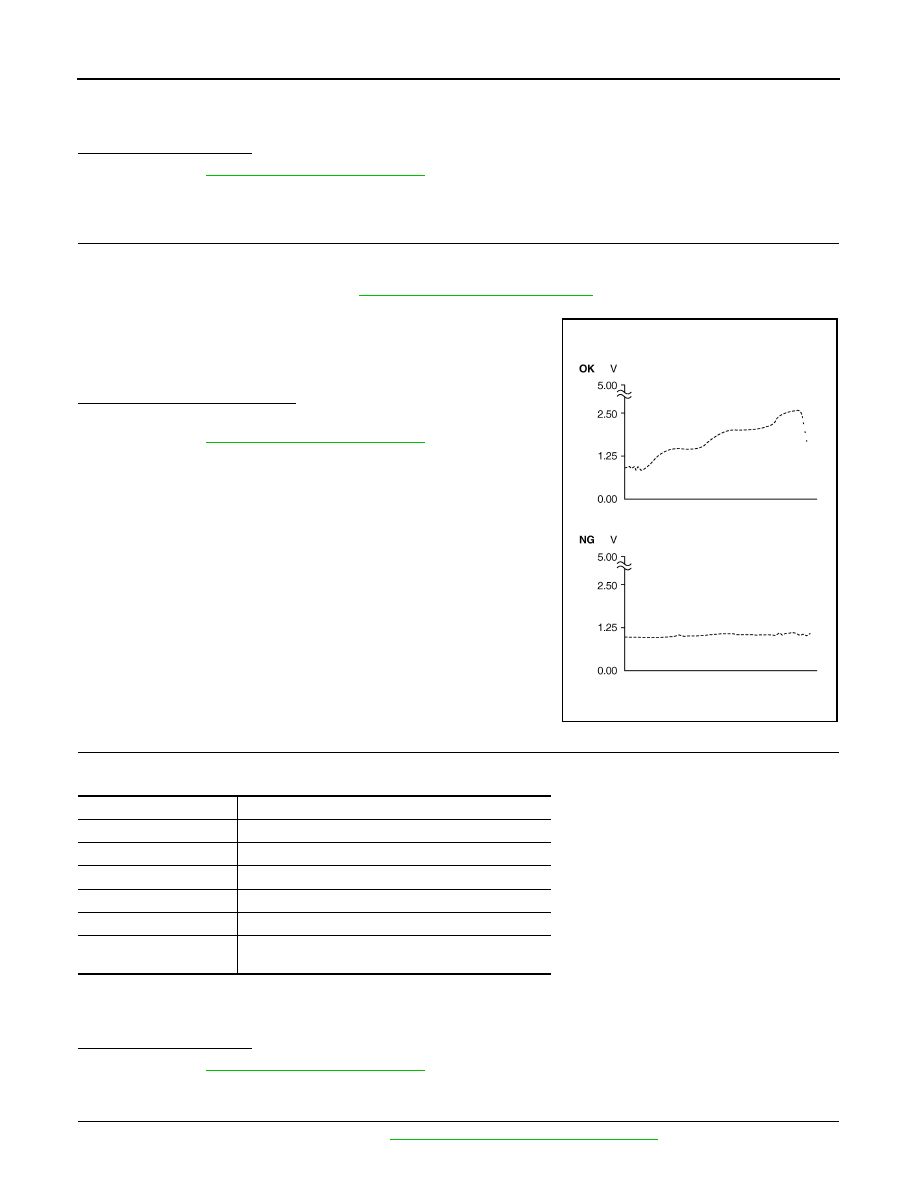

PBIB3457E

ENG SPEED

More than 2,000 rpm

TP SEN 1-B1

More than 3V

TP SEN 2-B1

More than 3V

TP SEN 1-B2

More than 3V

TP SEN 2-B2

More than 3V

Selector lever

Suitable position

Driving location

Driving vehicle uphill (Increased engine load) will help
maintain the driving conditions required for this test.

P0101, P010B MAF SENSOR

EC-159

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

NOTE:
Use component function check to check the overall function of the mass air flow sensor circuit. During this
check, a 1st trip DTC might not be confirmed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-159, "Diagnosis Procedure"

.

Component Function Check

INFOID:0000000003133321

1.

PERFORM COMPONENT FUNCTION CHECK FOR MALFUNCTION B

With GST

1.

Start engine and warm it up to normal operating temperature.

2.

Select Service $01 with GST.

3.

Check the mass air flow sensor signal with Service $01.

4.

Check for linear mass air flow sensor signal value rise in
response to increases to about 4,000 rpm in engine speed.

Is the inspection result normal?

YES

>> INSPECTION END

NO

>> Go to

EC-159, "Diagnosis Procedure"

.

Diagnosis Procedure

INFOID:0000000003133322

1.

INSPECTION START

Confirm the detected malfunction (A or B). Refer to

EC-157, "DTC Logic"

.

Which malfunction is detected?

A

>> GO TO 3.

B

>> GO TO 2.

2.

CHECK INTAKE SYSTEM

Check the following for connection.
• Air duct
• Vacuum hoses
• Intake air passage between air duct and intake manifold

Is the inspection result normal?

YES

>> GO TO 3.

NO

>> Reconnect the parts.

3.

CHECK GROUND CONNECTION

1.

Turn ignition switch OFF.

2.

Check ground connection M95. Refer to Ground Inspection in

GI-41, "Circuit Inspection"

.

Is the inspection result normal?

YES

>> GO TO 4.

NO

>> Repair or replace ground connection.

4.

CHECK MAF SENSOR POWER SUPPLY CIRCUIT

1.

Disconnect mass air flow (MAF) sensor harness connector.

2.

Turn ignition switch ON.

3.

Check the voltage between MAF sensor harness connector and ground.

SEF534P

EC-160

< COMPONENT DIAGNOSIS >

[VQ35HR]

P0101, P010B MAF SENSOR

Is the inspection result normal?

YES

>> GO TO 6.

NO

>> GO TO 5.

5.

DETECT MALFUNCTIONING PART

Check the following.
• Harness connectors E106, M6
• Harness connectors M116, F103
• Harness for open or short between mass air flow sensor and ECM
• Harness for open or short between mass air flow sensor and IPDM E/R

>> Repair open circuit or short to ground or short to power in harness or connectors.

6.

CHECK MAF SENSOR GROUND CIRCUIT FOR OPEN AND SHORT

1.

Turn ignition switch OFF.

2.

Disconnect ECM harness connector.

3.

Check the continuity between MAF sensor harness connector and ECM harness connector.

4.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 7.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

7.

CHECK MAF SENSOR INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT

1.

Check the continuity between MAF sensor harness connector and ECM harness connector.

2.

Also check harness for short to ground and short to power.

Is the inspection result normal?

YES

>> GO TO 8.

NO

>> Repair open circuit or short to ground or short to power in harness or connectors.

8.

CHECK INTAKE AIR TEMPERATURE SENSOR

Check intake air temperature sensor (bank 1).
Refer to

EC-171, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 9.

NO

>> Replace mass air flow sensor (bank 1) (with intake air temperature sensor).

9.

CHECK EVAP CONTROL SYSTEM PRESSURE SENSOR

Refer to

EC-296, "Component Inspection"

.

DTC

MAF sensor

Ground

Voltage

Bank

Connector

Terminal

P0101

1

F31

5

Ground

Battery voltage

P010B

2

F42

5

DTC

MAF sensor

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0101

1

F31

4

F102

68

Existed

P010B

2

F42

4

94

DTC

MAF sensor

ECM

Continuity

Bank

Connector

Terminal

Connector

Terminal

P0101

1

F31

3

F102

77

Existed

P010B

2

F42

3

79

P0101, P010B MAF SENSOR

EC-161

< COMPONENT DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Is the inspection result normal?

YES

>> GO TO 10.

NO

>> Replace EVAP control system pressure sensor.

10.

CHECK MASS AIR FLOW SENSOR

Refer to

EC-161, "Component Inspection"

.

Is the inspection result normal?

YES

>> GO TO 11.

NO

>> Replace malfunctioning mass air flow sensor.

11.

CHECK INTERMITTENT INCIDENT

Refer to

GI-38, "Intermittent Incident"

.

>> INSPECTION END

Component Inspection

INFOID:0000000003133323

1.

CHECK MASS AIR FLOW SENSOR-I

With CONSULT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Start engine and warm it up to normal operating temperature.

4.

Connect CONSULT-III and select “DATA MONITOR” mode.

5.

Select “MAS A/F SE-B1” and “MAS A/F SE-B2”, and check the indication.

*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.

Without CONSULT-III

1.

Turn ignition switch OFF.

2.

Reconnect all harness connectors disconnected.

3.

Start engine and warm it up to normal operating temperature.

4.

Check the voltage between ECM harness connector terminals under the following conditions.

*: Check for linear voltage rise in response to engine being increased to about 4,000 rpm.

Monitor item

Condition

Indication (V)

MAS A/F SE-B1
MAS A/F SE-B2

Ignition switch ON (Engine stopped.)

Approx. 0.4

Idle (Engine is warmed-up to normal operating temperature.)

0.8 - 1.1

2,500 rpm (Engine is warmed-up to normal operating temperature.)

1.4 - 1.7

Idle to about 4,000 rpm

0.8 - 1.1  to Approx. 2.4*

ECM

Condition

Voltage (V)

Connector

+

Terminal

Terminal

F102

77

[MAF sensor (bank 1)

signal]

68

Ignition switch ON (Engine stopped.)

Approx. 0.4

Idle (Engine is warmed-up to normal operat-
ing temperature.)

0.8 - 1.1

2,500 rpm (Engine is warmed-up to normal
operating temperature.)

1.4 - 1.7

Idle to about 4,000 rpm

0.8 - 1.1  to Approx. 2.4*

79

[MAF sensor (bank 2)

signal]

94

Ignition switch ON (Engine stopped.)

Approx. 0.4

Idle (Engine is warmed-up to normal operat-
ing temperature.)

0.8 - 1.1

2,500 rpm (Engine is warmed-up to normal
operating temperature.)

1.4 - 1.7

Idle to about 4,000 rpm

0.8 - 1.1  to Approx. 2.4*
