Infiniti EX35. Manual - part 574

EC-38

< FUNCTION DIAGNOSIS >

[VQ35HR]

MULTIPORT FUEL INJECTION SYSTEM

4.

EVAP canister vent control valve

5.

EVAP control system pressure sen-
sor

 : Vehicle front

1.

Fuel level sensor unit and fuel pump
harness connector

2.

Fuel level sensor unit and fuel pump 3.

Fuel pressure regulator

4.

Fuel tank temperature sensor

 : Vehicle front

1.

Accelerator pedal position sensor

2.

ECM

1.

ICC steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

6.

DISTANCE switch

7.

LDP switch

JMBIA1182ZZ

JMBIA0015ZZ

JMBIA1308ZZ

MULTIPORT FUEL INJECTION SYSTEM

EC-39

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

Component Description

INFOID:0000000003133254

1.

ASCD steering switch

2.

CANCEL switch

3.

RESUME/ACCELERATE switch

4.

SET/COAST switch

5.

MAIN switch

1.

Stop lamp switch

2.

ASCD brake switch (ASCD models)
ICC brake switch (ICC models)

3.

Brake pedal

JMBIA0017ZZ

JMBIA0312ZZ

Component

Reference

A/F sensor 1

EC-185, "Description"

Accelerator pedal position sensor

EC-421, "Description"

Camshaft position sensor (PHASE)

EC-256, "Description"

Crankshaft position sensor (POS)

EC-252, "Description"

Engine coolant temperature sensor

EC-172, "Description"

Fuel injector

EC-449, "Description"

Heated oxygen sensor 2

EC-200, "Description"

Intake air temperature sensor

EC-170, "Description"

Knock sensor

EC-249, "Description"

Mass air flow sensor

EC-157, "Description"

Power steering pressure sensor

EC-332, "Description"

Throttle position sensor

EC-175, "Description"

EC-40

< FUNCTION DIAGNOSIS >

[VQ35HR]

ELECTRIC IGNITION SYSTEM

ELECTRIC IGNITION SYSTEM

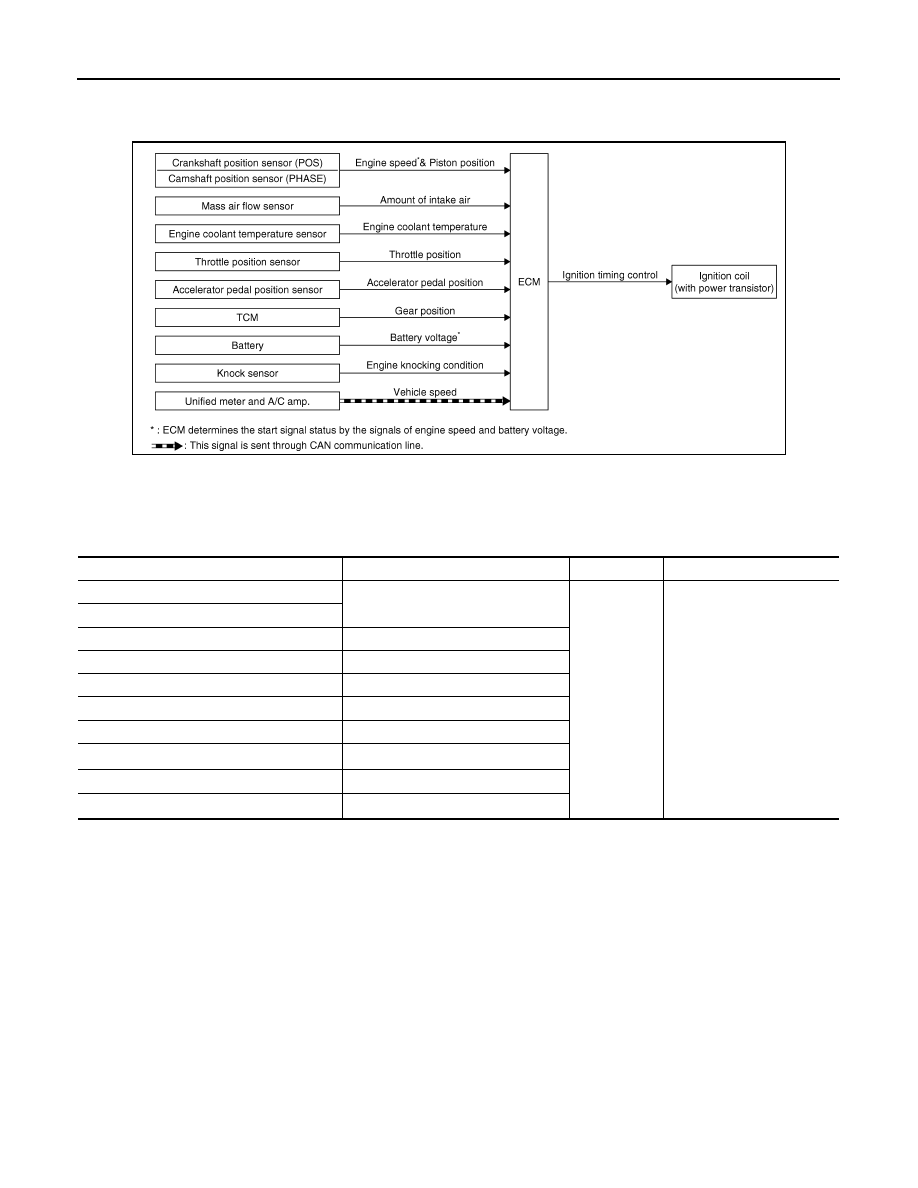

System Diagram

INFOID:0000000003133255

System Description

INFOID:0000000003133256

INPUT/OUTPUT SIGNAL CHART

*1: This signal is sent to the ECM through CAN communication line.

*2: ECM determines the start signal status by the signals of engine speed and battery voltage.

SYSTEM DESCRIPTION

Firing order: 1 - 2 - 3 - 4 - 5 - 6
The ignition timing is controlled by the ECM to maintain the best air-fuel ratio for every running condition of the
engine. The ignition timing data is stored in the ECM.
The ECM receives information such as the injection pulse width and camshaft position sensor (PHASE) sig-
nal. Computing this information, ignition signals are transmitted to the power transistor.
During the following conditions, the ignition timing is revised by the ECM according to the other data stored in
the ECM.
• At starting
• During warm-up
• At idle
• At low battery voltage
• During acceleration
The knock sensor retard system is designed only for emergencies. The basic ignition timing is programmed
within the anti-knocking zone, if recommended fuel is used under dry conditions. The retard system does not

JMBIA1314GB

Sensor

Input Signal to ECM

ECM function

Actuator

Crankshaft position sensor (POS)

Engine speed*

2

Piston position

Ignition timing
control

Ignition coil (with power tran-
sistor)

Camshaft position sensor (PHASE)

Mass air flow sensor

Amount of intake air

Engine coolant temperature sensor

Engine coolant temperature

Throttle position sensor

Throttle position

Accelerator pedal position sensor

Accelerator pedal position

TCM

Gear position

Battery

Battery voltage*

2

Knock sensor

Engine knocking

Unifed meter and A/C amp.

Vehicle speed*

1

ELECTRIC IGNITION SYSTEM

EC-41

< FUNCTION DIAGNOSIS >

[VQ35HR]

C

D

E

F

G

H

I

J

K

L

M

A

EC

N

P

O

operate under normal driving conditions. If engine knocking occurs, the knock sensor monitors the condition.
The signal is transmitted to the ECM. The ECM retards the ignition timing to eliminate the knocking condition.

Component Parts Location

INFOID:0000000003738632

1.

Battery current sensor

2.

IPDM E/R

3.

Cooling fan relay

4.

Mass air flow sensor (with intake air
temperature sensor) (bank 1)

5.

Refrigerant pressure sensor

6.

Cooling fan motor-2

7.

Intake valve timing control solenoid
valve

8.

Exhaust valve timing control magnet
retarder

9.

Cooling fan control module

10. Cooling fan motor-1

11.

Mass air flow sensor (with intake air
temperature sensor) (bank 2)

12. ICC brake hold relay (ICC models)

13. Ignition coil (with power transistor)

and spark plug (bank 2)

14. Electric throttle control actuator

(bank 2)

15. A/F sensor 1 (bank 2)

16. Fuel injector (bank 2)

17. Camshaft position sensor (PHASE)

18. Engine coolant temperature sensor

19. Knock sensor

20. Exhaust valve timing control position

sensor

21. EVAP canister purge volume control

solenoid valve

22. Fuel injector (bank 1)

23. Ignition coil (with power transistor)

and spark plug (bank 1)

24. EVAP service port

25. A/F sensor 1 (bank 1)

26. Crankshaft position sensor (POS)

27. Electric throttle control actuator

(bank 1)

JMBIA0002ZZ
