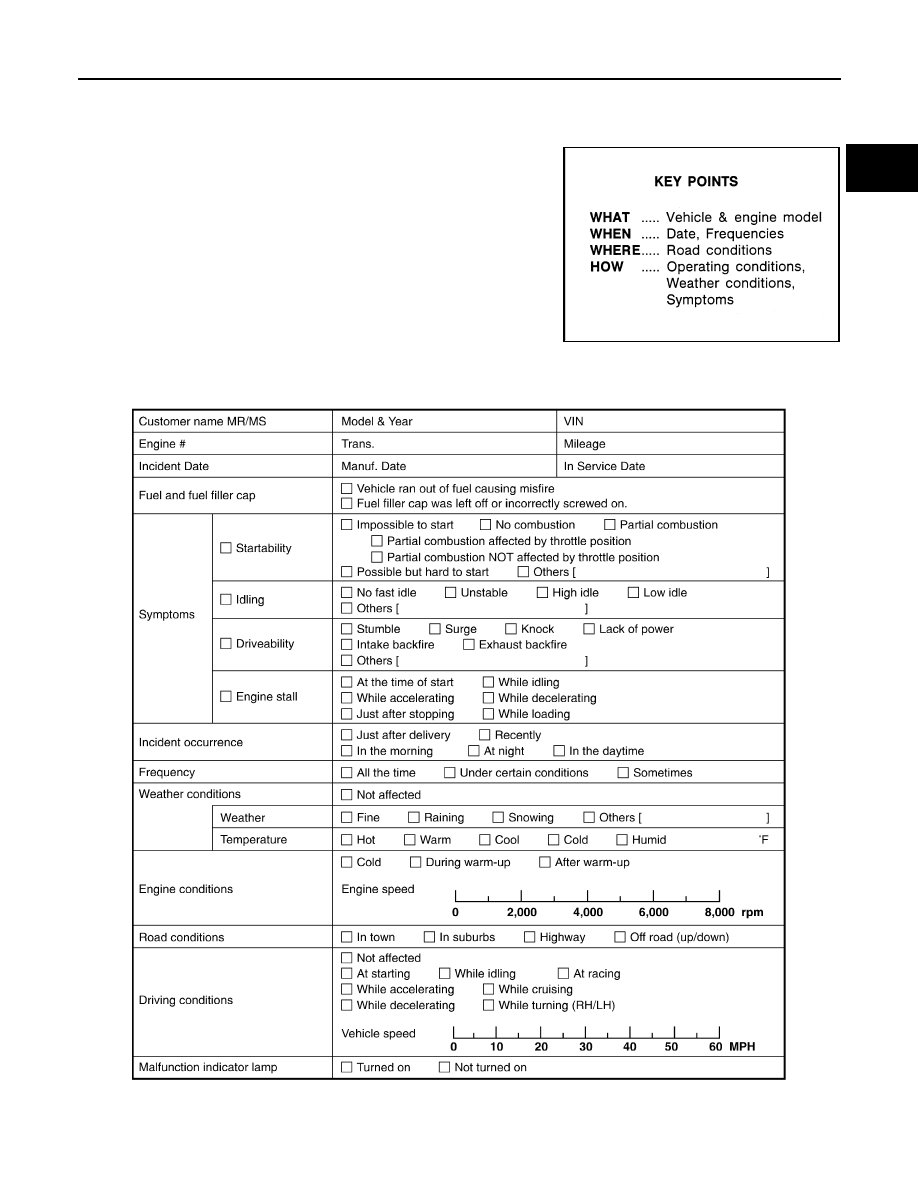

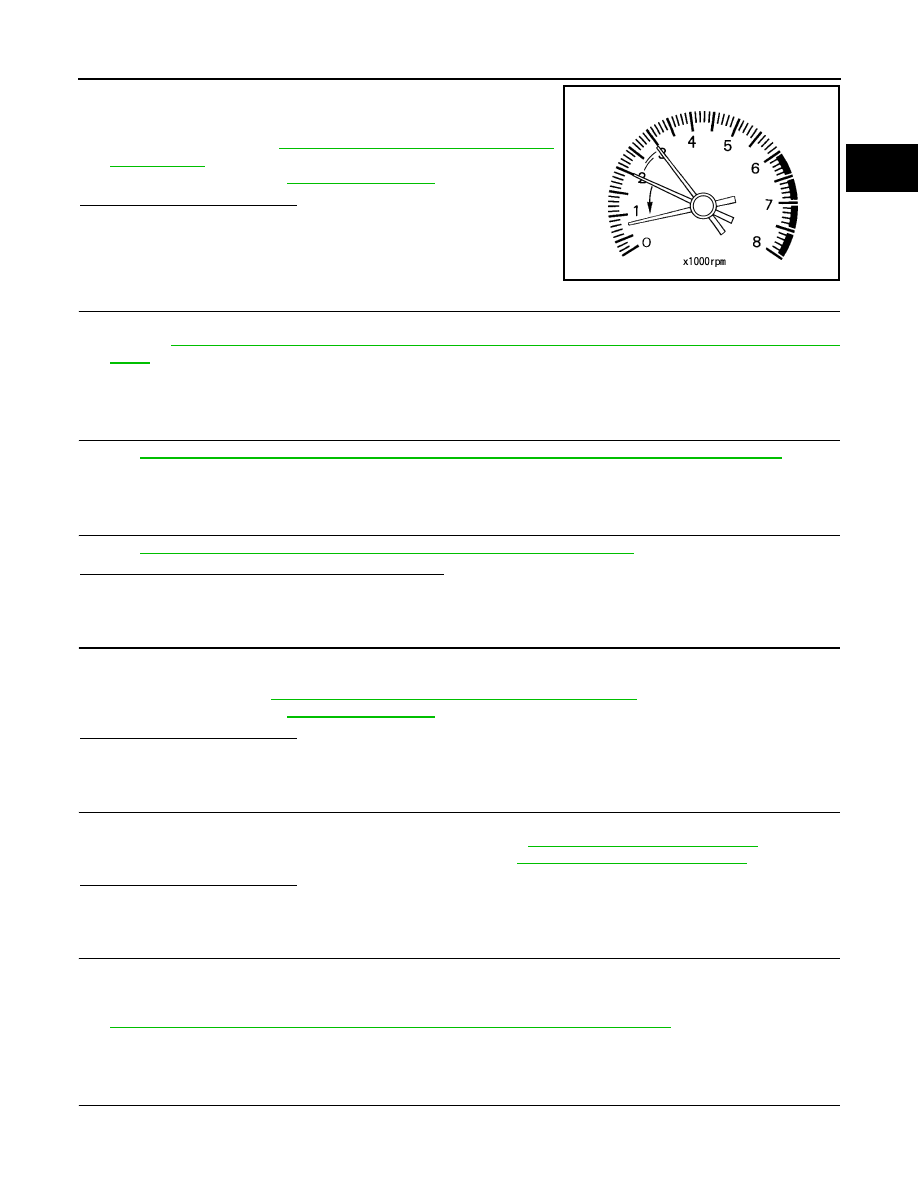

EC-10 < BASIC INSPECTION > [VQ35HR] DIAGNOSIS AND REPAIR WORKFLOW YES >> GO TO 7. NO >> GO TO 9. 7. PERFORM SPEC IN DATA MONITOR MODE With CONSULT-III Check that “MAS A/F SE-B1”, “MAS A/F SE-B2”, “B/FUEL SCHDL”, “A/F ALPHA-B1” and “A/F ALPHA-B2” Is the measurement value within the SP value? YES >> GO TO 9. NO >> GO TO 8. 8. DETECT MALFUNCTIONING PART BY TROUBLE DIAGNOSIS - SPECIFICATION VALUE Detect malfunctioning part according to . Is malfunctioning part detected? YES >> GO TO 11. NO >> GO TO 9. 9. DETECT MALFUNCTIONING SYSTEM BY SYMPTOM TABLE Detect malfunctioning system according to based on the confirmed symptom in step 4, and determine the trouble diagnosis order based on possible causes and symptom. >> GO TO 10. 10. DETECT MALFUNCTIONING PART BY DIAGNOSIS PROCEDURE Inspect according to Diagnosis Procedure of the system. . Is malfunctioning part detected? YES >> GO TO 11. NO >> Monitor input data from related sensors or check voltage of related ECM terminals using CON- SULT-III. Refer to 11. REPAIR OR REPLACE THE MALFUNCTIONING PART 1. Repair or replace the malfunctioning part. 2. Reconnect parts or connectors disconnected during Diagnosis Procedure again after repair and replace- 3. Check DTC. If DTC is displayed, erase it. Refer to EC-100, "Diagnosis Description" >> GO TO 12. 12. FINAL CHECK When DTC was detected in step 2, perform DTC CONFIRMATION PROCEDURE or Component Function YES-1 >> DTC is detected: GO TO 10. >> Before returning the vehicle to the customer, erase unnecessary DTC in ECM and TCM (Trans- mission Control Module) certainly. (Refer to EC-100, "Diagnosis Description" .) If the completion of SRT is needed, drive vehicle under the specific driving pattern. Refer to |
