DLK-262

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

KEY SLOT

KEY SLOT

Exploded View

INFOID:0000000003729125

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000003729126

REMOVAL

1.

Remove the instrument lower panel LH (2). Refer to

IP-12, "Removal and Installation"

.

2.

Disconnect key slot connector.

3.

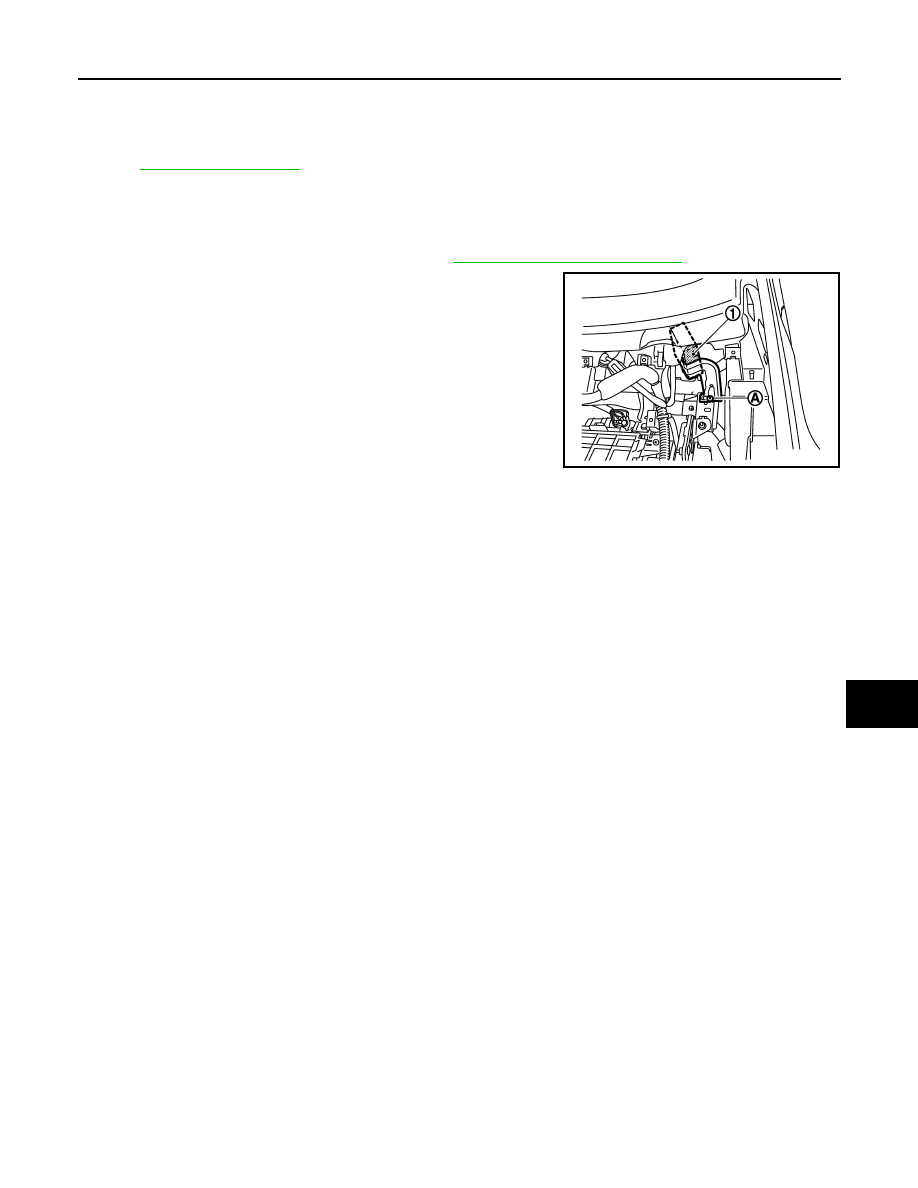

Remove the key slot mounting screw (A), and then remove key
slot (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2251ZZ

REMOTE KEYLESS ENTRY RECEIVER

DLK-263

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

C

D

E

F

G

H

I

J

L

M

A

B

DLK

N

O

P

REMOTE KEYLESS ENTRY RECEIVER

Exploded View

INFOID:0000000003729129

Refer to

IP-11, "Exploded View"

.

Removal and Installation

INFOID:0000000003729130

REMOVAL

1.

Remove the instrument lower panel RH. Refer to

IP-12, "Removal and Installation"

.

2.

Remove the remote keyless entry receiver mounting screw (A),
and then remove remote keyless entry receiver (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2252ZZ

DLK-264

< ON-VEHICLE REPAIR >

[INTELLIGENT KEY SYSTEM]

INTELLIGENT KEY BATTERY

INTELLIGENT KEY BATTERY

Removal and Installation

INFOID:0000000003729131

1.

Release the lock knob at the back of the Intelligent Key and remove the mechanical key.

2.

Insert a flat-blade screwdriver (A) wrapped with a cloth into the
slit of the corner and twist it to separate the upper part from the
lower part.

CAUTION:

• Do not touch the circuit board or battery terminal.
• The key fob is water-resistant. However, if it does get wet,

immediately wipe it dry.

3.

Replace the battery with new one.

4.

Align the tips of the upper and lower parts, and then push them
together until it is securely closed.

CAUTION:

• When replacing battery, keep dirt, grease, and other for-

eign materials off the electrode contact area.

• After replacing the battery, check that all Intelligent Key

functions work normally.

PIIB6221E

Battery replacement

:Coin-type lithium battery
(CR2025)

PIIB6222E

DLN-1

TRANSMISSION & DRIVELINE

C

E

F

G

H

I

J

K

L

M

SECTION

DLN

A

B

DLN

N

O

P

CONTENTS

DRIVELINE

TRANSFER: ETX13B

BASIC INSPECTION  ....................................

6

DIAGNOSIS AND REPAIR WORK FLOW  .........

6

Work Flow  .................................................................

6

FUNCTION DIAGNOSIS ...............................

7

AWD SYSTEM .....................................................

7

System Diagram ........................................................

7

System Description  ...................................................

8

Component Parts Location ........................................

9

Component Description ...........................................

10

DIAGNOSIS SYSTEM (AWD CONTROL
UNIT) ..................................................................

11

CONSULT-III Function (ALL MODE AWD/4WD) ....

11

COMPONENT DIAGNOSIS  .........................

13

C1201 AWD CONTROL UNIT ............................

13

Description ..............................................................

13

DTC Logic  ...............................................................

13

Diagnosis Procedure ...............................................

13

C1203 ABS ACTUATOR AND ELECTRIC
UNIT (CONTROL UNIT)  .....................................

14

Description ..............................................................

14

DTC Logic  ...............................................................

14

Diagnosis Procedure ...............................................

14

C1204 AWD SOLENOID  ....................................

15

Description ..............................................................

15

DTC Logic  ...............................................................

15

Diagnosis Procedure ...............................................

15

Component Inspection  ............................................

16

C1205 AWD ACTUATOR RELAY  .....................

17

Description ..............................................................

17

DTC Logic  ...............................................................

17

Diagnosis Procedure ...............................................

17

C1210 ECM  .......................................................

18

Description ...............................................................

18

DTC Logic ................................................................

18

Diagnosis Procedure  ...............................................

18

U1000 CAN COMM CIRCUIT  ...........................

19

Description ...............................................................

19

DTC Logic ................................................................

19

Diagnosis Procedure  ...............................................

19

U1010 CONTROL UNIT (CAN) .........................

20

Description ...............................................................

20

DTC Logic ................................................................

20

Diagnosis Procedure  ...............................................

20

POWER SUPPLY AND GROUND CIRCUIT  ....

21

Description ...............................................................

21

Diagnosis Procedure  ...............................................

21

AWD WARNING LAMP  ....................................

23

Description ...............................................................

23

Component Function Check  ....................................

23

Diagnosis Procedure  ...............................................

23

ECU DIAGNOSIS .........................................

25

AWD CONTROL UNIT  ......................................

25

Reference Value ......................................................

25

Wiring Diagram - AWD SYSTEM -  ..........................

27

Fail-Safe ..................................................................

30

DTC Inspection Priority Chart ..................................

31

DTC Index  ...............................................................

31

SYMPTOM DIAGNOSIS  ..............................

32

AWD WARNING LAMP DOES NOT TURN ON

...

32

Description ...............................................................

32

Diagnosis Procedure  ...............................................

32

AWD WARNING LAMP DOES NOT TURN
OFF ....................................................................

33
