Infiniti EX35. Manual - part 446





DEF-68

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003136681

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

FILAMENT

DEF-69

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

M

A

B

DEF

N

O

P

ON-VEHICLE REPAIR

FILAMENT

Inspection and Repair

INFOID:0000000003136682

INSPECTION

1.

When measuring voltage, wrap tin foil around the top of the neg-
ative probe. Then press the foil against the wire with your finger.

2.

Attach probe circuit tester (in Volt range) to middle portion of
each filament.

3.

If a filament is burned out, circuit tester registers 0 or battery
voltage.

4.

To locate burned out point, move probe to left and right along fil-
ament. Test needle will swing abruptly when probe passes the
point.

REPAIR

REPAIR EQUIPMENT

• Conductive silver composition (Dupont No. 4817 or equivalent)

SEL122R

SEL263

SEL265

DEF-70

< ON-VEHICLE REPAIR >

FILAMENT

• Ruler 30 cm (11.8 in) long
• Drawing pen
• Heat gun
• Alcohol
• Cloth

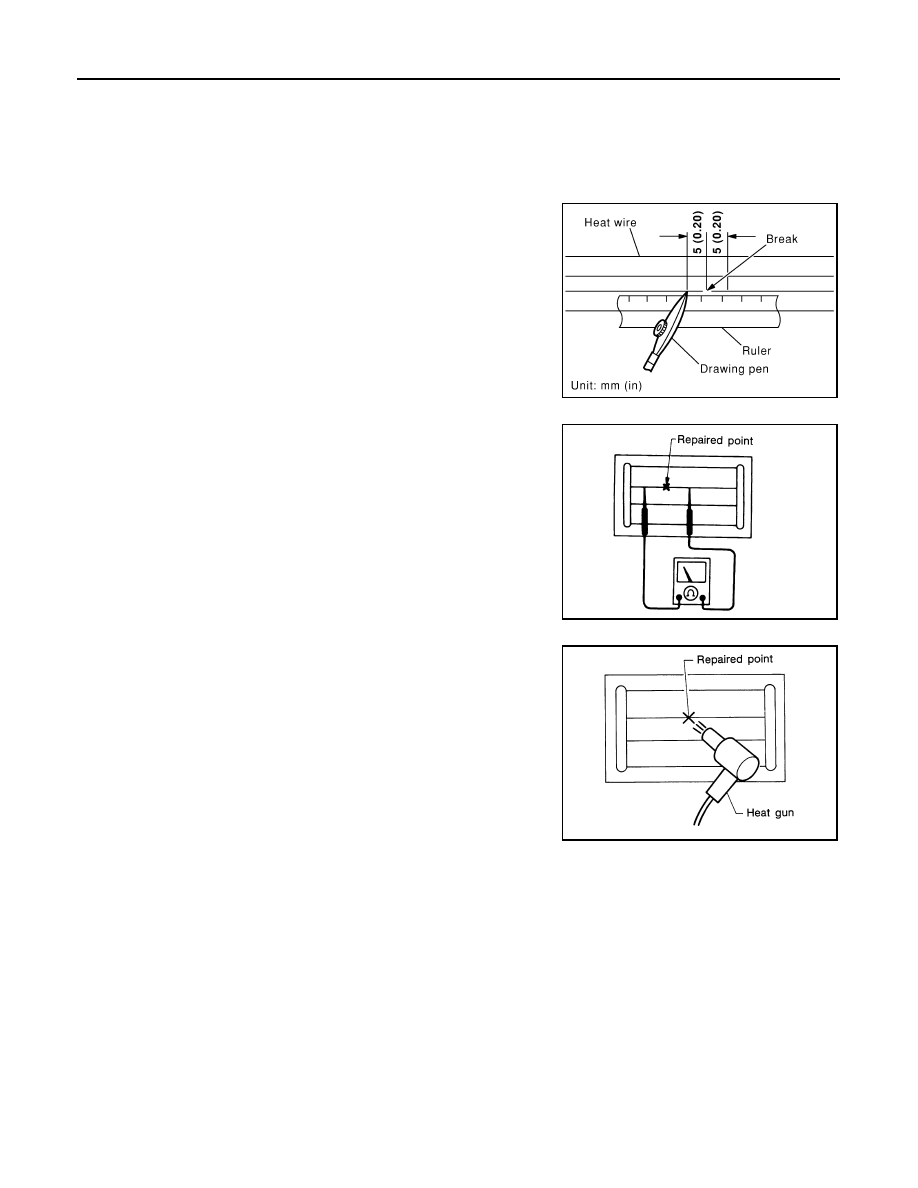

REPAIRING PROCEDURE

1.

Wipe broken heat wire and its surrounding area clean with a
cloth dampened in alcohol.

2.

Apply a small amount of conductive silver composition to tip of
drawing pen.
Shake silver composition container before use.

3.

Place ruler on glass along broken line. Deposit conductive silver
composition on break with drawing pen. Slightly overlap existing
heat wire on both sides [preferably 5 mm (0.20 in)] of the break.

4.

After repair has been completed, check repaired wire for conti-
nuity. This check should be conducted 10 minutes after silver
composition is deposited.
Do not touch repaired area while test is being conducted.

5.

Apply a constant stream of hot air directly to the repaired area
for approximately 20 minutes with a heat gun. A minimum dis-
tance of 3 cm (1.2 in) should be kept between repaired area and
hot air outlet.
If a heat gun is not available, let the repaired area dry for 24
hours.

PIIA0215E

SEL012D

SEL013D

DLK-1

BODY EXTERIOR, DOORS, ROOF & VEHICLE SECURITY

C

D

E

F

G

H

I

J

L

M

SECTION

DLK

A

B

DLK

N

O

P

CONTENTS

DOOR & LOCK

INTELLIGENT KEY SYSTEM

BASIC INSPECTION  ....................................

7

DIAGNOSIS AND REPAIR WORKFLOW  ..........

7

Work Flow  .................................................................

7

INSPECTION AND ADJUSTMENT ....................

10

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT  ........................................................

10

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Description  ................................

10

ADDITIONAL SERVICE WHEN REPLACING
CONTROL UNIT : Special Repair Requirement  .....

10

FUNCTION DIAGNOSIS ..............................

11

POWER DOOR LOCK SYSTEM ........................

11

System Diagram ......................................................

11

System Description  .................................................

11

Component Parts Location ....................................

13

Component Description ..........................................

14

INTELLIGENT KEY SYSTEM  ............................

15

INTELLIGENT KEY SYSTEM  ...................................

15

INTELLIGENT KEY SYSTEM : System Diagram ....

15

INTELLIGENT KEY SYSTEM : System Descrip-
tion ..........................................................................

15

INTELLIGENT KEY SYSTEM :
Component Parts Location ....................................

16

INTELLIGENT KEY SYSTEM :
Component Description ..........................................

18

DOOR LOCK FUNCTION ..........................................

18

DOOR LOCK FUNCTION : System Diagram  .........

18

DOOR LOCK FUNCTION : System Description  .....

18

DOOR LOCK FUNCTION :
Component Parts Location ....................................

21

DOOR LOCK FUNCTION :
Component Description ..........................................

23

BACK DOOR OPEN FUNCTION ...............................

23

BACK DOOR OPEN FUNCTION : System Dia-
gram ........................................................................

23

BACK DOOR OPEN FUNCTION : System De-
scription ...................................................................

23

BACK DOOR OPEN FUNCTION :
Component Parts Location ....................................

25

BACK DOOR OPEN FUNCTION :
Component Description ..........................................

27

REMOTE KEYLESS ENTRY FUNCTION ..................

27

REMOTE KEYLESS ENTRY FUNCTION : Sys-
tem Diagram  ............................................................

27

REMOTE KEYLESS ENTRY FUNCTION : Sys-
tem Description ........................................................

27

REMOTE KEYLESS ENTRY FUNCTION :
Component Parts Location ....................................

30

REMOTE KEYLESS ENTRY FUNCTION :
Component Description ..........................................

32

WELCOME LIGHT FUNCTION  .................................

32

WELCOME LIGHT FUNCTION : System Descrip-
tion ...........................................................................

32

WELCOME LIGHT FUNCTION :
Component Parts Location ....................................

33

KEY REMINDER FUNCTION  ....................................

35

KEY REMINDER FUNCTION : System Descrip-
tion ...........................................................................

35

KEY REMINDER FUNCTION :
Component Parts Location ....................................

36

WARNING FUNCTION  ..............................................

38

WARNING FUNCTION : System Description ..........

38

WARNING FUNCTION :
Component Parts Location ....................................

43

INTEGRATED HOMELINK TRANSMITTER  ....

46

Component Description  ...........................................

46

DIAGNOSIS SYSTEM (BCM)  ...........................

47

COMMON ITEM  .........................................................

47
