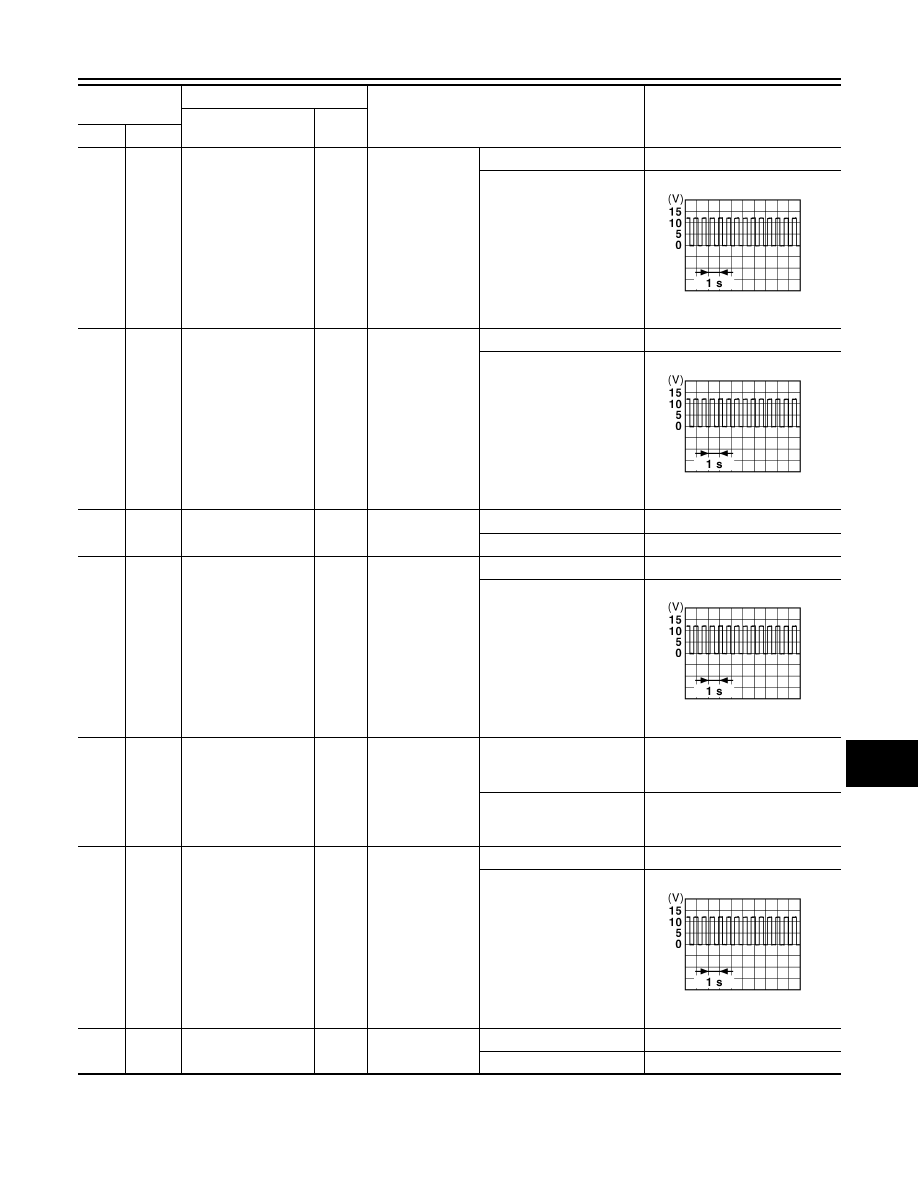

DEF-32 < ECU DIAGNOSIS > BCM (BODY CONTROL MODULE) Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + – 1 (W) Ground Battery power supply Input Ignition switch OFF Battery voltage 2 (Y) Ground P/W power supply Output Ignition switch OFF Battery voltage 3 (O) Ground P/W power supply Output Ignition switch ON Battery voltage 4 (LG) Ground Interior room lamp Output Interior room lamp battery saver is activated. 0 V Interior room lamp battery saver is not activat- Battery voltage 5 (L) Ground Passenger door UN- Output Passenger door UNLOCK Battery voltage Other than UNLOCK 0 V 7 (Y) Ground Step lamp Output Step lamp ON 0 V OFF Battery voltage 8 (V) Ground All doors, fuel lid Output All doors LOCK Battery voltage Other than LOCK 0 V 9 (G) Ground Driver door, fuel lid Output Driver door UNLOCK Battery voltage Other than UNLOCK 0 V 10 (BR) Ground Rear RH door and Output Rear RH door UNLOCK Battery voltage Other than UNLOCK 0 V 11 (R) Ground Battery power supply Input Ignition switch OFF Battery voltage 13 (B) Ground Ground — Ignition switch ON 0 V 14 (W) Ground Push-button ignition Output Tail lamp OFF 0 V ON NOTE: 15 (Y) Ground ACC indicator lamp Output Ignition switch OFF or ON Battery voltage ACC 0 V JSNIA0010GB |
