Infiniti EX35. Manual - part 408
CCS
LANE CAMERA UNIT
CCS-167
< ECU DIAGNOSIS >
[LDW & LDP]
C
D
E
F
G
H
I
J
K
L
M
B
N
P
A

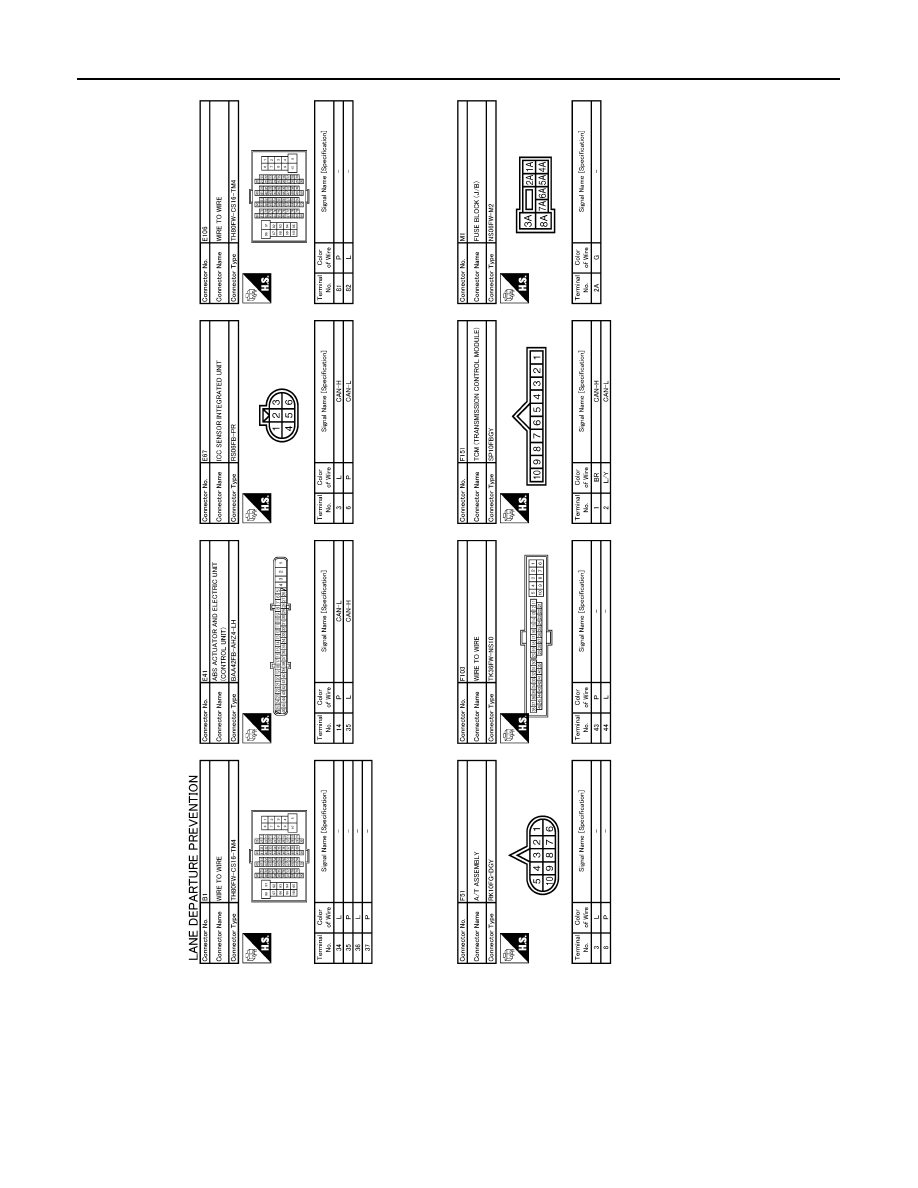

TERMINAL LAYOUT
PHYSICAL VALUES
XOFFSET
Camera aiming is completed.
Approx. 180 pixel
CHK AIM YAW
NOTE:
The item is indicated, but not used.
—
CHK AIM ROLL
NOTE:
The item is indicated, but not used.
—
CHK AIM PITCH
NOTE:
The item is indicated, but not used.
—
FCTRY AIM YAW
Camera aiming is not completed.
+12.0 deg
Camera aiming is completed.
0
±
5.0 deg
FCTRY AIM ROL
Camera aiming is not completed.
0.0 deg
Camera aiming is completed.
0
±
5.0 deg
FCTRY AIM PIT
Camera aiming is not completed.
+12.0 deg
Camera aiming is completed.
0
±
5.0 deg
Monitor Item
Condition
Value/Status
JPMIA0947GB
Terminal No.
(Wire color)
Description
Condition
Value
(Approx.)
+
–
Signal name
Input/
Output
1
(Y)
Ground
Ignition power supply
Input
Ignition switch ON
Battery voltage
3
(R)
Ground
Lane departure warning buzzer
Output
Lane departure warning buzzer
Sounding
0 V
Not sounding
12 V
4
(SB)
Ground
LDW ON indicator
Output
LDW ON indicator
Illuminated
0 V
OFF
12 V
5
(P)
Ground
CAN-L
—
—
—
6
(B)
Ground
Ground
—
—
0 V
9
(V)
Ground
LDW switch
Input
LDW switch
Pressed
0 V
Released
5 V
10
(L)
Ground
CAN-H
—
—
—
12
(B)
Ground
Ground
—
—
0 V
