Infiniti EX35. Manual - part 392

CCS

PREPARATION

CCS-103

< PREPARATION >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

PREPARATION

PREPARATION

Special Service Tools

INFOID:0000000003130141

The actual shapes of Kent-Moore tools may differ from those of special service tools illustrated here.

Tool number
(Kent-Moore No.)
Tool name

Description

KV99110100
(J-45718)
ICC target board

Uses for laser beam aiming adjustment

PKIA0358J

CCS-104

< ON-VEHICLE REPAIR >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

ON-VEHICLE REPAIR

ICC SENSOR INTEGRATED UNIT

Exploded View

INFOID:0000000003130142

Removal and Installation

INFOID:0000000003130143

REMOVAL

1.

Remove the front bumper fascia. Refer to

EXT-12, "Exploded View"

.

2.

Disconnect ICC sensor integrated unit connector.

3.

Remove mounting bolts from ICC sensor integrated unit.

4.

Remove ICC sensor integrated unit.

INSTALLATION

Install in the reverse order of removal.

Inspection and Adjustment

INFOID:0000000003130144

ADJUSTMENT

Always perform the laser beam aiming adjustment after replacing or removing/installing the ICC sensor inte-
grated unit. Refer to

CCS-8, "LASER BEAM AIMING ADJUSTMENT : Special Repair Requirement (Prepara-

tion)"

.

INSPECTION

Always perform the laser beam aiming adjustment and the ICC system operation inspection after replacing or
removing/installing the ICC sensor integrated unit. Refer to

CCS-13, "ACTION TEST : Special Repair Require-

ment (Vehicle-To-Vehicle Distance Control Mode)"

.

1.

ICC sensor integrated unit

JPOIA0120ZZ

CCS

ICC STEERING SWITCH

CCS-105

< ON-VEHICLE REPAIR >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

ICC STEERING SWITCH

Exploded View

INFOID:0000000003130145

Refer to

ST-16, "Exploded View"

.

Removal and Installation

INFOID:0000000003130146

REMOVAL

Refer to

ST-16, "Exploded View"

.

INSTALLATION

Install in the reverse order of removal.

CCS-106

< BASIC INSPECTION >

[LDW & LDP]

DIAGNOSIS AND REPAIR WORK FLOW

BASIC INSPECTION

DIAGNOSIS AND REPAIR WORK FLOW

Work Flow

INFOID:0000000003514556

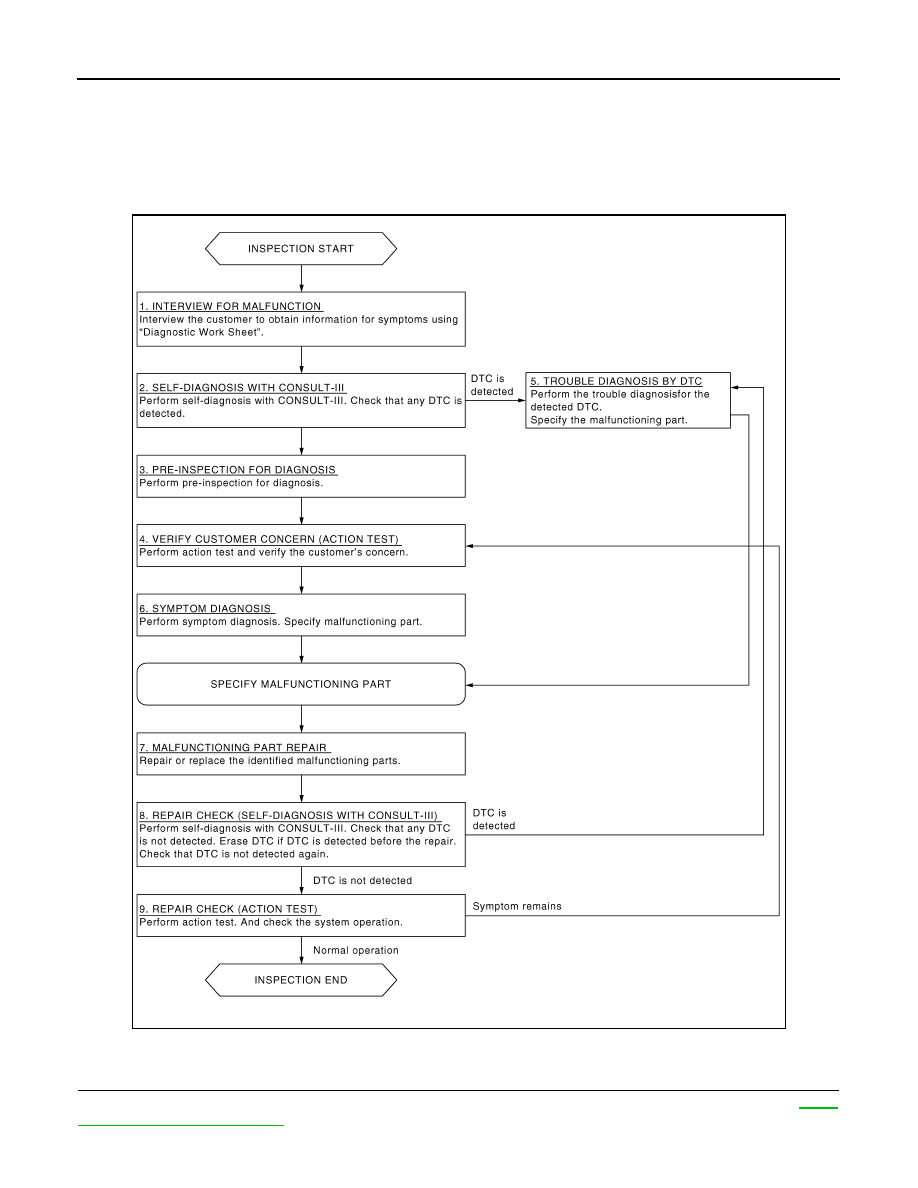

OVERALL SEQUENCE

DETAILED FLOW

1.

INTERVIEW FOR MALFUNCTION

Interview the customer to obtain information about symptoms using “Diagnostic Work Sheet”. (Refer to

CCS-

107, "Diagnostic Work Sheet"

.)

JPOIA0010GB
