Infiniti EX35. Manual - part 386





CCS

ICC SENSOR INTEGRATED UNIT

CCS-79

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

SET VHCL SPD

While driving

When vehicle speed is set

Displays the set
vehicle speed

BUZZER O/P

Engine running

When buzzer output signal is outputted

On

When buzzer output signal is not outputted

Off

THRTL SENSOR

NOTE:
This item is displayed, but cannot monitor

0.0 deg

ENGINE RPM

While driving

Equivalent to ta-
chometer reading

WIPER SW

Ignition switch ON

Wiper switch at OFF

Off

Wiper switch at LOW

Low

Wiper switch at HIGH

High

YAW RATE

NOTE:
This item is displayed, but cannot monitor

0.0 deg/s

STP LMP DRIVE

While driving

ICC brake hold relay activated

On

ICC brake hold relay deactivated

Off

D RANGE SW

Ignition switch ON

When “D”, “DS” or “M” range is selected

On

When any position other than “D”, “DS” or “M” range is
selected

Off

NP RANGE SW

Ignition switch ON

When “N” or “P” range is selected

On

When any position other than “N” or “P” range is select-
ed

Off

PWR SUP MONI

Engine running

Power supply volt-
age of ICC sensor
integrated unit

VHCL SPD AT

While driving

Value of A/T vehi-
cle speed sensor
signal

THRTL OPENING

Engine running

Depress accelerator pedal

Displays the throt-
tle position

GEAR

While driving

Displays the shift
position

CLUTCH SW SIG

NOTE:
This item is displayed, but cannot monitor

Off

NP SW SIG

Ignition switch ON

When any position other than “N” or “P” range is select-
ed

On

When any position other than “N” or “P” range is select-
ed

Off

MODE SIG

Start the engine and press the
MAIN switch

When ICC system is deactivated

Off

When vehicle-to-vehicle distance control mode is acti-
vated

ICC

When conventional (fixed speed) cruise control mode
is activated

ASCD

SET DISP IND

• Start the engine and activate

the conventional (fixed speed)
cruise control mode

• Press SET/COAST switch

When SET switch indicator is turned on

On

When SET switch indicator is turned off

Off

DISTANCE

Drive the vehicle in the vehicle-
to-vehicle distance control mode

When a vehicle ahead is detected

Displays the dis-

tance from the pre-

ceding vehicle

When no vehicle ahead is detected

0.0 m

Monitor Item

Condition

Value/Status

CCS-80

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

TERMINAL LAYOUT

PHYSICAL VALUES

RELATIVE SPD

Drive the vehicle in the vehicle-
to-vehicle distance control mode

When a vehicle ahead is detected

Displays the rela-

tive speed

When no vehicle ahead is detected

0.0 m/s

Monitor Item

Condition

Value/Status

JPOIA0105ZZ

Terminal No.

(Wire color)

Description

Condition

Value

(Approx.)

+

Signal name

Input/

Output

1

(R)

Ground

Ignition power supply

Input

Ignition switch ON

Battery voltage

2

(V)

Stop lamp drive output signal

Output

Ignition

switch ON

At “STOP LAMP” test on
“ACTIVE TEST”

12 V

0  V

3

(L)

CAN

H

4

(B)

Ground

Ignition switch ON

0 V

6

(P)

CAN

L —

CCS

ICC SENSOR INTEGRATED UNIT

CCS-81

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

C

D

E

F

G

H

I

J

K

L

M

B

N

P

A

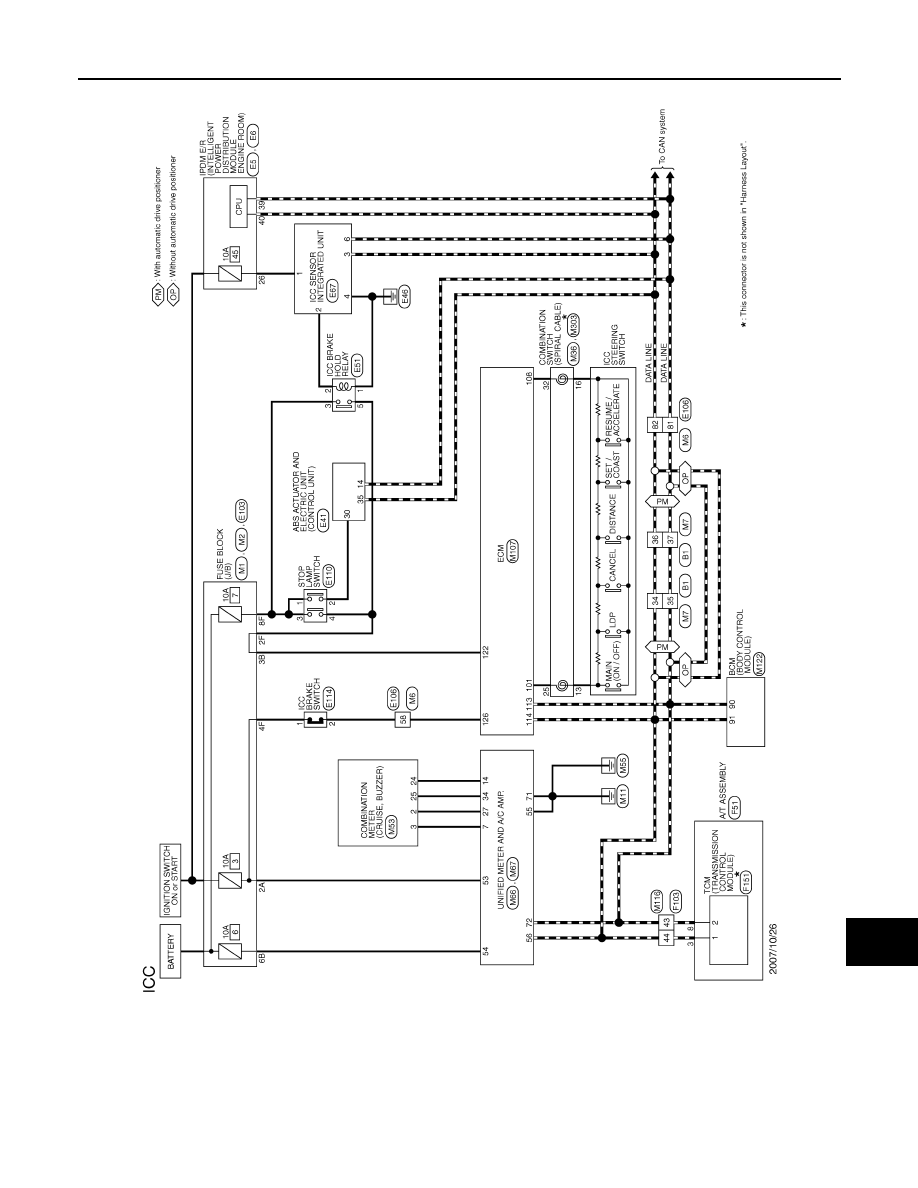

Wiring Diagram - ICC SYSTEM -

INFOID:0000000003130118

JCOWM0022GB

CCS-82

< ECU DIAGNOSIS >

[INTELLIGENT CRUISE CONTROL]

ICC SENSOR INTEGRATED UNIT

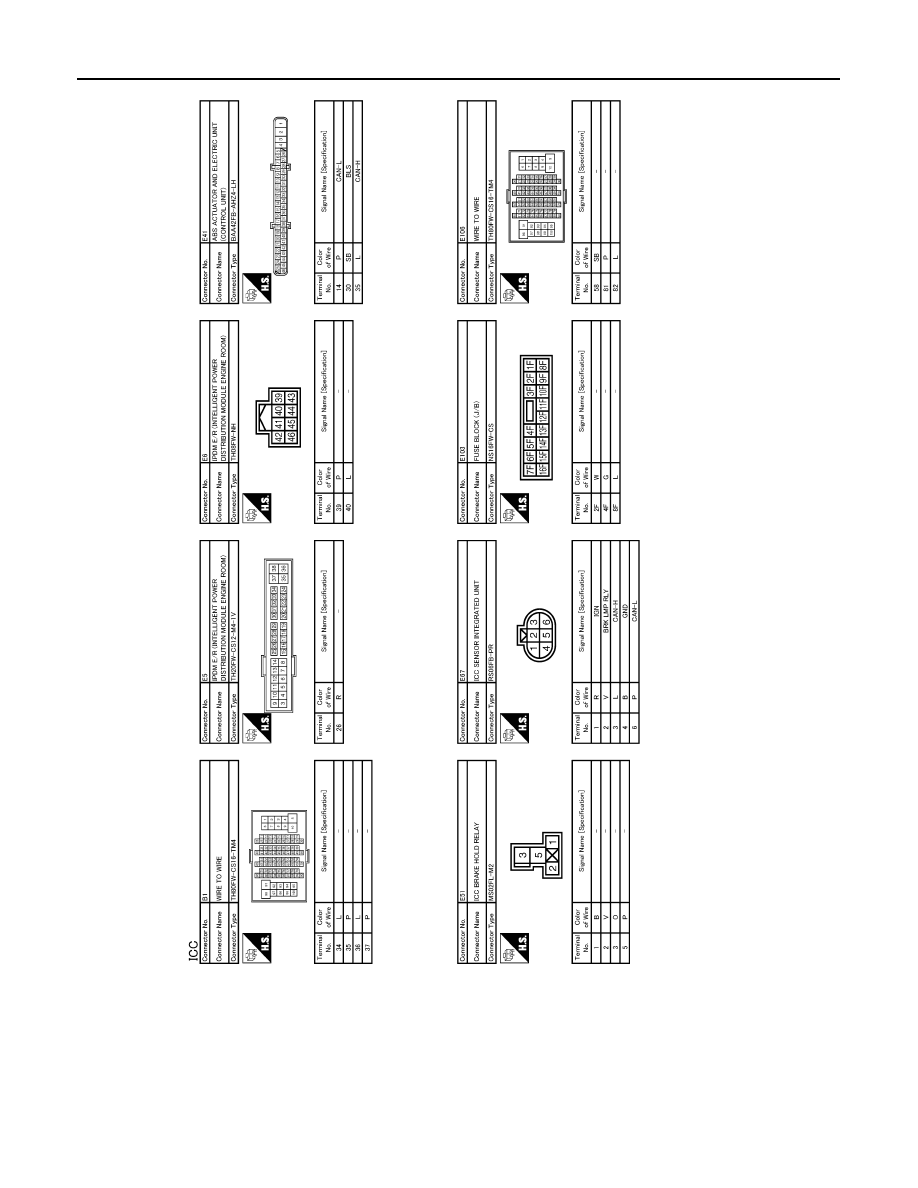

JCOWM0023GB
