Infiniti EX35. Manual - part 309





BCS

PRECAUTIONS

BCS-83

< PRECAUTION >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003137959

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

BCS-84

< ON-VEHICLE REPAIR >

BCM (BODY CONTROL MODULE)

ON-VEHICLE REPAIR

BCM (BODY CONTROL MODULE)

Exploded View

INFOID:0000000003534211

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

Removal and Installation

INFOID:0000000003534212

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

REMOVAL

1.

Remove dash side finisher (passenger side). Refer to

INT-20, "Exploded View"

.

2.

Remove bolt and nut.

3.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-3, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Special Repair Requirement"

.

1.

BCM

JPMIA0936ZZ

BCS

COMBINATION SWITCH

BCS-85

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

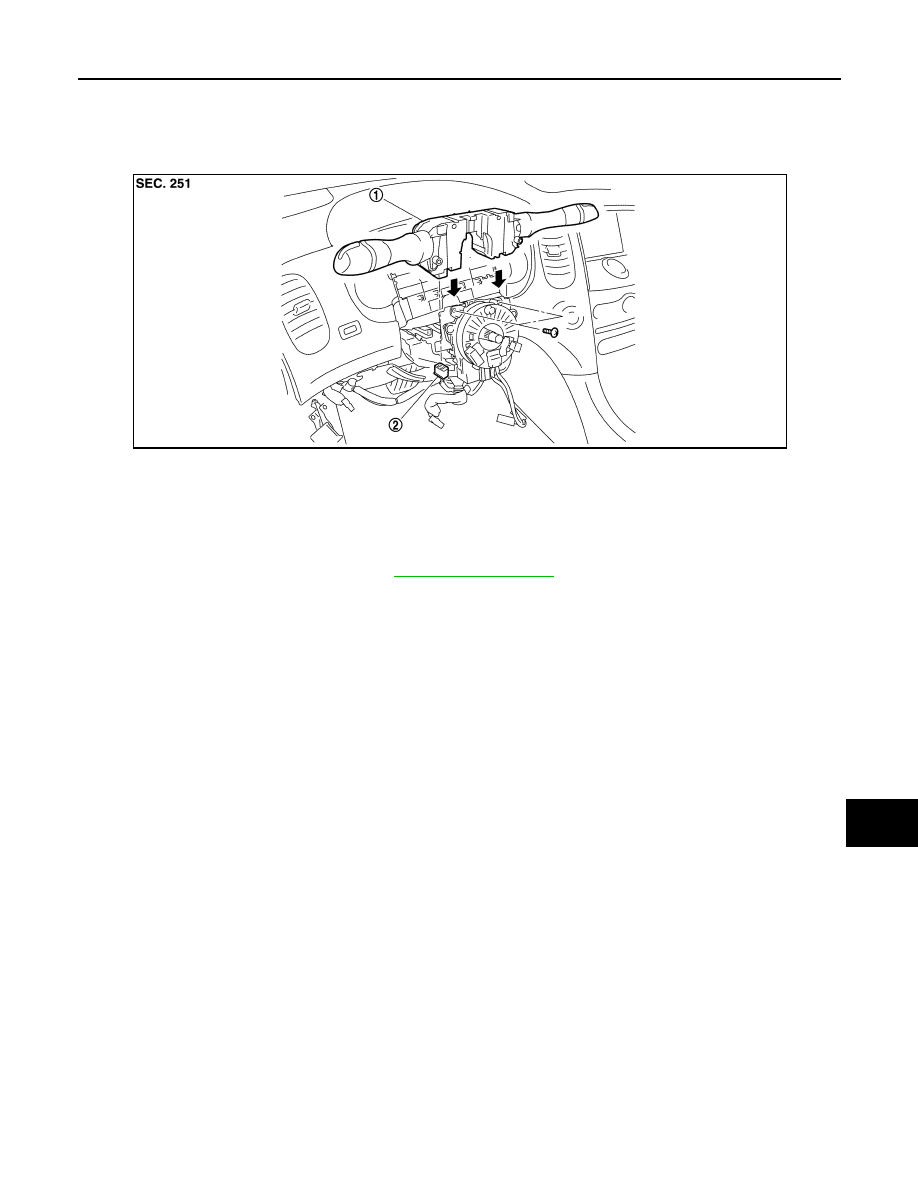

COMBINATION SWITCH

Exploded View

INFOID:0000000003137962

Removal and Installation

INFOID:0000000003137963

REMOVAL

1.

Remove steering column cover. Refer to

IP-11, "Exploded View"

.

2.

Remove screws.

3.

Disconnect the connector.

4.

Pull up the combination switch to remove it.

INSTALLATION

Install in the reverse order of removal.

1.

Combination switch

2.

Combination switch connector

JPMIA0937ZZ

BR-1

BRAKES

C

D

E

G

H

I

J

K

L

M

SECTION

BR

A

B

BR

N

O

P

CONTENTS

BRAKE SYSTEM

SYMPTOM DIAGNOSIS  ...............................

3

NOISE, VIBRATION AND HARSHNESS
(NVH) TROUBLESHOOTING  .............................

3

NVH Troubleshooting Chart  ......................................

3

PRECAUTION ...............................................

4

PRECAUTIONS ...................................................

4

Precaution for Supplemental Restraint System
(SRS) "AIR BAG" and "SEAT BELT PRE-TEN-
SIONER" .................................................................
..

4

Precaution Necessary for Steering Wheel Rota-
tion after Battery Disconnect  ...................................
..

4

Precaution for Procedure without Cowl Top Cover

......

5

Precaution for Brake System  ....................................

5

PREPARATION ............................................

6

PREPARATION ...................................................

6

Commercial Service Tool  ..........................................

6

ON-VEHICLE MAINTENANCE .....................

7

BRAKE PEDAL  ...................................................

7

Inspection and Adjustment ........................................

7

BRAKE FLUID ....................................................

10

Inspection ................................................................

10

Draining ...................................................................

10

Refilling ...................................................................

10

Bleeding Brake System ...........................................

11

BRAKE MASTER CYLINDER ............................

12

Inspection ................................................................

12

BRAKE BOOSTER  ............................................

13

Inspection ................................................................

13

FRONT DISC BRAKE ........................................

14

BRAKE PAD  ..............................................................

14

BRAKE PAD : Inspection and Adjustment  ..............

14

DISC ROTOR  .............................................................

14

DISC ROTOR : Inspection and Adjustment .............

14

REAR DISC BRAKE .........................................

16

BRAKE PAD  ..............................................................

16

BRAKE PAD : Inspection and Adjustment ...............

16

DISC ROTOR  .............................................................

16

DISC ROTOR : Inspection and Adjustment .............

16

ON-VEHICLE REPAIR .................................

18

BRAKE PEDAL .................................................

18

Exploded View .........................................................

18

Removal and Installation  .........................................

18

Inspection and Adjustment  ......................................

19

BRAKE PIPING .................................................

20

FRONT .......................................................................

20

FRONT : Exploded View  .........................................

20

FRONT : Hydraulic Piping  .......................................

21

FRONT : Removal and Installation ..........................

21

FRONT : Inspection .................................................

22

REAR .........................................................................

22

REAR : Exploded View ............................................

23

REAR : Hydraulic Piping ..........................................

23

REAR : Removal and Installation  ............................

24

REAR : Inspection  ...................................................

24

BRAKE MASTER CYLINDER  ..........................

25

Exploded View .........................................................

25

Removal and Installation  .........................................

25

Disassembly and Assembly .....................................

26

Inspection ................................................................

27

BRAKE BOOSTER  ...........................................

28

Exploded View .........................................................

28

Removal and installation  .........................................

28

Inspection and Adjustment  ......................................

29
