SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

AV-929

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

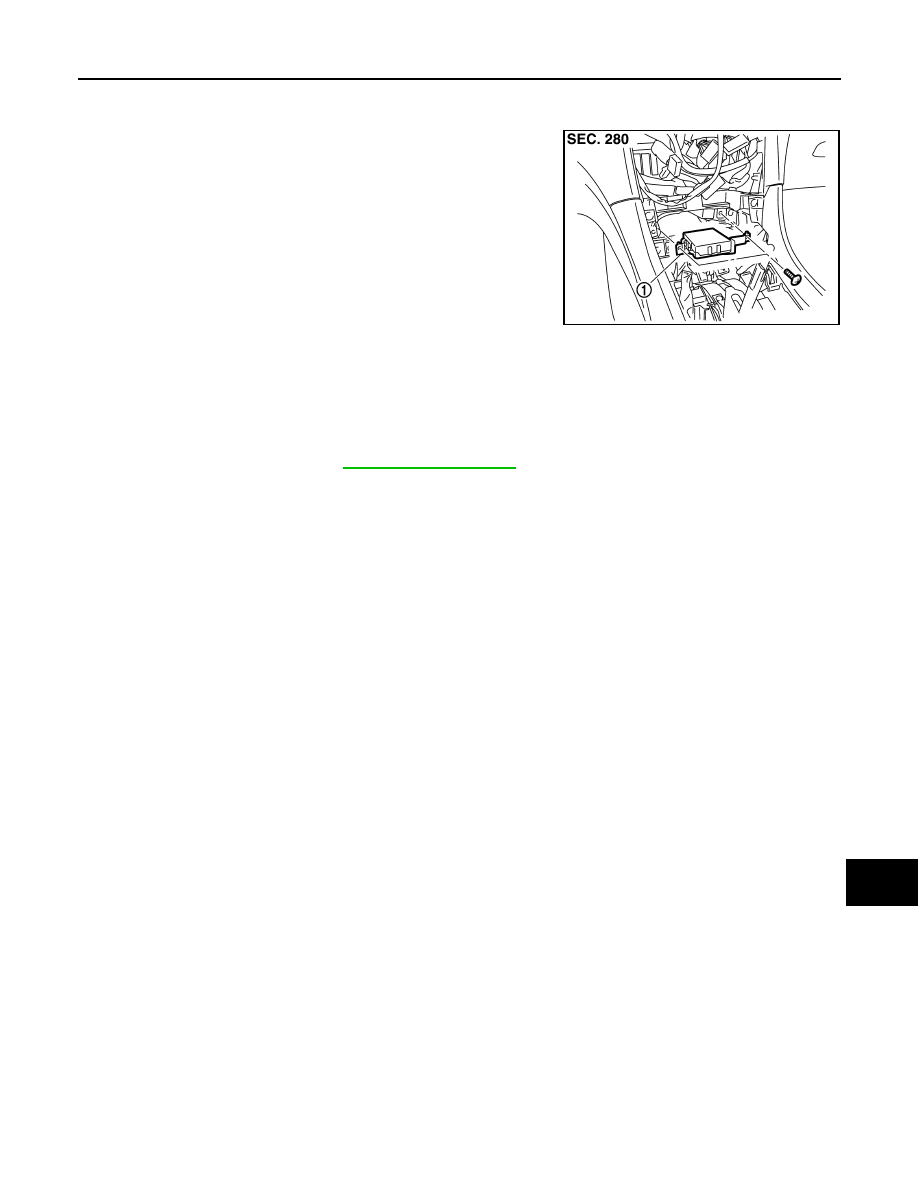

SONAR CONTROL UNIT (WITH AROUND VIEW MONITOR)

Exploded View

INFOID:0000000003567098

Removal and Installation

INFOID:0000000003567099

REMOVAL

1.

Remove AV control unit. Refer to

AV-903, "Exploded View"

.

2.

Remove screws and connector, and then sonar control unit.

INSTALLATION

Install in the reverse order of removal.

JPNIA0904ZZ

1.

Sonar control unit

AV-930

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

SONAR SENSOR

SONAR SENSOR

FRONT

FRONT : Exploded View

INFOID:0000000003567102

FRONT : Removal and Installation

INFOID:0000000003567103

REMOVAL

1.

Remove fender protector. Keep a service area. Refer to

EXT-25, "FENDER PROTECTOR : Exploded

View"

.

2.

Remove sonar sensor connector.

3.

Push the sonar sensor (1) outside (direction of white arrow) the
front bumper (2), pressing the metal clips on the back to the
direction of black arrows.

INSTALLATION

Install the bumper when the pawl engages.

CAUTION:

The connector direction is within

±

10

°

 from the horizontal posi-

tion when assembling the bumper.

REAR

JPNIA0905ZZ

1.

Sonar sensor (front)

SKIB9007E

A

: Horizontal position

a

:  10

°

JSNIA0325ZZ

AV

SONAR SENSOR

AV-931

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR : Exploded View

INFOID:0000000003567104

REAR : Removal and Installation

INFOID:0000000003567105

REMOVAL

1.

Remove sonar sensor connector.

2.

Push the sonar sensor (1) outside (direction of white arrow) the
rear bumper (2), pressing the metal clips on the back to the
direction of black arrows.

INSTALLATION

Install the bumper when the pawl engages.

CAUTION:

The connector direction is within

±

10

°

 from the horizontal posi-

tion when assembling the bumper.

JPNIA0906ZZ

1.

Sonar sensor (rear)

SKIB9007E

A

: Horizontal position

a

:  10

°

JSNIA0325ZZ

AV-932

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITH NAVIGATION]

BUZZER

BUZZER

Exploded View

INFOID:0000000003567106

Removal and Installation

INFOID:0000000003567107

REMOVAL

1.

Remove luggage side lower finisher (RH). Refer to

INT-34, "Exploded View"

.

2.

Remove buzzer mounting bolt.

3.

Remove buzzer.

INSTALLATION

Install in the reverse order of removal.

JPNIA0907ZZ

1.

Buzzer
