AV

CAMERA CONTROL UNIT

AV-429

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

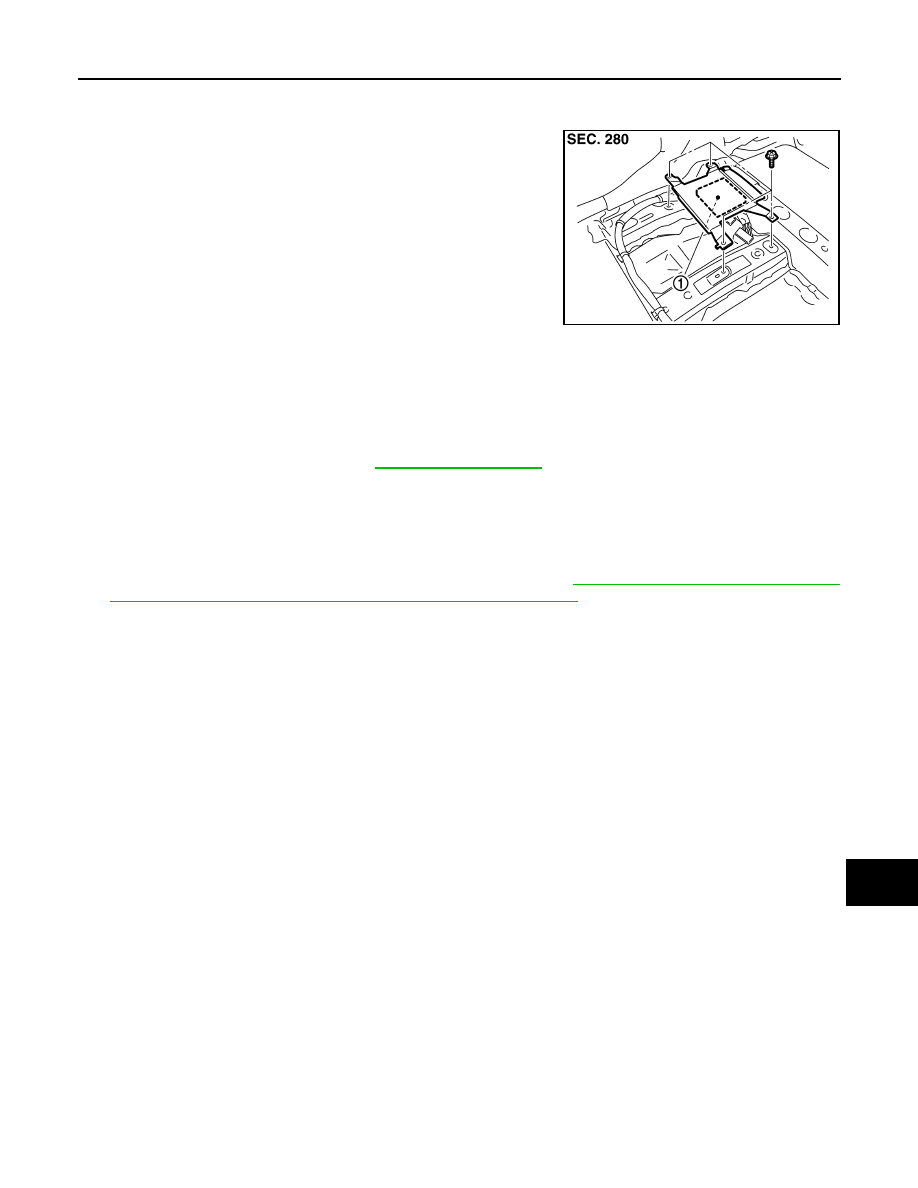

CAMERA CONTROL UNIT

Exploded View

INFOID:0000000003573774

Removal and Installation

INFOID:0000000003573775

REMOVAL

1.

Remove front seat (LH side). Refer to

SE-87, "Exploded View"

.

2.

Remove floor carpet. Keep a service area.

3.

Remove camera control unit.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Perform predicted course line center position adjustment. Refer to

AV-174, "PREDICTED COURSE LINE

CENTER POSITION ADJUSTMENT : Special Repair Requirement"

.

JPNIA0883ZZ

1.

Camera control unit

AV-430

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

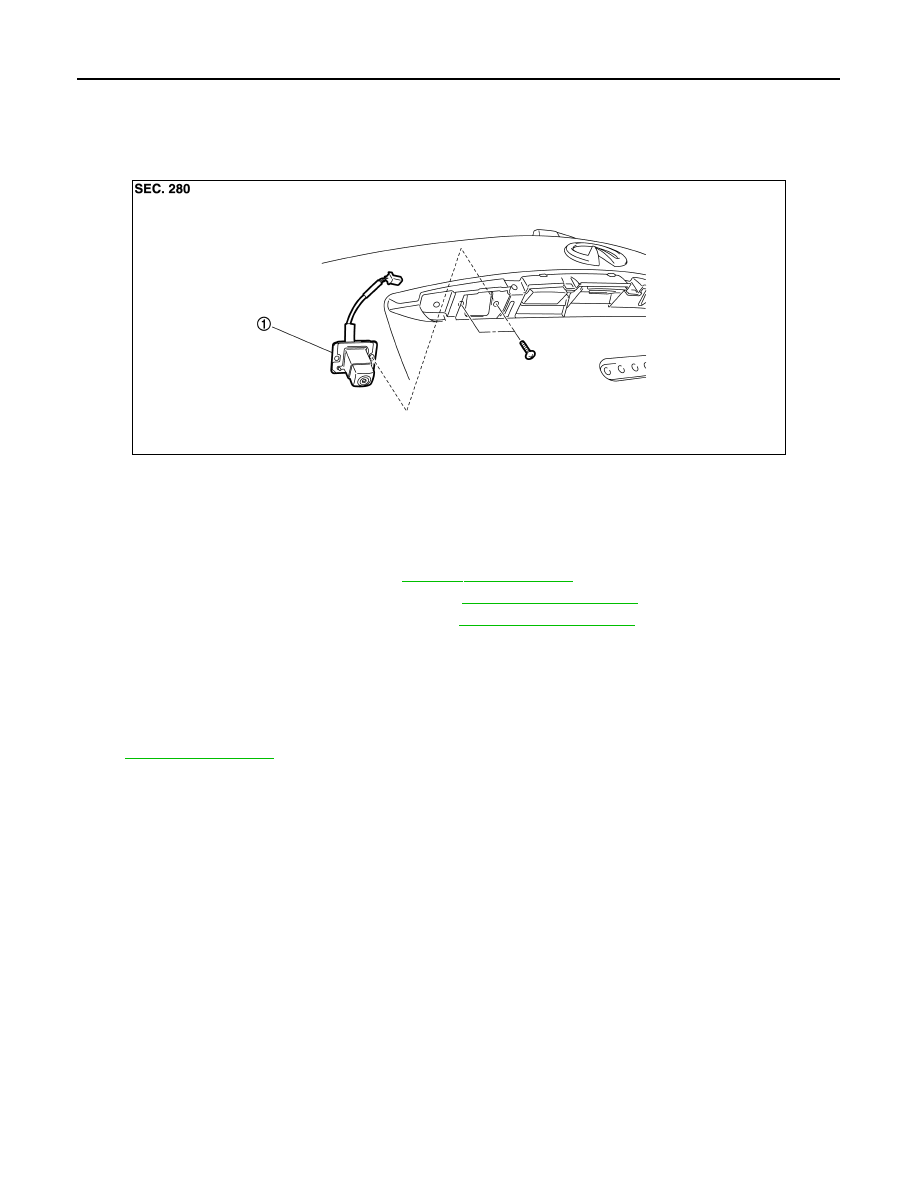

REAR VIEW CAMERA

REAR VIEW CAMERA

Exploded View

INFOID:0000000003573777

DISASSEMBLY

Removal and Installation

INFOID:0000000003573778

REMOVAL

1.

Remove back door finisher inner. Refer to

INT-38, "Exploded View"

.

2.

Remove back door outside finisher upper. Refer to

EXT-48, "Exploded View"

.

3.

Remove back door outside finisher lower. Refer to

EXT-48, "Exploded View"

.

4.

Remove rear view camera mounting screws and rear view camera harness connector.

5.

Remove rear view camera.

INSTALLATION

1.

Installation is the reverse order of removal.

2.

Adjust the guide line position if the guide line position is shifted after installing the rear view camera. Refer
to

AV-431, "Adjustment"

.

JPNIA0884ZZ

1.

Rear view camera

AV

REAR VIEW CAMERA

AV-431

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Adjustment

INFOID:0000000003579616

1.

Draw lines on rearward area of the vehicle passing through the
following points: 250 mm (9.84 in) from both sides of the vehicle,
and 0.5 m (1.64 ft), 1.0 m (3.28 ft) from the rear end of the
bumper.

2.

Set into “Adjust offset of rear view camera” mode of Confirma-
tion/Adjustment mode.

3.

Rotate the center dial, and then select the guiding line pattern so
that its angle is aligned with the correction line of the rear of the
vehicle.

4.

Make fine adjustment to the correction line of the rear of the
vehicle with up/down/left/right switches so that its position is
aligned with the guiding line. Press “”

CAUTION:

Never operate other function such as pressing BACK while writing index data.
If Confirmation/Adjustment mode does not function in the above procedure, perform one of the
following service to adjust the index again.
• Remove battery for five min. Then reconnect battery.
• Remove camera control unit connector for five min. Then reconnect camera control unit connec-

tor.

JPNIA0967GB

Selected pattern

: 7

Up/Down adjustment range

:

−

20 – 20

Left/Right adjustment range

:

−

20 – 20

SKIB3689E

AV-432

< ON-VEHICLE REPAIR >

[BOSE AUDIO WITHOUT NAVIGATION]

TEL ADAPTER UNIT

TEL ADAPTER UNIT

Exploded View

INFOID:0000000003508790

Removal and Installation

INFOID:0000000003508791

REMOVAL

1.

Remove luggage floor spacer (RH). Refer to

INT-34, "Exploded View"

.

2.

Remove nuts, and then remove satellite radio tuner (1) and TEL
adapter unit (2).

INSTALLATION

Install in the reverse order of removal.

1.

TEL adapter unit

2.

Bracket (front)

3.

Satellite radio tuner

4.

Bracket (rear)

JPNIA0495ZZ

JPNIA0893ZZ
