Infiniti EX35. Manual - part 1530





WT-76

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

JCMWM1402GB

BCM (BODY CONTROL MODULE)

WT-77

< ECU DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

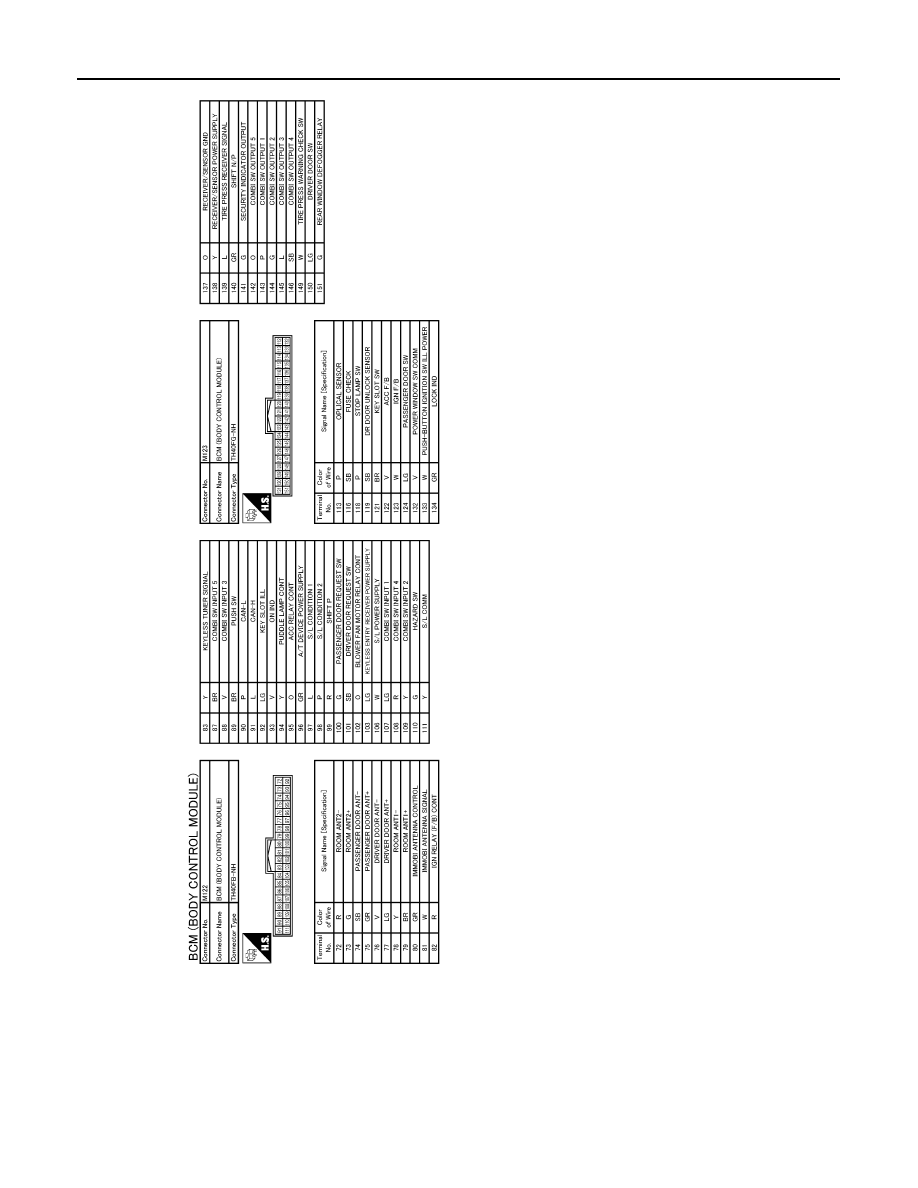

JCMWM1403GB

WT-78

< ECU DIAGNOSIS >

BCM (BODY CONTROL MODULE)

Fail-safe

INFOID:0000000003774306

FAIL-SAFE CONTROL BY DTC

BCM performs fail-safe control when any DTC is detected.

JCMWM1404GB

BCM (BODY CONTROL MODULE)

WT-79

< ECU DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Display contents of CONSULT

Fail-safe

Cancellation

B2013: ID DISCORD BCM-S/L

Inhibit engine cranking

Erase DTC

B2014: CHAIN OF S/L-BCM

Inhibit engine cranking

Erase DTC

B2190: NATS ANTENNA AMP

Inhibit engine cranking

Erase DTC

B2191: DIFFERENCE OF KEY

Inhibit engine cranking

Erase DTC

B2192: ID DISCORD BCM-ECM

Inhibit engine cranking

Erase DTC

B2193: CHAIN OF BCM-ECM

Inhibit engine cranking

Erase DTC

B2557: VEHICLE SPEED

Inhibit steering lock

When normal vehicle speed signals have been received from ABS
actuator and electric unit (control unit) for 500 ms

B2560: STARTER CONT RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Starter control relay signal
• Starter relay status signal

B2601: SHIFT POSITION

Inhibit steering lock

500 ms after the following signal reception status becomes consis-
tent
• Selector lever P position switch signal
• P range signal (CAN)

B2602: SHIFT POSITION

Inhibit steering lock

5 seconds after the following BCM recognition conditions are ful-
filled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Vehicle speed: 4 km/h (2.5 MPH) or more

B2603: SHIFT POSI STATUS

Inhibit steering lock

500 ms after the following BCM recognition conditions are fulfilled
• Ignition switch is in the ON position
• Selector lever P position switch signal: Except P position (battery

voltage)

• Selector lever P/N position signal: Except P and N positions (0 V)

B2604: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Status  1
- Ignition switch is in the ON position
- Selector lever P/N position signal: P and N position (battery volt-

age)

- P range signal or N range signal (CAN): ON
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: Except P and N positions (0 V)
- P range signal and N range signal (CAN): OFF

B2605: PNP SW

Inhibit steering lock

500 ms after any of the following BCM recognition conditions is ful-
filled
• Ignition switch is in the ON position
- Power position: IGN
- Selector lever P/N position signal: Except P and N positions (0 V)
- Interlock/PNP switch signal (CAN): OFF
• Status  2
- Ignition switch is in the ON position
- Selector lever P/N position signal: P or N position (battery volt-

age)

- PNP switch signal (CAN): ON

B2606: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)

B2607: S/L RELAY

Inhibit engine cranking

500 ms after the following CAN signal communication status has
become consistent
• Steering lock relay signal (Request signal)
• Steering lock relay signal (Condition signal)
