Infiniti EX35. Manual - part 1513





WT-8

< FUNCTION DIAGNOSIS >

TPMS

FUNCTION DIAGNOSIS

TPMS

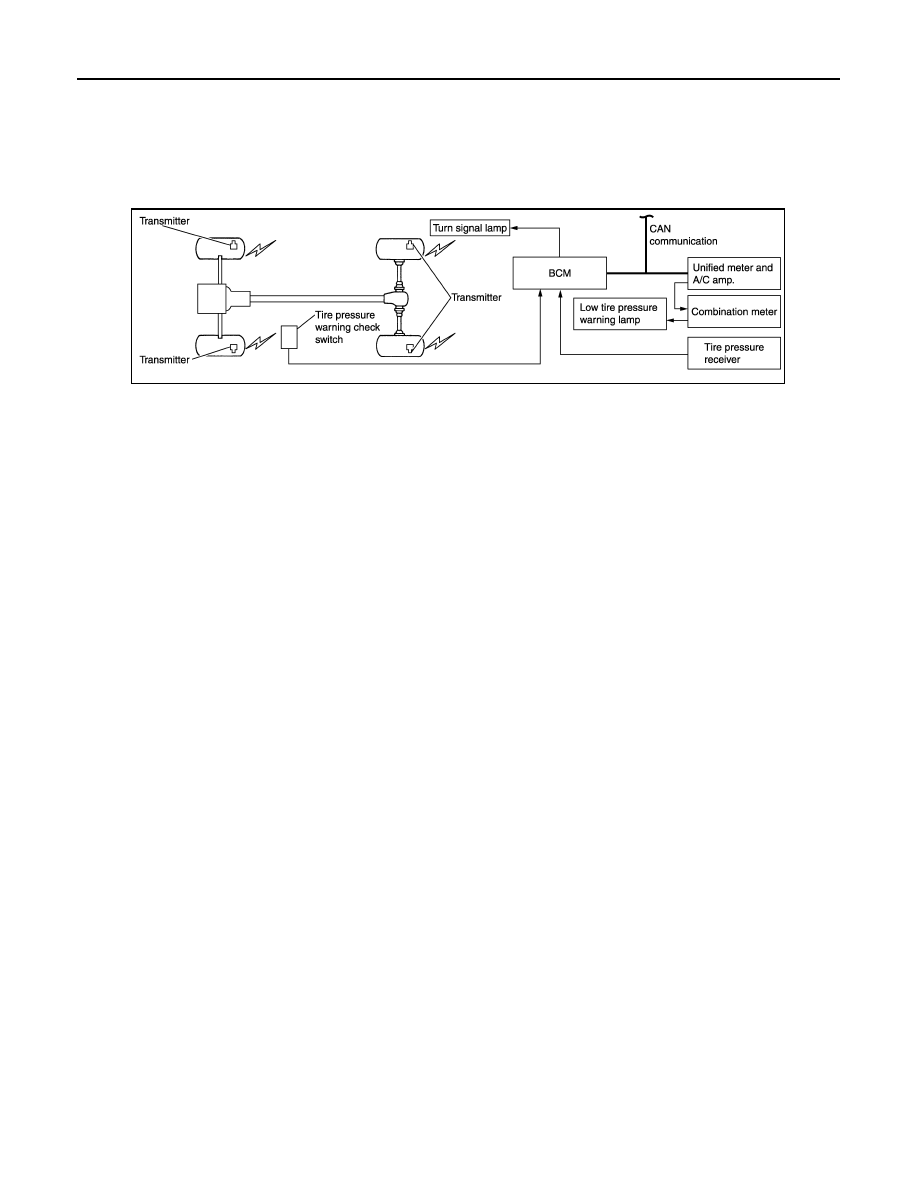

System Diagram

INFOID:0000000003579698

System Description

INFOID:0000000003579699

DESCRIPTION

During driving, the TPMS (Tire Pressure Monitoring System) receives the signal transmitted from transmitter
installed in each wheel. The BCM (Body Control Module) of this system has pressure judgment and trouble
diagnosis functions. When the tire pressure monitoring system detects low inflation pressure or another
unusual symptom, the low tire pressure warning lamps in the combination meter comes on.

JPEIC0054GB

TPMS

WT-9

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

Component Parts Location

INFOID:0000000003579700

Component Description

INFOID:0000000003579701

1.

Transmitter

2.

BCM

3.

Tire pressure receiver

4.

Tire pressure warning check switch

5.

Low tire pressure warning lamp

A.

Wheel

B.

Dash side lower (passenger side)

C.

Instrument lower panel RH

D.

Behind instrument lower panel LH

E.

Inside combination meter

JPEIC0050ZZ

Component parts

Function

BCM (Body Control Module)

WT-33, "Description"

.

Transmitter

WT-18, "Description"

.

Tire pressure receiver

WT-36, "Description"

.

Tire pressure warning check switch

WT-39, "Description"

.

Turn signal lamp

ID registration of each wheel has been completed, turn signal lamp flashes.

WT-10

< FUNCTION DIAGNOSIS >

TPMS

Unified meter and A/C amp.

Transmits the vehicle speed signal via CAN communication to BCM.

Receives the following signals via CAN communication for BCM.
• Tire pressure warning lamp signal
• Hazard lamp signal
• Buzzer signal

Low tire pressure warning lamp

Illuminates if malfunction is detected in electrical system of TPMS.

Component parts

Function

DIAGNOSIS SYSTEM (BCM)

WT-11

< FUNCTION DIAGNOSIS >

C

D

F

G

H

I

J

K

L

M

A

B

WT

N

O

P

DIAGNOSIS SYSTEM (BCM)

COMMON ITEM

COMMON ITEM : CONSULT-III Function (BCM - COMMON ITEM)

INFOID:0000000003774303

APPLICATION ITEM

CONSULT-III performs the following functions via CAN communication with BCM.

SYSTEM APPLICATION

BCM can perform the following functions for each system.
NOTE:
It can perform the diagnosis modes except the following for all sub system selection items.

×

: Applicable item

NOTE:

*: This item is displayed, but is not used.

FREEZE FRAME DATA (FFD) AND IGN COUNTER

Freeze Frame Data

Diagnosis mode

Function Description

Work Support

Changes the setting for each system function.

Self Diagnostic Result

Displays the diagnosis results judged by BCM.

CAN Diag Support Monitor

Monitors the reception status of CAN communication viewed from BCM. Refer to CONSULT-III opera-
tion manual.

Data Monitor

The BCM input/output signals are displayed.

Active Test

The signals used to activate each device are forcibly supplied from BCM.

Ecu Identification

The BCM part number is displayed.

Configuration

• Read and save the vehicle specification.
• Write the vehicle specification when replacing BCM.

System

Sub system selection item

Diagnosis mode

Work Support

Data Monitor

Active Test

Door lock

DOOR LOCK

×

×

×

Rear window defogger

REAR DEFOGGER

×

×

Warning chime

BUZZER

×

×

Interior room lamp timer

INT LAMP

×

×

×

Exterior lamp

HEAD LAMP

×

×

×

Wiper and washer

WIPER

×

×

Turn signal and hazard warning lamps

FLASHER

×

×

×

AIR CONDITONER*

• Intelligent Key system
• Engine start system

INTELLIGENT KEY

×

×

×

Combination switch

COMB SW

×

Body control system

BCM

×

IVIS - NATS

IMMU

×

×

Interior room lamp battery saver

BATTERY SAVER

×

×

×

TRUNK*

×

×

Vehicle security system

THEFT ALM

×

×

×

RAP system

RETAINED PWR

×

Signal buffer system

SIGNAL BUFFER

×

×

TPMS

TPMS (AIR PRESSURE MONITOR)

×

×

×
