Infiniti EX35. Manual - part 1485





VTL-58

< ON-VEHICLE REPAIR >

DUCT AND GRILLE

REAR VENTILATOR DUCT 2 : Exploded View

INFOID:0000000003567133

REAR VENTILATOR DUCT 2 : Removal and Installation

INFOID:0000000003567132

REMOVAL

1.

Remove console rear finisher. Refer to

IP-22, "Exploded View"

.

2.

Remove rear ventilator duct 2 (1).

INSTALLATION

Installation is basically the reverse order of removal.

FOOT GRILLE

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Foot grille (left)

4.

Rear floor duct 1 (without rear venti-
lation)

5.

Floor carpet

6.

Rear floor duct 2 (left)

7.

Rear floor duct 2 (right)

8.

Rear ventilator duct 2

9.

Rear ventilator grille

10. Rear ventilator duct 1

11. Rear floor duct 1 (with rear ventila-

tion)

12. Foot grille (right)

A.

With rear ventilation

JPIIA0676ZZ

JPIIA0679ZZ

DUCT AND GRILLE

VTL-59

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

FOOT GRILLE : Exploded View

INFOID:0000000003567130

FOOT GRILLE : Removal and Installation

INFOID:0000000003545439

REMOVAL

1.

Remove foot grille (left) (1).

2.

Remove foot grille (right) (1).

1.

Blower unit

2.

Heater & cooling unit assembly

3.

Foot grille (left)

4.

Rear floor duct 1 (without rear venti-
lation)

5.

Floor carpet

6.

Rear floor duct 2 (left)

7.

Rear floor duct 2 (right)

8.

Rear ventilator duct 2

9.

Rear ventilator grille

10. Rear ventilator duct 1

11. Rear floor duct 1 (with rear ventila-

tion)

12. Foot grille (right)

A.

With rear ventilation

JPIIA0676ZZ

:

Pawl

JPIIA0682ZZ

VTL-60

< ON-VEHICLE REPAIR >

DUCT AND GRILLE

INSTALLATION

Installation is basically the reverse order of removal.

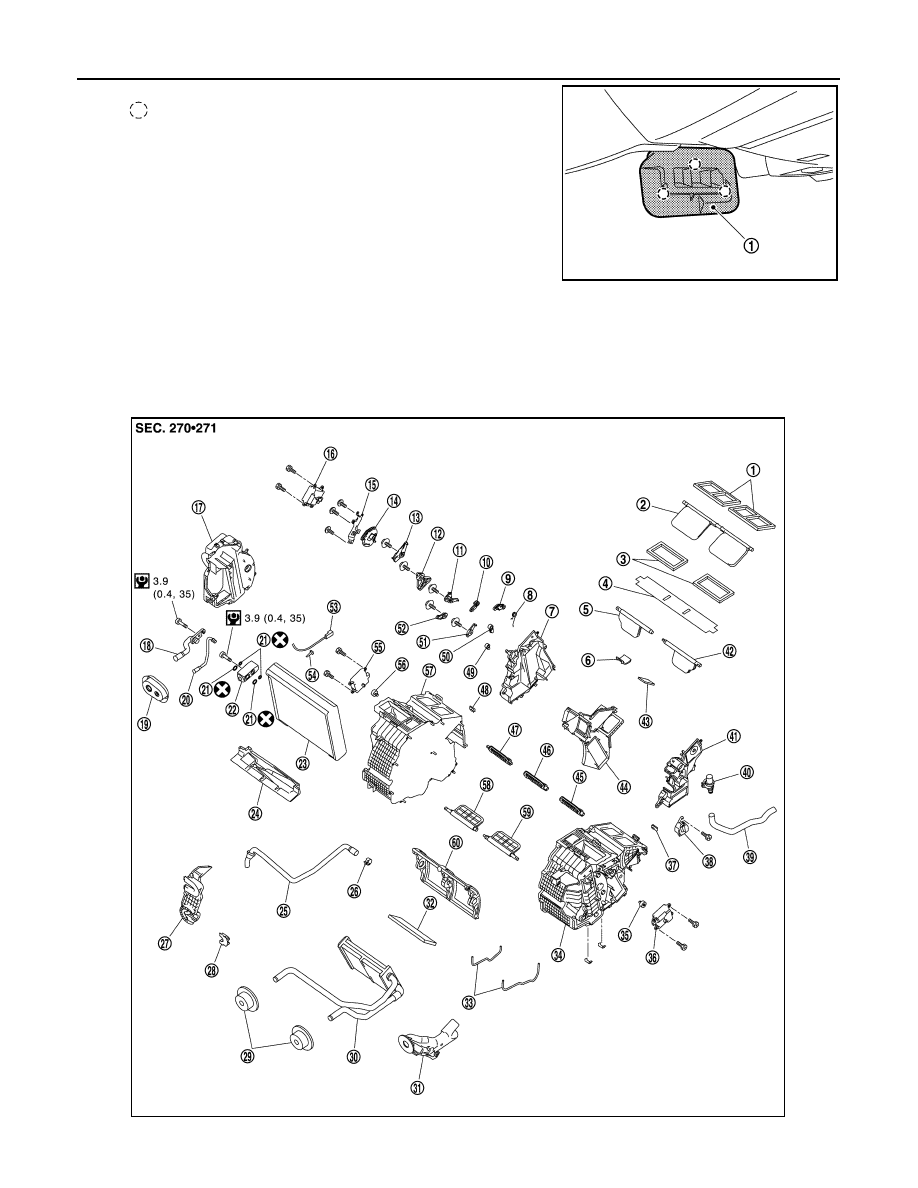

FOOT DUCT

FOOT DUCT : Exploded View

INFOID:0000000003567108

:

Pawl

JPIIA0683ZZ

JPIIA0649GB

DUCT AND GRILLE

VTL-61

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

J

K

L

M

A

B

VTL

N

O

P

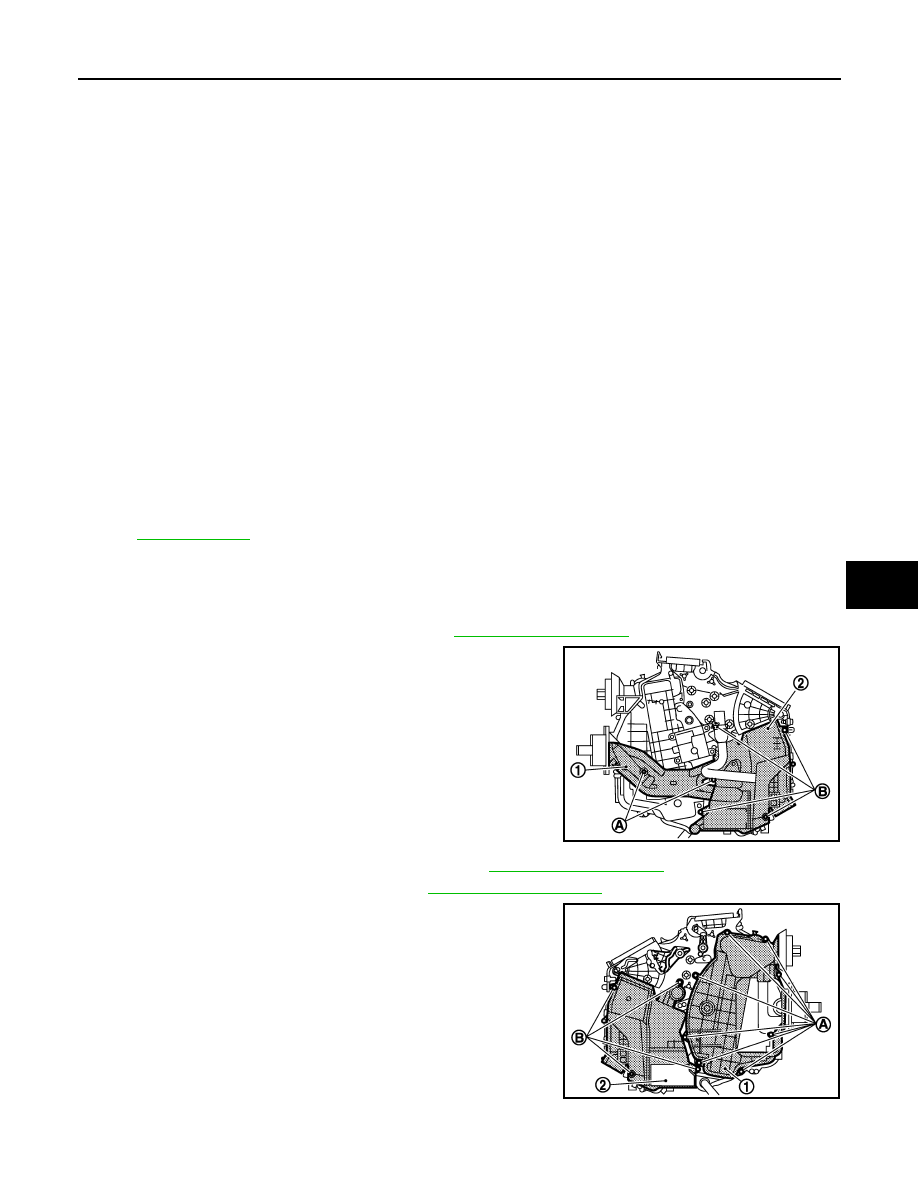

FOOT DUCT : Removal and Installation

INFOID:0000000003545441

REMOVAL

1.

Remove heater & cooling unit assembly. Refer to

VTL-36, "Exploded View"

.

2.

Remove mounting screws (A), and then remove heater pipe
cover (1).

3.

Remove mounting screws (B), and then remove foot duct (left)
(2).

4.

Remove air mix door motor (passenger side). Refer to

VTL-43, "Exploded View"

.

5.

Remove mode door motor and links. Refer to

VTL-41, "Exploded View"

.

6.

Remove mounting screws (A), and then remove evaporator
cover (1).

7.

Remove mounting screws (B), and then remove foot duct (right)
(2).

INSTALLATION

Installation is basically the reverse order of removal.

1.

Ventilator seal

2.

Ventilator door

3.

Defroster seal

4.

Packing

5.

Defroster door (right)

6.

Packing

7.

Foot duct (right)

8.

Ventilator door spring

9.

Ventilator door lever

10.

Foot door lever

11.

Foot door link

12. Main link sub

13.

Ventilator door link

14.

Main link

15. Mode door motor bracket

16.

Mode door motor

17.

Evaporator cover

18. Low-pressure pipe 1

19.

Cooler pipe grommet

20.

High-pressure pipe 2

21. O-ring

22.

Expansion valve

23.

Evaporator

24. Insulator

25.

Drain hose

26.

Clamp

27. Evaporator cover adapter

28.

Heater pipe bracket

29.

Heater pipe grommet

30. Heater core

31.

Heater pipe cover

32.

Packing

33. Case packing

34.

Heater & cooling unit case (left)

35.

Air mix door adapter

36. Air mix door motor (driver side)

*

37.

J-nut

38.

Front heater duct

39. Aspirator hose

40.

Aspirator

41.

Foot duct (left)

42. Defroster door (left)

43.

Packing

44.

Center case

45. Foot door (left)

46.

Rear ventilator door

47.

Foot door (right)

48. J-nut

49.

Max. cool door lever

50.

Defroster door lever

51. Defroster door link

52.

Max. cool door link

53.

Intake sensor

54. Intake sensor bracket

55.

Air mix door motor (passenger side)

56.

Air mix door adapter

57. Heater & cooling unit case (right)

58.

Max. cool door (right)

59.

Max. cool door (left)

60. Air mix door (Slide door)

*With left and right ventilation temperature separately system.

Refer to

GI-4, "Components"

 for symbols in the figure.

JSIIA1114ZZ

JSIIA1115ZZ
