Infiniti EX35. Manual - part 1338

SN

SONAR SENSOR

SN-43

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

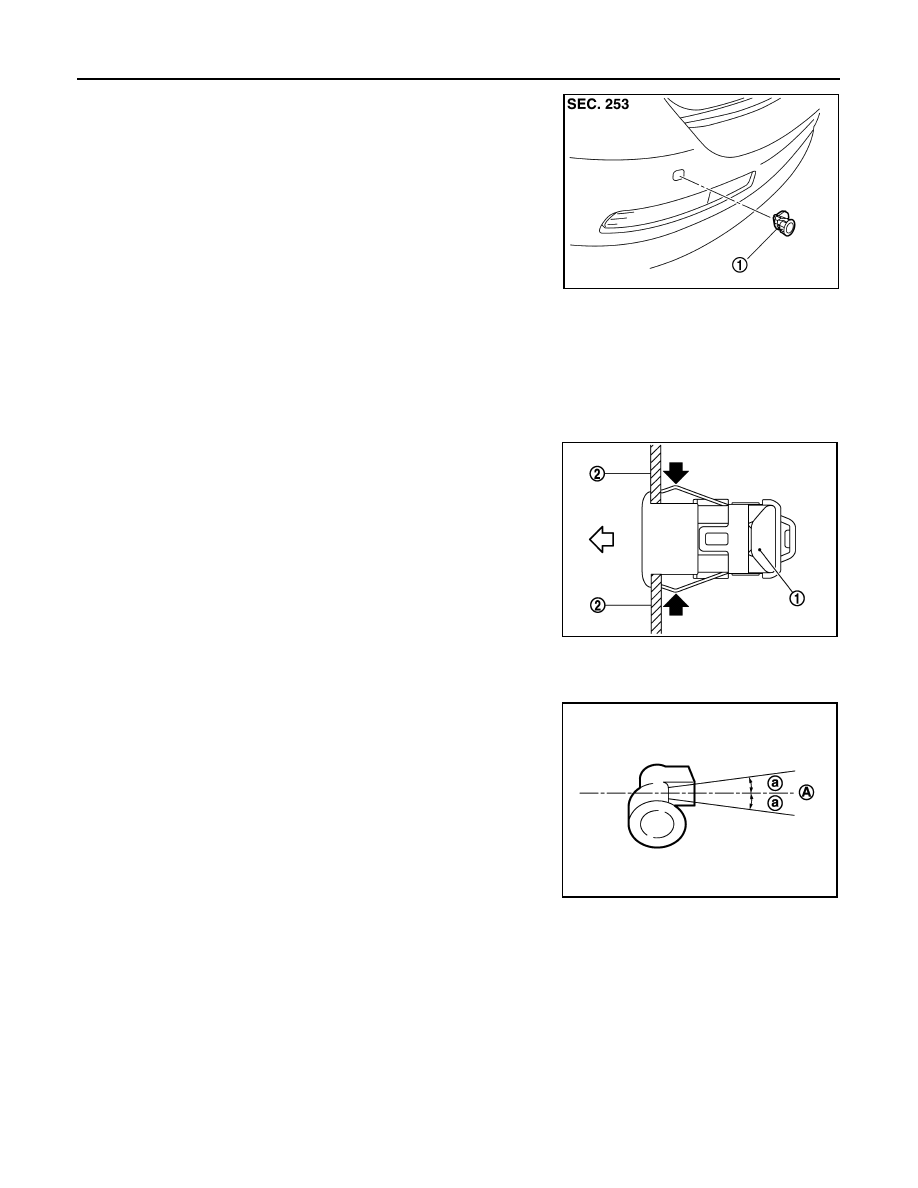

SONAR SENSOR

FRONT

FRONT : Exploded View

INFOID:0000000003569884

FRONT : Removal and Installation

INFOID:0000000003569885

REMOVAL

1.

Remove fender protector. Keep a service area. Refer to

EXT-25, "FENDER PROTECTOR : Exploded

View"

.

2.

Remove sonar sensor connector.

3.

Push the sonar sensor (1) outside (direction of white arrow) the
front bumper (2), pressing the metal clips on the back to the
direction of black arrows.

INSTALLATION

Install the bumper when the pawl engages.

CAUTION:

The connector direction is within

±

10

°

 from the horizontal posi-

tion when assembling the bumper.

REAR

JPNIA0905ZZ

1.

Sonar sensor (front)

SKIB9007E

A

: Horizontal position

a

:  10

°

JSNIA0325ZZ

SN-44

< ON-VEHICLE REPAIR >

SONAR SENSOR

REAR : Exploded View

INFOID:0000000003569886

REAR : Removal and Installation

INFOID:0000000003569887

REMOVAL

1.

Remove sonar sensor connector.

2.

Push the sonar sensor (1) outside (direction of white arrow) the
rear bumper (2), pressing the metal clips on the back to the
direction of black arrows.

INSTALLATION

Install the bumper when the pawl engages.

CAUTION:

The connector direction is within

±

10

°

 from the horizontal posi-

tion when assembling the bumper.

JPNIA0906ZZ

1.

Sonar sensor (rear)

SKIB9007E

A

: Horizontal position

a

:  10

°

JSNIA0325ZZ

SN

BUZZER (BACKWARD)

SN-45

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

BUZZER (BACKWARD)

Exploded View

INFOID:0000000003569888

Removal and Installation

INFOID:0000000003569889

REMOVAL

1.

Remove luggage side lower finisher (RH). Refer to

INT-34, "Exploded View"

.

2.

Remove buzzer (backward) mounting bolt.

3.

Remove buzzer (backward).

INSTALLATION

Install in the reverse order of removal.

JPNIA0907ZZ

1.

Buzzer (backward)

SN-46

< ON-VEHICLE REPAIR >

SONAR CANCEL SWITCH

SONAR CANCEL SWITCH

Exploded View

INFOID:0000000003569890

Removal and Installation

INFOID:0000000003569891

REMOVAL

1.

Remove instrument lower panel LH. Refer to

IP-11, "Exploded View"

.

2.

Widen the pawl. And remove sonar cancel switch.

INSTALLATION

Install in the reverse order of removal.

JPNIA0908ZZ

1.

Sonar cancel switch
