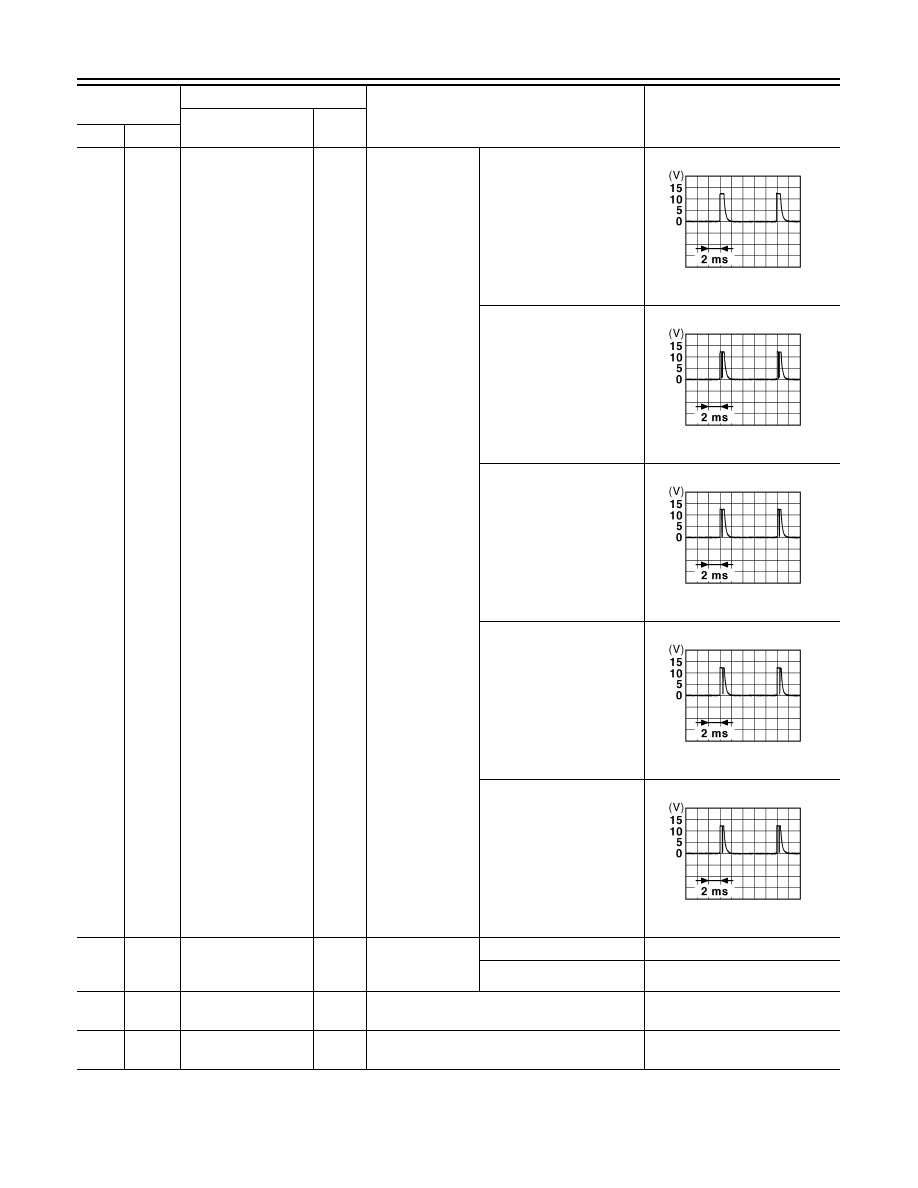

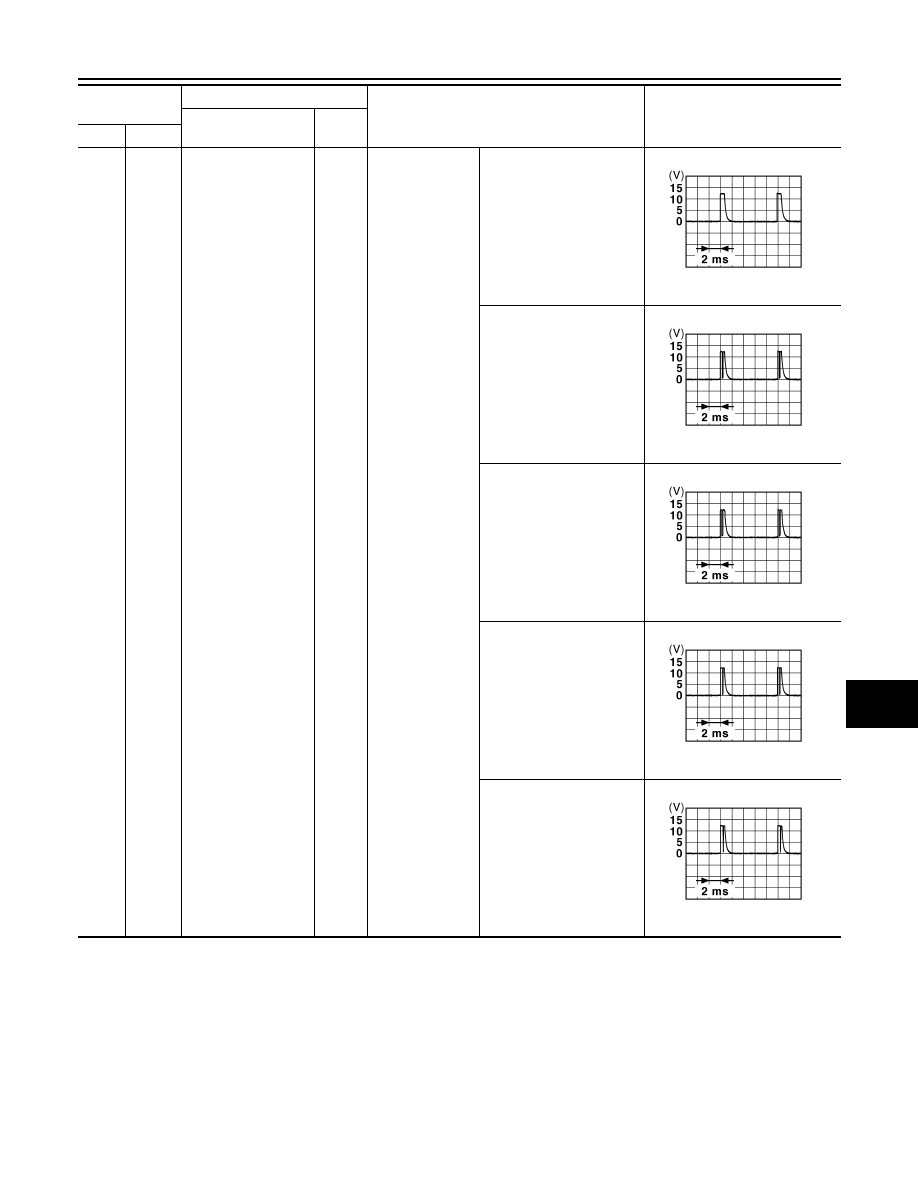

SEC-156 < ECU DIAGNOSIS > [INTELLIGENT KEY SYSTEM] BCM (BODY CONTROL MODULE) 88 (V) Ground Combination switch Input Combination All switch OFF 1.4 V Lighting switch HI 1.3 V Lighting switch 2ND 1.3 V Rear washer switch ON 1.3 V Any of the conditions below 1.3 V 89 (BR) Ground Push-button ignition Input Push-button igni- Pressed 0 V Not pressed Battery voltage 90 (P) Ground CAN-L Input/ Output — — 91 (L) Ground CAN-H Input/ Output — — Terminal No. (Wire color) Description Condition Value (Approx.) Signal name Input/ Output + – JPMIA0041GB JPMIA0036GB JPMIA0037GB JPMIA0039GB JPMIA0040GB |
