4.

Remove the hinge bracket mounting bolt (A), and then remove
the hinge bracket (1).

5.

Remove the seatback trim and pad.
• Remove the metal clips and pawls, and then pull out seatback

lock cover.

• Remove the seatback hinge outer cover.

• Remove the seatback hinge.

Remove the seatback hinge mounting bolt (A).

• Turn seatback lock knob counterclockwise to remove.

JMJIA1712ZZ

: Metal clip

: Pawl

JMJIA1503ZZ

JMJIA1504ZZ

JMJIA1537ZZ

SE-104

< ON-VEHICLE REPAIR >

REAR SEAT

• Push the seatback lock knob finisher pawl upward though the

seatback pad and the seatback frame to remove it.

• Remove the headrest holder.

CAUTION:

Before installing headrest holder check its orientation.
(front/rear and right/left)

• Remove the seatback trim and pad.
• Remove the hog rings to separate the seatback trim and seatback pad.

6.

Remove the seatback lock assembly.
Remove the seatback lock assembly mounting bolts.

7.

Remove the rear center seat belt. Refer to

SB-10, "SEAT BELT RETRACTOR : Exploded View"

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seatback trim in position, and then securely connect the trim or trim cord with
the seatback frame.

SEAT CUSHION

Disassembly

Remove the hog rings to separate the trim and pad.

Assembly

Assemble in the reverse order of disassembly.

CAUTION:

Install the hog rings of seat cushion trim in position, and then securely connect the trim or trim cord
with the seat cushion pad wire.

JMJIA0569ZZ

PIIB8351J

JMJIA1666ZZ

REAR SEAT BACK POWER RETURN CONTROL UNIT

SE-105

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

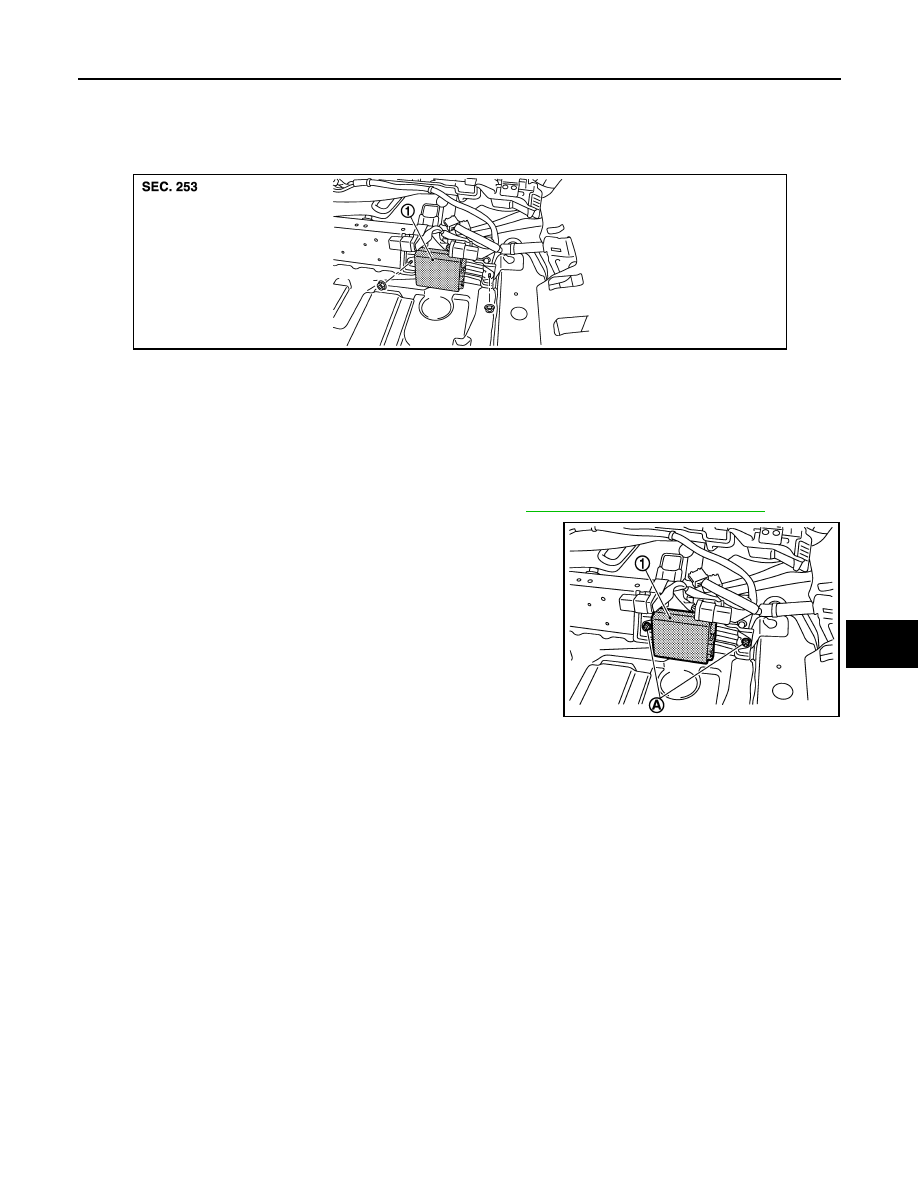

REAR SEAT BACK POWER RETURN CONTROL UNIT

Exploded View

INFOID:0000000003639925

Removal and Installation

INFOID:0000000003639926

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the luggage floor finisher assembly (front). Refer to

INT-35, "Removal and Installation"

.

2.

Remove mounting nuts (A).

3.

Remove rear seatback power return control unit (1).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clamp the harness to the right place.

1.

Rear seatback power return control unit

JMJIA1575ZZ

JMJIA1576ZZ

SE-106

< ON-VEHICLE REPAIR >

POWER SEAT SWITCH

POWER SEAT SWITCH

Exploded View

INFOID:0000000003639927

Refer to

SE-87, "Exploded View"

.

Removal and Installation

INFOID:0000000003639928

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the seat cushion outer finisher (1). Refer to

SE-90,

"Removal and Installation"

.

2.

Remove the screws (A).

3.

Remove the power seat switch (2) from the seat cushion outer
finisher.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clamp the harness to the right place.

JMJIA1451ZZ
