FRONT SEAT

SE-87

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

ON-VEHICLE REPAIR

FRONT SEAT

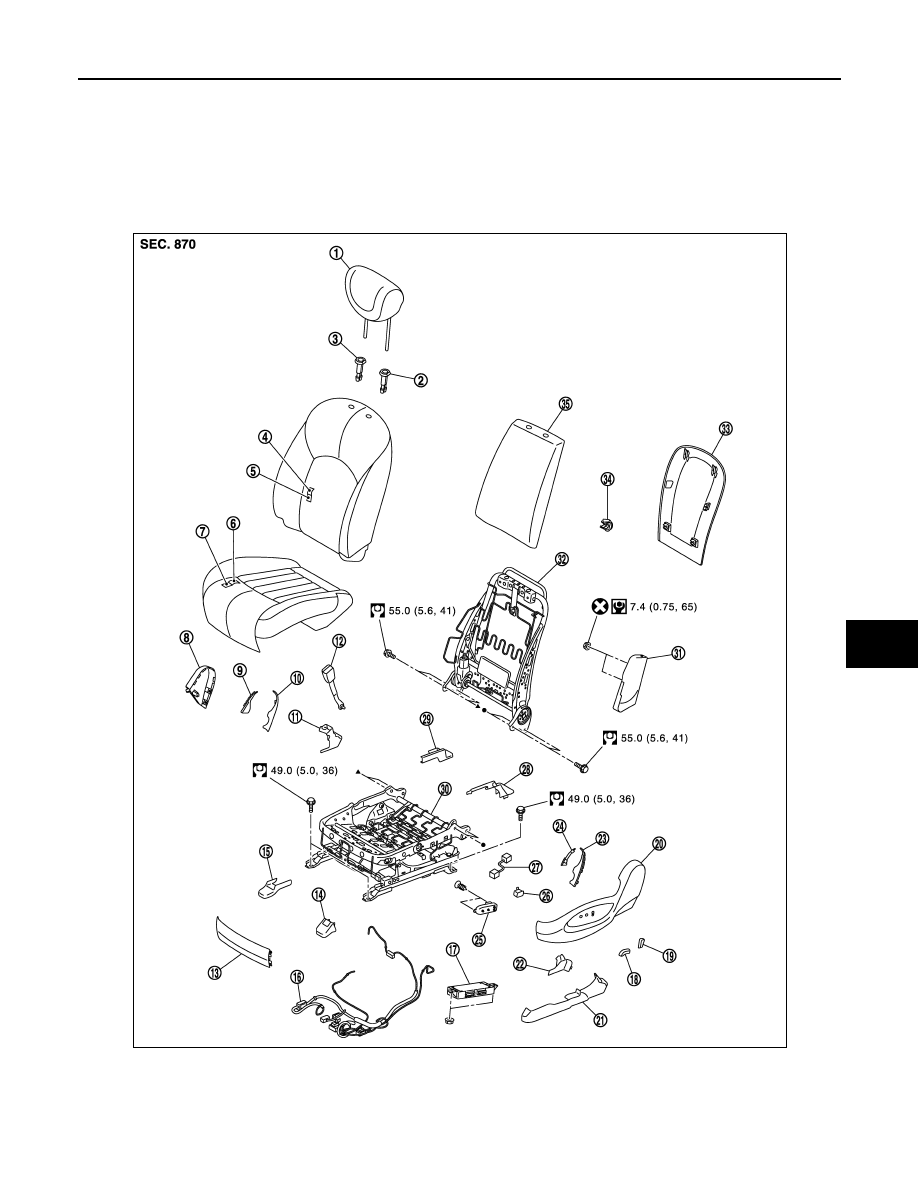

Exploded View

INFOID:0000000003508327

DRIVER'S SEAT

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seat cushion trim

7.

Seat cushion pad

8.

Seat cushion inner finisher outside

9.

Seat cushion inner finisher inside
(front)

JMJIA1483GB

SE-88

< ON-VEHICLE REPAIR >

FRONT SEAT

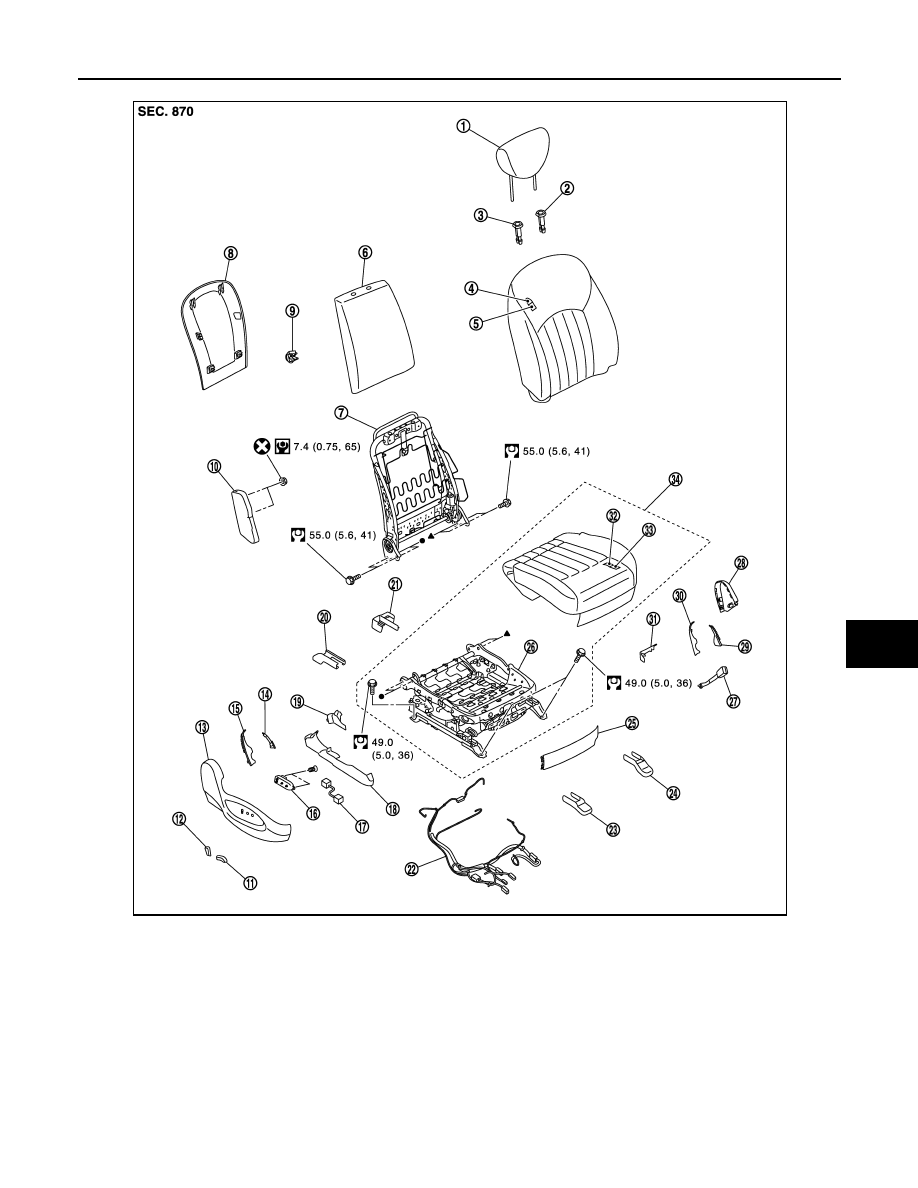

PASSENGER'S SEAT

CAUTION:

Never disassembly the component parts of only front passenger seat in the dotted lines shown in the
figure below. (With occupant classification system control unit model)

10. Seat cushion inner finisher inside

(rear)

11.

Seat cushion inner lower finisher

12. Seat belt buckle

13. Seat cushion front finisher

14. Front outer slide cover

15. Front inner slide cover

16. Seat harness

17. Driver seat control unit

18. Seat slide & lifter switch knob

19. Seat reclining switch knob

20. Seat cushion outer finisher outside

21. Seat cushion outer lower finisher

(outside)

22. Seat cushion outer lower finisher (in-

side)

23. Seat cushion outer finisher inside

(rear)

24. Seat cushion outer finisher inside

(front)

25. Seat control switch

26. Lumbar support switch

27. Seat control harness

28. Rear outer slide cover

29. Rear inner slide cover

30. Seat cushion frame

31. Side air bag module

32. Seatback frame

33. Seatback board

34. Seatback board clip

35. Seatback silencer

Refer to

GI-4, "Components"

 for symbols in the figure.

FRONT SEAT

SE-89

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (locked)

3.

Headrest holder (free)

4.

Seatback trim

5.

Seatback pad

6.

Seatback silencer

7.

Seatback frame

8.

Seatback board

9.

Seatback board clip

10. Side air bag module

11.

Seat slide & lifter switch knob

12. Seat reclining switch knob

13. Seat cushion outer finisher outside

14. Seat cushion outer finisher inside

(front)

15. Seat cushion outer finisher inside

(rear)

16. Seat control switch

17. Seat control harness

18. Seat cushion outer lower finisher

(outside)

19. Seat cushion outer lower finisher (in-

side)

20. Rear outer slide cover

21. Rear inner slide cover

22. Seat harness

23. Front outer slide cover

24. Front inner slide cover

JMJIA1484GB

SE-90

< ON-VEHICLE REPAIR >

FRONT SEAT

Removal and Installation

INFOID:0000000003508328

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

1.

Remove the headrest.

2.

Remove the front slide cover.

a.

Front outer slide cover
• Slide the seat to the rear-most position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

b.

Front inner slide cover
• Slide the seat to the rear-most position.
• Pull up the front edge of the front slide cover to release the

pawls.

• Slide the front slide cover forward to release the pawls.

3.

Remove the mounting bolts on the front side of the front seat.

4.

Remove the rear slide cover.

a.

Rear outer slide cover
• Slide the seat to the front-most position.
• Pull up the rear edge of the rear outer slide cover to release

the pawls.

• Open the front end of the rear outer slide cover to release the

pawls.

25. Seat cushion front finisher

26. Seat cushion frame

27. Seat belt buckle

28. Seat cushion inner finisher outside

29. Seat cushion inner finisher inside

(front)

30. Seat cushion inner finisher inside

(rear)

31. Seat cushion inner finisher lower

32. Seat cushion trim

33. Seat cushion pad

34. Seat cushion assembly

Refer to

GI-4, "Components"

 for symbols in the figure.

: Pawl

JMJIA1658ZZ

: Pawl

JMJIA0003ZZ

: Pawl

JMJIA1659ZZ
