REAR SEATBACK POWER RETURN SYSTEM
SE-11
< FUNCTION DIAGNOSIS >
C
D
E
F
G
H
I
K
L
M
A
B
SE
N
O
P
• In the condition that the rear seatback is raised (return completion position), the sector gear is in the initial
position and the primary position limit switch and return complete limit switch are OFF.
• When the rear seatback to the fold-down position, the return complete limit switch turns ON, and the rear
seatback power return control unit judges that the rear seatback is tilted (return non-completion position).
• When pressing and holding the power return switch or the rear seatback switch in the UP direction, the rear
seatback power return control unit detects the power return ON signal and supplies the power to the power

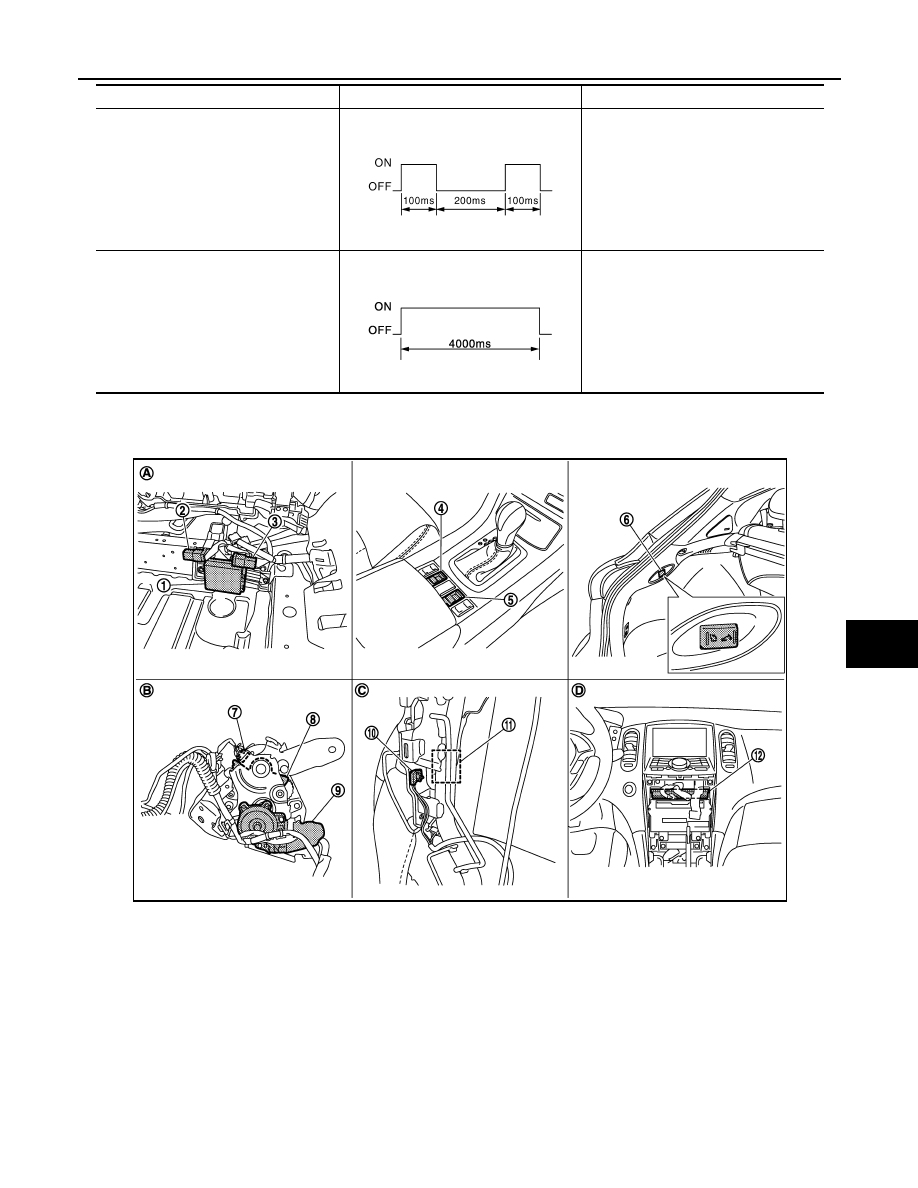

return motor. Then, the rear seatback power return control unit sounds the operation start buzzer.
• With the power supplied from the rear seat back power control unit, the power return motor rotates in the
return direction. The rear seatback starts the return operation via the sector gear.
• When the sector gear starts rotating in the return direction, the primary position limit switch turns ON. The
rear seatback power return control unit judges that the sector gear is in any position other than the initial
position.
• When the rear seatback moves to the return position, the return complete limit switch turns OFF. The rear
seatback power return control unit activates the return completion buzzer and stops the power return motor.
Then, the rear seatback power return control unit reverses the power return motor after 0.2 seconds so that
the sector gear returns to the initial position.
• When the sector gear returns to the initial position by reverse rotation of the power return motor, the primary
position limit switch turns OFF. The rear seatback power return control unit stops the reverse operation of
the power return motor. The return operation is completed.
• When releasing the switch during the return operation (both the primary position limit switch and return com-
plete limit switch are ON), the rear seatback power return control unit detects the power switch OFF signal
and returns the rear seatback to the fold-down position by the reverse rotation of the power return motor.
When pushing the switch again during the reverse operation, the return operation restarts.
NOTE:
Disconnect the battery with the sector gear in any position other than the initial position (primary position limit
switch: ON). The sector gear is returned to the initial position when the battery is connected again.
ANTI-PINCH OPERATION
When the pinch between RH/LH rear seatbacks is detected during the return operation, the malfunction
detecting buzzer sounds and the rear seatback returns to the fold-down position.
• If there is a pinching of foreign materials between the left and right rear seatbacks during the return opera-
tion (both the primary position limit switch and return complete switch are ON), the voltage pulse of motor
sensor changes.
• When inputting the pinching signal from the motor sensor, the rear seatback power return control unit
sounds the malfunction detecting buzzer and stops the power return motor. Then, the rear seatback power
return control unit reverses the power return motor after 0.2 second so that the rear seatback returns to the
fold-down position.
SECTOR GEAR REVERSE STARTING CONDITION
If any of the following conditions are satisfied, the sector gear may be reversed.
• Rear seatback return is completed (return complete limit switch: OFF)
• Release the power return switch before completing the return
• Pinch detection
• Lock detection of power return motor
(Lock at normal rotation)
• The rear seatback return is not completed within 60 seconds
• Detect the battery voltage malfunction during the return operation
• Return to the normal condition after detecting the battery voltage malfunction during the return operation
• The primary position limit switch does not turn OFF
→
ON within the specified motor pulse number from
starting the return operation.
SECTOR GEAR REVERSE STOP CONDITION
If any of the following conditions are satisfied, the reverse operation stops.
• Sector gear initial position (primary position limit switch: OFF)
• Lock detection of power return motor (Lock during reverse operation)
• The sector gear initial position is not completed within 60 seconds
4
Return completion position
Return completion position
ON
OFF
5
Initial position
OFF
OFF
Operation
sequence
Rear seatback condition
Sector gear condition
Primary position limit
switch
Return complete limit
switch
