Infiniti EX35. Manual - part 1206

PWC-88

< ECU DIAGNOSIS >

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

Reference Value

INFOID:0000000003573514

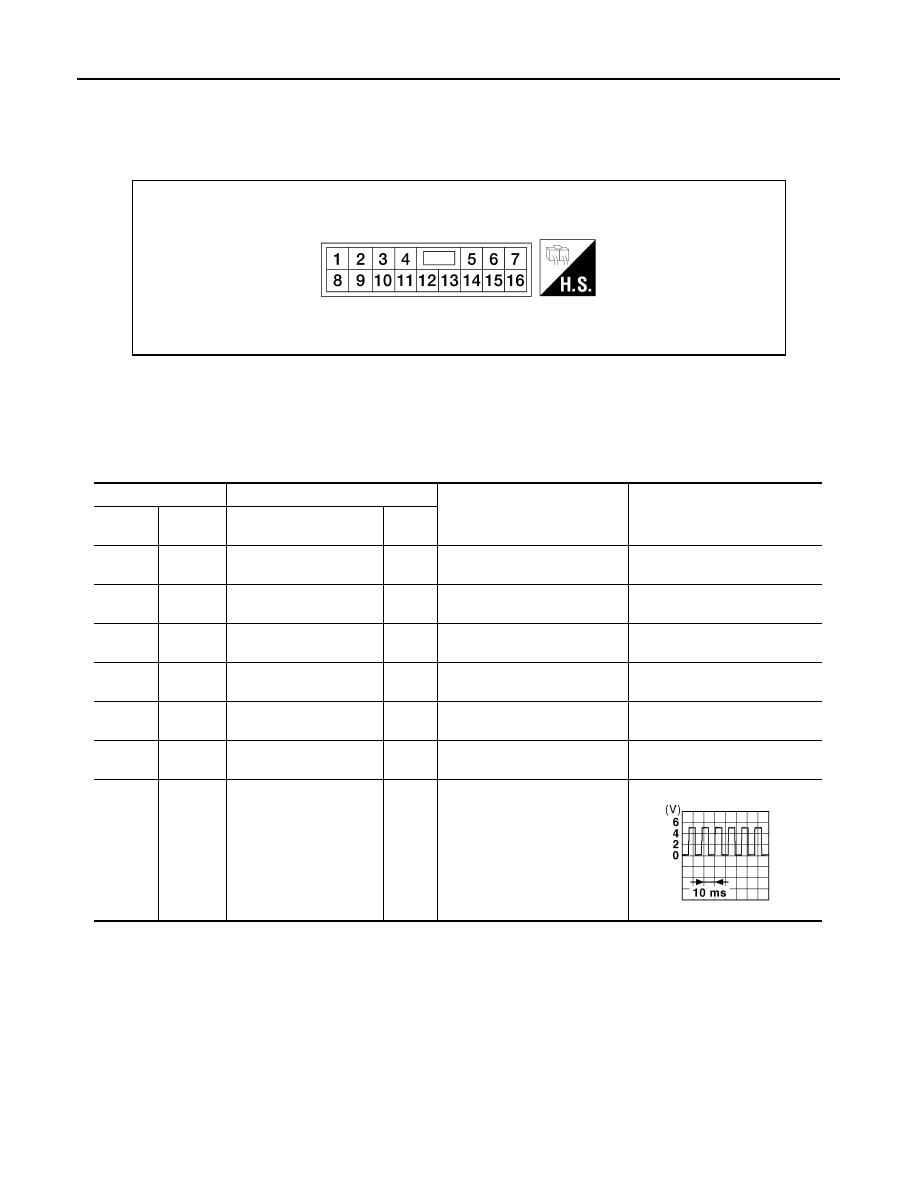

TERMINAL LAYOUT

PHYSICAL VALUES

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

LIIA2454E

Terminal No.

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

3

(LG)

Ground

Encoder ground

—

—

0

4

(GR)

Ground

Encoder power supply

Output

When ignition switch ON or
power window timer operates

 Battery voltage

8

(L)

9

Power window motor
UP signal

Output

When power window motor is
UP at operated.

 Battery voltage

9

(G)

8

Power window motor
DOWN signal

Output

When power window motor is
DOWN at operated.

Battery voltage

10

(Y)

Ground

Battery power supply

Input

—

Battery voltage

11

(B)

Ground

Ground

—

—

0

12

(P)

3

Encoder pulse signal 1

Input

When power window motor op-
erates.

JMKIA0070GB

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

PWC-89

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

15

(O)

3

Encoder pulse signal 2

Input

When power window motor op-
erates.

16

(V)

Ground

Power window serial link

Input/

Output

Ignition switch ON or power win-
dow timer operating.

Terminal No.

Description

Condition

Voltage [V]

(Approx.)

+

-

Signal name

Input/

Output

JMKIA0070GB

JPMIA0013GB

PWC-90

< ECU DIAGNOSIS >

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

Wiring Diagram - POWER WINDOW SYSTEM  -

INFOID:0000000003733367

JCKWM1093GB

FRONT POWER WINDOW SWITCH (PASSENGER SIDE)

PWC-91

< ECU DIAGNOSIS >

C

D

E

F

G

H

I

J

L

M

A

B

PWC

N

O

P

JCKWM1094GB
