PG-90

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

Rear Door Harness (LH Side)

INFOID:0000000003131934

Click here to view the eWD.

JCMIM0282GB

PG

HARNESS LAYOUT

PG-91

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

Rear Door Harness (RH Side)

INFOID:0000000003131935

Click here to view the eWD.

JCMIM0283GB

PG-92

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

HARNESS LAYOUT

Back Door Harness

INFOID:0000000003516131

JCMIM0284GB

PG

HARNESS CONNECTOR

PG-93

< COMPONENT DIAGNOSIS >

[POWER SUPPLY&GROUND CIRCUIT]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

HARNESS CONNECTOR

Description

INFOID:0000000003131936

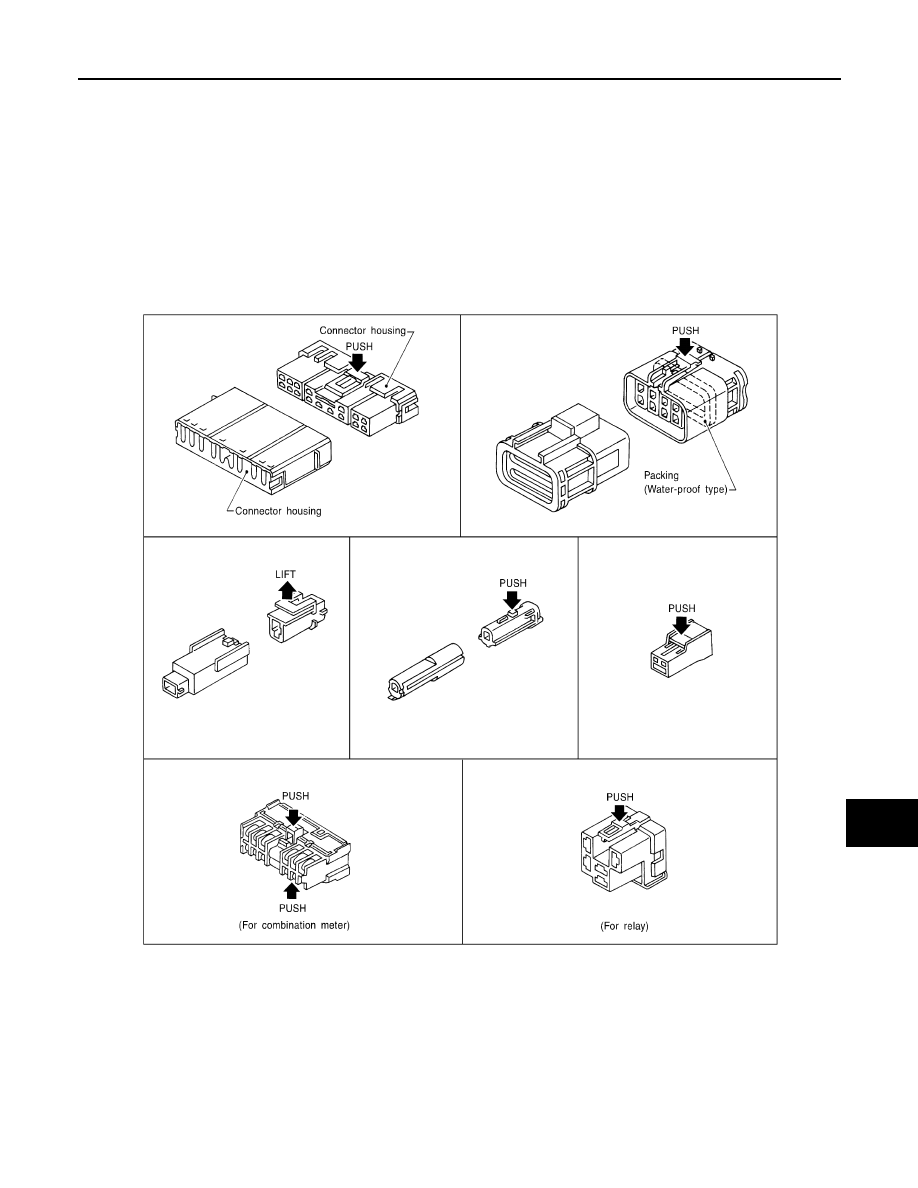

HARNESS CONNECTOR (TAB-LOCKING TYPE)

• The tab-locking type connectors help prevent accidental looseness or disconnection.
• The tab-locking type connectors are disconnected by pushing or lifting the locking tab(s). Refer to the figure

below.

CAUTION:

Never pull the harness or wires when disconnecting the connector.

[Example]

HARNESS CONNECTOR (SLIDE-LOCKING TYPE)

• A new style slide-locking type connector is used on certain systems and components, especially those

related to OBD.

• The slide-locking type connectors help prevent incomplete locking and accidental looseness or disconnec-

tion.

• The slide-locking type connectors are disconnected by pushing or pulling the slider. Refer to the figure

below.

SEL769DA
