PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT ILLUMI-

NATE

PCS-129

< SYMPTOM DIAGNOSIS >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PUSH-BUTTON IGNITION SWITCH POSITION INDICATOR DOES NOT IL-
LUMINATE

Description

INFOID:0000000003586748

• Before performing the diagnosis in the following table, check “Work Flow”. Refer to

PCS-36, "Work Flow"

.

• Check that vehicle is under the condition shown in “Conditions of vehicle” before starting diagnosis, and

check each symptom.

Conditions of Vehicle (Operating Conditions)

• “ENGINE START BY I-KEY” in “WORK SUPPORT” is ON when setting on CONSULT-III.
• One or more of Intelligent Keys with registered Intelligent Key ID is in the vehicle.

Diagnosis Procedure

INFOID:0000000003586749

1.

CHECK PUSH-BUTTON IGNITION SWITCH INDICATOR

Check push-button ignition switch indicator.
Refer to

PCS-67, "Component Function Check"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunctioning parts.

2.

CONFIRM THE OPERATION

Confirm the operation again.

Is the result normal?

YES

>> Check intermittent incident. Refer to

GI-38, "Intermittent Incident"

.

NO

>> GO TO 1.

PCS-130

< ON-VEHICLE REPAIR >

[POWER DISTRIBUTION SYSTEM]

BCM (BODY CONTROL MODULE)

ON-VEHICLE REPAIR

BCM (BODY CONTROL MODULE)

Exploded View

INFOID:0000000003728705

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

Removal and Installation

INFOID:0000000003728706

CAUTION:

Before replacing BCM, perform “READ CONFIGURATION” to save or print current vehicle specifica-
tion. Refer to

BCS-3, "ADDITIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Descrip-

tion"

.

REMOVAL

1.

Remove dash side finisher (passenger side). Refer to

IP-11, "Exploded View"

.

2.

Remove bolt and nut.

3.

Remove BCM and disconnect the connector.

INSTALLATION

Install in the reverse order of removal.

CAUTION:

• Be sure to perform “WRITE CONFIGURATION” when replacing BCM.
• Be sure to perform the system initialization (NATS) when replacing BCM. Refer to

BCS-3, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT (BCM) : Special Repair Requirement"

.

1.

BCM

JPMIA0936ZZ

PCS

PUSH BUTTON IGNITION SWITCH

PCS-131

< ON-VEHICLE REPAIR >

[POWER DISTRIBUTION SYSTEM]

C

D

E

F

G

H

I

J

K

L

B

A

O

P

N

PUSH BUTTON IGNITION SWITCH

Removal and Installation

INFOID:0000000003132080

REMOVAL

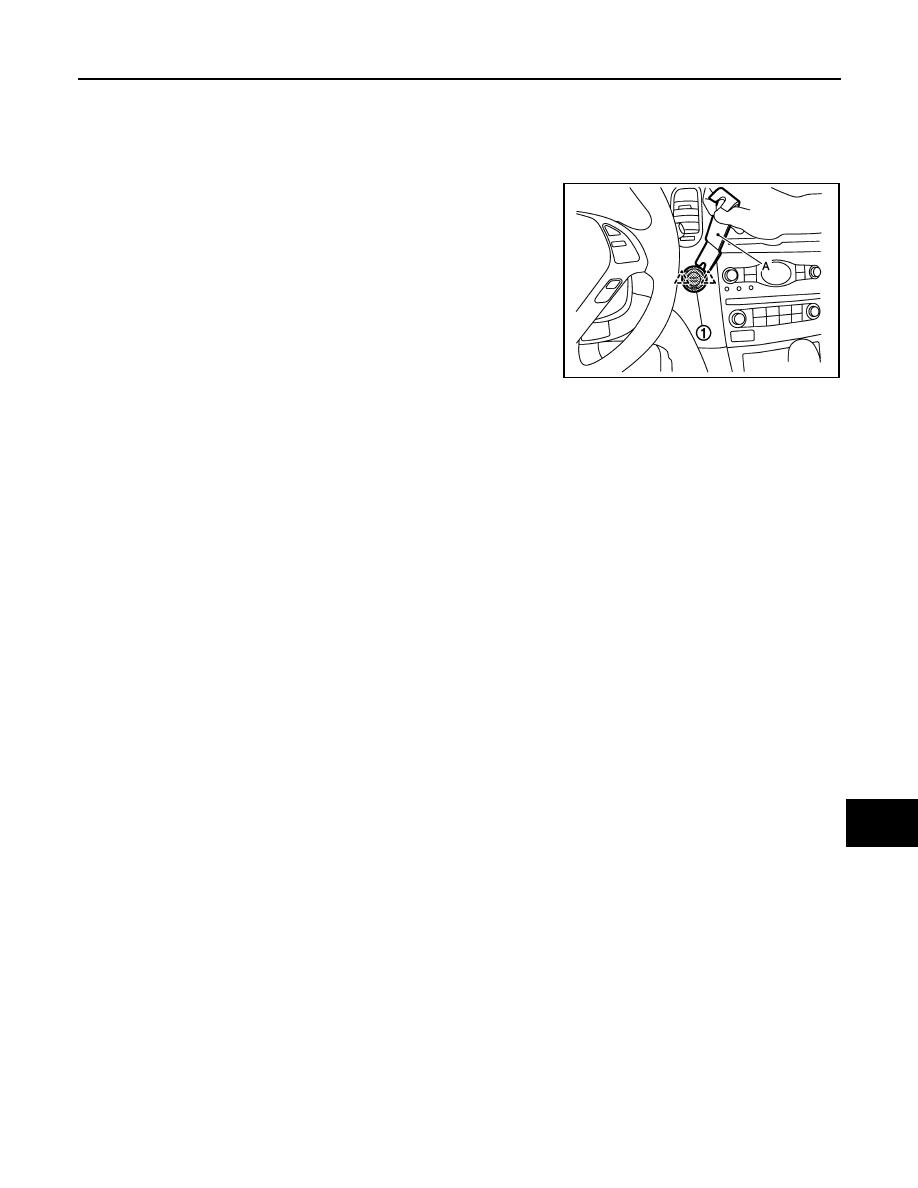

Remove the push-button ignition switch fixing pawl using a remover
tool (A), and then remove push-button ignition switch (1).

INSTALLATION

Install in the reverse order of removal.

JMKIA2114ZZ

PG

PG-1
