Infiniti EX35. Manual - part 106





AV

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

AV-205

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

Diagnosis Description

INFOID:0000000003508664

HANDS-FREE PHONE SYSTEM ON BOARD DIAGNOSIS

 During on board diagnosis the diagnosis function of TEL adapter unit starts with the operation of steering
switch and performs the diagnosis when ignition switch is turned to ACC.

On board diagnosis item

The on board diagnosis has 3 modes: the self-diagnosis mode that performs the trouble diagnosis, the
speaker adaptation data deleting mode and the hands-free phone system initialization mode.

CAUTION:

• Perform the diagnosis with the vehicle stopped.
• Perform STEP2 if necessary.

Self-diagnosis results

Self-diagnosis mode reads out the self-diagnosis results and indicates DTC on the display.
NOTE:
• Error count is read out simultaneously when reading out the DTC name.
• The errors are read out continuously when some errors occur at the same time. The DTC displays are com-

bined and displayed. For example, DTC 01100 is displayed when DTC 01000 and DTC 00100 are indicated
at the same time.

Self-diagnosis results

The details of error count

The error count displays "0" when an error occurs. The next time it counts up to "1" if conditions are normal
with the ignition switch ON. It continues the count up unless the initialization of hands-free phone system is
performed.

STEP

MODE

Description

STEP1

Self-diagnosis

• The self-diagnosis mode performs the microphone test.
• The self-diagnosis mode also diagnoses TEL adapter

unit, TEL antenna and steering switch.

• Those results are indicated with voice guidance and dis-

played on the screen.

STEP2

Speaker adaptation data deleting

The speaker adaptation data deleting mode can delete the
speaker adaptation data.

Hands-free phone system initialization

Hands-free phone system initialization mode can perform
the initialization of the hands-free phone system.

DTC

DTC name

Possible causes

DTC 10000

INTERNAL FAILURE

TEL adapter unit

DTC 01000

ANT. SHORT TO BATT OR OPEN

TEL antenna

DTC 00100

ANT. SHORT TO GROUND

DTC 00010

STEERING REMOTE BUTTON STUCK A

Steering switch

DTC 00001

STEERING REMOTE BUTTON STUCK B

DTC 00000

THERE ARE NO FAILURE RECORDS TO REPORT

AV-206

< FUNCTION DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

DIAGNOSIS SYSTEM (TEL ADAPTER UNIT)

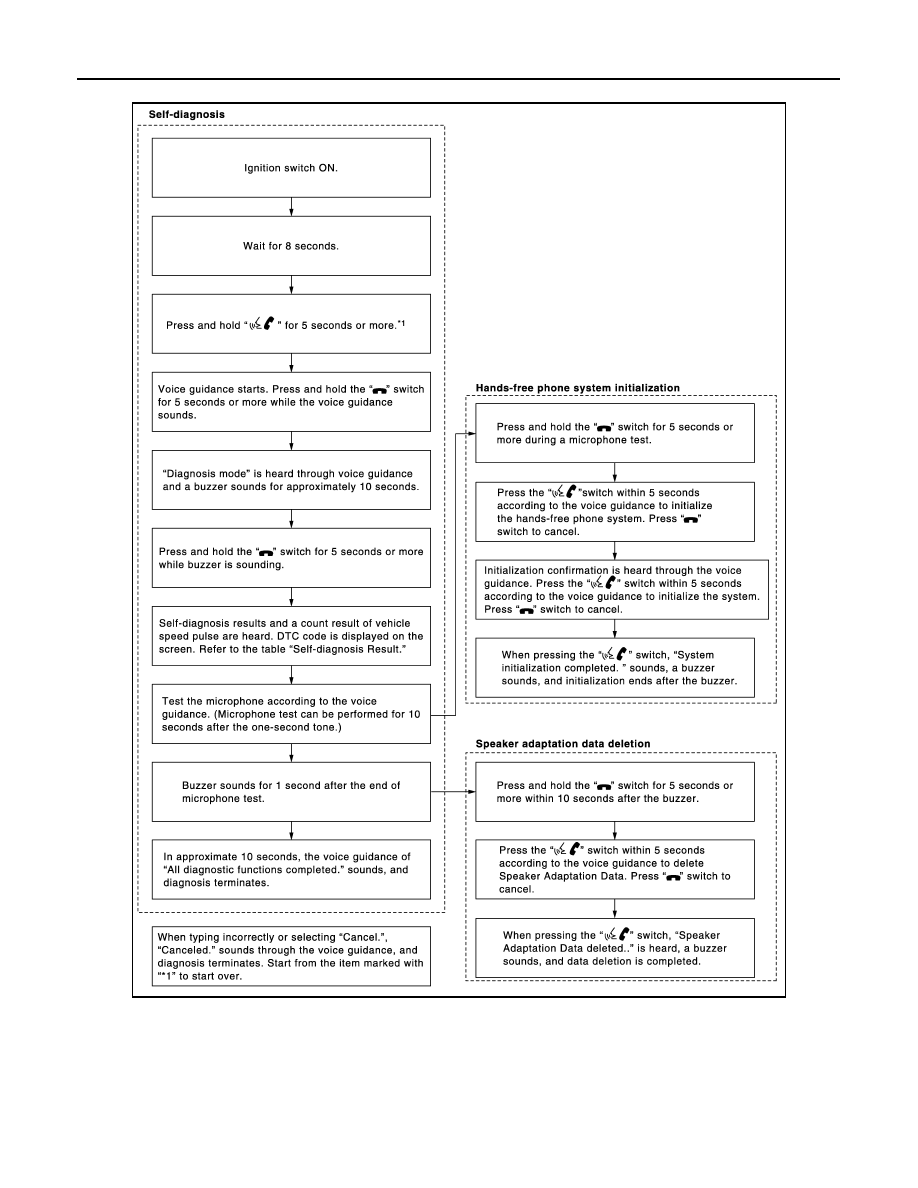

FLOW CHART OF TROUBLE DIAGNOSIS

JSNIA1235GB

AV

U1000 CAN COMM CIRCUIT

AV-207

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

COMPONENT DIAGNOSIS

U1000 CAN COMM CIRCUIT

Description

INFOID:0000000003544741

CAN (Controller Area Network) is a serial communication line for real-time application. It is an on-vehicle mul-
tiplex communication line with high data communication speed and excellent error detection ability. Many elec-
tronic control units are equipped onto a vehicle, and each control unit shares information and links with other
control units during operation (not independently). In CAN communication, control units are connected with 2
communication lines (CAN-H, CAN-L) allowing a high rate of information transmission with less wiring. Each
control unit transmits/receives data but selectively reads required data only.
CAN Communication Signal Chart. Refer to

LAN-27, "CAN System Specification Chart"

.

DTC Logic

INFOID:0000000003544742

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000003544743

1.

PERFORM SELF-DIAGNOSTIC

1.

Turn ignition switch ON and wait for 2 seconds or more.

2.

Check “Self Diagnostic Result” of “MULTI AV”.

Is “CAN COMM CIRCUIT” displayed?

YES

>> Refer to “LAN system”. Refer to

LAN-18, "Trouble Diagnosis Flow Chart"

.

NO

>> Refer to GI section. Refer to

GI-38, "Intermittent Incident"

.

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1000

CAN COMM CIRCUIT

AV control unit is not transmitting or receiving
CAN communication signal for 2 seconds or
more.

CAN communication system.

AV-208

< COMPONENT DIAGNOSIS >

[BOSE AUDIO WITHOUT NAVIGATION]

U1010 CONTROL UNIT (CAN)

U1010 CONTROL UNIT (CAN)

Description

INFOID:0000000003544744

Initial diagnosis of AV control unit.

DTC Logic

INFOID:0000000003544745

DTC DETECTION LOGIC

Diagnosis Procedure

INFOID:0000000003544746

1.

REPLACE AV CONTROL UNIT

When DTC U1010 is detected, replace AV control unit.

>> INSPECTION END

DTC

Display contents of CON-

SULT-III

Diagnostic item is detected when ...

Probable malfunction location

U1010

CONTROL UNIT (CAN)

CAN initial diagnosis malfunction is detected.

AV control unit.
