ENGINE OIL

ON-VEHICLE MAINTENANCE

ENGINE OIL

Inspection

INFOID:0000000003134525

ENGINE OIL LEVEL

NOTE:
Before starting engine, put vehicle horizontally and check the engine oil level. If engine is already started, stop
it and allow 10 minutes before checking.

1.

Pull out oil level gauge and wipe it clean.

2.

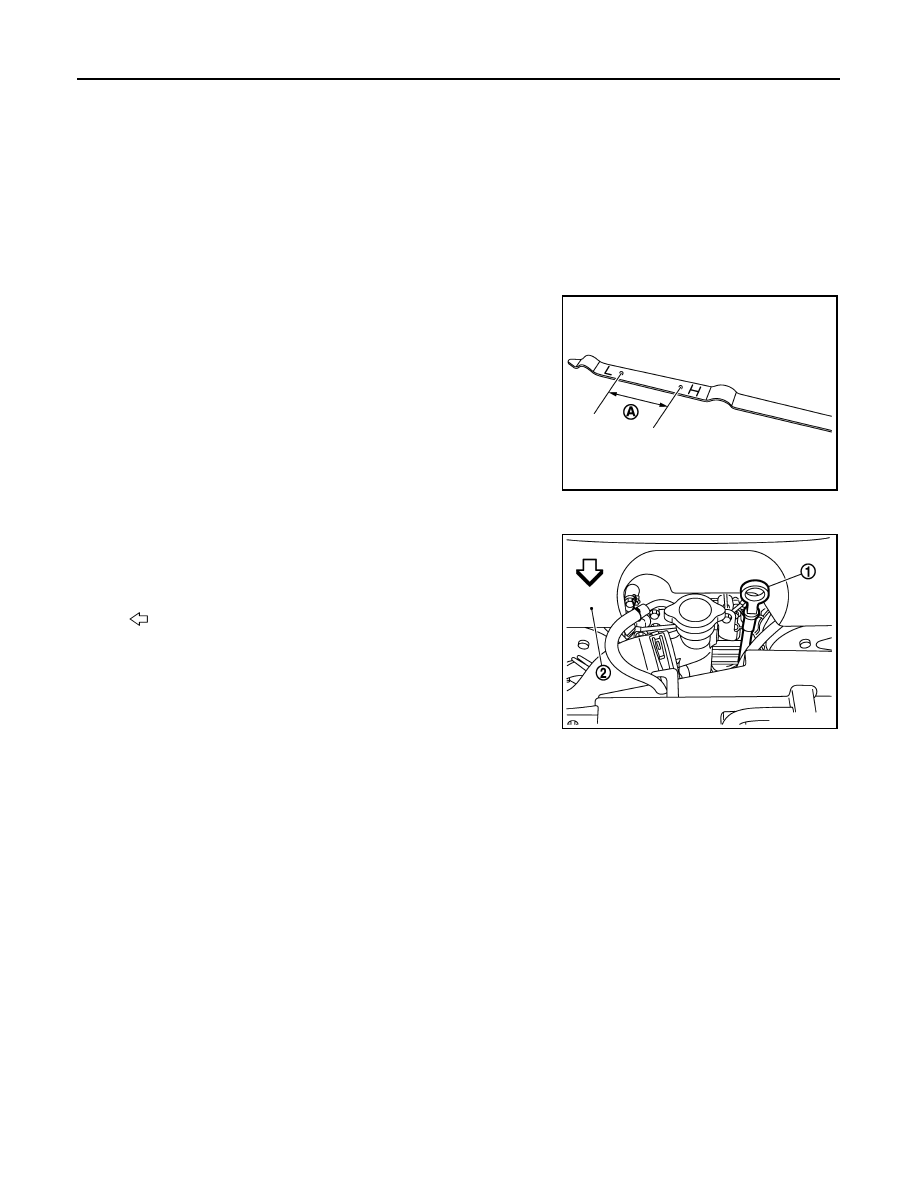

Insert oil level gauge and check the engine oil level is within the
range (A) shown in the figure.

3.

If it is out of range, adjust it.

NOTE:
When checking the engine oil level, insert oil level gauge (1)
with its tip aligned with oil level gauge guide.

ENGINE OIL APPEARANCE

• Check engine oil for white turbidity or heavy contamination.
• If engine oil becomes turbid and white, it is highly probable that it is contaminated with engine coolant.

Repair or replace damaged parts.

ENGINE OIL LEAKAGE

Check for engine oil leakage around the following areas:
• Oil pans (lower and upper)
• Oil pan drain plug
• Oil pressure switch
• Oil temperature sensor
• Oil filter
• Oil filter bracket (AWD models)
• Valve timing control cover
• Mating surface between cylinder head and rocker cover
• Mating surface between front timing chain case and rear timing chain case
• Mating surface between rear timing chain case and cylinder head
• Mating surface between rear timing chain case and cylinder block
• Mating surface between rear timing chain case and oil pan (upper)
• Mating surface between cylinder block and cylinder head
• Mating surface between lower cylinder block and cylinder block
• Crankshaft oil seals (front and rear)
• Camshaft position sensor (PHASE) and exhaust valve timing control position sensor

JPBIA0070ZZ

2

: Engine cover

: Engine front

JPBIA0071ZZ

ENGINE OIL

LU-7

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL PRESSURE CHECK

WARNING:

• Be careful not to get burn yourself, as engine oil may be hot.
• Oil pressure check should be done in “Parking position”.

1.

Check the engine oil level. Refer to

LU-6, "Inspection"

.

2.

Remove engine undercover with power tool.

3.

Disconnect harness connector at oil pressure switch, and remove oil pressure switch using deep socket
(commercial service tool).

CAUTION:

Never drop or shock oil pressure switch.
• 2WD models (A)

• AWD models (A)

4.

Install the oil pressure gauge [SST: ST25051001 (J25695-1)] (A)
and hose [SST: ST25052000 (J25695-2)] (B).

5.

Start the engine and warm it up to normal operating temperature.

6.

Check the engine oil pressure with engine running under no-load.
NOTE:
When the engine oil temperature is low, the engine oil pressure becomes high.

If difference is extreme, check engine oil passage and oil pump for engine oil leakage.

7.

After the inspections, install oil pressure switch as follows:

a.

Remove old liquid gasket adhering to oil pressure switch and the mating surface.

b.

Apply liquid gasket and tighten oil pressure switch to the specification.

1

: Oil pressure switch

: Engine front

JPBIA0251GB

1

: Oil pressure switch

2

: Front final drive

: Engine front

JPBIA1911ZZ

JPBIA0074ZZ

Engine oil pressure

: Refer to

LU-16, "Engine Oil Pressure"

.

LU-8

< ON-VEHICLE MAINTENANCE >

ENGINE OIL

Use Genuine RTV Silicone Sealant or equivalent. Refer to

GI-15, "Recommended Chemical Prod-

ucts and Sealants"

.

2WD models

AWD models

c.

After warming up engine, check there is no leakage of engine oil with running engine.

Draining

INFOID:0000000003134526

WARNING:

• Be careful not to get burn yourself, as engine oil may be hot.
• Prolonged and repeated contact with used engine oil may cause skin cancer. Try to avoid direct skin

contact with used engine oil. If skin contact is made, wash thoroughly with soap or hand cleaner as
soon as possible.

1.

Warm up the engine, and check for engine oil leakage from engine components. Refer to

LU-6, "Inspec-

tion"

.

2.

Stop the engine and wait for 10 minutes.

3.

Loosen oil filler cap.

4.

Remove undercover with power tool.

5.

Remove drain plug and then drain engine oil.

Refilling

INFOID:0000000003134527

1.

Install drain plug with new washer. Refer to

EM-43, "Exploded View (2WD)"

 (2WD models) or

EM-44,

"Exploded View (AWD)"

 (AWD models).

CAUTION:

Be sure to clean drain plug and install with new washer.

2WD models

AWD models

2.

Refill with new engine oil.
Engine oil specification and viscosity: Refer to

MA-34, "ENGINE OIL :

Periodical Maintenance Specification"

.

CAUTION:

• When filling engine oil, never pull out oil level gauge.
• The refill capacity depends on the engine oil temperature and drain time. Use these specifica-

tions for reference only.

• Always use oil level gauge to determine the proper amount of engine oil in engine.

3.

Warm up the engine and check area around drain plug and oil filter for engine oil leakage.

4.

Stop the engine and wait for 10 minutes.

5.

Check the engine oil level. Refer to

LU-6, "Inspection"

.

Tightening torque

: Refer to

EM-43, "Exploded View (2WD)"

.

Tightening torque

: Refer to

LU-11, "Exploded View"

.

Tightening torque

: Refer to

EM-43, "Exploded View (2WD)"

.

Tightening torque

: Refer to

EM-44, "Exploded View (AWD)"

.

Engine oil capacity

: Refer to

LU-16, "Periodical Maintenance Specification"

.

OIL FILTER

LU-9

< ON-VEHICLE MAINTENANCE >

C

D

E

F

G

H

I

J

K

L

M

A

LU

N

P

O

OIL FILTER

Removal and Installation

INFOID:0000000003134528

REMOVAL

CAUTION:

• Oil filter is provided with relief valve. Use genuine NISSAN oil filter or equivalent.
• Be careful not to get burned when engine and engine oil may be hot.
• When removing, prepare a shop cloth to absorb any engine oil leakage or spillage.
• Never allow engine oil to adhere to drive belt.
• Completely wipe off any engine oil that adheres to engine and vehicle.

1.

Remove engine undercover with power tool.

2.

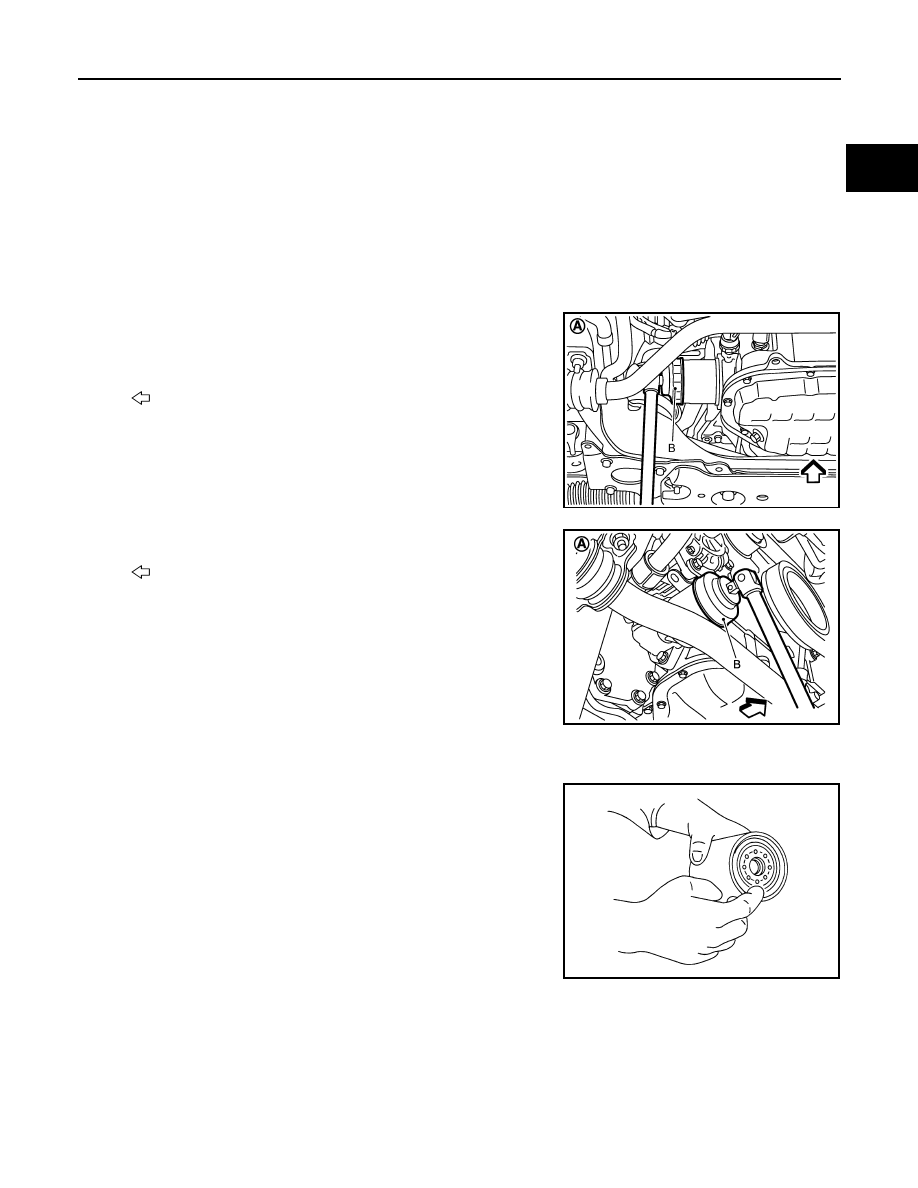

Using oil filter wrench [SST: KV10115801 (J38956)] (B), remove
oil filter.

INSTALLATION

1.

Remove foreign materials adhering to oil filter installation surface.

2.

Apply engine oil to the oil seal contact surface of new oil filter.

A

: 2WD models

: Engine front

JPBIA0252GB

A

:  AWD  models

: Engine front

JPBIA1828ZZ

SMA010
