AV

SATELLITE RADIO TUNER

AV-133

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

SATELLITE RADIO TUNER

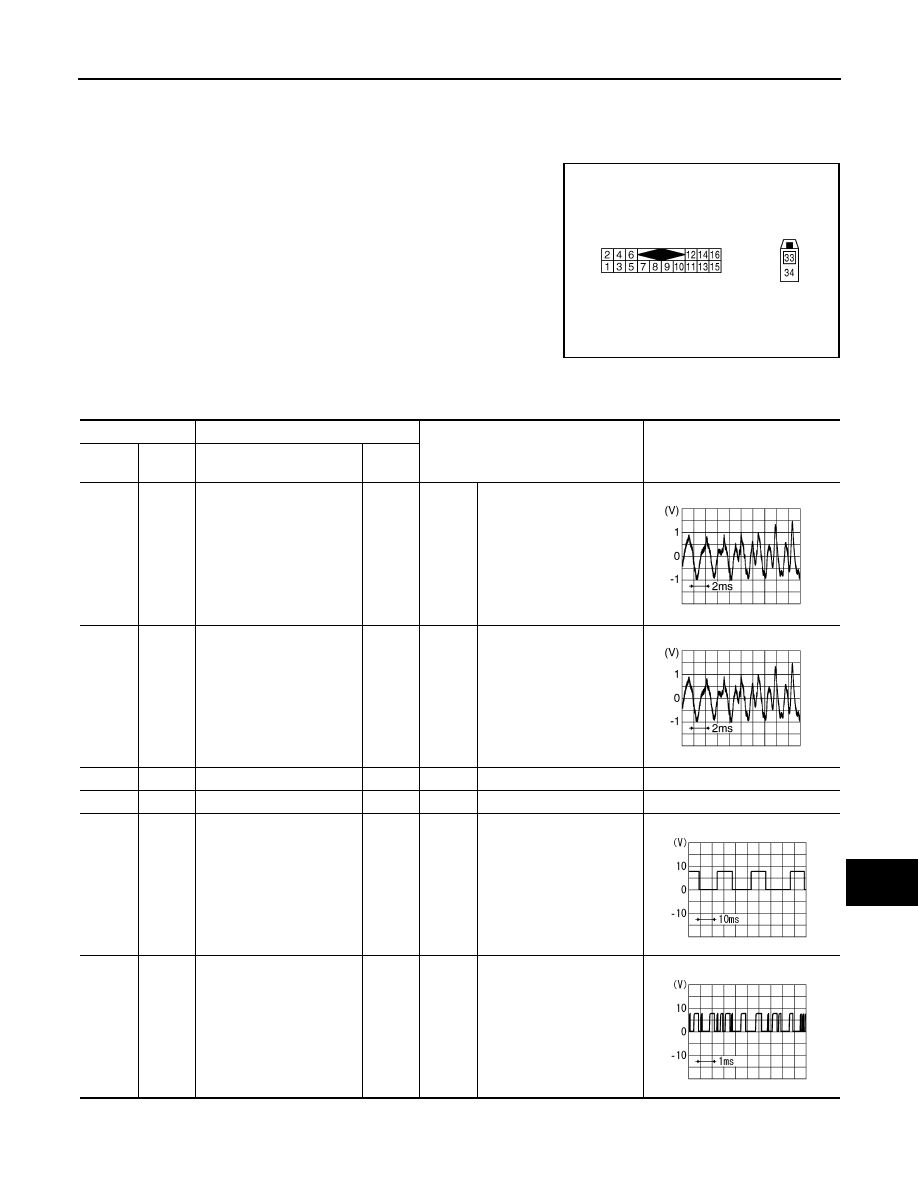

Reference Value

INFOID:0000000003508432

PHYSICAL VALUES

JPNIA0010ZZ

Terminal

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

2

(R)

1

(G)

Satellite radio sound signal
LH

Output

Ignition

switch

ON

When satellite radio mode
is selected

4

(B)

3

(W)

Satellite radio sound signal
RH

Output

Ignition

switch

ON

When satellite radio mode
is selected

5

—

Shield

—

—

—

—

6

—

Shield

—

—

—

—

8

(L)

Ground

Request signal
(SAT

→

CONT)

Output

Ignition

switch

ON

When satellite radio mode
is selected

9

(P)

Ground

Communication signal
(SAT

→

CONT)

Output

Ignition

switch

ON

When satellite radio mode
is selected

SKIB3609E

SKIB3609E

SKIA9299J

SKIA9300J

AV-134

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

10

(G)

Ground

Communication signal
(CONT

→

SAT)

Input

Ignition

switch

ON

When satellite radio mode
is selected

12

(Y)

Ground

Battery power supply

Input

Ignition

switch

OFF

—

Battery voltage

16

(V)

Ground

ACC power supply

Input

Ignition

switch

ACC

—

Battery voltage

33

—

Satellite antenna

Input

—

—

—

Terminal

Description

Condition

Reference value

(Approx.)

+

–

Signal name

Input/

Output

SKIA9301J

AV

SATELLITE RADIO TUNER

AV-135

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Wiring Diagram - BASE AUDIO WITHOUT NAVIGATION SYSTEM -

INFOID:0000000003737121

Click here to view the eWD.

JCNWM0730GB

AV-136

< ECU DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

SATELLITE RADIO TUNER

JCNWM0731GB
