Check voltage between multifunction switch harness connector and ground.
Is the inspection result normal?
YES
>> GO TO 3.
NO
>> Check harness between multifunction switch and fuse.
3.
CHECK GROUND CIRCUIT
1.
Turn ignition switch OFF.
2.
Disconnect multifunction switch connector.
3.
Check continuity between multifunction switch harness connector and ground.
Is the inspection result normal?
YES
>> INSPECTION END
NO
>> Repair harness or connector.
CAMERA CONTROL UNIT
CAMERA CONTROL UNIT : Diagnosis Procedure
INFOID:0000000003652718
1.
CHECK FUSE
Check for blown fuses.
Is inspection result normal?
YES
>> GO TO 2.
NO
>> Be sure to eliminate cause of malfunction before installing new fuse.
2.
CHECK POWER SUPPLY CIRCUIT
Check voltage between camera control unit harness connector and ground.
Is inspection result normal?
YES
>> GO TO 3.
NO
>> Check harness between camera control unit and fuse.
3.
CHECK GROUND CIRCUIT
1.
Turn ignition switch OFF.
2.
Disconnect camera control unit connector.
3.
Check continuity between camera control unit harness connector and ground.
Is inspection result normal?
YES
>> INSPECTION END
NO
>> Repair harness or connector.

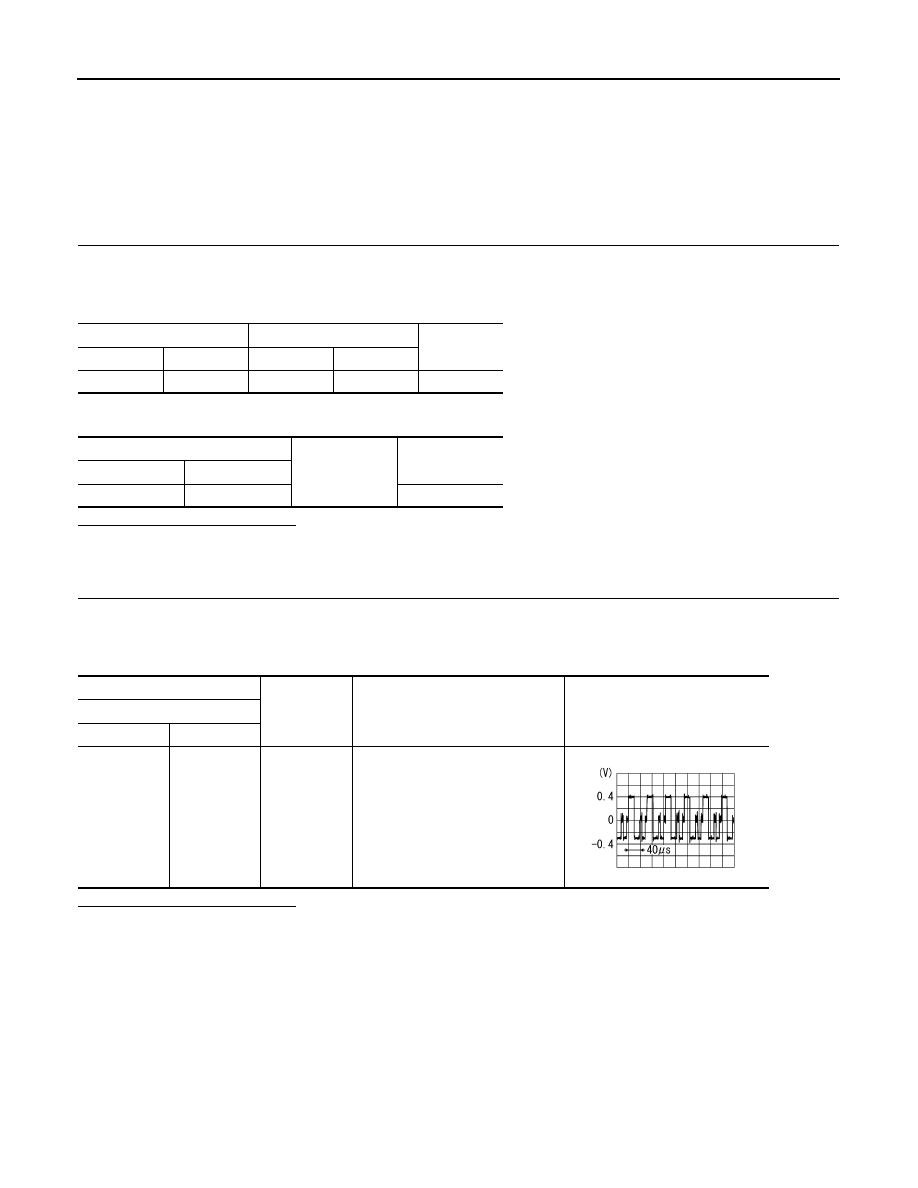

SATELLITE RADIO TUNER
Signal name
Connector No.
Terminal No.
Ignition switch position
Value (Approx.)
ACC power supply
M72
3
ACC
Battery voltage
Signal name
Connector No.
Terminal No.
Ignition switch position
Continuity
Ground
M72
1
OFF
Existed
Power source
Fuse No.
Battery
34
Ignition switch ACC or ON
19
Signal name
Connector No.
Terminal No.
Ignition switch position
Value (Approx.)
Battery power supply
B50
32
OFF
Battery voltage
ACC power supply
B50
30
ACC
Battery voltage
Signal name
Connector No.
Terminal No.
Ignition switch position
Continuity
Ground
B50
31
OFF
Existed
