Infiniti EX35. Manual - part 59

AV

MULTI AV SYSTEM

AV-17

< FUNCTION DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

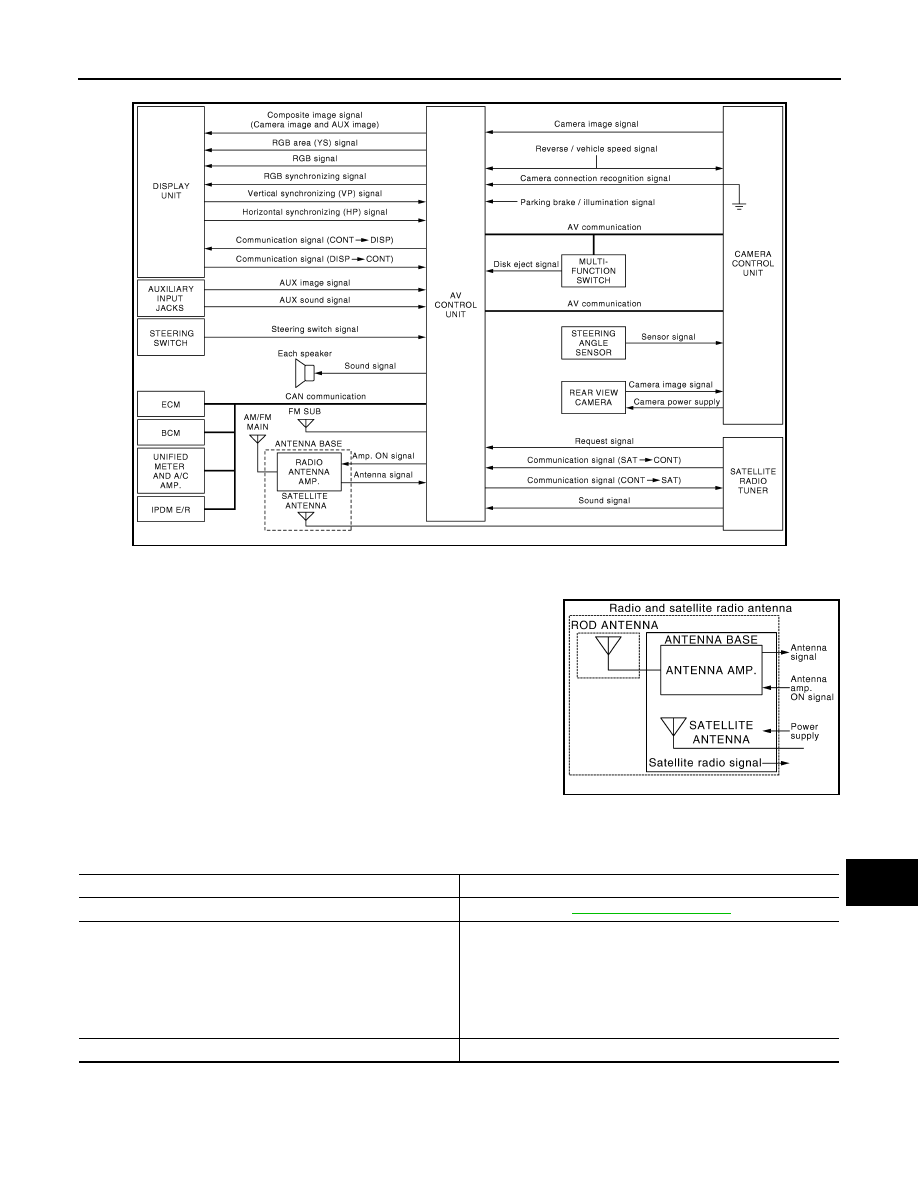

WITH REAR VIEW MONITOR

NOTE:
• The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION

SWITCH virtually.

• A radio antenna base integrated with radio antenna and satellite

radio antenna is adopted.

System Description

INFOID:0000000003508364

Multi AV system means that the following systems are integrated.

• AV control unit functions by transmitting/receiving data one by one with each unit (slave unit) that configures

them completely as a master unit by connecting between units that configure the MULTI AV system with two
AV communication lines (H, L).

• Two AV communication lines (H, L) adopt a twisted pair line that is resistant to noise.

JSNIA0691GB

JSNIA1062GB

System name

System explanation

AUDIO SYSTEM

AV-21, "System Description"

VEHICLE INFORMATION SYSTEM

• Indicates the status of audio, climate control system, fuel econ-

omy and maintenance.

• AV control unit displays the fuel consumption status while re-

ceiving data signal through CAN communication from ECM, uni-
fied meter and A/C amp.

• AV control unit is connected to BCM via CAN communication

transmitting/receiving for the vehicle settings function.

AUXILIARY INPUT SYSTEM

Refer to “AUXILIARY INPUT SYSTEM” shown below.

AV-18

< FUNCTION DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

MULTI AV SYSTEM

• AV control unit is connected by CAN communication, and it receives a data signals from the ECM, unified

meter and A/C amp. It computes and displays fuel economy information values with the obtained informa-
tion. The transmitting/receiving of data signals is performed by the BCM. In addition, it transmits the required
signal of vehicle setting and receives the response signal.

• AV control unit is connected with display and serial communication, and it transmits the required signal from

the display and the display control and receives the response signal from the front display. Also, it is con-
nected with satellite radio by serial communication, and it transmits the operating signal and receives the
display signal.

NOTE:
AV control unit can perform CONSULT-III self-operating function and on board self-diagnosis.
• CONSULT-III self-diagnosis: refer to

AV-37, "CONSULT-III Function (MULTI AV)"

.

• On board self-diagnosis: refer to

AV-28, "Diagnosis Description"

.

AUXILIARY INPUT SYSTEM

• Image and sound can be output from an external device by connecting a device with auxiliary input jacks.
• Operation can be performed by the multifunction switch and steering switch. Multifunction switch transmits

operation signal to AV control unit with communication.

Component Parts Location

INFOID:0000000003567035

JSNIA0207GB

JPNIA0909ZZ

AV

MULTI AV SYSTEM

AV-19

< FUNCTION DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

Component Description

INFOID:0000000003508366

1.

Front squawker LH

2.

Front door speaker LH

3.

Camera control unit

4.

Rear door speaker LH

5.

Rear view camera

6.

Satellite radio tuner

7.

Antenna base (antenna amp and sat-
ellite antenna)

8.

Rear door speaker RH

9.

Front door speaker RH

10. Front squawker RH

11. Display unit

12. Steering angle sensor

13. Steering switch

14. Preset switch

15. Auxiliary input jacks

16. AV control unit

17. Multifunction switch

18. Microphone

A.

Under front seat (LH side)

B.

Luggage floor (RH side)

C.

Spiral cable part

Part name

Description

AV CONTROL UNIT

• It is the master unit of the MULTI AV system, and it is connected to each control

unit by communication. It operates each system according to communication
signals from AV control unit.

• AV control unit includes audio function and vehicle information function.
• It is connected to ECM and unified meter and A/C amp via CAN communica-

tion to obtain necessary information for the vehicle information function.

• It is connected to BCM via CAN communication transmitting/receiving for the

vehicle settings function.

• It inputs the illumination signals that are required for the display dimming con-

trol.

• It inputs the signals for driving status recognition (vehicle speed, reverse and

parking brake).

• Auxiliary image signal is input from the auxiliary input jacks.
• Camera image signal is input from camera control unit.
• AV control unit recognizes the presence of camera system with camera con-

nection recognition signal.

DISPLAY UNIT

• Display image is controlled by the serial communication from AV control unit.
• RGB image signal is input from AV control unit (RGB, RGB area and RGB syn-

chronizing).

• Synchronizing signal (HP, VP) is output to AV control unit.
• Composite image signal is input from AV control unit.

FRONT DOOR SPEAKER

• Outputs sound signal from AV control unit.
• Outputs sound (mid and low range).

REAR DOOR SPEAKER

• Outputs sound signal from AV control unit.
• Outputs sound (mid and low range).

FRONT SQUAWKER

• Outputs sound signal from AV control unit.
• Outputs sound (high and mid range).

MULTIFUNCTION SWITCH

• Operation panel is equipped with the centralized switch where audio and aux-

iliary input operations are integrated.

• Connected with preset switch via cable, and operation signal is transmitted to

AV control unit via AV communication.

PRESET SWITCH

• Operation panel is equipped with the centralized switch where audio and air

conditioner operations are integrated.

• Connected with multifunction switch via cable, and operation signal is transmit-

ted to AV control unit via AV communication.

• The disk ejection operating signal is performed by hardwire.

CAMERA CONTROL UNIT

• Camera image signal is input from rear view camera. Camera image signal is

output to AV control unit.

• Power (camera ON signal) is transmitted to rear view camera.
• Superimpose the guiding line and predicted course line to the camera image

that outputs to AV control unit.

• Input the sensor signal from steering angle sensor, and then control the pre-

dicted course line.

• Camera control unit is connected via AV communication.

REAR VIEW CAMERA

• The image of vehicle rear view is transmitted to camera control unit.
• It receives power (camera ON signal) from camera control unit and operates.

AV-20

< FUNCTION DIAGNOSIS >

[BASE AUDIO WITHOUT NAVIGATION]

MULTI AV SYSTEM

STEERING ANGLE SENSOR

Steering signal necessary for predicted course line control is transmitted to cam-
era control unit.

STEERING SWITCH

• The operation of Audio, etc. can be performed.
• Steering switch signal (operation signal) is output to AV control unit.

AUXILIARY INPUT JACKS

The image signal of the auxiliary input is output via AV control unit to the display,
and it outputs the sound signal to AV control unit.

ANTENNA BASE

A radio antenna base integrated with radio antenna amp. and satellite radio an-
tenna is adopted.

ANTENNA AMP.

• Radio signal received by rod antenna is amplified and transmitted to AV control

unit.

• Power (antenna amp. ON signal) is supplied from AV control unit.

SATELLITE RADIO ANTENNA

• Receives the satellite radio waves and outputs it to satellite radio tuner.

SATELLITE RADIO TUNER

• Inputs the satellite radio signal from satellite radio antenna and outputs the

sound signal to AV control unit.

• It is controlled with AV control unit and serial communication (communication

signal and request signal).

Part name

Description
