ADP-206

< SYMPTOM DIAGNOSIS >

INTELLIGENT KEY INTERLOCK FUNCTION DOES NOT OPERATE

INTELLIGENT KEY INTERLOCK FUNCTION DOES NOT OPERATE

Diagnosis Procedure

INFOID:0000000003134799

1.

CHECK DOOR LOCK FUNCTION

Check door lock function.
Refer to

DLK-7, "Work Flow"

.

Is the inspection result normal?

YES

>> GO TO 2.

NO

>> Repair or replace the malfunction parts.

2.

PERFORM MEMORY STORING PROCEDURE

1.

Perform memory storing procedure.
Refer to

ADP-10, "MEMORY STORING : Special Repair Requirement"

.

2.

Check Intelligent Key interlock function.
Refer to

ADP-38, "INTELLIGENT KEY INTERLOCK FUNCTION : System Description"

.

Is the inspection result normal?

YES

>> Intelligent Key inter lock function is normal.

NO

>> Replace driver seat control unit. Refer to

ADP-209, "Removal and Installation"

.

NORMAL OPERATING CONDITION

ADP-207

< SYMPTOM DIAGNOSIS >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

NORMAL OPERATING CONDITION

Description

INFOID:0000000003134801

The following symptoms are normal operations, and they do not indicate a malfunction.

Symptom

Cause

Action to take

Reference page

Entry/exit assist function and
seat synchronization do not op-
erate.

No initialization has been performed.

Perform initialization.

ADP-9

Entry/exit assist function is disabled.
NOTE:
The entry/exit assist function and seat
synchronization function are disabled be-
fore delivery (initial setting).

Change the settings.

ADP-11

Entry assist function does not op-
erate.

Manual operation with power seat switch
was performed after exit assist function
execution.

Perform the memory

function.

ADP-22

Seat synchronization function
does not operate.

Either the entry/exit assist function (seat)
or the entry/exit assist function (steering)
is disabled.

Enable both functions.

ADP-11

The synchronization function will not op-
erate if the steering (tilt, telescopic) or the
door mirror moves to the operating end
while the seat synchronization function is
operating.

Perform the memory

function

or

drive the vehicle at

more than

 7 km/h (4 MPH).

ADP-22

Seat adjustment load has exceed any of
the volumes below.
• Seat sliding: 76 mm
• Seat reclining: 9.1 degrees
• Seat lifting (rear): 20 mm

—

—

Lumbar support does not per-
form memory operation.

The lumbar support system are con-
trolled independently with no link to the
automatic drive positioner system.

—

Lumbar support system:

SE-8

Memory function, entry/exit as-
sist function, seat synchroniza-
tion function, or Intelligent Key
interlock function does not oper-
ate.

The operating conditions are not fulfilled.

Fulfill the operation

conditions.

Memory function:

ADP-26

Exit assist function:

ADP-30

Entry assist function:

ADP-34

Seat synchronization

function:

ADP-22

Intelligent Key interlock

function:

ADP-38

ADP-208

< PRECAUTION >

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000003134802

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. This system includes seat belt switch inputs and dual stage front air bag modules. The SRS
system uses the seat belt switches to determine the front air bag deployment, and may only deploy one front
air bag, depending on the severity of a collision and whether the front occupants are belted or unbelted.
Information necessary to service the system safely is included in the “SRS AIRBAG” and “SEAT BELT” of this
Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see the “SRS AIRBAG”.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-
ness connectors.

Service

INFOID:0000000003134803

• When removing or installing various parts, place a cloth or padding onto the vehicle body to prevent

scratches.

• Handle trim, molding, instruments, grille, etc. carefully during removing or installing. Be careful not to oil or

damage them.

• Apply sealing compound where necessary when installing parts.
• When applying sealing compound, be careful that the sealing compound does not protrude from parts.
• When replacing any metal parts (for example body outer panel, members, etc.), be sure to take rust preven-

tion measures.

Work

INFOID:0000000003134804

• When removing or disassembling each component, be careful not to damage or deform it. If a component

may be subject to interference, be sure to protect it with a shop cloth.

• When removing (disengaging) components with a screwdriver or similar tool, be sure to wrap the component

with a shop cloth or vinyl tape to protect it.

• Protect the removed parts with a shop cloth and keep them.
• Replace a deformed or damaged clip.
• If a part is specified as a non-reusable part, always replace it with new one.
• Be sure to tighten bolts and nuts securely to the specified torque.
• After re-installation is completed, be sure to check that each part works normally.
• Follow the steps below to clean components.
- Water soluble foul: Dip a soft cloth into lukewarm water, and wring the water out of the cloth to wipe the

fouled area.
Then rub with a soft and dry cloth.

- Oily foul: Dip a soft cloth into lukewarm water with mild detergent (concentration: within 2 to 3%), and wipe

the fouled area.
Then dip a cloth into fresh water, and wring the water out of the cloth to wipe the detergent off. Then rub with
a soft and dry cloth.

• Do not use organic solvent such as thinner, benzene, alcohol, and gasoline.
• For genuine leather seats, use a genuine leather seat cleaner.

DRIVER SEAT CONTROL UNIT

ADP-209

< ON-VEHICLE REPAIR >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

ON-VEHICLE REPAIR

DRIVER SEAT CONTROL UNIT

Exploded View

INFOID:0000000003134805

Refer to

SE-87, "Exploded View"

.

Removal and Installation

INFOID:0000000003134806

REMOVAL

CAUTION:

When removing and installing, use shop cloths to protect parts from damage.

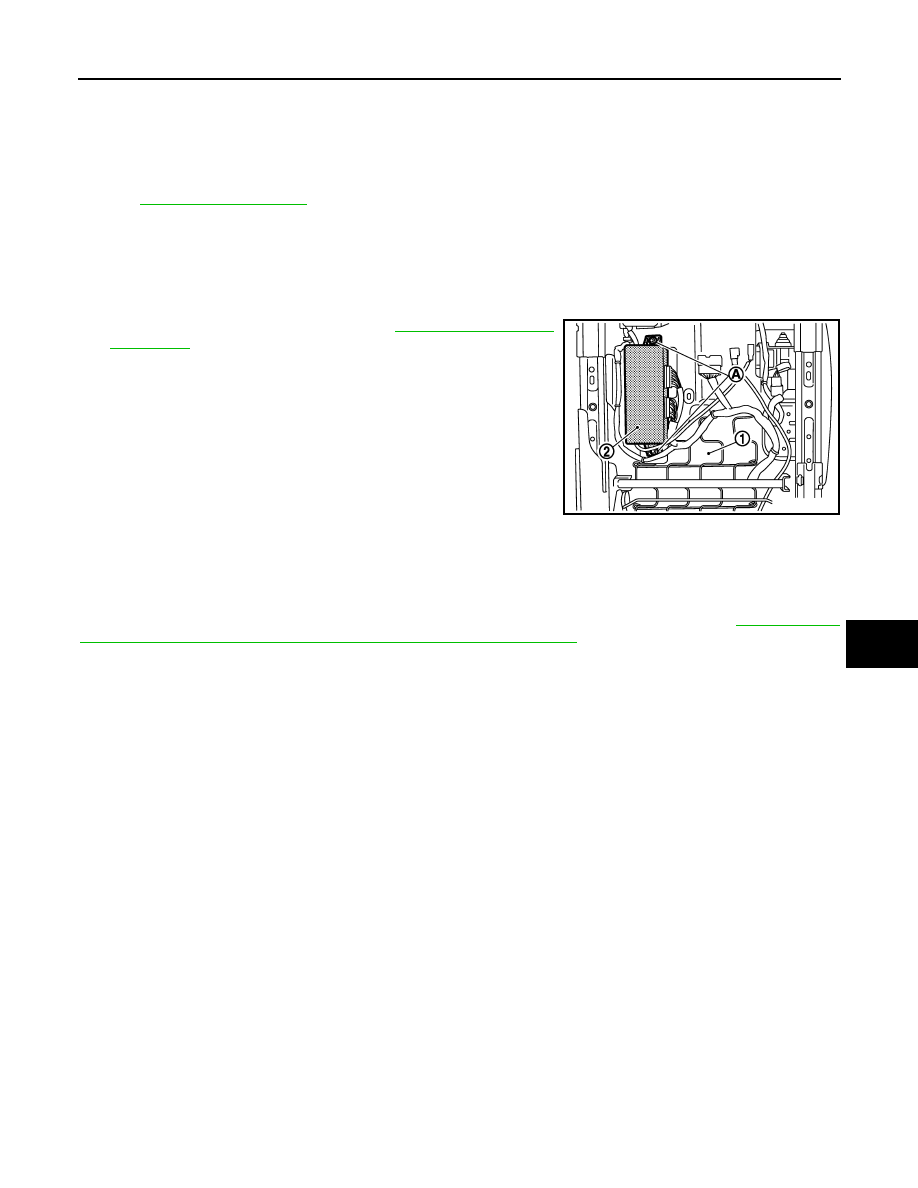

1.

Remove the driver seat (1). Refer to

SE-90, "Removal and

Installation"

.

2.

Remove the mounting bolts (A).

3.

Remove driver seat control unit (2).

INSTALLATION

Install in the reverse order of removal.

CAUTION:

Be sure to clump the harness to the right place.
NOTE:
After installing the driver seat, perform additional service when replacing control unit. Refer to

ADP-8, "ADDI-

TIONAL SERVICE WHEN REPLACING CONTROL UNIT : Description"

.

JMJIA1669ZZ
