5-130

Driving your vehicle

The severe weather conditions of
winter quickly wear out tires and
cause other problems. To minimize
winter driving problems, you should
take the following suggestions:

Snow or Icy Conditions

You need to keep sufficient distance
between your vehicle and the vehicle
in front of you.
Apply the brakes gently. Speeding,
rapid acceleration, sudden brake
applications, and sharp turns are
potentially very hazardous practices.
During deceleration, use regenera-
tive braking to the fullest extent.
Sudden brake applications on snowy
or icy roads may cause the vehicle to
skid.
To drive your vehicle in deep snow, it
may be necessary to use snow tires
or to install tire chains on your tires.
Always carry emergency equipment.
Some of the items you may want to
carry include tire chains, tow straps
or chains, a flashlight, emergency
flares, sand, a shovel, jumper cables,
a window scraper, gloves, ground
cloth, coveralls, a blanket, etc.

Snow tires

If you mount snow tires on your vehi-
cle, make sure to use radial tires of
the same size and load range as the
original tires. Mount snow tires on all
four wheels to balance your vehicle’s
handling in all weather conditions.
The traction provided by snow tires
on dry roads may not be as high as
your vehicle's original equipment
tires. Check with the tire dealer for
maximum speed recommendations.

Information

Do not install studded tires without
first checking local, state and munici-
pal regulations for possible restric-
tions against their use.

Air cleaner filter (FCEV)

The snow may block the air cleaner
filter after driving the vehicle in heavy
snow when the ambient temperature
is below 50°F (10°C).
If a warning message "Air filter
blocked. Check filter or see user
manual" appears on LCD display
after turning off the vehicle, remove
the snow from the inside of the air
cleaner filter and turn on and off the
vehicle. If the warning message is
displayed again, the exhaust pipe
may be blocked. Then, move your
vehicle indoors and leave it inside
more than one day to defrost the
exhaust pipe.
If the warning message is displayed
again, have the vehicle checked by
an authorized HYUNDAI dealer.

i

W

WIIN

NT

TE

ER

R  D

DR

RIIV

VIIN

NG

G

Snow tires should be equivalent
in size and type to the vehicle's
standard tires. Otherwise, the
safety and handling of your
vehicle may be adversely affect-
ed.

WARNING

5-131

Dri
ving y

our v

ehicle

5

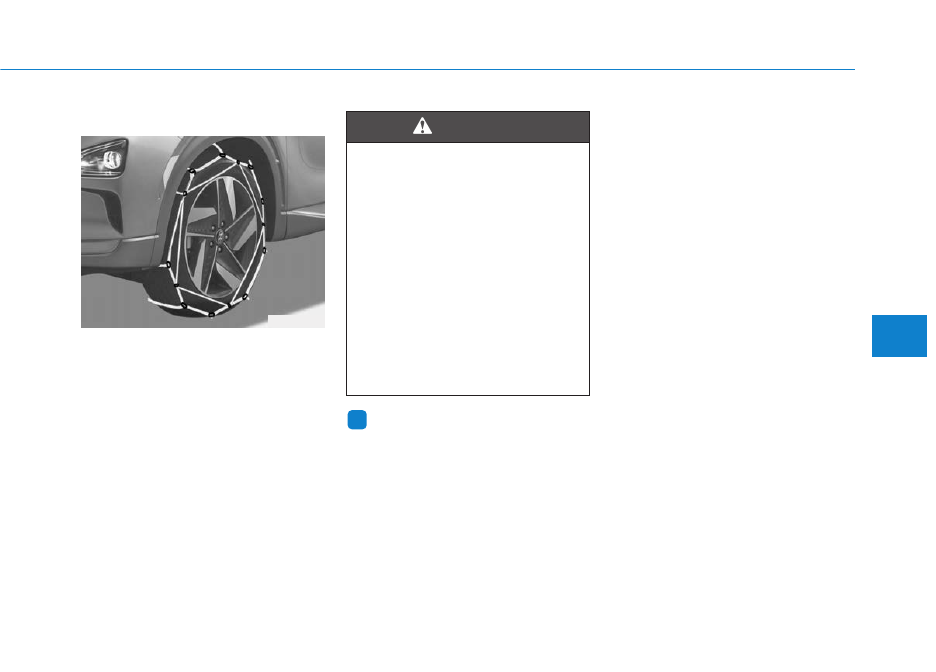

Tire chains

Since the sidewalls of radial tires are
thinner than other types of tires, they
may be damaged by mounting some
types of tire chains on them.
Therefore, the use of snow tires is
recommended instead of tire chains.
Do not mount tire chains on vehicles
equipped with aluminum wheels; if
possible use a wire type chain. If tire
chains must be used, use genuine
HYUNDAI parts and install the tire
chain after reviewing the instructions
provided with the tire chains.
Damage to your vehicle caused by
improper tire chain use is not cov-
ered by your vehicle manufacturer’s
warranty.

Information

• Install tire chains only in pairs and

on the front tires. It should be noted
that installing tire chains on the
tires will provide a greater driving
force, but will not prevent side
skids.

• Do not install studded tires without

first checking local, state and
municipal regulations for possible
restrictions against their use.

Chain Installation

When installing tire chains, follow the
manufacturer's instructions and
mount them as tightly possible. Drive
slowly (less than 20 mph (30 km/h))
with chains installed. If you hear the
chains contacting the body or chas-
sis, stop and tighten them. If they still
make contact, slow down until the
noise stops. Remove the tire chains
as soon as you begin driving on
cleared roads.
When mounting snow chains, park
the vehicle on level ground away
from traffic. Turn on the vehicle

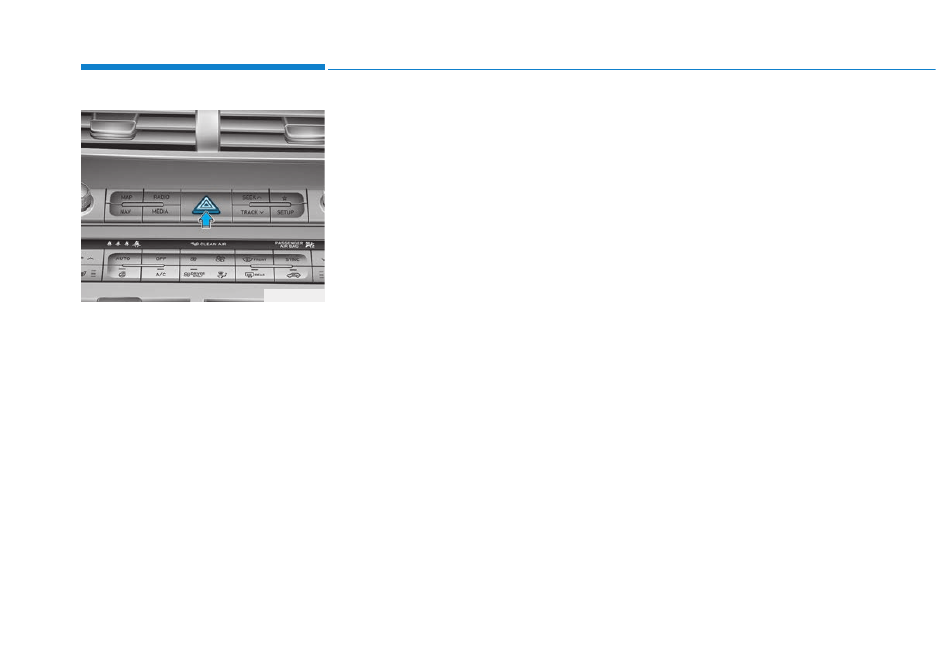

Hazard Warning Flasher and place a
triangular emergency warning device
behind the vehicle (if available).
Always place the vehicle in P (Park),
apply the parking brake and turn off
the vehicle before installing snow
chains.

i

The use of tire chains may
adversely affect vehicle han-
dling:

Drive less than 20 mph (30
km/h) or the chain manufac-
turer's recommended speed
limit, whichever is lower.

Drive carefully and avoid
bumps, holes, sharp turns,
and other road hazards, which
may cause the vehicle to
bounce.

Avoid sharp turns or locked
wheel braking.

WARNING

OFE058102

5-132

Driving your vehicle

When using tire chains:
• Wrong size chains or improperly

installed chains can damage
your vehicle's brake lines, sus-
pension, body and wheels.

• Use SAE "S" class or wire

chains.

• If you hear noise caused by

chains contacting the body,
retighten the chain to prevent
contact with the vehicle body.

• To prevent body damage,

retighten the chains after driving
0.3~0.6 miles (0.5~1.0 km).

• Do not use tire chains on vehi-

cles equipped with aluminum
wheels. If unavoidable, use a
wire type chain.

• Use wire chains less than 0.47 in

(12 mm) thick to prevent damage
to the chain's connection.

Winter Precautions

Use high quality ethylene glycol
coolant

Your vehicle is delivered with high
quality ethylene glycol coolant in the
cooling system. It is the only type of
coolant that should be used because
it helps prevent corrosion in the cool-
ing system, lubricates the water
pump and prevents freezing. Be sure
to replace or replenish your coolant
in accordance with the maintenance
schedule in chapter 7. Before winter,
have your coolant tested to assure
that its freezing point is sufficient for
the temperatures anticipated during
the winter.

Use approved window washer
anti-freeze in system

To keep the water in the window
washer system from freezing, add an
approved window washer anti-freeze
solution in accordance with instruc-
tions on the container. Window wash-
er anti-freeze is available from an
authorized HYUNDAI dealer and
most auto parts outlets. Do not use
coolant or other types of anti-freeze
as these may damage the paint fin-
ish.

Do not let your parking brake
freeze

Under some conditions your parking
brake can freeze in the engaged
position. This is most likely to happen
when there is an accumulation of
snow or ice around or near the rear
brakes or if the brakes are wet. If
there is a risk the parking brake may
freeze, apply it only temporarily while
you shift to P (Park) and block the
rear wheels so the car cannot roll.
Then release the parking brake.

NOTICE

5-133

Dri
ving y

our v

ehicle

5

Do not let ice and snow accu-
mulate underneath

Under some conditions, snow and
ice can build up under the fenders
and interfere with the steering. When
driving in severe winter conditions
where this may happen, you should
periodically check underneath the
car to be sure the movement of the
front wheels and the steering com-
ponents is not obstructed.

Don't place foreign objects or
materials in the fuel cell power
module compartment

Placement of foreign object or mate-
rials which prevent cooling of the
vehicle, in the fuel cell power module
compartment, may cause a failure.
The manufacturer is not responsible
for the damage caused by such
placement.

To keep locks from freezing

To keep the locks from freezing,
squirt an approved de-icer fluid or
glycerine into the key opening. If a
lock is covered with ice, squirt it with
an approved de-icing fluid to remove
the ice. If the lock is frozen internally,
you may be able to thaw it out by
using a heated key. Handle the heat-
ed key with care to avoid injury.

5-134

Driving your vehicle

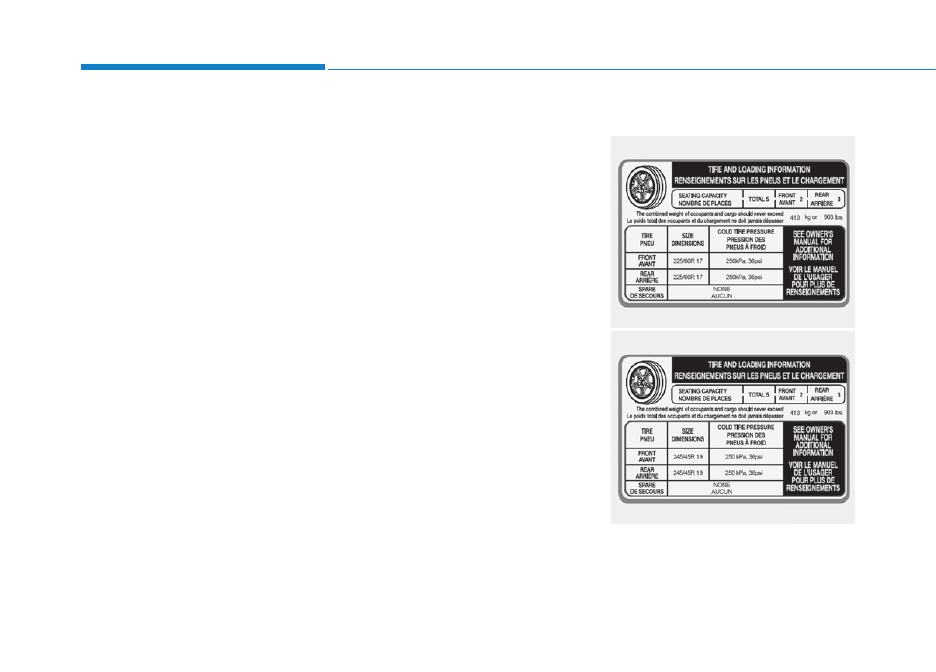

Two labels on your driver's door sill
show how much weight your vehicle
was designed to carry: the Tire and
Loading Information Label and the
Certification Label.
Before loading your vehicle, familiar-
ize yourself with the following terms
for determining your vehicle's weight
ratings, from the vehicle's specifica-
tions and the Certification Label:

Base Curb Weight

This is the weight of the vehicle
including a full tank of fuel and all
standard equipment. It does not
include passengers, cargo, or option-
al equipment.

Vehicle Curb Weight

This is the weight of your new vehicle
when you picked it up from your deal-
er plus any aftermarket equipment.

Cargo Weight

This figure includes all weight added
to the Base Curb Weight, including
cargo and optional equipment.

GAW (Gross Axle Weight)

This is the total weight placed on
each axle (front and rear) - including
vehicle curb weight and all payload.

GAWR (Gross Axle Weight Rating)

This is the maximum allowable
weight that can be carried by a single
axle (front or rear). These numbers
are shown on the Certification Label.
The total load on each axle must
never exceed its GAWR.

GVW (Gross Vehicle Weight)

This is the Base Curb Weight plus
actual Cargo Weight plus passen-
gers.

GVWR (Gross Vehicle Weight
Rating)

This is the maximum allowable
weight of the fully loaded vehicle
(including all options, equipment,
passengers and cargo). The GVWR
is shown on the Certification Label
located on the driver’s door sill.

Tire Loading Information Label

V

VE

EH

HIIC

CL

LE

E  L

LO

OA

AD

D  L

LIIM

MIIT

T

OFE068027N

OFE068028N

5-135

Dri
ving y

our v

ehicle

5

The label located on the driver's door
sill gives the original tire size, cold
tire pressures recommended for your
vehicle, the number of people that
can be in your vehicle and vehicle
capacity weight.

Vehicle capacity weight

903 lbs. (410 kg)

Vehicle capacity weight is the maxi-
mum combined weight of occupants
and cargo. If your vehicle is equipped
with a trailer, the combined weight
includes the tongue load.

Seating capacity

Total : 5 persons

(Front seat : 2 persons,
Rear seat : 3 persons)

Seating capacity is the maximum
number of occupants including a
driver, your vehicle may carry.
However, the seating capacity may
be reduced based upon the weight of
all of the occupants, and the weight
of the cargo being carried or towed.
Do not overload the vehicle as there
is a limit to the total weight, or load
limit including occupants and cargo,
the vehicle can carry.

Towing capacity

We do not recommend using this
vehicle for trailer towing.

Cargo  capacity

The cargo capacity of your vehicle
will increase or decrease depending
on the weight and the number of
occupants and the tongue load, if
your vehicle is equipped with a trailer.

Steps for determining correct
load limit

1. Locate the statement "The com-

bined weight of occupants and
cargo should never exceed XXX
kg or XXX lbs." on your vehicle's
placard.

2. Determine the combined weight of

the driver and passengers that will
be riding in your vehicle.

3. Subtract the combined weight of

the driver and passengers from
XXX kg or XXX lbs.

4. The resulting figure equals the

available amount of cargo and lug-
gage load capacity. For example, if
the "XXX" amount equals 1400
lbs. and there will be five 150 lb
passengers in your vehicle, the
amount of available cargo and lug-
gage load capacity is 650 lbs.
(1400 - 750 (5 x 150) = 650 lbs.)

5. Determine the combined weight of

luggage and cargo being loaded
on the vehicle. That weight may
not safely exceed the available
cargo and luggage load capacity
calculated in Step 4.

5-136

Driving your vehicle

6. If your vehicle will be towing a trail-

er, load from your trailer will be
transferred to your vehicle. Consult
this manual to determine how this
reduces the available cargo and
luggage load capacity of your vehi-
cle.

Do not overload the vehicle as
there is a limit to the total
weight, or load limit, including
occupants and cargo, the vehi-
cle can carry. Overloading can
shorten the life of the vehicle. If
the GVWR or the GAWR is
exceeded, parts on the vehicle
can be broken, and it can
change the handling of your
vehicle. These could cause you
to lose control and result in an
accident.

WARNING

5-137

Dri
ving y

our v

ehicle

5

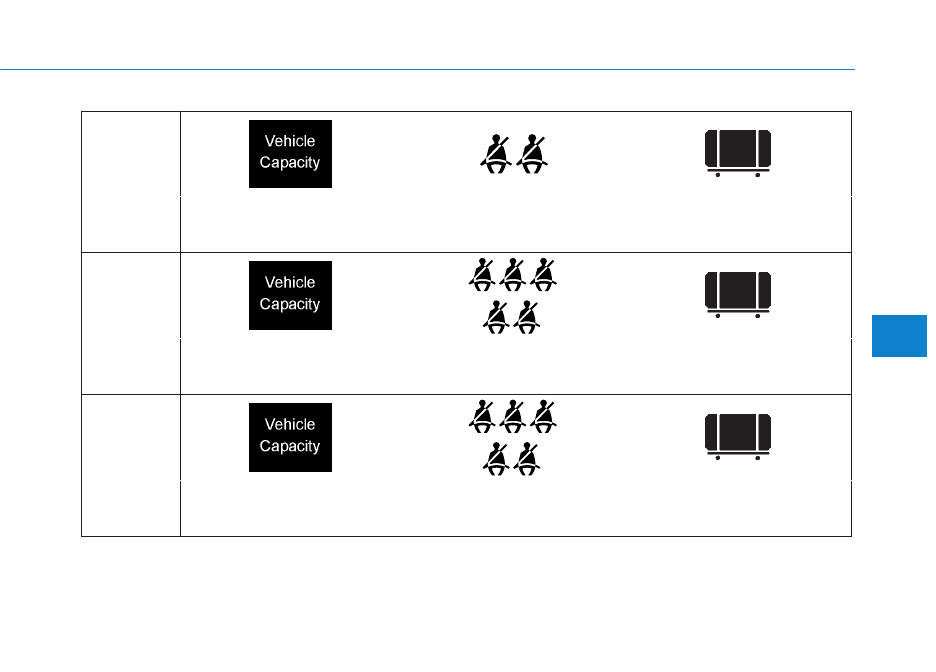

Example 1

Maximum Load

(1400 lbs.)

(635 kg)

Passenger Weight

(150 lbs. × 2 = 300 lbs.)

(68 kg × 2 = 136 kg)

Cargo Weight

(1100 lbs.)

(499 kg)

Example 2

Maximum Load

(1400 lbs.)

(635 kg)

Passenger Weight

(150 lbs. × 5 = 750 lbs.)

(68 kg × 5 = 340 kg)

Cargo Weight

(650 lbs.)

(295 kg)

Example 3

Maximum Load

(1400 lbs.)

(635 kg)

Passenger Weight

(172 lbs. × 5 = 860 lbs.)

(78 kg × 5 = 390 kg)

Cargo Weight

(540 lbs.)

(245 kg)

+

≥≥

≥≥

≥≥

+

+

5-138

Driving your vehicle

Certification label

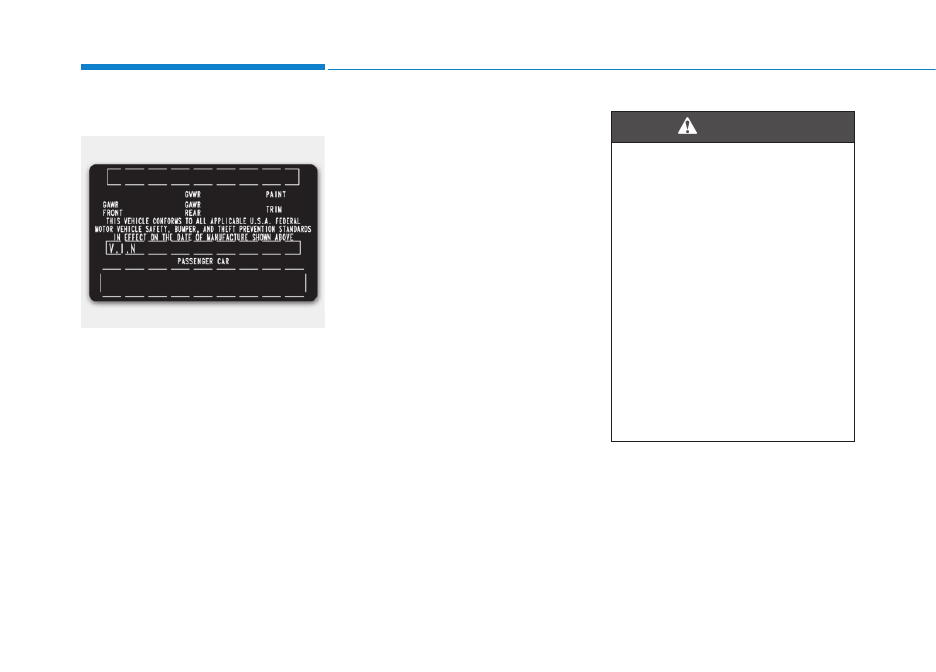

The certification label is located on
the driver’s door sill at the center pil-
lar and shows the maximum allow-
able weight of the fully loaded vehi-
cle. This is called the GVWR (Gross
Vehicle Weight Rating). The GVWR
includes the weight of the vehicle, all
occupants, fuel and cargo.
This label also tells you the maxi-
mum weight that can be supported
by the front and rear axles, called
Gross Axle Weight Rating (GAWR).

The total weight of the vehicle,
including all occupants, accessories,
cargo, and trailer tongue load must
not exceed the Gross Vehicle Weight
Rating (GVWR) or the Gross Axle
Weight Rating (GAWR). To find out
the actual loads on your front and
rear axles, you need to go to a weigh
station and weigh your vehicle. Be
sure to spread out your load equally
on both sides of the centerline.

OBH059070

Overloading

Never exceed the GVWR for
your vehicle, the GAWR for
either the front or rear axle
and vehicle capacity weight.
Exceeding these ratings can
affect your vehicle’s handling
and braking ability, and cause
an accident.

Do not overload your vehicle.
Overloading your vehicle can
cause heat buildup in your
vehicle’s tires and possible
tire failure, increased stop-
ping distances and poor vehi-
cle handling-all of which may
result in a crash.

WARNING

5-139

Dri
ving y

our v

ehicle

5

Overloading your vehicle may
cause damage. Repairs would not
be covered by your warranty. Do
not overload your vehicle.

We do not recommend using this
vehicle for trailer towing.

NOTICE

T

TR

RA

AIIL

LE

ER

R  T

TO

OW

WIIN

NG

G

If you carry items inside your
vehicle (for example, suitcases,
tools, packages, or anything
else), they are moving as fast as
the vehicle. If you have to stop
or turn quickly, or if there is a
crash, the items will keep going
and can cause an injury if they
strike the driver or a passenger.

Put items in the cargo area of
your vehicle. Try to spread the
weight evenly.

Do not stack items like suit-
cases inside the vehicle
above the tops of the seats.

Do not leave an unsecured
child restraint in your vehicle.

When you carry something
inside the vehicle, secure it.

WARNING

What to do in an emergency

6

Hazard Warning Flasher .......................................6-2
In Case of an Emergency While Driving.............6-2

If an accident occurs........................................................6-2
If a fire occurs ...................................................................6-3
Emergency venting of hydrogen gas...........................6-3
If a submersion in water occurs....................................6-3
If the vehicle stalls at a crossroad or crossing.........6-3

If the Vehicle will Not Start..................................6-4

If you have a flat tire while driving..............................6-4
If the vehicle stalls while driving...................................6-4

If the 12 V Battery is Discharged........................6-5

Before Jump Starting .......................................................6-5
Jump Starting......................................................................6-6

If the Vehicle Overheats .......................................6-9
Tire Pressure Monitoring System (TPMS).......6-11

Check Tire Pressure .......................................................6-11
Tire Pressure Monitoring System...............................6-12
Low Tire Pressure Telltale ............................................6-13
Low Tire Pressure Position Telltale and Tire Pressure
Telltale................................................................................6-13
TPMS Malfunction Indicator ........................................6-14
Changing a Tire with TPMS..........................................6-15

If You Have a Flat Tire (with Tire Mobility Kit) 6-17
Towing ...................................................................6-24

Towing Service.................................................................6-24
Removable Towing Hook ...............................................6-25
Emergency Towing..........................................................6-26

6-2

The hazard warning flasher serves
as a warning to other drivers to exer-
cise extreme caution when approach-
ing, overtaking, or passing your vehi-
cle.
It should be used whenever emer-
gency repairs are being made or
when the vehicle is stopped near the
edge of a roadway.

To turn the hazard warning flasher
on or off, press the hazard warning
flasher button. The button is located
in the center fascia panel. Both the
left and right turn signal lights will
flash simultaneously.
• The hazard warning flasher oper-

ates whether your vehicle is run-
ning or not.

• The turn signals do not work when

the hazard flasher is on.

If an accident occurs

1. Stop the vehicle, shift gear to the

P (Park) position, engage the
parking brake, and turn the vehicle
off.

The flow of hydrogen into the fuel

cell stack will be shut off to prevent
the electricity from being generat-
ed.

2. Evacuate to the safety place.
3. Call emergency services for help

and let them know the vehicle is a
Fuel Cell Electric Vehicle.

H

HA

AZ

ZA

AR

RD

D  W

WA

AR

RN

NIIN

NG

G  F

FL

LA

AS

SH

HE

ER

R

What to do in an emergency

OFE068001

IIN

N  C

CA

AS

SE

E  O

OF

F  A

AN

N  E

EM

ME

ER

RG

GE

EN

NC

CY

Y

W

WH

HIIL

LE

E  D

DR

RIIV

VIIN

NG

G

6-3

W

hat to do in an emer

g

ency

If a fire occurs

1. Stop the vehicle, shift gear to the

P(Park) position, engage the park-
ing brake, and turn the vehicle off.

The flow of hydrogen into the fuel

cell stack will be shut off to prevent
the electricity from being generat-
ed.

2. If the fire is small, which can be

extinguished with fire extinguisher,
use carbon dioxide extinguisher.

You can also extinguish the fire

with water when the vehicle power
is turned off.

If the fire is too big to be extin-
guished with the fire extinguisher,
evacuate from the vehicle, call the
fire department, and let them know
the vehicle is a Fuel Cell Electric
Vehicle. Do not come close to the
vehicle until the fire is totally extin-
guished.

Emergency venting of hydro-
gen gas

If the temperature near the safety
valve located at the rear under vehi-
cle is over 230°F (110°C) caused by
a fire or other reasons, the safety
valve will open to vent hydrogen gas.
Venting the hydrogen gas makes a
loud noise because the venting
speed is very fast. Stay well away
from the vehicle. The discharge of
hydrogen gas from the vehicle is
flammable and could cause a fire.

If a submersion in water
occurs

If your vehicle was flooded and has
soaked carpeting or water on the
flooring, you should not try to start
the vehicle by pressing the POWER
button.
Contact an authorized HYUNDAI
dealer immediately.

If the vehicle stalls at a cross-
road or crossing

If the vehicle stalls at a crossroad or
crossing, set the gear in the N
(Neutral) position and then push the
vehicle to a safe place.

6

Do not use water to extinguish a
fire when the vehicle power is
turned on.

Serious electric

shock may result.

WARNING

6-4

If you have a flat tire while
driving

If a tire goes flat while you are driv-
ing:
1. Take your foot off the accelerator

pedal and let the vehicle slow
down while driving straight ahead.
Do not apply the brakes immedi-
ately or attempt to pull off the road
as this may cause a loss of con-
trol. When the vehicle has slowed
to such a speed that it is safe to do
so, brake carefully and pull off the
road. Drive off the road as far as
possible and park on firm, level
ground. If you are on a divided
highway, do not park in the medi-
an area between the two traffic
lanes.

2. When the vehicle is stopped, turn

on your emergency hazard flash-
ers, set the parking brake and shift
gear to the P(Park) position.

3. Have all passengers get out of the

vehicle. Be sure they all get out on
the side of the vehicle that is away
from traffic.

If the vehicle stalls while driv-
ing

1. Reduce your speed gradually,

keeping a straight line. Move cau-
tiously off the road to a safe place.

2. Turn on your emergency flashers.
3. Try to start the vehicle again. If

your vehicle will not start, contact
an authorized HYUNDAI dealer.

• Be sure the shift lever is in P

(Park). The vehicle starts only
when the shift lever is in P (Park).

• This vehicle does not have a regu-

lar 12 V battery that needs period-
ic replacement. It is lithium ion
polymer type integrated into the
high voltage battery. The vehicle
has a 12 V battery protection sys-
tem that cuts 12 V battery from
vehicle draw to prevent full dis-
charge. If vehicle will not start, first
try pressing the 12 V Battery Reset
switch (left side of the steering
wheel near the fuel door open
switch) to reconnect the 12 V bat-
tery, but you must start vehicle
within 15 seconds of pressing the
12 V Battery Reset switch. After
starting vehicle, operate the vehi-
cle safely outdoors in ready mode
stopped and/or drive it for 30 min-
utes total to charge the 12 V bat-
tery fully.

• Check the fuel level and add fuel if

necessary.

• Do not push or pull the vehicle to

start it.

If the vehicle still does not start, call
an authorized HYUNDAI dealer for

What to do in an emergency

IIF

F  T

TH

HE

E  V

VE

EH

HIIC

CL

LE

E  W

WIIL

LL

L  N

NO

OT

T

S

ST

TA

AR

RT

T

6-5

W

hat to do in an emer

g

ency

6

Before Jump Starting

This vehicle does not have a regular
12 V battery that needs periodic
replacement. It is lithium ion polymer
type integrated into the high voltage
battery. The vehicle has a 12 V bat-
tery protection system that cuts 12 V
battery from vehicle draw to prevent
full discharge.

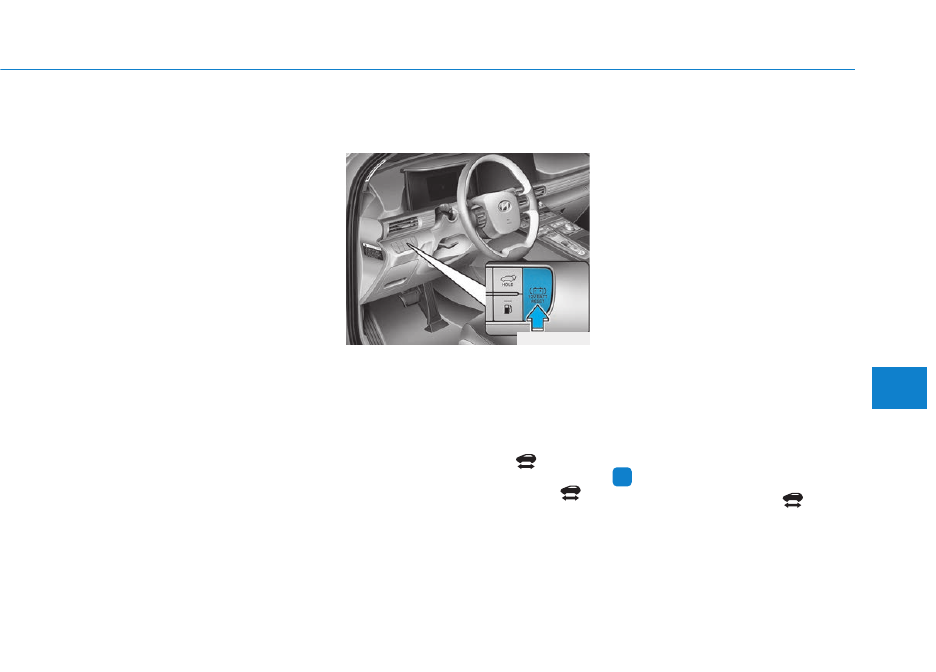

Using the 12 V Battery Reset
Switch

1. Press the 12 V Battery Reset

switch to reconnect the 12 V bat-
tery.

2. Start the vehicle within 15 sec-

onds of pressing the 12 V Battery
Reset switch.

3. After starting vehicle (

indica-

tor on), move the vehicle outside
and keep the vehicle ready (

)

mode more than 30 minutes safe-
ly to charge the 12 V battery.

If you do not start the vehicle imme-
diately after pressing the 12 V
Battery Reset switch, the power of
12 V battery is automatically discon-
nected after few seconds to save the
12 V battery from additional dis-
charge. If the 12 V battery is discon-
nected prior
to starting the vehicle, press the 12 V
Battery Reset switch again and then
immediately start the vehicle as
explained.
Repeated use of the 12 V Battery
Reset switch without a sufficient
vehicle ON cycle (30 Min+) may
cause over discharge of the 12 V bat-
tery, which will prevent the vehicle
from starting. If the 12 V battery is
over discharged to a point that the
reset does not work, try to jump-start
the vehicle.

Information

After starting the vehicle (

indica-

tor on), the 12 V battery is being
charged whether the accelerator pedal
is depressed or not.

i

IIF

F  T

TH

HE

E  1

12

2  V

V  B

BA

AT

TT

TE

ER

RY

Y  IIS

S  D

DIIS

SC

CH

HA

AR

RG

GE

ED

D

OFEQ019028L

6-6

What to do in an emergency

The following items may need to be
reset after the battery has been dis-
charged or the battery has been dis-
connected. See chapter 3 or 4 for:
• Power Windows
• Trip Computer
• Climate Control System
• Clock
• Audio System
• Sunroof
• Driver Position Memory System

External power source using 12 V
battery
The use of external power acces-
sories may reduce performance
and function of the vehicle.
Especially, the use of dash cam-
eras may shut off the power of the
vehicle prior to the dash camera's
automatic shut-down.
If the power of the vehicle is shut
off, start the vehicle as explained.
(refer to "Using the 12 V Battery
Switch")

Jump Starting

In the event vehicle still does not
have a functional 12 V battery (check
if interior lights will not turn on) then
you can try a jump start using a 12 V
booster pack or jumper cables from
another vehicle's 12 V battery
according to the following instruc-
tions.

1. Position the vehicles close enough

that the jumper cables will reach,
but do not allow the vehicles to
touch.

2. Avoid fans or any moving parts in

the fuel cell power module com-
partment at all times, even when
the vehicles are turned off.

3. Turn off all electrical devices such

as radios, lights, air conditioning,
etc. Put the vehicles in P (Park)
and set the parking brake. Turn
both vehicles OFF.

NOTICE

Jump starting can be danger-
ous if done incorrectly. Follow
the jump starting procedure in
this section to avoid serious
injury or damage to your vehi-
cle. If in doubt about how to
properly jump start your vehi-
cle, we strongly recommend
that you have a service techni-
cian or towing service do it for
you.

CAUTION

Before jump starting, make sure
to correctly identify the positive
(+) and negative (-) terminals to
avoid reverse polarity connec-
tions.

CAUTION

6-7

W

hat to do in an emer

g

ency

6

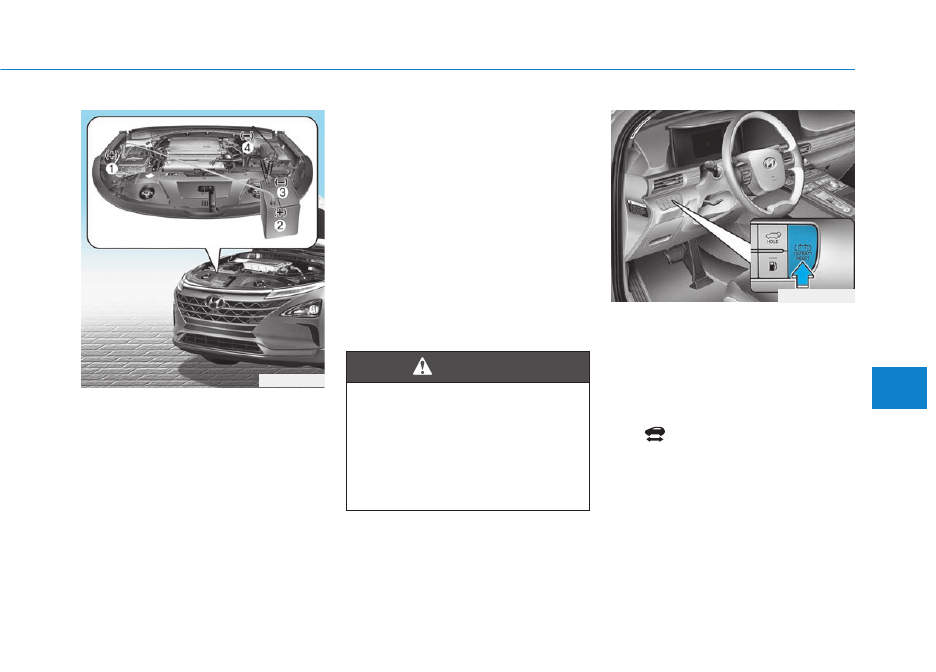

4. Connect the jumper cables in the

exact sequence shown in the illus-
tration. First connect one jumper
cable to the red, positive (+)
jumper terminal of your vehicle
(1).

5. Connect the other end of the

jumper cable to the red, positive
(+) battery/jumper terminal of the
assisting vehicle (2).

6. Connect the second jumper cable

to the black, negative (-)
battery/jumper terminal of the
assisting vehicle (3).

7. Connect the other end of the sec-

ond jumper cable to the black,
negative (-) chassis ground of
your vehicle (4).
Do not allow the jumper cables to
contact anything except the cor-
rect battery or jumper terminals or
the correct ground. Do not lean
over the battery when making
connections.

8. Press the 12 V Battery Reset

switch.

9. Start the engine of the assisting

vehicle and let it run for a few min-
utes.

10. Start your vehicle as soon as

possible. After starting vehicle
(

indicator on), operate the

vehicle safely outdoors in ready
mode stopped and/or drive it for
30 minutes total to charge the 12
V battery fully.

OFE068003N

OFEQ019028L

Do not connect the jumper
cable to the negative (-) jumper
terminal of the discharged bat-
tery. A spark could cause the
battery to explode and lead to a
personal injury or vehicle dam-
age.

WARNING

6-8

What to do in an emergency

If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event please seek
qualified assistance. If the cause of
your battery discharging is not
apparent, have your vehicle checked
by an authorized HYUNDAI dealer.

Disconnect the jumper cables in the
exact reverse order you connected
them:
1. Disconnect the jumper cable from

the black, negative (-) chassis
ground of your vehicle (4).

2. Disconnect the other end of the

jumper cable from the black, neg-
ative (-) battery/chassis ground of
the assisting vehicle (3).

3. Disconnect the second jumper

cable from the red, positive (+)
battery/jumper terminal of the
assisting vehicle (2).

4. Disconnect the other end of the

jumper cable from the red, positive
(+) jumper terminal of your vehicle
(1).

Information

The voltage range of the charger
should be 13.3~14V and its current
range should be less than 60A. (13.8V
is recommended).

Information

An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose of the battery
according to your local law(s)
or regulations.

To prevent damage to your vehi-
cle:
• Only use a 12-volt power supply

(battery or jumper system) to
jump start your vehicle.

• Do not attempt to jump start

your vehicle by push-starting.

NOTICE

i

i

The use of an improper charg-
er with a voltage and current
range higher than specified
may cause overheating and
damage to the 12 V battery.

The use of an incorrect charg-
er will lead to a power shut-off
to save the 12 V battery. Stop
using the incorrect charger
once the power of the vehicle
is shut off.

CAUTION

Pb

Do not jump start another vehi-
cle with your hybrid vehicle.
Jump starting another vehicle
will damage the hybrid vehicle’s
12 volt battery (lithium polymer
type).

CAUTION

While jump starting your vehi-
cle, avoid the positive (+) and
negative (-) cables to come in
contact. A spark could cause
personal injury.

WARNING

6-9

W

hat to do in an emer

g

ency

1. Pull off the road and stop as soon

as it is safe to do so.

2. Shift to P (Park) and set the park-

ing brake. If the air conditioning is
on, turn it off.

3. If coolant is running out under the

vehicle or steam is coming out
from the hood, stop the vehicle.
Do not open the hood until the
coolant has stopped running or
the steaming has stopped. If there
is no visible loss of coolant and no
steam, leave the vehicle running
and check to be sure the vehicle
cooling fan is operating. If the fan
is not running, turn the vehicle off.

4. Check for coolant leaking from the

radiator, hoses or under the vehi-
cle. (If the air conditioning had
been in use, it is normal for cold
water to be draining from it when
you stop.)

5. If coolant is leaking out, stop the

vehicle immediately and call the
nearest authorized HYUNDAI
dealer for assistance.

IIF

F  T

TH

HE

E  V

VE

EH

HIIC

CL

LE

E  O

OV

VE

ER

RH

HE

EA

AT

TS

S

6

While the vehicle is
running, keep hands,
clothing and tools
away from the mov-
ing parts such as the
cooling fan to prevent
serious injury.

WARNING

Your vehicle is
equipped with a pres-
surized coolant
reserve tank. NEVER
remove the coolant

reserve tank cap or the radiator
drain plug while the radiator is
HOT. Hot coolant and steam
may blow out under pressure,
causing serious injury.
Turn the vehicle off and wait
until the vehicle cools down.
Use extreme care when remov-
ing the coolant reserve tank
cap. Wrap a towel or thick rag
around it, and turn it counter-
clockwise slowly to release
some of the pressure from the
system. Step back while the
pressure is released.
When you are sure all the pres-
sure has been released, contin-
ue turning the cap counter-
clockwise to remove it.

WARNING

6-10

6. If you cannot find the cause of the

overheating, wait until the radiator
temperature has returned to nor-
mal. Then, if coolant has been
lost, carefully add coolant to the
reservoir to bring the fluid level in
the reservoir up to the halfway
mark.

7. Proceed with caution, keeping

alert for further signs of overheat-
ing. If overheating happens again,
call an authorized HYUNDAI deal-
er for assistance.

What to do in an emergency

Serious loss of coolant indi-
cates a leak in the cooling sys-
tem and should be checked as
soon as possible by an author-
ized HYUNDAI dealer.

CAUTION

6-11

W

hat to do in an emer

g

ency

6

T

TIIR

RE

E  P

PR

RE

ES

SS

SU

UR

RE

E  M

MO

ON

NIIT

TO

OR

RIIN

NG

G  S

SY

YS

ST

TE

EM

M  ((T

TP

PM

MS

S))

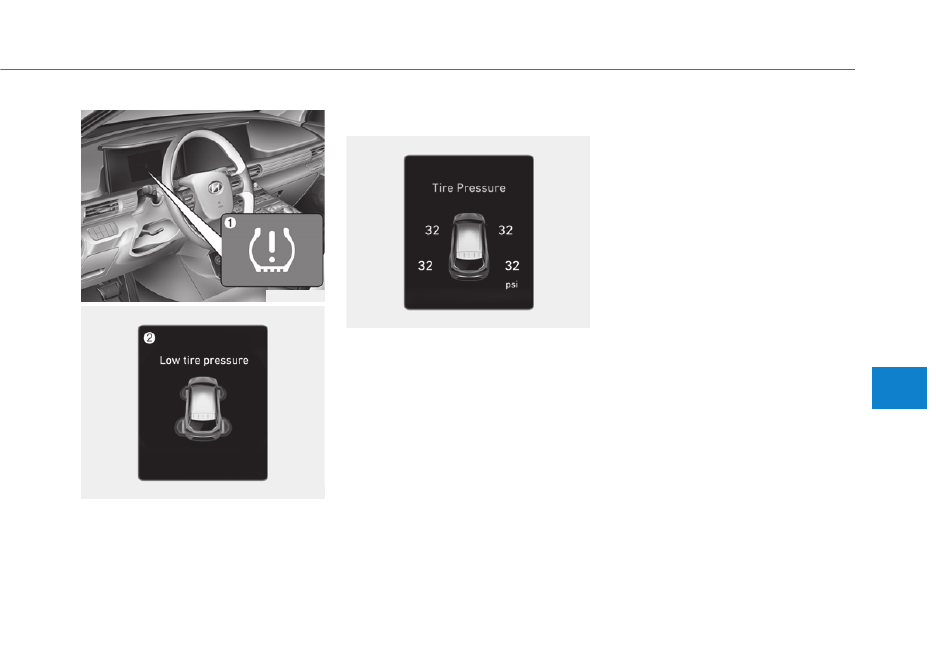

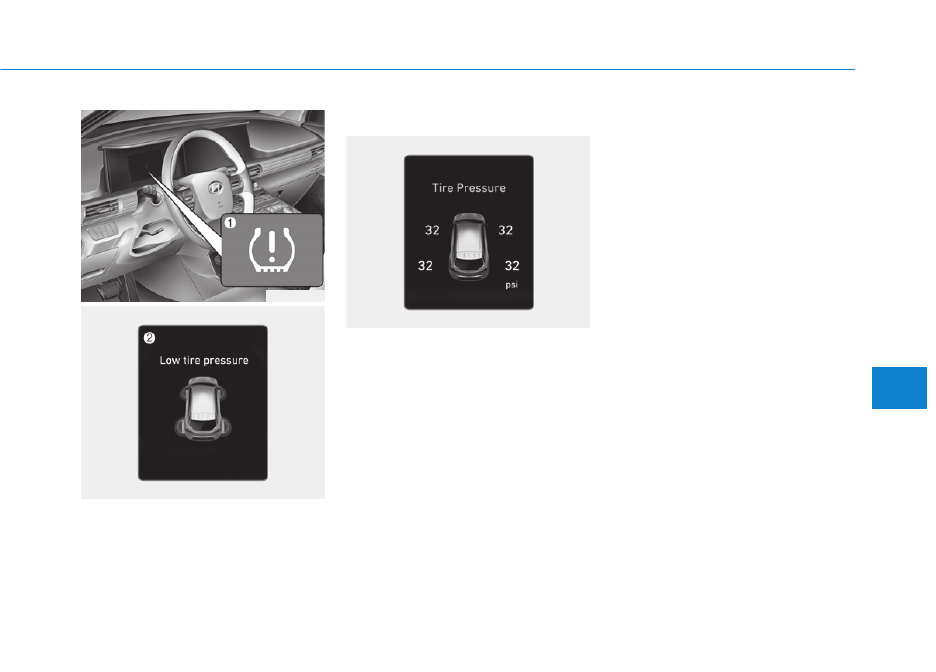

(1) Low Tire Pressure / TPMS

Malfunction Indicator Lamp

(2) Low Tire Pressure /

Tire Pressure Monitor /
TPMS Malfunction Display
(shown on the cluster display)

Check Tire  Pressure

• You can check the tire pressure in

the information mode on the clus-
ter.

Refer to the "Cluster Display
Mode" section in chapter 3.

• A "Drive to display" message will

appear for the first few minutes of
driving after initial vehicle start up.
If the tire pressure is not displayed
after a few minutes of driving,
check the tire pressures.

• The displayed tire pressure values

may differ from those measured
with a tire pressure gage.

• You can change the tire pressure

unit in the General Settings mode
on the Infotainment system.

psi, kpa, bar (For more details,
refer to the separately supplied
Navigation manual.)

OFE061021N

OFE068004

OFE041121N

6-12

What to do in an emergency

Tire Pressure Monitoring
System

Each tire, including the spare (if pro-
vided), should be checked monthly
when cold and inflated to the inflation
pressure recommended by the vehi-
cle manufacturer on the vehicle plac-
ard or tire inflation pressure label. If
your vehicle has tires of a different
size than the size indicated on the
vehicle placard or tire inflation pres-
sure label, you should determine the
proper tire inflation pressure for
those tires.

As an added safety feature, your
vehicle has been equipped with a tire
pressure monitoring system (TPMS)
that illuminates a low tire pressure
telltale when one or more of your
tires is significantly under-inflated.
Accordingly, when the low tire pres-
sure telltale illuminates, you should
stop and check your tires as soon as
possible, and inflate them to the
proper pressure. Driving on a signifi-
cantly under-inflated tire causes the
tire to overheat and can lead to tire
failure.
Under-inflation also reduces fuel effi-
ciency and tire tread life, and may
affect the vehicle's handling and
stopping ability.
Please note that the TPMS is not a
substitute for proper tire mainte-
nance, and it is the driver's responsi-
bility to maintain correct tire pres-
sure, even if under-inflation has not
reached the level to trigger illumina-
tion of the TPMS low tire pressure
telltale.

Your vehicle has also been equipped
with a TPMS malfunction indicator to
indicate when the system is not
operating properly. The TPMS mal-
function indicator is combined with
the low tire pressure telltale. When
the system detects a malfunction,
the telltale will flash for approximate-
ly one minute and then remain con-
tinuously illuminated. This sequence
will continue upon subsequent vehi-
cle start-ups as long as the malfunc-
tion exists.
When the malfunction indicator is
illuminated, the system may not be
able to detect or signal low tire pres-
sure as intended. TPMS malfunc-
tions may occur for a variety of rea-
sons, including the installation of
replacement or alternate tires or
wheels on the vehicle that prevent
the TPMS from functioning properly.
Always check the TPMS malfunction
telltale after replacing one or more
tires or wheels on your vehicle to
ensure that the replacement or alter-
nate tires and wheels allow the TPMS
to continue to function properly.

Over-inflation or under-inflation
can reduce tire life, adversely
affect vehicle handling, and
lead to sudden tire failure that
may cause loss of vehicle con-
trol resulting in an accident.

WARNING

6-13

W

hat to do in an emer

g

ency

6

If any of the below happens, have
the system checked by an author-
ized HYUNDAI dealer.
1. The  Low Tire  Pressure TPMS

Malfunction Indicator does not
illuminate for 3 seconds when
the POWER button is placed to
the ON position or vehicle is ON
(

indicator ON).

2. The TPMS Malfunction Indicator

remains illuminated after blink-
ing for approximately 1 minute.

3. The Low Tire Pressure LCD dis-

play remains illuminated

Low Tire  Pressure
Telltale

Low Tire  Pressure
Position Telltale
and Tire  Pressure
Telltale

When the tire pressure monitoring
system warning indicators are illumi-
nated and the warning message is
displayed on the cluster display, one
or more of your tires is significantly
under-inflated.

The Low Tire

Pressure position indicator will indi-
cate which tire is significantly under-
inflated by illuminating the corre-
sponding parking light.

If any of your tire pressures are indi-
cated as being low, immediately
reduce your speed, avoid hard cor-
nering, and anticipate increased
stopping distances. You should stop
and check your tires as soon as pos-
sible. Inflate the tires to the proper
pressure as indicated on the vehi-
cle’s placard or tire inflation pressure
label located on the driver's side cen-
ter pillar outer panel.
The Low Tire Pressure position indi-
cator will remain on and the TPMS
Malfunction Indicator may blink for
one minute and then remain illumi-
nated until you have the low pressure
tire repaired and replaced on the
vehicle.

NOTICE

OFE041115N

6-14

What to do in an emergency

TPMS Malfunction
Indicator

The TPMS Malfunction Indicator will
illuminate after it blinks for approxi-
mately one minute when there is a
problem with the Tire Pressure
Monitoring System.
Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.

If there is a malfunction with the
TPMS, the individual tire pres-
sures in the cluster LCD display
will not be available. Have the sys-
tem checked by an authorized
HYUNDAI dealer as soon as possi-
ble.

NOTICE

In winter or cold weather, the
Low Tire  Pressure Telltale  may
be illuminated if the tire pres-
sure was adjusted to the recom-
mended tire inflation pressure
in warm weather. It does not
mean your TPMS is malfunc-
tioning because the decreased
temperature leads to a propor-
tional lowering of tire pressure.
When you drive your vehicle
from a warm area to a cold area
or from a cold area to a warm
area, or the outside temperature
is greatly higher or lower, you
should check the tire inflation
pressure and adjust the tires to
the recommended tire inflation
pressure.

CAUTION

Low pressure damage

Significantly low tire pressure
makes the vehicle unstable and
can contribute to loss of vehicle
control and increased braking
distances.
Continued driving on low pres-
sure tires can cause the tires to
overheat and fail.

WARNING

6-15

W

hat to do in an emer

g

ency

6

The TPMS Malfunction Indicator
may illuminate after blinking for
one minute if the vehicle is near
electric power supply cables or
radio transmitters such as police
stations, government and public
offices, broadcasting stations,
military installations,

airports,

transmitting towers, etc.
Additionally, the TPMS  Malfunction
Indicator may illuminate if snow
chains are used or electronic
devices such as computers, charg-
ers, remote starters, navigation,
etc. This may interfere with normal
operation of the TPMS.

Changing a Tire with TPMS

If you have a flat tire, the Low Tire
Pressure and position indicator will
come on. Have the flat tire repaired
by an authorized HYUNDAI dealer
as soon as possible.

Once the original tire equipped with
a tire pressure monitoring sensor is
reinflated to the recommended pres-
sure and reinstalled on the vehicle,
the Low Tire Pressure position indi-
cator and TPMS Malfunction
Indicator will go off within a few min-
utes of driving.

If the indicators do not disappear
after a few minutes, please visit an
authorized HYUNDAI dealer.
Each wheel is equipped with a tire
pressure sensor mounted inside the
tire behind the valve stem. You must
use TPMS specific wheels. It is rec-
ommended that you always have
your tires serviced by an authorized
HYUNDAI dealer.

NOTICE

Never use a puncture-repairing
agent not approved by HYUNDAI
dealer to repair and/or inflate a
low pressure tire. Tire sealant
not approved by HYUNDAI deal-
er may damage the tire pressure
sensor.

CAUTION

6-16

What to do in an emergency

You may not be able identify a tire
with low pressure by simply looking
at it. Always use a good quality tire
pressure gage to measure the tire's
inflation pressure. Please note that a
tire that is hot (from being driven) will
have a higher pressure measure-
ment than a tire that is cold.
A cold tire means the vehicle has
been sitting for 3 hours and driven for
less than 1 mile (1.6 km) in that 3
hour period.
Allow the tire to cool before measur-
ing the inflation pressure. Always be
sure the tire is cold before inflating to
the recommended pressure.

Information

This device complies with Part 15 of
the FCC rules.

Operation is subject to the following
three conditions:

1. This device may not cause harmful

interference.

2. This device must accept any inter-

ference received, including interfer-
ence that may cause undesired
operation.

3. Changes or

modifications not

expressly approved by the party
responsible for compliance could
void the user

'

s authority to operate

the equipment.

i

The TPMS cannot alert you to
severe and sudden tire dam-
age caused by external fac-
tors such as nails or road
debris.

If you feel any vehicle instabil-
ity, immediately take your foot
off the accelerator, apply the
brakes gradually with light
force, and slowly move to a
safe position off the road.

WARNING

Tampering with, modifying, or
disabling the Tire Pressure
Monitoring System (TPMS)
components may interfere with
the system's ability to warn the
driver of low tire pressure con-
ditions and/or TPMS malfunc-
tions. Tampering with, modify-
ing,

or disabling the Tire

Pressure Monitoring System
(TPMS) components may void
the warranty for that portion of
the vehicle.

WARNING

6-17

W

hat to do in an emer

g

ency

6

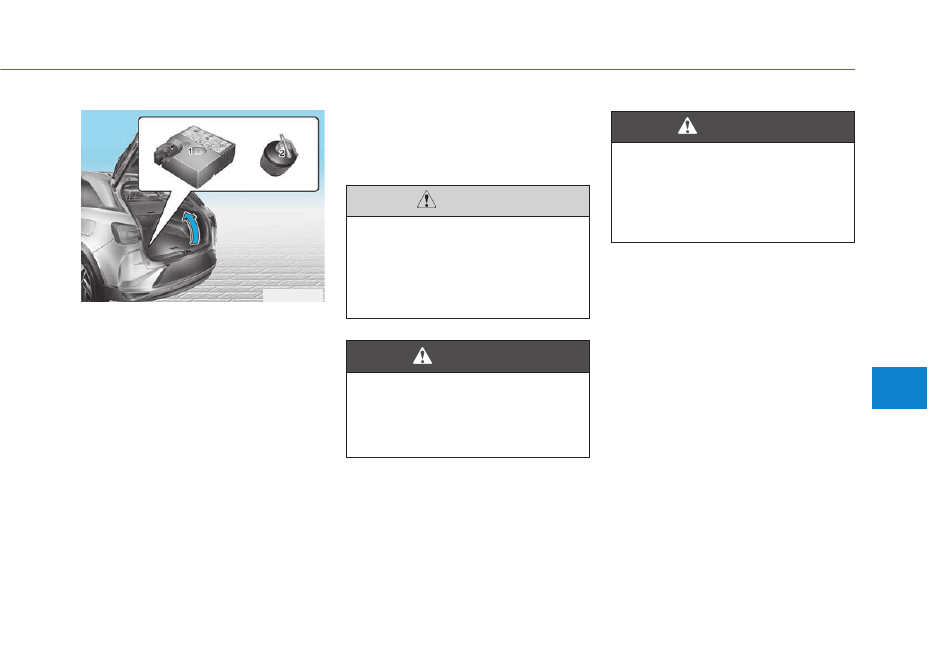

For safe operation, carefully read
and follow the instructions in this
manual before use.

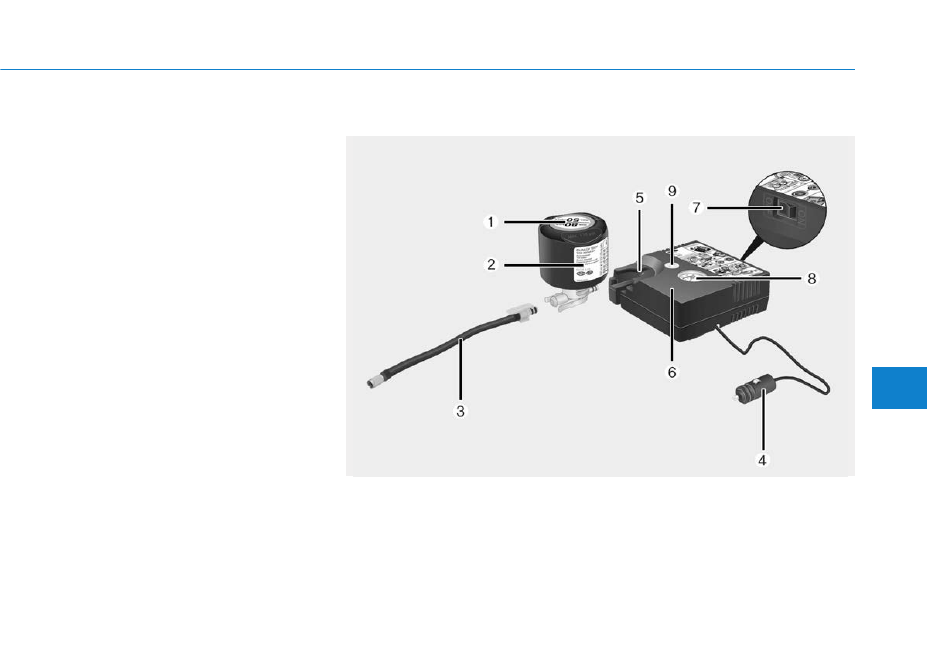

(1) Compressor
(2) Sealant bottle

The Tire Mobility Kit is a temporary fix
to the tire and the tire should be
inspected by an authorized HYUNDAI
dealer as soon as possible.

IIF

F  Y

YO

OU

U  H

HA

AV

VE

E  A

A  F

FL

LA

AT

T  T

TIIR

RE

E  ((W

WIIT

TH

H  T

TIIR

RE

E  M

MO

OB

BIIL

LIIT

TY

Y  K

KIIT

T))

OFE068014

When two or more tires are flat,
do not use the tire mobility kit
because the sealant provided
with the Tire Mobility Kit must
be used for only one flat tire.

CAUTION

Do not use the Tire Mobility Kit
to repair punctures in the tire
walls. This can result in an acci-
dent due to tire failure.

WARNING

Have your tire repaired as soon
as possible. The tire may lose
air pressure at any time after
inflating with the Tire Mobility
Kit.

WARNING

6-18

What to do in an emergency

Introduction

With the Tire Mobility Kit you stay
mobile even after experiencing a tire
puncture.
The compressor and sealing com-
pound system effectively and com-
fortably seals most punctures in a
passenger car tire caused by nails
or similar objects and reinflates the
tire.
After you ensure that the tire is  prop-
erly sealed you can drive cautiously
on the tire (distance up to 120 miles
(200 km)) at a max. speed of (50
mph (80 km/h)) in order to reach a
service station or tire dealer for the
tire replacement.
It is possible that some tires, espe-
cially with larger punctures or dam-
age to the sidewall, cannot be sealed
completely.
Air pressure loss in the tire may
adversely affect tire performance.
For this reason, you should avoid
abrupt steering or other driving
maneuvers, especially if the vehicle
is heavily loaded or if a trailer is in
use.

The Tire Mobility Kit is not designed
or intended as a permanent tire
repair method and is to be used for
one tire only.
This instruction shows you step by
step how to temporarily seal the
puncture simply and reliably.
Read the section "Notes on the safe
use of the Tire Mobility Kit".

Notes on the safe use of the
Tire Mobility Kit

• Park your car at the side of the

road so that you can work with the
Tire Mobility Kit away from moving
traffic.

• To be sure your vehicle will not

move, even when you're on fairly
level ground, always set your park-
ing brake.

• Only use the Tire Mobility Kit for

sealing/inflation passenger car
tires. Only punctured areas located
within the tread region of the tire
can be sealed using the tire mobil-
ity kit.

• Do not use on motorcycles, bicy-

cles or any other type of tires.

• When the tire and wheel are dam-

aged, do not use Tire Mobility Kit
for your safety.

• Use of the Tire Mobility Kit may not

be effective for tire damage larger
than approximately 0.16 in. (4
mm).
Please contact the nearest
HYUNDAI dealership if the tire
cannot be made roadworthy with
the Tire Mobility Kit.

• Do not use the Tire Mobility Kit if a

tire is severely damaged by driving
run flat or with insufficient air pres-
sure.

• Do not remove any foreign objects

such as nails or screws that have
penetrated the tire.

• Provided the car is outdoors, leave

the vehicle ON (

indicator ON).

Otherwise operating the compres-
sor may eventually drain the car
battery.

• Never leave the Tire Mobility Kit

unattended while it is being used.

• Do not leave the compressor run-

ning for more than 10 minutes at a
time or it may overheat.

6-19

W

hat to do in an emer

g

ency

6

• Do not use the Tire Mobility Kit if

the ambient temperature is below
-22°F (-30°C).

• In case of skin contact with the-

sealant, wash the area thoroughly-
with plenty of water. If the irritation-
persists, seek medical attention.

• In case of eye contact with the

sealant,flush your eyes for at least
15 minutes. If the irritation persists,
seek medical attention.

• In case of swallowing the

sealant,rinse the mouth and drink
plenty ofwater. However, never give
anythingto an unconscious person
and seek medical attention imme-
diately.

• Long time exposure to the sealant-

may cause damage to bodily tissue
such as kidney, etc.

Components of the Tire Mobility Kit

ODE067044

1. Speed restriction label
2. Sealant bottle and label with

speed restriction

3. Sealant/Air filling hose
4. Connectors and cable for power

outlet direct connection

5. Holder for the sealant bottle
6. Compressor
7. ON/OFF switch
8. Pressure gauge for displaying the

tire inflation pressure

9. Button for reducing tire inflation

pressure

6-20

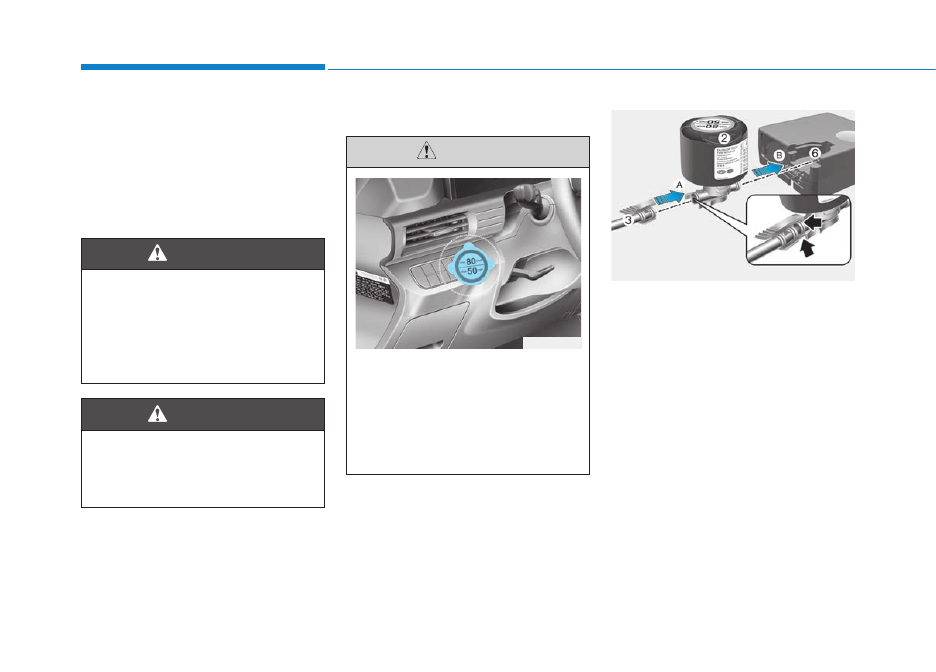

What to do in an emergency

Connectors, cable and connection
hose are stored in the compressor
housing.

Strictly follow the specified sequence,
otherwise the sealant may escape
under high pressure.

Using the Tire Mobility Kit

1. Shake the sealant bottle (2).

2. Connect the filling hose (3) to the

sealant bottle (2) in the direction of
(A) and connect the sealant bottle
to the compressor (6) in the direc-
tion of (B).

3. Ensure that the compressor is

switched OFF.

Do not use the tire sealant after
the sealant has expired (for
example, pasted the expiration
date on the sealant container).
This can increase the risk of tire
failure.

WARNING

Keep out of reach of children.

Avoid contact with eyes.

Do not swallow.

WARNING

Detach the speed restriction
label (1) from the sealant bottle
(2), and place it in a highly visi-
ble place inside the vehicle
such as on the steering wheel
to remind the driver not to drive
too fast.

CAUTION

OFE068010

ONE1081031

6-21

W

hat to do in an emer

g

ency

6

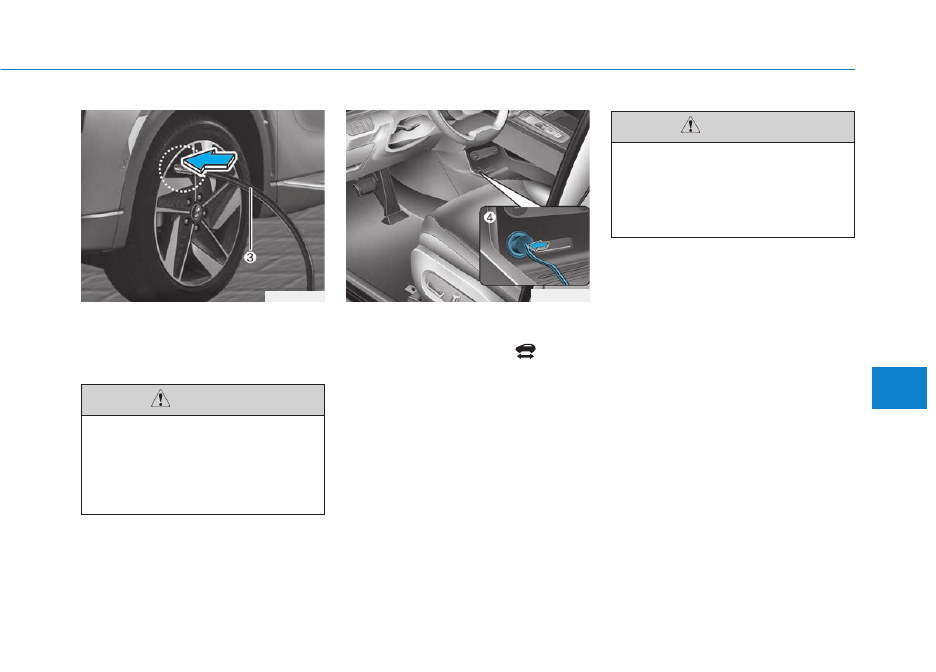

4. Unscrew the  valve cap from the

valve of the defective wheel and
screw the filling hose (3) of the
sealant bottle onto the valve.

5. Plug the compressor power cord

(4) into the vehicle power outlet.

6. With the vehicle ON (

indica-

tor ON), switch on the compressor
and let it run for approximately
5~7 minutes to fill the sealant up
to proper pressure. (refer to the
Tire and Wheels, chapter 8). The
inflation pressure of the tire after
filling is unimportant and will be
checked/corrected later.
Be careful not to overinflate the
tire and stay away from the tire
when filling it.

7. Switch off the compressor.
8. Detach the hoses from the sealant

bottle connector and from the tire
valve.

Return the Tire Mobility Kit to its stor-
age location in the vehicle.

OFE068015

OFE068016

Securely install the sealant fill-
ing hose to the valve. If not,
sealant may flow backward,
possibly clogging the filling
hose.

CAUTION

Do not attempt to drive your
vehicle if the tire pressure is
below 29 psi (200 kpa). This
could result in an accident due
to sudden tire failure.

CAUTION

6-22

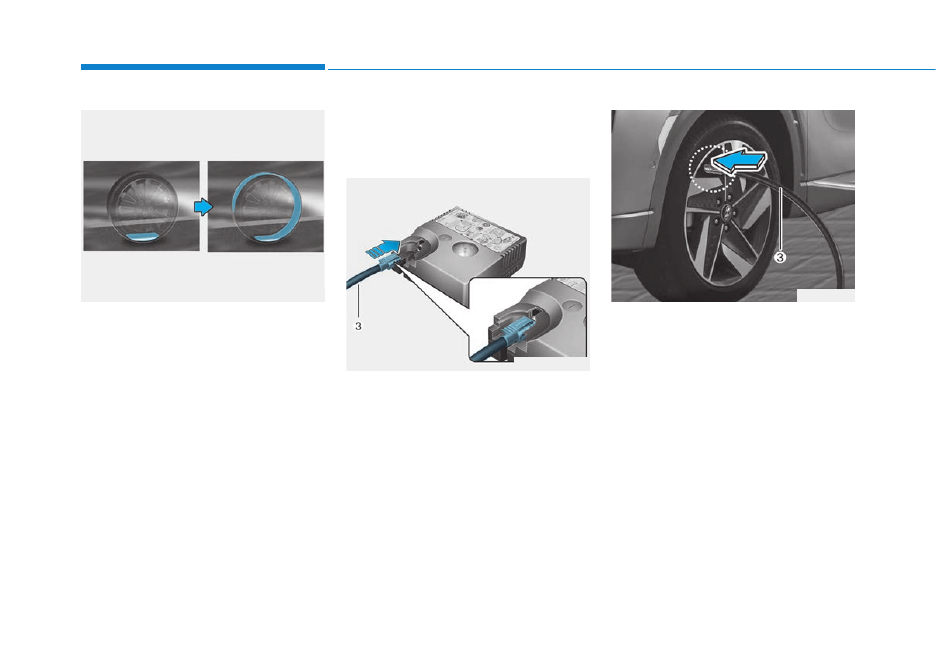

What to do in an emergency

Distributing the sealant

9. Immediately drive approximately

4~6 miles (7~10 km or about 10
minutes) to evenly distribute the
sealant in the tire.

Do not exceed a speed of 50 mph
(80 km/h). If possible, do not fall
below a speed of 12 mph (20 km/h).
While driving, if you experience any
unusual vibration, ride disturbance or
noise, reduce your speed and drive
with caution until you can safely pull
off of the side of the road.

10. After driving approximately 4~6

miles (7~10 km or about
10 minutes), stop at a safe loca-
tion.

11. Connect the other end of the fill-

ing hose (3) directly into the tire
valve.

12. Plug the compressor power cord

into the vehicle power outlet.

OLMF064106

OAEPH067042

OFE068015















Content      ..     13      14      15      16     ..
