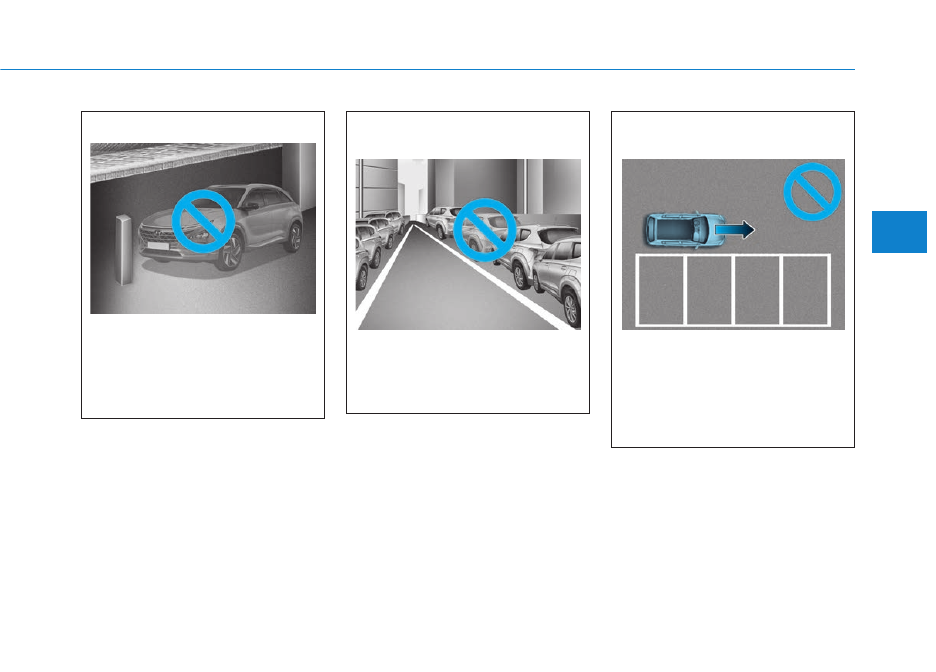

8. Using a Smart Exit in wall

proximity conditions

When using a Smart Exit in nar-
row and near a wall, the Remote
Smart Parking Assist may not
work properly.

OFE043538

9. Parking in an empty parking

place

The Remote Smart Parking
Assist does not work if there is
no car parked in front of the
parking space you are planning
to park. Park the vehicle manu-
ally.

OFE048424

7. Obstacle in parking space

When detecting for a parking
space next to pillar or struc-
tures around pillar (fire
hydrants, etc.), the parking per-
formance may be degraded.

OFE043537

3-124

Convenience features of your vehicle

How Smart Parking function
works

Smart Parking is available with the
driver on board. Make sure the con-
ditions available before activating the
Smart Parking function.
1. Select Smart Parking function:

Press the Parking Assist button
with the shift lever placed in D
(Drive) or N (Neutral) position.

However, the Smart Exit is
selected if you press the
Parking Assist button when the
gear is in N (Neutral) position
after the initial startup.

2. Search for parking space: Slowly

move forward below 12 mph (20
km/h).

3. Search complete: Automatic search

by sensor.
However, check the actual parking
environment before parking the
vehicle.

4. Select parking type: Reverse

(left/right), parallel (left/right)

5. Operating instructions:

Smart

Parking/Remote Smart Parking

6. Smart Parking assist: Steering

wheel, gear shift and vehicle
speed control (reverse parking).

7. Parking complete: Smart Parking

complete after reaching the park-
ing position

❈

After the parking is complete,
arrange the vehicle position manu-
ally, if necessary.

❈

You can use Smart Parking function
when the infotainment system
screen operate normally.

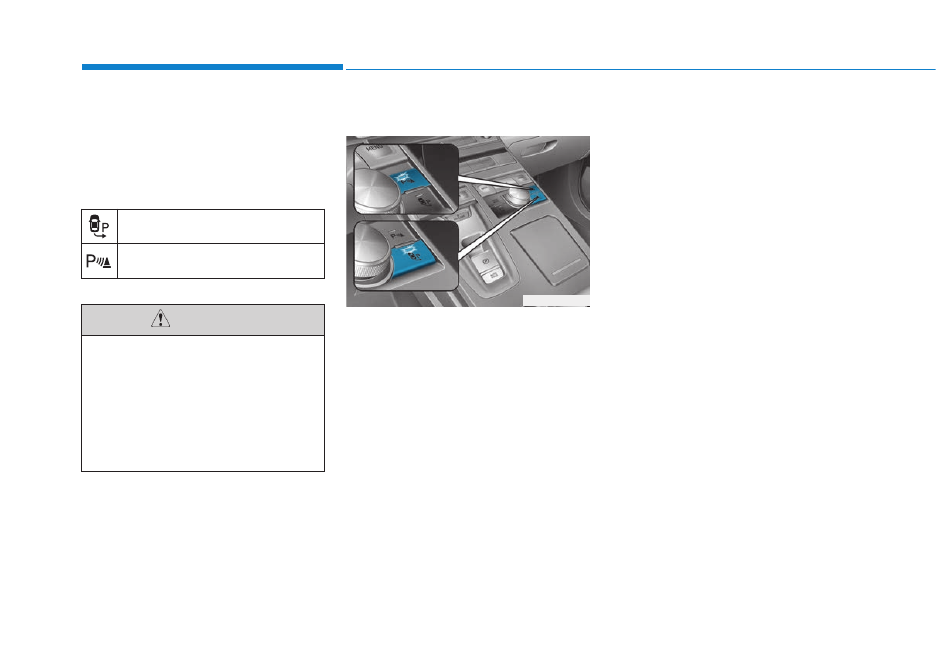

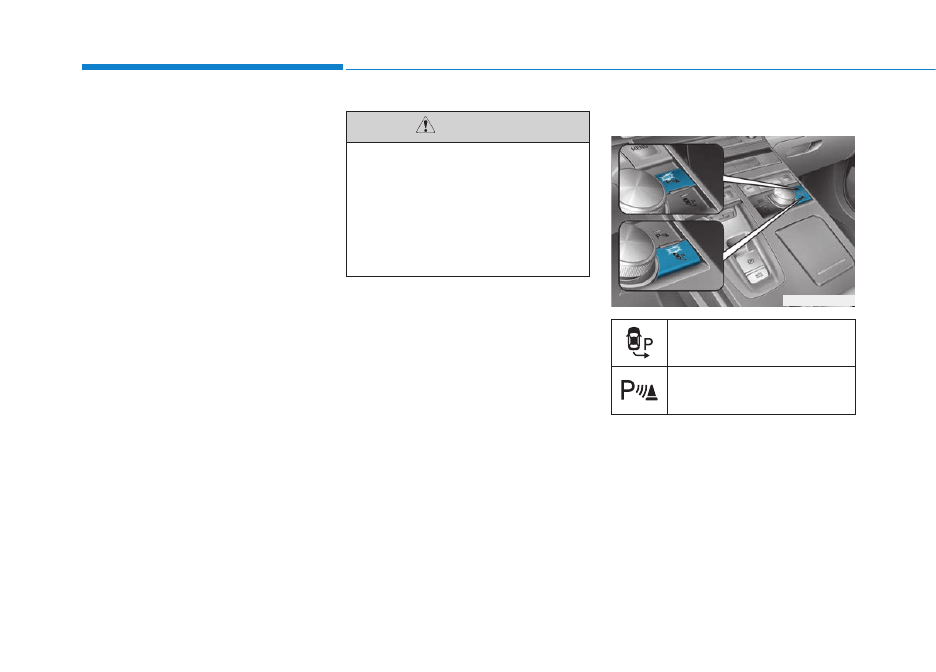

1. Selecting Parking mode

• Press the Parking Assist button

and the button indicator will illumi-
nate.

• The Parking Safety button will illu-

minate and the infotainment sys-
tem screen will display the instruc-
tion screen.
A warning sound will be heard if an
obstacle is detected.

Always check for obstacles
around your vehicle before
driving.

The function may be can-
celled if you attach something
(cover, etc.) to the steering
wheel.

CAUTION

OFE043414N

Parking Assist button

Parking Safety button

3-125

Con

v

enience f

eatur

es of y

our v

ehicle

3

• To deactivate Smart Parking func-

tion:

1. Press the Parking Assist button

again (until the "Selecting parking
mode" stage).

2. Shift the gear to R (Reverse) posi-

tion before the operation of the
Smart Parking assist.

3. Press the 'Cancel' button on the

infotainment system screen while
the Smart Parking is in activation.

4. Press the Parking Safety button

while the Smart Parking is in acti-
vation.

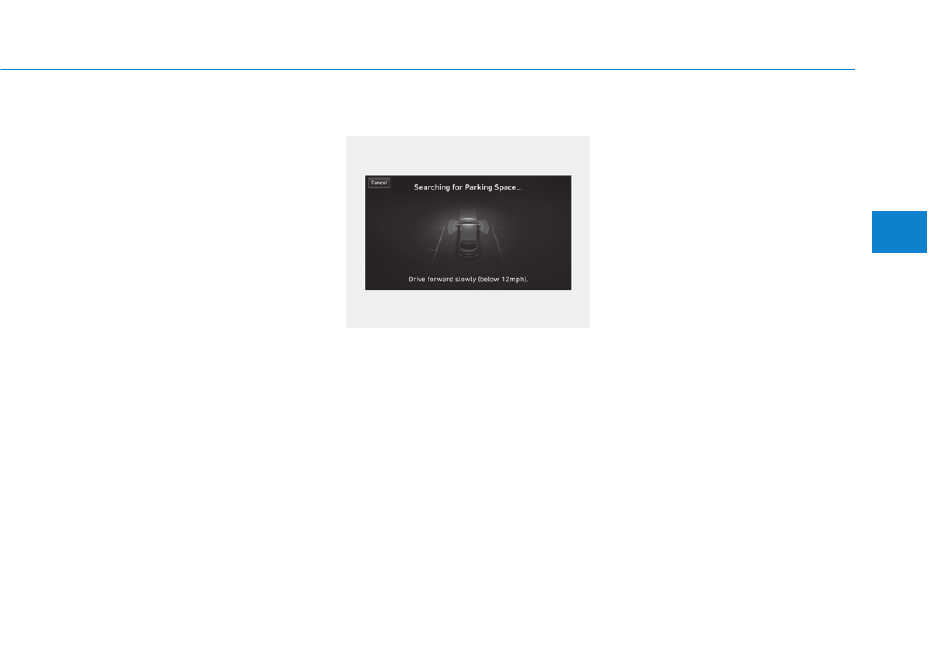

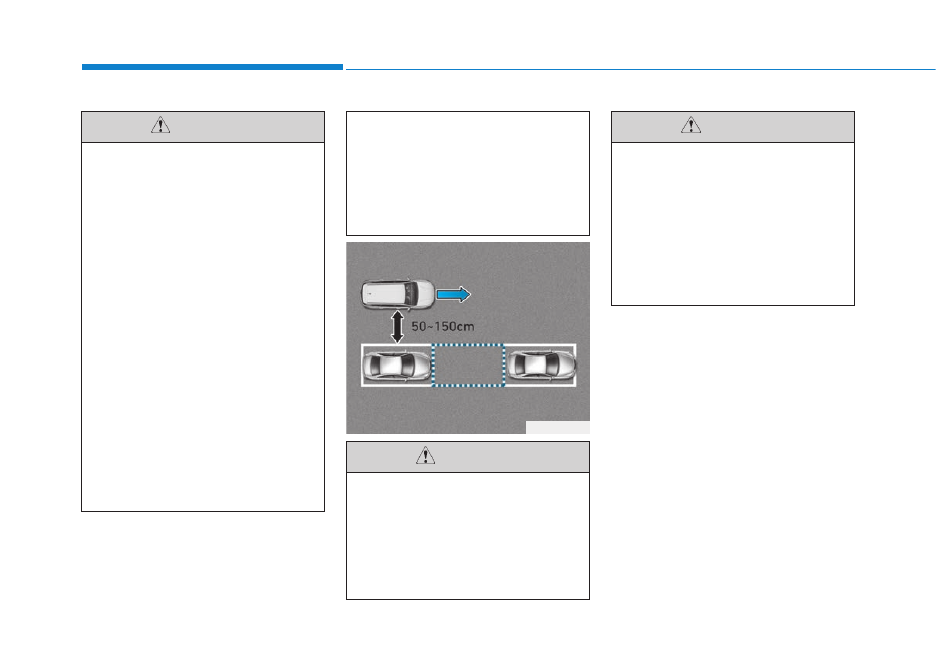

2. Searching for parking space

• Slowly drive forward maintaining

the distance of approximately 20 ~
60 in. (0.5 ~ 1.5 m) with the parked
vehicles.

• If the vehicle speed is over 12 mph

(20 km/h), a message will appear
to notify you to reduce the speed.

• To deactivate the parking function,

press the Parking Assist button,
the 'Cancel' button on the screen
or the Parking Safety button.

❈

The parking performance may be
degraded if a regular distance
from the parked vehicle is not
maintained.

• If the vehicle speed is over 18 mph

(30 km/h), the function will be can-
celled.

• The search for a parking space will

be completed only when there is
enough space for the vehicle to
move to park.

OFE048134L

3-126

Convenience features of your vehicle

When searching for a parking
space, Smart Parking may not
be able to find a parking
space if there is no vehicle
parked, a parking space is
available after driving by or a
parking space is available
before driving by.

Smart Parking may not oper-
ate normally in the following
conditions:
(1) When the sensors are

frozen

(2) When the sensors are dirty
(3) When it snows or rains

heavily

(4) When a pillar or object is

near

(5) Parked vehicle is abnor-

mally parked

CAUTION

Slowly drive forward maintaining
the distance of approximately 40
in. (100 cm) with the parked vehi-
cles. If the distance is below 20 in.
(50 cm) or over 59 in. (150 cm),
Smart Parking may not be able to
search for a parking space.

In above cases, Smart Parking
may not search the parking
space although the parking
space exists.

And Smart

Parking may search the parking
space although the parking
space is not proper to park.

CAUTION

After searching for a parking
space is completed, continue
using Smart Parking after
checking the surrounding area.
Especially, check the distance
of the outside rearview mirror
and objects while using Smart
Parking to prevent careless
accidents.

CAUTION

OTM048069

3-127

Con

v

enience f

eatur

es of y

our v

ehicle

3

3. Search complete

• If the search is complete, the above

message will appear with a ding-
dong sound.

• The search complete sound is gen-

erated every time a parking space
is searched. Icons indicating the
selectable parking type and direc-
tion are activated on the screen.

• To deactivate parking function,

press the Parking Assist button, the
‘Cancel’ button on the screen or
Parking Safety button.

• Keep driving forward to go back to

the previous stage for searching
the parking space.

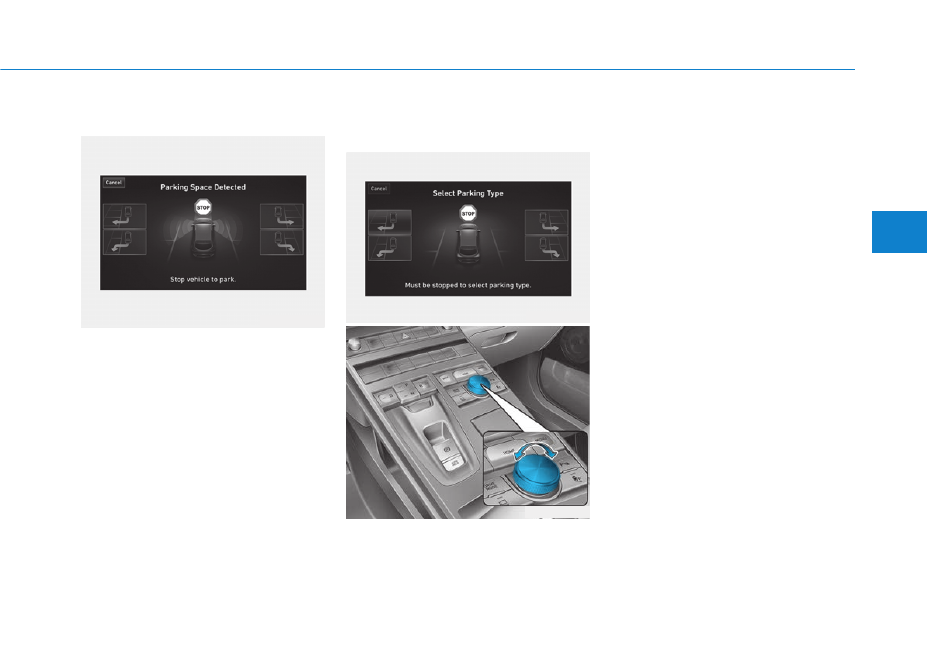

4. Selecting Parking function

type

• With the vehicle stopped, select

the icon for the desired parking
type. To select the parking type,
touch the infotainment system
screen or operate the DIS central
controller to select and press the
icon.

• To deactivate the parking function,

press the Parking Assist button or
the ‘Cancel’ on the screen or the
Parking Safety button.

• Keep driving forward to go back to

the previous stage for searching
the parking space.

❈

If the Smart Parking is deactivated

when the driver presses the
Parking Assist button by mistake
before selecting the parking type,
press the Parking Assist button
while the vehicle is stopped to
return to the stage for selecting the
parking type.

OFE048135L

OFE048136L

OFE048404L

3-128

Convenience features of your vehicle

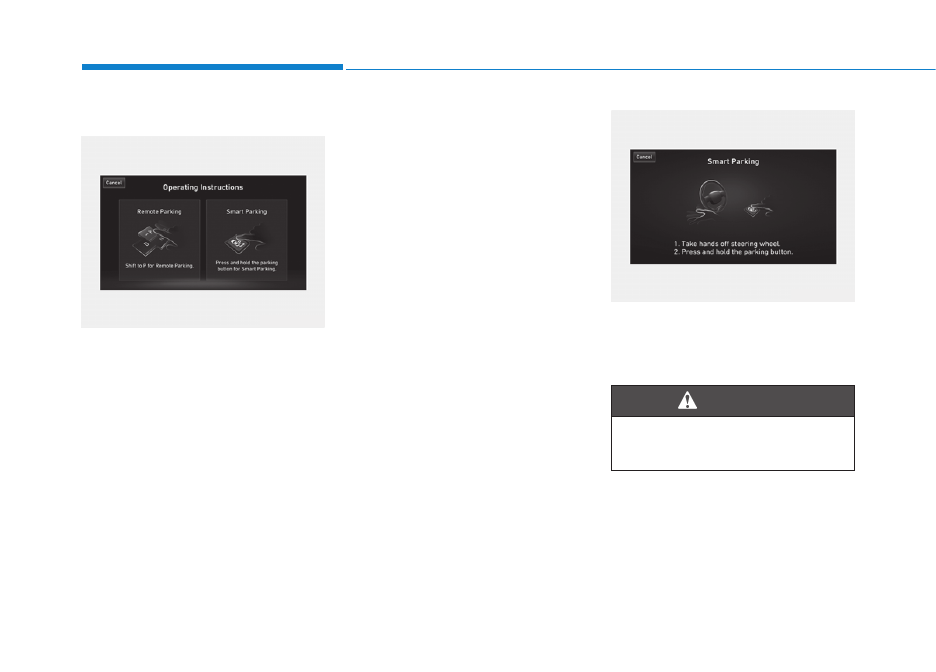

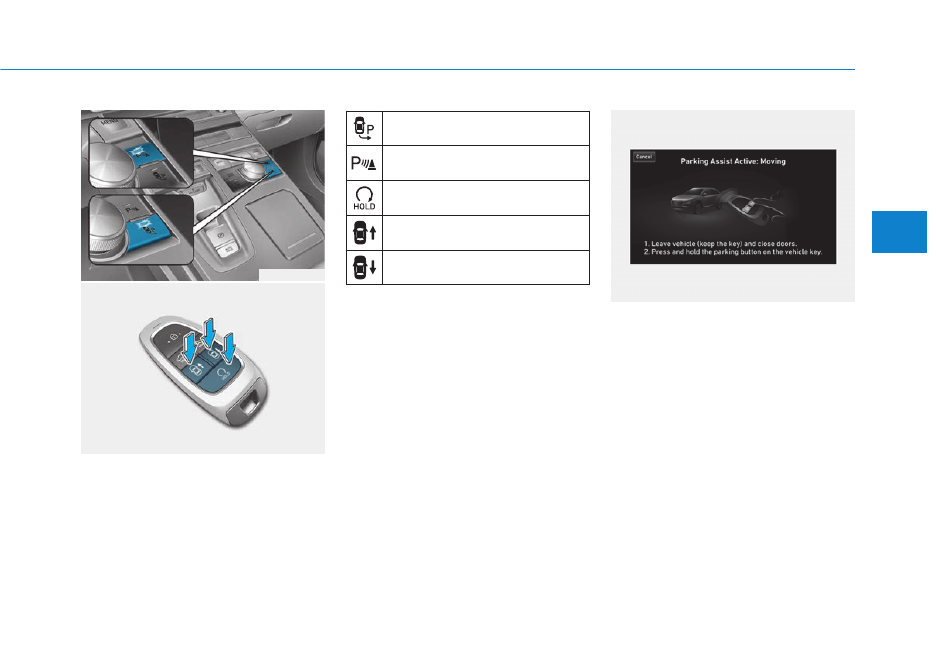

5. Operating instructions

• After selecting the parking type,

the driver can select the operation
mode between the Smart Parking
and Remote Parking. Follow the
instruction on the screen and press
and hold the Parking Assist button
to select the Smart Parking. To
select the Remote Parking put the
shift gear in P (Park) position and
follow the instruction.

• To deactivate the parking assist

function, press the ‘Cancel’ button
on the screen or the Parking Safety
button.

❈

To see the instruction for the
Remote Parking, refer to the rele-
vant part of the manual.

❈

Depress the brake pedal when
selecting the operation mode. The
function will be deactivated when
the vehicle moves.

❈

If the Remote Parking is unavail-
able, the message is shown on the
screen when selecting the parking
type.

Always be careful while parking
for other vehicles or pedestrians.

WARNING

OFE048137L

OFE048138L

3-129

Con

v

enience f

eatur

es of y

our v

ehicle

3

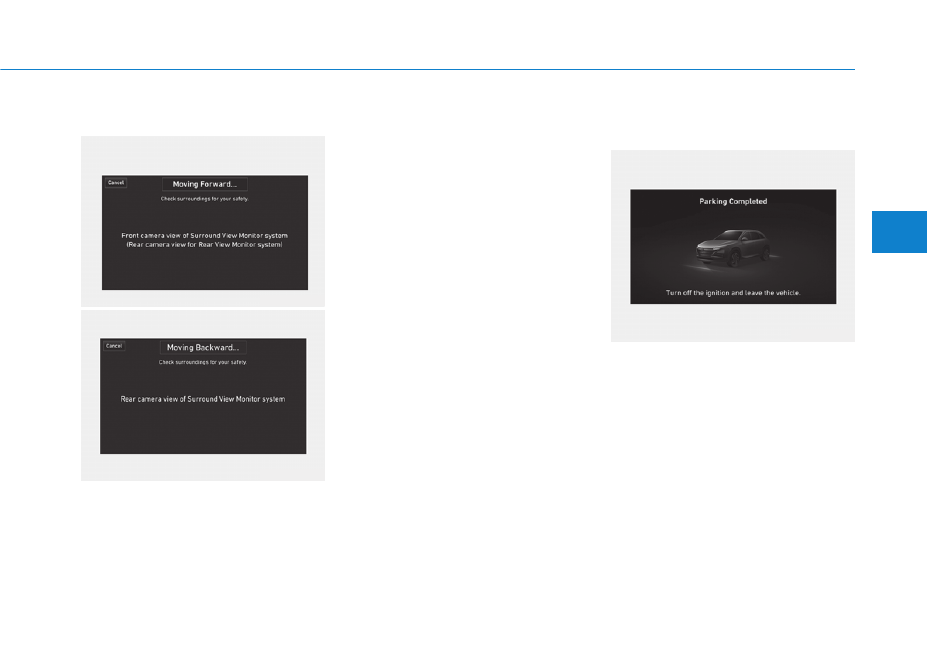

6. Smart Parking function assist

• With the vehicle stopped, press

and hold the Parking Assist button
and then the steering wheel, gear
shift and vehicle speed are con-
trolled automatically.

• The parking function will not oper-

ate if the door is open or the dri-
ver’s seatbelt is unfastened.

• If the driver releases the Parking

Assist button while the Smart
Parking is in activation, the assist
will stop temporarily.

❈

The infotainment system screen
will display the rear camera view
even when the vehicle is moving
forward. (if equipped with the Rear
View Camera)

❈

Depress the brake pedal to control

the vehicle speed. The accelerator
pedal will not activate. The function
will be cancelled when the vehicle
speed exceeds 3 mph (5 km/h).

7. Smart Parking function

complete

Complete parking your vehicle
according to the instructions on the
infotainment system screen.

If

required, manually control the steer-
ing wheel and complete parking your
vehicle.

When the parking is complete:
• The gear P (Park) and Electronic

Parking Brake (EPB) are engaged
automatically.

• Release the Parking Assist button.

OFE048139L

OFE048140L

OFE048141L

3-130

Convenience features of your vehicle

❈

Depending on the parking envi-
ronment, it may be completed by
bumping against the stopper.

To cancel the Smart Parking while
in operation

(1) Press the Parking Assist button

before selecting the operation
mode.

(2) Shift the gear to to R (Reverse)

position before the operation of
the “Smart Parking” stage.

(3) Press the Parking Safety button

or the ‘Cancel’ button on the info-
tainment system screen.

(4) Driver controls the vehicle during

the Smart Parking

When the driver shifts the gear after
depressing the brake pedal to stop
the vehicle, the gear shifts and the
Smart Parking is deactivated. In this
case, the Electronic Parking Brake
(EPB) is not engaged.

The Smart Parking function will
stop temporarily when:

(1) An obstacle at the direction the

vehicle is heading is detected.

(2) The door or liftgate is open.
(3) The driver’s seatbelt is unfas-

tened.

(4) Rear  Cross-Traffic Collision-

Avoidance Assist is activated
while reversing.

(5) The driver releases the Parking

Assist button.

(6) The drivers stops the vehicle by

depressing the brake pedal.

The vehicle stops when the Smart

Parking will stop temporarily and
the Smart Parking will resume
when the above condition is
cleared.

If the Parking Distance Warning
warning sound (distance from
object is within 30 cm: continu-
ous beep) occurs, check the sur-
rounding.

CAUTION

3-131

Con

v

enience f

eatur

es of y

our v

ehicle

3

The Smart Parking function is
cancelled while in operation when:

(1) The driver holds the steering

wheel while the steering wheel is
controlled

(2) The gear is shifted or the

Electronic Parking Brake (EPB) is
activated

(3) The hood opens
(4) The vehicle speed exceeds 3 mph

(5 km/h)

(5) The vehicle accelerates suddenly
(6) The vehicle slips back while the

vehicle speed is controlled

(7) The wheel is stuck and the vehi-

cle is unable to move

(8) The obstacles are at the front and

back of the vehicle at the same
time

(9) About 3 minutes and 50 seconds

have passed after the Smart
Parking assist is activated

(10) The door opens while the driver’s

seatbelt is unfastened

(11) The gradient of the road

exceeds the range supported by
the Smart Parking function

(12) The control of steering, shifting

gear, braking and driving assist
are impossible

(13) The function is paused for more

than one minute

(14) The driver continuously presses

and releases the Parking Assist
button over 10 times

(15) The vehicle is unable to enter

the parking space while the
Smart Parking function is in acti-
vation

(16) The Traction Control System

(TCS) is activated while the
vehicle speed is controlled

❈

When the Smart Parking function
is cancelled, gear P (Park) and
Electronic Parking Brake (EPB)
are engaged automatically.

How the remote parking func-
tion works

Remote Parking is available with the
driver outside the vehicle. Make sure
the conditions available before acti-
vation the Remote Parking function.

1. Select Remote Parking:

Press the Parking Assist button
with the shift lever placed in D
(Drive) or N (Neutral) position.
However, the Smart Exit is select-
ed if you press the Parking Assist
button when the vehicle is in N
(Neutral) position after the initial
startup.

2. Search for parking space: Slowly

move forward below 15 mph (20
km/h).

3. Search complete: Automatic search

by sensor.
However, check the actual parking
environment before parking the
vehicle.

4. Select parking type: Reverse

(left/right), parallel (left/right)

5. Operating instructions:

Smart

Parking/Remote Parking

6. Remote Parking function: Parking

assist through controlling the
steering wheel, gear shift and
vehicle speed

7. Remote Parking function is com-

pleted.

3-132

Convenience features of your vehicle

❈

You can use Smart Parking after
display on infotainment system
(You cannot use Smart Parking if
you don’t choose "Confirm" on
infotainment system booting)

6. Remote Parking function

Put the shift gear in P (Park) position.
Exit the vehicle possessing the
smart key and check whether all the
doors are closed. The Remote Smart
Parking assist will operate only if the
driver presses the smart key button
within about 13 ft. (4 m) from the
vehicle. Press and hold the moving
forward or backward button on the
smart key and then the steering
wheel, gear shift and vehicle speed
are controlled automatically.

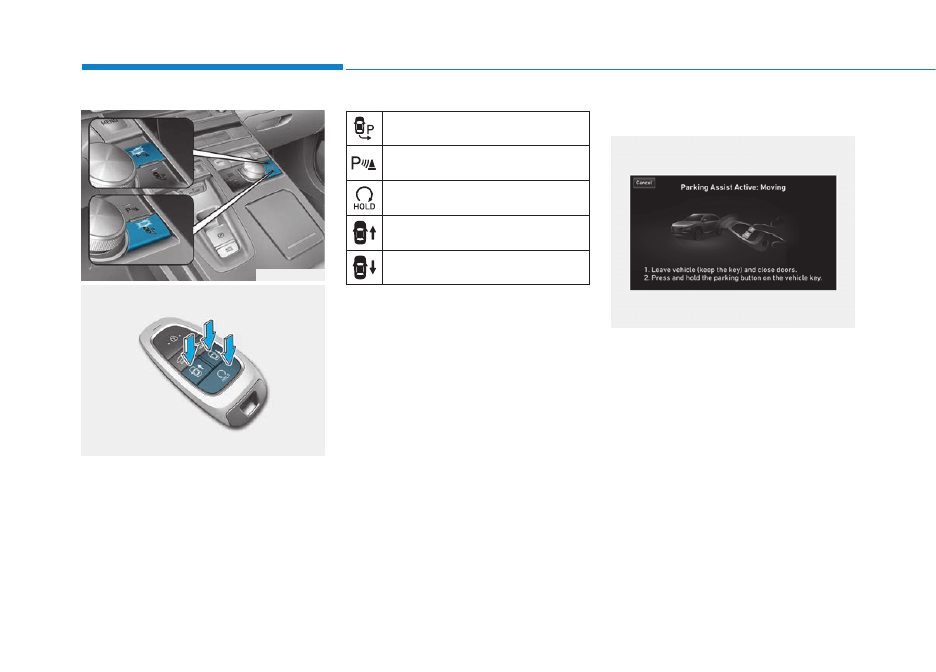

OFE043414N

OFE048422L

Parking Assist button

Parking Safety button

Remote start button

Moving forward button

Moving backward button

OFE048142L

3-133

Con

v

enience f

eatur

es of y

our v

ehicle

3

• If the driver releases the button the

vehicle will stop and the assist will
stop temporarily. Press and hold
the button again to resume the
operation.

❈

Press the moving forward or back-
ward button again after checking
the distance (within about 9 ~ 16
ft. (3 ~ 5 m)) from the vehicles if
the vehicle didn’t move after
pressing and holding the smart
key button for about 5 seconds.

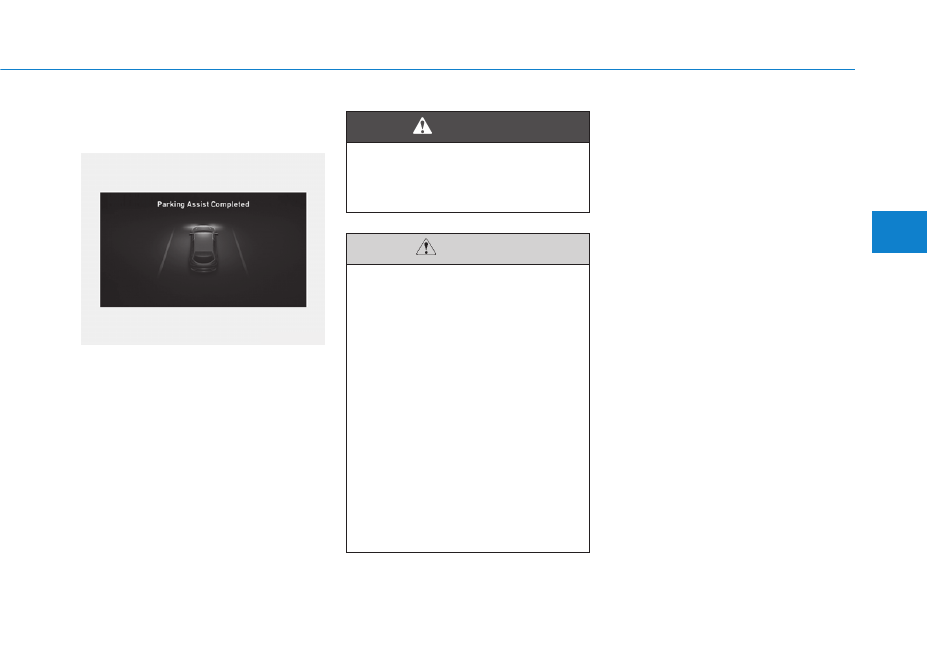

7. Remote Parking function

complete

When the parking is complete, the
message is displayed on the infotain-
ment system screen and the vehicle
is automatically turned off. Drivers
always should check whether the
door, window and sunroof are closed
and the door is locked.
• When parking is complete:
- The gear P (Park) and Electronic

Parking Brake (EPB) are engaged
automatically.

❈

Release the moving forward/back-
ward button on the smart key.

❈

The parking may complete bump-
ing on the stopper.

Always check for obstacles
around your vehicle before
driving.

The function may be can-
celled if you attach something
(cover, etc.) to the steering
wheel.

Make sure all the passengers
exit the vehicle when the
Remote Parking function is
assisted.

Make sure all the smart keys
are outside the vehicle.

The smart key detection
range from the vehicle may
vary depending on the sur-
rounding environment
(indoor/outdoor, strong elec-
tric field area).

The smart key detection
range may change as the
vehicle moves. Maintain an
appropriate distance from the
vehicle.

CAUTION

3-134

Convenience features of your vehicle

To cancel the Remote Parking while
in operation

(1) Press the Parking Assist button

at the "Searching for parking
space" stage or the "Selecting
parking type" stage.

(2) Shift the gear to R (Reverse)

position before the operation of
the Remote Smart Parking
Assist.

(3) Press the Parking Safety button

or the 'Cancel' button on the info-
tainment system screen.

(4) Driver controls the vehicle during

Remote Smart Parking Assist.

• The Remote Parking function is

immediately cancelled and the
vehicle turns off when the remote
start button on the smart key is
pressed.

• The function is cancelled but the

vehicle stays on when the driver
enters the vehicle with the smart
key and all the doors are closed or
the driver depresses the brake
pedal.

The Remote Parking function will
stop temporarily when:

(1) An obstacle at the direction the

vehicle is heading is detected.

(2) The door or liftgate is open.
(3) The moving forward/backward

button on the smart key is
released.

(4) Multiple buttons on the smart key

are pressed at the same time.

(5) The distance between the smart

key and vehicle is over 13 ft. (4
m).

(6) A button on the other smart key is

pressed.

(7) Rear Cross-Traffic Collision-

Avoidance Assist is activated
while reversing.

The vehicle stops when the

Remote Parking function will stop
temporarily and the Remote
Parking function will resume when
the above condition is cleared.

The Remote Parking function is
cancelled while in operation when:

(1) The driver holds the steering

wheel while the steering wheel is
controlled

(2) The gear is shifted or the

Electronic Parking Brake (EPB) is
activated

(3) The hood opens
(4) The vehicle speed exceeds 3 mph

(5 km/h)

(5) The vehicle accelerates suddenly
(6) The vehicle slips back while con-

trolling the vehicle speed

(7) The wheel is stuck and the vehicle

is unable to move

(8) Obstacles are at the front and

back of the vehicle at the same
time

(9) About 3 minutes and 50 seconds

have passed after the Remote
Smart Parking Assist

(10) The gradient of the road

exceeds the range supported by
Remote Smart Parking Assist

(11) The steering, shifting gear and

drive assist are impossible

3-135

Con

v

enience f

eatur

es of y

our v

ehicle

3

(12) The suspended state lasts for

over 1 minute

(13) The driver continuously presses

and releases the smart key’s
moving forward/backward but-
ton over 10 times

(14) The vehicle is unable to enter

the parking space

(15) The Traction Control System

(TCS) is activated while control-
ling the vehicle speed

(16) The smart key has failure
(17) The accelerator/brake pedal is

depressed while all the doors
are closed

(18) The brake pedal is depressed

while the driver’s door is open
and the smart key is outside the
vehicle

(19) The theft alarm system is acti-

vated

• When the Remote Parking function

is cancelled, gear P (Park) and
Electronic Parking Brake (EPB) are
engaged automatically.

After

engaged, the vehicle is automati-
cally turned off.

How the Smart Exit function
works

Smart Exit function is available with
the driver on board. Make sure the
conditions available before activation
the Smart Parking function.

1. Select Smart Exit:

Press the Parking Assist button
with the shift lever placed in P
(Park) or N (Neutral) position with-
out driving the vehicle after the ini-
tial startup.
*N (Neutral): Press the Parking
Assist button after starting the
vehicle and without driving the
vehicle. The Smart Exit function is
selected. Then the Parking mode
is automatically selected after
driving.
*P (Park): After driving the vehicle
press the Parking Assist button
and Remote Moving Forward/
Backward is automatically select-
ed.

2. Search for smart exit space:

Automatic searching by sensor at
stop
However, check the actual environ-
ment before using Smart Exit func-
tion.

3. Select Smart Exit direction: Parallel

(left/right)

4. Smart Exit assist: Steering wheel,

gear shift and vehicle speed control
(parallel exit)

5. Smart Exit function complete

After the Smart Exit function is com-
plete, make sure to check the sur-
rounding road conditions.

However, the Smart Exit function is
activated when below conditions are
met:
• The vehicle speed is kept under 3

mph (5 km/h) after the vehicle is
turned on.

• The parallel parking by the Remote

Parking function is complete.

Always be careful while exiting
for other vehicles or pedestrians.

WARNING

3-136

Convenience features of your vehicle

❈

You can use Smart Parking after
display on infotainment system
(You cannot use Smart Parking if
you don’t choose "Confirm" on
infotainment system booting)

1. Selecting Smart Exit function

• Press the Parking Assist button

and the button indicator will illumi-
nate.

• The Parking Safety button will illu-

minate and the infotainment sys-
tem screen will display the instruc-
tion screen.
A warning sound will be heard if an
obstacle is detected.

• To deactivate the function:
1. Press the Parking Assist button

again (until the “Selecting for
smart exit direction” stage).

2. Shift the gear to R (Reverse) posi-

tion before the operation of the
Smart Exit assist.

3. Press the ‘Cancel’ button on the

infotainment system screen while
the Smart Exit is in activation.

4. Press the Parking Safety button

while the Smart Exit function is in
activation.

Parking Assist button

Parking Safety button

Always check for obstacles
around your vehicle before
driving.

The function may be can-
celled if you attach something
(cover, etc.) to the steering
wheel.

CAUTION

OFE043414N

3-137

Con

v

enience f

eatur

es of y

our v

ehicle

3

2. Searching for Smart Exit

space

• With vehicle stopped, the ultrason-

ic sensors detect the distance
from/to the objects in front/back of
the vehicle to search for an exit
space.

• Also, the sensors at the vehicle

side-front checks for the obstacle
in the direction of exit.

• To deactivate the exit function,

press the Parking Assist button,
the ‘Cancel’ button on the screen or
the Parking Safety button.

❈

The function searches for the exit
space again when the function
enters the Smart Exit function by
pressing the Parking Assist button
after the deactivation.

❈

The function still searches for the
exit space when the gear is shifted
to the other positions than R
(Reverse). However, the function
will be deactivated when the vehi-
cle moves.

OFE048143L

When checking surroundings,
if the front or rear vehicle (or
object) is too near, the func-
tion may not work properly.

The function may not operate
normally in the following con-
ditions:
(1) When the sensors are

frozen

(2) When the sensors are dirty
(3) When it snows or rains

heavily

(4) When a pillar or object is

near

(5) Parked vehicle is abnor-

mally parked

In above cases, the function
may not search the exit space
although the exit space
exists. And the function may
search the exit space
although the exit space is not
proper to Smart Exit function.

When exiting the parking
space if an obstacle is detect-
ed that may cause an acci-
dent, the function may cancel.
However, objects in the blind
spot may not be recognized.
Be sure to check it before
using function.

If the space is too small to
exit, the function may cancel.

CAUTION

3-138

Convenience features of your vehicle

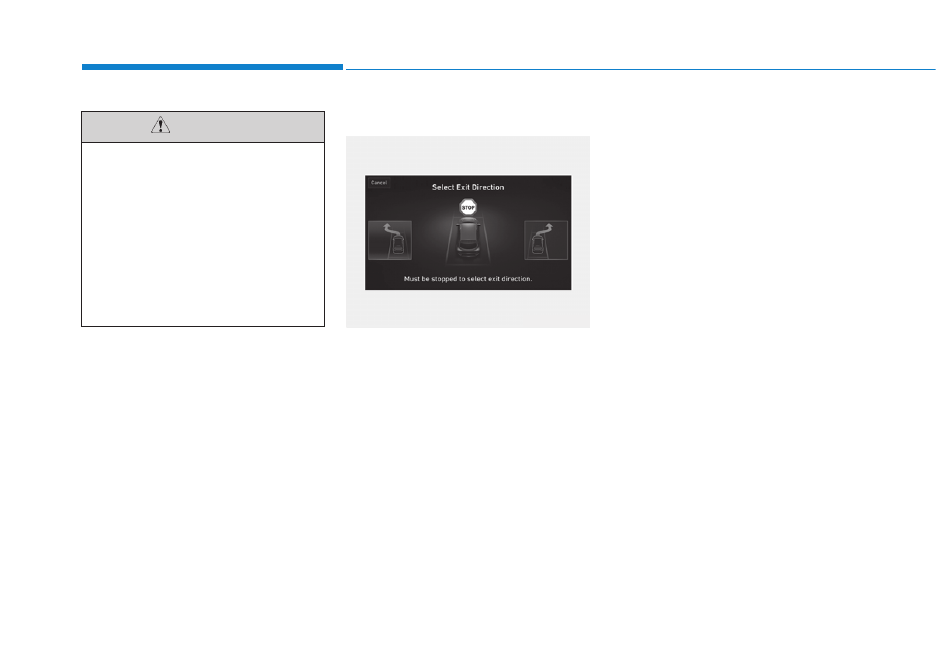

3. Selecting Smart Exit direction

• With the vehicle stopped, select

the icon of the direction you wish to
exit. To select the exit direction,
touch the infotainment system
screen or operate the DIS central
controller to select and press the
icon.

• To deactivate the exit function,

press the Parking Assist button, the
‘Cancel’ button on the screen or the
Parking Safety button.

❈

The function searches for the exit
space again when the function
enters the Smart Exit function by
pressing the Parking Assist button
after the deactivation.

❈

The function still searches for the
exit space when the gear is shifted
to the other positions than R
(Reverse). However, the function
will be deactivated when the vehi-
cle moves.

OFE048144L

If searching surroundings is
completed, continue using the
function after checking the
surrounding area.

The Smart Exit function may
be activated unintentionally,
when the shift lever is in P
(Park) or N (Neutral) and the
Parking Assist button is
pressed.

CAUTION

3-139

Con

v

enience f

eatur

es of y

our v

ehicle

3

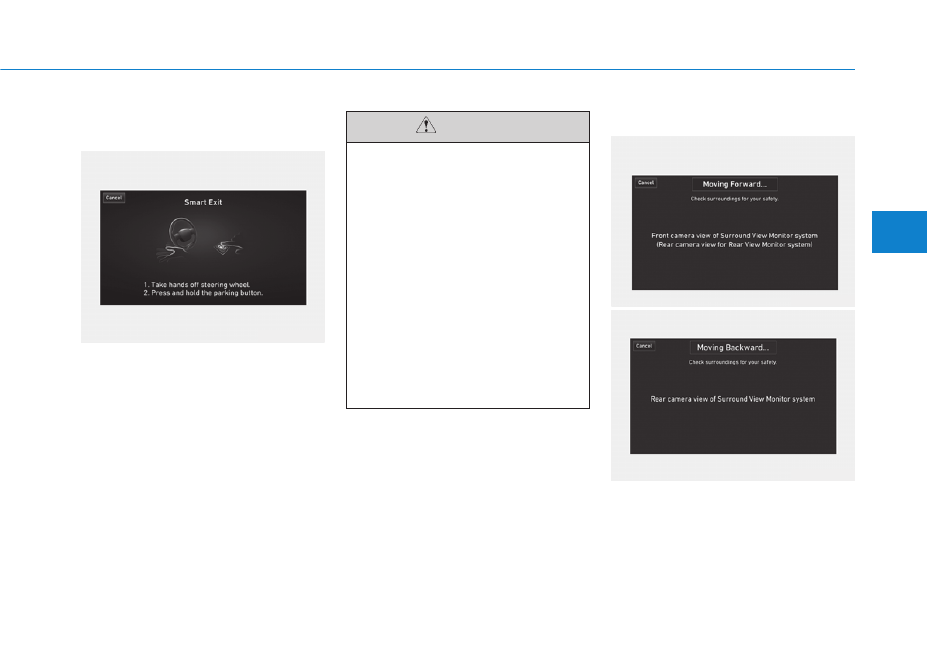

4. Smart Exit function instruc-

tions

• Follow the instructions on the

screen and press and hold the
Parking Assist button to select the
Smart Exit.

• To deactivate the Smart Exit func-

tion, press the ‘Cancel’ button on
the screen or the Parking Safety
button.

❈

The function still searches for the
exit space when the gear is shifted
to the other positions than R
(Reverse). However, the function
will be deactivated when the vehi-
cle moves.

5. Smart Exit function

• With the vehicle stopped, press

and hold the Parking Assist button
and then the steering wheel, gear
shift and vehicle speed are con-
trolled automatically.

OFE048145L

Always check the surrounding
before driving your vehicle if
the Parking Distance Warning
sound (distance from object
is within 30 cm: continuous
beep) is heard for the object is
close to your vehicle.

The function may be can-
celled if you attach something
(cover, etc.) to the steering
wheel.

The  function can be can-
celled for safety reasons if the
vehicle is parked at a small
space near a wall.

CAUTION

OFE048139L

OFE048140L

3-140

Convenience features of your vehicle

• The exit function will not operate if

the door is open or the driver’s
seatbelt is unfastened.

• If the driver releases the Parking

Assist button while the Smart Exit
function is in activation, the assist
will stop temporarily.

❈

The infotainment system screen
will display the rear camera view
when the vehicle is moving for-
ward (if equipped with the Rear
View Camera).

❈

Depress the brake pedal to control
the vehicle speed. The accelerator
pedal will not activate.

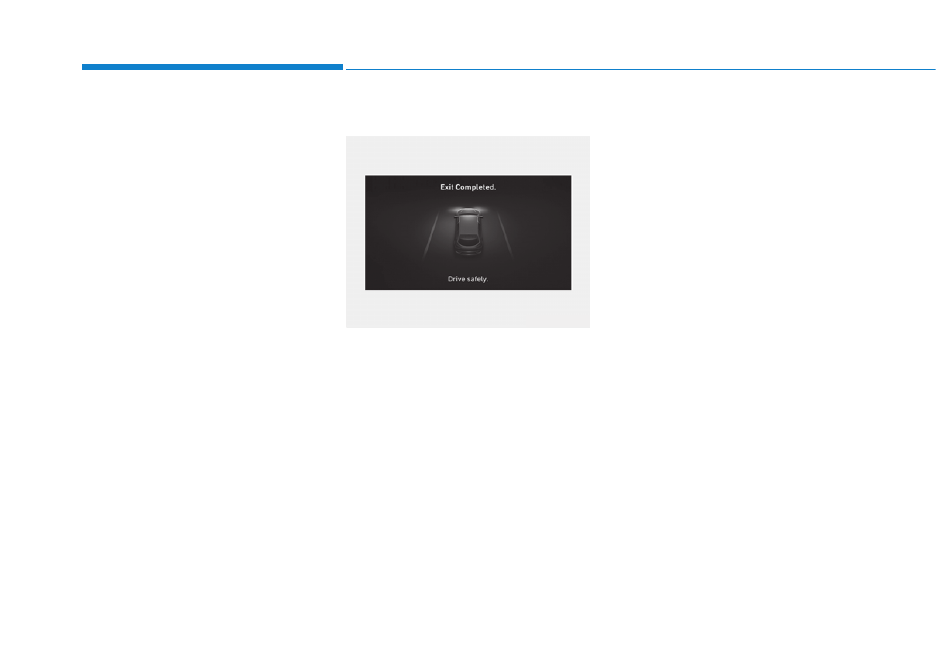

6. Smart Exit function complete

When the exit is complete, the mes-
sage is displayed on the infotainment
system screen. Turn the steering
wheel to the direction of exit as much
as possible and exit manually after
checking the road condition.

• When exit is complete:

- The vehicle stays in stopped con-

dition for 4 seconds and waits for
the driver’ to operate manually
(depress brake/accelerator pedal.)

- If the driver does not operate

manually after 4 seconds, the
function stays in the stopped con-
dition by applying the safety
measure (engage gear P (Park)
and Electronic Parking Brake
(EPB)).

❈

Release the Parking Assist button
after the exit is complete.

❈

If the Smart Exit function has been
completed while depressing the
accelerator pedal, take your foot
off the pedal and depress again
for manual operation.

❈

If the Smart Exit function has been
completed while depressing the
brake pedal, the gear D (Drive) is
maintained.

OFE048146L

3-141

Con

v

enience f

eatur

es of y

our v

ehicle

3

To cancel the Smart Exit function
while in operation

(1) Press the Parking Assist button

at the "Searching for smart exit
space" stage or the "Selecting for
smart exit direction" stage.

(2) Shift the gear to R (Reverse)

position before the operation of
the Smart Exit function.

(3) Press the Parking Safety button

or the 'Cancel' button on the info-
tainment system screen.

(4) Driver controls the vehicle during

the Smart Exit

The function is deactivated when the
driver stops the vehicle by depress-
ing the brake pedal and shifts the
gear. In this case, the Electronic
Parking Brake (EPB) is not engaged.

The Smart Exit function will stop
temporarily when:

(1) An obstacle at the direction the

vehicle is heading is detected.

(2) The door or liftgate is open.
(3) The driver’s seatbelt is unfas-

tened.

(4) Rear Cross-Traffic Collision-

Avoidance Assist is activated
while reversing.

(5) The driver releases the Parking

Assist button.

(6) The driver stops the vehicle by

depressing the brake pedal.

The vehicle stops when the Smart

Exit function will stop temporarily
and the Smart Exit function will
resume when the above condition
is cleared.

The Smart Exit function is can-
celled while in operation when:

(1) The driver holds the steering

wheel while the steering wheel is
controlled

(2)

The gear is shifted or the

Electronic Parking Brake (EPB) is
activated

(3) The hood opens
(4) The vehicle speed exceeds 3

mph (5 km/h)

(5) The vehicle accelerates suddenly
(6) The vehicle slips back while con-

trolling the vehicle speed

(7) The wheel is stuck and the vehi-

cle is unable to move

(8) Obstacles are at the front and

back of the vehicle at the same
time

(9) About 3 minutes and 50 seconds

have passed after the Smart Exit
function

(10) The door opens while the dri-

ver’s seatbelt is unfastened

(11) The gradient of the road

exceeds the range supported by
Smart Exit function

3-142

Convenience features of your vehicle

(12) The steering, shifting gear and

drive assist are impossible

(13) The suspended state lasts for

over 1 minute

(14) The driver continuously presses

and releases the Parking Assist
button over 10 times

(15) The Traction Control System

(TCS) is activated while control-
ling the vehicle speed

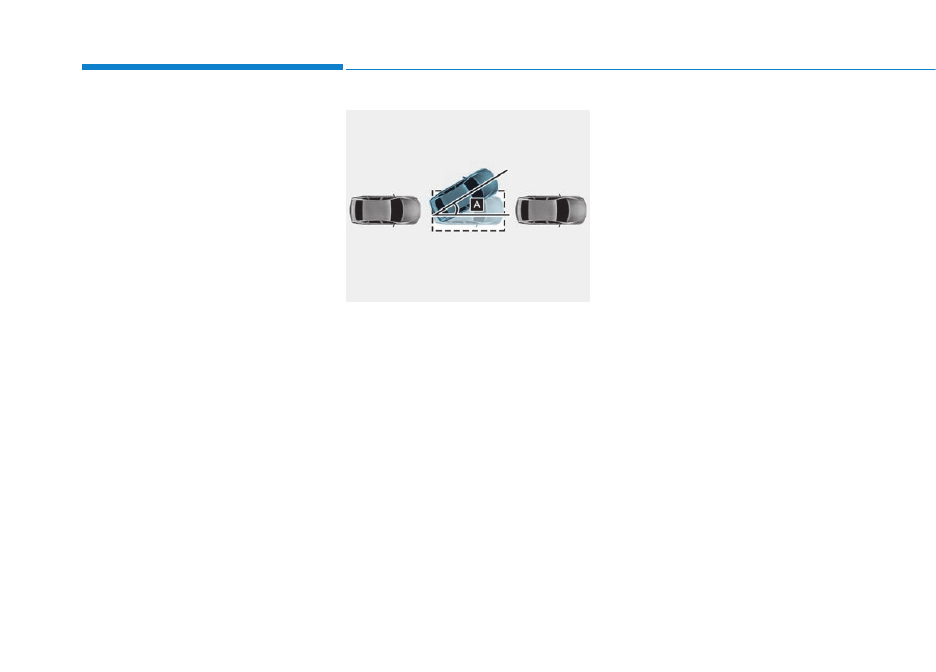

(16) The vehicle’s heading degree

(A) exceeds a certain amount of
degree compare to the degree
at the point when the Smart Exit
function started

When the Smart Exit function is

cancelled, gear P (Park) and
Electronic Parking Brake (EPB)
are engaged automatically.

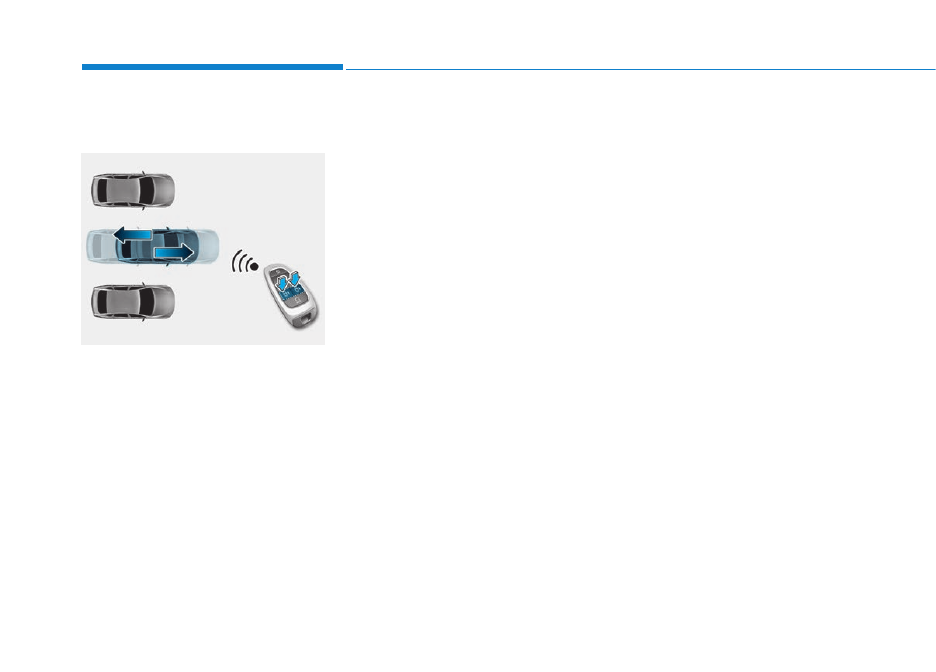

How the Remote Moving
Forward/Backward function
works

Remote Moving Forward/Backward
function is available with the driver out-
side the vehicle. Make sure the condi-
tions available before activation the
Remote Moving Forward/Backward
function.

1. Remote Moving Forward/Backward

ready:

(1) With the vehicle off: Remotely

turn on the vehicle

(2) With the vehicle on: Put the gear

shift in P (Park) position and
press the Parking Assist button.
Then exit the vehicle possessing
the smart key.

2. Remote Moving Forward/Backward

assist: Press and hold the moving
forward/backward button of the
smart key to provide the Remote
Moving Forward/Backward function
through steering wheel, gear shift
and vehicle speed control.

3. Remote Moving Forward/Backward

complete: When the vehicle reach-
es the desired position, release
the smart key button. Then com-
plete the Remote Moving Forward/
Backward function by entering the
vehicle possessing the smart key
or by pressing the remote start
button of the smart key.

OFE048405

3-143

Con

v

enience f

eatur

es of y

our v

ehicle

3

1. Remote moving ready

You can activate the Remove Moving
Forward/Backward function in 2 ways.
(1) With the vehicle turned off, press

the door lock button of the smart
key and then within 4 seconds
press the remote start button for
over 2 seconds.

❈

For the details of remote start-
up, refer to 'Remote start' in
chapter 3.

(2) Park the vehicle in front of the

space where you desire to use
the Remote Moving Forward/
Backward. Press the Parking
Assist button and select the
Remote Moving
Forward/Backward from infotain-
ment system screen. Exit the
vehicle possessing the smart key
and check whether all the doors
are closed.

❈

When the Remote Moving Forward/
Backward is ready by the above
no.(2) method, you can use Smart
Parking function when the infotain-
ment system operates normally.

OFE043414N

OFE048422L

Parking Assist button

Parking Safety button

Remote start button

Moving forward button

Moving backward button

OFE048142L

3-144

Convenience features of your vehicle

2. Remote Moving Forward/

Backward function

• With the vehicle stopped, press

and hold one of the moving for-
ward/backward button and then the
steering wheel, gear shift and vehi-
cle speed are controlled automati-
cally.

• If the driver releases the moving for-

ward/backward button while the
Remote Moving  Forward/Backward
function is in activation, the control
will stop temporarily. Press the but-
ton again to resume the control.

• For your safety, the assist is acti-

vated only when the smart key is
within about 9 ~ 16 ft. (3 ~ 5 m) m
from the vehicle.

• The vehicle can travel up to 22 ft.

(7 m) per move. Press the moving
forward/ backward button to make
additional movement.

Press the moving forward/back-
ward button again after checking
the distance from the vehicles if
the vehicle didn't move after
pressing and holding the smart
key button for about 5 seconds.

Under cold weather, take enough
time before pressing the moving
forward/backward button of the
smart key after turning on the
vehicle remotely. It may take more
time until the vehicle moves.

OFE048409

3-145

Con

v

enience f

eatur

es of y

our v

ehicle

3

3. Remote Moving Forward/

Backward function complete

The Remote Moving Forward/
Backward function is complete after
the driver enters the vehicle pos-
sessing the vehicle, when the vehicle
reaches the desired position. In this
case, the vehicle stays on.

When Remote Moving Forward/
Backward function is complete,
the gear P (Park) and Electronic
Parking Brake (EPB) are engaged
automatically.

To cancel the Remote Moving
Forward/Backward function while
in operation

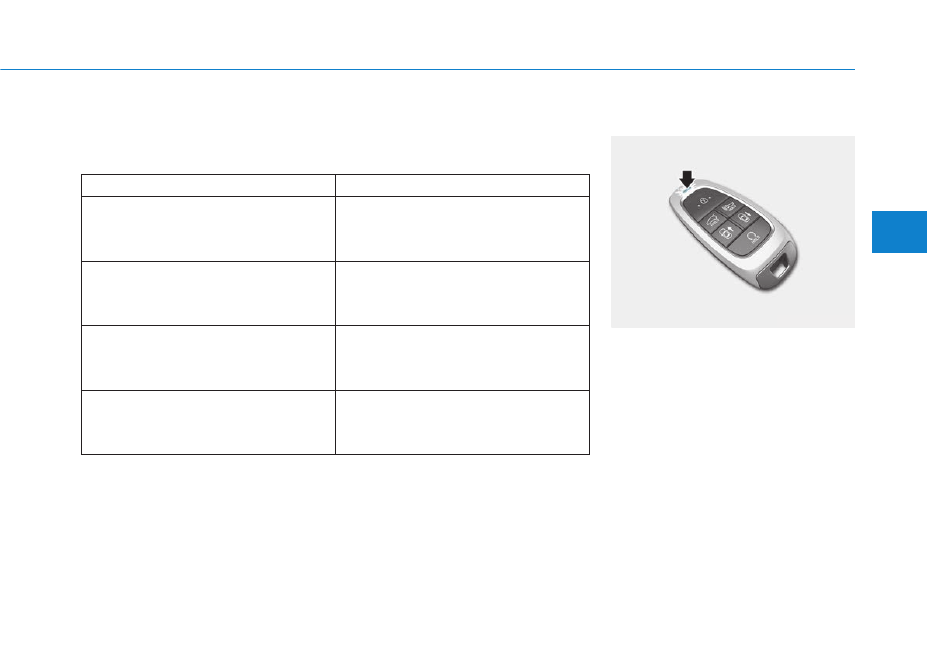

(1) Press the remote start button on

the smart key.

(2) Shift the gear to to R (Reverse)

position while the Remote
Moving Forward/Backward func-
tion is instructed.

(3) Press the Parking Safety button

or the 'Cancel' button on the info-
tainment system screen while the
Remote Moving Forward/
Backward function is instructed.

(4) Driver controls the vehicle during

the Remote Moving
Forward/Backward

• The Remote Moving Forward/

Backward function is immediately
cancelled and the vehicle turns off
when the remote start button on
the smart key is pressed

• The function is cancelled but the

vehicle stays on when the driver
enters the vehicle with the smart
key and all the doors are closed or
the driver depresses the brake
pedal.

OFE048410L

Always be careful of unexpected
approach of the other vehicles or
pedestrians.

WARNING

Always check for obstacles
around your vehicle before
driving.

The function may be can-
celled if you attach something
(cover, etc.) to the steering
wheel.

Make sure all the passengers
exit the vehicle when the
Remote Moving Forward/
Backward is in activation.

Make sure all the smart keys
are outside  the vehicle when
the Remote Moving Forward/
Backward function is in acti-
vation.

CAUTION

3-146

Convenience features of your vehicle

The Remote Moving Forward/
Backward function will stop tem-
porarily when:

(1) An obstacle at the direction the

vehicle is heading is detected.

(2) The door or liftgate is open.
(3) The moving forward/backward

button on the smart key is
released.

(4) Multiple buttons on the smart key

are pressed at the same time.

(5) The distance between the smart

key and vehicle is over 4 m.

(6) A button on the other smart key is

pressed.

(7) Rear Cross-Traffic Collision-

Avoidance Assist is activated
while reversing.

(8) The vehicle moves 22 ft. (7 m)

(maximum travel distance per
move) with the Remote Moving
Forward/Backward while the smart
key is pressed.

The vehicle stops when the Remote

Smart Parking function will stop
temporarily and the Remote Smart
Parking function will resume when
the above condition is cleared.

The Remote Moving Forward/
Backward function is cancelled
while in operation when:

(1) The driver holds the steering

wheel while the steering wheel is
controlled

(2) The gear is shifted or the

Electronic Parking Brake (EPB) is
activated

(3) The hood opens
(4) The  vehicle speed exceeds 3

mph (5 km/h)

(5) The vehicle accelerates suddenly
(6) The vehicle slips back while con-

trolling the vehicle speed

(7) The wheel is stuck and the vehi-

cle is unable to move

(8) Obstacles are at the front and

back of the vehicle at the same
time

(9) About 3 minutes and 50 seconds

have passed after the Remote
Moving Forward/Backward function

(10) The gradient of the road exceeds

the range supported by Remote
Moving Forward/Backward func-
tion

(11) The steering, shifting gear and

drive assist are impossible

(12) The suspended state lasts for

over 1 minute

(13)  The driver continuously presses

and releases the smart key's
moving forward/backward but-
ton over 10 times

(14) The Traction Control System

(TCS) is activated while control-
ling the vehicle speed

(15) The smart key has failure
(16) The accelerator/brake pedal is

depressed while all the doors
are closed

(17) The brake pedal is depressed

while the driver's door is open
and the smart key is outside the
vehicle

(18) The vehicle travels more than

14 m after the Remote Moving
Forward/Backward function is
activated

(19) The smart key's remote start

button is pressed

3-147

Con

v

enience f

eatur

es of y

our v

ehicle

3

(20) The theft alarm system is acti-

vated

When Remote Moving Forward/
Backward function is complete,
the gear P (Park) and Electronic
Parking Brake (EPB) are engaged
automatically and the vehicle
turns off.

Additional instructions
(messages)

When Remote Smart Parking Assist
is in operation, the function may be
cancelled regardless of the instruc-
tion order.
The messages will appear according
to the circumstances. Follow the
instructions provided while driving
your vehicle with Remote Smart
Parking Assist in activation.

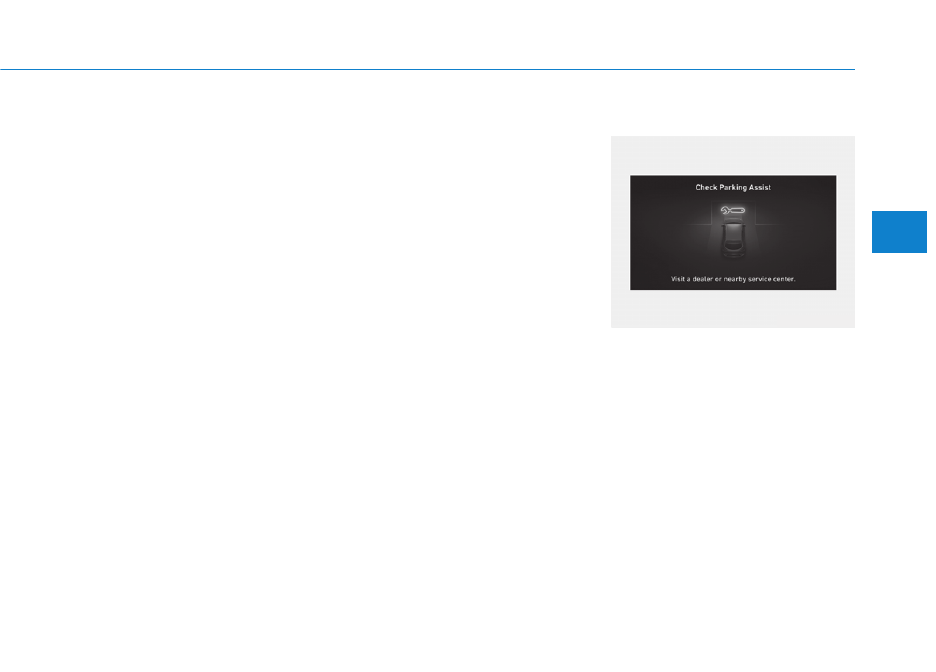

Check Parking Assist

If there is a problem with Remote
Smart Parking Assist, the above
message will appear when the sys-
tem is turned on.
Also, the indicator on the Parking
Assist button will blink and the warn-
ing sound will beep three times.
(The Parking Distance Warning can
be operable depending on the failure
type.)
If you notice any problem, we recom-
mend that without using Remote
Smart Parking Assistance, you have
the vehicle checked by an authorized
HYUNDAI dealer.

OFE048411L

3-148

Convenience features of your vehicle

Turn signal showing vehicle state while the function in activation

The turn signal indicates the vehicle state as follows when the Smart Parking,
Remote Parking or Smart Exit is in activation:

Parking Assist Conditions Not
Met

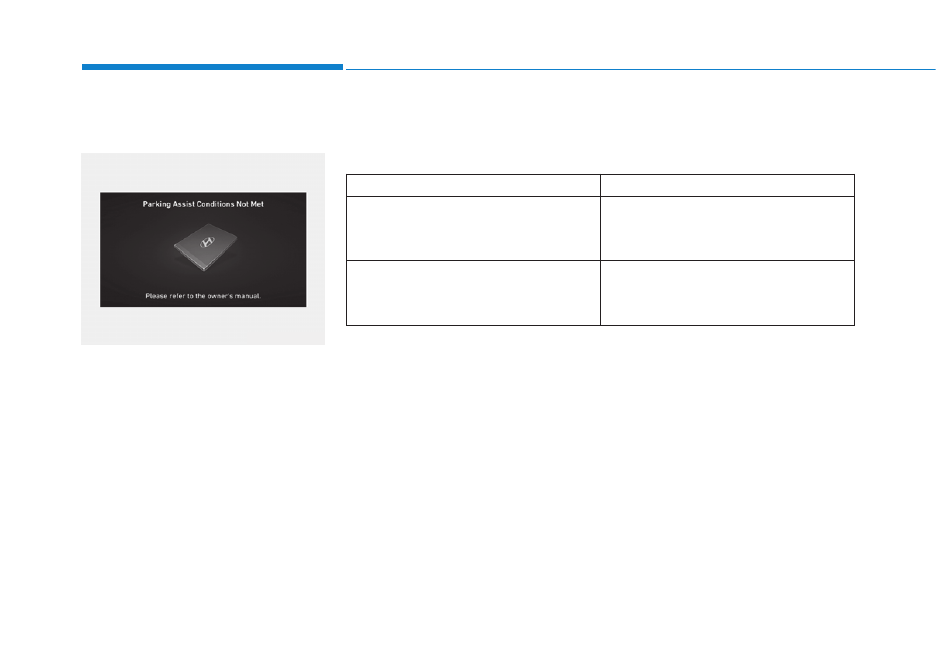

When Remote Smart Parking Assist
is not getting ready for activation, the
above message will appear when the
Parking Assist button is pressed.
Press the Parking Assist button
again after a while and check the
normal operation of the function.
Smart key battery replacement is
required when the screen is output.

OFE048412L

Vehicle state

Turn signal

Smart Parking/Remote Parking function
in activation

The turn signal of the parking direction
blinks until the first reversing is complete
or deactivated while parking

Smart Exit function in activation

The turn signal of the exiting direction
blinks until the exit is complete or deacti-
vated

3-149

Con

v

enience f

eatur

es of y

our v

ehicle

3

Smart key showing vehicle state while the function in activation

The LED on the smart key indicates the vehicle state as follows when the
Remote Parking or Remote Moving Forward/Backward is in activation:

Vehicle state

Smart key LED

Remote Parking function in activation

Green LED blinks continuously

Remote Parking function temporarily
stopped/in stand by

Red LED blinks continuously

Remote Parking deactivated

Red LED illuminates for about 4 seconds
and then extinguishes

Remote Parking complete

Green LED illuminates for about 4 sec-
onds and then extinguishes

OFE048423L

3-150

Convenience features of your vehicle

Link with other systems

Activation of other systems may be
restricted according to the circum-
stances while Remote Smart Parking
Assist is in activation. The systems
linked to Remote Smart Parking
Assist are as follows:
1. Smart Cruise Control system
(1) Smart Cruise Control can be

operated at the same time with
Remote Smart Parking Assist
until the "Searching for parking
space" stage.

(2) Smart Cruise Control is deactivat-

ed when  Remote Smart Parking
Assist enters the "Remote
Parking" stage.

(3) After Remote Smart Parking

Assist is complete or deactivated,
Smart Cruise Control maintains
the deactivation status.

2. Auto Hold
(1) The activated Auto Hold is

switched to deactivation status
when Remote Smart Parking
Assist is activated.

(2) The Auto Hold button will not

respond while Remote Smart
Parking Assist is in activation.

(3) After Remote Smart Parking

Assist is complete or deactivated,
the Auto Hold will return to the
state before Remote Smart
Parking Assist was activated.

3. Electronic Stability Control (ESC)
(1) Electronic Stability Control (ESC)

system switches from OFF to
activation status (ESC OFF but-
ton turns off) when Remote
Smart Parking Assist is activated.

(2) The ESC OFF button will not

respond while Remote Smart
Parking Assist is in activation.

(3) The ABS/TCS/ESC system acti-

vates while Remote Smart
Parking Assist is in activation.

(4)

After Remote Smart Parking
Assist is complete or deactivated,
ESC maintains the ON status.

3-151

Con

v

enience f

eatur

es of y

our v

ehicle

3

A

AU

UT

TO

OM

MA

AT

TIIC

C  C

CL

LIIM

MA

AT

TE

E  C

CO

ON

NT

TR

RO

OL

L  S

SY

YS

ST

TE

EM

M

OFE048300/OFE048308

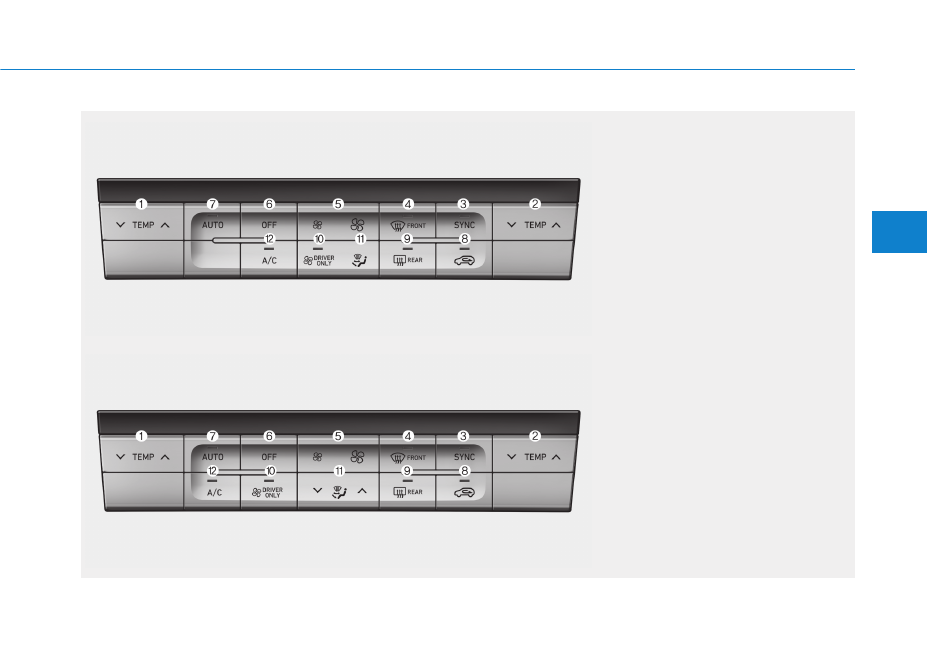

1. Driver’s temperature control knob

2. Passenger’s temperature control knob

3. SYNC button

4. Front windshield defroster button

5. Fan speed control button

6. OFF button

7. AUTO (automatic control) button

8. Air intake control button

9. Rear window defroster button

10. Driver only button

11. Mode selection button

12. Air conditioning button

Type A

Type B

3-152

Convenience features of your vehicle

Automatic Temperature
Control Mode

The Automatic Climate Control
System is controlled by setting the
desired temperature.
1. Press the AUTO button (7).

The modes, fan speeds, air intake
and air-conditioning will be con-
trolled automatically by the tem-
perature setting you select.

2. Press the temperature control but-

ton (1,2) to the desired tempera-
ture. If the temperature is set to
the lowest setting (Lo), the air con-
ditioning system will operate con-
tinuously. After the interior has
cooled sufficiently, adjust the but-
ton to a proper temperature set
point whenever possible.

To turn the automatic operation off,
select any button of the following:
- Mode selection button
- Front windshield defroster button

(Press the button one more time to
deselect the front windshield
defroster function. The 'AUTO' sign
will illuminate on the information
display once again.)

- Fan speed control button
The selected function will be con-
trolled manually while other functions
operate automatically.
For your convenience and to improve
the efficiency of the climate control,
use the AUTO button and set the
temperature to 72°F (22°C).

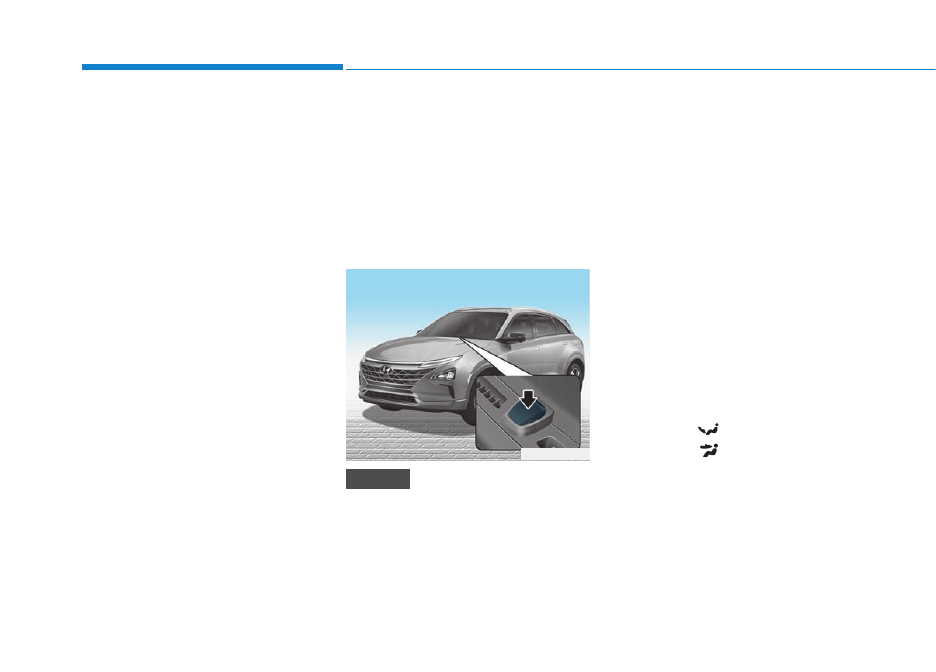

Never place anything near the
ambient light/solar sensor to
ensure better control of the heat-
ing and cooling system.

Manual Temperature  Control
Mode

The heating and cooling system can
be controlled manually by pushing
buttons other than the AUTO button.
In this case, the system works
sequentially according to the order of
buttons selected.
When pressing any button except the
AUTO button while using automatic
operation, the functions not selected
will be controlled automatically.
1. Start the vehicle.
2. Set the mode to the desired posi-

tion.

To improve the effectiveness of

heating and cooling, select the
mode according to the following:
- Heating:
- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to Fresh

mode or Recirculation mode posi-
tion.

5. Set the fan speed control to the

desired speed.

NOTICE

OFE048068N

3-153

Con

v

enience f

eatur

es of y

our v

ehicle

3

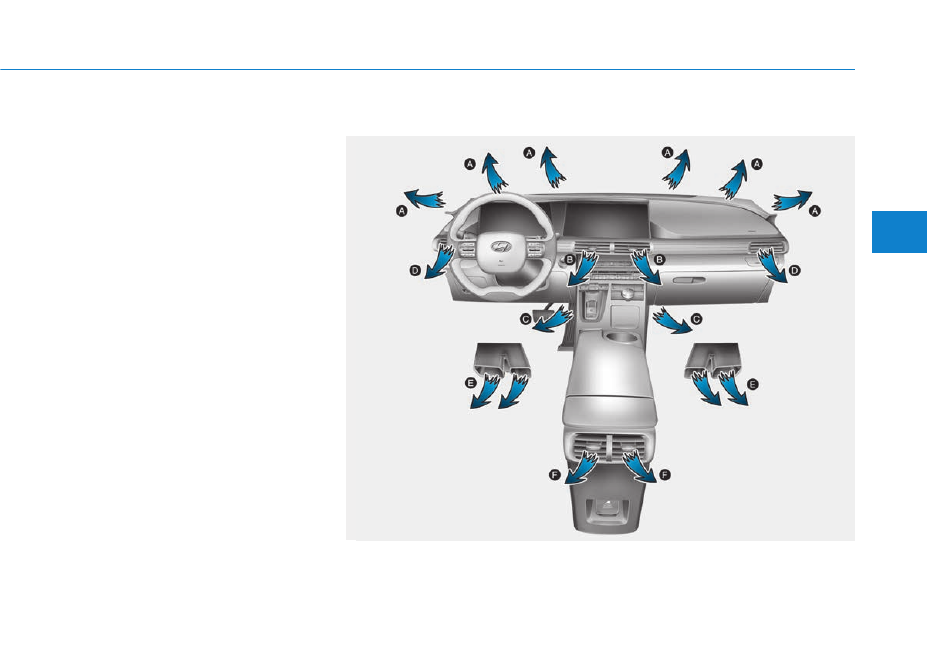

OFE048302

The mode selection button controls the direction of the air flow through the
ventilation system.

6. If air conditioning is desired, turn

the air conditioning system on.

7. Press the AUTO button to convert to

full automatic control of the system.

When starting the vehicle in cold
weather a more efficient way to heat
the passenger compartment is to do
the following.
- Turn off or lower the blower, right

after starting the engine.
• The fuel cell temperature will be

low and the heater air is still cold.

- After a few minutes to allow the

system to  warm up, set the fan to
the desired level.

Mode selection (11)

3-154

Convenience features of your vehicle

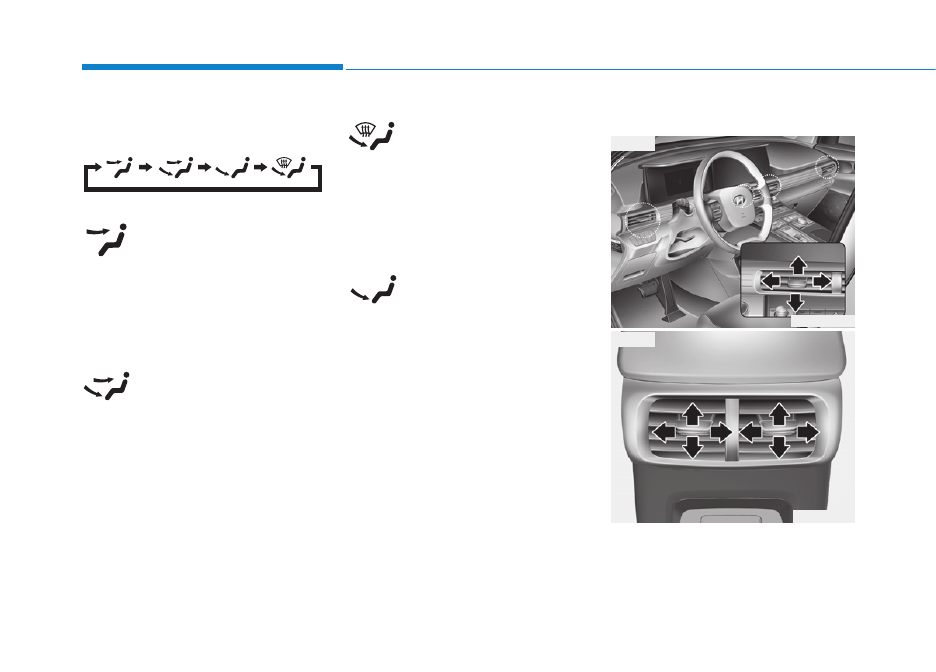

The air flow outlet direction is cycled
as follows:

Face-Level (B, D, F)

Air flow is directed toward the upper
body and face. Additionally, each
outlet can be controlled to direct the
air discharged from the outlet.

Bi-Level (B, C, D, E, F)

Air flow is directed towards the face
and the floor.

Floor & Defrost
(A, C, D, E, F)

Most of the air flow is directed to the
floor and the windshield with a small
amount directed to the side window
defrosters.

Floor-Level (A, C, D, E, F)

Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windshield and
side window defrosters.

Defrost-Level (4) (A, D)

Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.

Instrument panel vents

The instrument panel vent air flow
can be directed up/down or left/right
using the vent adjustment lever.

OFE048303

Front

OFE043304

Rear















Content      ..     7      8      9      10     ..
