OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time of
publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
Introduction
CAUTION: MODIFICATIONS TO YOUR
HYUNDAI
Your HYUNDAI should not be modified in any way. Such modifications may adversely
affect the performance, safety or durability of your HYUNDAI and may, in addition,
violate conditions of the limited warranties covering the vehicle. Certain modifications
may also be in violation of regulations established by the Department of Transportation
and other government agencies in your country.
TWO-WAY RADIO INSTALLATION
Your vehicle is equipped with a Tire Pressure Monitoring System, Passenger Occupant
Classification System and other CAN bus systems. It is possible for an improperly
installed/adjusted high powered two-way radio to adversely affect electronic systems.
For this reason, we recommend that you carefully follow the radio manufacturer’s
instructions if you choose to install one of these devices.
F2
01
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.
These titles indicate the following:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle damage.
F3
Introduction
HYUNDAI VEHICLE OWNER PRIVACY POLICY
Your Hyundai vehicle may be equipped with technologies and services that use
information collected, generated, recorded or stored by the vehicle. Hyundai has created
a Vehicle Owner Privacy Policy to explain how these technologies and services collect
use and share this information.
You may read our Vehicle Owner Privacy Policy on the Hyundaiusa.com website at:
If you would like to receive a hard copy of our Vehicle Owner Privacy Policy, please
contact the Hyundai Customer Care Center at:
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com
Hyundai’s Customer Care representatives are available Monday through Friday, between
the hours of 6:00 AM and 5:00 PM PST and Saturday between 6:30 AM and 3:00 PM PST
(English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
F4
Table of contents
Introduction
1
Vehicle Information, Consumer Information
2
and Reporting Safety Defects
Seats & Safety System
3
Instrument Cluster
4
Convenience Features
5
Driving Your Vehicle
6
Driver Assistance System
7
Emergency Situations
8
Maintenance
9
Index
I
1. Introduction
1
Introduction
1-2
HYUNDAI Motor America
1-3
Guide to HYUNDAI Genuine Parts
1-4
How to use this manual
1-6
Safety messages
1-7
Fuel Requirements
1-8
Vehicle Modifications
1-10
Vehicle Break-in Process
1-11
Vehicle Data Collection And Event Data Recorders
1-12
Introduction
Introduction
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you
to the growing number of discerning people who drive HYUNDAI. We are very proud of
the advanced engineering and high-quality construction of each HYUNDAI we build.
Your Owner's Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner's Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle's controls and safety features so you can safely operate
your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your car
be performed by an authorized HYUNDAI dealer. HYUNDAI dealers are prepared to
provide high-quality service, maintenance and any other assistance that may be
required.
This Owner's Manual should be considered a permanent part of your vehicle, and should
be kept in the vehicle so you can refer to it at any time. The manual should stay with the
vehicle if you sell it to provide the next owner with important operating, safety and
maintenance information.
1-2
1
HYUNDAI Motor America
CAUTION
Severe engine and transmission damage may result from the use of poor quality fuels and
lubricants that do not meet HYUNDAI specifications. You must always use high quality
fuels and lubricants that meet the specifications listed in the "Recommended Lubricants
And Capacities" section of the Owner's Manual.
may be reproduced, stored in any retrieval system or transmitted in any form or by any
means without the prior written permission of HYUNDAI Motor America.
1-3
Introduction
Guide to HYUNDAI Genuine Parts
1. What are HYUNDAI Genuine Parts?
HYUNDAI Genuine Parts are the same parts used by HYUNDAI Motor Company to
manufacture vehicles. They are designed and tested for the optimum safety,
performance, and reliability for our customers.
A100A01L
A100A02L
1-4
1
2. Why HYUNDAI Genuine Parts?
HYUNDAI Genuine Parts are engineered and built to meet rigid manufacturing
requirements. Damage caused by using imitation, counterfeit or used salvage parts is
not covered under the HYUNDAI New Vehicle Limited Warranty or any other HYUNDAI
warranty.
In addition, any damage to or failure of HYUNDAI Genuine Parts caused by the
installation or failure of an imitation, counterfeit or used salvage part is not covered by
any HYUNDAI Warranty.
A100A04L
3. How can you tell if you are purchasing HYUNDAI Genuine Parts?
Look for the HYUNDAI Genuine Parts Logo on the package (see below).
HYUNDAI Genuine Parts exported to the U.S. are packaged with labels written only in
English.
HYUNDAI Genuine Parts are only sold through authorized HYUNDAI Dealerships.
A100A03L
1-5
Introduction
How to use this manual
We want to help you get the greatest possible driving pleasure from your vehicle. Your
Owner's Manual can assist you in many ways. We strongly recommend that you read the
entire manual. In order to minimize the chance of death or injury, you must read the
WARNING and CAUTION sections in the manual.
Illustrations complement the words in this manual to best explain how to enjoy your
vehicle. By reading your manual, you will learn about features, important safety
information, and driving tips under various road conditions.
The general layout of the manual is provided in the Table of Contents. Use the index when
looking for a specific area or subject; it has an alphabetical listing of all information in
your manual.
Sections: This manual has nine chapters plus an index. Each chapter begins with a brief
list of contents so you can tell at a glance if that section has the information you want.
1-6
1
Safety messages
Your safety, and the safety of others are very important. This Owner's Manual provides
you with many safety precautions and operating procedures. This information alerts you
to potential hazards that may hurt you or others, and may damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards and
what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE and the SAFETY ALERT
SYMBOL will be used.
WL_WarningStandard
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death. The
safety alert symbol precedes the signal words DANGER, WARNING and CAUTION.
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle damage.
1-7
Introduction
Fuel Requirements
Your new vehicle is designed to obtain maximum performance with UNLEADED FUEL, as
well as minimize exhaust emissions and spark plug fouling.
Your new vehicle is designed to perform optimally using unleaded fuel having an octane
number ((R+M)/2) of 87 (Research Octane Number 91) or higher. (Do not use methanol
blended fuels)
NOTICE
To prevent damage to the engine and engine components, never add any fuel system
cleaning agents to the fuel tank other than what has been specified.
Consult an authorized HYUNDAI dealer for additional information.
WARNING
• Do not "top off" after the nozzle automatically shuts off when refueling.
• Always check that the fuel cap is installed securely to prevent fuel spillage in the event
of an accident.
Gasoline containing alcohol or methanol
Gasohol, a mixture of gasoline and ethanol (also known as grain alcohol) are being
marketed along with or instead of leaded or unleaded gasoline. For example, "E15" is a
gasohol comprised of 15 % ethanol and 85 % gasoline.
Do not use gasohol containing more than 15 % ethanol, and do not use gasoline or
gasohol containing any methanol. Either of these fuels may cause drivability problems
and damage to the fuel system, engine control system and emission control system.
Discontinue using gasohol of any kind if drivability problems occur.
"E85" fuel is an alternative fuel comprised of 85 percent ethanol and 15 percent gasoline,
and is manufactured exclusively for use in Flexible Fuel Vehicles. "E85" is not compatible
with your vehicle. Use of "E85" may result in poor engine performance and damage to
your vehicle's engine and fuel system. Do not use fuel with an ethanol content exceeding
15 percent.
NOTICE
To prevent damage to your vehicle's engine and fuel system:
• Never use gasohol which contains methanol.
• Never use gasohol containing more than 15 % ethanol.
• Never use leaded fuel or leaded gasohol.
• Never use "E85" fuel.
Your New Vehicle Limited Warranty does not cover damage to the fuel system or any
performance problems caused by the use of "E85" fuel.
1-8
1
Using Fuel Additives (except Detergent Fuel Additives)
Using fuel additives such as:
• Silicone fuel additive
• Ferrocene (iron-based) fuel additive
• Other metallic-based fuel additives
may result in cylinder misfire, poor acceleration, engine stalling, damage to the catalyst,
or abnormal corrosion, and may cause damage to the engine resulting in a reduction in
the overall life of the powertrain.
The Malfunction Indicator Lamp (MIL) may illuminate.
NOTICE
Damage to the fuel system or performance problem caused by the use of these fuels or
fuel additives may not be covered by your New Vehicle Limited Warranty.
Gasoline containing MMT
Some gasoline contains harmful manganese-based fuel additives such as MMT
(Methylcyclopentadienyl Manganese Tricarbonyl).
Do not use gasoline containing MMT.
This type of fuel can reduce vehicle performance and affect your emission control
system.
The malfunction indicator lamp on the cluster may come on.
Detergent Fuel Additives
Use good quality gasolines treated with detergent additives such as TOP TIER Detergent
Gasoline, which help prevent deposit formation in the engine. These gasolines will help
the engine run cleaner and enhance performance of the Emission Control System. For
more information on TOP TIER Detergent Gasoline, please go to the website
For customers who do not use TOP Tier Detergent Gasoline regularly, and have problems
starting or the engine does not run smoothly, detergent-based fuel additives that you can
purchase separately may be added to the gasoline. If TOP TIER Detergent Gasoline is not
available, one bottle of additive added to the fuel tank according to the maintenance
schedule is recommended (refer to the "Scheduled Maintenance Services" section in
chapter 9).
Additives are available from your authorized HYUNDAI dealer along with information on
how to use them. Do not mix other additives.
Operation in foreign countries
If you are going to drive your vehicle in another country, be sure to:
• Observe all regulations regarding registration and insurance.
• Determine that acceptable fuel is available.
1-9
Introduction
Vehicle Modifications
• This vehicle should not be modified. Modification of your vehicle could affect its
performance, safety or durability and may even violate governmental safety and
emissions regulations.
• In addition, damage or performance problems resulting from any modification may not
be covered under warranty.
• If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some vehicle interior sounds (including welcome sound, navigation alerts, or warning
sounds) may be generated from the interior speakers and amplifier. Do not replace these
components with anything other than the original HYUNDAI factory parts. Any
unauthorized product may cause a malfunction of the vehicle interior sounds that may
affect the intended operation of the vehicle.
1-10
1
Vehicle Break-in Process
By following a few simple precautions for the first 600 mi. (1,000 km), you may add to the
performance, economy, and life of your vehicle.
• Do not race the engine.
• While driving, keep your engine speed (RPM, or revolutions per minute) between 2,000
RPM and 4,000 RPM.
• Do not maintain a single speed for long periods of time, either fast or slow. Varying
engine speed is needed to properly break-in the engine.
• Avoid hard stops, except in emergencies, to allow the brakes to seat properly.
• Fuel economy and engine performance may vary depending on vehicle break-in
process and be stabilized after 4,000 mi. (6,000 km). New engines may consume more
oil during the vehicle break-in period.
NOTICE
CALIFORNIA PROPOSITION 65 WARNING
Items contained in motor vehicles or emitted from them are known to the State of
California to cause cancer and birth defects or reproductive harm. These include:
• Gasoline and its vapors
• Engine exhaust
• Used engine oil
• Interior passenger compartment components and materials
• Component parts which are subject to heat and wear
In addition, battery posts, terminals and related accessories contain lead, lead
compounds and other chemicals known to the State of California to cause cancer and
reproductive harm.
1-11
Introduction
Vehicle Data Collection And Event Data Recorders
This vehicle is equipped with an event data recorder (EDR). The main purpose of an EDR
is to record, in certain crash or near crash-like situations, such as an airbag deployment
or hitting a road obstacle, data that will assist in understanding how a vehicle's systems
performed. The EDR is designed to record data related to vehicle dynamics and safety
systems for a short period of time, typically 30 seconds or less. The EDR in this vehicle is
designed to record such data as:
• How various systems in your vehicle were operating;
• Whether or not the driver and passenger safety belts were buckled/fastened;
• How far (if at all) the driver was depressing the accelerator and/or brake pedal; and,
• How fast the vehicle was traveling.
These data can help provide a better understanding of the circumstances in which
crashes and injuries occur. NOTE: EDR data are recorded by your vehicle only if a
non-trivial crash situation occurs; no data are recorded by the EDR under normal driving
conditions and no personal data (for example, name, gender, age, and crash location) are
recorded. However, other parties, such as law enforcement, could combine the EDR data
with the type of personally identifying data routinely acquired during a crash
investigation.
To read data recorded by an EDR, special equipment is required, and access to the
vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties that
have the special equipment, such as law enforcement, can read the information if they
have access to the vehicle or the EDR.
1-12
2. Vehicle Information,
Consumer Information and
Reporting Safety Defects
Exterior Overview (Front View)
2-2
Exterior Overview (Rear View)
2-3
Interior Overview
2-4
2
Center Console Overview
2-6
Steering Wheel Control Overview
2-8
Engine Compartment Overview
2-9
Dimensions
2-11
Engine
2-11
Bulb Wattage
2-12
Tires And Wheels
2-13
Air Conditioning System
2-14
Vehicle Weight And Luggage Volume
2-14
Recommended Lubricants And Capacities
2-15
Recommended SAE viscosity number
2-16
Vehicle Identification Number (VIN)
2-18
Vehicle Certification Label
2-18
Tire Specification And Pressure Label
2-18
Engine Number
2-19
Air Conditioner Compressor Label
2-19
Open Source Software Notice
2-19
Consumer Information
2-20
Reporting Safety Defects
2-21
Vehicle Information, Consumer Information and Reporting Safety Defects

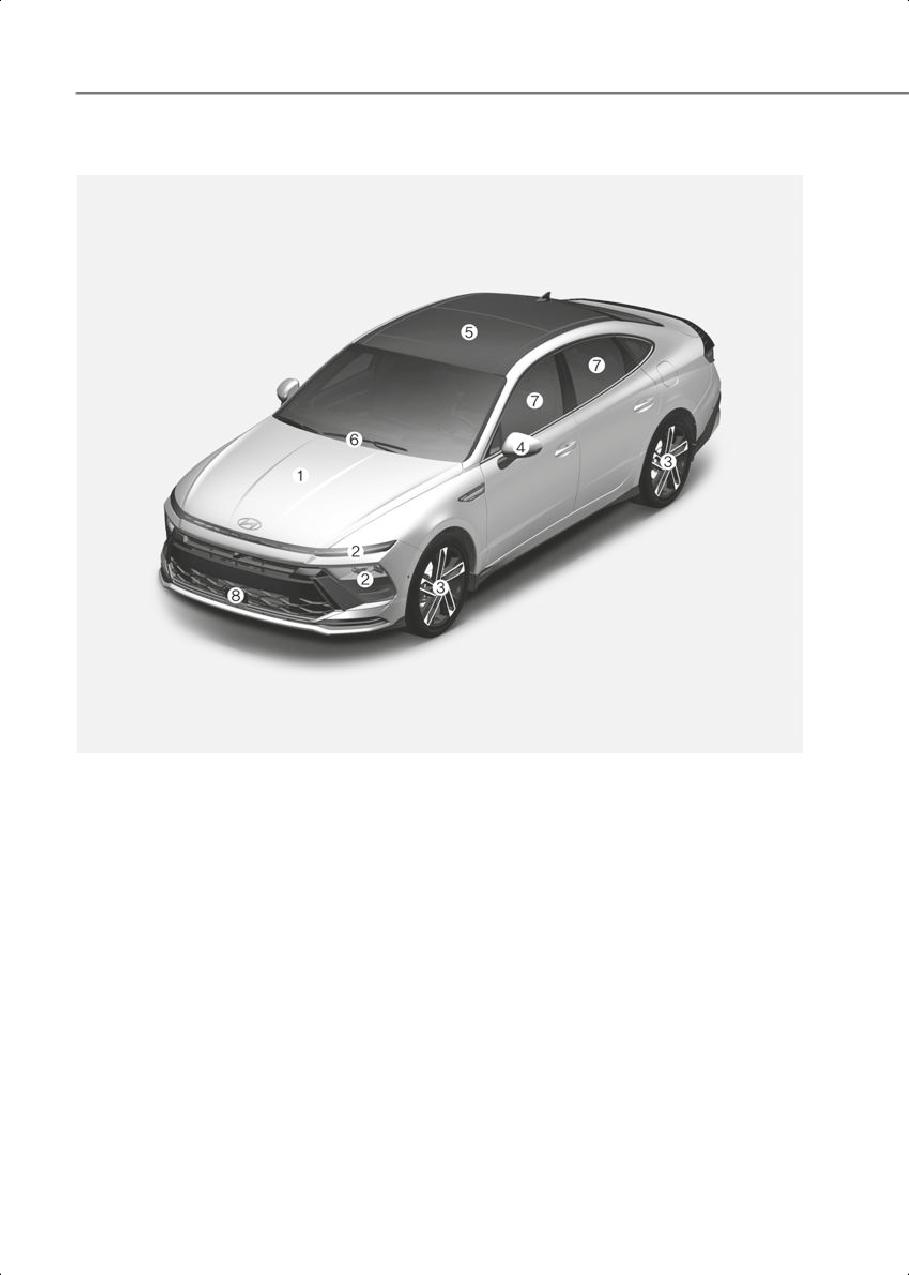

Exterior Overview (Front View)
1C_OutsideVehicleFrontOverview
The actual shape may differ from the illustration.
(1) Hood
5-55
(2) Front light
5-64, 9-59
(3) Tires and wheels
9-35
(4) Side view mirror
5-44
(5) Sunroof
5-51
(6) Front windshield wiper blades
5-74, 9-29
(7) Windows
5-47
(8) Front radar
7-4
2-2
2

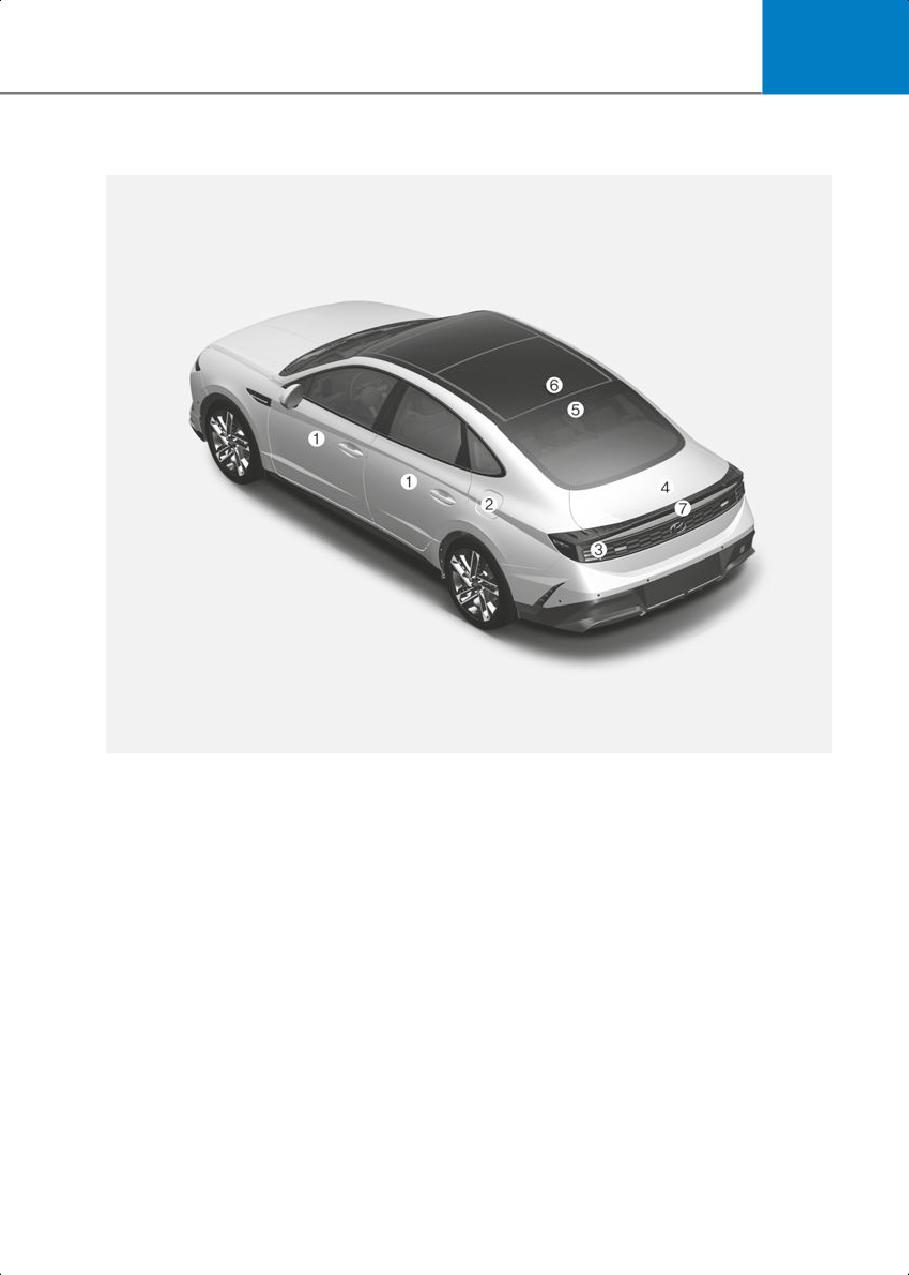

Exterior Overview (Rear View)
1C_OutsideVehicleRearOverview
The actual shape may differ from the illustration.
(1) Door
5-24
(2) Fuel filler door
5-59
(3) Rear combination light
5-64, 9-60
(4) Trunk
5-56
(5) High mounted stop light
9-60
(6) Antenna
5-100
(7) Wide-rear view camera
7-82
2-3
Vehicle Information, Consumer Information and Reporting Safety Defects

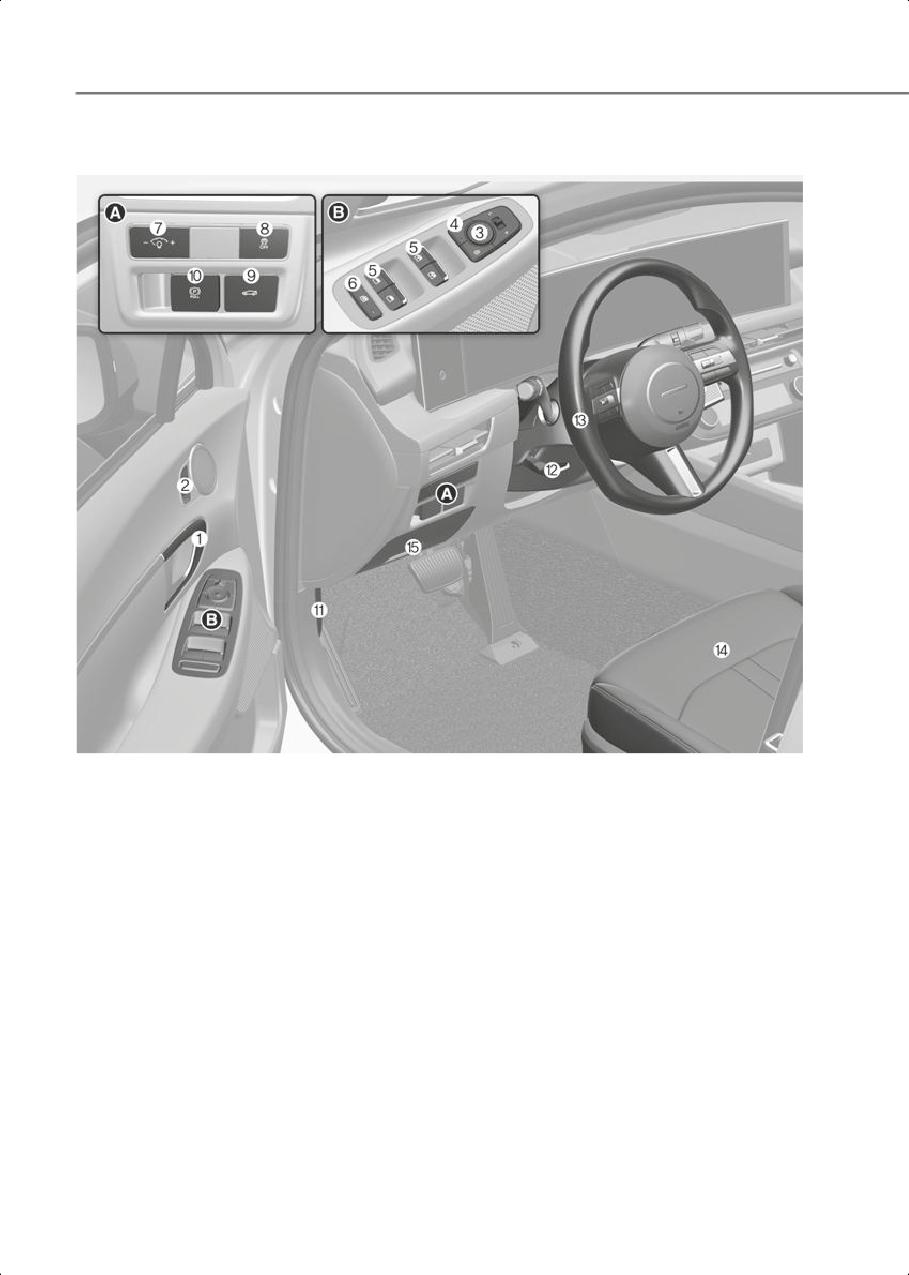

Interior Overview
1C_SideInsideVehicleOverview
The actual shape may differ from the illustration.
(1) Inside door handle
5-25
(2) Integrated memory system
5-30
(3) Side view mirror control switch
5-44
(4) Central door lock switch
5-26
(5) Power window switches
5-48
(6) Power window lock button
5-50
(7) Instrument panel illumination control switch
4-3
(8) ESC (Electronic Stability Control) OFF button
6-37
(9) Trunk open button
5-56
(10)EPB (Electronic Parking Brake) switch
6-30
(11) Hood release lever
5-55
(12)Steering wheel tilt/telescopic lever
5-33
(13)Steering wheel
5-32
(14)Seat
3-4
2-4
2
(15)Fuse box
9-48
2-5
Vehicle Information, Consumer Information and Reporting Safety Defects

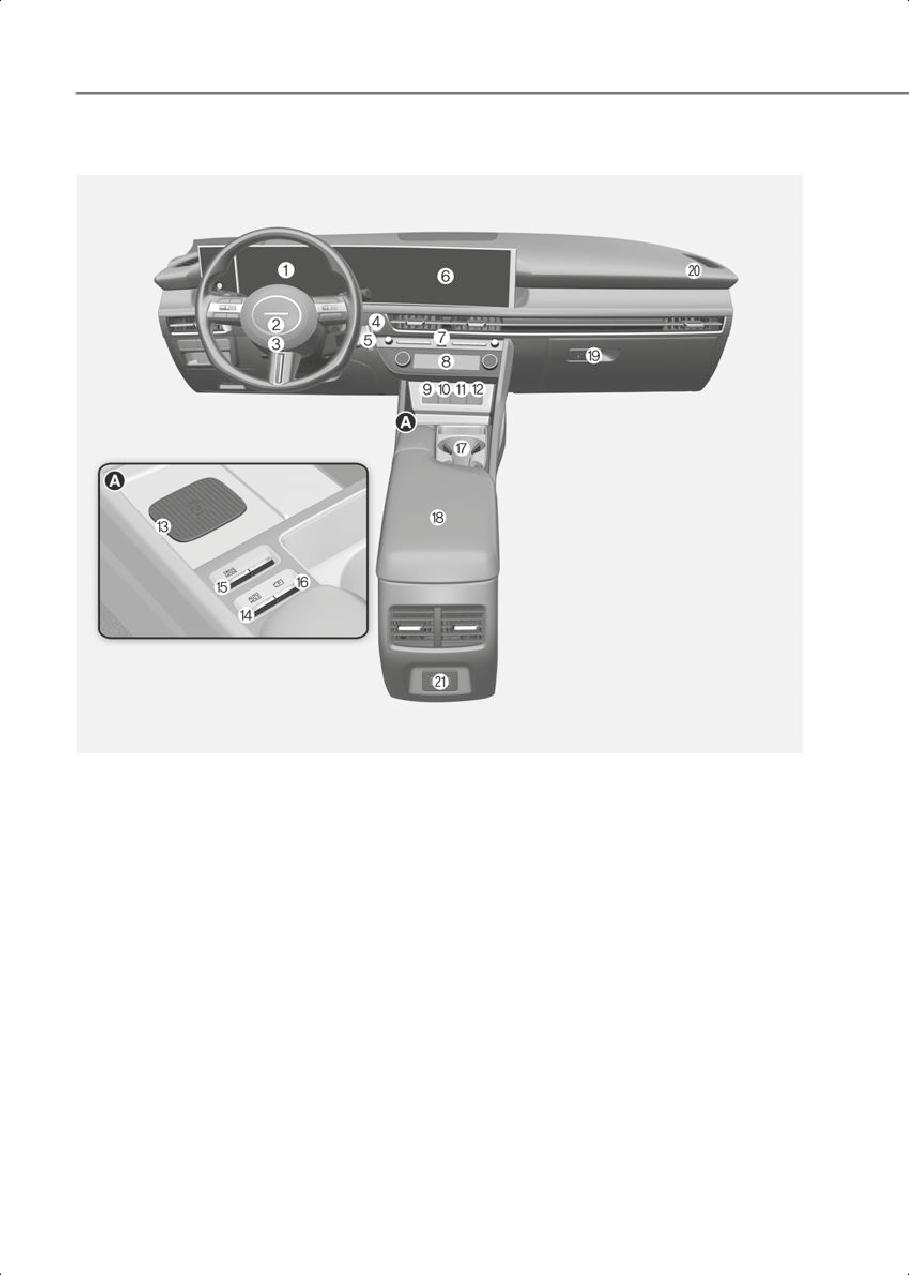

Center Console Overview
1C_CenterInsideVehicleOverview
The actual shape may differ from the illustration.
(1) Instrument cluster
4-2
(2) Horn
5-34
(3) Driver's front airbag
3-38
(4) Engine Start/Stop Button
6-5
(5) Rotary gear shift dial
6-10, 6-21
(6) Infotainment system
5-101
(7) Hazard warning flasher switch
8-2
(8) Automatic climate control system
5-77
(9) USB Port, USB Charger
5-99 / 5-95
(10)USB Charger/USB Port convert button
5-95
(11) USB Charger/Wireless charging system indicator
5-95 / 5-96
(12)Power outlet
5-94
(13)Wireless smartphone charging system
5-96
(14)Auto Hold button
6-33
2-6
2
(15)Drive mode button
6-47
(16)Parking/View button
7-83
(17)Cup holder
5-93
(18)Center console storage
5-92
(19)Glove box
5-92
(20)Passenger's front airbag
3-38
(21)USB Charger
5-95
2-7
Vehicle Information, Consumer Information and Reporting Safety Defects

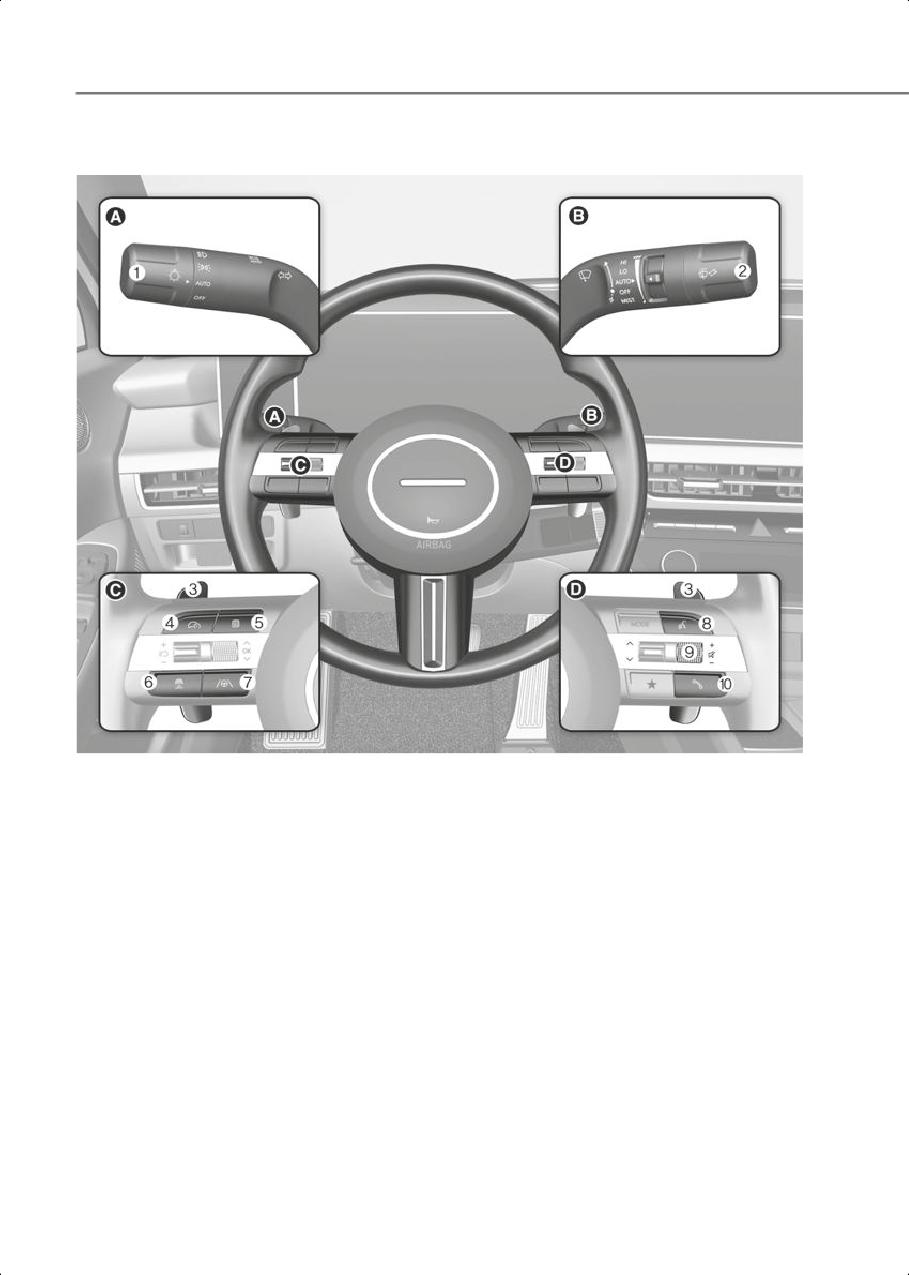

Steering Wheel Control Overview
1C_SideInsideVehicleOverview_2
The actual shape may differ from the illustration.
(1) Lighting control lever
5-64
(2) Wiper and washer control lever
5-74
(3) Paddle shifter
6-17
(4) Driving Assist button
7-54
(5) Cluster display controls
4-25
(6) Vehicle Distance button
7-54
(7) Lane Driving Assist button
7-20
(8) Voice recognition button
5-101
(9) Audio remote control buttons
5-100
(10)Bluetooth® hands-free phone button
5-102
2-8
2

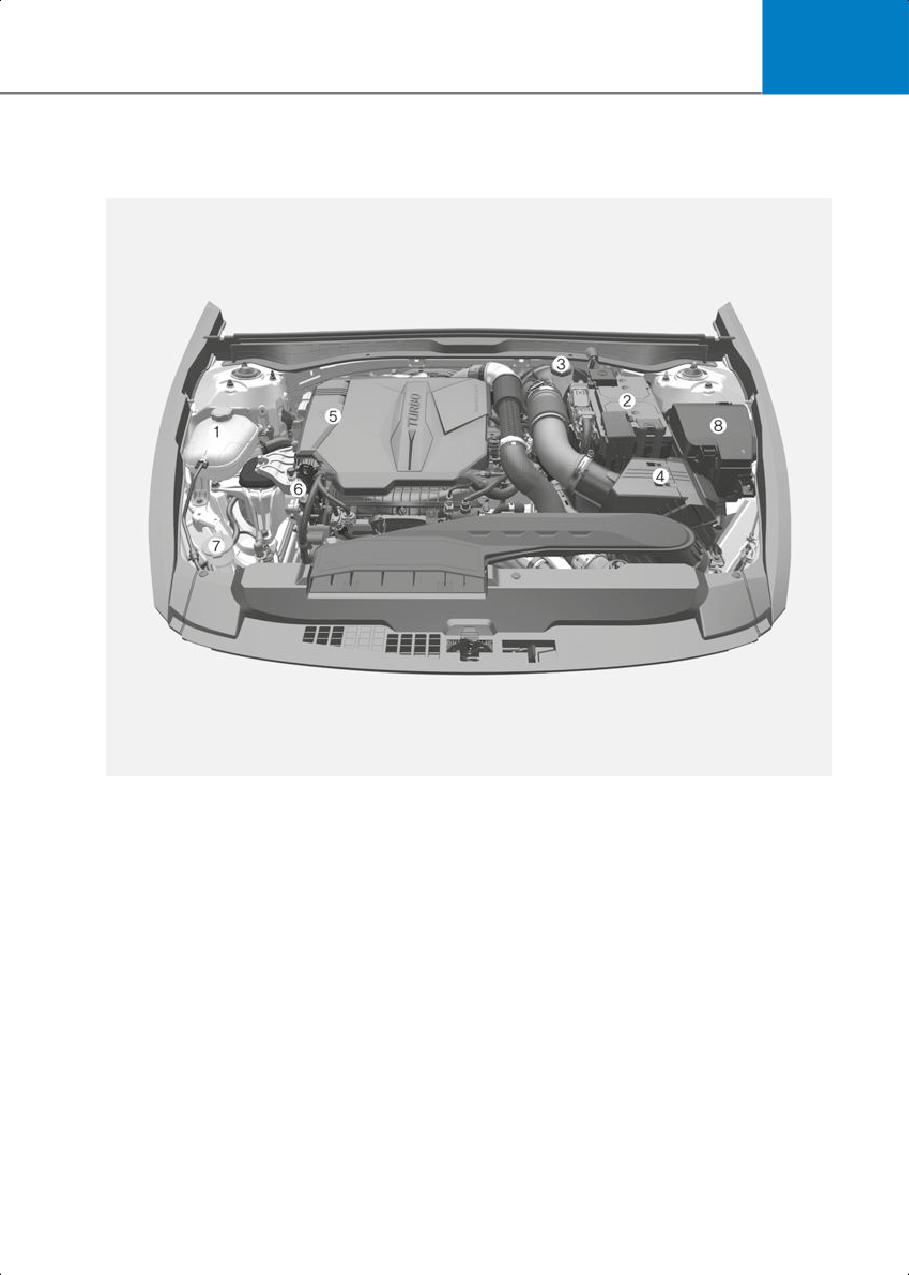

Engine Compartment Overview
Smartstream G2.5 T-GDI
1C_EngineRoom
The actual engine compartment in the vehicle may differ from the illustration.
(1) Engine coolant reservoir
9-22
(2) Battery
9-32
(3) Brake fluid reservoir
9-25
(4) Air cleaner
9-27
(5) Engine oil filler cap
9-19
(6) Engine oil dipstick
9-19
(7) Windshield washer fluid reservoir
9-26
(8) Fuse box
9-48
2-9
Vehicle Information, Consumer Information and Reporting Safety Defects

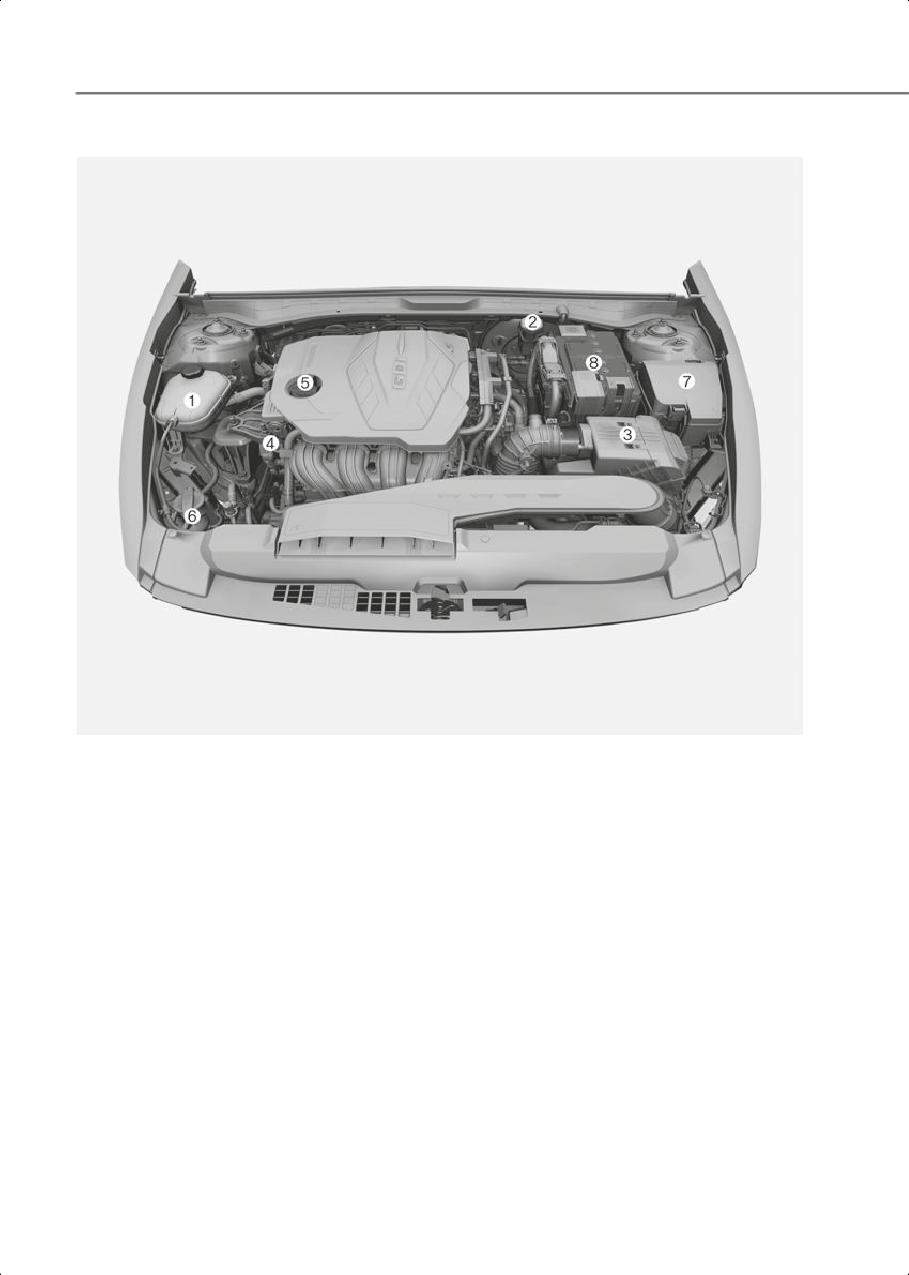

Smartstream G2.5 GDI
The actual engine compartment in the vehicle may differ from the illustration.
(1) Engine coolant reservoir
9-22
(2) Brake fluid reservoir
9-25
(3) Air cleaner
9-27
(4) Engine oil dipstick
9-19
(5) Engine oil filler cap
9-19
(6) Windshield washer fluid reservoir
9-26
(7) Fuse box
9-48
(8) Battery
9-32
2-10
2
Dimensions
Items
in. (mm)
Overall length
193.30 (4,910)
Overall width
73.22 (1,860)
Overall height
56.88 (1,445)
215/55 R17
63.89 (1,623)
Front tread
235/45 R18
63.70 (1,618)
245/40 R19
63.38 (1,610)
215/55 R17
64.17 (1,630)
Rear tread
235/45 R18
63.97 (1,625)
245/40 R19
63.66 (1,617)
Wheelbase
111.81 (2,840)
Engine
Displacement
Bore x Stroke in.
Engine
Firing order
No. of cylinders
cu. in. (cc)
(mm)
Smartstream
3.47 x 4.00
152.37 (2,497)
1-3-4-2
4
G2.5 T-GDI
(88.5 x 101.5)
Smartstream
3.47 x 4.00
152.37 (2,497)
1-3-4-2
4
G2.5 GDI
(88.5 x 101.5)
2-11
Vehicle Information, Consumer Information and Reporting Safety Defects
Bulb Wattage
Light bulb
Bulb type
Wattage
Low
LED
LED
Headlight
High
LED
LED
Daytime running light/Parking
LED
LED
light
Front
Turn signal light
LED
LED
Side repeater light
LED
LED
Side marker light
LED
LED
Tail/Stop light
LED
LED
Turn signal light
LED
LED
Side marker light
LED
LED
Rear
Reverse light
P21W
21W
High mounted stop light
LED
LED
License plate light
W5W
5W
Type A
WEDGE
10W
Map lamp
Type B
LED
LED
Room lamp (if equipped)
FESTOON
10W
Personal lamp (if equipped)
LED
LED
Interior
Luggage compartment lamp
FESTOON
5W
Vanity mirror lamp
FESTOON
5W
Mood lamp
(Front seat door lamp, Passenger
LED
LED
seat open tray lamp)
2-12
2
Tires And Wheels
Inflation pressure psi (kPa)
Wheel nut
Items
Tire size
Wheel size
Normal load
Maximum load
torque lbf·ft
(kgf·m, N ·m)
Front
Rear
Front
Rear
215/55 R17
7.0J X 17
35 (240)
Full size tire
235/45 R18
7.5J X 18
35 (240)
79-94
245/40 R19
8.0J X 19
35 (240)
(11-13, 107-127)
Compact
spare tire
T125/80 D16
4.0T X 16
60 (420)
(if equipped)
NOTICE
• It is permissible to add 3 psi (20 kPa) to the standard tire pressure specification if colder
temperatures are expected soon.
Tires typically lose 1 psi (7 kPa) for every 12 °F (7 °C) temperature drop. If extreme
temperature variations are expected, recheck your tire pressure as necessary to keep
them properly inflated.
• Tire inflation pressures may differ depending on changes in elevation (about 2.4 psi (10
kPa) for every mile (or kilometer) elevation change). If driving in areas of higher or
lower elevation, be sure to check and adjust for proper tire inflation.
• Do not exceed the maximum inflation pressure, as found on the sidewall of the tire(s).
CAUTION
When replacing tires, ALWAYS use the same size, type, brand, construction, and tread
pattern supplied with the vehicle. If not, it can damage the related parts or make it work
irregularly.
2-13
Vehicle Information, Consumer Information and Reporting Safety Defects
Air Conditioning System
Item
Weight of volume
Classification
Refrigerant oz. (g)
18±0.88 oz. (520±25 g)
R-1234yf
Compressor lubricant oz. (g)
3.4±0.3 oz. (100±10 g)
PAG (FD46XG)
Contact an authorized HYUNDAI dealer for more details.
Vehicle Weight And Luggage Volume
Smartstream G2.5 GDi
Smartstream G 2.5 T-GDi
Items
2WD
AWD
AT*1
DCT*2
4,619
Gross vehicle weight lbs. (kg)
4,453 (2,020)
4,663 (2,115)
(2,095)
Luggage volume (SAE) cu ft. (ℓ)
15.57 (441)
*1 AT: Automatic Transmission
*2 DCT: Dual Clutch Transmission
2-14
2
Recommended Lubricants And Capacities
To help achieve proper engine and powertrain performance and durability, use only
lubricants of the proper quality. The correct lubricants also help promote engine
efficiency that results in improved fuel economy.
Lubricant
Volume
Classification
Engine oil *1 *2
Smartstream
SAE 0W-20 API SN PLUS/SP or ILSAC
(drain and refill)
G2.5 GDI
GF-6*4
Recommends
6.13 US qt.
(5.8 ℓ)
Smartstream
SAE 0W-30 API SN PLUS /SP or ILSAC
G2.5 T-GDI
GF-6 *4
TM_QuakerState
SK ATF SP4M-1, MICHANG ATF SP4M-1,
Automatic
Smartstream
6.8 US qt.
S-OIL ATF SP4M-1, Hyundai Genuine ATF
transmission fluid
G2.5 GDI
(6.5 ℓ)
SP4-M1
Gear oil
:3.49~3.59
GS WDCTF HD G (WET DCT FLUID)
U.S qt.
(3.3~3.4 ℓ)
Dual clutch
Smartstream
transmission fluid
G2.5 T-GDI
Control oil :
2.59~2.64
GS WDCTF HD H (WET DCT HYDRAULIC
U.S qt.
CONTROL OIL)
(2.45~2.5 ℓ)
Smartstream
9.2 US qt.
G2.5 GDI
(8.7 ℓ)
Mixture of antifreeze and distilled
Coolant
water(Ethylene glycol base coolant for
Smartstream
9.3 US qt.
aluminum radiator)
G2.5 T-GDI
(8.8 ℓ)
0.62 US qt.
Hypoid gear oil API GL-5, SAE 75W/85 (SK
Rear differential oil (AWD)*3
(0.58 ℓ)
HCT-5 75W/85 or equivalent)
Hypoid gear oil API GL-5, SAE 75W/85 (SK
0.69 US qt.
Transfer case oil (AWD)*3
HCT-5 75W/85 or equivalent)
(0.65 ℓ)
Brake fluid*5
As needed
DOT-4
15.9 US gal.
Fuel
Refer to "Fuel Requirements" in chapter 1.
(60 ℓ)
*1 Refer to the "Recommended SAE viscosity number" section.
*2 Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they
contribute to fuel economy by reducing the amount of fuel necessary to overcome engine friction. Often, these
improvements are difficult to measure in everyday driving, but in a year's time, they can offer significant cost
and energy savings.
2-15
Vehicle Information, Consumer Information and Reporting Safety Defects
*3 If the transfer case/rear differential is submerged, visit an authorized HYUNDAI genuine products to replace the
transfer/differential oil.
*4 Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade engine oil (mineral oil
including semi-synthetic) is used, then the engine oil and engine oil filter must be replaced as indicated severe
maintenance condition.
*5 To maintain the best braking performance and ABS/ESC performance, use genuine brake fluid that conform to
specifications.
Recommended SAE viscosity number
NOTICE
• Always be sure to clean the area around any filler plug, drain plug, or dipstick before
checking or draining any lubricant. This is especially important in dusty or sandy areas
and when the vehicle is used on unpaved roads. Cleaning the plug and dipstick areas
will prevent dirt and grit from entering the engine and other mechanisms that could be
damaged.
• Never add any additives to the engine oil. Engine oil additives can change the
properties of engine oil and may cause serious engine failure.
Engine oil viscosity (thickness) has an effect on fuel economy and cold weather operating
(engine start and engine oil flow ability). Typically, lower viscosity engine oils can provide
better fuel economy and cold weather performance, however, higher viscosity engine
oils are required for satisfactory lubrication in hot weather. Using oils of any viscosity
other than those recommended could result in engine damage.
When choosing an oil, consider the range of temperature your vehicle will be operated in
before the next oil change. Proceed to select the recommended oil viscosity from the
chart.
Temperature Range for SAE Viscosity Numbers
°C
-30
-20
-10
0
10
20
30
40
50
Temperature
(°F)
-10
0
20
40
60
80
100
120
Smarts
tream
G2.5
1C_EngineOilLublicationSpec
GDi
Engine Oil*1
Smarts
tream
G2.5
1C_EngineOilLublicationSpec_0w30
T-GDi
*1 Requires <API SN PLUS (or above) Full synthetic> grade engine oil. If a lower grade engine oil (mineral oil
including semi-synthetic) is used, then the engine oil and engine oil filter must be replaced as indicated severe
maintenance condition.
2-16
2
WL_OilAPIMark
An engine oil displaying this American Petroleum Institute (API) Certification Mark
conforms to the International Lubricant Specification Advisory Committee (ILSAC). It is
recommended to only use engine oils that uphold this API Certification Mark.
2-17
Vehicle Information, Consumer Information and Reporting Safety Defects
Vehicle Identification
Vehicle Certification
Number (VIN)
Label
Frame number (if equipped)
2C_CertificationLabelPosition
The vehicle certification label attached on
The vehicle identification number (VIN) is
the driver's (or front passenger's) side
the number used in registering your
center pillar gives the Vehicle
vehicle and in all legal matters pertaining
Identification Number (VIN).
to its ownership, etc.
The number is punched on the floor under
the right front seat. To check the number,
Tire Specification And
open the cover.
VIN label (if equipped)
Pressure Label
2C_VINPosition_2
2C_TireLabel
The VIN is also on a plate attached to the
The tires supplied on your new vehicle are
top of the left side dashboard. The
chosen to provide the best performance
number on the plate can easily be seen
for normal driving.
through the windshield from outside.
The tire label located on the driver's (or
front passenger's) side center pillar gives
the tire pressures recommended for your
vehicle.
2-18
2
Engine Number
Air Conditioner
Smartstream G2.5 T- GDI
Compressor Label
Smartstream G2.5 GDI
2C_AirconCompLabel
A compressor label informs you the type
of compressor your vehicle is equipped
with such as model, supplier part number,
production number, refrigerant (1) and
refrigerant oil (2).
Open Source Software
Notice
This vehicle contains software with open
The engine number is stamped on the
source licenses. Open source software
engine block as shown in the drawing.
information including the source code,
copyright notices and referred license
terms may be obtained on the website
pensource
HYUNDAI Motor America will provide the
open source code to you in storage
medium such as CD-ROM for minimum
charge covering the cost of performing
source distribution upon email request to
opensource@hyundai.com within a
period of 3 years from the date of product
purchase.
2-19
Vehicle Information, Consumer Information and Reporting Safety Defects
Consumer Information
This consumer information has been prepared in accordance with regulations issued by
the National Highway Traffic Safety Administration of the U.S. Department of
Transportation. Your HYUNDAI dealer will help answer any questions you may have as
you read this information.
HYUNDAI motor vehicles are designed and manufactured to meet or exceed all
applicable safety standards.
For your safety, however, we strongly urge you to read and follow all directions in this
Owner's Manual, particularly the information under the headings "NOTICE", "CAUTION"
and "WARNING".
If, after reading this manual, you have any questions regarding the operation of your
vehicle, please contact the Hyundai Customer Care Center.
Hyundai Customer Care
P.O. Box 20850
Fountain Valley, CA 92728
800-633-5151
consumeraffairs@hmausa.com
Hyundai's Customer Care Center representatives are available Monday through Friday,
between the hours of 6:00 AM and 5:00 PM PST
and Saturday between 6:30 AM and 3:00 PM PST (English).
For Customer Care assistance in Spanish or Korean, representatives are available
Monday through Friday between 6:30 AM and 3:00 PM PST.
2-20
2
Reporting Safety Defects
If you believe that your vehicle has a defect which could cause a crash or could
cause injury or death, you should immediately inform the National Highway
Traffic Safety Administration (NHTSA) in addition to notifying HYUNDAI MOTOR
AMERICA.
To contact NHTSA, you may call the Vehicle Safety Hotline toll-free
at 1-888-327-4236 (TTY: 1-800-424-9153);
download the SaferCar mobile application;
or write to: Administrator, NHTSA
1200 New Jersey Ave, SE,
West Building Washington, D.C. 20590.
You can also obtain other information about motor vehicle safety from
If NHTSA receives similar complaints, it may open an investigation, and if it finds
that a safety defect exists in a group of vehicles, it may order a recall and remedy
campaign. However, NHTSA cannot become involved in individual problems
between you, your dealer, or HYUNDAI MOTOR AMERICA.
2-21
3. Seats & Safety System
Important Safety Precautions
3-2
Always wear your seat belt
3-2
Restrain all children
3-2
Airbag hazards
3-2
Driver distraction
3-2
Never drink or take drugs and drive
3-3
Control your speed
3-3
3
Keep your vehicle in safe condition
3-3
Seats
3-4
Safety precautions
3-5
Front seats
3-6
Rear seats
3-11
Head restraint
3-13
Seats Warmers
3-16
Seat Belts
3-17
Seat belt safety precautions
3-17
Seat belt warning light
3-18
Seat belt restraint system
3-20
Additional seat belt safety precautions
3-24
Care of seat belts
3-26
Child Restraint System (CRS)
3-27
Children always in the rear
3-27
Selecting a Child Restraint System (CRS)
3-28
Installing a Child Restraint System (CRS)
3-29
Airbag - Advanced Supplemental Restraint System
3-35
SRS components
3-37

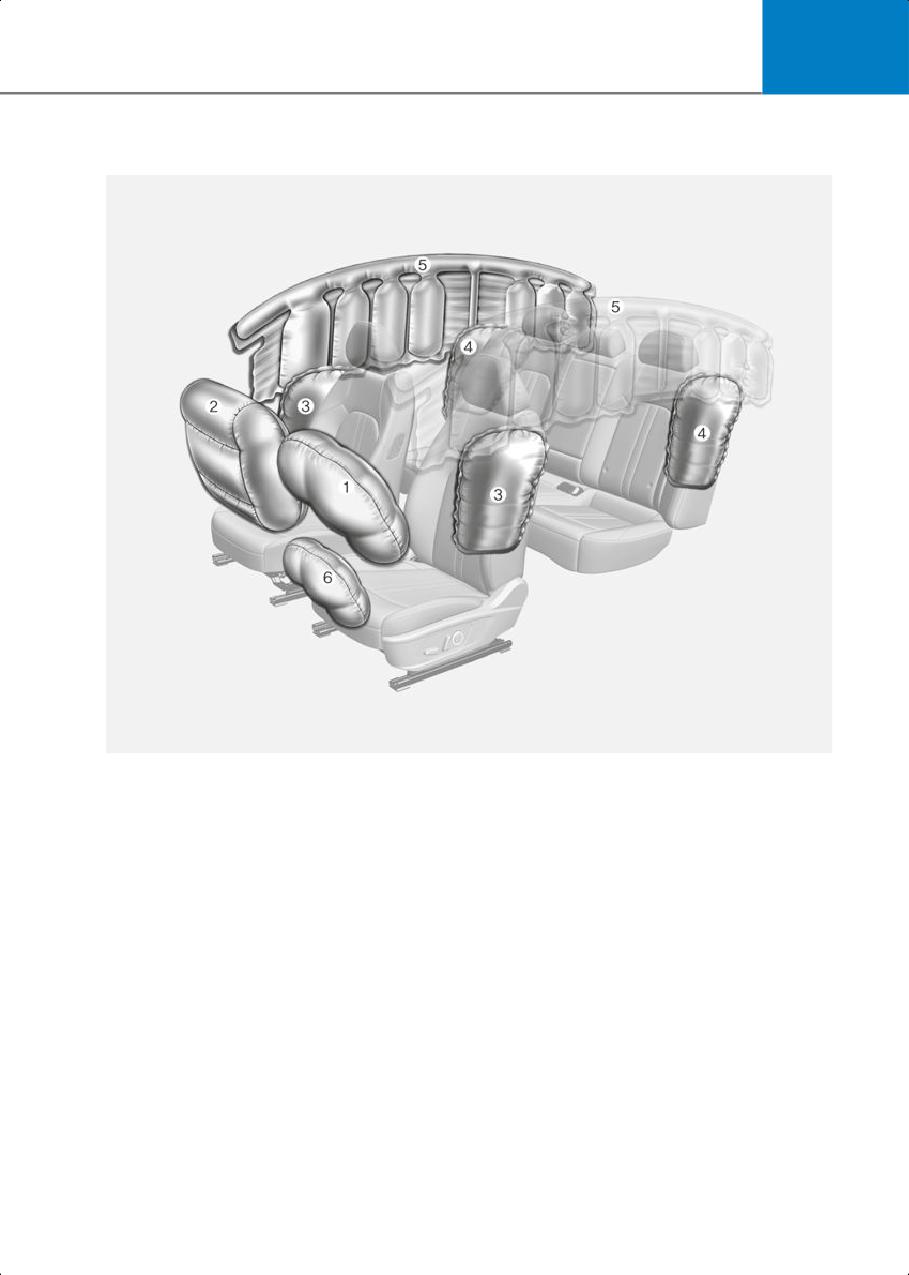

Where are the airbags?
3-38

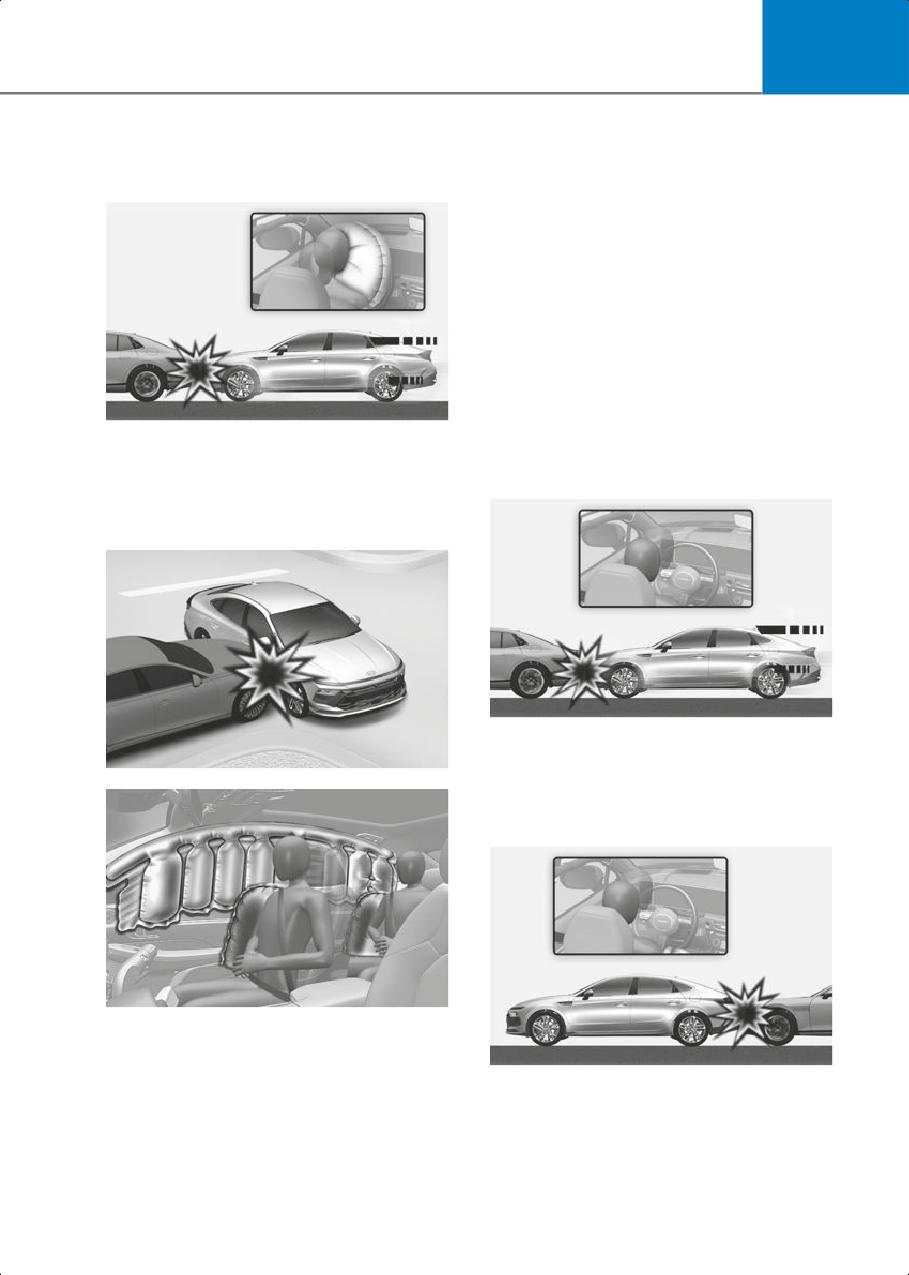

How does the airbags system operate?
3-41
What to expect after an airbag inflates
3-44
SRS warning light
3-45
Occupant Classification System (OCS)
3-45
Why didn't my airbag go off in a collision?
3-51
SRS care
3-55
Additional safety precautions
3-55

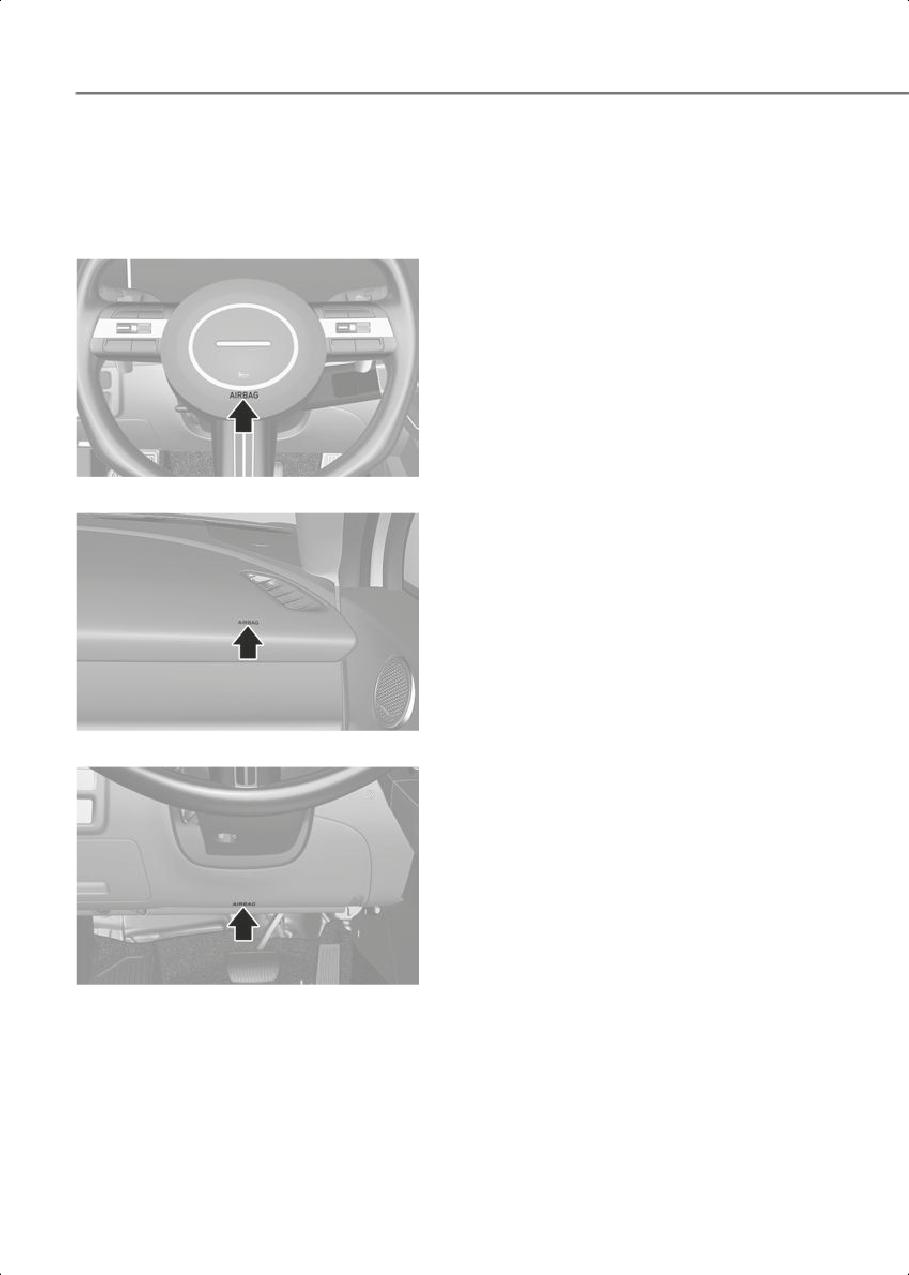

Airbag warning labels
3-56
Seats & Safety System
Important Safety
Driver distraction
Driver distraction presents a serious and
Precautions
potentially deadly danger, especially for
You will find many safety precautions and
inexperienced drivers. Safety should be
recommendations throughout this
the primary concern when behind the
section, and throughout this manual. The
wheel and drivers need to be aware of the
safety precautions in this section are
wide array of potential distractions, such
among the most important.
as drowsiness, reaching for objects,
eating, personal grooming, other
passengers, and using mobile phones.
Always wear your seat belt
Drivers can become distracted when they
A seat belt is your best protection in all
take their eyes and attention off the road
types of accidents. Airbags are designed
or their hands off the wheel to focus on
to supplement seat belts, not to replace
activities other than driving. To reduce
them. So even though your vehicle is
your risk of distraction and an accident:
equipped with airbags, always make sure
• Set up your mobile devices (for
you and your passengers wear your seat
example, MP3 players, phones,
belts, and wear them properly.
navigation units, etc.) ONLY when your
vehicle is parked or safely stopped.
Restrain all children
• ONLY use your mobile device when
allowed by laws and conditions permit
All children under age 13 should ride in
safe use. NEVER text or email while
your vehicle properly restrained in a rear
driving. Most local laws prohibit drivers
seat, not the front seat. Infants and small
from texting while driving. Some
children should be restrained in an
countries and cities also prohibit
appropriate Child Restraint System.
drivers from using handheld phones.
Larger children should use a booster seat
with the lap/shoulder belt until they can
• NEVER let the use of a mobile device
use the seat belt properly without a
distract you from driving. You have a
booster seat.
responsibility to your passengers and
others on the road to always drive
safely, with your hands on the wheel as
Airbag hazards
well as your eyes and attention on the
road.
While airbags can save lives, they can also
cause serious or fatal injuries to
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at the
greatest risk of being injured by an
inflating airbag. Follow all instructions
and warnings in this manual.
3-2
3
Never drink or take drugs and
drive
Drinking alcohol or taking drugs can
reduce your ability to respond to
changing conditions and emergencies.
Do not drink or take drugs and drive, and
do not let your friends drink or take drugs
and drive.
Control your speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious
injuries can also occur at lower speeds.
Never drive faster than is safe for current
conditions, regardless of the maximum
speed posted.
Keep your vehicle in safe
condition
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of such problems,
check your tire pressures and condition
frequently, and perform all regularly
scheduled maintenance.
3-3
Seats & Safety System
Seats
1C_FrontSeatOverview
Driver's seat [A]
(1) Forward or rearward
(2) Seatback angle
(3) Seat cushion height
(4) Seat cushion angle (if equipped)
(5) Lumbar support (if equipped)
(6) Seatback bolster (if equipped)
(7) Head restraint
Front passenger's seat [B]
(1) Forward or rearward
(2) Seatback angle
(3) Seat height
(4) Head restraint
Rear seat [C]
(1) Head restraint
3-4
3
Infotainment system
Safety precautions
Adjusting the seats so that you are sitting
in a safe and comfortable position plays
an important role for the safety of the
driver and passengers, as much as seat
belts and airbags when in an accident.
WARNING
Do not use a cushion that reduces friction
between the seat and the passenger. The
passenger's hips may slide under the lap
2C_AdjustSeatAVN
portion of the seat belt during an accident
Select Setup > Vehicle > Seat from the
or a sudden stop.
Setup menu in the infotainment system,
Serious or fatal internal injuries could
you may use various convenience
result because the seat belt cannot
functions.
operate properly.
Seating Easy Access
- Driver Seat Easy Access: The
distance (Normal/Extended/Off) the
Airbags
seat automatically moves when the
You can take steps to reduce the risk of
driver enters or leaves the vehicle
being injured by an inflating airbag.
may be selected.
Sitting too close to an airbag greatly
Seat Position Change Alert: When the
increases the risk of injury in the event the
seat position changes, details of the
airbag inflates. The National Highway
change are shown with a seat image.
Traffic Safety Administration (NHTSA)
recommends that drivers allow at least 10
inches (25 cm) between the center of the
Information
steering wheel and their chest.
The infotainment system may change
after software updates. For more
WARNING
information, refer to the user's manual
provided in the infotainment system
To reduce the risk of serious injury or
and the quick reference guide.
death from an inflating airbag:
The information provided may differ
• Adjust the driver's seat as far to the rear
depending on which functions are
as possible while maintaining your
applicable to your vehicle.
ability to control the vehicle.
• Adjust the front passenger seat as far to
the rear as possible.
• Hold the steering wheel by the rim with
your hands at the 9 o'clock and 3
o'clock positions to minimize the risk of
injuries to your hands and arms.
• Never place anything or anyone
between you and the airbag.
• Do not allow the front passenger to
place feet or legs on the dashboard to
minimize the risk of leg injuries.
3-5
Seats & Safety System
Seat belts
Front seats
Always fasten your seat belt before
starting any trip. At all times, passengers
WARNING
should sit upright and be properly
To prevent serious injury or death:
restrained with a seat belt. Infants and
Never attempt to adjust the seat while
small children must be restrained in
the vehicle is moving. The seat could
appropriate Child Restraint Systems.
respond with unexpected movement
Children who have outgrown a booster
and may cause loss of vehicle control
seat and adults must be restrained using
resulting in a collision.
the seat belts.
Do not place anything under the front
WARNING
seats. Loose including unsecured floor
mats, in the driver's foot area could
To prevent serious injury or death:
interfere with the operation of the foot
• Never use one seat belt for more than
pedals.
one occupant.
Do not allow anything to interfere with
• Always position the seatback upright
the normal position and proper locking
with the lap portion of the seat belt
of the seatback.
snug and low across the hips.
Do not place a cigarette lighter on the
• Never allow children or small infants to
floor or seat.
ride on a passenger's lap.
Use extreme caution when picking up
• Do not route the seat belt across your
small objects trapped under the seats
neck, across sharp edges, or reroute
or between the seat and the center
the shoulder strap away from your
console. Your hands might be cut or
body.
injured by the sharp edges of the seat
• Do not allow the seat belt to become
mechanism.
caught or jammed.
If there are occupants in the rear seats,
be careful while adjusting the front
seat.
Make sure that the seat is locked in
place after the adjustment. If not, the
seat might move unexpectedly.
3-6
3

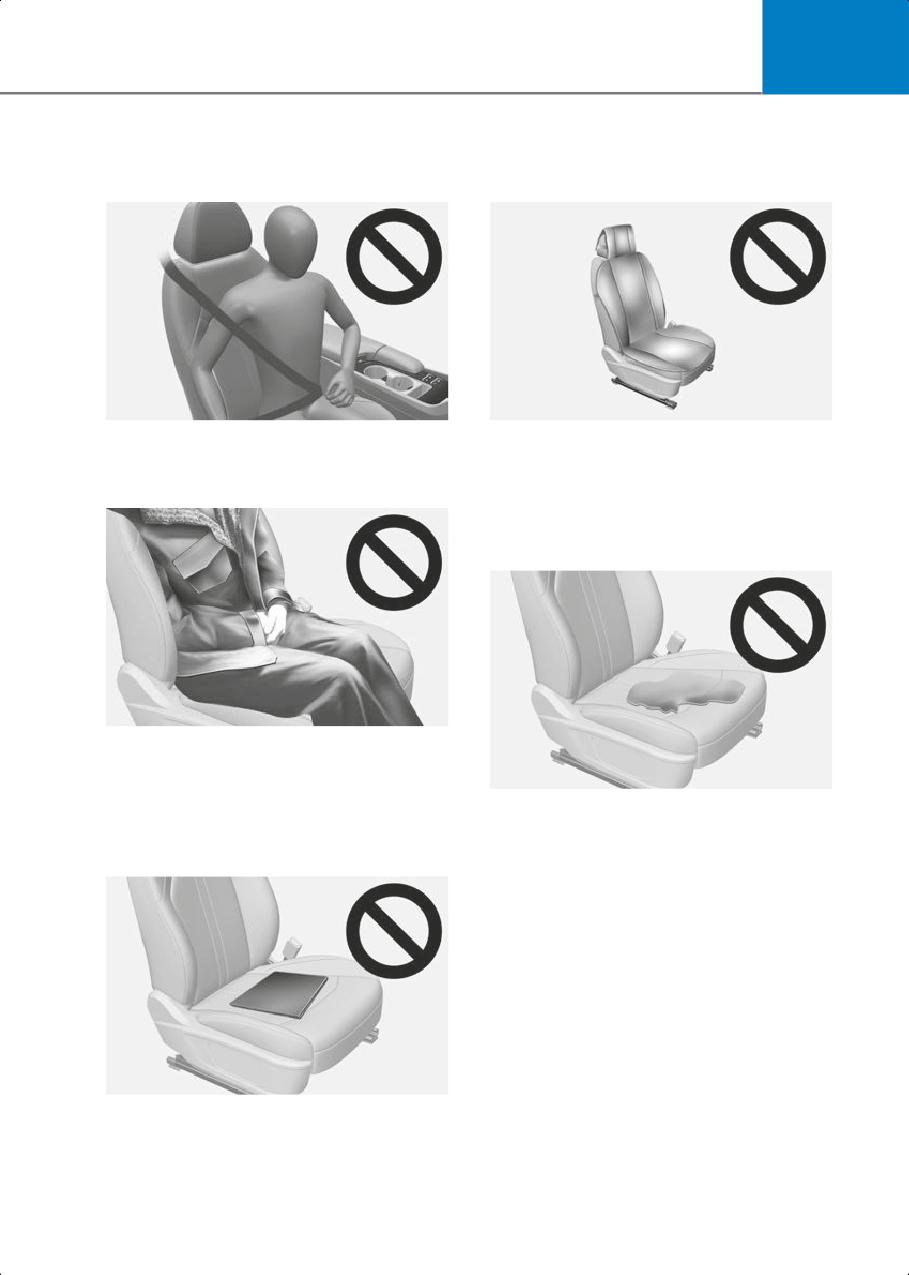

Reclining seatback
Manual seat controls
Sitting in a reclined position when the
if equipped
vehicle is moving can be dangerous. Even
The front passenger seat can be adjusted
when you are buckled up, the protections
by using the levers located underneath
of your restraint system (seat belts and/or
the front part of the seat or on the outer
airbags) is greatly reduced by reclining
side of the seat.
your seatback.
Seat belts must be snug against your hips
Forward and rearward adjustment
and chest to work properly.
The more the seatback is reclined, the
greater the chance for the passenger's
hips to slide under the lap belt or the
passenger's neck to strike the shoulder
belt.
WARNING
Never ride with a reclined seatback when
the vehicle is moving.
2C_AdjustSeatForwardBackwardmanual
Riding with a reclined seatback increases
To move the seat forward or rearward:
your chance of serious or fatal injuries in
the event of a collision or sudden stop.
1. Pull up the seat slide adjustment lever
and hold it.
Driver and passengers should always sit
well back in their seats, properly belted,
2. Slide the seat to the position desired
and with the seatbacks upright.
position.
Seat belts must be snug against your hips
3. Release the lever and make sure the
and chest to work properly. When the
seat is locked in place. Move forward
seatback is reclined, the shoulder belt
and rearward without using the lever. If
cannot do its job because it will not be
the seat moves, it is not locked
snug against your chest. Instead, it will be
properly.
in front of you.
During a collision, you could be thrown
into the seat belt, causing neck or other
injuries.
The more the seatback is reclined, the
greater chance the passenger's hips will
slide under the lap belt or the passenger's
neck will strike the shoulder belt.
3-7
Seats & Safety System
Seatback angle
Power seat controls
if equipped
The driver's seat can be adjusted by using
the control switches located on the
outside of the seat cushion.
WARNING
NEVER allow children to remain in the
vehicle unattended. The power seats are
operable when the vehicle is turned off.
2C_AdjustSeatBackmanual
To recline the seatback:
NOTICE
1. Lean forward slightly and lift up the
seatback lever.
To prevent damage to the seats:
2. Carefully lean back on the seat and
• Always stop adjusting the seats when
adjust the seatback to the desired
the seat has been adjusted as far
position.
forward or rearward as possible.
3. Release the lever and make sure the
• Do not adjust the seats longer than
seatback is locked in place.
necessary when the vehicle is turned
off. This may result in unnecessary
Seat height
battery drain.
• Do not operate two or more seats at the
same time. This may result in an
electrical malfunction.
2C_AdjustSeatHeightmanual
To change the height of the seat cushion:
• Push down on the lever several times,
to lower the seat cushion.
• Pull up on the lever several times, to
raise the seat cushion.
3-8
3
Forward and rearward adjustment
Seat cushion tilt/Seat height adjustment
2C_AdjustSeatForwardBackwardAuto
2C_AdjustSeatHeightAuto
To move the seat forward or rearward:
• Seat cushion tilt (1)
1. Push the control switch forward or
To change the angle of the front part of
rearward.
the seat cushion:
2. Release the switch once the seat
1. Push the front portion of the control
reaches the desired position.
switch up to raise or down to lower the
front part of the seat cushion.
Seatback angle adjustment
2. Release the switch once the seat
reaches the desired position.
• Seat height (2)
To change the height of the seat:
1. Push the rear portion of the control
switch up to raise or down to lower the
height of the seat.
2. Release the switch once the seat
reaches the desired position.
2C_AdjustSeatBackAuto
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
3-9
Seats & Safety System
Lumbar support (for driver's seat)
Seatback pocket
if equipped
2C_AdjustSeatBackCushionAuto
To adjust the lumbar support:
2C_SeatBackPocket
1. Press the front portion of the switch (1)
The seatback pocket is provided on the
to increase support or the rear portion
back of the front passenger seatback.
of the switch (2) to decrease support.
2. Release the switch once the lumbar
CAUTION
support reaches the desired position.
Do not put heavy or sharp objects in the
seatback pocket. In a collision, they can
NOTICE
come loose from the pocket and injure
Do not continue to operate the lumbar
occupants.
support when the lumbar support
provides its
maximum support. Damage to the
lumbar support motor could occur.
Seat bolster adjustment (for driver's seat)
2C_AdjustSeatBolster
To adjust seat bolster:
1. Push the adjustment lever clockwise,
the seatback bolster will be adjusted
inward. Push the switch
counterclockwise, the seatback bolster
will be adjusted outward.
2. Release the lever once the bolster
reaches the desired position.
3-10
3
Rear seats
To fold down the rear seatback:
1. Adjust the front seatback to the upright
position and if necessary, slide the front
Folding the rear seats
seat forward.
The rear seatbacks can be folded to
2. Lower the rear head restraints to the
facilitate carrying long items or to
lowest position by pushing and holding
increase the rear cargo volume in the
the release button (1) and pushing
vehicle.
down on the head restraint (2).
Before folding the rear seats, lower the
head restraint to the lowest position and
store the seat belt to both sides of the
seats.
WARNING
• Never allow passengers to sit on top of
the folded down seatback while the
vehicle is moving. This is not a proper
seating position and no seat belts are
available for use. This could result in
2C_AdjustRearHeadrestUpDown_4
serious injury or death in a collision or
3. Route the seat belt webbing to the
sudden stop.
outward of the rear seat to prevent the
• Objects carried on the folded down
belts from being damaged.
seatback should not extend higher than
the top of the front seatbacks. This can
allow cargo to slide forward and cause
property damage or serious injury or
even death during a collision or sudden
stop.
2C_RearSeatFoldingStep_2
4. Open the trunk and fold the seat back
forward while pulling the seat folding
lever (1).
2C_RearSeatFoldingStep_3
3-11
Seats & Safety System
WARNING
Cargo should always be secured to
prevent it from moving in a collision and
causing serious injury or death to the
vehicle occupants. Do not place objects
in the rear seats, because they cannot be
properly secured and may hit the front
seat occupants in a collision.
2C_RearSeatFoldingStep_4
Armrest
5. To use the rear seat, lift and pull the
seatback rearward. Pull the seatback
firmly until it clicks into place. Make
sure the seatback is locked in place and
return the rear seat belt to the proper
position.
To unfold the rear seatback:
1. Lift and push the seatback rearward
while lifting up the front portion of the
folding lever.
2C_RearArmrestFilp
The armrest is located in the center of the
rear seat. Pull the armrest down from the
seatback to use it.
NOTICE
Make sure there is no object on the center
cushion before pulling down the armrest.
2C_RearSeatFoldingStep_5
2. Push the seatback firmly until it clicks
WARNING
into place. Make sure the seatback is
Make sure the armrest is securely locked
locked in place.
in its original position after use. The
3. Route the seat belt webbing to the
armrest may fall and cause injury in a
outward of the rear seat to prevent the
sudden stop.
belts from being damaged.
WARNING
Lock the seatback properly. In a collision
or sudden stop, an unlocked seatback
may allow cargo to move forward with
great force and may result in serious
injury or death.
3-12
3
Head restraint
WARNING
The vehicle's front and rear seats have
When passengers are sitting on the rear
adjustable head restraints. The head
seats, always raise the head restraints
restraints provide comfort for
above the lowest stored position.
passengers, but more importantly they
are designed to help protect passengers
from whiplash and other neck and spinal
injuries during an accident, especially in a
rear impact collision. When there are no
occupants in the rear seats, adjust the
rear head restraints to the lowest height
to improve the driver's visibility.
WARNING
To reduce the risk of serious injury or
death in an accident, take the following
2C_RearHeadrestCaution
precautions when adjusting your head
restraints:
Front seat head restraints
• Always adjust the head restraints
properly for all passengers BEFORE
starting the vehicle.
• Never let anyone ride in a seat with the
head restraint removed or reversed.
• Adjust the head restraints so that the
middle of the head restraint is at the
same height as the top of the eyes.
2C_HeadrestOverview
The driver's and front passenger's seats
are equipped with adjustable head
restraints for the passengers safety and
comfort.
2C_HeadrestRightPosition
• Never adjust the head restraint position
of the driver's seat when the vehicle is
moving.
• Adjust the head restraint as close to the
passenger's head as possible. Do not
use a seat cushion that holds the body
away from the seatback.
• Make sure the head restraint locks into
position after adjusting it.
3-13
Seats & Safety System
Adjusting the height up and down
Removal/Reinstall
To remove the head restraint:
Manual adjustment seat
2C_AdjustHeadrestUpDown
To raise the head restraint:
1. Pull it up to the desired position (1).
Power adjustment seat
To lower the head restraint:
1. Press and hold the release button (2) on
the head restraint support.
2. Lower the head restraint to the desired
position (3).
NOTICE
1. Recline the seatback (2) with the
seatback angle lever or switch (1).
2. Pull up the head restraint to the upmost
position and press the release button
(3) to remove the head restraint (4).
WARNING
2C_AdjustHeadrestCaution
If you recline the seatback towards the
Never allow anyone to travel in a seat with
front with the head restraint and seat
the head restraint removed.
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
3-14
3
To reinstall the head restraint:
Rear seat head restraints
Manual adjustment seat
2C_RearHeadrestPosition
The rear seats are equipped with head
Power adjustment seat
restraints in all the seating positions for
the passenger's safety and comfort.
Adjusting the height up and down
if equipped
1. Recline the seat back by pressing
seatback angle lever or switch (3).
2. Put the head restraint poles (2) into the
holes while pressing the release button
2C_AdjustRearHeadrestUpDown
(1).
To raise the head restraint:
3. Adjust the head restraint to the
appropriate height.
1. Pull it up to the desired position (1).
4. Adjust the seatback angle (4) with the
To lower the head restraint:
seatback angle lever or switch (3).
1. Press and hold the release button (2) on
the head restraint support.
WARNING
2. Lower the head restraint to the desired
Always make sure the head restraint locks
position (3).
into position after reinstalling and
adjusting it properly.
3-15
Seats & Safety System
Removal
Seats Warmers
if equipped
Seat warmers are provided to warm the
To remove the head restraint:
seats during cold weather.
During mild weather or under conditions
where the operation of the seat warmer is
not needed, keep the seat warmers off.
WARNING
The seat warmers can cause serious
burns, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
2C_AdjustRearHeadrestUpDown_3
is becoming too warm so they can turn it
1. Raise the head restraint as far as it can
off, if needed.
go.
Seat warmers consume large amounts of
2. Press the head restraint release button
electricity. Please avoid using seat
(1) while pulling up the head restraint
warmers while the vehicle is off in order
(2).
to prevent battery discharge.
People who cannot detect temperature
Reinstallation
change or pain to the skin should use
if equipped
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled
persons, or hospital outpatients.
• People with sensitive skin or who burn
easily.
• Fatigued individuals.
• Intoxicated individuals.
• People taking medication that may
cause drowsiness or sleepiness.
2C_AdjustRearHeadrestUpDown_4
To reinstall the head restraint:
Never place anything on the seat that
1. Put the head restraint poles into the
insulates against heat when the seat
holes (2) while pressing the release
warmer is operating, such as a blanket or
button (1).
seat cushion.
2. Adjust the head restraint to the
appropriate height.
NOTICE
To prevent damage to the seat warmers
and seats:
• Never use a solvent such as paint
thinner, benzene, alcohol or gasoline to
clean the seats.
• Do not place heavy or sharp objects on
seats equipped with seat warmers.
3-16
3
• Do not change the seat cover. It may
Seat Belts
damage the seat warmer.
This section describes how to use the seat
belts properly. It also describes some of
Front seat warmers
the things not to do when using seat belts.
While the engine is running, press the
seat warmer switch to warm the driver's
Seat belt safety precautions
seat or front passenger's seat.
Always fasten your seat belt and make
1. While the engine is running, press
sure all passengers have fastened their
next to the driver's seat or front
seat belts before starting any trip. Airbags
passenger's seat, which requires
are designed to supplement the seat belt
heating, from the climate control
as an additional safety device, not a
information screen.
replacement. Most states require all
vehicle occupants to wear seat belts.
WARNING
Seat belts must be used by ALL
passengers whenever the vehicle is
moving. To prevent serious injury or
death:
• Children under the age of 13 should be
properly restrained in the rear seats.
2C_FrontSeatWarmerSwitchTypeb
• Never allow children to ride in the front
passenger seat, unless the airbag is
• The seat warmer is turned on as low.
deactivated. If a child is seated in the
2. When you press the button in the
front passenger seat, move the seat as
high state, it is high, and you can move
far back as possible. And the child must
it in the order of medium, low, and off
always be restrained in the seat
by pressing the button.
properly.
• The seat warmer temperature is
• NEVER allow an infant or child to be
lowered automatically and then goes
carried on an occupant's lap.
off after a certain time to prevent low
• NEVER ride with the seatback reclined
temperature burns. Press or to
when the vehicle is moving.
adjust the temperature again. If high
temperature is selected again after
• Do not allow children to share a seat or
the seat warmer turns off, the
seat belt.
temperature is controlled
• Do not wear the shoulder belt under
automatically again.
your arm or behind your back.
• NEVER wear a seat belt over fragile
objects. If there is a sudden stop or
impact, the seat belt can damage it.
• Do not use the seat belt if it is twisted. A
twisted seat belt will not protect you
properly in a collision.
• Do not use a seat belt if the webbing or
hardware is damaged.
3-17
Seats & Safety System
• Do not latch the seat belt into the
Seat belt warning light
buckles intended for other seating
positions.
Driver's seat belt warning
• Never unfasten the seat belt while
Instrument cluster
driving. This may cause loss of vehicle
control resulting in a collision.
• Make sure there is nothing in the buckle
that could interfere with the seat belt
latch mechanism from fastening
securely.
• Never modify seatbelt or install devices
that may prevent seatbelt assembly
from removing slack.
• Do not use a seat belt if the webbing or
hardware is damaged. Have the seat
2C_SeatBeltWarningLampOverview
belt replaced by an authorized
As a reminder to the driver, the driver's
HYUNDAI dealer.
seat belt warning light illuminates for
about 6 seconds each time the Engine
Start/Stop button is in the ON position
regardless of seatbelt fastening.
WARNING
If you continue not to fasten the seat belt
Damaged seat belts and seat belt
or unfasten the seat belt while driving
assemblies do not operate properly.
under 12 mph (20 km/h), the seat belt
Always replace:
warning light illuminates.
• Frayed, contaminated, or damaged
If you continue not to fasten the seat belt
webbing.
or unfasten the seat belt while driving 12
• Damaged hardware.
mph (20 km/h) or faster, the seat belt
warning chime sounds for certain period
• The entire seat belt assembly after it
of time and the warning light blinks.
has been worn in an accident, even if
damage to webbing or assembly is not
apparent.
Front passenger's seat belt warning
As a reminder to the front passenger, the
front passenger's seat belt warning light
illuminates for about 6 seconds each time
the engine is turned on regardless of seat
belt fastening.
If the passenger continues to not fasten
their seat belt or unfasten their seat belt
and you drive under 12 mph (20 km/h), the
seat belt warning light illuminates.
If the passenger continues to not fasten
their seat belt or unfasten their seat belt
and you drive 12 mph (20 km/h) or faster,
the seat belt warning chime sounds for
certain period of time and the
corresponding warning light blinks.
3-18
3
Rear passenger's seat belt warning
WARNING
Riding in an improper position may
adversely affect the front passenger's
seat belt warning system. Instruct the
passenger to properly be seated when the
vehicle is moving.
Information
• If the front passenger seat is not
2C_RearSeatBeltWarningLamp
occupied, the seat belt warning light
• As a reminder to the rear seat
blinks or illuminate for 6 seconds.
passengers, the corresponding seat
• The front passenger's seat belt warning
belt warning light illuminates for about
may operate when luggage or
6 seconds each time the Engine
electronic devices are placed on the
Start/Stop button is in the ON position
front passenger seat.
regardless of seat belt fastening.
• Although the rear seats are not
occupied, the seat belt warning light
illuminates for about 70 seconds if the
seat belt is not fastened.
• If the seat belt is unfastened while
driving, the seat belt warning operates
as follows depending on vehicle speed.
- Under 12 mph (20 km/h): The
corresponding seat belt warning light
illuminates for about 70 seconds.
- Over 12 mph (20 km/h): The
corresponding seat belt warning light
blinks and the warning chime sounds
for about 35 seconds.
• If the seat belt is fastened, the
corresponding seat belt warning light
turns off immediately.
3-19
Seats & Safety System
Seat belt restraint system
NOTICE
If you cannot smoothly pull the seat belt
Driver's seat belt - 3-point system
out from the retractor, firmly pull the seat
with emergency locking retractor
belt out and release it. After release, the
belt may be pulled out smoothly.
To fasten your seat belt:
Pull the belt from the retractor and insert
the metal tab (1) into the buckle (2). An
audible "click" sounds when the tab locks
WARNING
into the buckle. Make sure the seat belt is
Improperly positioned seat belts may
not twisted.
increase the risk of serious injury in an
accident. Take the following precautions
when adjusting the seat belt:
• Position the lap portion of the seat belt
as low as possible across your hips, not
on your waist, so that it fits snugly. This
allows your strong pelvic bones to
absorb the force of the crash, reducing
the chance of internal injuries.
• Position one arm under the shoulder
belt and the other over the belt, as
2C_SeatBeltWearStep
shown in the illustration.
Place the lap belt portion across your hips
• Always position the shoulder belt
and the shoulder belt (2) portion across
anchor into the locked position at the
your chest.
appropriate height.
• Never position the shoulder belt across
your neck or face.
2C_SeatBeltWearStep_2
The seat belt automatically adjusts to the
proper length after the lap belt portion is
adjusted manually so that it fits snugly
around your hips. If you lean forward in a
slow, easy motion, the belt extends and
moves with you.
If there is a sudden stop or impact, the
belt will lock into position. It will also lock
if you try to lean forward too quickly.
3-20
3
Height adjustment (Front seat)
Passenger and rear seat belts -
3-point system with convertible
Adjust the height of the shoulder belt so
locking retractor
that it lies across your chest and midway
over your shoulder nearest the door, not
This type of seat belt combines both an
over your neck.
emergency locking retractor and an
automatic locking retractor. Convertible
To adjust the height of the seat belt
retractor type seat belts are installed in
anchor:
the rear seat positions to help
• Pull it up (1) to raise the height. To lower
accommodate the installation of child
it, push it down (3) while pressing the
restraint systems.
height adjuster button (2). Release the
A convertible retractor is also installed in
button to lock the anchor in place. Try
the front passenger seat position.
pushing the height adjuster down to
Children should always be seated in the
make sure that it is locked in place.
rear. Never place any infant/child
Front seat
restraint system in the front seat.
To fasten your seat belt:
Pull the seat belt out of the retractor and
insert the metal tab into the buckle. An
audible "click" sounds when the tab locks
into the buckle. Pull the shoulder portion
of the belt to snug the belt across your
hips and remove slack. Make sure the seat
belt is not twisted.
2C_AdjustSeatBeltHeight
When not securing a child restraint, the
seat belt automatically adjusts to the
To release your seat belt:
proper length only after the lap belt
Press the release button (1) in the locking
portion of the seat belt is adjusted
buckle.
manually so that it fits snugly across your
hips.
When the seat belt has been fully
extended from the retractor to allow for
the installation of a child restraint system,
the seat belt operation changes to allow
the belt to retract, but not to extend
(Automatic Locking Retractor Type).
Refer to the "Child Restraint System
(CRS)" section in this chapter.
2C_SeatBeltRelease
Once released, the belt should
automatically draw back into the
retractor. If this does not happen, check
the belt to be sure it is not twisted, then
try again.
3-21
Seats & Safety System
To release your seat belt:
Rear center seat belt (3-point rear
center seat belt)
2C_SeatBeltRelease
2C_RearCenterSeatBeltWearStep
Press the release button (1) in the locking
Insert the tongue plate (1) into the buckle
buckle.
(2) until an audible "click" is heard,
indicating the latch is locked. Pull the
The belt should automatically draw back
shoulder portion of the belt to snug the
into the retractor. If this does not happen,
belt across your hips and remove slack.
check the belt is not twisted, then try
Make sure the seat belt is not twisted.
again.
When using the rear center seat belt, use
Information
the buckle with the "CENTER" mark.
• The emergency locking mode allows
Information
seated passengers to move freely in
their seats while keeping some tension
If you cannot pull out the safety belt from
on the belt. During a collision or sudden
the retractor, firmly pull the belt out and
stop, the retractor automatically locks
release it. After release, pull out the belt
the belt to help restrain the passengers.
smoothly.
• To deactivate the automatic locking
mode, unbuckle the seat belt and allow
Pretensioner seat belt
the belt to fully retract.
2C_RetractPretensioner
Your vehicle is equipped with driver's,
front passenger's and rear passengers
pretensioner seat belts (retractor
pretensioner). The pretensioner makes
sure the seat belts fit tightly against your
body in certain frontal or side collision(s).
The pretensioner seat belts may be
3-22
3
activated in some crashes where the
CAUTION
frontal or side collision(s) is severe
enough, together with the airbags.
Body work on the front area of the vehicle
When the vehicle stops suddenly, or if you
may damage the pretensioner seat belt
try to lean forward too quickly, the seat
system. Have the system serviced by an
belt retractor locks in place.
authorized HYUNDAI dealer.
In some frontal collisions, the
pretensioner activates and pulls the seat
The pretensioner seat belt system
belt against your body.
consists mainly of the following
If the system senses excessive tension on
components. Their locations are shown in
the driver's or passenger's seat belt when
the illustration:
the pretensioner seat belt activates, the
load limiter inside the retractor
pretensioner releases some of the
pressure on the driver's or passenger's
seat belt.
WARNING
To prevent serious injury or death:
• Always wear your seat belt and sit
properly in your seat.
• Do not use the seat belt if it is loose or
2C_PretensionerComponent
twisted.
• Do not place anything near the buckle.
• Always replace your pretensioners after
activation or an accident.
• NEVER inspect, service, repair or
replace the pretensioners by yourself.
Have the pretensioners inspected,
serviced, repaired, or replaced by an
authorized HYUNDAI dealer.
• Do not hit the seat belt assemblies.
2C_RearRetractorPretensionerOverview
(1) SRS airbag warning light
(2) Front retractor pretensioner
(3) SRS control module
WARNING
(4) Rear retractor pretensioner
Do not touch the pretensioner seat belt
assemblies for several minutes after they
have been activated. When the
pretensioner seat belt mechanism
deploys during a collision, the
pretensioner can become hot and can
burn you.
3-23
Seats & Safety System
Additional seat belt safety
NOTICE
precautions
The sensor that activates the SRS control
module is connected with the
pretensioner seat belt. The SRS airbag
Seat belt use during pregnancy
warning light on the instrument cluster
The seat belt should always be used
illuminates for about 3-6 seconds after
during pregnancy. The best way to
the Engine Start/Stop button is in the ON
protect your unborn child is to protect
position, and then turns off.
yourself by always wearing the seat belt.
If the pretensioner is not working
Pregnant women should always wear a
properly, the warning light illuminates
lap-shoulder seat belt. Place the shoulder
even if the SRS airbag is not
belt across your chest, routed between
malfunctioning. If the warning light does
your breasts and away from your neck.
not illuminate when starting the engine or
Place the lap belt below your belly and
stays illuminated or illuminates while
pull the shoulder portion so that it fits
driving, have the pretensioner seat belts
SNUGLY across your hips and pelvic
and/or SRS control module inspected by
bone, under the rounded part of your
an authorized HYUNDAI dealer as soon as
belly.
possible.
WARNING
Pregnant women and patients are more
vulnerable to any impacts on the
Information
abdomen during an abrupt stop or
• Pretensioner seat belts may be
collision. If you are in an accident while
activated in certain frontal or side
pregnant, consult your doctor.
collisions or rollover situations.
To reduce the risk of serious injury or
• When the pretensioner seat belts are
death to an unborn child during an
activated, a loud noise may be heard
accident, pregnant women should
and fine dust, which may appear to be
NEVER place the lap portion of the seat
smoke, may be visible in the passenger
belt above or over the area of the
compartment. These are normal
abdomen where the unborn child is
operating conditions and are not
located.
hazardous.
• Although it is non-toxic, the fine dust
may cause skin irritation and should not
be inhaled for prolonged periods. Wash
all exposed skin areas thoroughly after
an accident in which the pretensioner
seat belts were activated.
Load limiter
If a seatbelt places an excessive load on
the chest during a vehicle crash, a load
limiter equipped with the seatbelt
reduces the pressure on the chest.
3-24
3
Seat belt use and children
Larger children
Children under age 13 and who are too
Infant and small children
large for a booster seat should always
All 50 states have Child Restraint System
occupy the rear seat and use the available
laws that require children to travel in
lap/shoulder belts. A seat belt should be
approved Child Restraint System devices,
snug against the hips and be snug across
including booster seats. The age at which
the shoulder and chest to restrain the
seat belts can be used instead of Child
child safely. A child's squirming could
Restraint System may be different among
move the belt out of position. Adults
states, so you should be aware of the
should frequently check belt fit. In a
specific requirements in your state, and
collision, the safest place for children is in
where you are traveling. Infant and Child
the rear seats, using a Child Restraint
Restraint System must be properly placed
System appropriate for the child.
and installed in a rear seat.
If a larger child over age 13 must be seated
For more information refer to the "Seat
in the front seat, the child must be
belt safety precautions" section in this
securely restrained by the available seat
chapter.
belt and the seat should be placed in the
rearmost position.
WARNING
If the shoulder belt portion slightly
Always properly restrain infants and small
touches the child's neck or face, try
children in a Child Restraint System
placing the child closer to the center of
appropriate for the child's height and
the vehicle. If the shoulder belt still
weight.
touches their face or neck, the child
needs to return to an appropriate booster
To reduce the risk of serious injury or
seat in the rear seat.
death to a child and other passengers,
never hold a child in your lap or arms
WARNING
when the vehicle is moving. Violent forces
during a collision will tear the child from
• Always make sure larger children's seat
your arms and throw the child against the
belts are buckled and properly
interior or to be ejected from the vehicle.
adjusted.
• Never allow the shoulder belt to
contact the child's neck or face.
Small children are best protected from
• Do not allow more than one child to use
injury in an accident when properly
a single seat belt.
restrained in the rear seat by a Child
Restraint System that meets the
requirements of the Federal Motor
Vehicle Safety Standards. Before buying
any Child Restraint System, make sure
that it has a label certifying that it meets
the Federal Motor Vehicle Safety
Standards FMVSS 213.
The Child Restraint System must be
appropriate for your child's height and
weight. Check the label on the Child
Restraint System for this information.
Refer to the "Child Restraint System
(CRS)" section in this chapter.
3-25
Seats & Safety System
Seat belt use and injured people
Care of seat belts
A seat belt should still be used when an
Seat belt systems should never be
injured person is being transported.
disassembled or modified.
Consult a physician for specific
recommendations.
Periodic inspection
All seat belts should be inspected
One person per belt
periodically for wear or damage of any
When two people (children or adults) are
kind. Any damaged parts should be
sitting together, never attempt to use a
replaced as soon as possible.
single seat belt. This could increase the
severity of injuries in a collision.
Keep belts clean and dry
Seat belts should be kept clean and dry. If
Do not lie down
belts become dirty, they can be cleaned
Sitting in a reclined position when the
by using a mild soap solution and warm
vehicle is moving can be dangerous. Even
water. Bleach, dye, strong detergents, or
when buckled up, the protections of your
abrasives should not be used because
restraint system (seat belts and/or
they may damage and weaken the fabric.
airbags) is greatly reduced by reclining
your seatback.
When to replace seat belts
Seat belts must be snug against your hips
The entire seat belt assembly or
and chest to work properly.
assemblies should be replaced if the
During a collision, you could be thrown
vehicle has been involved in an accident.
into the seat belt, causing neck or other
This should be done even if no damage is
injuries.
visible. Consult an authorized HYUNDAI
The more the seat back is reclined, the
dealer for assistance.
greater the chance for the passenger's
hips to slide under the lap belt or the
passenger's neck to strike the shoulder
belt.
WARNING
• Never ride with a reclined seatback
when the vehicle is moving.
• Riding with a reclined seatback
increases your chance of serious or
fatal injuries in the event of a collision or
sudden stop.
• Driver and passengers should always sit
well back in their seats with the
seatbacks upright and should be belted
properly.
3-26
3
or by a LATCH system in the rear seats of
Child Restraint System
the vehicle.
(CRS)
Child Restraint System (CRS)
Infants and younger children must be
Children always in the rear
restrained in an appropriate
rearward-facing or forward-facing CRS
WARNING
that has first been properly secured to the
Always properly restrain children in the
seat of the vehicle. Read and comply with
rear seats of the vehicle. Children of all
the instructions for installation and use
ages are safer when restrained in the rear
provided by the manufacturer of the Child
seat. A child riding in the front passenger
Restraint System.
seat can be forcefully struck by an
inflating airbag resulting in SERIOUS
WARNING
INJURY or DEATH.
An improperly secured child restraint can
increase the risk of SERIOUS INJURY or
DEATH in an accident. Always take the
Children under age 13 should always ride
following precautions when using a Child
in the rear seats and must always be
Restraint System:
properly restrained to minimize the risk of
injury in an accident, sudden stop, or
NEVER install a child or infant restraint
sudden maneuver.
in the front passenger's seat.
According to accident statistics, children
Always properly secure the child
are safer when properly restrained in the
restraint to a rear seat of the vehicle.
rear seats than in the front seat. Even with
Always follow the child restraint system
airbags, children can be seriously injured
manufacturer's instructions for
or killed. Children too large for a Child
installation and use.
Restraint System must use the seat belts
Always properly restrain your child in
provided.
the child restraint.
All 50 states have child restraint laws
If the vehicle head restraint prevents
which require children to travel in
proper installation of a child seat (as
approved Child Restraint Systems.
described in the child restraint system
The laws governing the age or
manual), the head restraint of the
height/weight restrictions at which seat
respective seating position shall be
belts can be used instead of Child
readjusted or entirely removed.
Restraint System differs among states, so
Do not use an infant carrier or a child
you should be aware of the specific
safety seat that "hooks" over a
requirements in your state, and where
seatback, it may not provide adequate
you are travelling.
protection in an accident.
Child Restraint Systems must be properly
After an accident, have an authorized
placed and installed in the rear seat. You
HYUNDAI dealer check the child
must use a commercially available Child
restraint system, seat belts, tether
Restraint System that meets the
anchors and lower anchors.
requirements of the Federal Motor
Vehicle Safety Standards (FMVSS 213).
Child Restraint Systems are generally
designed to be secured in a vehicle seat
by lap belt portion of a lap/shoulder belt,
3-27
Seats & Safety System
Selecting a Child Restraint
Rearward-facing Child Restraint System
System (CRS)
When selecting a Child Restraint System
for your child, always:
• Make sure the Child Restraint System
has a label certifying that it meets
applicable Federal Motor Vehicle
Safety Standards (FMVSS 213).
• Select a Child Restraint System based
on your child's height and weight. The
required label or the instructions for use
2C_ALRSeatBelt
typically provide this information.
A rearward-facing Child Restraint System
• Select a Child Restraint System that fits
provides restraint with the seating
the vehicle seating position where it will
surface against the back of the child. The
be used.
harness system holds the child in place,
and in an accident, acts to keep the child
• Read and comply with the warnings
positioned in the Child Restraint Systems
and instructions for installation and use
and reduce the stress to the fragile neck
provided with the Child Restraint
and spinal cord.
System.
All children under the age of one year
must always ride in a rearward-facing
Child Restraint System types
Child Restraint System. Convertible and
There are three main types of Child
3-in-1 Child Restraint Systems typically
Restraint Systems: rearward-facing,
have higher height and weight limits for
forward-facing and booster Child
the rearward-facing position, allowing
Restraint Systems.
you to keep your child rearward-facing
They are classified according to the
for a longer period of time.
child's age, height and weight.
Keep using Child Restraint Systems in the
rearward-facing position as long as
children fit within the height and weight
limits allowed by the Child Restraint
System's manufacturer. It's the best way
to keep them safe.
Once your child has outgrown the
rearward-facing Child Restraint System,
your child is ready for a forward-facing
Child Restraint System with a harness.
WARNING
• NEVER install a child or infant restraint
in the front passenger's seat.
• Placing a rearward-facing child
restraint in the front seat can result in
SERIOUS INJURY or DEATH if the child
restraint is struck by an inflating airbag.
3-28
3
Forward-facing Child Restraint System
Installing a Child Restraint
System (CRS)
WARNING
Before installing your Child Restraint
System always:
Read and follow the instructions provided
by the manufacturer of the Child
Restraint System.
Failure to follow all warnings and
2C_ALRSeatBelt_2
instructions could increase the risk of the
A forward-facing Child Restraint System
SERIOUS INJURY or DEATH if an accident
provides restraint for the child's body
occurs.
with a harness. Keep children in a
forward-facing Child Restraint System
with a harness until they reach the top
WARNING
height or weight limit allowed by your
Child Restraint System's manufacturer.
If the vehicle head restraint prevents
proper installation of a Child Restraint
Once your child outgrows the
System, the head restraint of the
forward-facing Child Restraint System,
respective seating position shall be
your child is ready for a booster seat.
readjusted or entirely removed.
Booster seats
A booster seat is a Child Restraint System
After selecting a proper Child Restraint
designed to improve the fit of the
System for your child and checking that
vehicle's seat belt system. A booster seat
the Child Restraint System fits properly
positions the seat belt so that it fits
on the seating position, there are three
properly over the stronger parts of your
general steps for a proper installation:
child's body. Keep your children in
Properly secure the Child Restraint
booster seats until they are big enough to
System to the vehicle. All Child
fit in a seat belt properly.
Restraint Systems must be secured to
For a seat belt to fit properly, the lap belt
the vehicle with the lap belt or lap part
must lie comfortable across the upper
of a lap/shoulder belt or with the lower
thighs, not the stomach. The shoulder
anchor and/or tether anchor and/or
belt should lie comfortable across the
with the support leg.
shoulder and chest and not across the
Make sure the Child Restraint System
neck or face. Children under age 13 must
is firmly secured. After installing a
always be properly restrained to minimize
Child Restraint System to the vehicle,
the risk of injury in an accident, sudden
push and pull the seat forward and from
stop or sudden maneuver.
side-to-side to verify that it is securely
attached to the seat. A Child Restraint
System secured with a seat belt should
be installed as firmly as possible.
However, some side-to-side
movement can be expected. When
installing a Child Restraint System,
adjust the vehicle seat and seatback
3-29
Seats & Safety System
(up and down, forward and rearward)
so that your child fits in the Child
Restraint System in a comfortable
manner.
Secure the child in the Child Restraint
System. Make sure the child is properly
strapped in the Child Restraint System
according to the Child Restraint System
manufacturer's instructions.
CAUTION
2C_ALRSeatBeltLowerAnchorOverview
A Child Restraint System in a closed
LATCH anchors have been provided in the
vehicle can become very hot. To prevent
left and right outboard rear seating
burns, check the seating surface and
positions. Their locations are shown in the
buckles before placing your child in the
illustration. There are no LATCH anchors
Child Restraint System.
provided for the center rear seating
position.
Lower Anchors and Tether for
WARNING
Children (LATCH System)
Do not attempt to install a Child Restraint
The LATCH system holds a Child Restraint
System using LATCH anchors in the rear
System during driving and in an accident.
center seating position. There are no
This system is designed to make
LATCH anchors provided for this seat.
installation of the Child Restraint System
Using the outboard seat anchors can
easier and reduce the possibility of
damage the anchors which may break or
improperly installing your Child Restraint
fail in a collision resulting in serious injury
System. The LATCH system uses anchors
or death.
in the vehicle and attachments on the
Child Restraint System. The LATCH
system eliminates the need to use seat
belts to secure the Child Restraint System
to the rear seats.
Lower anchors are metal bars built into
the vehicle. There are two lower anchors
for each LATCH seating position that will
accommodate a Child Restraint System
with lower attachments.
To use the LATCH system in your vehicle,
you must have a Child Restraint System
with LATCH attachments.
2C_ALRSeatBeltLowerAnchor
(1) Lower Anchor Position Indicator
The Child Restraint System manufacturer
will provide you with instructions on how
(2) Lower Anchor
to use the Child Restraint System with its
The lower anchor position indicator
attachments for the LATCH anchorages.
symbols are located on the left and right
rear seat backs to identify the position of
the lower anchors in your vehicle (see
arrows in illustration).
3-30
3
The LATCH anchors are located between
WARNING
the seatback and the seat cushion of the
rear seat left and right outboard seating
Take the following precautions when
positions.
using the LATCH system:
• Read and follow all installation
WARNING
instructions provided with your Child
Before installing the Child Restraint
Restraint System.
System, make sure that there are no
• To prevent the child from reaching and
objects (for example, toy, pen, wire)
taking hold of unretracted seat belts,
around the lower anchor area. Those
buckle all unused rear seat belts and
objects may damage either the seat belt
retract the seat belt webbing behind
system or the Child Restraint System
the child. Children can be strangled if a
during the installment procedure. If
shoulder belt becomes wrapped
necessary, have your vehicle inspected
around their neck and the seat belt
by an authorized HYUNDAI dealer.
tightens.
• NEVER attach more than one Child
Restraint System to a single anchorage.
Securing a Child Restraint System
This could cause the anchor or
with the "LATCH Anchors System"
attachment to come loose or break.
To install a LATCH-compatible Child
• Always have the LATCH system
Restraint System in either of the rear
inspected by your dealer after an
outboard seating positions:
accident. An accident can damage the
1. Move the seat belt buckle away from
LATCH system and may not properly
the lower anchors.
secure the Child Restraint System.
2. Move any other objects away from the
anchorages that could prevent a secure
connection between the Child Restraint
NOTICE
System and the lower anchors.
3. Place the Child Restraint System on the
Make sure that the combined weight of
vehicle seat, then attach the seat to the
the child and the child restraint system is
lower anchors according to the
less than 65 lbs. (30 kg) for each LATCH
instructions provided by the Child
system.
Restraint System manufacturer.
4. Follow the instructions of the Child
Restraint System's manufacturer for
proper installation and connection of
the lower attachments on the Child
Restraint System to the lower anchors.
3-31
Seats & Safety System
Securing a Child Restraint System
3. Check that the Child Restraint System
seat with "Top-tether Anchorage"
is securely attached to the seat by
system
pushing and pulling the seat
forward-and-back and side-to-side.
WARNING
Take the following precautions when
installing the top-tether:
• Read and follow all installation
instructions provided with your Child
Restraint System.
• NEVER attach more than one Child
Restraint System to a single tether
2C_ALRSeatBeltTetherAnchor
anchor. This could cause the anchorage
First secure the child restraint with the
or attachment to come loose or break.
LATCH lower anchors or the seat belt. If
• Do not attach the tether strap to
the child restraint manufacturer
anything other than the correct
recommends that the top tether strap be
top-tether anchor. It may not work
attached, attach and tighten the top
properly if attached to something else.
tether strap to the top tether strap
anchor.
• Child Restraint System anchors are
designed to withstand only those loads
Top tether anchorages are located on the
imposed by correctly fitted Child
rear of the seatbacks.
Restraint System.
Under no circumstances are the
anchors to be used for adult seat belts
or harnesses or for attaching other
items or equipment to the vehicle.
2C_ALRSeatBeltTetherAnchorInstall
To install the tether anchor:
1. Route the Child Restraint System
top-tether strap over the seatback.
Placing the top tether strap, follow the
instructions of the Child Restraint
System manufacturer.
2. Connect the tether strap hook to the
tether anchor, then tighten the
top-tether strap according to the
instructions of your Child Restraint
System's manufacturer to firmly attach
the Child Restraint System to the seat.
3-32
3
Securing a Child Restraint System
To install a Child Restraint System on the
with a lap/shoulder belt
rear seats, do the following:
When not using the LATCH system, all
1. Place the Child Restraint System on a
Child Restraint Systems must be secured
rear seat and route the lap/shoulder
to a rear seat with the lap part of a
belt around or through the Child
lap/shoulder belt.
Restraint System, following the Child
Restraint System manufacturer's
WARNING
instructions. Make sure the seat belt
webbing is not twisted.
ALWAYS place a rearward-facing Child
Restraint System in the rear seat of the
Information
vehicle.
When using the rear center seat belt,
Placing a rearward-facing child restraint
you should also refer to the "Rear
in the front seat can result in serious injury
center seat belt (3-point rear center
or death if the Child Restraint System is
seat belt)" section in this chapter.
struck by an inflating airbag.
2. Fasten the lap/shoulder belt latch into
Automatic locking mode
the buckle. Listen for the distinct "click"
sound.
2C_ALRSeatBeltInstall
Since all passenger seat belts move freely
2C_ALRSeatBeltInstall_2
under normal conditions and only lock
under extreme or emergency conditions
Information
(emergency locking mode), you must
manually pull the seat belt all the way out
Position the release button so that it is
to shift the retractor to the "Automatic
easy to access in case of an emergency.
Locking" mode to secure a Child Restraint
System.
3. Pull the shoulder portion of the seat belt
The "Automatic Locking" mode will help
all the way out. When the shoulder
prevent the normal movement of the
portion of the seat belt is fully
child in the vehicle from causing the seat
extended, it will shift the retractor to
belt to loosen and compromise the Child
the "Automatic Locking" (child
Restraint System. To secure a Child
restraint) mode.
Restraint System, use the following
procedure.
3-33
Seats & Safety System
6. Push and pull on the Child Restraint
System to confirm that the seat belt is
holding it firmly in place. If it is not,
release the seat belt and repeat steps 2
through 6.
7. Double check that the retractor is in the
"Automatic Locking" mode by
attempting to pull more of the seat belt
out of the retractor. If you cannot, the
retractor is in the "Automatic Locking"
2C_ALRSeatBeltInstall_3
mode.
4. Slowly allow the shoulder portion of the
If your Child Restraint System
seat belt to retract and listen for an
manufacturer instructs or recommends
audible "clicking" or "ratcheting"
you to use a tether anchor with the
sound. This indicates that the retractor
lap/shoulder belt, refer to the "Installing a
is in the "Automatic Locking" mode. If
Child Restraint System (CRS)" section in
no distinct sound is heard, repeat steps
this chapter.
3 and 4.
Information
When the seat belt is allowed to retract to
its fully stowed position, the retractor will
automatically switch from the "Automatic
Locking" mode to the emergency lock
mode for normal adult usage.
WARNING
2C_ALRSeatBeltInstall_4
If the retractor is not in the "Automatic
5. Remove as much slack from the belt as
Locking" mode, the child restraint can
possible by pushing down on the Child
move when your vehicle turns or stops
Restraint System while feeding the
suddenly. A child can be seriously injured
shoulder belt back into the retractor.
or killed if the child restraint is not
properly anchored in the car, including
manually pulling the seat belt all the way
out to shift the retractor to the "Automatic
Locking" mode.
To remove the Child Restraint System,
press the release button on the buckle
and then pull the lap/shoulder belt out of
the Child Restraint System and allow the
seat belt to retract fully.
2C_ALRSeatBeltInstall_5
3-34
3
Airbag - Advanced Supplemental Restraint System
1C_AirbagOverview
The actual airbags in the vehicle may differ from the illustration.
(1) Driver's front airbag
(2) Passenger's front airbag
(3) Front Side airbag
(4) Rear Side airbag
(5) Curtain airbag
(6) Driver's knee airbag
3-35
Seats & Safety System
Your vehicle is equipped with an Advanced Supplemental Airbag System for the driver's
and front passenger's seats.
The front airbags are designed to supplement the three-point seat belts. For these
airbags to provide protection, seat belts must be properly worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Airbags are built into the vehicle as a supplementary system. They are not intended as a
replacement for wearing 3-point seat belts. Also, airbags are not designed to deploy in
every collision. In some accidents, the seat belts are the only restraint protecting you.
WARNING
AIRBAG SAFETY PRECAUTIONS
• Always use seat belts and Child Restraint Systems - every trip, every time, everyone!
Even with airbags, you can be seriously injured or killed in a collision if you are
improperly belted or not wearing your seat belt when the airbag inflates.
• Never place a child in any Child Restraint System or booster seat in the front passenger
seat, unless the airbag is deactivated.
• An inflating airbag could forcefully strike the infant or child causing serious or fatal
injuries.
• ABC - Always Buckle Children under age 13 in the back seat. It is the safest place for
children of any age to ride. If a child age 13 or older must be seated in the front seat, he
or she must be properly belted and the seat should be moved as far back as possible.
• Make sure that all occupants sit upright with the seatback in an upright position,
centered on the seat cushion with their seat belt on, legs comfortably extended, and
their feet on the floor until the vehicle is parked and the vehicle is turned off. If an
occupant is out of position during an accident, the rapidly deploying airbag may
forcefully contact the occupant causing serious or fatal injuries.
• Never sit or lean unnecessarily close to the airbags or lean against the door or center
console.
• Move your seat as far back as possible from front airbags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 inches (25 cm) between the center
of the steering wheel and the chest.
3-36
3
SRS components
1C_AirbagPartsOverview
The SRS consists of the following components:
(1) Driver's front airbag module
(2) Passenger's front airbag module
(3) Side airbag modules
(4) Curtain airbag modules
(5) Retractor pretensioner
(6) Airbag warning light
(7) SRS control module (SRSCM)/Rollover sensor
(8) Front impact sensors
(9) Side impact sensors (acceleration)
(10)Side impact sensors (pressure)
(11) Driver's knee airbag module
(12)Occupant Classification System (OCS)
(13)Rear side airbag modules
Information
Front Passenger's airbag OFF indicator is located on the overhead console.
3-37
Seats & Safety System
Where are the airbags?
crash pad below the steering wheel, and
the passenger's side front panel pad
above the glove box.
Driver's and passenger's front
The airbag locations are embossed with
airbags
the letters, "AIRBAG".
Driver's front airbag
The purpose of the SRS is to provide the
vehicle's driver and front passenger with
additional supplemental protection that
the seat belt system does not provide in
case of a frontal impact of sufficient
severity.
The SRS uses sensors to gather
information about the driver's and front
passenger's seat belt usage and impact
severity.
The seat belt buckle sensors determine if
Passenger's front airbag
the driver and front passenger's seat belts
are fastened. These sensors provide the
ability to control the SRS deployment
based on whether or not the seat belts are
fastened, and how severe the impact is.
The advanced SRS offers the ability to
control the airbag inflation within two
levels. A first stage level is provided for
moderate severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity and seat
Driver's knee airbag
belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts may
increase the risk or severity of injury in a
collision.
Your vehicle is equipped with an
Advanced Supplemental Restraint
System (SRS) and lap/shoulder belts at
both the driver and passenger seating
positions.
The SRS consists of advanced airbags
which are located in the center of the
steering wheel, in the driver's side lower
3-38
3
Side airbags
WARNING
Front seat
To reduce the risk of serious injury or
death from inflating front airbags:
• Seat belts must be worn at all times to
help keep occupants positioned
properly.
• Move your seat as far back as possible
from front airbags, while still
maintaining control of the vehicle.
• Never lean against the door or center
console.
2C_SideAirbagLabel
• Hold the steering wheel at the 9 o'clock
Rear seat
and 3 o'clock positions, to minimize the
risk of injuries to your hands and arms.
• Do not allow the front passenger to
place their feet or legs on the
dashboard.
• Never place any objects (such as
dashboard cover, mobile phone holder,
cup holder, perfume or stickers) over or
near the airbag modules on the steering
wheel, instrument panel, windshield
glass, and the front passenger's panel
above the glove box. Such objects may
cause harm if the vehicle is in a crash
severe enough to cause the airbags to
deploy.
• Do not attach any objects on the front
windshield and inside mirror.
2C_SideAirbagDeployment
Side airbags are located in each front seat
and outboard rear seats.
The side airbags are designed to deploy
during certain side impact collisions,
depending on the crash severity, angle,
speed and point of impact.
The side and/or curtain airbags and
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
3-39
Seats & Safety System
The side airbags are not designed to
Curtain airbags
deploy in all side impact or rollover
situations.
WARNING
To reduce the risk of serious injury or
death from an inflating side airbag:
Seat belts must be worn at all times to
help keep occupants positioned
properly.
Do not allow passengers to lean their
2C_CurtainAirbagLabel
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
Hold the steering wheel at the 9 o'clock
and 3 o'clock positions, to minimize the
risk of injuries to your hands and arms.
Do not use any accessory seat covers. It
may reduce or prevent the
effectiveness of the system.
Do not hang other objects except
2C_CurtainAirbagDeployment
clothes. In an accident it may cause
Curtain airbags are located along both
vehicle damage or personal injury
sides of the roof rails above the front and
especially when airbag is inflated.
rear doors.
Do not place any objects over the
They are designed to help protect the
airbag location or between the airbag
heads of the front seat occupants and the
and yourself. Also, do not attach any
rear outboard seat occupants in certain
objects around the area the airbag
side impact collisions.
inflates such as door, side door glass,
The curtain airbags are designed to
and front and rear pillar.
deploy during certain side impact
Do not place any objects between the
collisions, depending on the crash
door and the seat. They may become
severity.
dangerous projectiles if the side airbag
The side and/or curtain airbags and
inflates.
pretensioners on both sides of the vehicle
Do not install any accessories on the
may deploy if a rollover or possible
side or near the side airbags.
rollover is detected.
Do not cause an impact to the doors
The curtain airbags are not designed to
when the Engine Start/Stop button is in
deploy in all side impact or rollover
the ON or START position because the
situations.
side airbags can inflate.
If the seat or seat cover is damaged,
have your vehicle serviced by an
authorized HYUNDAI dealer.
3-40
3
How does the airbags system
WARNING
operate?
To reduce the risk of serious injury or
The SRSCM (Supplemental Restraint
death from an inflating curtain airbag:
System Control Module) continually
Seat belts must be worn at all times to
monitors all SRS components while the
help keep occupants positioned
Engine Start/Stop button is ON to
properly.
determine if a crash impact is severe
Properly secure a Child Restraint
enough to require airbag deployment or
System as far away from the door as
pretensioner seat belt deployment.
possible.
During a moderate to severe frontal
Do not place any objects over the
collision, sensors detect the vehicle's
airbag. Also, do not attach any objects
rapid deceleration. If the rate of
around the area the airbag inflates such
deceleration is high enough, the SRSCM
as door, side door glass, front and rear
inflates the front airbags with the force
pillar, and roof side rail.
needed.
Do not hang other objects except
The front airbags help protect the driver
clothes, especially hard or breakable
and front passenger by responding to
objects near airbag locations. In an
frontal impacts in which seat belts alone
accident, it may cause vehicle damage
cannot provide adequate restraint. When
or personal injury.
needed, the side airbags help provide
protection in the event of a side impact or
Do not allow passengers to lean their
rollover by supporting the side upper
heads or bodies onto doors, put their
body area.
arms on the doors, stretch their arms
out of the window, or place objects
• Airbags are activated (able to inflate if
between the doors and seats.
necessary) only when the Engine
Start/Stop button is in the ON or START
Do not open or repair the side curtain
position, and it may be activated within
airbags yourself. If necessary, have the
3 minutes after the engine is turned off.
airbag inspected by an authorized
HYUNDAI dealer.
• Airbags inflate in the event of certain
frontal or side collisions to help protect
the occupants from serious physical
injury.
• There is no single speed at which the
airbags will inflate. Generally, airbags
are designed to inflate based upon the
severity of a collision and its direction.
Airbag deployment also depends on a
number of other factors including
vehicle speed, angles of impact and the
density and stiffness of the vehicles or
objects which your vehicle impacts
during a collision. The determining
factors are not limited to those
mentioned above.
• The front airbags completely inflate
and deflate in an instant. It is virtually
impossible for you to see the airbags
inflate during an accident. It is much
3-41
Seats & Safety System
more likely that you simply see the
WARNING
deflated airbags hanging out of their
storage compartments after the
To reduce the risk of serious injury or
collision.
death from an inflating airbag:
• In addition to inflating in serious side
Never place a child restraint in the front
collisions, side and/or curtain airbags
passenger seat. Always properly
inflate if the sensing system detects a
restrain children under age 13 in the
rollover.
rear seats of the vehicle.
When a rollover is detected, curtain
Adjust the front passenger's and
airbags remain inflated longer to help
driver's seats as far to the rear as
provide protection from ejection,
possible while allowing you to maintain
especially when used in conjunction
full control of the vehicle.
with the seat belts.
Hold the steering wheel with hands at
• To help provide protection, the airbags
the 9 o'clock and 3 o'clock positions.
must inflate rapidly. The speed of
Never place anything or anyone
airbag inflation is a consequence of
between the airbag and the seat
extremely short time in which the
occupant.
airbag inflates between the occupant
Do not allow the front passenger to
and the vehicle structures before the
place their feet or legs on the
occupant impacts those structures.
dashboard.
This speed of inflation reduces the risk
of serious or life-threatening injuries
and is thus a necessary part of airbag
design.
However, the rapid airbag inflation may
also cause injuries that include facial
abrasions, bruises, and broken bones
because the inflation speed also causes
the airbags to expand with great force.
• There are even circumstances under
which contact with the airbag may
cause fatal injuries, especially when the
occupant is positioned excessively
close to the airbag.
You can take steps to reduce the risk of
being injured by an inflating airbag. The
greatest risk is sitting too close to the
airbag. An airbag needs about 10 inches
(25 cm) of space to inflate. NHTSA
recommends that drivers allow at least 10
inches (25 cm) between the center of the
steering wheel and the chest.
3-42
3
Driver's front airbag (1)
Driver's front airbag (3)
When the SRSCM detects a sufficiently
Passenger's front airbag
severe impact to the front of the vehicle,
it automatically deploys the front airbags.
Driver's front airbag (2)
2C_PassengerAirbagDeployment
After complete inflation, the airbag
immediately starts deflating, enabling the
driver to maintain forward visibility and
steer or operate other controls.
Upon deployment, tear seam in the pad
cover separates from the expansion of
WARNING
the airbags.
To prevent objects from becoming
A fully inflated airbag, in combination
dangerous projectiles when the
with a properly worn seat belt, slows the
passenger's airbag inflates:
driver's or the front passenger's forward
motion, reducing the risk of head and
• Do not install or place any objects (drink
chest injury.
holder, CD holder, stickers, etc.) on the
front passenger's panel above the glove
box where the passenger's airbag is
located.
• Do not install a container of liquid air
freshener near the instrument cluster or
on the instrument panel surface.
3-43
Seats & Safety System
What to expect after an airbag
Noise and smoke from inflating
airbag
inflates
When the airbags inflate, they make a
After a frontal or side airbag inflates, it
loud noise and may release powder inside
deflates very quickly. Airbag inflation
the vehicle. After the airbag inflates, you
does not prevent the driver from seeing
may feel discomfort while breathing. This
out of the windshield or being able to
may be due to the impact of the airbag or
steer. Curtain airbags may remain
the seat belt with your chest and it may
partially inflated for some time after they
also be due to breathing residual powder
deploy.
in the air and around your vehicle. The
powder may aggravate asthma for some
WARNING
people. If you experience breathing
After an airbag inflates, take the following
problems after an airbag deployment,
precautions:
seek medical attention immediately.
• Open your windows and doors as soon
Though the powder is nontoxic, it may
as possible after impact to reduce
cause irritation to the skin, eyes, nose,
prolonged exposure to the powder
throat, etc. If this is the case, wash and
released by the inflating airbag.
rinse with cold water immediately and
• Do not touch the airbag storage area's
seek medical attention if the symptoms
internal components immediately after
persist.
an airbag has inflated. The parts that
come into contact with an inflating
airbag may be very hot.
• Always wash exposed skin areas
thoroughly with cold water and mild
soap.
• Have an authorized HYUNDAI dealer
inspect your vehicle and replace
components as required before
operating your vehicle again. Airbags
are designed to be used only.
3-44
3
SRS warning light
Occupant Classification
System (OCS)
WL_AirbagWarningLamp
The SRS (Supplemental Restraint System)
airbag warning light on the instrument
panel displays the airbag symbol in the
illustration. The light indicates if there is a
2C_OCSIndicator
potential problem with your airbag
Your vehicle is equipped with an
system, which could include your side
Occupant Classification System (OCS) in
and/or curtain airbags used for rollover
the front passenger's seat.
protection.
WARNING
Main components of the Occupant
Classification System
If your SRS malfunctions, the airbags may
not inflate properly during a collision
• A detection device located within the
increasing the risk of serious injury or
front passenger seat cushion.
death.
• Electronic system to help determine
Your SRS malfunctions in the following
whether the passenger airbag systems
conditions:
should be activated or deactivated.
• The light does not turn on for about
• An indicator light located on the
three to six seconds when the Engine
overhead console which illuminates the
Start/Stop button is in the ON position.
words "PASSENGER AIRBAG OFF"
indicating the front passenger airbag
• The light stays on after illuminating for
system is deactivated.
about three to six seconds.
• The instrument cluster airbag indicator
• The light comes on while the vehicle is
light is interconnected with the OCS.
moving.
The OCS is designed to help detect the
• The light blinks when the engine is
presence of a properly-seated front
running.
passenger and determine if the
Have an authorized HYUNDAI dealer
passenger's front airbag should be
inspect the SRS as soon as possible.
enabled (may inflate) or not.
The purpose is to help reduce the risk of
injury or death from an inflating airbag to
certain front passenger seat occupants,
such as children, by requiring the airbag
to be automatically turned off.
For example, if a child restraint of the type
specified in the regulations is on the seat,
the occupant classification sensor can
detect it and cause the airbag to turn off.
3-45
Seats & Safety System
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger airbag to be automatically
turned off. For smaller adults it may turn
off, however, if the occupant does not sit
in the seat properly (for example, by not
sitting upright, by sitting on the edge of
the seat, or by otherwise being out of
position), this could cause the sensor to
turn the airbag off.
You will find the "PASSENGER AIRBAG
OFF" indicator on the overhead console
panel. This system detects the conditions
1-4 in the following table and activates or
deactivates the front passenger airbag
based on these conditions.
Always be sure that you and all vehicle
occupants are seated properly and
wearing the seat belt properly for the
most effective protection by the airbag
and the seat belt.
The OCS may not function properly if the
passenger takes actions which can affect
the classification system. These include:
• Failing to sit in an upright position.
• Leaning against the door or center
console.
• Sitting towards the sides of the front of
the seat.
• Putting their legs on the dashboard or
resting them on other locations which
reduce the passenger weight on the
front seat.
• Wearing the seat belt improperly.
• Reclining the seatback.
• Wearing thick clothing like ski wear or
hip protection wear.
• Putting an additional thick cushion on
the seat.
• Putting electrical devices (for example,
notebook, satellite radio) on the seat
with inverter charging.
3-46
3
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning Light
Devices
Condition Detected by the
"PASSENGER
Occupant Classification System
SRS Warning
Front Passenger
AIRBAG OFF"
Light
Airbag
Indicator Light
Adult *1
Off
Off
Activated
Infant *2 or Child Restraint System
On
Off
Deactivated
with 12 months old *3*4
Unoccupied
On
Off
Deactivated
Malfunction in the system
Off
On
Activated
*1 The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the
system may recognize him/her as a child depending on his/her physique and posture.
*2 Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a Child Restraint
System sits in the front passenger seat, the system may recognize him/her as an adult depending upon his/her
physique or sitting position.
*3 Never install a Child Restraint System on the front passenger seat.
*4 The PASSENGER AIRBAG "OFF" indicator may turn on or off when a child above 12 months to 12 years old (with
or without Child Restraint System) sits in the front passenger seat. This is a normal condition.
3-47
Seats & Safety System
• NEVER place your feet or legs on the
WARNING
dashboard.
Riding in an improper position or placing
weight on the front passenger's seat
when it is unoccupied by a passenger
adversely affects the OCS. To reduce the
risk of serious injury or death:
• NEVER put a heavy load in the front
seat or seatback pocket, or hang any
items on the front passenger seat.
2C_OCSWarning_3
• NEVER place your feet on the front
passenger seatback.
2C_OCSWarning
• NEVER sit with your hips shifted
towards the front of the seat.
2C_OCSWarning_4
• NEVER ride with the seatback reclined
when the vehicle is moving.
2C_OCSWarning_2
2C_OCSWarning_5
3-48
3
• NEVER lean on the door or center
• Do not use car seat accessories such as
console or sit on one side of the front
thick blankets and cushions which
passenger seat.
cover up the car seat surface.
2C_OCSWarning_6
2C_OCSWarning_9
• Do not sit on the passenger seat
• If large quantity of liquid has been
wearing heavily padded clothes such as
spilled on the passenger seat, the
ski wear or hip protector.
airbag warning light may illuminate or
malfunction. Therefore, make sure the
seat has been completely dried before
driving the vehicle.
2C_OCSWarning_7
• Do not place electronic devices such as
laptops, DVD player, or conductive
materials such as water bottles on the
2C_OCSWarning_10
passenger seat. Do not use electronic
• Do not place sharp objects on the front
devices such as laptops and satellite
passenger seat. These may damage the
radios which use inverter chargers.
occupant detection system, if they
puncture the seat cushion.
• Do not place any items under the front
passenger seat.
• When changing or replacing the seat
only use Genuine Hyundai Parts. The
OCS has been developed based on
using original HYUNDAI car seats only.
Altering or changing the authentic parts
may result in system malfunction and
increase risk of injury when in collision.
2C_OCSWarning_8
Any of the above could interfere with
the proper operation of the OCS sensor
3-49
Seats & Safety System
thereby increasing the risk of an injury
NOTICE
in an accident.
The "PASSENGER AIRBAG OFF" indicator
generally illuminates for about 4 seconds
Proper seated position for OCS
after the Start/Stop button is in the ON or
START position. But, if the Start/Stop
button is pressed to the ON or START
position within 3 minutes after the vehicle
is turned OFF, the indicator does not
illuminate. If the front passenger seat is
occupied, the OCS will then classify the
front passenger after several more
seconds.
Do not install a Child Restraint
2C_HowToUseOCS
System on the Front Passenger's
If the "PASSENGER AIRBAG OFF"
Seat
indicator is on when an adult is seated in
the front passenger seat, place the
Start/Stop button in the OFF position and
ask the passenger to sit properly (sitting
upright with the seat back in an upright
position, centered on the seat cushion
with their seat belt on, legs comfortably
extended and their feet on the floor).
Restart the vehicle and have the person
remain in that position. This will allow the
system to detect the person and to enable
the passenger airbag. If the "PASSENGER
2C_AirbagPartsWarning
AIRBAG OFF" indicator is still on, ask the
Even though your vehicle is equipped
passenger to move to the rear seat.
with the OCS, never install a child
restraint in the front passenger's seat. An
WARNING
inflating airbag can forcefully strike a
NEVER allow an adult passenger to ride in
child or child restraint resulting in serious
the front passenger seat when the
or fatal injury.
"PASSENGER AIRBAG OFF" indicator is
illuminated. During a collision, the airbag
WARNING
will not inflate if the indicator is
NEVER use a rearward facing Child
illuminated. Have your passenger
Restraint on a seat protected by an
reposition themselves in the seat. If the
ACTIVE AIRBAG in front of it, DEATH or
"PASSENGER AIRBAG OFF" indicator
SERIOUS INJURY to the CHILD can occur.
remains illuminated after the passenger
Children should always ride in the rear
repositions themselves properly and the
seats.
vehicle is restarted, have the passenger
move to the rear seat because the airbag
will not inflate.
3-50
3
Why didn't my airbag go off in
a collision?
There are certain types of accidents in
which the airbag would not deploy
including rear impacts and second or
third collisions in multiple impact
accidents, as well as low speed impacts.
Damage to the vehicle indicates a
collision energy absorption, and is not an
indicator of whether or not an airbag
should have inflated.
Airbag collision sensors
WARNING
To reduce the risk of an airbag deploying
unexpectedly and causing serious injury
or death:
• Do not hit or allow any objects to
impact the locations where airbags or
sensors are installed.
• Do not perform maintenance on or
around the airbag sensors. If the
location or angle of the sensors is
changed, the airbags may deploy when
they should not or may not deploy.
• Do not install bumper guards with non
genuine Hyundai or non-equivalent
parts. It may adversely affect the
collision and airbag deployment
performance.
• Press the Engine Start/Stop button to
the OFF or ACC position and wait for 3
minutes before the vehicle is towed to
prevent unintended airbag
deployment.
• Have all airbag repairs conducted by an
authorized HYUNDAI dealer.
3-51
Seats & Safety System
1C_AirbagSensorOverview
[A] SRS control module/Rollover sensor
[B] Front impact sensor
[C] Side impact sensor (Pressure)
[D] Side impact sensor (Acceleration)
3-52
3
Airbag inflation conditions
inflate in frontal collisions and side and
curtain airbags are designed to inflate in
Front airbags
side impact collisions, airbags may inflate
in other types of collisions if the sensors
detect a sufficient impact.
Also, the side and curtain airbags inflate
when a rollover is detected by a rollover
sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
the airbags may deploy. Drive carefully on
unimproved roads or on surfaces not
designed for vehicle traffic to prevent
2C_AirbagOperatingConditionFrontAirbag
unintended airbag deployment.
Front airbags are designed to inflate in a
frontal collision depending on the
Airbag non-inflation conditions
severity of impact.
Side and curtain airbags
2C_AirbagNonOperatingConditionMinorCrash
In certain low-speed collisions, the
airbags may not deploy. The airbags are
2C_AirbagOperatingConditionSideAirbag
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
2C_SideCurtainAirbagDeployment
Side and curtain airbags are designed to
inflate when an impact is detected by side
2C_AirbagNonOperatingConditionRearCrash
collision sensors depending on the
severity of impact resulting from a side
Front airbags are not designed to inflate
impact collision.
in rear collisions, because occupants are
moved backward by the force of the
Although the driver's and front
impact.
passenger's airbags are designed to
3-53
Seats & Safety System
ground clearance. Airbags may not inflate
if your vehicle is in a "nosedive" condition
because the collision forces detected by
the sensors may have been significantly
reduced.
2C_AirbagNonOperatingConditionSideCrash
Front airbags may not inflate in side
impact collisions, because occupants
move in the direction of the collision.
Side and curtain airbags may inflate
2C_AirbagNonOperatingConditionTurnoverCrash
depending on the severity of impact.
Front airbags may not inflate in rollover
accidents because front airbag
deployment would not provide additional
occupant protection.
Information
The side and curtain airbags may inflate in
a rollover situation, when detected by the
rollover sensor.
2C_AirbagNonOperatingConditionSidlingCrash
In an angled collision, the force of impact
may direct the occupants in a direction
where the airbags would not be able to
provide any additional benefit, and thus
the sensors may not deploy any airbags.
2C_AirbagNonOperatingConditionPollCrash
Airbags may not inflate if the vehicle
collides with objects such as utility poles
or trees, where the point of impact is
concentrated and the collision energy is
absorbed by the vehicle structure.
2C_AirbagNonOperatingConditionTruckCrash
Just before impact, drivers often brake
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
"nosedive". This is particularly important
when the vehicle in front has a higher
3-54
3
SRS care
Additional safety precautions
The SRS is virtually maintenance-free and
Passengers should not move out of or
there are no parts you can safely service
change seats while the vehicle is
by yourself. If the SRS airbag warning
moving. A passenger who is not wearing
light does not illuminate when the Engine
a seat belt during a collision or
Start/Stop button is in the ON position or
emergency stop can be thrown against
continuously remains on, have the
the inside of the vehicle, against other
system immediately inspected by an
occupants, or be ejected from the
authorized HYUNDAI dealer.
vehicle.
Have any work on the SRS system, such
Do not use any accessories on seat belts.
as removing, installing, repairing, or any
Devices claiming to improve occupant
work on the steering wheel, the front
comfort or reposition the seat belt can
passenger's panel, front seats, and roof
reduce the protection provided by the
rails performed by an authorized
seat belt and increase the chance of
HYUNDAI dealer. Improper handling of
serious injury in a collision.
the SRS system may result in serious
Do not modify the front seats.
personal injury or death.
Modification of the front seats may
interfere with the operation of the
WARNING
Supplemental Restraint System sensing
To reduce the risk of serious injury or
components or side airbags.
death:
Do not place items under the front seats.
• Do not attempt to modify or disconnect
Placing items under the front seats may
the SRS components or wiring,
interfere with the operation of the
including the addition of any kind of
Supplemental Restraint System sensing
badges to the pad covers or
components and wiring harnesses.
modifications to the body structure.
Do not cause impact to the doors.
• Do not place objects over or near the
Impact to the doors when the Engine
airbag modules on the steering wheel,
Start/Stop button is in the ON or START
instrument panel, and the front
position may cause the airbags to inflate.
passenger's panel above the glove box.
Modifications to accommodate
• Clean the airbag pad covers with a soft
disabilities. If you require modification to
cloth moistened with water. Solvents or
your vehicle to accommodate a disability,
cleaners may adversely affect the
contact the HYUNDAI Customer Connect
airbag covers and proper deployment
Center at 800-633-5151.
of the system.
• Have inflated airbags replaced by an
Adding equipment to or modifying
authorized HYUNDAI dealer.
your airbag equipped vehicle
• If components of the airbag system
If you modify your vehicle by changing
must be discarded, or if the vehicle
your vehicle's frame, bumper system,
must be scrapped, observe safety
front end or side sheet metal, or ride
precautions. Consult an authorized
height, this may affect the operation of
HYUNDAI dealer for the necessary
your vehicle's Supplemental Restraint
information.
System.
3-55
Seats & Safety System
Airbag warning labels
2C_AirbagWarningLabelPosition
Airbag warning labels, required by the
U.S. National Highway Traffic Safety
Administration (NHTSA), are attached to
alert the driver and passengers of
potential risks of the airbag system. Be
sure to read all of the information about
the airbags that are installed on your
vehicle in this Owners Manual.
3-56
4. Instrument Cluster
Instrument Cluster
4-2
Instrument cluster control
4-3
Gauges and meters
4-4
Transmission shift indicator
4-8
Warning and indicator lights
4-9
Cluster display messages
4-21
Cluster Display
4-25
Cluster display control
4-25
View modes
4-25
Vehicle Settings (infotainment System)
4-28
4
Setting your vehicle
4-29
Instrument Cluster
Instrument Cluster
Type A
1C_ClusterOverview
Type B
The actual cluster in the vehicle may differ from the illustration. For more information,
refer to the "Gauges and meters" section in this chapter.
(1) Tachometer
(2) Speedometer
(3) Engine coolant temperature gauge
(4) Fuel gauge
(5) Warning and indicator lights
(6) Cluster display
4-2
4
Instrument cluster control
Infotainment system
You can adjust the brightness of the
instrument panel illumination from the
Instrument panel illumination
Settings menu in the infotainment
system. Select:
Control switch
Setup > Cluster > Illumination
WARNING
Never adjust the instrument cluster while
driving. This could result in loss of control
and lead to an accident that may cause
death, serious injury, or vehicle damage.
2C_IlluminationControlSwitch
When the vehicle's parking lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING
Never adjust the instrument panel
illumination while driving to prevent
death, serious injury, or vehicle damage.
• The brightness of the instrument panel
illumination is displayed.
• When the brightness setting reaches
either the minimum or maximum level,
a chime sounds.
4-3

















Content      ..      1       2         ..



//////////////////////////////////////////
