OWNER’S MANUAL
Operation
Maintenance
Specifications
All information in this Owner’s Manual is current at the time of
publication. However, HYUNDAI reserves the right to make
changes at any time so that our policy of continual product
improvement may be carried out.
This manual applies to all models of this vehicle and includes
descriptions and explanations of optional as well as standard
equipment.
As a result, you may find material in this manual that does not
apply to your specific vehicle.
CarManuals2.com
Introduction
CAUTION: MODIFICATIONS TO YOUR
HYUNDAI
Your HYUNDAI should not be modified in any way. Such modifications may adversely
affect the performance, safety or durability of your HYUNDAI and may, in addition,
violate conditions of the limited warranties covering the vehicle. Certain modifications
may also be in violation of regulations established by the Department of Transportation
and other government agencies in your country.
TWO-WAY RADIO OR CELLULAR
TELEPHONE INSTALLATION
Your vehicle is equipped with electronic components. It is possible for an improperly
installed/adjusted two-way radio or cellular telephone to adversely affect electronic
systems. For this reason, we recommend that you carefully follow the radio
manufacturer’s instructions or consult your HYUNDAI dealer for precautionary measures
or special instructions if you choose to install one of these devices.
F2
CarManuals2.com
01
SAFETY AND VEHICLE DAMAGE WARNING
This manual includes information titled as DANGER, WARNING, CAUTION and NOTICE.
These titles indicate the following:
DANGER
DANGER indicates a hazardous situation which, if not avoided, will result in death or
serious injury.
WARNING
WARNING indicates a hazardous situation which, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates a situation which, if not avoided, could result in vehicle damage.
F3
CarManuals2.com
Introduction
CALIFORNIA PROPOSITION 65
WARNING
Operating, servicing and maintaining a passenger vehicle or
off-highway motor vehicle can expose you to chemicals including
engine exhaust, carbon monoxide, phthalates, and lead, which are
known to the State of California to cause cancer and birth defects
or other reproductive harm. To minimize exposure, avoid
breathing exhaust, do not idle the engine except as necessary,
service your vehicle in a well ventilated area and wear gloves or
wash your hands frequently when servicing your vehicle. For more
information go to www.P65Warnings.ca.gov/ passenger-vehicle.
WARNING
Battery posts, terminals, and related accessories contain lead and
lead compounds, chemicals known to the State of California to
cause cancer, birth defects and reproductive harm. Batteries also
contain other chemicals known to the State of California to cause
cancer. Wash hands after handling.
F4
CarManuals2.com
Table of contents
Introduction
1
Picture index
2
Seats & safety system
3
Instrument Cluster
4
Convenience features
5
Driving your vehicle
6
Driver assistance system
7
Emergency situations
8
Maintenance
9
Vehicle information, reporting safety
10
defects, and consumer information
Index
I
CarManuals2.com
CarManuals2.com
1. Introduction
1
Introduction
1-2
HYUNDAI Motor America
1-3
Safety messages
1-4
Vehicle modifications
1-5
CarManuals2.com
Introduction
Introduction
Congratulations, and thank you for choosing HYUNDAI. We are pleased to welcome you
to the growing number of discerning people who drive HYUNDAI. We are very proud of
the advanced engineering and high quality construction of each HYUNDAI we build.
Your Owner’s Manual will introduce you to the features and operation of your new
HYUNDAI. To become familiar with your new HYUNDAI, so that you can fully enjoy it,
read this Owner’s Manual carefully before driving your new vehicle.
This manual contains important safety information and instructions intended to
familiarize you with your vehicle’s controls and safety features so you can safely operate
your vehicle.
This manual also contains information on maintenance designed to enhance safe
operation of the vehicle. It is recommended that all service and maintenance on your car
be performed by an authorized HYUNDAI dealer. An authorized HYUNDAI dealer are
prepared to provide high-quality service, maintenance, and any other assistance that
may be required.
You may download an electronic version of this manual from owners.hyundaiusa.com.
1-2
CarManuals2.com
1
HYUNDAI Motor America
may be reproduced, stored in any retrieval system or transmitted in any form or by any
means without the prior written permission of HYUNDAI Motor America.
1-3
CarManuals2.com
Introduction
Safety messages
Your safety, and the safety of others, are very important. This Owner’s Manual provides
you with many safety precautions and operating procedures. This information alerts you
to potential hazards that may hurt you or others, and may damage your vehicle.
Safety messages found on vehicle labels and in this manual describe these hazards and
what to do to avoid or reduce the risks.
Warnings and instructions contained in this manual are for your safety. Failure to follow
safety warnings and instructions can lead to serious injury or death.
Throughout this manual DANGER, WARNING, CAUTION, NOTICE, and the SAFETY ALERT
SYMBOL will be used.
This is the safety alert symbol. It is used to alert you to potential physical injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death. The
safety alert symbol precedes the signal words DANGER, WARNING, and CAUTION.
DANGER
DANGER indicates a hazardous situation that, if not avoided, will result in death or serious
injury.
WARNING
WARNING indicates a hazardous situation that, if not avoided, could result in death or
serious injury.
CAUTION
CAUTION indicates a hazardous situation that, if not avoided, could result in minor or
moderate injury.
NOTICE
NOTICE indicates a situation that, if not avoided, could result in vehicle damage.
1-4
CarManuals2.com
1
Vehicle modifications
WARNING
Your HYUNDAI should not be modified in any way. Modifications may adversely affect
the performance, safety or durability of your HYUNDAI and may, violate conditions of the
limited warranties covering the vehicle. Certain modifications may also be in violation of
safety and emissions regulations established by the U.S. Department of Transportation
and other federal or state agencies.
If you use unauthorized electronic devices, it may cause the vehicle to operate
abnormally, wire damage, battery discharge, and fire. For your safety, do not use
unauthorized electronic devices.
NOTICE
Some vehicle interior sounds (including welcome chime, navigation alerts, or warning
chimes) may be generated from the interior speakers or amplifier. Do not replace these
components with anything other than the original Hyundai factory parts. Any
unauthorized product may cause a malfunction of the vehicle interior sounds that may
affect the intended operation of the vehicle.
1-5
CarManuals2.com
CarManuals2.com
2. Picture index
Exterior overview (Front view)
2-2
Exterior overview (Rear view)
2-3
Interior overview
2-4
2
Center console overview
2-5
Engine compartment overview
2-6
CarManuals2.com
Picture index

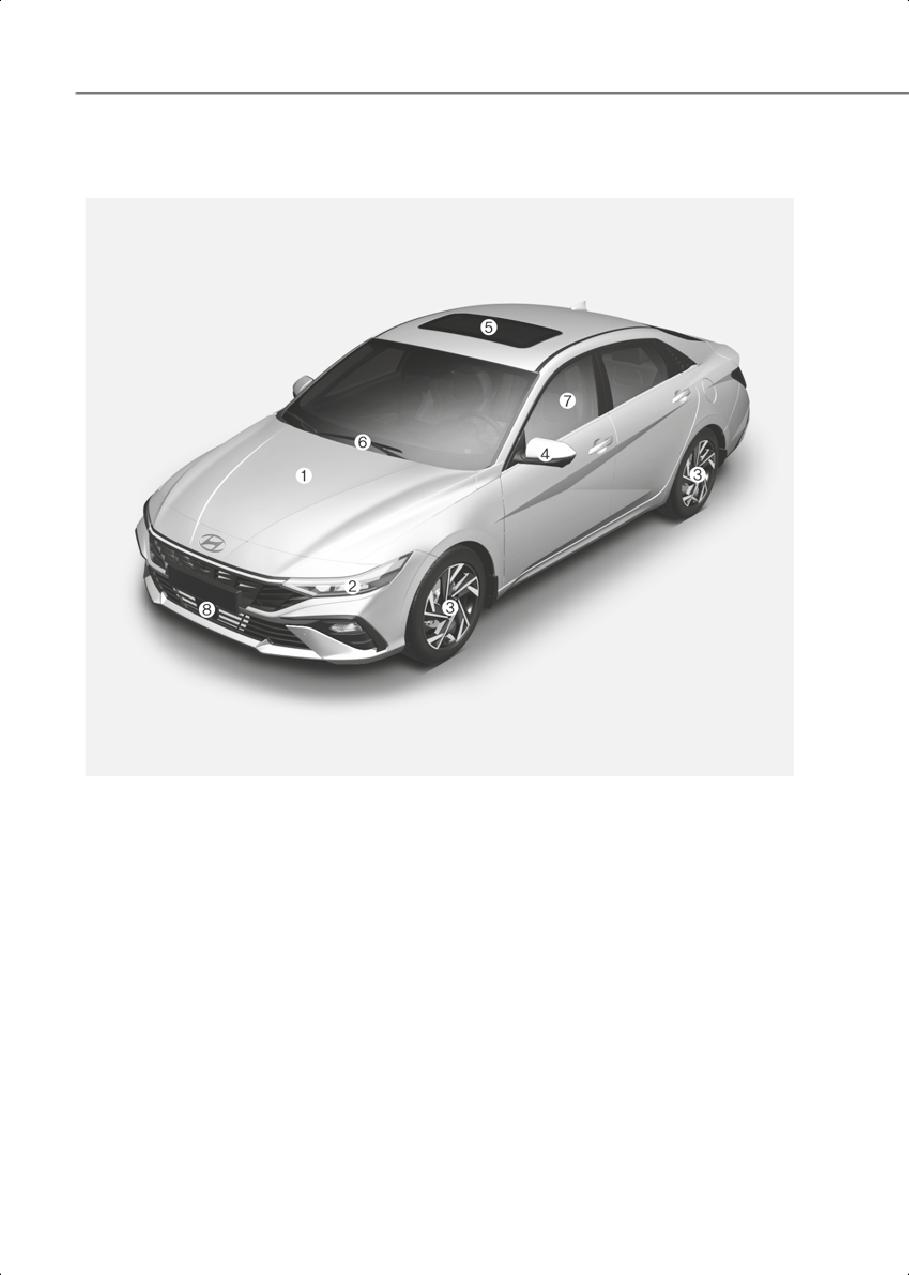

Exterior overview (Front view)
Front view
OCN7010001
The actual shape may differ from the illustration.
(1) Hood
5-48
(2) Headlight
9-56
(3) Tires and wheels
9-33
(4) Side view mirror
5-38
(5) Sunroof
5-44
(6) Front windshield wiper blades
9-28
(7) Windows
5-40
(8) Front radar
7-17
2-2
CarManuals2.com
2

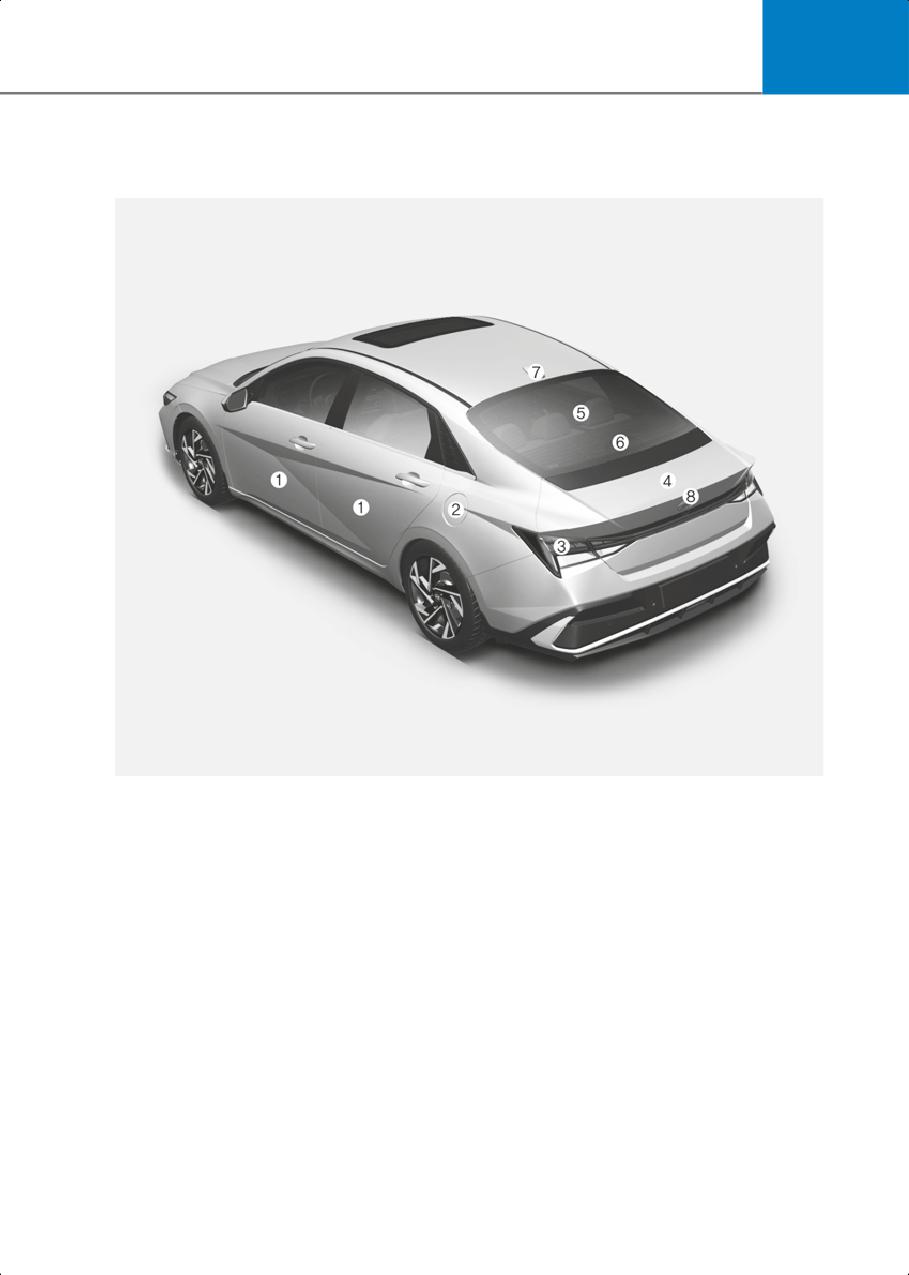

Exterior overview (Rear view)
Rear view
OCN7010002N
The actual shape may differ from the illustration.
(1) Door
5-25
(2) Fuel filler door
5-54
(3) Rear combination light
9-57
(4) Trunk
5-49
(5) Defroster/Glass antenna
5-88, 5-100
(6) High mounted stop light
9-60
(7) Antenna
5-100
(8) Wide-rear view camera
7-94
2-3
CarManuals2.com
Picture index

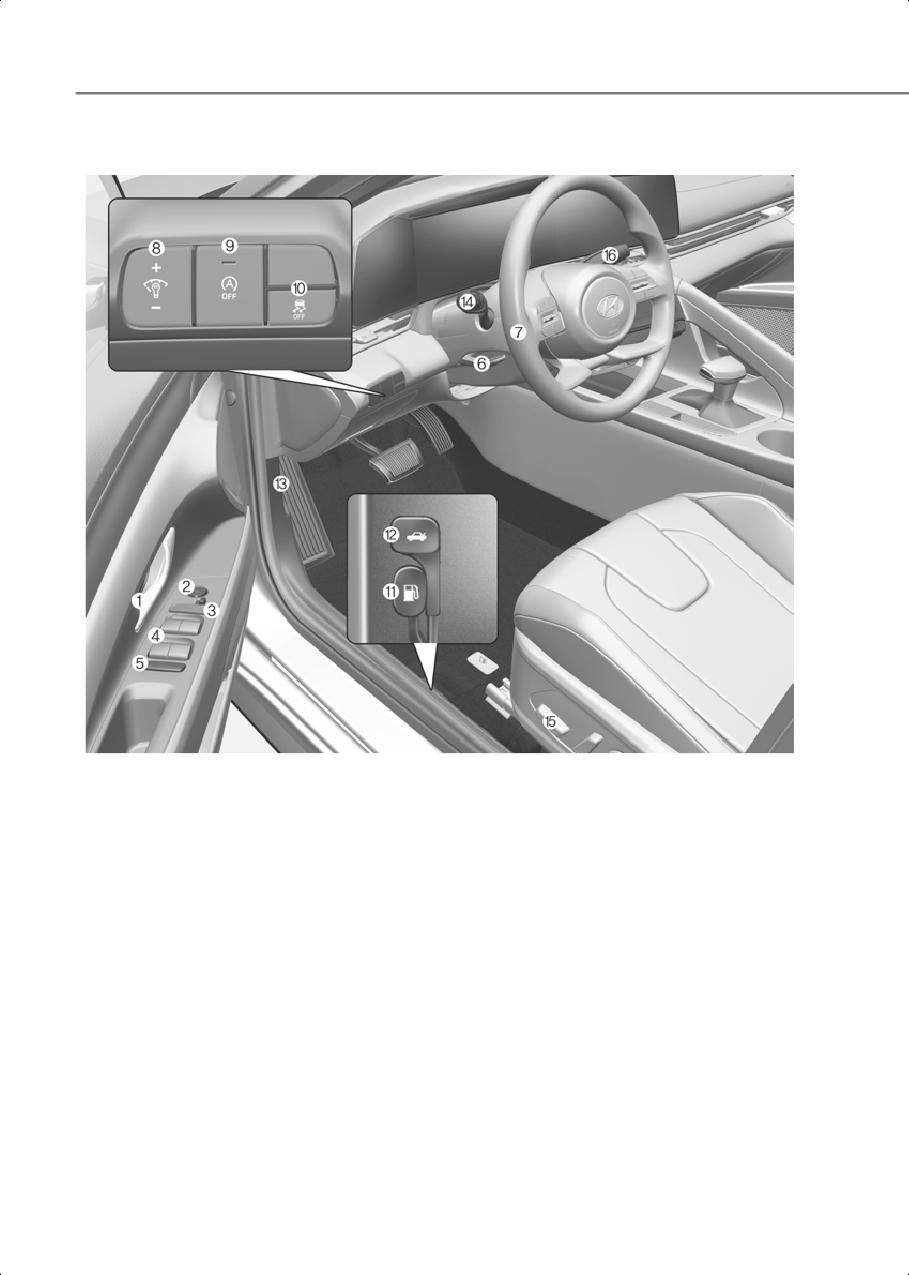

Interior overview
OCN7013003N
The actual shape may differ from the illustration.
(1) Inside door handle
5-26
(2) Side view mirror control switch
5-39
(3) Central door lock switch
5-25
(4) Power window switches
5-40
(5) Power window lock button
5-43
(6) Steering wheel tilt/telescopic lever
5-31
(7) Steering wheel
5-30
(8) Instrument panel illumination control switch
4-3
(9) ISG (Idle Stop & Go) OFF button
6-42
(10)ESC OFF button
6-38
(11) Fuel filler door release lever
5-54
(12)Trunk release lever
5-49
(13)Hood release lever
5-48
(14)Light control/Turn signals
5-56
(15)Seat adjusting switch
3-8
(16)Wiper/washer switch
5-65
2-4
CarManuals2.com
2

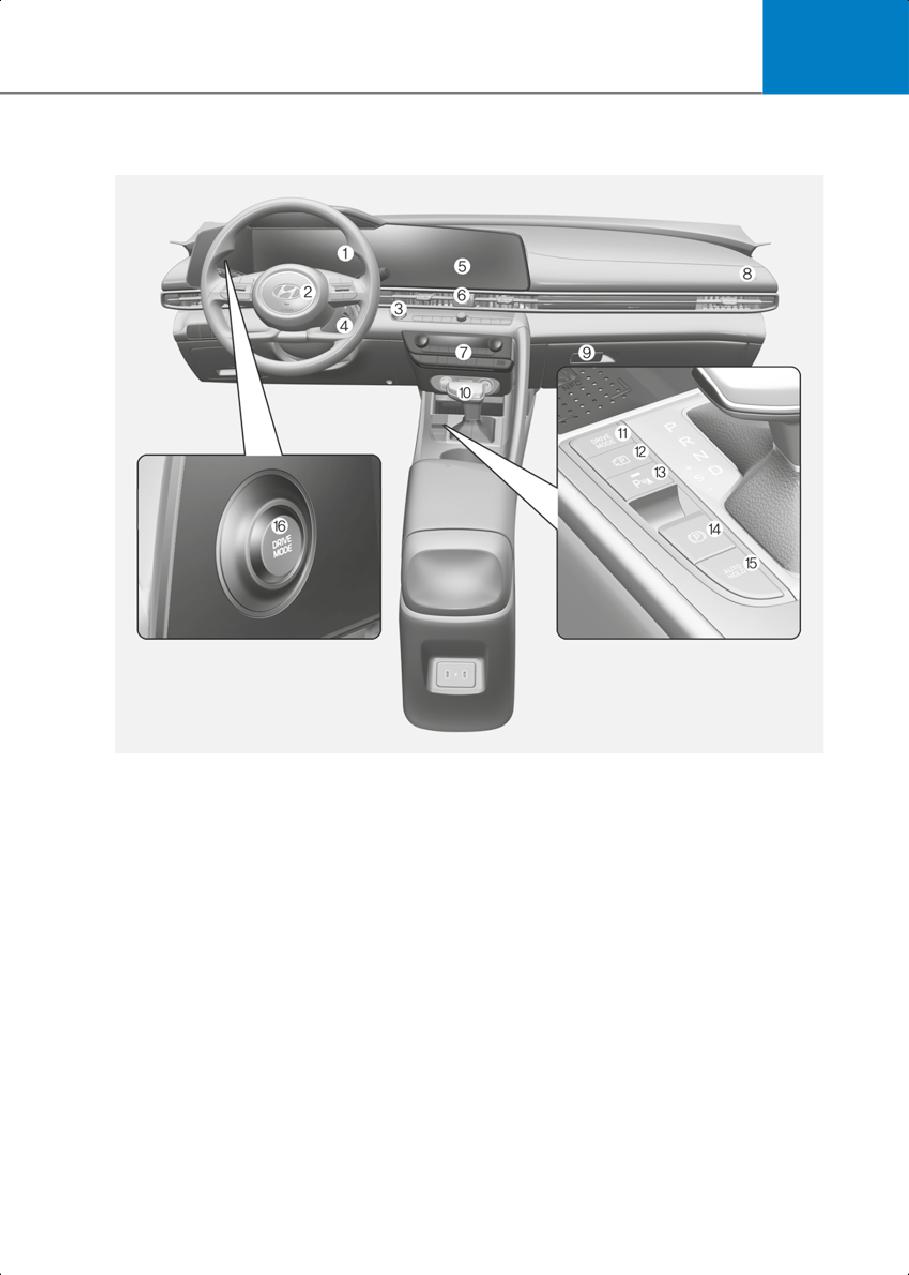

Center console overview
OCN7013012N
The actual shape may differ from the illustration.
(1) Instrument cluster
4-2
(2) Driver’s front air bag
3-36
(3) Engine start button
6-9
(4) Key ignition switch
6-5
(5) Infotainment system
5-100
(6) Hazard warning flasher switch
8-2
(7) Climate control system
5-67, 5-77
(8) Passenger’s front air bag
3-36
(9) Glove box
5-94
(10)Intelligent variable transmission/Dual clutch transmission
6-14, 6-20
(11) Drive mode button
6-49
(12)Parking/View button
7-95
(13)Parking Safety button
7-110
(14)EPB (Electronic Parking Brake) switch
6-31
(15)AUTO HOLD button
6-34
(16)Drive mode button (for N Line vehicle)
6-49
2-5
CarManuals2.com
Picture index

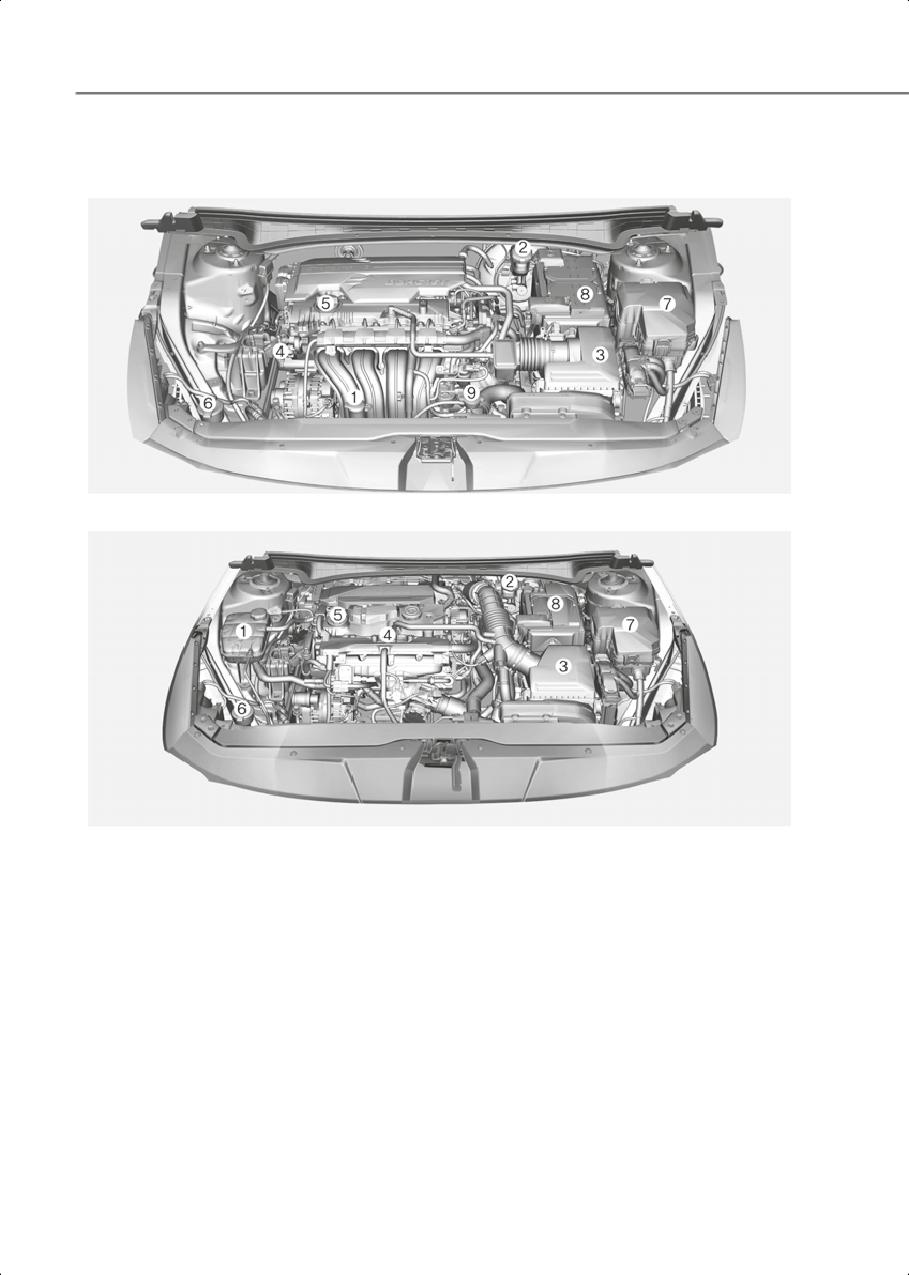

Engine compartment overview
Smartstream G 2.0 Atkinson
O
Smartstream G1.6 T-GDI
O
The actual engine room in the vehicle may differ from the illustration.
(1) Engine coolant reservoir
9-21
(2) Brake fluid reservoir
9-23
(3) Air cleaner
9-25
(4) Engine oil dipstick
9-19
(5) Engine oil filler cap
9-19
(6) Windshield washer fluid reservoir
9-25
(7) Fuse box
9-45
(8) Battery
9-29
(9) Radiator cap
9-21
2-6
CarManuals2.com
3. Seats & safety system
This chapter provides you with important information about how to protect yourself
and your passengers. It explains how to properly use your seats and seat belts, and how
your airbags work.
Additionally, this chapter explains how to properly restrain infants and children in your
vehicle.
Important safety precautions
3-3
Always wear your seat belt
3-3
3
Restrain all children
3-3
Airbag hazards
3-3
Driver distraction
3-3
Never drink or take drugs and drive
3-4
Control your speed
3-4
Keep your vehicle in proper operating condition - Inspecting your tires
3-4

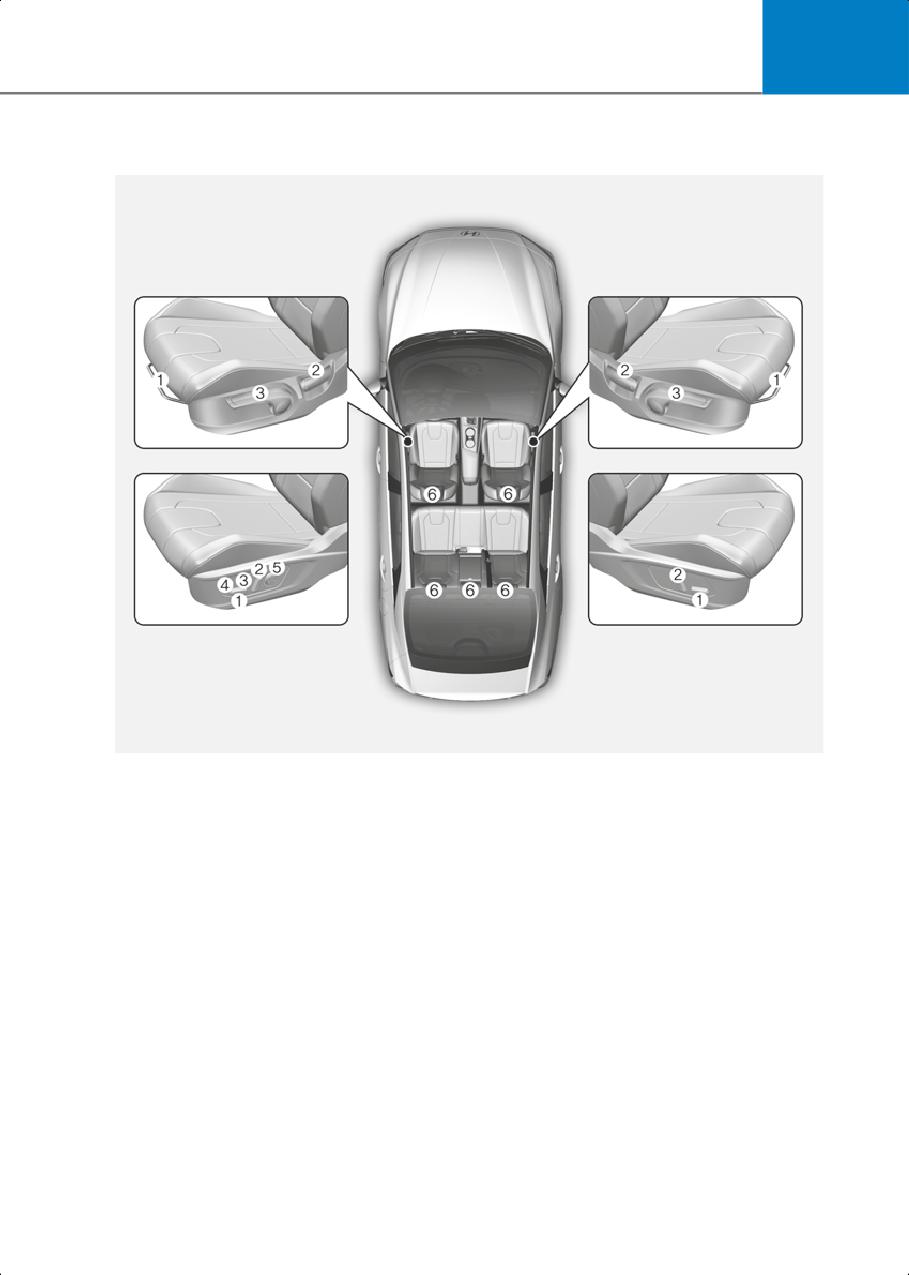

Seats
3-5
Safety precautions
3-6
Front seats
3-7
Rear seats
3-11
Head restraints
3-13
Seat warmers
3-17
Seat belts
3-18
Seat belt safety precautions
3-18
Seat belt warning light
3-19
Seat belt restraint system
3-20
Additional seat belt safety precautions
3-25
Care of seat belts
3-27
Child Restraint System (CRS)
3-27
Children always in the rear
3-27
Selecting a Child Restraint System
3-28
Installing a Child Restraint System
3-30
Supplemental restraint system - airbags
3-36
SRS components
3-38
Where are the airbags?
3-39
How does the airbag system operate?
3-42
What to expect after an airbag inflates
3-44
SRS warning light
3-45
Occupant Classification System (OCS)
3-46
Why didn’t my airbag go off in a collision?
3-51
CarManuals2.com
SRS care
3-55
Additional safety precautions
3-56
Airbag warning labels
3-56
3
CarManuals2.com
3
Important safety
Driver distraction
Driver distraction presents a serious and
precautions
potentially deadly danger, especially for
You will find many safety precautions and
inexperienced drivers. Safety should be
recommendations throughout this
the first concern when behind the wheel
section, and throughout this manual. The
and drivers need to be aware of the wide
safety precautions in this section are
array of potential distractions, such as
among the most important.
drowsiness, reaching for objects, eating,
personal grooming, becoming distracted
from other passengers, and using mobile
Always wear your seat belt
phones.
A seat belt is your best protection in all
Drivers can become distracted when they
types of accidents. Airbags are designed
take their eyes and attention off the road
to supplement seat belts, not to replace
or their hands off the wheel to focus on
them. So even though your vehicle is
activities other than driving. To reduce
equipped with airbags, always make sure
your risk of distraction and an accident:
you and your passengers wear your seat
• Set up your mobile devices (for
belts, and wear them properly.
example, MP3 players, phones,
navigation units, etc.) ONLY when your
vehicle is safely stopped and parked.
Restrain all children
• ONLY use your mobile device when
All children under age 13 should ride in
allowed by laws and conditions permit
your vehicle properly restrained in a rear
safe use. NEVER text or email while
seat, not the front seat. Infants and small
driving. Most states have laws
children should be restrained in an
prohibiting drivers from texting while
appropriate Child Restraint System.
driving. Some states and cities also
Larger children should use a booster seat
prohibit drivers from using handheld
with the lap/shoulder belt until they can
phones while driving.
use the seat belt properly without a
booster seat.
• NEVER let the use of a mobile device
distract you from driving. You have a
responsibility to your passengers and
Airbag hazards
others on the road to always drive
safely, with your hands on the wheel as
While airbags can save lives, they can also
well as your eyes and attention on the
cause serious or fatal injuries to
road.
occupants who sit too close to them, or
who are not properly restrained. Infants,
young children, and short adults are at the
greatest risk of being injured by an
inflating airbag. Follow all instructions
and warnings in this manual.
3-3
CarManuals2.com
Seats & safety system
Never drink or take drugs and
drive.
Drinking alcohol or taking drugs can
reduce your ability to respond to
changing conditions and emergencies.
Do not drink or take drugs and drive, and
do not let your friends drink or take drugs
and drive.
Control your speed
Excessive speed is a major factor in crash
injuries and deaths. Generally, the higher
the speed, the greater the risk, but serious
injuries can also occur at lower speeds.
Never drive faster than is safe for current
conditions, regardless of the maximum
speed posted.
Keep your vehicle in proper
operating condition -
Inspecting your tires
Having a tire blowout or a mechanical
failure can be extremely hazardous. To
reduce the possibility of a tire hazard
while driving, check your tire pressures
regularly and also inspect the condition of
your tires (tread depth, uneven wear,
etc.). Be sure to perform all regularly
scheduled maintenance as indicated in
your Owner's Manual.
3-4
CarManuals2.com
3
Seats
OCN7033001N
The information provided may differ depending on which functions are applicable to your vehicle.
(1) Forward and rearward
(2) Seatback angle
(3) Seat height
(4) Seat cushion angle
(5) Lumbar support (Driver's seat)
(6) Head restraint
3-5
CarManuals2.com
Seats & safety system
Safety precautions
WARNING
Adjusting the seats in a safe and
To reduce the risk of serious injury or
comfortable position plays an important
death from an inflating airbag:
role for the safety of driver and
passengers. Proper seating positions,
• Adjust the driver’s seat as far to the rear
secured seat belts, and protection from
as possible while maintaining your
airbags work together to provide a
ability to control the vehicle.
measure of safety in the event of a
• Adjust the front passenger seat as far to
collision.
the rear as possible.
• Hold the steering wheel with hands at
WARNING
the 9 o’clock and 3 o’clock positions to
Do not use a cushion that reduces friction
minimize the risk of injuries to your
between the seat and the passenger. The
hands and arms.
passenger’s hips may slide under the lap
• Never place anything or anyone
portion of the seat belt during an accident
between you and the airbag.
or a sudden stop.
• Do not allow the front passenger to
Serious or fatal internal injuries could
place feet or legs on the dashboard to
result because the seat belt cannot
minimize the risk of leg injuries.
operate properly.
Seat belts
Airbags
Always fasten your seat belt before
You can take steps to reduce the risk of
starting any trip. At all times, passengers
being injured by an inflating airbag.
should sit upright and be properly
Sitting too close to an airbag greatly
restrained with a seat belt. Infants and
increases the risk of injury in the event the
small children must be restrained in
airbag inflates.
appropriate Child Restraint Systems.
The National Highway Traffic Safety
Administration (NHTSA) recommends
WARNING
that drivers allow at least 10 in. (25cm)
To prevent serious injury or death:
between the center of the steering wheel
and their chest.
• Never use one seat belt for more than
one occupant.
• Always position the seatback upright
with the lap portion of the seat belt
snug and low across the hips.
• Never allow children or small infants to
ride on a passenger’s lap.
• Do not route the seat belt across your
neck, across sharp edges, or reroute
the shoulder strap away from your
body.
• Do not allow the seat belt to become
caught or jammed.
3-6
CarManuals2.com
3
Front seats
Reclining seatback
Sitting in a reclined position when the
WARNING
vehicle is moving can be dangerous. Even
when buckled up, the effectiveness of the
To prevent serious injury or death:
restraint system (seat belts and/or
Never attempt to adjust the seat while
airbags) is greatly reduced by reclining
the vehicle is moving. The seat could
your seatback.
respond with unexpected movement
Seat belts must be snug against your hips
and may cause loss of vehicle control
and chest to work properly.
resulting in a collision.
The more the seatback is reclined, the
Do not place anything under the front
greater the chance for the passenger’s
seats. Loose objects, including
hips to slide under the lap belt or the
unsecured floor mats, in the driver’s
passenger’s neck to strike the shoulder
foot area could interfere with the
belt.
operation of the foot pedals.
Do not allow anything to interfere with
WARNING
the normal position and proper locking
of the seatback.
Never ride with a reclined seatback when
the vehicle is moving.
Do not place a cigarette lighter on the
floor or seat.
Riding with a reclined seatback increases
your chance of serious or fatal injuries in
Use extreme caution when picking up
the event of a collision or sudden stop.
small objects trapped under the seats
or between the seat and the center
Driver and passengers should always sit
console. Your hands might be cut or
well back in their seats, properly belted,
injured by the sharp edges of the seat
and with the seatbacks upright.
mechanism.
If there are occupants in the rear seats,
Seat belts must be snug against your hips
be careful while adjusting the front
and chest to work properly. When the
seat.
seatback is reclined, the shoulder belt
Make sure that the seat is locked in
cannot do its job because it will not be
place after the adjustment. If not, the
snug against your chest. Instead, it will be
seat might move unexpectedly.
in front of you. During a collision, you
could be thrown into the seat belt,
causing neck or other injuries.
The more the seatback is reclined, the
greater chance the passenger’s hips will
slide under the lap belt or the passenger’s
neck will strike the shoulder belt.
3-7
CarManuals2.com
Seats & safety system
Manual seats - Seat adjustments
Seatback angle
if equipped
The front seat can be adjusted by using
the levers located underneath the front
part of the seat or on the outer side of the
seat.
Forward and rearward adjustment
OCN7030003
To recline the seatback:
1. Lean forward slightly and lift up the
seatback lever.
2. Carefully lean back on the seat and
adjust the seatback to the desired
position.
OCN7030002
3. Release the lever and make sure the
To move the seat forward or rearward:
seatback is locked in place.
1. Pull up the seat slide adjustment lever
and hold it.
Seat height (for driver's seat)
2. Slide the seat to the desired position.
3. Release the lever and make sure the
seat is locked in place. Move forward
and rearward without using the lever. If
the seat moves, it is not locked
properly.
OCN7030004
To change the height of the seat:
• Push down on the lever several times,
to lower the seat.
• Pull up on the lever several times, to
raise the seat.
3-8
CarManuals2.com
3
Power seats - Seat adjustment
Forward and rearward adjustment
if equipped
The front seat can be adjusted by using
the control switches located on the
outside of the seat cushion.
WARNING
Never allow children to remain in the
vehicle unattended. The power seats are
operable when the vehicle is turned off.
OCN7030005
NOTICE
To move the seat forward or rearward:
To prevent damage to the seats:
1. Push the control switch forward or
rearward.
• Always stop adjusting the seats when
the seat has been adjusted as far
2. Release the switch once the seat
forward or rearward as possible.
reaches the desired position.
• Do not adjust the seats longer than
Seatback angle
necessary when the vehicle is turned
off. This may result in unnecessary
battery drain.
• Do not operate two or more seats at the
same time. This may result in an
electrical malfunction.
OCN7030006
To recline the seatback:
1. Push the control switch forward or
rearward.
2. Release the switch once the seatback
reaches the desired position.
3-9
CarManuals2.com
Seats & safety system
Seat cushion tilt (1)/Seat height (2)
Lumbar support (for driver’s seat)
if equipped
OCN7030007
To change the angle of the front part of
OCN7030008
the seat cushion:
To adjust the lumbar support:
1. Push the front portion of the control
1. Press the front portion of the switch (1)
switch up to raise or down to lower the
to increase support or the rear portion
front part of the seat cushion.
of the switch (2) to decrease support.
2. Release the switch once the seat
2. Release the switch once the lumbar
reaches the desired position.
support reaches the desired position.
To change the height of the seat:
1. Push the rear portion of the control
switch up to raise or down to lower the
height of the seat.
2. Release the switch once the seat
reaches the desired position.
3-10
CarManuals2.com
3
Seatback pocket
Rear seats
if equipped
Folding the rear seat
if equipped
The rear seatbacks can be folded to
facilitate carrying long items or to
increase the luggage capacity of the
vehicle.
WARNING
• Never allow passengers to sit on top of
the folded down seatback while the
OCN7030016N
vehicle is moving. This is not a proper
seating position and no seat belts are
The seatback pocket is provided on the
available for use. This could result in
back of the front seatbacks.
serious injury or death in a collision or
sudden stop.
WARNING
• Objects carried on the folded down
Do not put heavy or sharp objects in the
seatback should not extend higher than
seatback pockets. In a collision, they
the top of the front seatbacks. This
could come loose from the pocket and
could allow cargo to slide forward and
injure occupants.
property damage or serious injury or
even death during a collision or sudden
stop.
To fold down the rear seatback:
1. Set the front seatback to the upright
position and if necessary, slide the front
seat forward.
2. Lower the rear head restraints to the
lowest position by pushing and holding
the release button and pushing down
on the head restraint.
OCN7030019N
3-11
CarManuals2.com
Seats & safety system
3. Pull out the seatback folding lever
WARNING
located in the trunk.
When returning the rear seatback from a
folded to an upright position, hold the
seatback and return it slowly. Lock the
seatback properly. In a collision or sudden
stop, an unlocked seatback may allow
cargo to move forward with great force
and may result in serious injury or death.
WARNING
OCN7030022
Cargo should always be secured to
prevent it from moving in a collision and
4. Fold the seatback toward the front of
causing serious injury or death to the
the vehicle.
vehicle occupants. Do not place objects
Type A
in the rear seats, because they cannot be
properly secured and may hit the front
seat occupants in a collision.
WARNING
Make sure the engine is off, the vehicle is
shifted to P (Park), and the parking brake
is applied before loading or unloading
cargo to prevent unintended movement
of the vehicle.
Type B
To use unfold the rear seatback:
1. Lift and push the seatback rearward.
2. Push the seatback firmly until it clicks
into place. Make sure the seatback is
locked in place.
3-12
CarManuals2.com
3
Armrest
WARNING
if equipped
To help reduce the risk of serious injury or
death in an accident, take the following
precautions when adjusting your head
restraints:
• Always adjust the head restraints
properly for all passengers BEFORE
starting the vehicle.
• Never let anyone ride in a seat with the
head restraints removed or reversed.
• Adjust the head restraints so that the
middle of the head restraint is at the
OCN7030066L
same height as the top of the eyes.
The armrest is located in the center of the
rear seat. Pull the armrest down from the
seatback to use it.
Head restraints
The vehicle’s front and rear seats have
adjustable head restraints. The head
restraints are designed to help protect
passengers from whiplash and other neck
and spinal injuries during a collision,
especially a rear impact collision. When
there are no occupants in the rear seats,
B0701EU01
adjust the rear head restraints to the
lowest height to improve the driver's
• Never adjust the driver's head restraint
visibility.
when the vehicle is moving.
• Make sure the head restraint is locked
in place after adjustment.
3-13
CarManuals2.com
Seats & safety system
Front seat head restraints
Forward and rearward adjustment
if equipped
OCN7030064L
OCN7030009
The driver’s and front passenger’s seats
are equipped with adjustable head
The head restraint can be adjusted
restraint for the passengers safety and
forward to 3 different positions by pulling
comfort.
the head restraint forward to the desired
detent. To adjust the head restraint to it’s
Adjusting the height up and down
furthest rearwards position, pull it fully
forward to the farthest position and
release it.
OCN7030010
To raise the head restraint:
1. Pull it up to the desired position (1).
OLF034015
To lower the head restraint:
1. Press and hold the release button (2) on
NOTICE
the head restraint support.
If you recline the seatback towards the
2. Lower the head restraint to the desired
front with the head restraint and seat
position (3).
cushion raised, the head restraint may
come in contact with the sunvisor or
other parts of the vehicle.
3-14
CarManuals2.com
3
Removal/Reinstallation
To reinstall the head restraint:
Type A
Type A
Type B
Type B
To remove the head restraint:
1. Recline the seatback.
1. Recline the seatback (2) with the
2. Put the head restraint poles (2) into the
seatback angle lever or switch (1).
holes while pressing the release button
(1).
2. Raise the head restraint as far as it can
go.
3. Adjust the head restraint to the
appropriate height.
3. Press the head restraint release button
(3) while pulling the head restraint up
4. Return the seatback (4) with the
(4).
seatback angle lever or switch (3).
WARNING
WARNING
Never allow anyone to travel in a seat with
Always make sure the head restraint is
the head restraint removed.
locked in place and properly adjusted for
the passenger.
3-15
CarManuals2.com
Seats & safety system
Rear seat head restraint
Removal/Reinstallation
OCN7030065L
OCN7033082N
To remove the head restraint:
The rear seats are equipped with head
restraint in all the seating positions for the
1. Raise the head restraint as far as it can
passenger’s safety and comfort.
go.
2. Press the head restraint release button
Adjusting the height up and down
(1) while pulling up the head restraint
(2).
To reinstall the head restraint:
1. Put the head restraint poles into the
holes (3) while pressing the release
button (1).
2. Adjust the head restraint to the
appropriate height.
OCN7030017N
To raise the head restraint:
1. Pull it up to the desired position (1).
To lower the head restraint:
1. Press and hold the release button (2) on
the head restraint support.
2. Lower the head restraint to the desired
position (3).
3-16
CarManuals2.com
3
Seat warmers
NOTICE
To prevent damage to the seat warmers
Front seat warmers
and seats:
if equipped
• Never use a solvent such as paint
Seat warmers are provided to warm the
thinner, benzene, alcohol, or gasoline
seats during cold weather.
to clean the seats.
During mild weather or under conditions
• Do not place heavy or sharp objects on
where the operation of the seat warmer is
seats equipped with seat warmers.
not needed, keep the seat warmers off.
• Do not change the seat cover.
WARNING
The seat warmers may cause serious
burns, even at low temperatures and
especially if used for long periods of time.
Passengers must be able to feel if the seat
is becoming too warm so they can turn it
off, if needed.
People who cannot detect temperature
change or pain to the skin should use
extreme caution, especially the following
types of passengers:
• Infants, children, elderly or disabled
OCN703302
persons, or hospital outpatients.
While the engine is running, press the
• People with sensitive skin or who burn
switches to warm the driver's seat or front
easily.
passenger's seat.
• Fatigued individuals.
• Manual temperature control
• Intoxicated individuals.
Press the button repeatedly to cycle
• People taking medication that may
through the seat warmer temperatures
cause drowsiness or sleepiness.
from high, medium, low, and off.
Never place anything on the seat that
• Automatic temperature control
insulates against heat when the seat
The seat warmer temperature is
warmer is operating, such as blanket or
lowered automatically and then goes
seat cushion.
off after a certain time to prevent low
temperature burns. If high temperature
is selected again after the seat warmer
turns off, the temperature is controlled
automatically again.
• When pressing the switch for more than
1.5 seconds with the seat warmer
operating, the seat warmer turns off.
• The seat warmer defaults to the OFF
position whenever the ignition switch is
in the ON position.
3-17
CarManuals2.com
Seats & safety system
• Auto Comfort Control (for driver’s seat)
Seat belts
(if equipped)
- The seat warmer automatically
controls the seat temperature
Seat belt safety precautions
depending on the ambient
Always fasten your seat belt and make
temperature and the set climate
sure all passengers have fastened their
control temperature when the engine
seat belts before starting any trip. Airbags
is running. If the seat warmer switch
are designed to supplement the seat belt
is pressed, the seat warmer is
as an additional safety device, not a
controlled manually.
replacement. Most states require all
- To use this feature, it can be enabled
vehicle occupants wear seat belts.
from the Settings menu in the
infotainment system.
WARNING
- The seat warmer defaults to the OFF
Seat belts must be used by ALL
position whenever the ignition switch
passengers whenever the vehicle is
is ON. However, if the Auto Comfort
moving. To prevent serious injury or
Control function is on, the driver’s
death:
seat warmer turns on and off
Children under the age of 13 should be
depending on the ambient
properly restrained in the rear seats.
temperature and the set climate
control temperature.
Never allow children to ride in the front
passenger seat. If a child age 13 or older
must be seated in the front passenger
seat, move the seat as far back as
possible and properly restrain them in
the seat.
Never allow an infant or child to be
carried on an occupant’s lap.
Never ride with the seatback reclined
when the vehicle is moving.
Do not allow children to share a seat or
seat belt.
Do not wear the shoulder belt under
your arm or behind your back.
Do not use the seat belt if it is twisted. A
twisted seat belt may not protect you
properly in a collision.
Do not use a seat belt if the webbing or
hardware is damaged. Have the seat
belt replaced by an authorized
HYUNDAI dealer.
Do not latch the seat belt into the
buckles intended for other seating
positions.
Never unfasten the seat belt while
driving. This may cause loss of vehicle
control resulting in a collision.
3-18
CarManuals2.com
3
• Make sure there is nothing in the buckle
Seat belt warning light
that could interfere with the seat belt
latch mechanism from fastening
Seat belt warning
securely.
Instrument cluster (Driver and front passenger’s seat)
• Never modify seat belt or install devices
that may prevent seat belt assembly
from removing slack.
WARNING
Damaged seat belts and seat belt
1GQA2083
assemblies do not operate properly.
Always replace:
Driver’s and Passenger’s front seat belt
• Frayed, contaminated, or damaged
warning
webbing.
As a reminder, the seat belt warning light
• Damaged hardware.
will illuminate for approximately 6
• The entire seat belt assembly after it
seconds each time you turn the ignition
has been worn in an accident, even if
switch or Engine Start/Stop button is in
damage to webbing or assembly is not
the ON position regardless of belt
apparent.
fastening. If the seat belt is not fastened,
the warning chime will sound for about 6
seconds.
If you start to drive without the seat belt
fastened over approximately 5 mph (9
km/h) and less than approximately 12
mph (20 km/h), the corresponding
warning light will illuminate. The warning
light will turn off when the vehicle speed
drops below approximately 5 mph (9
km/h).
If you start to drive without the seat belt
fastened or you unfasten the seat belt
when you drive approximately 12 mph (20
km/h) and faster, the warning light will
blink and warning chime will sound for
approximately 100 seconds.
When the seat belt is unfastened during
driving, the warning light will illuminate
when the speed is over approximately 5
mph (9 km/h) and less than
approximately 12 mph (20 km/h). When
the speed is approximately 12 mph (20
km/h) and faster, the warning light will
blink and warning chime will sound for
approximately 100 seconds.
3-19
CarManuals2.com
Seats & safety system
Seat belt restraint system
Driver's seat belt - 3-point system
with emergency locking retractor
WARNING
To fasten your seat belt:
OHI038140
Improperly positioned seat belts may
increase the risk of serious injury in an
Pull the seat belt out of the retractor and
accident. Take the following precautions
insert the metal tab (1) into the buckle (2).
when adjusting the seat belt:
An audible "click" sounds when the tab
locks into the buckle. Make sure the seat
• Position the lap portion of the seat belt
belt is not twisted.
as low as possible across your hips, not
on your waist, so that it fits snugly. This
allows your strong pelvic bones to
absorb the force of a collision, reducing
the chance of internal injuries.
• Position one arm under the shoulder
belt and the other over the belt, as
shown in the illustration.
• Always position the shoulder belt
anchor into the locked position at an
appropriate height.
• Never position the shoulder belt across
OHI038137
your neck or face.
Place the lap belt (1) portion across your
hips and the shoulder belt (2) portion
across your chest.
The seat belt automatically adjusts to the
proper length after the lap belt portion is
adjusted manually so that it fits snugly
around your hips. If you lean forward in a
slow, easy motion, the belt extends and
moves with you.
If there is a sudden stop or collision, the
belt is locked in place. It also locks if you
try to lean forward too quickly.
3-20
CarManuals2.com
3
To release your seat belt:
Information
If you cannot smoothly pull the seat belt
out from the retractor, firmly pull the seat
belt out and release it. After release, the
belt may be pulled out smoothly.
Height adjustment
Adjust the height of the shoulder belt so
that it lies across your chest and midway
over your shoulder nearest the door, not
over your neck.
OHI038142
Front seat
Press the release button (1) in the locking
buckle.
The belt should automatically draw back
into the retractor. If this does not happen,
check the belt is not twisted, then try
again.
Passenger and rear seat belts -
3-point system with convertible
locking retractor
This type of seat belt combines both an
emergency locking retractor and an
To adjust the height of the seat belt
automatic locking retractor. Convertible
anchor:
retractor type seat belts are installed in
the rear seat positions to help
Pull it up (1) to raise the height. To lower it,
accommodate the installation of child
push it down (3) while pressing the height
restraint systems.
adjuster button (2) .
A convertible retractor is also installed in
Release the button to lock the anchor in
the front passenger seat position.
place. Try pushing the height adjuster
Children should always be seated in the
down to make sure that it is locked in
rear. Never place any infant/child
place.
restraint system in the front seat.
3-21
CarManuals2.com
Seats & safety system
To fasten your seat belt:
To release your seat belt:
Pull the seat belt out of the retractor and
insert the metal tab into the buckle. An
audible "click" sounds when the tab locks
into the buckle. Pull the shoulder portion
of the belt to snug the belt across your
hips and remove slack. Make sure the seat
belt is not twisted.
When not securing a child restraint, the
seat belt automatically adjusts to the
proper length only after the lap belt
portion of the seat belt is adjusted
OHI038142
manually so that it fits snugly across your
hips.
Press the release button (1) in the locking
When the seat belt has been fully
buckle.
extended from the retractor to allow for
The belt should automatically draw back
the installation of a child restraint system,
into the retractor. If this does not happen,
the seat belt operation changes to allow
check the belt is not twisted, then try
the belt to retract, but not to extend
again.
(Automatic Locking Retractor Type).
Refer to the "Child Restraint System
Information
(CRS)" section in this chapter.
• The emergency locking mode allows
seated passengers to move freely in
their seats while keeping some tension
on the belt. During a collision or sudden
stop, the retractor automatically locks
the belt to help restrain the passengers.
• To deactivate the automatic locking
mode, unbuckle the seat belt and allow
the belt to fully retract.
3-22
CarManuals2.com
3
Second row center seat belt (3-point
Pretensioner seat belt
rear center seat belt)
1
OHI038143L
ONE1031087L
Your vehicle is equipped with
Insert the tongue plate (1) into the buckle
Pretensioner seat belts (retractor
until an audible "click" is heard, indicating
pretensioner). The pretensioner helps the
the latch is locked. Pull the shoulder
driver's, front passenger's, and outboard
portion of the belt to snug the belt across
rear seat belt fit tightly against your body
your hips and remove slack. Make sure
in certain frontal or side collision(s).
the seat belt is not twisted.
When the vehicle stops suddenly, or if you
When using the rear center seat belt, use
try to lean forward too quickly, the seat
the buckle with the "CENTER" mark.
belt retractor locks in place. In some
frontal collisions, the pretensioner
Information
activates and pulls the seat belt against
your body.
If you cannot pull out the safety belt from
the retractor, firmly pull the belt out and
If the system senses excessive tension on
release it. After release, pull out the belt
the driver seat belt when the pretensioner
smoothly.
system activates, the load limiter inside
the retractor pretensioner releases some
of the pressure on the affected seat belt.
WARNING
WARNING
Make sure the seatback is locked in place
To prevent serious injury or death:
when using the rear center seat belt.
• Always wear your seat belt and sit
If not secure, the seatback may move
properly in your seat.
when there is a sudden stop or crash, and
• Do not use the seat belt if it is loose or
it may result in serious injury or death.
twisted.
• Do not place anything near the buckle.
• Always replace your pretensioner after
activation or an accident.
• Have the pretensioner inspected,
serviced, repaired, or replaced by only
an authorized HYUNDAI dealer.
• Do not hit seat belt assemblies.
3-23
CarManuals2.com
Seats & safety system
(3) SRS control module
WARNING
(4) Rear retractor pretensioner
Do not touch the pretensioner seat belt
The sensor that activates the SRS control
assemblies for several minutes after they
module is connected with the
have been activated. When the
pretensioner seat belt. The SRS airbag
pretensioner seat belt mechanism
warning light on the instrument cluster
deploys during a collision, the
illuminates for about 3-6 seconds after
pretensioner can become hot and can
the ignition switch is in the ON position,
burn you.
and then it turns off.
If the pretensioner is not working
properly, the warning light illuminates
WARNING
even if the SRS airbag is not
malfunctioning. If the warning light does
Have the system serviced by an
not illuminate when starting the engine or
authorized HYUNDAI dealer. Body work
stays illuminated or illuminates while
on the front of the vehicle may damage
driving, have the pretensioner seat belts
the pretensioner seat belt system.
and/or SRS control module inspected by
an authorized HYUNDAI dealer as soon as
possible.
Information
• The pretensioner seat belt system may
be activated in certain frontal or side
collisions or rollover situations.
• When the pretensioner seat belts are
activated, a loud noise may be heard
and fine dust, which may appear to be
smoke, may be visible in the passenger
compartment.
ODN8H033057
• Although it is non-toxic, the fine dust
may cause skin irritation and should not
be inhaled for prolonged periods. Wash
all exposed skin areas thoroughly after
an accident in which the pre-tensioner
seat belts were activated.
OCN7033083N
The Pre-Tensioner Seat Belt System
consists mainly of the following
components. Their locations are shown in
the illustration above:
(1) SRS airbag warning light
(2) Front retractor pretensioner
3-24
CarManuals2.com
3
Additional seat belt safety
Seat belt use and children
precautions
Infant and small children
All 50 states have Child Restraint System
Seat belt use during pregnancy
laws that require children to travel in
The seat belt should always be used
approved Child Restraint System devices,
during pregnancy. The best way to
including booster seats. The age at which
protect your unborn child is to protect
seat belts can be used instead of Child
yourself by always wearing the seat belt.
Restraint System may be different, so you
Pregnant women should always wear a
should be aware of the specific
lap-shoulder seat belt. Place the shoulder
requirements in your state where you are
belt across your chest, routed between
traveling. Infant and Child Restraint
your breasts and away from your neck.
System must be properly placed and
Place the lap belt below your belly and
installed in a rear seat.
pull the shoulder portion so it fits SNUGLY
For more information, refer to the "Child
across your hips and pelvic bone, under
Restraint System (CRS)" section in this
the rounded part of your belly.
chapter.
WARNING
WARNING
• A pregnant woman is more vulnerable
Always properly restrain infants and small
to any impacts on the abdomen during
children in a Child Restraint System
an abrupt stop or collision. If you are in
appropriate for the child’s height and
an accident while pregnant, consult
weight.
your doctor.
To reduce the risk of serious injury or
• To reduce the risk of serious injury or
death to a child and other passengers,
death to an unborn child during an
Never hold a child in your lap or arms
accident, do not let pregnant women
when the vehicle is moving. Violent forces
place the lap portion of the seat belt
during a collision will tear the child from
above or over the area of the abdomen
your arms and throw the child against the
where the unborn child is located.
interior or to be ejected from the vehicle.
Small children are best protected from
injury in an accident when properly
restrained in the rear seat by a Child
Restraint System that meets the
requirements of the Federal Motor
Vehicle Safety Standards. Before buying
any Child Restraint System, make sure
that it has a label certifying that it meets
the applicable Safety Standards. The
Child Restraint System must be
appropriate for your child’s height and
weight. Check the label on the Child
Restraint System for this information.
Refer to the "Child Restraint System
(CRS)" section in this chapter.
3-25
CarManuals2.com
Seats & safety system
Larger children
Seat belt use and injured people
Children under age 13 and who are too
A seat belt should still be used when an
large for a booster seat should always
injured person is being transported.
occupy the rear seat and use the available
Consult a physician for specific
lap/shoulder belts. A seat belt should be
recommendations.
snug against the hips and be snug across
the shoulder and chest to restrain the
One person per belt
child safely. A child’s squirming could
move the belt out of position. Adults
When two people (children or adults) are
should frequently check belt fit. In a
sitting together, never attempt to use a
collision, the safest place for children is in
single seat belt. This could increase the
the rear seats, using a Child Restraint
severity of injuries in a collision.
System appropriate for the child.
If a larger child over age 13 must be seated
Do not lie down
in the front seat, the child must be
Sitting in a reclined position when the
securely restrained by the available seat
vehicle is moving can be dangerous. Even
belt and the seat should be placed in the
when buckled up, the protections of your
rearmost position.
restraint system (seat belts and/or
If the shoulder belt portion slightly
airbags) is greatly reduced by reclining
touches the child’s neck or face, try
your seatback.
placing the child closer to the center of
Seat belts must be snug against your hips
the vehicle. If the shoulder belt still
and chest to work properly.
touches their face or neck, the child
During a collision, you could be thrown
needs to return to an appropriate booster
into the seat belt, causing neck or other
seat in the rear seat.
injuries.
WARNING
The more the seat back is reclined, the
greater the chance for the passenger’s
• Always make sure children’s seat belts
hips to slide under the lap belt or the
are buckled and properly adjusted.
passenger’s neck to strike the shoulder
• Never allow the shoulder belt to
belt.
contact the child’s neck or face.
• Do not allow more than one child to use
WARNING
a single seat belt.
• Never ride with a reclined seatback
when the vehicle is moving.
• Do not ride with a reclined seatback. It
may increase your chance of serious or
fatal injuries in the event of a collision or
sudden stop.
• Have the driver and all passengers
always sit well back in their seats,
properly belted, and with the seatbacks
upright.
3-26
CarManuals2.com
3
Care of seat belts
Child Restraint System
Seat belt systems should never be
(CRS)
disassembled or modified.
Periodic inspection
Children always in the rear
All seat belts should be inspected
periodically for wear or damage of any
WARNING
kind. Any damaged parts should be
Always properly restrain children in the
replaced as soon as possible.
rear seats of the vehicle. Children of all
ages are safer when restrained in the rear
Keep belts clean and dry
seat. A child riding in the front passenger
seat can be forcefully struck by an
Seat belts should be kept clean and dry. If
inflating airbag resulting in serious injury
belts become dirty, they can be cleaned
or death.
by using a mild soap solution and warm
water. Bleach, dye, strong detergents, or
abrasives should not be used because
Children under age 13 should always ride
they may damage and weaken the fabric.
in the rear seats and must always be
properly restrained to minimize the risk of
When to replace seat belts
injury in a collision, sudden stop, or
sudden maneuver.
The entire seat belt assembly or
assemblies should be replaced if the
According to accident statistics, children
vehicle has been involved in an accident.
are safer when properly restrained in the
This should be done even if no damage is
rear seat than in the front seat. Even with
visible. Consult an authorized HYUNDAI
airbags, children can be seriously
dealer for assistance.
injured or killed. Children too large for a
Child Restraint System must use the seat
belts provided.
All 50 states have child restraint laws that
require children to travel in approved
Child Restraint Systems.
The laws governing the age or height/
weight restrictions at which seat belts can
be used instead of Child Restraint System
differs among states, so you should be
aware of the specific requirements where
you are travelling.
Child Restraint Systems must be properly
placed and installed in the rear seat. Use a
commercially available Child Restraint
System that meets the requirements of
the Federal Motor Vehicle Safety
Standards (FMVSS 213).
Child Restraint Systems are generally
designed to be secured in a vehicle seat
by a lap/shoulder seat belt, or by a LATCH
system in the rear seats of the vehicle.
3-27
CarManuals2.com
Seats & safety system
Child Restraint System
Selecting a Child Restraint
Infants and younger children must be
System
restrained in an appropriate
When selecting a Child Restraint System
rearward-facing or forward-facing Child
for your child, always:
Restraint System that has first been
• Make sure the Child Restraint System
properly secured to the rear seats of the
has a label certifying that it meets
vehicle. Read and comply with the
applicable Federal Motor Vehicle
instructions for installation and use
Safety Standards (FMVSS 213).
provided by the manufacturer of the Child
Restraint System.
• Select a Child Restraint System based
on your child’s height and weight. The
WARNING
required label or the instructions for use
typically provide this information.
Do not use an improperly secured child
restraint. It may increase the risk of
• Select a Child Restraint System that fits
serious injury or death in a collision.
the vehicle seating position where it is
to be used.
When using a Child Restraint System:
• Read and comply with the warnings
• Never install a child or infant restraint in
and instructions for installation and use
the front passenger's seat.
provided with the Child Restraint
• Always properly secure the Child
System.
Restraint System in the rear seat of the
vehicle.
Child Restraint System types
• Always follow the Child Restraint
System manufacturer's instructions for
There are three main types of Child
installation and use.
Restraint Systems: rearward-facing,
forward-facing, and booster seat Child
• Always properly restrain your child in
Restraint Systems.
the Child Restraint System.
They are classified according to the
• If the head restraint prevents proper
child’s age, height, and weight.
installation of a child seat (as described
in the Child Restraint System manual),
readjust or remove the head restraint
for that seating position.
• Do not use an infant carrier or a child
safety seat that "hooks" over a
seatback. It may not provide adequate
protection in an accident.
• After an accident, have an authorized
HYUNDAI dealer check the Child
Restraint System, seat belts, tether
anchors, and lower anchors.
3-28
CarManuals2.com
3
Rearward-facing Child Restraint System
Forward-facing Child Restraint System
OCN7030029
OCN7030030
With a rearward-facing Child Restraint
A forward-facing Child Restraint System
System, the collision forces are absorbed
provides restraint for the child’s body
by its shell instead of the child's body. The
with a harness. Keep children in a
shell also supports the system's cradles
forward-facing Child Restraint System
and protects the head, neck and spine of
with a harness until they reach the top
the child. All children under the age of one
height or weight limit allowed by your
year must always ride in a
Child Restraint System’s manufacturer.
rearward-facing Child Restraint System.
Once your child outgrows the
Convertible and 3-in-1 Child Restraint
forward-facing Child Restraint System,
Systems typically have higher height and
your child is ready for a booster seat.
weight limits for the rearward-facing
position, allowing you to keep your child
Booster seats
rearward-facing for a longer period of
A booster seat is a Child Restraint System
time.
designed to improve the fit of the
Continue using the Child Restraint
vehicle’s seat belt system. A booster seat
Systems in the rearward-facing position
positions the seat belt so that it fits
as long as the child is within the height
properly over the lap of your child. Keep
and weight limits allowed by the Child
your children in booster seats until they
Restraint System’s manufacturer. It's the
are big enough to fit in a seat belt
best way to keep them safe. Once your
properly.
child has outgrown the rearward-facing
For a seat belt to fit properly, the lap belt
Child Restraint System, your child is ready
must lie snugly across the upper thighs,
for a forward-facing Child Restraint
not the stomach. The shoulder belt
System with a harness.
should lie snug across the shoulder and
chest and not across the neck or face.
WARNING
Children under age 13 must always be
Never install a child or infant restraint in
properly restrained to minimize the risk of
the front passenger's seat.
injury in an accident, sudden stop, or
Placing a rearward-facing child restraint
sudden maneuver.
in the front seat may result in serious
injury or death, if the child restraint is
struck by an inflating airbag.
3-29
CarManuals2.com
Seats & safety system
Installing a Child Restraint
Secure a child in the Child Restraint
System. Make sure the child is properly
System
strapped in the Child Restraint System
according to the Child Restraint System
WARNING
manufacturer’s instructions.
Before installing your Child Restraint
System, always read and follow the
CAUTION
instructions provided by the
Check the seating surface and buckles
manufacturer of the Child Restraint
before placing your child in the Child
System and in this manual to prevent
Restraint System to prevent burns. A
serious injury or death if a collision
Child Restraint System in a closed vehicle
occurs.
can become very hot.
WARNING
Lower anchors and tether for
children (LATCH system)
If the vehicle head restraint prevents
The LATCH system connects a Child
proper installation of a Child Restraint
Restraint System to the vehicle during
System, readjust or remove the head
driving and in a collision. This system is
restraint for that seating position.
designed to make installation of the Child
Restraint System easier and reduce the
possibility of improperly installing your
After selecting a proper Child Restraint
Child Restraint System. The LATCH
System for your child and checking that
system uses anchors in the vehicle and
the Child Restraint System fits properly in
attachments on the Child Restraint
a rear seating position, there are three
System. The LATCH system eliminates
general steps for proper installation:
the need to use seat belts to secure the
Properly secure the Child Restraint
Child Restraint System to the rear seats.
System to the vehicle. All Child
Lower anchors are metal bars built into
Restraint Systems must be secured to
the vehicle. There are two lower anchors
the vehicle with the a lap/shoulder belt
for each LATCH seating position that
or with a LATCH system in the rear seat
accommodates a Child Restraint System
of the vehicle.
with lower attachments.
Make sure the Child Restraint System
To use the LATCH system in your vehicle,
is firmly secured. After installing a
install a Child Restraint System with
Child Restraint System in the vehicle,
LATCH attachments.
push and pull the seat forwards and
backwards and from side to side to
The Child Restraint System manufacturer
verify that it is securely attached to the
provides you with instructions on how to
seat. Install a Child Restraint System
use the Child Restraint System with its
secured with a seat belt as tightly as
attachments for the LATCH anchors.
possible. Some side-to-side movement
can be expected.
3-30
CarManuals2.com
3
The LATCH anchors are located between
the seatback and the seat cushion of the
rear seat left and right outboard seating
positions.
WARNING
Before installing the Child Restraint
System, make sure that there are no
objects (e.g. toys, pens, wires) near the
lower anchor area. Those objects may
damage either the seat belt system or the
OCN7030033
Child Restraint System during
installation. If necessary, have the vehicle
LATCH anchors have been provided in the
inspected by an authorized HYUNDAI
left and right outboard rear seating
dealer.
positions. Their locations are shown in the
illustration. There are no LATCH anchors
provided for the center rear seating
position.
Securing a Child Restraint System
with the LATCH anchors system
WARNING
To install a LATCH-compatible Child
Restraint System in either of the rear
Do not attempt to install a Child Restraint
outboard seating positions:
System using LATCH anchors in the rear
center seating position. There are no
1. Move the seat belt buckle away from
LATCH anchors provided for this seat. Do
the lower anchors.
not use the outboard seat anchors for the
2. Move any other objects away from the
center seat. It may damage the anchors
anchorages that could prevent a secure
that may break or fail in a collision
connection between the Child Restraint
resulting in serious injury or death.
System and the lower anchors.
3. Place the Child Restraint System on the
vehicle seat, then attach the seat to the
Rear passenger seat
lower anchors according to the
instructions provided by the Child
Restraint System manufacturer.
4. Follow the instructions of the Child
Restraint System’s manufacturer for
proper installation and connection of
the lower attachments on the Child
Restraint System to the lower anchors.
[A] Lower Anchor Position Indicator
[B] Lower Anchor
The lower anchor position indicator
symbols are located on the left and right
rear seatbacks to identify the positions of
the lower anchors in your vehicle.
3-31
CarManuals2.com
Seats & safety system
Securing a Child Restraint System
WARNING
seat with tether anchor system
Take the following precautions when
using the LATCH system:
• Read and follow all installation
instructions provided with your Child
Restraint System.
• To prevent the child from reaching and
taking hold of unretracted seat belts,
buckle all unused rear seat belts and
retract the seat belt webbing behind
the child. Children can be strangled if a
shoulder belt becomes wrapped
OCN7030032
around their neck and the seat belt
tightens.
First secure the child restraint with the
• Never attach more than one Child
LATCH lower anchors or the seat belt. If
Restraint System to a single anchorage.
the child restraint manufacturer
This could cause the anchor or
recommends that the top tether strap be
attachment to come loose or break.
attached, attach and tighten the top
tether strap to the top tether strap
• Always have the LATCH system
anchor.
inspected by an authorized HYUNDAI
dealer after a collision. A collision can
Tether anchors are located on the
damage the LATCH system and may
package tray.
not properly secure the Child Restraint
To install the tether anchor:
System.
WARNING
Make sure that the combined weight of
the child and the child restraint system is
less than 65 lbs. (30 kg) for each LATCH
system.
OCN7030031
1. Route the Child Restraint System
top-tether strap over the seatback.
Placing the top tether strap, follow the
instructions of the Child Restraint
System manufacturer.
2. Connect the top-tether strap to the
top-tether anchorage, then tighten the
top-tether strap according to the
instructions of your Child Restraint
System’s manufacturer to firmly attach
the Child Restraint System to the seat.
3-32
CarManuals2.com
3
3. Check the Child Restraint System is
Securing a Child Restraint System
secure by pushing and pulling the seat
with a lap/shoulder belt
forward and back and side-to-side.
WARNING
WARNING
Always place a rearward-facing Child
Take the following precautions when
Restraint System in the rear seat of the
installing the top tether:
vehicle.
• Read and follow all installation
Placing a rearward-facing child restraint
instructions provided with your Child
in the front seat may result in serious
Restraint System.
injury or death if the Child Restraint
System is struck by an inflating airbag.
• Never attach more than one Child
Restraint System to a single tether
anchor. This could cause the anchor or
When not using the LATCH system, all
attachment to come loose or break.
Child Restraint Systems must be secured
• Only attach the tether strap to the
to a rear seat using the lap/shoulder belt.
correct tether anchor for that seating
position.
Automatic locking mode
• Make sure that the Child Restraint
System anchors withstand the
combined weight of the child and the
child restraint system of less than 65
lbs. (30 kg) for each LATCH system.
Do not use them for adult seat belts,
harnesses, or for attaching other items
or equipment to the vehicle.
OHI038145
Since all passenger seat belts move freely
under normal conditions and only lock
under extreme or emergency conditions
(emergency locking mode), you must
manually pull the seat belt all the way out
to shift the retractor to the Automatic
Locking mode to secure a Child Restraint
System.
The Automatic Locking mode will help
prevent the normal movement of the
child in the vehicle from causing the seat
belt to loosen and compromise the Child
Restraint System.
3-33
CarManuals2.com
Seats & safety system
To install a Child Restraint System on the
3. Pull the shoulder portion of the seat belt
rear seats:
all the way out. When the shoulder
portion of the seat belt is fully
1. Place the Child Restraint System on a
extended, it shifts the retractor to the
rear seat and route the lap/shoulder
Automatic Locking (child restraint)
belt around or through the Child
mode.
Restraint System, following the Child
Restraint System manufacturer’s
instructions. Make sure the seat belt
webbing is not twisted.
Information
When using the rear center seat belt,
refer to the "Passenger and rear seat
belts - 3-point system with convertible
locking retractor" section in this
chapter.
2. Fasten the lap/shoulder belt latch into
B0065KO04
the buckle. Check a distinct "click"
4. Slowly allow the shoulder portion of the
sound is heard.
seat belt to retract and listen for an
audible "clicking" or "ratcheting"
sound. This indicates that the retractor
is in the Automatic Locking mode. If no
distinct sound is heard, repeat Step 3
and 4.
B0065KO03
Information
Position the release button so it is easy
to access in an emergency.
B0065KO05
5. Remove as much slack from the belt as
possible by pushing down on the Child
Restraint System while feeding the
shoulder belt back into the retractor.
3-34
CarManuals2.com
3
6.Push and pull on the Child Restraint
System to confirm that the seat belt is
holding it firmly in place. If it is not,
release the seat belt and repeat Step 2
through 6.
7. Double check that the retractor is in the
Automatic Locking mode by
attempting to pull more of the seat belt
out of the retractor. If you cannot, the
retractor is in the Automatic Locking
mode.
If your Child Restraint System
manufacturer instructs or recommends
you to use a tether anchor with the lap/
shoulder belt, refer to the previous pages
for more information.
Information
When the seat belt is allowed to retract to
its fully stowed position, the retractor
automatically switches from the
Automatic Locking mode to the
emergency lock mode for normal adult
usage.
WARNING
Make sure that the retractor is in the
Automatic Locking mode. Otherwise, the
child restraint may move when your
vehicle turns or stops suddenly. A child
may be seriously injured or killed if the
child restraint is not properly anchored in
the vehicle including manually pulling the
seat belt all the way out to shift the
retractor to the Automatic Locking mode.
To remove the Child Restraint System,
press the release button on the buckle
and then pull the seat belt out of the Child
Restraint System and allow the seat belt
to retract fully.
3-35
CarManuals2.com
Seats & safety system
Supplemental restraint system - airbags
OCN7033060
The actual airbags in the vehicle may differ from the illustration.
(1) Driver’s front airbag
(2) Passenger’s front airbag
(3) Front side airbag
(4) Rear side airbag
(5) Curtain airbag
3-36
CarManuals2.com
3
Your vehicle is equipped with a Supplemental Airbag System for the driver’s seat and
front passenger’s seats.
The front airbags are designed to supplement the three-point seat belts. For these
airbags to provide protection, seat belts must be properly worn at all times when driving.
You can be severely injured or killed in an accident if you are not wearing a seat belt.
Airbags are built into the vehicle as a supplementary system. They are not intended as a
replacement for wearing 3-point seat belts. Also, airbags are not designed to deploy in
every collision. In some accidents, the seat belts are the only restraint protecting you.
WARNING
AIRBAG SAFETY PRECAUTIONS
• Always use seat belts and Child Restraint Systems - every trip, every time, everyone!
Even with airbags, you can be seriously injured or killed in a collision if you are
improperly belted or not wearing your seat belt when the airbag inflates.
• Never place a child in any Child Restraint System or booster seat in the front passenger
seat, unless the airbag is deactivated.
An inflating airbag could forcefully strike the infant or child causing serious or fatal
injuries.
• ABC. Always Buckle Children under age 13 in the back seat. It is the safest place for
children of any age to ride. If a child age 13 or older must be seated in the front seat, he
or she must be properly belted and the seat should be moved as far back as possible.
• Make sure that all occupants sit upright with the seatback in an upright position,
centered on the seat cushion with their seat belt on, legs comfortably extended, and
their feet on the floor until the vehicle is parked and the vehicle is turned off. If an
occupant is out of position during an accident, the rapidly deploying airbag may
forcefully contact the occupant causing serious or fatal injuries.
• Never sit or lean unnecessarily close to the airbags or lean against the door or center
console.
Move your seat as far back as possible from front airbags, while still maintaining
control of the vehicle. The U.S. National Highway Traffic Safety Administration
(NHTSA) recommends that drivers allow at least 10 in. (25 cm) between the center of
the steering wheel and the chest.
3-37
CarManuals2.com
Seats & safety system
SRS components
OCN7033061N
The SRS consists of the following components:
(1) Driver's front airbag module
(2) Passenger's front airbag module
(3) Side airbag modules (front)
(4) Side airbag modules (rear)
(5) Curtain airbag modules
(6) Retractor pretensioner (front and rear)
(7) Airbag warning light
(8) SRS control module (SRSCM)/Rollover sensor
(9) Front impact sensors
(10)Side impact sensors
(11) Side pressure sensors
(12)Occupant classification system
(13)Driver’s and front passenger’s seat belt buckle sensors
3-38
CarManuals2.com
3
Where are the airbags?
are fastened. These sensors provide the
ability to control the SRS deployment
based on whether or not the seat belts are
Driver’s and passenger’s front
fastened, and how severe the impact is.
airbags
The SRS offers the ability to control the
Driver’s front airbag
airbag inflation within two levels. A first
stage level is provided for
moderate-severity impacts. A second
stage level is provided for more severe
impacts.
According to the impact severity and seat
belt usage, the SRS Control Module
(SRSCM) controls the airbag inflation.
Failure to properly wear seat belts may
increase the risk or severity of injury in a
collision.
Passenger’s front airbag
WARNING
To reduce the risk of serious injury or
death from inflating front airbags:
Seat belts must be worn at all times to
help keep occupants positioned
properly.
Move your seat as far back as possible
from front airbags, while still
maintaining control of the vehicle.
Never lean against the door or center
console.
Hold the steering wheel at the 9 o’clock
The SRS consists of advanced airbags
and 3 o’clock positions, to minimize the
located in the center of the steering
risk of injuries to your hands and arms.
wheel and the passenger’s side front
Do not allow the front passenger to
panel pad above the glove box.
place their feet or legs on the
The airbag locations are embossed with
dashboard.
the letters "AIRBAG".
Never place any objects (such as
The purpose of the SRS is to provide the
dashboard cover, mobile phone holder,
vehicle's driver and front passenger with
cup holder, perfume or stickers) over or
additional supplemental protection that
near the airbag modules on the steering
the seat belt system does not provide in
wheel, instrument panel, windshield
case of a frontal impact of sufficient
glass, and the front passenger’s panel
severity.
above the glove box. Such objects may
The SRS uses sensors to gather
cause harm if the vehicle is in a collision
information about the driver’s and front
severe enough to cause the airbags to
passenger's seat belt usage and impact
deploy.
severity.
Do not attach any objects on the front
The seat belt buckle sensors determine if
windshield and inside mirror.
the driver and front passenger's seat belts
3-39
CarManuals2.com
Seats & safety system
Side airbags
WARNING
Side airbags (Front seats)
To reduce the risk of serious injury or
death from an inflating side airbag:
Seat belts must be worn at all times to
help keep occupants positioned
properly.
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
between the doors and seats.
Do not use any accessory seat covers. It
Side airbags (Rear seat)
may reduce or prevent the
effectiveness of the system.
Do not hang other objects except
clothes. In an accident it may cause
vehicle damage or personal injury
especially when airbag is inflated.
Do not place any objects over the
airbag location or between the airbag
and yourself. Also, do not attach any
objects around the area the airbag
inflates such as door, side door glass,
and front and rear pillar.
Do not place any objects between the
door and the seat. They may become
dangerous projectiles if the side airbag
inflates.
Do not install any accessories on the
side or near the side airbags.
Do not cause an impact to the doors
when the ignition switch is in the ON or
START position because the side
airbags can inflate.
If the seat or seat cover is damaged,
OCN7033084N
have the vehicle serviced by an
The side airbags are designed to deploy
authorized HYUNDAI dealer.
during certain side impact collisions,
depending on the crash severity.
The side airbags on both sides of the
vehicle are designed to deploy when a
rollover is detected by a rollover sensor.
The side airbags are not designed to
deploy in all side impact or rollover
situations.
3-40
CarManuals2.com
3
Curtain airbags
WARNING
To reduce the risk of serious injury or
death from an inflating curtain airbag:
All occupants must wear seat belts at all
times to help keep occupants
positioned properly.
Properly secure a Child Restraint
System as far away from the door as
possible.
Do not place any objects over the
airbag. Also, do not attach any objects
OCN7030044
around the area the airbag inflates such
as door, side door glass, front and rear
pillar, and roof side rail.
Do not hang other objects except
clothes, especially hard or breakable
objects near airbag locations. In an
accident, it may cause vehicle damage
or personal injury.
Do not allow passengers to lean their
heads or bodies onto doors, put their
arms on the doors, stretch their arms
out of the window, or place objects
OCN7030043
between the doors and seats.
Curtain airbags are located along both
sides of the roof rails above the front and
Do not open or repair the side curtain
rear doors.
airbags.
They are designed to help protect the
heads of the front seat occupants and the
rear outboard seat occupants in certain
side impact collisions.
The curtain airbags are designed to
deploy during certain side impact
collisions, depending on the crash
severity.
For vehicles equipped with a rollover
sensor the side and/or curtain airbags and
pretensioners on both sides of the vehicle
may deploy if a rollover or possible
rollover is detected.
The curtain airbags are not designed to
deploy in all side impact or rollover
situations.
3-41
CarManuals2.com
Seats & safety system
The front airbags completely inflate
How does the airbag system
and deflate in an instant. It is virtually
operate?
impossible for you to see the airbags
The SRSCM (Supplemental Restraint
inflate during an accident. It is much
System Control Module) continually
more likely that you simply see the
monitors all SRS components while the
deflated airbags hanging out of their
ignition switch is ON to determine if a
storage compartments after the
crash impact is severe enough to require
collision.
airbag deployment or pretensioner seat
In addition to inflating in serious side
belt deployment.
collisions, vehicles equipped with a
During a moderate to severe frontal
rollover sensor, side and/or curtain
collision, sensors detect the vehicle’s
airbags inflate if the sensing system
rapid deceleration. If the rate of
detects a rollover.
deceleration is high enough, the SRSCM
When a rollover is detected, curtain
inflates the front airbags with the force
airbags remain inflated longer to help
needed.
provide protection from ejection,
The front airbags help protect the driver
especially when used in conjunction
and front passenger by responding to
with the seat belts, (if equipped with a
frontal impacts in which seat belts alone
rollover sensor).
cannot provide adequate restraint. When
To help provide protection, the airbags
needed, the side airbags help provide
must inflate rapidly. The speed of
protection in the event of a side impact or
airbag inflation is a consequence of
rollover by supporting the side upper
extremely short time in which the
body area.
airbag inflates between the occupant
• Airbags are activated (able to inflate if
and the vehicle structures before the
necessary) only when the ignition
occupant impacts those structures.
switch is in the ON or START position,
This speed of inflation reduces the risk
and it may be activated within 3
of serious or life-threatening injuries
minutes after the engine is turned off.
and is thus a necessary part of airbag
• Airbags inflate in the event of certain
design.
frontal or side collisions to help protect
However, the rapid airbag inflation may
the occupants from serious physical
also cause injuries that include facial
injury.
abrasions, bruises, and broken bones
• There is no single speed at which the
because the inflation speed also causes
airbags will inflate. Generally, airbags
the airbags to expand with great force.
are designed to inflate based upon the
There are even circumstances under
severity of a collision and its direction.
which contact with the airbag may
Airbag deployment also depends on a
cause fatal injuries, especially when the
number of other factors including
occupant is positioned excessively
vehicle speed, angles of impact and the
close to the airbag.
density and stiffness of the vehicles or
You can take steps to reduce the risk of
objects which your vehicle impacts
being injured by an inflating airbag. The
during a collision. The determining
greatest risk is sitting too close to the
factors are not limited to those
airbag. An airbag needs about 10 in. (25
mentioned above.
cm) of space to inflate. NHTSA
recommends that drivers allow at least 10
in. (25 cm) between the center of the
steering wheel and the chest.
3-42
CarManuals2.com
3
Driver’s front airbag (1)
WARNING
To reduce the risk of serious injury or
death from an inflating airbag:
• Never place a child restraint in the front
passenger seat.
Always properly restrain children under
age 13 in the rear seats of the vehicle.
• Adjust the front passenger’s and
driver's seats as far to the rear as
possible while maintaining you to
maintain full control of the vehicle.
• Hold the steering wheel with hands at
When the SRSCM detects a sufficiently
the 9 o'clock and 3 o'clock positions.
severe impact to the front of the vehicle,
it automatically deploys the front airbags.
• Never place anything or anyone
Driver’s front airbag (2)
between the airbag and the seat
occupant.
• Do not allow the front passenger to
place their feet or legs on the
dashboard.
Upon deployment, tear seam in the pad
cover separates from the expansion of
the airbags.
A fully inflated airbag, in combination
with a properly worn seat belt, slows the
driver’s or the front passenger’s forward
motion, reducing the risk of head and
chest injury.
3-43
CarManuals2.com
Seats & safety system
Driver’s front airbag (3)
What to expect after an airbag
inflates
After a frontal or side airbag inflates, it
deflates very quickly. Airbag inflation
does not prevent the driver from seeing
out of the windshield or being able to
steer. Curtain airbags may remain
partially inflated for some time after they
deploy.
WARNING
After an airbag inflates, take the following
Passenger’s front airbag
precautions:
Open your windows and doors as soon
as possible after impact to reduce
prolonged exposure to the powder
released by the inflating airbag.
Do not touch the airbag storage area’s
internal components immediately after
an airbag has inflated. The parts that
come into contact with an inflating
airbag may be very hot.
Always wash exposed skin areas
thoroughly with cold water and mild
After complete inflation, the airbag
soap.
immediately starts deflating, enabling the
Have an authorized HYUNDAI dealer
driver to maintain forward visibility and
inspect your vehicle and replace
steer or operate other controls.
components as required before
operating your vehicle again. Airbags
WARNING
are designed to be used only once.
To prevent objects from becoming
dangerous projectiles when the
passenger’s airbag inflates:
• Do not install or place any objects (drink
holder, CD holder, stickers, etc.) on the
front passenger’s panel above the
glove box where the passenger’s airbag
is located.
• Do not install a container of liquid air
freshener near the instrument cluster or
on the instrument panel surface.
3-44
CarManuals2.com
3
Noise and powder from inflating
SRS warning light
airbag
When the airbags inflate, they make a
loud noise and may release powder inside
the vehicle. After the airbag inflates, you
The SRS (Supplemental Restraint System)
may feel discomfort while breathing. This
airbag warning light on the instrument
may be due to the impact of the airbag or
panel displays the airbag symbol in the
the seat belt with your chest and it may
illustration. The light indicates if there is a
also be due to breathing residual powder
potential problem with your airbag
in the air and around your vehicle. The
system, which could include your side
powder may aggravate asthma for some
and/or curtain airbags used for rollover
people. If you experience breathing
protection.
problems after an airbag deployment,
seek medical attention immediately.
WARNING
Though the powder is nontoxic, it may
If your SRS malfunctions, the airbags may
cause irritation to the skin, eyes, nose,
not inflate properly during a collision
throat, etc. If this is the case, wash and
increasing the risk of serious injury or
rinse with cold water immediately and
death.
seek medical attention if the symptoms
persist.
Your SRS malfunctions in the following
conditions:
• The light does not turn on for about
three to six seconds when the ignition
switch is in the ON position.
• The light stays on after illuminating for
about three to six seconds.
• The light comes on while the vehicle is
moving.
• The light blinks when the engine is
running.
Have an authorized HYUNDAI dealer
inspect the SRS as soon as possible.
3-45
CarManuals2.com
Seats & safety system
Occupant Classification
For example, if a Child Restraint System is
installed on the seat, the Occupant
System (OCS)
Classification System can detect it and
turn off the front passenger airbag.
Front passenger seat adult occupants
who are properly seated and wearing the
seat belt properly, should not cause the
passenger airbag to be automatically
turned off. For smaller adults, it may turn
off. However, if the occupant does not sit
in the seat properly (for example, not
sitting upright, sitting on the edge of the
seat, or being out of position), this may
cause the sensor to turn the front
OCN7033070N
passenger airbag off.
Your vehicle is equipped with an
You can find the "PASSENGER AIR BAG
Occupant Classification System (OCS) in
OFF" indicator on the overhead console
the front passenger’s seat.
panel. This system detects one of the four
conditions as described in the following
Main components of the Occupant
table and activates or deactivates the
Classification System
front passenger airbag based on these
conditions.
• A detection device located within the
front passenger seat cushion.
Always make sure that you and all
occupants are seated properly and
• Electronic system to determine
wearing the seat belt properly for the
whether the passenger airbag systems
most effective protection by the airbag
should be activated or deactivated.
and the seat belt.
• An indicator light located on the
overhead console that illuminates the
words "PASSENGER AIR BAG OFF"
indicating the front passenger airbag
system is deactivated.
• The instrument panel airbag indicator
light is interconnected with the OCS.
The OCS is designed to help detect the
presence of a properly seated front
passenger and determine if the
passenger’s front airbag should be
enabled (ready to inflate if required) or
not.
The purpose is to help reduce the risk of
injury or death from an inflating airbag to
certain front passenger seat occupants,
such as children, by requiring the airbag
to be automatically turned off.
3-46
CarManuals2.com
3
Condition and operation in the front passenger Occupant Classification System
Indicator/Warning light
Devices
Condition detected by the
"PASSENGER
occupant classification system
SRS warning
Front passenger
AIR BAG OFF"
light
airbag
indicator light
Adult*1
Off
Off
Activated
Infant*2 or child restraint system
On
Off
Deactivated
with 12 months old *3 *4
Unoccupied
On
Off
Deactivated
Problems with OCS
Off
On
Activated
*1 The system judges a person of adult size as an adult. When a smaller adult sits in the front passenger seat, the
system may recognize him/her as a child depending on his/her physique and posture.
*2 Do not allow children to ride in the front passenger seat. When a larger child who has outgrown a Child Restraint
System sits in the front passenger seat, the system may recognize him/her as an adult depending on his/her
physique or sitting position.
*3 Never install a Child Restraint System on the front passenger seat.
*4 The "PASSENGER AIR BAG OFF" indicator may turn ON or OFF when a child above 12 months to 12 years old (with
or without Child Restraint System) sits in the front passenger seat. This is a normal condition.
3-47
CarManuals2.com
Seats & safety system
• Never sit with your hips shifted toward
WARNING
the front of the seat.
Riding in an improper position or placing
weight on the front passenger’s seat
when it is unoccupied by a passenger,
adversely affects the OCS. To reduce the
risk of serious injury or death:
• Never put a heavy load in the front seat
or seatback pocket, or hang any items
on the front passenger seat.
OLMB033101
• Never ride with the seatback reclined
when the vehicle is moving.
OVQ036013NB
• Never place your feet on the front
passenger seatback.
OLMB033103
• Never place your feet or legs on the
dashboard.
OLMB033100
OLMB033102
3-48
CarManuals2.com
3
• Never lean on the door or center
• Do not use car seat accessories such as
console or sit on one side of the front
thick blankets and cushions that cover
passenger seat.
up the car seat surface.
OLMB033104
ODH035901K
• Do not sit on the passenger seat
• Do not place electronic devices such as
wearing heavily padded clothes such as
laptops, DVD player, or conductive
ski wear and hip protector.
materials such as water bottles on the
front passenger seat.
• Do not use electronic devices such as
laptops and satellite radios that use
inverter chargers when seated in the
front passenger seat.
ODH035900K
OHI038161
3-49
CarManuals2.com
Seats & safety system
• Make sure the seat has been
Proper seated position for OCS
completely dried before driving the
vehicle. If large quantity of liquid has
been spilled on the front passenger
seat, the airbag warning light may
illuminate or malfunction.
OHI038118
If the "PASSENGER AIR BAG OFF"
indicator is on when an adult is seated in
the front passenger seat, move the
ignition switch to the OFF position and
OHI038162
ask the passenger to sit properly (sitting
Do not place sharp objects on the front
upright with the seatback in an upright
passenger seat. These may damage the
position, centered on the seat cushion
occupant detection system, if they
with their seat belt on, legs comfortably
puncture the seat cushion.
extended, and their feet on the floor).
Do not place any items under the front
Restart the engine and have the person
passenger seat.
remain in that position. This allows the
system to detect the person and to enable
When changing or replacing the seat or
the passenger airbag. If the "PASSENGER
seat cover, use original items only. The
AIR BAG OFF" indicator is still on, ask the
OCS has been developed based on
passenger to move to the rear seat.
using original HYUNDAI car seats only.
Altering or changing the authentic parts
WARNING
may result in system malfunction and
increase risk of injury in a collision. Any
Never allow an adult passenger to ride in
of the above may interfere with the
the front passenger seat when the
proper operation of the OCS sensor
"PASSENGER AIR BAG OFF" indicator is
thereby increasing the risk of an injury
illuminated. During a collision, the airbag
in an accident.
does not inflate if the indicator is
illuminated. If the indicator is illuminated
while an adult is seated in the front
passenger seat, follow the steps in the
previous paragraph to have the
passenger reposition themselves in the
seat.
If the "PASSENGER AIR BAG OFF"
indicator remains illuminated after the
passenger sits in the proper seating
position, have the passenger sit in the
rear seat of the vehicle instead.
3-50
CarManuals2.com
3
Why didn’t my airbag go off in
Information
a collision?
The "PASSENGER AIR BAG OFF" indicator
There are certain types of accidents in
generally illuminates for about 4 seconds
which the airbag would not deploy
after the ignition switch is in the ON or
including rear impacts and second or
START position. But, if the ignition switch
third collisions in multiple impact
is in the ON or START position within 3
accidents, as well as low speed impacts.
minutes after the engine is turned OFF,
Damage to the vehicle indicates a
the indicator does not illuminate. If the
collision energy absorption, and is not an
front passenger seat is occupied, the OCS
indicator of whether or not an airbag
classifies the front passenger after
should have inflated.
several seconds.
Airbag collision sensors
Do not install a Child Restraint
System on the front passenger’s seat
WARNING
To reduce the risk of an airbag deploying
unexpectedly and causing serious injury
or death:
• Do not hit or allow any objects to
impact the locations where airbags or
sensors are installed.
• Do not perform maintenance on or
around the airbag sensors. If the
location or angle of the sensors is
changed, the airbags may deploy when
they should not or may not deploy.
OHI039193N
• Do not install bumper guards with non
Even though your vehicle is equipped
genuine Hyundai or non-equivalent
with the OCS, never install a Child
parts. It may adversely affect the
Restraint System in the front passenger’s
collision and airbag deployment
seat. An inflating airbag may forcefully
performance.
strike a child or child restraint resulting in
serious or fatal injury.
• Move the ignition switch to the OFF or
ACC position and wait for 3 minutes
WARNING
before the vehicle is towed to prevent
unintended airbag deployment.
Never use a rearward facing Child
• Have all airbag repairs are conducted
Restraint on a seat protected by an
by an authorized HYUNDAI dealer.
ACTIVE AIRBAG in front of it. It may result
in death or serious injury to the CHILD.
Children should always ride in the rear
seats.
3-51
CarManuals2.com
Seats & safety system
OCN7033045N
(1) SRS control module/Rollover sensor
(2) Front impact sensor
(3) Side impact sensors (Acceleration)
(4) Side impact sensors (Pressure)
3-52
CarManuals2.com
3
Airbag inflation conditions
severity of impact resulting from a side
impact collision.
Front airbags
Although the driver’s and front
passenger’s airbags are designed to
inflate in frontal collisions and side and
curtain airbags are designed to inflate in
side impact collisions, airbags may inflate
in other types of collisions if the sensors
detect a sufficient impact.
Also, the side and curtain airbags inflate
when a rollover is detected by a rollover
sensor.
If the vehicle chassis is impacted by
bumps or objects on unimproved roads,
OCN7033050
the airbags may deploy. Drive carefully on
Front airbags are designed to inflate in a
unimproved roads or on surfaces not
frontal collision depending on the
designed for vehicle traffic to prevent
severity of impact.
unintended airbag deployment.
Side and curtain airbags
Airbag non-inflation conditions
OCN7033049
OCN7033051
In certain low-speed collisions, the
airbags may not deploy. The airbags are
designed not to deploy in such cases
because they may not provide benefits
beyond the protection of the seat belts.
OCN7033042N
Side and curtain airbags are designed to
inflate when an impact is detected by side
collision sensors depending on the
3-53
CarManuals2.com
Seats & safety system
OCN7033052
OCN7030053
Front airbags are not designed to inflate
In an angled collision, the force of impact
in rear collisions, because occupants are
may direct the occupants in a direction
moved backward by the force of the
where the airbags would not be able to
impact.
provide any additional benefit, and thus
the sensors may not deploy any airbags.
OCN7033049
OCN7033054
Front airbags may not inflate in side
impact collisions, because occupants
Just before impact, drivers often brake
move in the direction of the collision.
heavily. Such heavy braking lowers the
front portion of the vehicle causing it to
Side and curtain airbags may inflate
"nosedive". This is particularly important
depending on the severity of impact.
when the vehicle in front has a higher
ground clearance. Airbags may not inflate
if your vehicle is in a "nosedive" condition
because the collision forces detected by
the sensors may have been significantly
reduced.
3-54
CarManuals2.com
3
SRS care
The SRS is virtually maintenance-free and
there are no parts you can safely service
by yourself. If the SRS airbag warning
light does not illuminate when the
ignition switch is in the ON position or
continuously remains on, have the
system immediately inspected by an
authorized HYUNDAI dealer.
Any work on the SRS system, such as
removing, installing, repairing, or any
OCN7033056
work on the steering wheel, the front
Front airbags may not inflate in rollover
passenger’s panel, front seats, and roof
accidents because front airbag
rails should be performed by an
deployment would not provide additional
authorized HYUNDAI dealer. Improper
occupant protection.
handling of the SRS system may result in
The side and curtain airbags may inflate in
serious personal injury or death.
a rollover situation, when detected by the
rollover sensor.
WARNING
To reduce the risk of serious injury or
death:
• Do not attempt to modify or disconnect
the SRS components or wiring,
including the addition of any kind of
badges to the pad covers or
modifications to the body structure.
• Do not place objects over or near the
airbag modules on the steering wheel,
instrument panel, and the front
passenger’s panel above the glove box.
OCN7033055
• Clean the airbag pad covers with a soft
Airbags may not inflate if the vehicle
cloth moistened with water. Solvents or
collides with objects such as utility poles
cleaners may adversely affect the
or trees, where the point of impact is
airbag covers and proper deployment
concentrated and the collision energy is
of the system.
absorbed by the vehicle structure.
• Replace inflated airbags by an
authorized HYUNDAI dealer.
• If components of the airbag system
must be discarded, or if the vehicle
must be scrapped, observe safety
precautions. Consult an authorized
HYUNDAI dealer for the necessary
information.
3-55
CarManuals2.com
Seats & safety system
Additional safety precautions
Adding equipment to or modifying
your airbag equipped vehicle
Passengers should not move out of or
change seats while the vehicle is
If you modify your vehicle by changing
moving. A passenger who is not wearing
your vehicle’s frame, bumper system,
a seat belt during a collision or
front end or side sheet metal, or ride
emergency stop can be thrown against
height, this may affect the operation of
the inside of the vehicle, against other
your vehicle’s Supplemental Restraint
occupants, or be ejected from the
System.
vehicle.
Do not use any accessories on seat belts.
Airbag warning labels
Devices claiming to improve occupant
comfort or reposition the seat belt can
reduce the protection provided by the
seat belt and increase the chance of
serious injury in a collision.
Do not modify the front seats.
Modification of the front seats may
interfere with the operation of the
Supplemental Restraint System sensing
OCN7033069N
components or side airbags.
Airbag warning labels, required by the
Do not place items under the front seats.
U.S. National Highway Traffic Safety
Placing items under the front seats may
Administration (NHTSA), are attached to
interfere with the operation of the
alert the driver and passengers of
Supplemental Restraint System sensing
potential risks of the airbag system. Be
components and wiring harnesses.
sure to read all of the information about
Do not cause impact to the doors.
the airbags that are installed on your
Impact to the doors when the ignition
vehicle in this Owners Manual.
switch is in the ON or START position may
cause the airbags to inflate.
Modifications to accommodate
disabilities. If you require modification to
your vehicle to accommodate a disability,
contact the HYUNDAI Customer Connect
Center at 800-633-5151.
3-56
CarManuals2.com
4. Instrument Cluster
Instrument cluster
4-2
Instrument cluster control
4-3
Gauges and meters
4-3
Transmission shift indicator
4-8
Warning and indicator lights
4-8
Cluster display messages
4-19
Cluster display (Type A)
4-23
Cluster display control
4-23
Cluster display modes
4-24
User settings mode
4-27
4
Trip computer
4-35
Cluster display (Type B)
4-37
Cluster display control
4-37
View modes
4-38
Vehicle settings (infotainment system)
4-41
Setting your vehicle
4-41
CarManuals2.com
Instrument Cluster
Instrument cluster
Conventional cluster (Type A)
O
Full LCD cluster (Type B)
OCN7043080N
The actual cluster in the vehicle may differ from the illustration.
For more information, refer to the "Gauges and meters" in this chapter.
(1) Tachometer
(2) Speedometer
(3) Engine coolant temperature gauge
(4) Fuel gauge
(5) Warning and indicator lights
(6) Cluster display (including trip computer)
4-2
CarManuals2.com
4
Instrument cluster control
Gauges and meters
Adjusting instrument cluster
Speedometer
illumination
Type A
OCN7040081N
Type B
When the vehicle's parking lights or
headlights are on, press the illumination
control button to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
button, the interior switch illumination
intensity is also adjustable.
• The brightness of the instrument panel
illumination is displayed.
• When the brightness setting reaches
either the minimum or maximum level,
a chime sounds.
The speedometer indicates the speed of
WARNING
the vehicle and is calibrated in miles per
hour (MPH) or kilometers per hour (km/h).
Never adjust the instrument cluster while
driving to prevent death, serious injury, or
vehicle damage.
4-3
CarManuals2.com
Instrument Cluster
Tachometer
Engine coolant temperature gauge
Type A
Type A
Type B
Type B
The tachometer indicates the
The engine coolant temperature gauge
approximate number of engine
indicates the temperature of the engine
revolutions per minute (RPM).
coolant when the ignition switch is in the
ON position.
Use the tachometer to select the correct
shift points and to prevent lugging and/or
NOTICE
over-revving the engine.
If the gauge pointer moves beyond the
NOTICE
normal range area toward the "H"
position, it indicates the engine coolant is
Do not operate the engine within the
overheating.
tachometer's RED ZONE to prevent
severe engine damage.
Do not continue driving with an
overheated engine. If your engine
overheats, refer to the "If the engine
overheats" section in chapter 8.
4-4
CarManuals2.com
4
WARNING
Information
Never remove the radiator cap or engine
• The fuel tank capacity is given in
coolant reservoir cap when the engine is
chapter 10.
hot. The engine coolant is under pressure
• The fuel gauge is supplemented by a
and may cause burn or injury. Always use
low fuel warning light, hat illuminates
a rag.
when the fuel tank is nearly empty.
• On inclines or curves, the fuel gauge
pointer may fluctuate or the low fuel
Fuel gauge
warning light may come on earlier than
Type A
usual due to the movement of fuel in
the tank.
CAUTION
If the shift gear is not P (Park) or N
(Neutral) during refueling, the refueling
may not be recognized and the fuel
amount and distance to empty may be
displayed abnormally.
Type B
WARNING
Always refuel the vehicle as soon as
possible after the warning light comes on
or when the gauge indicator comes close
to E (Empty) level.
NOTICE
Avoid driving with an extremely low fuel
level. Running out of fuel may cause the
engine to misfire and cause damage to
The fuel gauge indicates the approximate
the catalytic converter.
amount of fuel remaining in the fuel tank.
4-5
CarManuals2.com
Instrument Cluster
Outside temperature gauge
Odometer
Type A
Type A
Type B
Type B
The outside ambient temperature
The odometer indicates the total distance
appears in the lower portion of the cluster
that the vehicle has been driven and is
display. The temperature reads in
used to determine when periodic
Fahrenheit or Celsius depending on the
maintenance is required.
units selected from the Settings menu in
the instrument cluster or infotainment
system.
The temperature indicated on the
instrument cluster may not change as
quickly as the outside temperature.
Select:
User Settings > Units > Temperature
Unit > °F/°C (for cluster type)
Setup > General > Units >
Temperature Unit > °F/°C (for
infotainment system type)
Both the temperature unit on the
instrument cluster and climate control
information screen is changed.
4-6
CarManuals2.com
4
Range
Information
Type A
• The range may differ from the actual
driving distance because it is only an
estimate as it is an estimate of the
available driving distance.
• The range may differ significantly
based on driving conditions, driving
habits, and condition of the vehicle.
• If the vehicle is not on level ground or
the battery power has been
interrupted, the distance to empty
function may not operate correctly.
• The distance to empty indicator may
Type B
not change accurately if less than 1.5
gallons (6 liters) of fuel are added to the
vehicle.
• The range is the estimated distance the
vehicle can be driven with the
remaining fuel.
• If the estimated distance is below 1 mi.
(1 km), the trip computer displays "----"
as range. When this occurs, refuel the
vehicle immediately.
4-7
CarManuals2.com
Instrument Cluster
Transmission shift indicator
Warning and indicator lights
Type A
Information
Make sure that all warning lights are OFF
after starting the engine. If any light is still
ON, this indicates a situation that needs
attention.
Airbag warning light
This warning light illuminates:
Type B
• When the ignition switch is in the ON
position. It illuminates for 3-6 seconds
and then goes off.
• When there is a malfunction with the
SRS.
If the Airbag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Seat belt warning light
The transmission shift indicator in the
upper corner of the cluster display
indicates the current gear or P (Park).
This warning light informs the driver that
the seat belt is not fastened.
For more information, refer to the "Seat
belts" section in chapter 3.
4-8
CarManuals2.com
4
Parking brake & brake fluid warning
Also, the vehicle does not stop in a short
light
distance if only a portion of the braking
system is working.
If you experience a malfunction with the
braking system while driving, attempt to
slow your vehicle by coasting or by using
This warning light illuminates:
engine braking. You may be able to
• When the ignition switch is in the ON
reduce your vehicle speed by manually
position. It illuminates for about 3
downshifting to a lower gear. Use manual
seconds and then goes off once the
shift mode using either the shift lever (if
parking brake is released.
equipped) or the paddle shifters (if
equipped) to shift to a lower gear.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the
WARNING
reservoir is low.
If the Parking Brake warning light
- If the warning light illuminates with
illuminates with the parking brake
the parking brake released, it
released, it indicates that the brake fluid
indicates that the brake fluid level in
level is low. Have the vehicle inspected by
the reservoir is low.
an authorized HYUNDAI dealer.
If the brake fluid level in the reservoir is
low:
Anti-lock Brake System (ABS)
1. Drive carefully to the nearest safe
warning light
location and stop your vehicle.
2. With the engine stopped, check the
brake fluid level immediately and add
fluid as required. For more information,
refer to the "Brake fluid" section in
This warning light illuminates:
chapter 9. After adding brake fluid,
• When the ignition switch is in the ON
check all brake components for fluid
position. It illuminates for about 3
leaks. If a brake fluid leak is found, or if
seconds and then goes off.
the warning light remains on, or if the
• Whenever there is a malfunction with
brakes do not operate properly, do not
the ABS.
drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
The hydraulic braking system still
dealer.
operates even if there is a malfunction
with the ABS.
Dual-diagonal braking system
If the ABS warning light remains
Your vehicle is equipped with the
illuminated while driving, have the
dual-diagonal braking systems. This
vehicle inspected by an authorized
means you still have braking on two
HYUNDAI dealer.
wheels even if one of the dual systems
fails.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal force are required to
stop the vehicle.
4-9
CarManuals2.com
Instrument Cluster
Electronic Brake Force Distribution
Electronic Parking Brake (EPB)
(EBD) system warning light
warning light
if equipped
This warning light illuminates:
When the ABS warning and Parking Brake
• When the ignition switch is in the ON
warning lights are on simultaneously, it
position. It illuminates for about 3
may indicate a problem with the
seconds and then goes off.
Electronic Brake Force Distribution
• Whenever there is a malfunction with
system.
the EPB.
If both the ABS warning light and the
If the EPB warning light remains
Parking Brake warning light remain
illuminated while driving, have the
illuminated while driving, have the
vehicle inspected by an authorized
vehicle inspected by an authorized
HYUNDAI dealer
HYUNDAI dealer.
Information
WARNING
The Electronic Parking Brake (EPB)
When both ABS and Parking Brake
warning light may illuminate when the
warning lights are on, the braking system
Electronic Stability Control (ESC)
does not work normally and you may
indicator light comes on to indicate that
experience an unexpected and
ESC is not working properly. This does not
dangerous situation during sudden
indicate malfunction of EPB.
braking.
Avoid high speed driving and abrupt
braking.
AUTO HOLD indicator light
Have the vehicle inspected by an
if equipped
authorized HYUNDAI dealer as soon as
possible.
This indicator light illuminates:
Information
• White: When you activate Auto Hold by
When the ABS warning light is on or both
pressing the AUTO HOLD switch.
ABS and Parking Brake warning lights are
on, the speedometer, odometer, or
• Green: When you stop the vehicle
tripmeter may not work. Also, the MDPS
completely by depressing the brake
warning light may illuminate and the
pedal with Auto Hold activated.
steering effort may increase or decrease.
• Yellow: Whenever a malfunction with
the Auto Hold is detected.
If the AUTO HOLD indicator light
remains yellow while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-10
CarManuals2.com
4
For more information, refer to the
NOTICE
"Electronic Parking Brake (EPB)" section
in chapter 6.
• Driving with the Malfunction Indicator
Lamp (MIL) on may cause damage to
the emission control system that may
Motor Driven Power Steering
affect drivability and/or fuel economy.
(MDPS) warning light
• If the Malfunction Indicator Lamp (MIL)
illuminates, catalytic converter damage
is possible that may result in loss of
engine power.
This warning light illuminates:
• When the ignition switch is in the ON
Charging system warning light
position. It illuminates for about 3
seconds and then goes off.
• Whenever there is a malfunction with
the Motor Driven Power Steering.
When there is a malfunction with either
If the MDPS warning light remains
the alternator or electrical charging
illuminated while driving, have the
system.
vehicle inspected by an authorized
If there is a malfunction with either the
HYUNDAI dealer.
alternator or electrical charging system:
1. Drive carefully to the nearest safe
Malfunction Indicator Lamp (MIL)
location and stop your vehicle.
2. Turn the engine OFF and check the
alternator drive belt for looseness or
breakage.
This warning light illuminates:
If the belt is adjusted properly, there
may be a problem in the electrical
• When the ignition switch is in the ON
charging system.
position. It illuminates for about 3
seconds and then goes off.
If the Charging system warning light
remains illuminated while driving, have
• Whenever there is a malfunction with
the vehicle inspected by an authorized
either the emission control system or
HYUNDAI dealer.
the engine or the vehicle powertrain.
If the MIL warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
• If the enhanced engine protection
system activates due to the lack of
engine oil, the engine power is limited.
4-11
CarManuals2.com
Instrument Cluster
Engine oil level warning light
Engine oil pressure warning light
if equipped
This warning light illuminates:
This warning light illuminates:
When the engine oil pressure is low.
When the engine oil level is low. Check
the engine oil level as soon as possible
If the engine oil pressure is low:
and add engine oil as required.
1. Drive carefully to the nearest safe
Use only the specified engine oil. Refer to
location and stop your vehicle.
the "Recommended lubricants and
2. Turn the engine off and check the
capacities" section in chapter 10.
engine oil level (For more information,
Do not overfill the engine oil. Make sure
refer to the "Engine oil" section chapter
the oil level is not above F (Full) mark on
9). If the level is low, add oil as required.
the dipstick.
If the warning light remains on after
adding oil or if oil is not available, have
Information
the vehicle inspected by an authorized
HYUNDAI dealer.
• If you travel approximately 30-60 mi.
(50-100 km) after the engine warms up,
Information
after adding the engine oil, the warning
light will go off.
When engine oil pressure decreases due
• Cycle the ignition from OFF to ON 3
to insufficient engine oil, etc., the Engine
times within 10 seconds, the warning
Oil Pressure warning light illuminates. In
light will go off immediately. However,
addition, the enhanced engine protection
when you turn off the warning light
system that limits engine power is
without adding the engine oil, the light
activated.
will come on again after traveling
When the engine oil pressure is restored,
approximately 30-60 mi. (50-100 km)
the warning light and the enhanced
after the engine warms up.
engine protection system will turn off
after the engine is restarted.
NOTICE
NOTICE
If the warning light comes on
continuously after adding the engine oil
• Continued driving with the warning
and travelling approximately 30-60 mi.
light on may cause engine failure.
(50-100 km) after the engine warms up,
• If the engine is not turned OFF
have the system inspected by an
immediately after the Engine Oil
authorized HYUNDAI dealer.
Pressure warning light is illuminated,
Even if this light doesn’t come on after the
severe damage could occur.
engine has started, the engine oil level
should be periodically checked and
topped up if required.
4-12
CarManuals2.com
4
Low fuel level warning light
Low tire pressure warning light
if equipped
This warning light illuminates:
When the fuel tank is nearly empty. Refuel
This warning light illuminates:
the vehicle as soon as possible.
• When the ignition switch is in the ON
position. It illuminates for about 3
NOTICE
seconds and then goes off.
Driving with the Low Fuel Level warning
• When one or more tires are significantly
light on or with the fuel level below "E"
underinflated. (The location of the
may cause the engine to misfire and
under-inflated tire appears on the
damage the catalytic converter.
cluster display.)
For more information, refer to the "Tire
Pressure Monitoring System (TPMS)"
Master warning light
section in chapter 8.
This warning light remains ON after
blinking for about 60 seconds, or
repeatedly blinks ON and OFF at 3 second
This warning light illuminates:
intervals:
If a malfunction is detected in any of the
When there is a malfunction with the
following:
TPMS.
• Forward Collision-Avoidance Assist
In this occurs, have the vehicle inspected
malfunction
by an authorized HYUNDAI dealer as soon
• Forward Collision-Avoidance Assist
as possible.
radar blocked (if equipped)
For more information, refer to the "Tire
• Blind-Spot Collision-Avoidance Assist
Pressure Monitoring System (TPMS)" in
malfunction (if equipped)
section chapter 8.
• Blind-Spot Collision-Avoidance Assist
WARNING
radar blocked (if equipped)
• The TPMS cannot alert you to severe
• High Beam Assist malfunction (if
and sudden tire damage caused by
equipped)
external factors.
• Lamp malfunction (if equipped)
• If you notice any vehicle instability,
• Smart Cruise Control malfunction (if
immediately take your foot off the
equipped)
accelerator pedal, apply the brakes
• Tire Pressure Monitoring System
gradually with light force, and slowly
(TPMS) malfunction (if equipped)
move to a safe position off the road.
If the issue is resolved, the Master
warning light turns off.
4-13
CarManuals2.com
Instrument Cluster
Electronic Stability Control (ESC)
AUTO STOP indicator light
indicator light
if equipped
This indicator light illuminates:
This indicator light illuminates:
• When the ignition switch is in the ON
When the engine enters the Idle Stop
position. It illuminates for about 3
mode of ISG (Idle Stop and Go) system.
seconds and then goes off.
When the engine automatically starts, the
• Whenever there is a malfunction with
AUTO STOP indicator on the cluster
the ESC system.
Illuminates to white.
If this occurs, have the vehicle
For more information, refer to the "Idle
inspected by an authorized HYUNDAI
Stop and Go (ISG) system" section in
dealer.
chapter 6.
This indicator light blinks:
Information
While the ESC is operating.
When the ISG system automatically starts
For more information, refer to the
the engine, some warning lights (ABS,
"Electronic Stability Control (ESC)"
ESC, ESC OFF, MDPS or Parking brake
section in chapter 6.
warning light) may turn on for a few
seconds because of a low battery voltage
but not a system malfunction.
Electronic Stability Control (ESC)
OFF indicator light
Immobilizer indicator light (without
smart key)
This indicator light illuminates:
• When the ignition switch is in the ON
This indicator light illuminates:
position. It illuminates for about 3
When the vehicle detects the immobilizer
seconds and then goes off.
in the key with the ignition switch in the
• When you deactivate the ESC system
ON position.
by pressing the ESC OFF button.
• At this time, you can start the engine.
For more information, refer to the
• The indicator light goes off after
"Electronic Stability Control (ESC)"
starting the engine.
section in chapter 6.
This indicator light blinks:
Whenever there is a malfunction with the
immobilizer system.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
4-14
CarManuals2.com
4
Immobilizer indicator light (with
Turn signal indicator light
smart key)
if equipped
This indicator light blinks:
This indicator light illuminates for up to 30
When you operate the turn signal lever.
seconds:
If any of the following occur, there may be
When the vehicle detects the smart key in
a malfunction with the turn signal system.
the vehicle with the Button Start ignition
switch in the ACC or ON position.
• The turn signal indicator light
illuminates but does not blink.
• At this time, you can start the engine.
• The turn signal indicator light blinks
• The indicator light goes off after
rapidly.
starting the engine.
• The turn signal indicator light does not
This indicator light blinks for a few
illuminate at all.
seconds:
If any of these occur, have your vehicle
When the smart key is not in the vehicle,
inspected by an authorized HYUNDAI
you cannot start the engine.
dealer.
This indicator light illuminates for 2
Exterior light warning light
seconds and goes off:
if equipped
If the smart key is in the vehicle and the
Button Start ignition switch is ON, but the
vehicle cannot detect the smart key.
If this occurs, have the vehicle inspected
by an authorized HYUNDAI dealer.
This warning light illuminates:
When one of the exterior bulbs
This indicator light blinks:
(headlight, DRL, turn signal light, stop
Whenever there is a malfunction with the
light, etc) is not operating properly.
immobilizer system.
Replace the burned out bulb with a new
If this occurs, have the vehicle inspected
one with the same wattage rating.
by an authorized HYUNDAI dealer.
4-15
CarManuals2.com
Instrument Cluster
LED headlight warning light
Light ON indicator light
if equipped
This indicator light illuminates:
This warning light illuminates:
When the tail lights or headlights are on.
• When the ignition switch is in the ON
position. It illuminates for about 3
High Beam Assist indicator light
seconds and then goes off.
if equipped
• Whenever there is a malfunction with a
LED headlight.
If the LED Headlight warning light
remains illuminated while driving, have
the vehicle inspected by an authorized
This indicator light illuminates:
HYUNDAI dealer.
When the high beam is on with the light
switch in the AUTO light position.
This warning light blinks:
• White: When High Beam Assist is ready
Whenever there is a malfunction with a
to operate.
LED headlight related part.
• Green: When High Beam Assist is
If this occurs, have the vehicle inspected
operating.
by an authorized HYUNDAI dealer.
If your vehicle detects oncoming or
NOTICE
preceding vehicles, High Beam Assist
system switches the high beam to low
Driving with the LED Headlight warning
beam automatically.
light on or blinking may reduce LED
For more information, refer to the "High
headlight life.
Beam Assist (HBA)" section in chapter 5.
High beam indicator light
This indicator light illuminates:
• When the headlights are on and the
turn signal lever is moved to the high
beam position.
• When the turn signal lever is pulled into
the Flash-to-Pass position.
4-16
CarManuals2.com
4
Forward Safety warning light
Lane Safety indicator light
if equipped
if equipped
This warning light illuminates:
This warning light illuminates:
• When the ignition switch is in the ON
• When the ignition switch is in the ON
position. It illuminates for about 3
position. It illuminates for about 3
seconds and then goes off.
seconds and then goes off.
• Yellow: When Forward Safety of
• Yellow: When Driver Attention Warning
Forward Collision-Avoidance Assist is
is disabled or a malfunction is detected.
deselected, disabled, or a malfunction
If the yellow indicator light remains on
is detected.
after the front view camera has been
If the yellow warning light remains on
uncovered or unblocked, we
after the sensor has been uncovered or
recommend that your vehicle be
unblocked when Forward Safety is set,
inspected by an authorized HYUNDAI
we recommend that your vehicle be
dealer.
inspected by an authorized HYUNDAI
dealer.
This warning light blinks:
• Yellow: Driver Attention Warning
This warning light blinks:
recommends to take a break.
• Red: When Forward Safety function is
For more information, refer to the "Lane
operating.
Keeping Assist (LKA)" section in chapter 7.
For more information, refer to the
"Forward Collision Avoidance Assist (FCA)
(Front view camera only)" section in
chapter 7.
4-17
CarManuals2.com
Instrument Cluster
Driver Attention Warning light
SPORT mode indicator light
if equipped
This indicator light illuminates:
When you select "SPORT" mode as drive
WL_ConsiderTakingABreak
mode.
This indicator light illuminates:
For more information, refer to the "Drive
mode integrated control system" section
• When the ignition switch is in the ON
in chapter 6.
position. It illuminates for about 3
seconds and then goes off.
• Yellow: When Driver Attention Warning
SMART mode indicator light
is disabled or a malfunction is detected.
if equipped
If the yellow indicator light remains on
after the front view camera has been
uncovered or unblocked, have your
vehicle inspected by an authorized
HYUNDAI dealer.
This indicator light illuminates:
When you select ‘’SMART" mode as drive
This indicator light blinks:
mode.
• Yellow: Driver Attention Warning
For more information, refer to the "Drive
recommends to take a break.
mode integrated control system’’ section
For more information, refer to the "Driver
in chapter 6.
Attention Warning (DAW)" section in
chapter 7.
Icy road warning light
if equipped
Cruise indicator light
if equipped
This indicator light illuminates:
To warn the driver the road may be icy.
When the outside temperature on the
This indicator light illuminates:
temperature gauge is below 40 °F (4 °C),
a single chime sounds, both the outside
When the cruise control system is
temperature gauge and Icy Road Warning
enabled.
indicator blink several times, and then
For more information, refer to the "Cruise
they remain illuminated.
Control (CC)" section in chapter 7.
You can activate or deactivate the Icy
Road Warning function from the Settings
menu in the instrument cluster.
4-18
CarManuals2.com
4
Key not detected (with smart key)
Information
if equipped
If the Icy Road warning light appears
This message appears if the smart key is
while driving, avoid speeding, rapid
not detected when you press the Push
acceleration, sudden braking, or sharp
Button Start ignition switch.
turning.
Press START button again (with
smart key)
Cluster display messages
if equipped
If you cannot start the vehicle after the
Shift to P (with smart key)
Push Button Start ignition switch is
if equipped
pressed, attempt to start the engine by
This message appears if the Push Button
pressing the Push Button Start ignition
Start ignition switch is pressed to the OFF
switch again.
position without the gear in the P (Park)
If the warning message appears each
position.
time you press the Push Button Start
If this occurs, the Push Button Start
ignition switch, have the vehicle
ignition switch goes to the ACC position.
inspected by an authorized HYUNDAI
dealer.
Low key battery (with smart key)
if equipped
Press START button with key (with
smart key)
When the Push Button Start ignition
switch is pressed to the OFF position, a
if equipped
message may appear, indicating the
This message appears and the
internal battery of the Smart Key is low.
immobilizer indicator blinks if you press
Replace the Smart Key battery.
the Push Button Start ignition switch
while the warning message, "Key not
detected" appears.
Press brake pedal to start engine
(with smart key)
if equipped
Check BRAKE SWITCH fuse (with
smart key)
This message appears if the Push Button
Start ignition switch is pressed repeatedly
if equipped
without depressing the brake pedal.
This message appears if the brake switch
Start the vehicle by depressing the brake
fuse is disconnected.
pedal and then pressing the Push Button
Replace the fuse before starting the
Start ignition switch.
engine.
If that is not possible, start the engine by
Key not in vehicle (with smart key)
pressing the Engine Start/ Stop button for
10 seconds in the ACC position.
if equipped
This warning message is displayed if the
smart key is not in the vehicle when you
press the Engine Start/Stop button.
When attempting to start the vehicle,
always have the smart key with you.
4-19
CarManuals2.com
Instrument Cluster
Shift to P or N to start engine (with
Door, Hood, Trunk open indicator
smart key)
if equipped
This message appears if you try to start
the engine in any other position except P
(Park) or N (Neutral).
Information
You can start the engine with the gear in
N (Neutral). But, for your safety, always
start the engine with the vehicle in P
(Park) with your foot depressing the brake
OCN7040017
pedal.
This warning appears if any door or hood
or trunk is left open. The warning
Battery discharging due to external
indicates which door is open on the
electrical devices
cluster display.
if equipped
WARNING
This message appears if the vehicle
battery voltage is low or if a current draw
Before driving the vehicle, confirm the
is detected that could drain the vehicle
door, hood, and trunk are fully closed.
battery.
Also, check there are no door, hood, and
Do not connect any external electronic
trunk open warning lights or messages
devices to the battery system or battery
displayed on the instrument cluster.
discharge may occur.
If this message appears on the cluster and
Sunroof open indicator
there are no other external electronic
devices connected to the vehicle, have
if equipped
the vehicle inspected by an authorized
HYUNDAI dealer.
OCN7040018
This warning appears if you turn off the
engine when the sunroof is open.
Close the sunroof securely before leaving
your vehicle.
4-20
CarManuals2.com
4
Low tire pressure
Wiper
OCN7040026L
This warning message appears if the tire
OAD048579N
pressure is low. The corresponding tire on
This indicator displays which wiper speed
the vehicle illuminates.
is selected using the wiper control.
For more information, refer to the "Tire
Pressure Monitoring System (TPMS)"
Low fuel
section in chapter 8.
This message appears if the fuel tank is
almost out of fuel.
Lights
When this message appears, the low fuel
level warning light on the cluster comes
on.
Refuel as soon as possible.
Engine overheated
if equipped
This message appears when the engine
coolant temperature is above 248 °F (120
°C). The engine is overheated and may be
damaged.
If your vehicle is overheated, refer to the
OIK047145L
"If the engine overheats" section in
This indicator displays which exterior light
chapter 8.
is selected using the lighting control.
Check headlight
if equipped
This message appears if the headlights
are not operating properly. Replace the
burned out bulb with a new one with the
same wattage rating.
4-21
CarManuals2.com
Instrument Cluster
Check headlight (Low)
if equipped
This message appears if the headlights
(Low) are not operating properly. Replace
the burned out bulb with a new one with
the same wattage rating.
Check turn signal
if equipped
This message appears if the turn signal
light is not operating properly.
Replace the burned out bulb with a new
one with the same wattage rating.
Check brake light
if equipped
This message appears if the brake light is
not operating properly.
Replace the burned out bulb with a new
one with the same wattage rating.
Check daytime running light
if equipped
This message appears if the daytime
running light is not operating properly.
Replace the burned out bulb with a new
one with the same wattage rating.
Check high mounted stop light
if equipped
This message appears if the high
mounted stop light is not operating
properly.
Replace the burned out bulb with a new
one with the same wattage rating.
Check headlight LED
if equipped
This message appears if there is a
problem with the LED headlight. Have the
vehicle inspected by an authorized
HYUNDAI dealer.
4-22
CarManuals2.com
4
Cluster display (Type A)
Cluster display control
OCN7040023L
OCN7040023
Switch
Function
MODE button for changing modes.
,
MOVE switch for changing items.
OK
SELECT/RESET button for setting or resetting the selected item.
Information
If equipped with an infotainment system, only the Settings menu in the infotainment
system is supported and not the instrument cluster.
4-23
CarManuals2.com
Instrument Cluster
Cluster display modes
Modes
Symbol
Explanation
Trip
This mode displays driving information such as the tripmeter,
Computer
fuel economy, etc.
Turn By
This mode displays the navigation guidance.
Turn (TBT)
This mode displays:
Driving
• Smart Cruise Control (if equipped)
Assist
• Lane Keeping Assist
• Lane Following Assist
User
In this mode, you can change settings of the doors, lights,
Settings
etc.
• The Master Warning mode displays warning messages
related to the vehicle when one or more systems are not
Warning
operating normally.
• Tire pressure information is displayed.
The information provided may differ depending on which functions are available to
your vehicle.
4-24
CarManuals2.com
4
Trip computer group
Driving Assist group
LKA/SCC
OCN7043100N
The trip computer mode displays
OCN7043092
information related to vehicle driving
parameters including fuel economy, trip
Displays the state of Smart Cruise Control
meter information, and vehicle speed.
(if equipped) and Lane Keeping Assist.
For more information, refer to the "Trip
For more information, refer to the each
computer" section in this chapter.
function information in chapter 7.
Turn By Turn (TBT) group
OIK047147N
Turn-by-turn navigation and distance/
time to destination appear when Turn by
Turn mode is selected.
4-25
CarManuals2.com

















Content      ..      1       2         ..



//////////////////////////////////////////
