Hyundai Elantra (2023 year). Manual in english - page 11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle

ISG System Malfunction

The ISG system may not operate:

When there is a malfunction with the ISG

sensors or the ISG system.

The following occurs, when there is a

malfunction with the ISG system:

ś The auto stop indicator (

) will

illuminate in yellow on the instrument

cluster.

OIK057086N

ś The light on the ISG OFF button will

The auto start is temporarily deactivated

illuminate.

in the following situations.

When the gear is shifted from N (Neutral)

Information

to R (Reverse), D (Drive) or Manual

shift mode without the brake pedal

ś When you cannot turn OFF the ISG

depressed. A message "Press brake pedal

OFF button indicator by pressing

for Auto Start" will appear on the LCD

the ISG OFF button, or when the

display. To activate auto start, depress

malfunction with the ISG system

the brake pedal.

persists, contact an authorized

HYUNDAI dealer.

To Deactivate the ISG System

ś You can turn off the ISG OFF button

ś Press the ISG OFF button to

indicator by driving over 50 mph (80

deactivate the ISG system. Then, the

km/h) for up to 2 hours with the fan

ISG OFF button indicator illuminates.

speed below the 2nd position. If the

ISG OFF button indicator remains

ś Press the ISG OFF button again to

ON, contact an authorized HYUNDAI

reactivate the ISG system. Then, the

dealer.

ISG OFF button indicator turns OFF.

WARNING

When the engine is in auto stop mode,

the engine may restart. Before leaving

the vehicle or checking the engine

compartment, stop the engine placing

the ignition switch to the LOCK/OFF

position or remove the ignition key.

6-52

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

Battery Sensor Deactivation

Information

The ISG system may not operate in the

following situations.

- There is a malfunction with the ISG

system.

- The battery is weak.

- The brake vacuum pressure is low.

If this occurs, have the ISG system

checked by an authorized HYUNDAI

dealer.

OCN7060158N

NOTICE

[A] : Battery sensor

ś Use only a genuine HYUNDAI

The battery sensor is deactivated, when

Absorbent Glass Mat (AGM) battery

the battery is disconnected from the

for replacement. If not, the ISG

negative pole for maintenance purpose.

system may not operate normally.

In this case, the ISG system is limitedly

ś Do not recharge the Absorbent Glass

operated due to the battery sensor

Mat (AGM) battery with a general

deactivation. Thus, the driver needs

battery charger. It may damage or

to take the following procedures to

explode the Absorbent Glass Mat

reactivate the battery sensor after

(AGM) battery.

disconnecting the battery.

ś Do not remove the battery cap. The

battery electrolyte, which is harmful

Prerequisites to reactivate the

to the human body, may leak out.

battery sensor

Switch "ON" and "OFF" the ignition one

time. Park the vehicle for a minimum of 4

hours with the hood and all doors closed.

Pay extreme caution not to connect any

accessories (for example, navigation and

black box) to the vehicle with the engine

in the OFF status. If not, the battery

sensor may not be reactivated.

6-53

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle

'5,9( 02'( ,17(*5$7

(' &21752/ 6<67(0 ǣ,) (48,33('Ǥ

Drive Mode

The mode changes when you toggle the

DRIVE MODE button.

„ Type A

COMFORT mode provides smooth

driving and comfortable riding.

NORMAL

SPORT

OCN7060022

„ Type B (N Line)

SMART

When NORMAL mode is selected, it is

not displayed on the instrument cluster.

ś NORMAL mode :

NORMAL mode provides smooth

driving and comfortable riding.

ś SPORT mode :

OCN7N060002

SPORT mode provides sporty but firm

The drive mode may be selected

riding

according to the driver’s preference or

road condition.

The drive mode will change to NORMAL

mode when the engine is restarted.

However, except when it is in SMART

Information

mode. SMART mode will be maintained,

If there is a problem with the

as selected when the engine is restarted.

instrument cluster, the drive mode will

be in COMFORT mode and may not

If you change the setting of the drive

change to NORMAL mode or SPORT

mode integrated control mode, SCC

mode.

reaction of Smart Cruise Control is also

changed. (if equipped)

Drive mode

integrated control

SCC reaction

mode

NORMAL

Normal

SPORT

Fast

SMART

Normal

6-54

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

SPORT mode

SMART mode

SPORT mode manages the

SMART mode selects the

driving dynamics by

proper driving mode among

automatically adjusting the

ECO, NORMAL, and SPORT

steering effort, the engine

by judging the driver’s driving

and transmission control

habits (for example, Economic

logic for enhanced driver

or Aggressive (Sportive) from

performance.

the brake pedal depression or

the steering wheel operation.

ś

When SPORT mode is selected by

using the DRIVE MODE button, the

ś

Toggle the DRIVE MODE button to

SPORT indicator will illuminate.

select SMART mode. When SMART

mode is selected, the indicator

ś

Whenever the engine is restarted,

illuminates on the instrument cluster.

the Drive Mode will revert back to

NORMAL mode. If SPORT mode is

ś

SMART mode automatically controls

desired, re-select SPORT mode from

the vehicle driving, such as gear

the DRIVE MODE button.

shifting patterns and engine torque,

in accordance with the driver’s driving

ś

When SPORT mode is activated:

habits.

- The engine rpm will tend to remain

ś

Whenever the engine is restarted, the

raised over a certain length of time

drive mode remains in SMART mode.

even after releasing the accelerator

- Upshifts are delayed when

accelerating

Information

ś

When you mildly drive the vehicle

in SMART mode, the driving mode

Information

changes to SMART ECO mode to

In SPORT mode, the fuel efficiency may

improve fuel efficiency. However, the

decrease.

actual fuel efficiency may differ in

accordance with your driving situations

(for example, upward/downward slope,

vehicle deceleration/acceleration).

ś

When you dynamically drive the

vehicle in SMART mode by abruptly

decelerating or sharply turning the

driving mode changes to SMART

SPORT mode. However, it may

adversely affect fuel economy.

6-55

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

Smart Shift On Trip Computer

Driver’s style gauge in SMART mode

(if equipped)

Select the Trip Computer mode (

)

on the instrument cluster LCD display

and move to the smart shift screen.

Then, the driver can see the drive mode

selected and the drive mode which is

automatically switched by the SMART

mode.

OIG069023L

OIG069021L

The drive mode selected by the driver (1)

and the driving style gauge (2) showing

the driver’s driving style are displayed on

OIG069139L

the screen.

With the standard driving style in the

center, the left side of the gauge is

‘Econ.’ and right side is ‘Dynamic’ style.

When the left side of the driver’s style

gauge is filled up and after a certain

time passes, the SMART ECO mode is

activated automatically. When the right

side of the gauge is filled up and sporty

driving condition is detected, the SMART

SPORT mode is activated.

To maintain the SMART ECO mode for

fuel efficiency, drive with the left side of

the gauge filled up.

6-57

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle

63(&,$/ '5,9,1* &21',7,216

Hazardous Driving Conditions

WARNING

When hazardous driving elements

If the vehicle is stuck and excessive

are encountered such as water, snow,

wheel spin occurs, the temperature

ice, mud and sand, take the below

of the tires can increase very quickly.

suggestions:

If the tires become damaged, a tire

ś Drive cautiously and keep a longer

blow out or tire explosion can occur.

braking distance.

This condition is dangerous - you and

others may be injured. Do not attempt

ś Avoid abrupt braking or steering.

this procedure if people or objects are

ś When your vehicle is stuck in

anywhere near the vehicle.

snow, mud, or sand, use second

gear. Accelerate slowly to avoid

If you attempt to free the vehicle, the

vehicle can overheat quickly, possibly

unnecessary wheel spin.

causing an engine compartment fire

ś Put sand, rock salt, tire chains or other

or other damage. Try to avoid spinning

non-slip materials under the wheels to

the wheels as much as possible to

provide additional traction while the

prevent overheating of either the tires

vehicle becomes stuck in ice, snow,

or the engine. DO NOT allow the vehicle

or mud.

to spin the wheels above 35 mph (56

km/h).

WARNING

Downshifting with an intelligent

Information

variable transmission while driving on

The ESC system must be turned OFF

slippery surfaces can cause an accident.

before rocking the vehicle.

The sudden change in tire speed could

cause the tires to skid. Be careful when

downshifting on slippery surfaces.

NOTICE

If you are still stuck after rocking the

Rocking the Vehicle

vehicle a few times, have the vehicle

If it is necessary to rock the vehicle to

pulled out by a tow vehicle to avoid

free it from snow, sand, or mud, first turn

engine overheating, possible damage to

the steering wheel right and left to clear

the transmission, and tire damage. See

the area around your front wheels. Then,

"Towing" in chapter 7.

shift back and forth between R (Reverse)

and a forward gear.

Try to avoid spinning the wheels, and do

not race the engine.

To prevent transmission wear, wait until

the wheels stop spinning before shifting

gears. Release the accelerator pedal

while shifting, and press lightly on the

accelerator pedal while the transmission

is in gear. Slowly spinning the wheels in

forward and reverse directions causes a

rocking motion that may free the vehicle.

6-58

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

WINTER DRIVING

The severe weather conditions of winter

Information

quickly wear out tires and cause other

problems. To minimize winter driving

Do not install studded tires without

problems, you should take the following

first checking local, state and municipal

suggestions:

regulations for possible restrictions against

their use.

Snow or Icy Conditions

Tire chains

You need to keep sufficient distance

between your vehicle and the vehicle in

Since the sidewalls of radial tires are

front of you.

thinner than other types of tires, they

may be damaged by mounting some

Apply the brakes gently. Speeding, rapid

types of tire chains on them. Therefore

acceleration, sudden brake applications,

the use of snow tires is preferred over the

and sharp turns are potentially

use of tire chains.

very hazardous practices. During

deceleration, use engine braking to the

If the road and weather conditions

fullest extent. Sudden brake applications

require the use of tire chains, be sure to

on snowy or icy roads may cause the

use tire chains that have been properly

vehicle to skid.

selected for the size of tire on your

HYUNDAI vehicle.

To drive your vehicle in deep snow, it

Be sure to follow the guidelines and

may be necessary to use snow tires or to

install tire chains on your tires.

installation instructions provided from

the tire chain manufacturer.

Always carry emergency equipment.

Some of the items you may want to carry

Damage to your vehicle caused by

include tire chains, tow straps or chains,

improper tire chain use is not covered by

a flashlight, emergency flares, sand, a

your vehicle manufacturer’s warranty.

shovel, jumper cables, a window scraper,

gloves, ground cloth, coveralls, a blanket,

WARNING

etc.

The use of tire chains may adversely

Snow tires

affect vehicle handling:

ś Drive less than 20 mph (30 km/h)

WARNING

or the chain manufacturer's

Snow tires should be equivalent in size

recommended speed limit,

and type to the vehicle’s standard tires.

whichever is lower.

Otherwise, the safety and handling of

ś Drive carefully and avoid bumps,

your vehicle may be adversely affected.

holes, sharp turns, and other road

hazards, which may cause the

If you mount snow tires on your vehicle,

vehicle to bounce.

make sure to use radial tires of the same

ś Avoid sharp turns or locked wheel

size and load range as the original tires.

braking.

Mount snow tires on all four wheels

to balance your vehicle’s handling in

all weather conditions. The traction

CAUTION

provided by snow tires on dry roads

If your vehicle has 235/40R18 size tires,

may not be as high as your vehicle's

do not use tire chain; they can damage

original equipment tires. Check with

your vehicle (wheel, suspension and

the tire dealer for maximum speed

body).

recommendations.

6-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

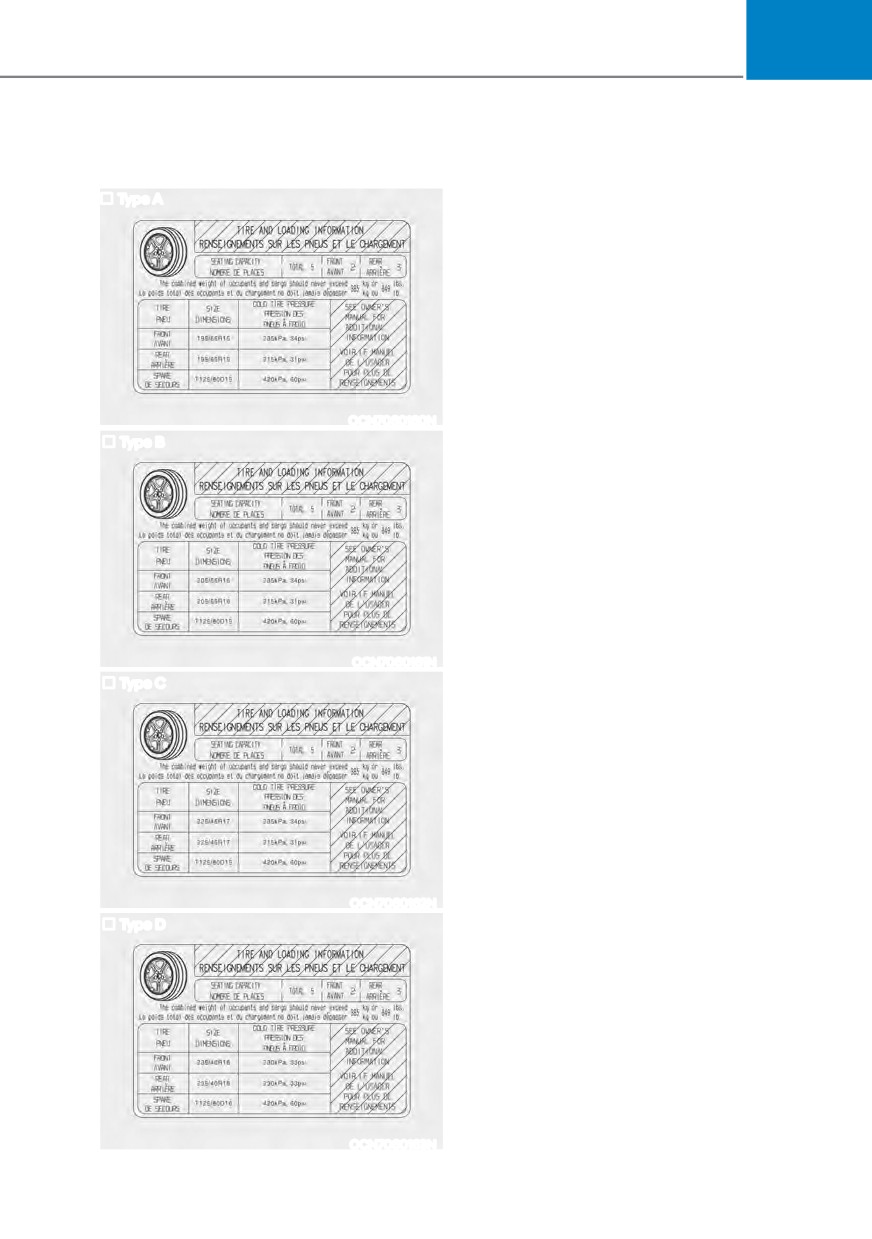

Tire Loading Information Label

The label located on the driver's door

sill gives the original tire size, cold

„ Type A

tire pressures recommended for your

vehicle, the number of people that can

be in your vehicle and vehicle capacity

weight.

Vehicle capacity weight

849 lbs. (385 kg)

Vehicle capacity weight is the maximum

combined weight of occupants and

cargo. If your vehicle is equipped with a

trailer, the combined weight includes the

OCN7060160N

tongue load.

„ Type B

Seating capacity

Total: 5 persons

(Front seat : 2 persons,

Rear seat : 3 persons)

Seating capacity is the maximum

number of occupants including a driver,

your vehicle may carry. However, the

seating capacity may be reduced based

upon the weight of all of the occupants,

OCN7060161N

and the weight of the cargo being carried

„ Type C

or towed. Do not overload the vehicle as

there is a limit to the total weight, or load

limit including occupants and cargo, the

vehicle can carry.

Towing capacity

Do not using this vehicle for trailer

towing.

Cargo capacity

OCN7060162N

The cargo capacity of your vehicle will

increase or decrease depending on the

„ Type D

weight and the number of occupants

and the tongue load, if your vehicle is

equipped with a trailer.

OCN7060163N

6-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

06

ŧ

+

Example 1

Maximum Load

Passenger Weight

Cargo Weight

(1400 lbs.)

(150 lbs. × 2 = 300 lbs.)

(1100 lbs.)

(635 kg)

(68 kg × 2 = 136 kg)

(499 kg)

ŧ

+

Example 2

Maximum Load

Passenger Weight

Cargo Weight

(1400 lbs.)

(150 lbs. × 5 = 750 lbs.)

(650 lbs.)

(635 kg)

(68 kg × 5 = 340 kg)

(295 kg)

ŧ

+

Example 3

Maximum Load

Passenger Weight

Cargo Weight

(1400 lbs.)

(172 lbs. × 5 = 860 lbs.)

(540 lbs.)

(635 kg)

(78 kg × 5 = 390 kg)

(245 kg)

6-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driving Your Vehicle

Certification label

WARNING

Overloading

ś Never exceed the GVWR for your

vehicle, the GAWR for either the front

or rear axle and vehicle capacity

weight. Exceeding these ratings

can affect your vehicle’s handling

and braking ability, and cause an

accident.

ś Do not overload your vehicle.

Overloading your vehicle can cause

OBH059070

heat buildup in your vehicle’s tires

and possible tire failure, increased

The certification label is located on the

stopping distances and poor vehicle

driver’s door sill at the center pillar and

handling-all of which may result in a

shows the maximum allowable weight of

crash.

the fully loaded vehicle. This is called the

GVWR (Gross Vehicle Weight Rating). The

GVWR includes the weight of the vehicle,

NOTICE

all occupants, fuel and cargo.

Overloading your vehicle may cause

This label also tells you the maximum

damage. Repairs would not be covered

weight that can be supported by the

by your warranty. Do not overload your

front and rear axles, called Gross Axle

vehicle.

Weight Rating (GAWR).

The total weight of the vehicle, including

WARNING

all occupants, accessories, cargo, and

trailer tongue load must not exceed the

If you carry items inside your vehicle

Gross Vehicle Weight Rating (GVWR) or

(for example, suitcases, tools, packages,

the Gross Axle Weight Rating (GAWR).

or anything else), they are moving as

To find out the actual loads on your front

fast as the vehicle. If you have to stop

and rear axles, you need to go to a weigh

or turn quickly, or if there is a crash, the

station and weigh your vehicle. Be sure

items will keep going and can cause

to spread out your load equally on both

an injury if they strike the driver or a

sides of the centerline.

passenger.

ś Put items in the cargo area of your

vehicle. Try to spread the weight

evenly.

ś Do not stack items like suitcases

inside the vehicle above the tops of

the seats.

ś Do not leave an unsecured child

restraint in your vehicle.

ś When you carry something inside the

vehicle, secure it.

6-68

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

)25:$5' &2//,6,21Ǚ$92,'$1&( $66,67 ǣ)&$Ǥ ǣ)5217

9,(: &$0(5$ 21/<Ǥ ǣ,) (48,33('Ǥ

Basic function

CAUTION

Take the following precautions to

maintain optimal performance of the

detecting sensor:

ś NEVER disassemble the detecting

sensor or sensor assembly, or cause

any damage to it.

ś If the detecting sensor have been

replaced or repaired, have your

vehicle inspected by an authorized

HYUNDAI dealer.

OCN7C070051

ś NEVER install any accessories or

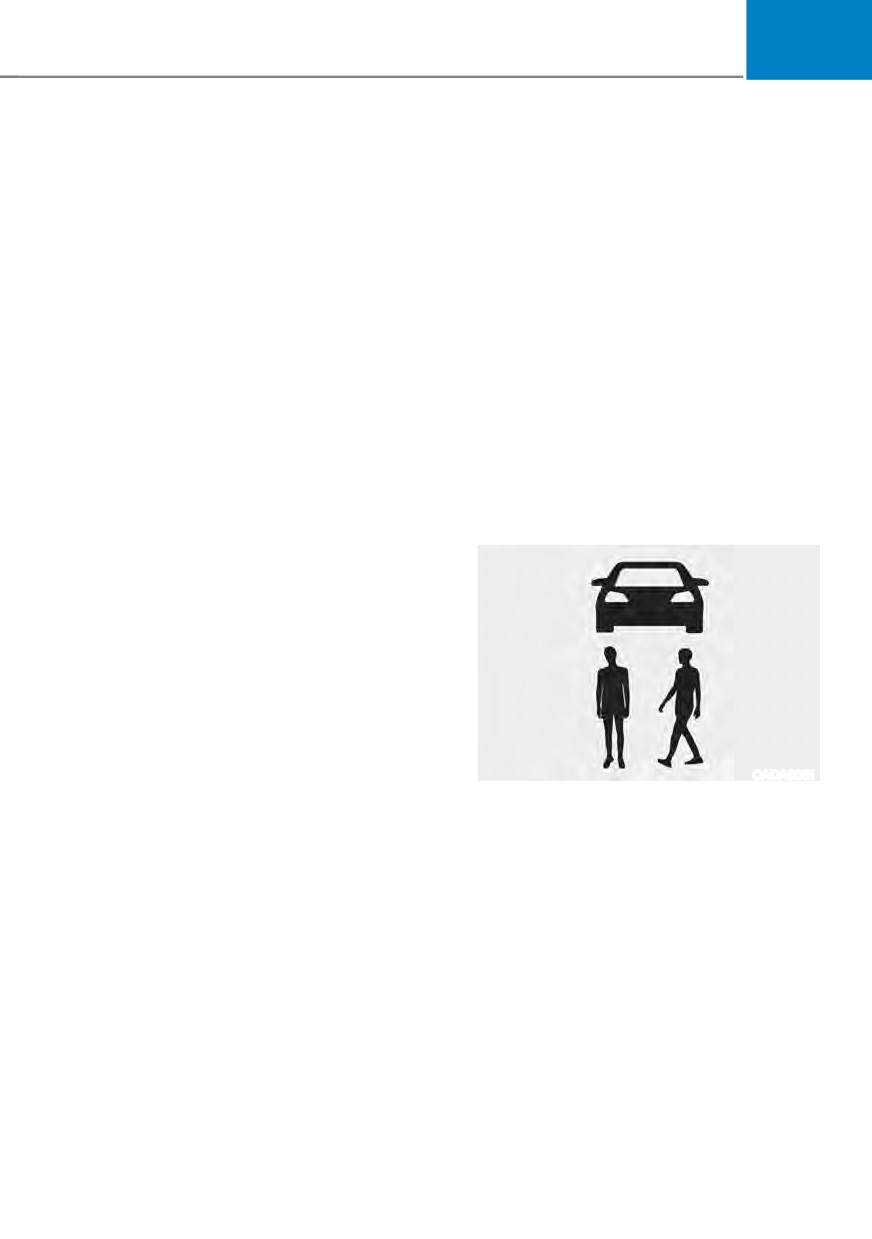

Forward Collision-Avoidance Assist is

stickers on the front windshield, or

designed to help detect and monitor

tint the front windshield.

the vehicle ahead or detect a pedestrian

ś Pay extreme caution to keep the

in the roadway and warn the driver

front view camera dry.

that a collision is imminent with a

ś NEVER place any reflective objects

warning message, audible warning and

(for example, white paper, mirror)

application of emergency braking.

over the dashboard.

Detecting sensor

OCN7061030L

[1] : Front view camera

Refer to the picture above for the

detailed location of the detecting sensor.

7-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

Forward Collision-Avoidance

WARNING

Assist Settings

When the engine is restarted, Forward

Setting features

Collision-Avoidance Assist will always

turn on. However, if ‘Off’ is selected

after the engine is restarted, the

driver should always be aware of the

surroundings and drive safely.

CAUTION

‘If ‘Warning Only’ is selected, braking is

not assisted.

OTM070090N

Information

Forward Safety

Forward Collision-Avoidance Assist

will turn off when ESC is turned off by

With the engine on, select ‘Driver

pressing and holding the ESC OFF button.

$VVLVWDQFH Ɵ )RUZDUG 6DIHW\Ŕ IURP WKH

The warning light will illuminate on

Settings menu to set whether to use

the cluster.

each function.

-

,I œ$FWLYH $VVLVWŔ LV VHOHFWHG )RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking assist

will be applied depending on the

collision risk levels.

-

,I œ:DUQLQJ 2QO\Ŕ LV VHOHFWHG )RUZDUG

Collision-Avoidance Assist will warn

the driver with a warning message

and an audible warning depending on

the collision risk levels. Braking will

not be assisted.

-

,I œ2IIŔ LV VHOHFWHG

)RUZDUG &ROOLVLRQ

Avoidance Assist will turn off. The

warning light will illuminate on the

cluster.

The driver can monitor Forward

Collision-Avoidance Assist On/Off

status from the Settings menu. If the

warning light remains on when Forward

Collision-Avoidance Assist is on, have

the vehicle inspected by an authorized

HYUNDAI dealer.

7-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

OTM070140N

OCN7071027L

Warning Timing

Warning Volume

With the engine on, select ‘Driver

With the engine on, select ‘Driver

$VVLVWDQFH Ɵ :DUQLQJ 7LPLQJŔ IURP WKH

$VVLVWDQFH Ɵ :DUQLQJ 9ROXPHŔ IURP WKH

Settings menu to change the initial

Settings menu to change the Warning

warning activation time for Forward

9ROXPH WR œ+LJKŔ œ0HGLXPŔ RU œ/RZŔ IRU

Collision-Avoidance Assist.

Forward Collision-Avoidance Assist.

When the vehicle is first delivered,

If you change the Warning Volume,

:DUQLQJ 7LPLQJ LV VHW WR œ1RUPDOŔ ,I \RX

the Warning Volume of other Driver

change the Warning Timing, the Warning

Assistance systems may change.

Timing of other Driver Assistance

systems may change.

CAUTION

ś Even though, ‘Normal’ is selected for

Warning Timing if the front vehicle

suddenly stops, the warning may

seem late.

ś Select ‘Late’ for Warning Timing

when traffic is light and when driving

speed is slow.

Information

If the engine is restarted, Warning Timing

and Warning Volume will maintain the

last setting.

7-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

Forward Collision-Avoidance

Assist Operation

Warning and control

The basic feature of Forward Collision-

Avoidance Assist is to warn and help

control the vehicle depending on

FROOLVLRQ ULVN OHYHO œ&ROOLVLRQ :DUQLQJŔ

œ(PHUJHQF\ %UDNLQJŔ DQG œ6WRSSLQJ

YHKLFOH DQG HQGLQJ EUDNH FRQWURO Ŕ

OCN7070029L

Emergency Braking

ś

To warn the driver that emergency

braking will occur, the ‘Emergency

%UDNLQJŔ ZDUQLQJ PHVVDJH ZLOO DSSHDU

on the cluster and an audible warning

will sound.

ś

If a vehicle is detected in front,

the function will operate when

your vehicle speed is between

OCN7070028L

approximately 6-47 mph (10-75 km/h).

Collision Warning

ś

If a pedestrian is detected in front,

ś To warn the driver of a collision, the

the function will operate when

your vehicle speed is between

œ&ROOLVLRQ :DUQLQJŔ ZDUQLQJ PHVVDJH

will appear on the cluster and an

approximately 6-47 mph (10-75 km/h).

audible warning will sound.

ś

In emergency braking situation,

ś If a vehicle is detected in front,

braking is assisted with strong braking

power by the function to help prevent

the function will operate when

your vehicle speed is between

collision with the vehicle or pedestrian

ahead.

approximately 6-112 mph (10-180

km/h).

ś If a pedestrian is detected in front,

the function will operate when

your vehicle speed is between

approximately 6-53 mph (10-85 km/h).

ś

,I œ$FWLYH $VVLVWŔ LV VHOHFWHG EUDNLQJ

may be assisted.

7-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

ś

Forward Collision-Avoidance Assist

does not operate in all situations and

cannot avoid all collisions.

ś

The driver has the responsibility to

control the vehicle. Do not solely

depend on Forward Collision-

Avoidance Assist. Rather, maintain

a safe braking distance, and, if

necessary, depress the brake pedal

to reduce driving speed or to stop

the vehicle.

OCN7070030L

ś

Never deliberately operate Forward

Stopping vehicle and ending brake control

Collision-Avoidance Assist on people,

ś When the vehicle is stopped due to

objects, etc. It may cause serious

HPHUJHQF\ EUDNLQJ œ'ULYH FDUHIXOO\Ŕ

injury or death.

warning message will appear on the

ś

Forward Collision-Avoidance

cluster.

Assist may not operate if the driver

For your safety, the driver should

depresses the brake pedal to avoid

depress the brake pedal immediately

collision.

and check the surroundings.

ś

Depending on the road and driving

ś Brake control will end after the vehicle

conditions, Forward Collision-

is stopped by emergency braking for

Avoidance Assist may warn the driver

approximately 2 seconds.

late or may not warn the driver.

ś

During Forward Collision-Avoidance

Assist operation the vehicle may

WARNING

stop suddenly injuring passengers

Take the following precautions when

and shifting loose objects. Always

using Forward Collision-Avoidance

have the seat belt on and keep loose

Assist:

objects secured.

ś For your safety, change the Settings

ś

If any other system’s warning

after parking the vehicle at a safe

message is displayed or audible

location.

warning is generated, Forward

ś With ‘Active Assist’ or ‘Warning Only’

Collision-Avoidance Assist warning

selected, when ESC is turned off by

message may not be displayed

pressing and holding the ESC OFF

and audible warning may not be

button, Forward Collision-Avoidance

generated.

Assist will turn off automatically.

ś

You may not hear the warning sound

In this case, Forward Collision-

of Forward Collision-Avoidance

Avoidance Assist cannot be set

Assist if the surrounding is noisy.

from the Settings menu and the

ś

Forward Collision-Avoidance

warning light will illuminate on the

Assist may turn off or may not

cluster which is normal. If ESC is

operate properly or may operate

turned on by pressing the ESC OFF

unnecessarily depending on the road

button, Forward Collision-Avoidance

conditions and the surroundings.

Assist will maintain the last setting.

7-6

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

Forward Collision-Avoidance

WARNING

Assist Malfunction and

ś Even if there is a problem with

Limitations

Forward Collision-Avoidance

Assist, the vehicle’s basic braking

Function malfunction

performance will operate properly.

ś During emergency braking, braking

control by Forward Collision-

Avoidance Assist will automatically

cancel when the driver excessively

depresses the accelerator pedal or

sharply steers the vehicle.

CAUTION

Depending on the condition of the

vehicle and pedestrian in front and

OCN7070031L

the surroundings, the speed range to

When Forward Collision-Avoidance

operate Forward Collision-Avoidance

Assist system is not working properly, the

Assist may reduce. Forward Collision-

œ&KHFN )RUZDUG 6DIHW\ V\VWHPŔ ZDUQLQJ

Avoidance Assist may only warn the

message will appear, and the

and

driver, or it may not operate.

warning lights will illuminate on the

cluster. Have the vehicle inspected by an

authorized HYUNDAI dealer.

Information

In a situation where collision is imminent,

braking may be assisted by Forward

Collision-Avoidance Assist when braking

is insufficient by the driver.

7-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

Forward Collision-Avoidance Assist

Limitations of Forward Collision-

disabled

Avoidance Assist

Forward Collision-Avoidance Assist may

not operate properly, or it may operate

unexpectedly under the following

circumstances:

ś

The detecting sensor or the

surroundings are contaminated or

damaged

ś

The temperature around the frontview

camera is high or low due to

surrounding environment

OCN7070032L

ś

The camera lens is contaminated due

to tinted, filmed or coated windshield,

When the front windshield where the

damaged glass, or sticky foreign

front view camera is located or the

material (sticker, bug, etc.) on the

sensor is covered with foreign material,

glass

such as snow or rain, it can reduce the

detecting performance and temporarily

ś

Moisture is not removed or frozen on

the windshield

limit or disable Forward Collision-

Avoidance Assist.

ś

Washer fluid is continuously sprayed,

If this occurs the ‘Forward Safety system

or the wiper is on

GLVDEOHG &DPHUD REVFXUHGŔ ZDUQLQJ

ś

Driving in heavy rain or snow, or thick

message, and the and warning

fog

lights will illuminate on the cluster.

ś

The field of view of the front view

Forward Collision-Avoidance Assist will

camera is obstructed by sun glare

operate properly when such snow, rain or

ś

Street light or light from an oncoming

foreign material is removed.

traffic is reflected on the wet road

If Forward Collision-Avoidance Assist

surface, such as a puddle on the road

does not operate properly after

ś

An object is placed on the dashboard

obstruction (snow, rain, or foreign

ś

Your vehicle is being towed

material) is removed, have the vehicle

inspected by an authorized HYUNDAI

ś

The surrounding is very bright

dealer.

ś

The surrounding is very dark, such as

in a tunnel, etc.

WARNING

ś

The brightness changes suddenly, for

example when entering or exiting a

ś Even though the warning message or

tunnel

warning light does not appear on the

ś

The brightness outside is low, and the

cluster, Forward Collision-Avoidance

headlights are not on or are not bright

Assist may not properly operate.

ś Forward Collision-Avoidance Assist

may not properly operate in an area

(for example, open terrain), where

any objects are not detected after

turning ON the engine.

7-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

ś

Driving through steam, smoke or

ś

You are departing or returning to the

shadow

lane

ś

Only part of the vehicle, pedestrian or

ś

Unstable driving

cyclist is detected

ś

You are on a roundabout and the

ś

The vehicle in front is a bus, heavy

vehicle in front is not detected

truck, truck with an unusually shaped

ś

You are continuously driving in a circle

cargo, trailer, etc.

ś

The vehicle in front has an unusual

ś

The vehicle in front has no tail lights,

shape

tail lights are located unusually, etc.

ś

The vehicle in front is driving uphill or

ś

The brightness outside is low, and the

downhill

tail lamps are not on or are not bright

ś

The pedestrian is not fully detected,

ś

The rear of the front vehicle is small

for example, if the pedestrian is

or the vehicle does not look normal,

leaning over or is not fully walking

such as when the vehicle is tilted,

upright

overturned, or the side of the vehicle

ś

The pedestrian is wearing clothing or

is visible, etc.

equipment that makes it difficult to

ś

7KH IURQW YHKLFOHŔV JURXQG FOHDUDQFH LV

detect

low or high

ś

A vehicle or pedestrian suddenly cuts

in front

ś

The vehicle in front is detected late

ś

The vehicle in front is suddenly

blocked by an obstacle

ś

The vehicle in front suddenly changes

lane or suddenly reduces speed

ś

The vehicle in front is bent out of

shape

ś

7KH IURQW YHKLFOHŔV VSHHG LV IDVW RU

OADAS051

slow

The illustration above shows the image

ś

The vehicle in front steers in the

the front view camera is capable of

opposite direction of your vehicle to

detecting as a vehicle and pedestrian.

avoid a collision

ś The pedestrian in front is moving very

ś

With a vehicle in front, your vehicle

quickly

changes lane at low speed

ś The pedestrian in front is short or is

ś

The vehicle in front is covered with

posing a low posture

snow

ś The pedestrian in front has impaired

mobility

ś The pedestrian in front is moving

intersected with the driving direction

7-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

ś

There is a group of pedestrians or a

WARNING

large crowd in front

ś

Driving on a curved road

ś

The pedestrian is wearing clothing

that easily blends into the

background, making it difficult to

detect

ś

The pedestrian is difficult to

distinguish from the similarly shaped

structure in the surroundings

ś

You are driving by a pedestrian,

traffic sign, structure, etc., near the

intersection

ś

Driving in a parking lot

ś

Driving through a tollgate,

OADAS003

OADAS002

construction area, unpaved road,

Forward Collision-Avoidance Assist

partial paved road, uneven road,

may not detect other vehicles or

speed bumps, etc.

pedestrians in front of you when

ś

Driving on an incline road, curved

driving on curved roads adversely

road, etc.

affecting the performance of the

sensors. This may result in no

ś

Driving through a roadside with trees

warning or braking assist when

or streetlights

necessary.

ś

The adverse road conditions cause

When driving on a curved road,

excessive vehicle vibrations while

you must maintain a safe braking

driving

distance, and if necessary, steer the

ś

Your vehicle height is low or high

vehicle and depress the brake pedal

due to heavy loads, abnormal tire

to reduce your driving speed in order

pressure, etc.

to maintain a safe distance.

ś

Driving through a narrow road where

trees or grass or overgrown

ś

There is interference by

electromagnetic waves such as

driving in an area with strong radio

waves or electrical noise

7-10

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

ś Driving on an inclined road

OADAS006

OADAS005

Forward Collision-Avoidance Assist

OADAS009

may detect a vehicle or pedestrian

in the next lane or outside the lane

when driving on a curved road.

If this occurs, Forward Collision-

Avoidance Assist may unnecessarily

warn the driver and control the

brake. Always check the traffic

conditions around the vehicle.

OADAS007

Forward Collision-Avoidance Assist

may not detect other vehicles or

pedestrians in front of you while

driving uphill or downhill adversely

affecting the performance of the

sensors.

This may result in unnecessary

warning or braking assist, or no

warning or braking assist when

necessary.

Also, vehicle speed may rapidly

decrease when a vehicle or

pedestrian ahead is suddenly

detected.

Always have your eyes on the road

while driving uphill or downhill and

if necessary, steer the vehicle and

depress the brake pedal to reduce

your driving speed in order to

maintain a safe distance.

7-11

-------------------------------------------------------------------------------------------------------------------------------------------------------------

Driver Assistance System

ś Changing lanes

OADAS033

[A] : Your vehicle,

OADAS032

[B] : Lane changing vehicle,

[A] : Your vehicle,

[C] : Same lane vehicle

[B] : Lane changing vehicle

When a vehicle in front of you

When a vehicle moves into your lane

merges out of the lane, Forward

from an adjacent lane, it cannot

Collision-Avoidance Assist may not

be detected by the sensor until it

immediately detect the vehicle that

is in the sensor's detection range.

is now in front of you.

Forward Collision-Avoidance Assist

may not immediately detect the

In this case, you must maintain a safe

vehicle when the vehicle changes

braking distance, and if necessary,

lanes abruptly. In this case, you must

steer the vehicle and depress the

maintain a safe braking distance,

brake pedal to reduce your driving

and if necessary, steer the vehicle

speed in order to maintain a safe

and depress the brake pedal to

distance.

reduce your driving speed in order to

maintain a safe distance.

7-12

-------------------------------------------------------------------------------------------------------------------------------------------------------------

07

ś

Detecting vehicle

ś Forward Collision-Avoidance

Assist may not operate properly if

interfered by strong electromagnetic

waves.

ś Forward Collision-Avoidance Assist

may not operate for 15 seconds after

the vehicle is started, or the front

view camera is initialized.

Information

This device complies with Part 15 of the

OTM070003

FCC rules.

If the vehicle in front of you has

Operation is subject to the following three

cargo that extends rearward from

conditions:

the cab, or when the vehicle in front

1. This device may not cause harmful

of you has higher ground clearance,

interference, and

additional special attention is

2. This device must accept any

required. Forward Collision-

interference received, including

Avoidance Assist may not be able

interference that may cause undesired

to detect the cargo extending from

operation.

the vehicle. In these instances,

you must maintain a safe braking

3. Changes or modifications not expressly

distance from the rearmost object,

approved by the party responsible

and if necessary, steer the vehicle

for compliance could void the user's

and depress the brake pedal to

authority to operate the device.

reduce your driving speed in order to

maintain distance.

Information

Radio frequency radiation exposure

WARNING

information:

ś

When you are towing a trailer or

This equipment complies with FCC

another vehicle, we recommend that

radiation exposure limits set forth for an

Forward Collision-Avoidance Assist is

uncontrolled environment.

turned off due to safety reasons.

This equipment should be installed and

ś

Forward Collision-Avoidance Assist

operated with minimum distance of 8 in.

may operate if objects that are

(20 cm) between the radiator (antenna)

similar in shape or characteristics

and your body.

to vehicles and pedestrians are

This transmitter must not be co-located or

detected.

operating in conjunction with any other

ś

Forward Collision-Avoidance Assist

antenna or transmitter.

does not operate on bicycles,

motorcycles, or smaller wheeled

objects, such as luggage bags,

shopping carts, or strollers.

7-13

Content      ..     9      10      11      12     ..
