Vehicle Information

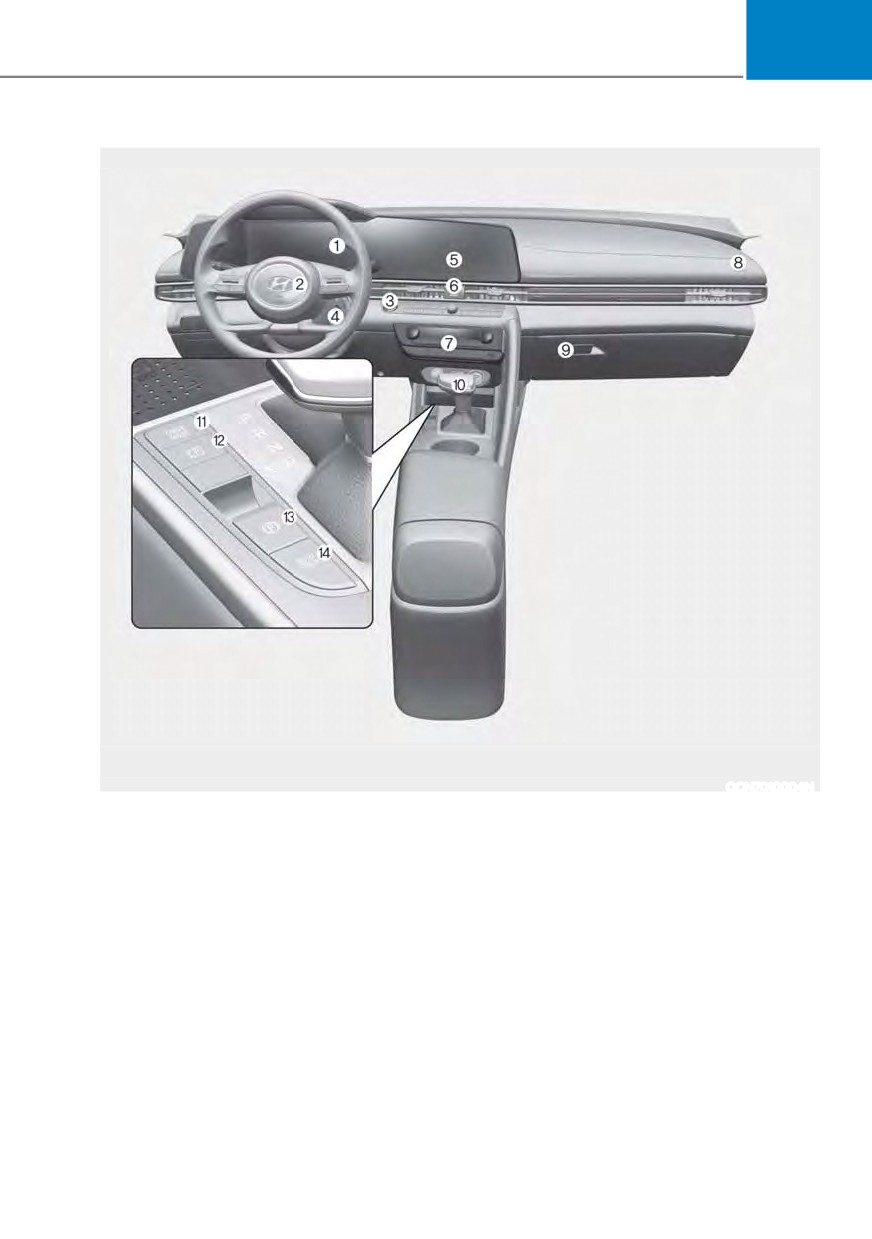

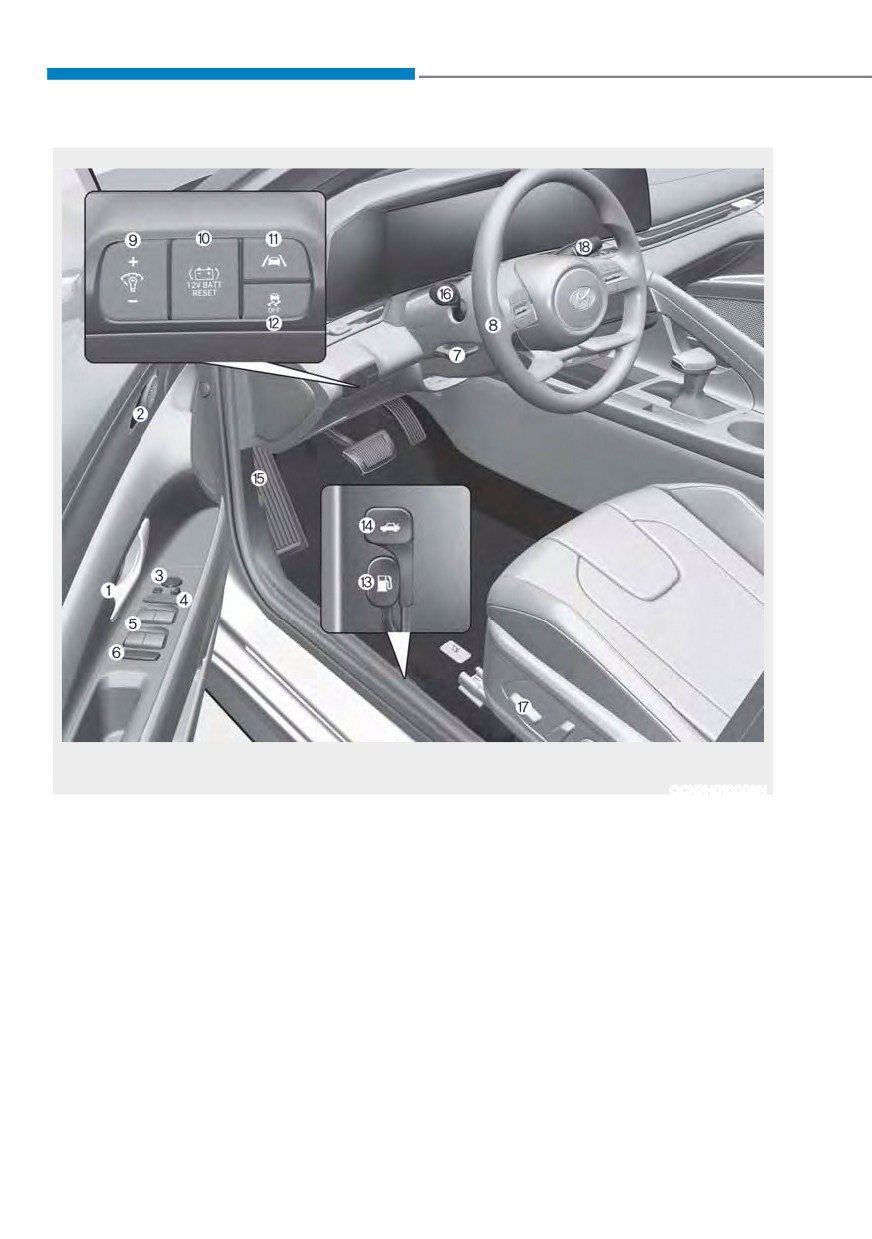

INTERIOR OVERVIEW

The actual shape may differ from the illustration.

OCN7H010003N

1. Inside door handle

5-33

10. 12V battery reset button

8-4

2. Seat position memory system

5-38

11. Lane Safety button

7-31

3. Side view mirror control switch

5-53

12. ESC OFF button

6-33

4. Central door lock switch

5-33

13. Fuel filler door release lever

6-33

5. Power window switches

5-54

14. Trunk release lever

5-64

6. Power window lock button

5-57

15. Hood release lever

5-62

7. Steering wheel tilt/telescopic lever

5-42

16. Light control/ Turn signals

5-72

8. Steering wheel

5-41

17. Seat adjusting switch

3-3

9. Instrument panel illumination control

18. Wiper/Washer switch

5-83

switch

4-5

2-4

Vehicle Information

BULB WATTAGE

Light bulb

Bulb type

Wattage

High

HB3

Headlight

Low

HB3

Type A

Daytime running lamp

LED

(DRL)/Parking lamp

High

Headlight

LED

Low

Front

Type B

Daytime running lamp

LED

(DRL)/Parking lamp

Bulb type

W5W

Side marker

LED type

LED

Turn signal lamp

PY21W

Side repeater lamp (Outside mirror)

LED

Stop lamp

28/8W

Type A

Tail lamp

LED

Stop lamp

LED

Type B

Tail lamp

LED

Bulb type

W5W

Rear

Side marker

LED type

LED

Turn signal lamp

PY21W

License plate lamp

W5W

Reverse lamp

W16W

High mounted stop lamp

P21W

Map lamp

W10W

Room lamp

FESTOON

Interior

Vanity mirror lamp

FESTOON

Trunk room lamp

FESTOON

Mood lamp

LED

2-8

TIRES AND WHEELS

Inflation pressure psi (kPa)

Wheel lug nut torque

Item

Tire Size

Wheel Size

kgf·m (lbf·ft, N·m)

Front

Rear

205/55 R16

6.5Jx16

33 (230)

Full size tire

225/45 R17

7.0Jx17

33 (230)

32 (220)

11~13

(79~94, 107~127)

Compact

T125/80 D15

4Tx15

60 (420)

spare tire

NOTICE

ś It is permissible to add 3 psi to the standard tire pressure specification if colder

temperatures are expected soon.

Tires typically lose 1psi (7kPa) for every 12°F temperature drop. If extreme

temperature variations are expected, recheck your tire pressure as necessary to

keep them properly inflated.

ś Tire inflation pressures will vary with changes in elevation. If driving in areas of

higher or lower elevation, be sure to check and adjust for proper tire inflation.

CAUTION

ś When replacing tires, use the same size originally supplied with the vehicle.

Using tires of a different size can damage the related parts or not work properly.

ś When replacing tires, ALWAYS use the same size, type, construction and tread

pattern supplied with the vehicle for all tires.

2-9

RECOMMENDED LUBRICANTS AND CAPACITIES

To help achieve proper engine and powertrain performance and durability, use only

lubricants of the proper quality. The correct lubricants also help promote engine

efficiency that results in improved fuel economy.

These lubricants and fluids are recommended for use in your vehicle.

Lubricant

Volume

Classification

Engine oil *1 (drain and refill)

86 TW

0W-20 API SN PLUS

API GL-4, SAE 70W, HK D DCTF

1.7~1.8 US qt.

TGO-10 PLUS (SK), SPIRAX

Dual clutch transmission fluid

a Ţ

S6 GHDE 70W DCTF PLUS

(H.K.SHELL)

Engine coolant

86 TW

Mixture of antifreeze and water

(Phosphate-based Ethylene glycol

Inverter coolant

86 TW

coolant for aluminum radiator)

Brake/clutch fluid

As required

DOT-4 *²

Refer to “Fuel requirements” in

Fuel

86 TW

the Foreword chapter.

*1 : Refer to the recommended SAE viscosity numbers on page 12.

*2 : To maintain the best braking performance and ABS/ESC performance, we recommend

that you use genuine brake fluid that conform to specifications. (Standard : SAE J1704

DOT-4 LV, ISO4925 CLASS-6 and FMVSS 116 DOT-4)

2-11

Vehicle Information

Recommended SAE Viscosity

Engine oil viscosity (thickness) has an

effect on fuel economy and cold weather

Number

operating (engine start and engine oil

flowability). Lower viscosity engine oils

CAUTION

can provide better fuel economy and

cold weather performance, however,

Always be sure to clean the area around

higher viscosity engine oils are required

any filler plug, drain plug, or dipstick

for satisfactory lubrication in hot

before checking or draining any

weather.

lubricant. This is especially important

in dusty or sandy areas and when the

Using oils of any viscosity other than

vehicle is used on unpaved roads.

those recommended could result in

Cleaning the plug and dipstick areas

engine damage.

will prevent dirt and grit from entering

When choosing an oil, consider the

the engine and other mechanisms that

range of temperature your vehicle will be

could be damaged.

operated in before the next oil change.

Proceed to select the recommended oil

viscosity from the chart.

Temperature Range for SAE Viscosity Numbers

°C

-30

-20

-10

Temperature

(°F)

-10

100

120

Gasoline 1.6

Engine Oil *¹

0W-20

GDi HEV

*1 : Requires <API Latest(ILSAC Latest) or ACEA C5, Full synthetic> grade engine oil. If a

lower grade engine oil(mineral oil including Semi-synthetic) is used, then the engine oil

and oil filter must be replaced as indicated severe maintenance condition.

An engine oil displaying this American Petroleum Institute(API)

Certification Mark conforms to the International Lubricant Specification

Advisory Committee (ILSAC). It is recommended to only use engine oils

that uphold this API Certification Mark.

2-12

CONSUMER INFORMATION

This consumer information has been prepared in accordance with regulations issued

by the National Highway Traffic Safety Administration of the U.S. Department of

Transportation.Your HYUNDAI dealer will help answer any questions you may have as

you read this information.

HYUNDAI motor vehicles are designed and manufactured to meet or exceed all

applicable safety standards.

For your safety, however, we strongly urge you to read and follow all directions in

this Owner’s Manual, particularly the information under the headings “NOTICE”,

“CAUTION” and “WARNING”.

If, after reading this manual, you have any questions regarding the operation of your

vehicle, please contact the Hyundai Customer Care Center.

Hyundai Customer Care

P.O. Box 20850

Fountain Valley, CA 92728

800-633-5151

consumeraffairs@hmausa.com

Hyundai’s Customer Care Center representatives are available Monday through Friday,

between the hours of 6:00 AM and 5:00 PM PST

and Saturday between 6:30 AM and 3:00 PM PST (English).

For Customer Care Center assistance in Spanish or Korean, representatives are

available Monday through Friday between 6:30 AM and 3:00 PM PST.

2-15

Vehicle Information

REPORTING SAFETY DEFECTS

If you believe that your vehicle has a defect which could cause a crash or

could cause injury or death, you should immediately inform the National

Highway Traffic Safety Administration (NHTSA) in addition to notifying

HYUNDAI MOTOR AMERICA.

To contact NHTSA, you may call the Vehicle Safety Hotline toll-free at 1-888-

327-4236 (TTY: 1-800-424-9153);

go to http://www.safercar.gov;

download the SaferCar mobile application;

or write to: Administrator, NHTSA

1200 New Jersey Ave, SE,

West Building Washington, D.C. 20590.

You can also obtain other information about motor vehicle safety from

http://www.safercar.gov.

If NHTSA receives similar complaints, it may open an investigation, and if it

finds that a safety defect exists in a group of vehicles, it may order a recall and

remedy campaign. However, NHTSA cannot become involved in individual

problems between you, your dealer, or HYUNDAI MOTOR AMERICA.

2-16

3. Seats & Safety System

This chapter provides you with important information about how to protect yourself and your

passengers. It explains how to properly use your seats and seat belts, and how your air bags work.

Additionally, this chapter explains how to properly restrain infants and children in your vehicle.

Important Safety Precautions

3-2

Always Wear Your Seat Belt

3-2

Restrain All Children

3-2

Air Bag Hazards

3-2

Driver Distraction

3-2

Control Your Speed

3-2

Keep Your Vehicle in Safe Condition

3-2

Seats

3-3

Safety Precautions

3-4

Front Seats

3-5

Rear Seats

3-10

Head Restraints

3-11

Seat Warmers

3-15

Air Ventilation Seat

3-17

Seat Belts

3-18

Seat Belt Safety Precautions

3-18

Seat Belt Warning Light

3-19

Seat Belt Restraint System

3-19

Additional Seat Belt Safety Precautions

3-24

Care of Seat Belts

3-26

Child Restraint System (CRS)

3-27

Children Always in the Rear

3-27

Selecting a Child Restraint System (CRS)

3-28

Installing a Child Restraint System (CRS)

3-29

Air Bag - Advanced Supplemental Restraint System

3-36

Where Are the Air Bags?

3-38

How Does the Air Bag System Operate?

3-41

What to Expect After an Air Bag Inflates

3-44

Occupant Classification System (OCS)

3-45

Why Didn’t My Air Bag Go Off in a Collision?

3-51

SRS Care

3-55

Additional Safety Precautions

3-56

Air Bag Warning Labels

3-56

Seats & Safety System

IMPORTANT SAFETY PRECAUTIONS

You will find many safety precautions

Drivers can become distracted when

and recommendations throughout this

they take their eyes and attention off

section, and throughout this manual.

the road or their hands off the wheel to

The safety precautions in this section are

focus on activities other than driving. To

among the most important.

reduce your risk of distraction or getting

into an accident:

Always Wear Your Seat Belt

ś ALWAYS set up your mobile devices

A seat belt is your best protection in all

(for example, MP3 players, phones,

types of accidents. Air bags are designed

navigation units, etc.) when your

to supplement seat belts, not replace

vehicle is parked or safely stopped.

them. So even though your vehicle is

ś ONLY use your mobile device when

equipped with air bags, ALWAYS make

allowed by laws and when conditions

sure you and your passengers wear your

permit safe use. NEVER text or email

seat belts, and wear them properly.

while driving. Most states have laws

prohibiting drivers from texting. Some

Restrain All Children

states and cities also prohibit drivers

from using handheld phones.

All children under age 13 should ride

in your vehicle properly restrained in a

ś NEVER let the use of a mobile device

rear seat, not the front seat. Infants and

distract you from driving. You have a

small children should be restrained in

responsibility to your passengers and

an appropriate child restraint. Larger

others on the road to always drive

children should use a booster seat with

safely, with your hands on the wheel

the lap/shoulder belt until they can use

as well as your eyes and attention on

the seat belt properly without a booster

the road.

seat.

Control Your Speed

Air Bag Hazards

Excessive speed is a major factor in crash

While air bags can save lives, they can

injuries and deaths. Generally, the higher

also cause serious or fatal injuries to

the speed, the greater the risk, but

occupants who sit too close to them, or

serious injuries can also occur at lower

who are not properly restrained. Infants,

speeds. Never drive faster than is safe

young children, and shorter adults are at

for current conditions, regardless of the

the greatest risk of being injured by an

maximum speed posted.

inflating air bag. Follow all instructions

and warnings in this manual.

Keep Your Vehicle in Safe

Condition

Driver Distraction

Having a tire blowout or a mechanical

Driver distraction presents a serious and

failure can be extremely hazardous. To

potentially deadly danger, especially for

reduce the possibility of such problems,

inexperienced drivers. Safety should be

check your tire pressures and condition

the first concern when behind the wheel,

frequently, and perform all regularly

and drivers need to be aware of the wide

scheduled maintenance.

array of potential distractions, such as

drowsiness, reaching for objects, eating,

personal grooming, other passengers,

and using cellular phones.

3-2

Seats & Safety System

Safety Precautions

ś NEVER place anything or anyone

between the steering wheel and the

Adjusting the seats so that you are sitting

air bag.

in a safe, comfortable position plays an

important role in driver and passenger

ś Do not allow the front passenger to

safety together with the seat belts and

place feet or legs on the dashboard

air bags in an accident.

to minimize the risk of leg injuries.

Seat belts

WARNING

Always fasten your seat belt before

Do not use a cushion that reduces

starting any trip.

friction between the seat and the

At all times, passengers should sit

passenger. The passenger’s hips may

upright and be properly restrained.

slide under the lap portion of the seat

Infants and small children must be

belt during an accident or a sudden

restrained in appropriate child restraint

stop. Serious or fatal internal injuries

systems. Adults and children who

could result because the seat belt

have outgrown a booster seat must be

cannot operate properly.

restrained using the seat belts.

Air bags

WARNING

You can take steps to reduce the risk

of being injured by an inflating air bag.

Take the following precautions when

Sitting too close to an air bag greatly

adjusting your seat belt:

increases the risk of injury in the event

NEVER use one seat belt for more

the air bag inflates.

than one occupant.

The National Highway Traffic Safety

Always position the seatback upright

Administration (NHTSA) recommends

with the lap portion of the seat belt

that drivers allow at least 10 inches (25

snug and low across the hips.

cm) between the center of the steering

NEVER allow children or small infants

wheel and their chest.

to ride on a passenger’s lap.

Do not route the seat belt across your

WARNING

neck, across sharp edges, or reroute

To reduce the risk of serious injury or

the shoulder strap away from your

death from an inflating air bag, take the

body.

following precautions:

Do not allow the seat belt to become

ś Adjust the driver’s seat as far to the

caught or jammed.

rear as possible while maintaining

the ability to maintain full control of

the vehicle.

ś Adjust the front passenger seat as far

to the rear as possible.

ś Hold the steering wheel by the rim

with your hands at the 9 o’clock and

3 o’clock positions to minimize the

risk of injuries to your hands and

arms.

3-4

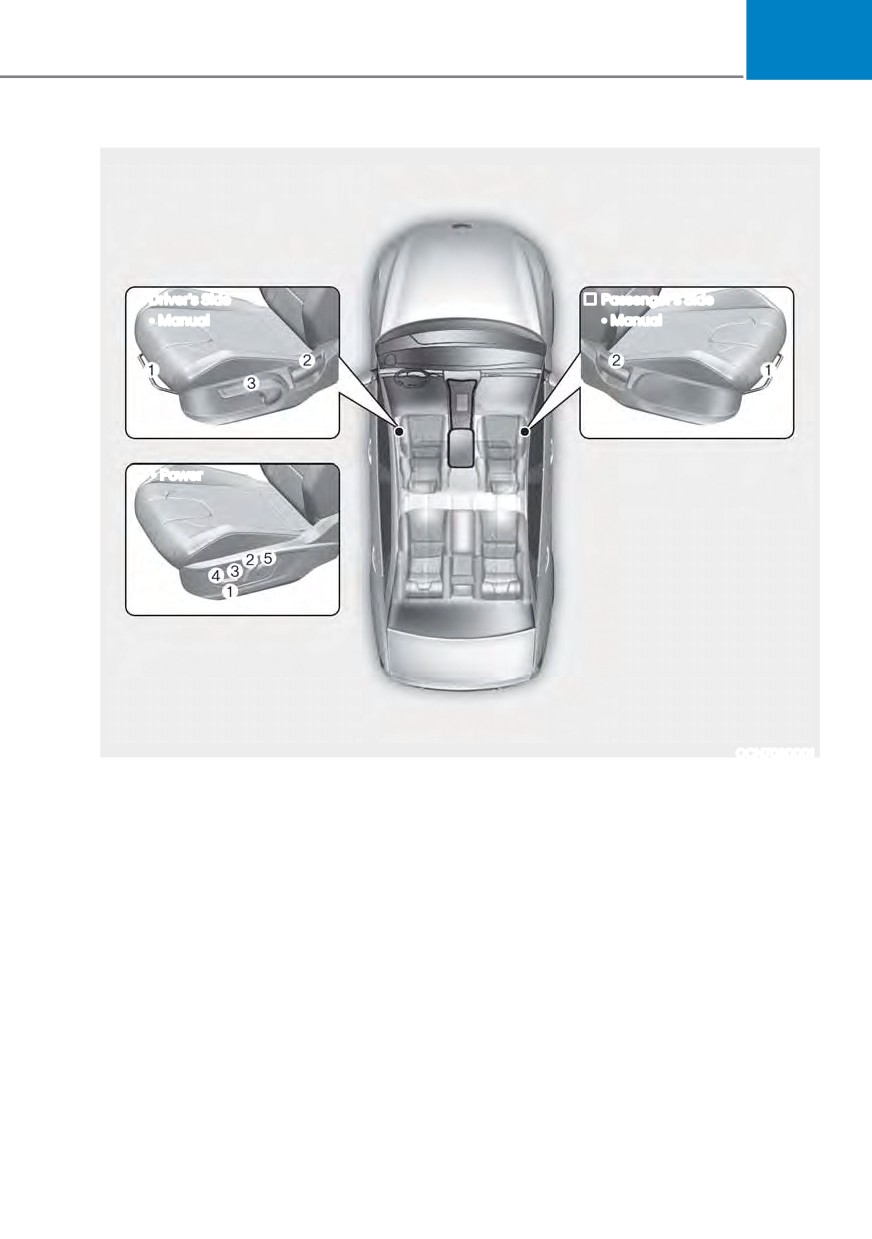

Front Seats

Manual adjustment (if equipped)

The front seat can be adjusted by using

the levers located on the outside of

WARNING

the seat cushion. Before driving, adjust

Take the following precautions when

the seat to the proper position so that

adjusting your seat:

you can easily control the steering

NEVER attempt to adjust the seat

wheel, foot pedals and controls on the

instrument panel.

while the vehicle is moving. The seat

could respond with unexpected

movement and may cause loss

of vehicle control resulting in an

accident.

Do not place anything under the

front seats. Loose objects in the

driver’s foot area could interfere

with the operation of the foot pedals,

causing an accident.

Do not allow anything to interfere

with the normal position and proper

locking of the seatback.

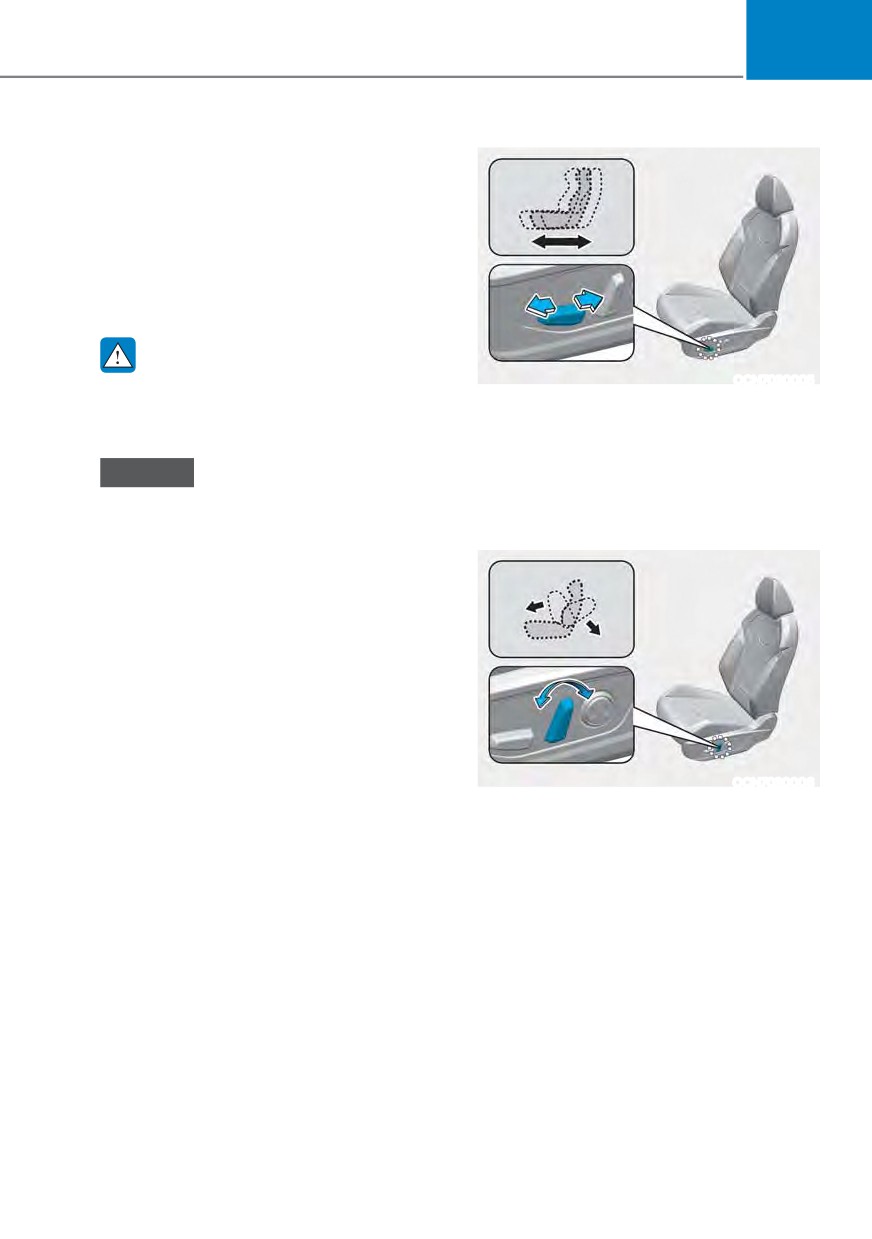

OCN7030002

Do not place a cigarette lighter on

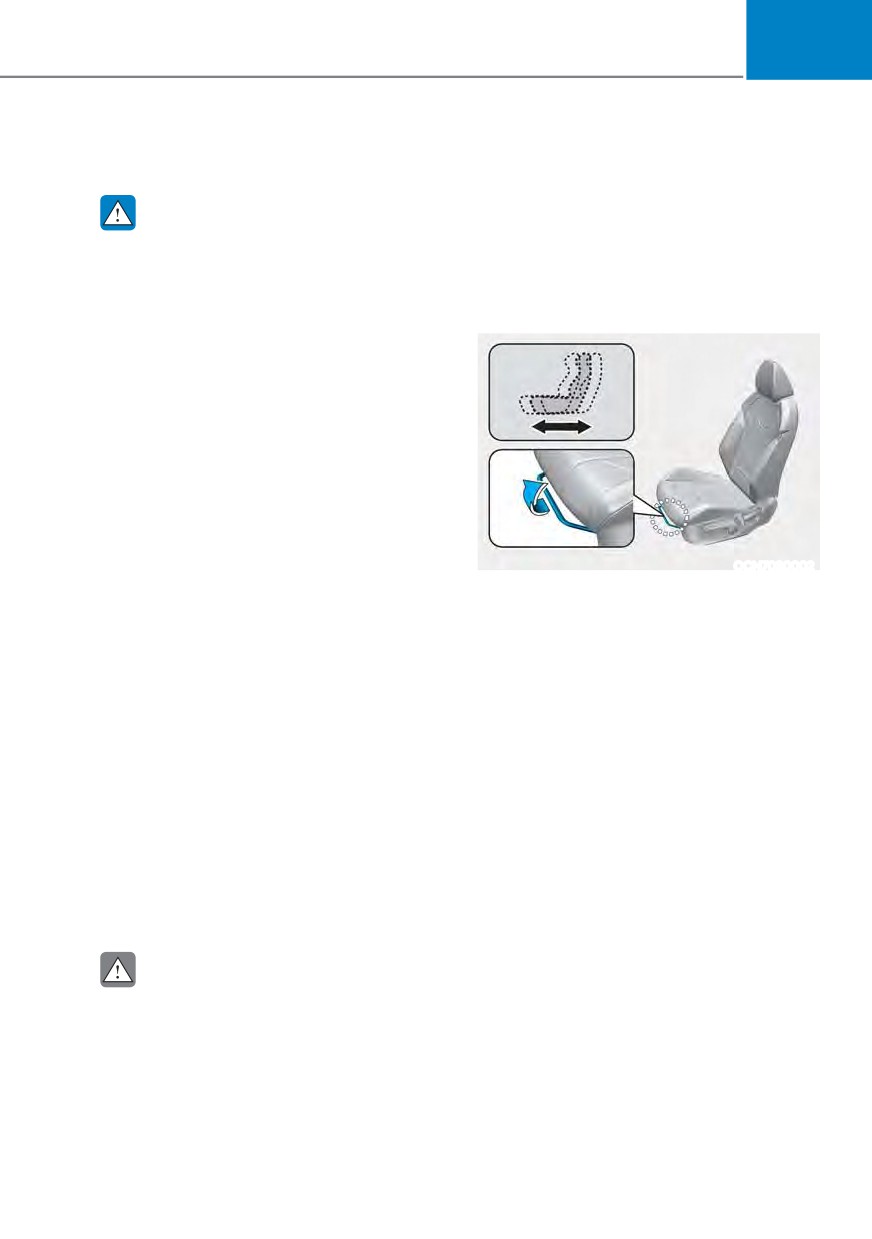

Forward and rearward adjustment

the floor or seat. When you operate

To move the seat forward or rearward:

the seat, gas may exit out of the

lighter causing a fire.

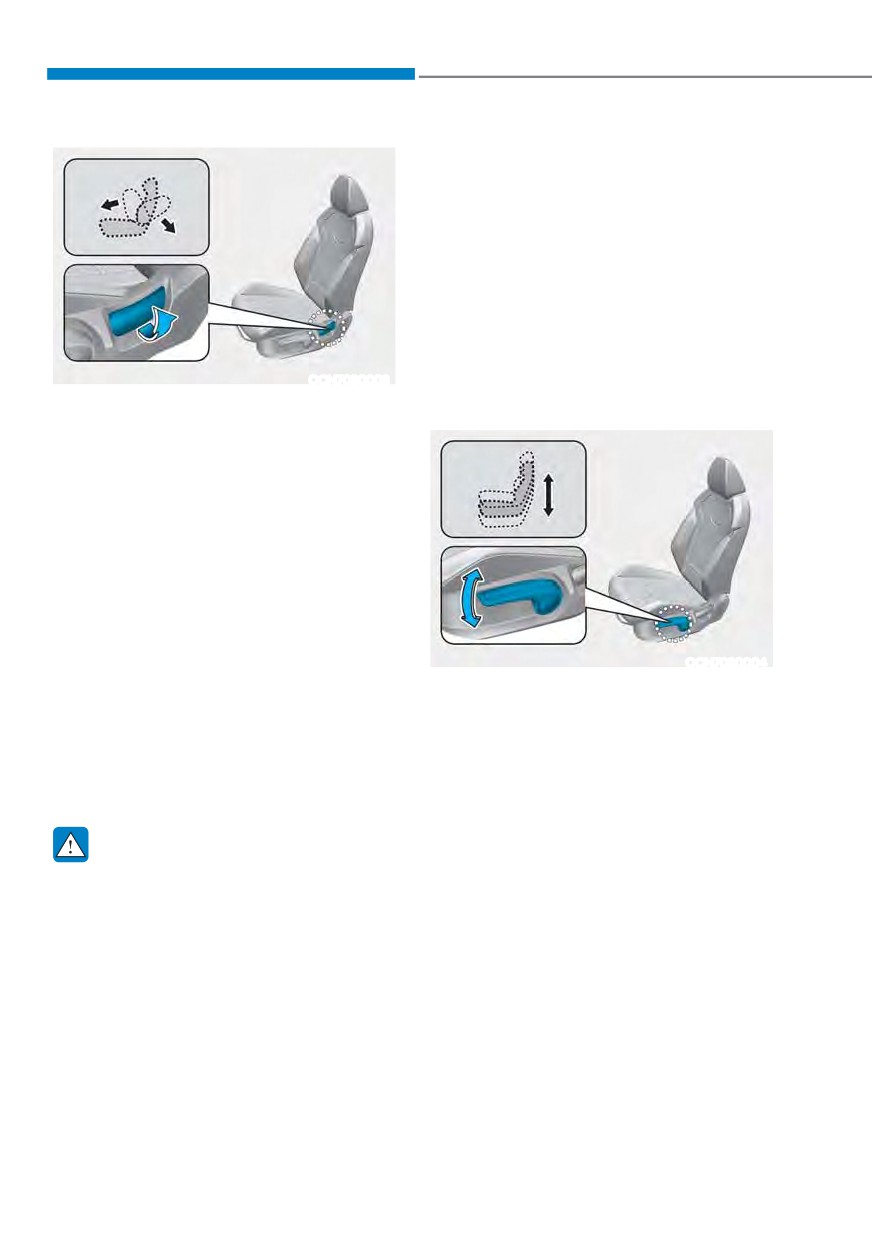

1. Pull up the seat slide adjustment lever

and hold it.

Use extreme caution when picking

up small objects trapped under the

2. Slide the seat to the position you

seats or between the seat and the

desire.

center console. Your hands might be

3. Release the lever and make sure the

cut or injured by the sharp edges of

seat is locked in place. Move forward

the seat mechanism.

and rearward without using the lever.

If there are occupants in the rear

If the seat moves, it is not locked

seats, be careful while adjusting the

properly.

front seat position.

Make sure that the seat is locked in

place after the adjustment. If not,

the seat might move unexpectedly

resulting in an accident.

CAUTION

To prevent injury:

ś Do not adjust your seat while

wearing your seat belt. Moving the

seat cushion forward may cause

strong pressure on your abdomen.

ś Do not allow your hands or fingers to

get caught in the seat mechanisms

while the seat is moving.

3-5

Seats & Safety System

Seat belts must be snug against your

hips and chest to work properly. When

the seatback is reclined, the shoulder

belt cannot do its job because it will not

be snug against your chest. Instead,

it will be in front of you. During an

accident, you could be thrown into the

seat belt, causing neck or other injuries.

The more the seatback is reclined,

the greater chance the passenger’s

hips will slide under the lap belt or the

OCN7030003

passenger’s neck will strike the shoulder

Seatback angle

belt.

To recline the seatback:

1. Lean forward slightly and lift up the

seatback lever.

2. Carefully lean back on the seat and

adjust the seatback to the position

you desire.

3. Release the lever and make sure the

seatback is locked in place. (The lever

MUST return to its original position for

the seatback to lock.)

OCN7030004

Reclining seatback

Seat cushion height (for driver’s seat, if

Sitting in a reclined position when the

equipped)

vehicle is in motion can be dangerous.

Even when buckled up, the protection of

To change the height of the seat cushion:

your restraint system (seat belts and air

ś Push down on the lever several times,

bags) is greatly reduced by reclining your

to lower the seat cushion.

seatback.

ś Pull up on the lever several times, to

raise the seat cushion.

WARNING

NEVER ride with a reclined seatback

when the vehicle is moving.

Riding with a reclined seatback

increases your chance of serious or fatal

injuries in the event of a collision or

sudden stop.

Drivers and passengers should ALWAYS

sit well back in their seats, properly

belted, and with the seatbacks upright.

3-6

Power adjustment (if equipped)

The front seat can be adjusted by

using the control switches located on

the outside of the seat cushion.Before

driving, adjust the seat to the proper

position so that you can easily control

the steering wheel, foot pedals and

controls on the instrument panel.

WARNING

OCN7030005

NEVER allow children in the vehicle

unattended. The power seats are

Forward and rearward adjustment

operable when the vehicle is turned off.

To move the seat forward or rearward:

1. Push the control switch forward or

NOTICE

rearward.

To prevent damage to the seats:

2. Release the switch once the seat

reaches the desired position.

ś Always stop adjusting the seats when

the seat has moved as far forward or

rearward as possible.

ś Do not adjust the seats for longer

than necessary when the vehicle

is turned off. This may result in

unnecessary battery drain.

ś Do not operate two or more seats at

the same time. This may result in an

electrical malfunction.

OCN7030006

Seatback angle

To adjust the seatback:

1. Rotate the top of control switch

forward or rearward.

2. Release the switch once the seatback

reaches the desired position.

3-7

Seats & Safety System

Reclining seatback

Sitting in a reclined position when the

vehicle is in motion can be dangerous.

Even when buckled up, the protection of

your restraint system (seat belts and air

bags) is greatly reduced by reclining your

seatback.

WARNING

NEVER ride with a reclined seatback

when the vehicle is moving. Riding

OCN7030007

with a reclined seatback increases your

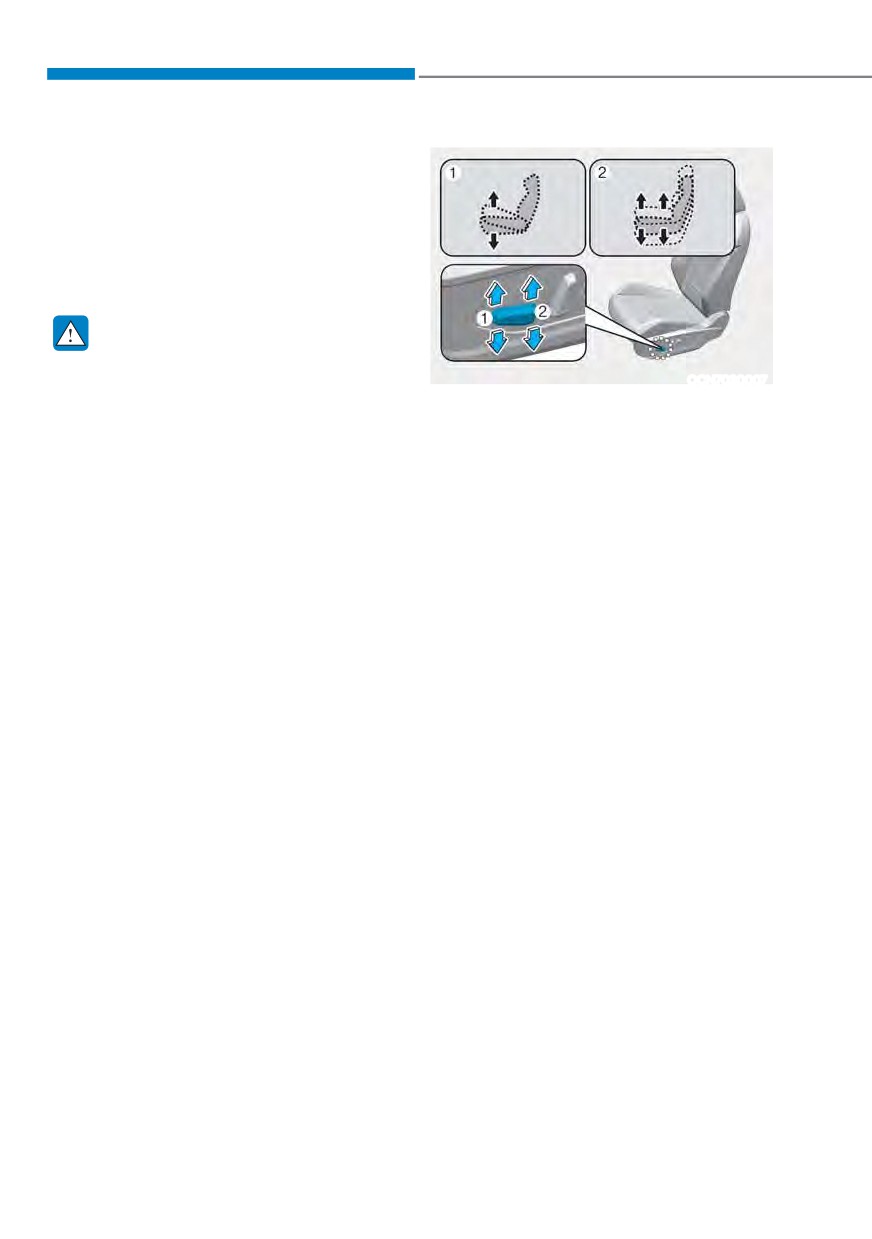

Seat cushion tilt (1) (if equipped)

chance of serious or fatal injuries in

To change the angle of the front part of

the event of a collision or sudden stop.

the seat cushion: Push the front portion

Driver and passengers should always

of the control switch up to raise or

sit well back in their seats with the

down to lower the front part of the seat

seatbacks upright and should be belted

cushion. Release the switch once the

properly.

seat reaches the desired position.

Seat belts must be snug against your hips

Seat cushion height (2) (if equipped)

and chest to work properly. When the

To change the height of the seat cushion:

seatback is reclined, the shoulder belt

Push the rear portion of the control

cannot do its job because it will not be

switch up to raise or down to lower the

snug against your chest. Instead, it will

height of the seat cushion. Release the

be in front of you. During an accident,

switch once the seat reaches the desired

you could be thrown into the seat belt,

position.

causing neck or other injuries. The more

the seatback is reclined, the greater

chance the passenger’s hips will slide

under the lap belt or the passenger’s

neck will strike the shoulder belt.

3-8

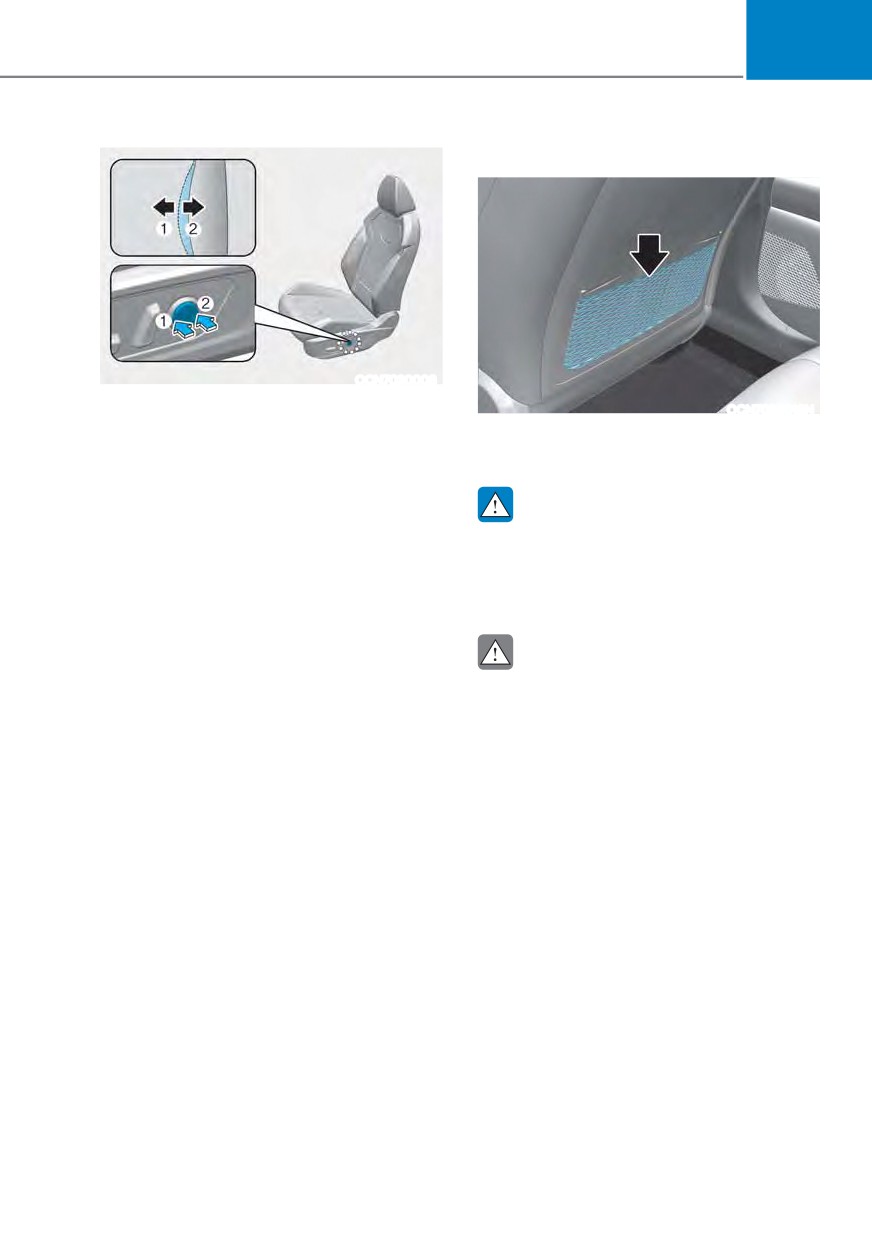

Seatback pocket (if equipped)

OCN7030008

Lumbar support

OCN7030016N

(for driver’s seat, if equipped)

The seatback pocket is provided on the

The lumbar support can be adjusted

back of the front seatbacks.

by pressing the lumbar support switch.

Press the front portion of the switch (1)

to increase support or the rear portion of

WARNING

the switch (2) to decrease support.

To prevent the Occupant Classification

System from malfunctioning:

Do not hang onto the front passenger’s

seatback.

CAUTION

Do not put heavy or sharp objects in the

seatback pockets. In an accident they

could come loose from the pocket and

injure occupants.

3-9

Seats & Safety System

Rear Seats

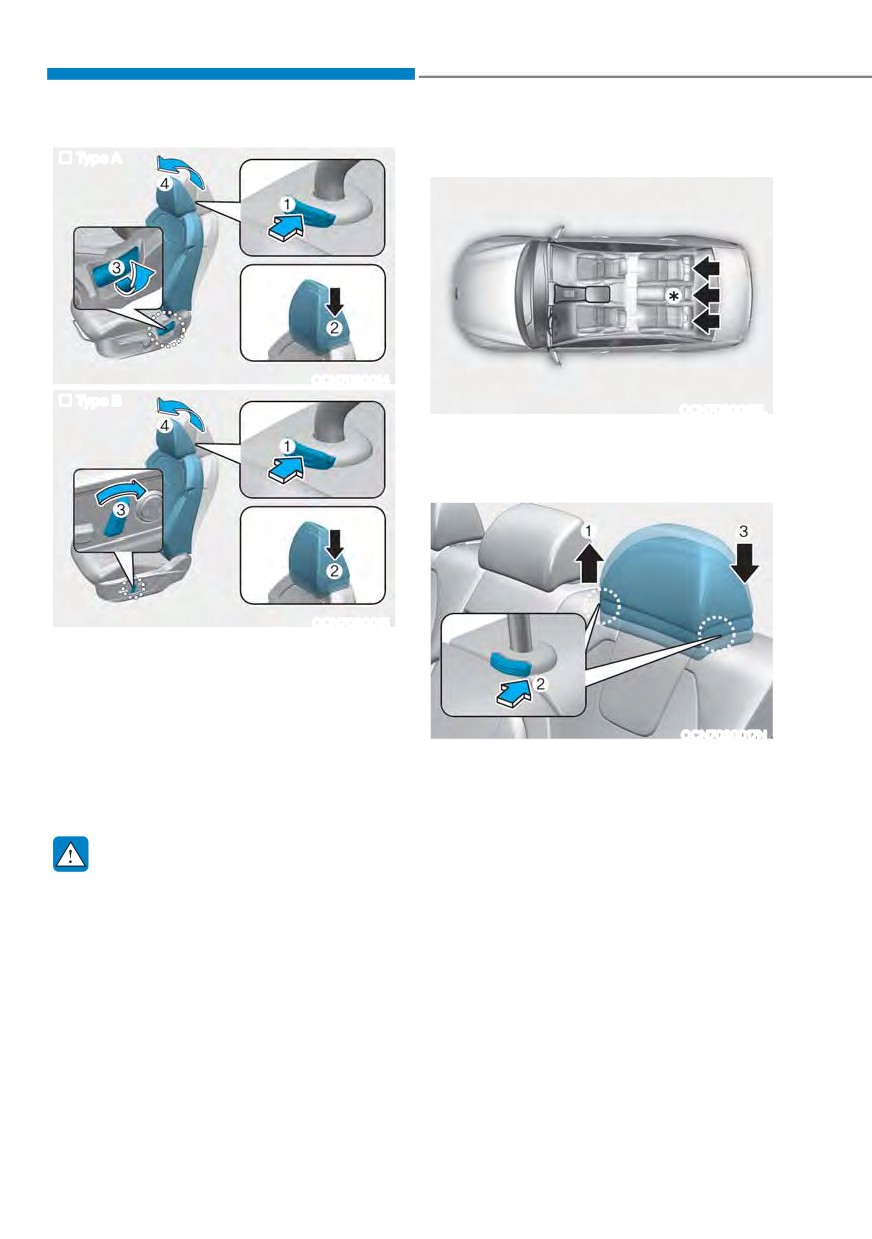

Folding the rear seat (if equipped)

The rear seatbacks can be folded to

facilitate carrying long items or to

increase the luggage capacity of the

vehicle.

WARNING

ś Never allow passengers to sit on top

of the folded down seatback while

OCN7H030004

the vehicle is moving. This is not a

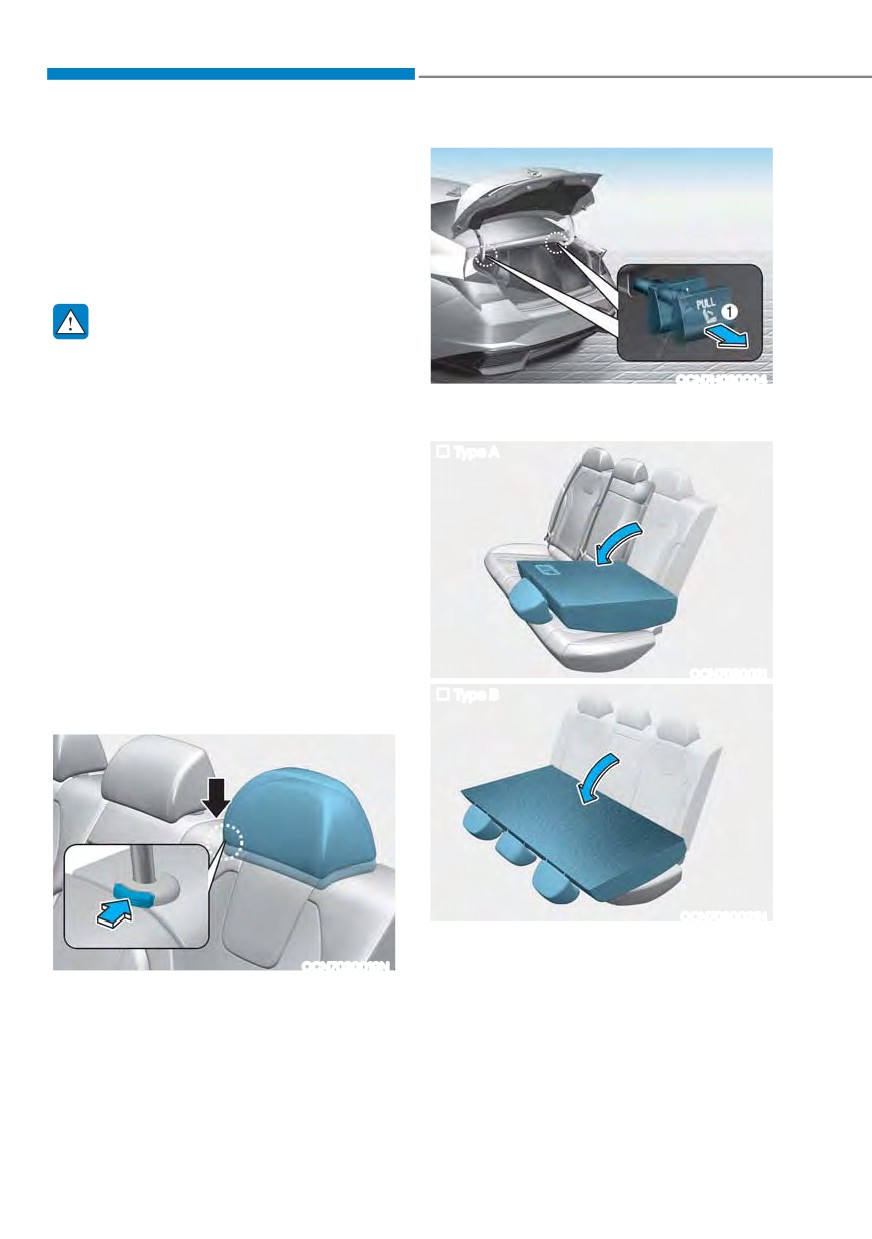

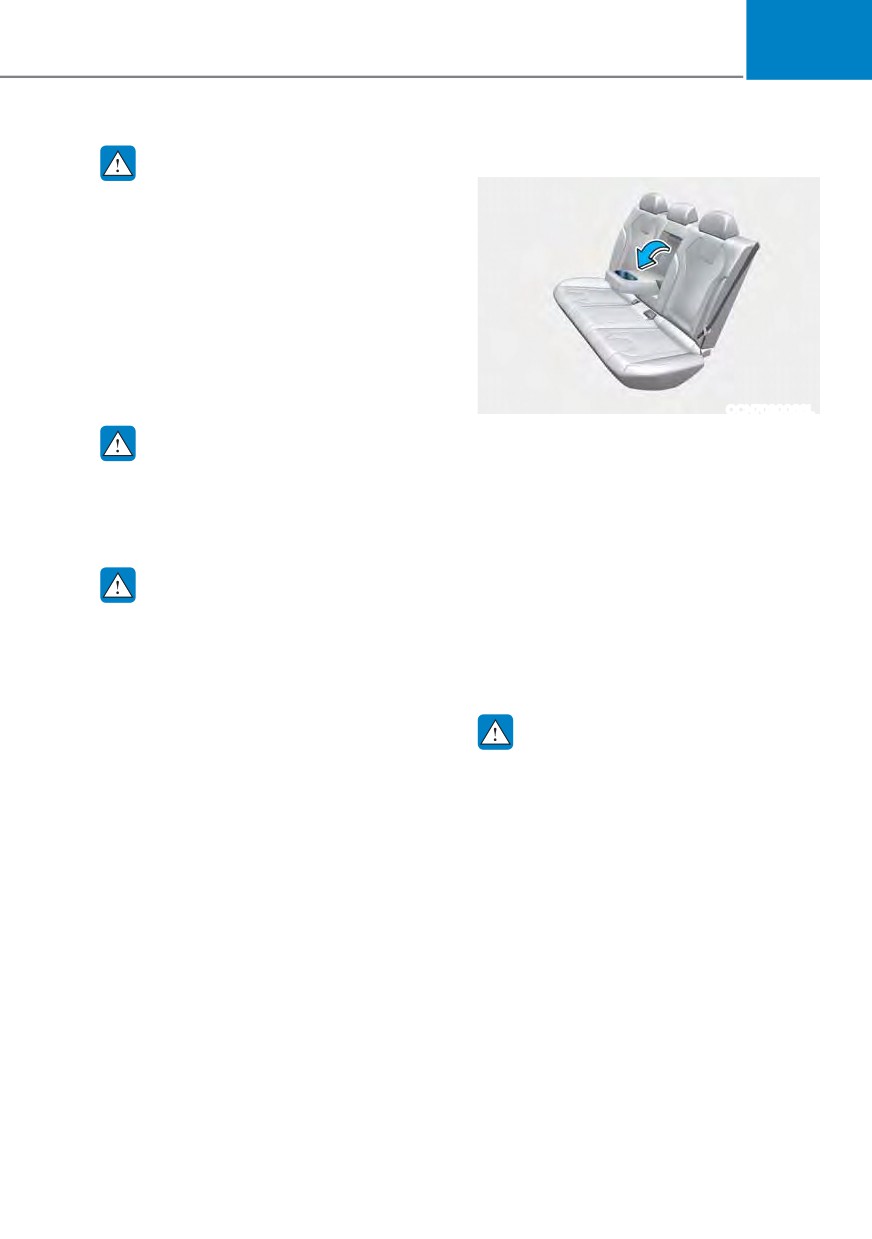

3. Pull on the seatback folding lever

proper seating position and no seat

located in the trunk.

belts are available for use. This could

result in serious injury or death in

Type A

case of an accident or sudden stop.

ś Objects carried on the folded down

seatback should not extend higher

than the top of the front seatbacks.

This could allow cargo to slide

forward and cause injury or damage

during sudden stops.

To fold down the rear seatback:

1. Set the front seatback to the upright

OCN7030021

position and if necessary, slide the

Type B

front seat forward.

OCN7030021N

4. Fold the seatback toward the front of

OCN7030019N

the vehicle.

5. To use the rear seat, lift and pull the

2. Lower the rear head restraints to

the lowest position by pushing and

seatback rearward. Pull the seatback

firmly until it clicks into place. Make

holding the release button and

pushing down on the head restraint.

sure the seatback is locked in place.

3-10

Armrest (if equipped)

WARNING

When returning the rear seatback from

a folded to an upright position, hold the

seatback and return it slowly. Ensure

that the seatback is completely locked

into its upright position by pushing on

the top of the seatback. In an accident

or sudden stop, an unlocked seatback

could allow cargo to move forward with

great force and enter the passenger

compartment, which could result in

serious injury or death.

OCN7030066L

The armrest is located in the center of

WARNING

the rear seat. Pull the armrest down from

Do not place objects in the rear seats,

the seatback to use it.

since they cannot be properly secured

and may hit vehicle occupants in a

Head Restraints

collision causing serious injury or death.

The vehicle’s front and rear seats

have adjustable head restraints. The

head restraints provide comfort for

WARNING

passengers, but more importantly they

Make sure the vehicle is off, the shift

are designed to help protect passengers

lever is in P (Park), and the parking

from whiplash and other neck and spinal

brake is securely applied whenever

injuries during an accident, especially in

loading or unloading cargo. Failure to

a rear impact collision.

take these steps may allow the vehicle

to move if the shift lever is inadvertently

moved to another position.

WARNING

To help reduce the risk of serious

injury or death in an accident, take the

following precautions when adjusting

your head restraints:

ś Always properly adjust the head

restraints for all passengers BEFORE

starting the vehicle.

ś NEVER let anyone ride in a seat

with the head restraints removed or

reversed.

3-11

Seats & Safety System

Front seat head restraints

OLF034072N

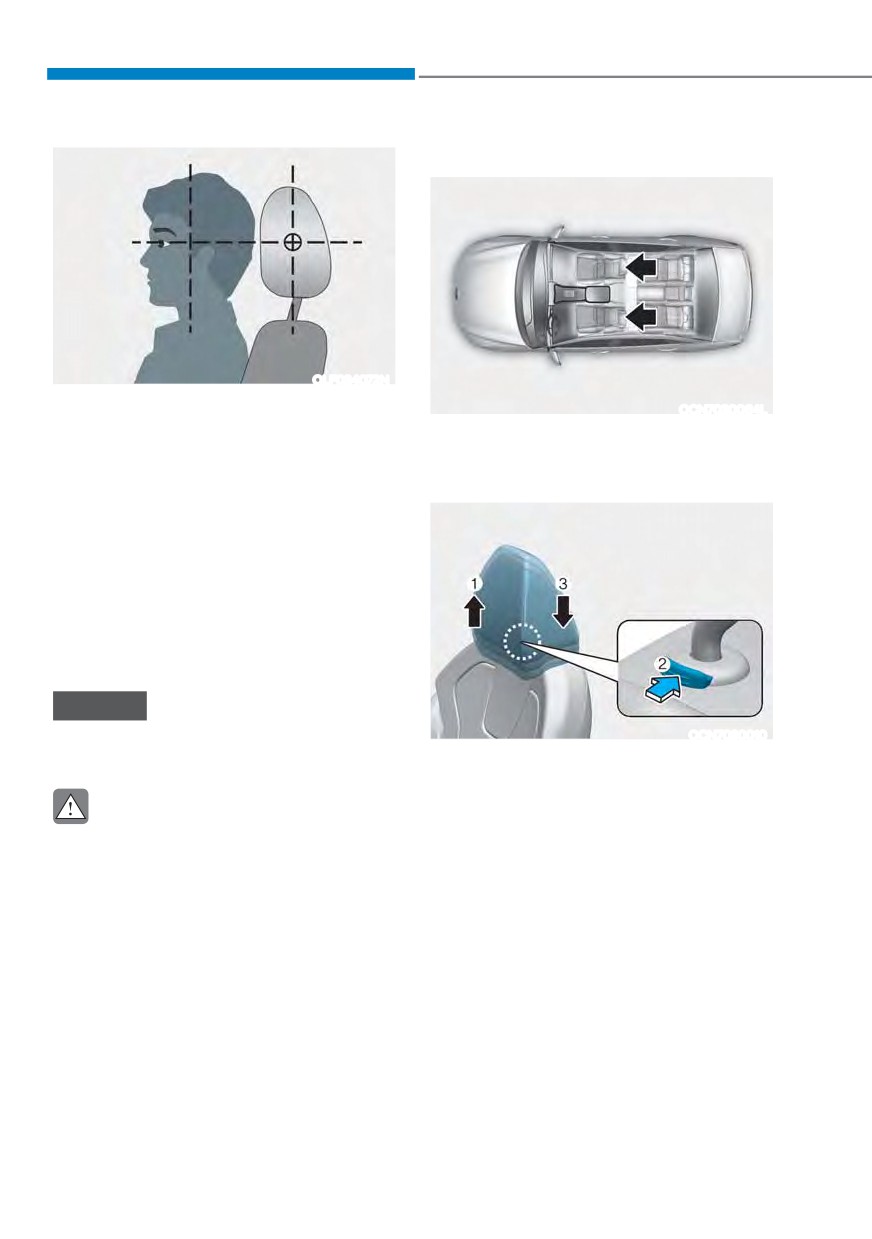

ś Adjust the head restraints so the

OCN7030064L

middle of the head restraint is at the

Both the driver’s and passenger’s front

same height as the height of the top

seat are equipped with adjustable head

of the eyes.

restraints for the safety and comfort.

ś NEVER adjust the head restraint

position of the driver’s seat when the

vehicle is in motion.

ś Adjust the head restraint as close to

the passenger’s head as possible. Do

not use a seat cushion that holds the

body away from the seatback.

ś Make sure the head restraint locks

into position after adjusting it.

NOTICE

To prevent damage, NEVER hit or pull

OCN7030010

on the head restraints.

Adjusting the height up and down

To raise the head restraint:

CAUTION

1. Pull it up to the desired position (1).

When there are no occupants in the

rear seats, adjust the height of the head

To lower the head restraint:

restraint to the lowest position. The

1. Push and hold the release button (2)

rear seat head restraint can reduce the

on the head restraint support.

visibility of the rear area.

2. Lower the head restraint to the

desired position (3).

3-12

Type A

OCN7030009

OCN7030012

Forward and rearward adjustment (if

Type B

equipped)

The head restraint can be adjusted

forward to 3 different positions by pulling

the head restraint forward to the desired

detent. To adjust the head restraint to

it’s furthest rearwards position, pull it

fully forward to the farthest position and

release it.

OCN7030013

Removal/Reinstallation

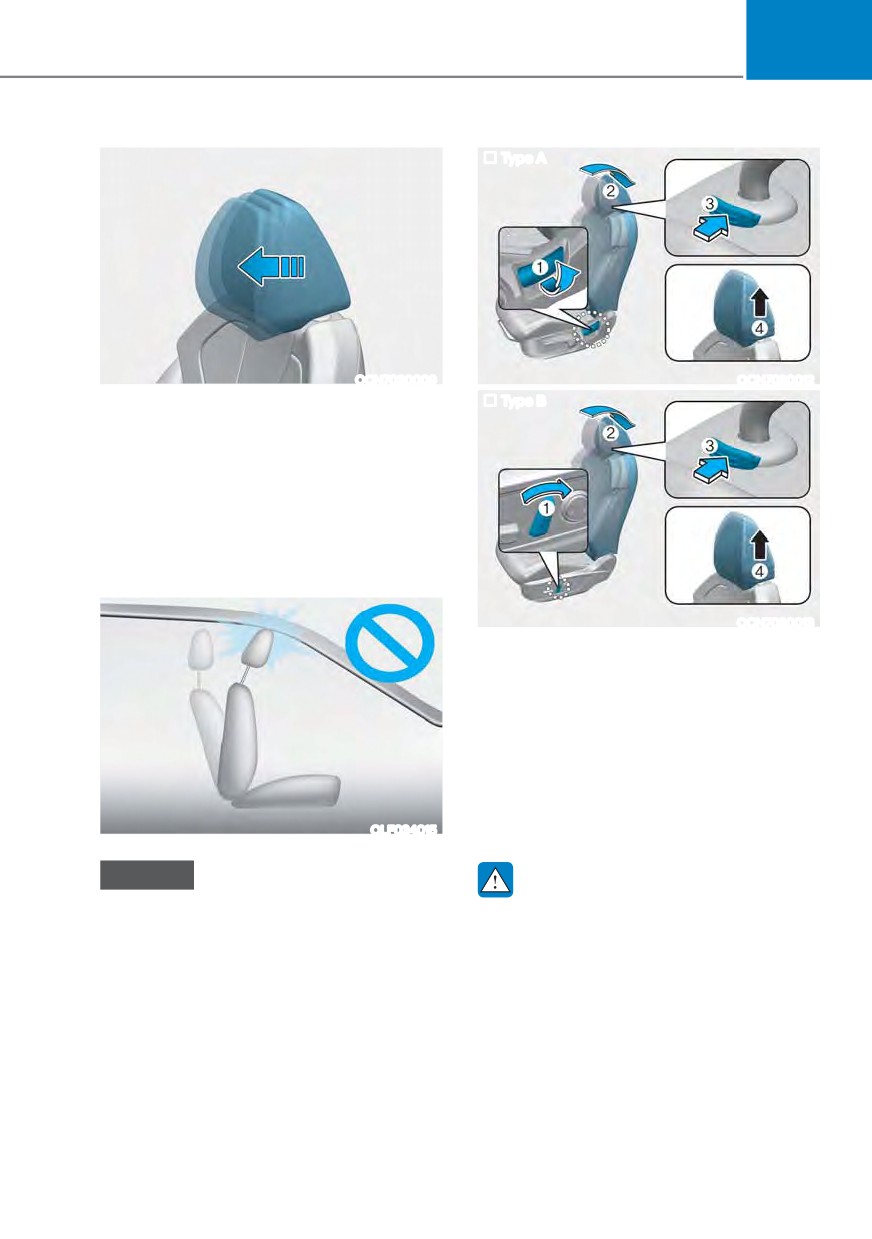

To remove the head restraint:

1. Recline the seatback (2) rearward

using the seatback angle lever (1).

2. Raise the head restraint as far as it can

go.

3. Press the head restraint release button

(3) while pulling the head restraint up

OLF034015

(4).

NOTICE

WARNING

If you recline the seatback towards the

NEVER allow anyone to travel in a seat

front with the head restraint and seat

with the head restraint removed.

cushion raised, the head restraint may

come in contact with the sunvisor or

other parts of the vehicle.

3-13

Seats & Safety System

Type A

Rear seat head restraints

OCN7030014

Type B

OCN7030065L

The rear seats are equipped with head

restraints in all the seating positions for

the passenger’s safety and comfort.

OCN7030015

To reinstall the head restraint:

1. Put the head restraint poles (2) into

the holes while pressing the release

button (1).

2. Adjust the head restraint to the

OCN7030017N

appropriate height.

Adjusting the height up and down (if

3. Adjust the seatback (4) forward using

equipped)

the seatback angle lever (3).

To raise the head restraint:

1. Pull it up to the desired position (1).

WARNING

To lower the head restraint:

Always make sure the head retraint

1. Push and hold the release button (2)

locks into position after reinstalling and

on the head restraint support.

adjusting it properly.

2. Lower the head restraint to the

desired position (3).

3-14

Seat Warmers (if equipped)

WARNING

Front seat warmers

NEVER place anything on the seat

Seat warmers are provided to warm the

that insulates against heat when the

seats during cold weather.

seat warmer is in operation, such as a

blanket or seat cushion. This may cause

the seat warmer to overheat, causing a

WARNING

burn or damage to the seat.

The seat warmers can cause a SERIOUS

BURN, even at low temperatures and

especially if used for long periods of

time.

NOTICE

Passengers must be able to feel if the

To prevent damage to the seat warmers

seat is becoming too warm so they can

and seats:

turn it off, if needed.

ś Never use a solvent such as paint

People who cannot detect temperature

thinner, benzene, alcohol or gasoline

change or pain to the skin should

to clean the seats.

use extreme caution, especially the

ś Do not place heavy or sharp objects

following types of passengers:

on seats equipped with seat warmers.

ś Infants, children, elderly or disabled

ś Do not change the seat cover. It

persons, or hospital outpatients.

may damage the seat warmer or air

ś People with sensitive skin or who

ventilation system.

burn easily.

ś Fatigued individuals.

ś Intoxicated individuals.

ś People taking medication that can

cause drowsiness or sleepiness.

3-15

Seats & Safety System

Type A

ś Automatic temperature control

The seat warmer starts to

automatically control the seat

temperature in order to prevent

low-temperature burns after being

manually turned ON.

OFF

+,*+

0,1

LOW (

)

0(',80

OCN7030023

0,1

Type B

You may manually press the switch to

increase seat temperature. However, it

soon returns the automatic mode again.

When pressing the switch for more

than 1.5 seconds with the seat warmer

operating, the seat warmer will turn

OFF.

The seat warmer defaults to the OFF

position whenever the ignition switch

is in the ON position. However, if the

Auto Comfort Control function is ON,

OCN7030024

the driver’s seat warmer will turn on

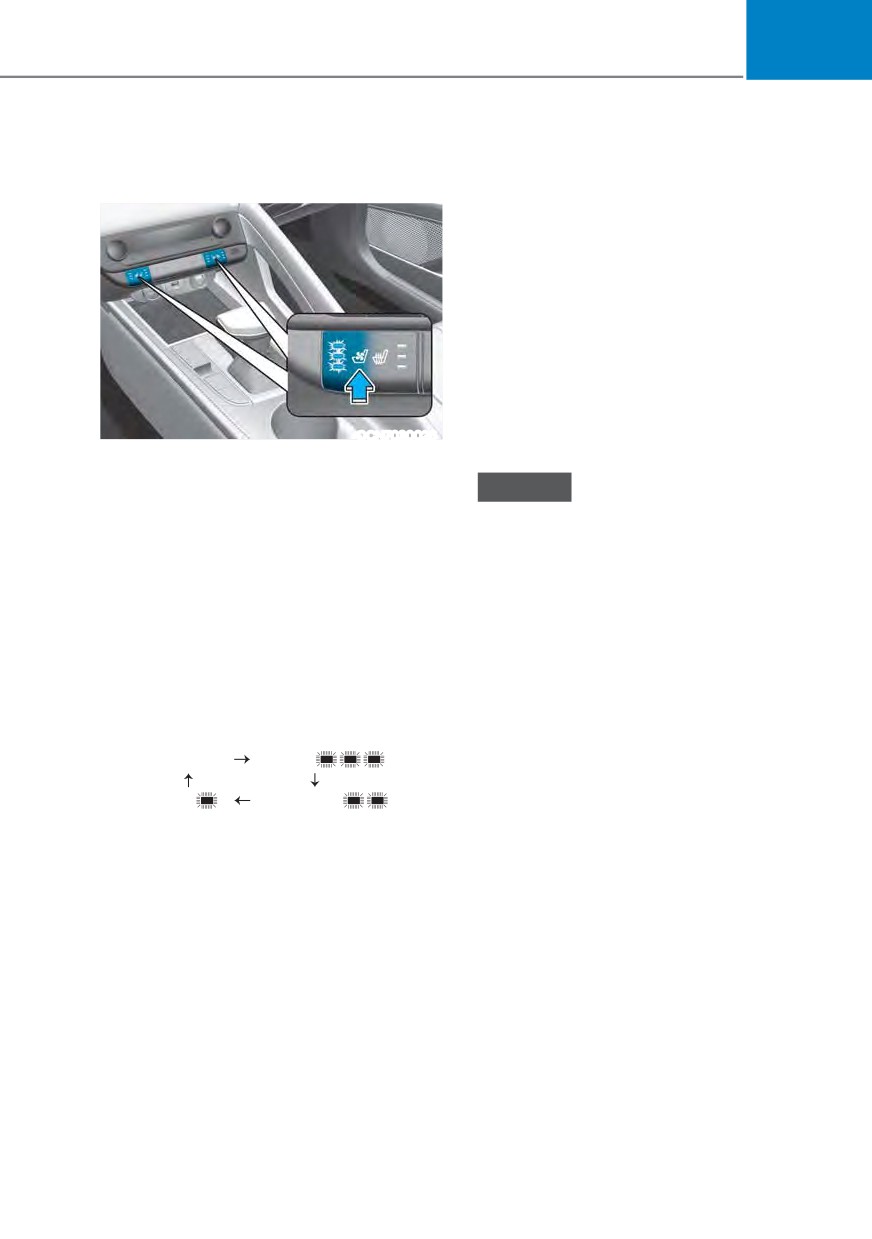

While the engine is running, push either

and off depending on the ambient

of the switches to warm the driver’s seat

temperature.

or front passenger’s seat.

Auto Comfort Control (for driver’s

During mild weather or under conditions

seat, if equipped)

where the operation of the seat warmer

The seat warmer automatically

is not needed, keep the switches in the

controls the seat temperature

OFF position.

depending on the ambient

ś Manual temperature control

temperature when the engine is

Each time you push the switch, the

running. If the seat warmer switch

temperature setting of the seat is

is pushed, the seat warmer will have

changed as follows:

to be controlled manually.To use this

- Front seat

function, it must be activated from

the Settings menu in the AVN system

OFF

HIGH (

)

screen. For more details, refer to the

separately supplied Car Infotainment

LOW (

)

MEDIUM (

)

System manual.

3-16

Air Ventilation Seat (if equipped)

ś Auto Comfort Control (for driver’s

seat, if equipped)

Front air ventilation seat

The air ventilation seat automatically

controls the seat temperature

depending on the ambient

temperature when the engine is

running. If the air ventilation seat

switch is pushed, the seat warmer

will have to be controlled manually.

To use this function, it must be

activated from the Settings menu in

the infotainment system screen. For

more details, refer to the separately

supplied Car Infotainment System

OCN7030026

manual.

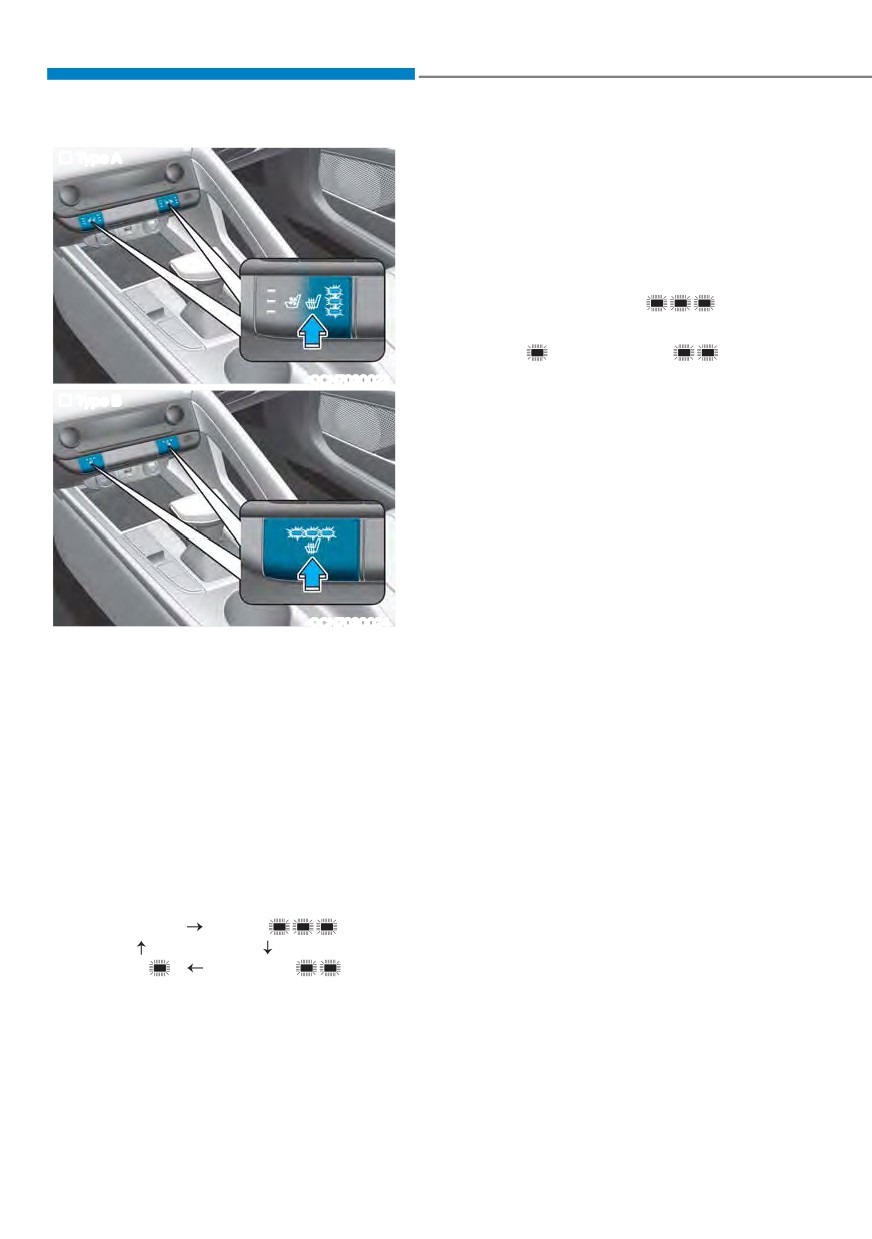

The air ventilation seats are provided

to cool the front seats by blowing air

NOTICE

through small vent holes on the surface

of the seat cushions and seatbacks.

To prevent damage to the air ventilation

seat:

When the operation of the air ventilation

seat is not needed, keep the switches in

Use the air ventilation seat ONLY

the OFF position.

when the climate control system

is on. Using the air ventilation seat

While the engine is running, push the

for prolonged periods of time with

switch to cool the driver’s seat or the

the climate control system off could

front passenger’s seat.

cause the air ventilation seat to

malfunction.

Each time you push the switch, the

Never use a solvent such as paint

airflow changes as follows:

thinner, benzene, alcohol or gasoline

to clean the seats.

OFF

HIGH (

)

Avoid spilling liquids on the surface

of the front seats and seatbacks;

LOW (

)

MEDIUM (

)

this may cause the air vent holes

to become blocked and not work

When pressing the switch for

properly.

more than 1.5 seconds with the

Do not place materials such as

air ventilation seat operating, the

plastic bags or newspapers under

operation will turn OFF.

the seats. They may block the air

The air ventilation seat defaults to the

intake causing the air vents to not

OFF position whenever the ignition

work properly.

switch is in the ON position. However,

Do not change the seat covers. It may

if the Auto Comfort Control function

damage the air ventilation seat.

is ON, the driver’s air ventilation seat

will turn on and off depending on the

If the air vents do not operate, restart

ambient temperature.

the vehicle. If there is no change,

we recommend that you have your

vehicle inspected by an authorized

HYUNDAI dealer.

3-17

Hyundai Elantra Hybrid (2023 year). Manual in english - page 2
