Your vehicle at a glance
EXTERIOR OVERVIEW
■ Front view
The actual shape may differ from the illustration.
1. Hood
3-46
5. Tires and wheels
7-26
2. Windows
3-38
6. Headlamp
7-56
3. Sunroof
3-42
7. Outer side view mirror
3-34
4. Wiper blade
7-20
8. Daytime running light (DRL)
3-95, 7-60
OAEE016001N
1-2

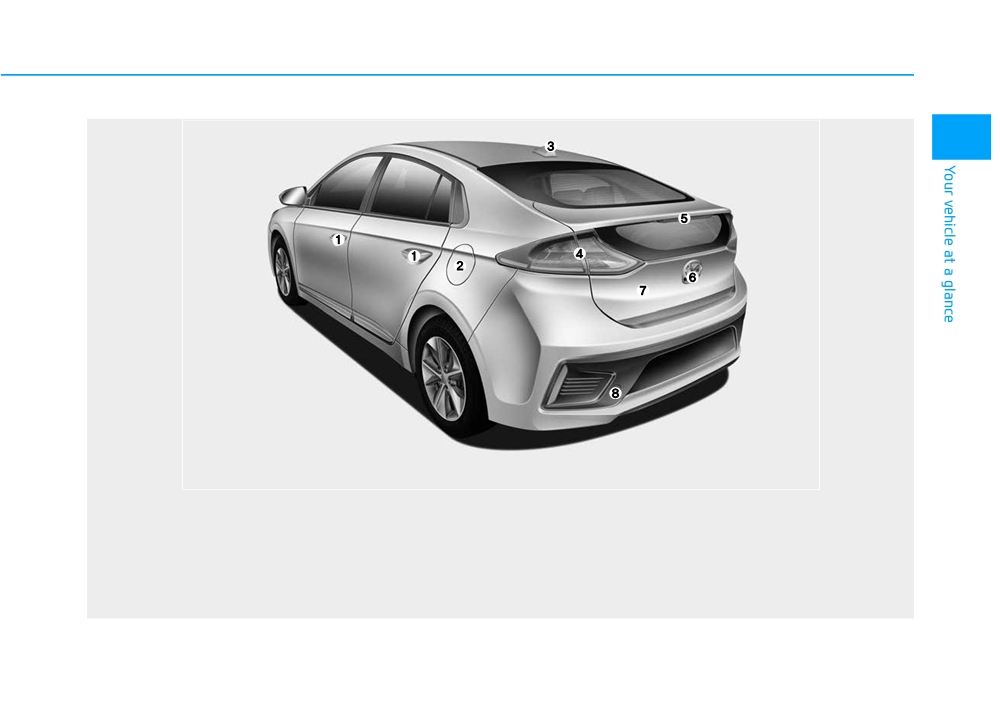

■ Rear view
1
The actual shape may differ from the illustration.
1. Door lock
3-9
5. High mounted stop lamp
7-62
2. Charging door
3-50
6. Rear view monitor
3-110
3. Antenna
4-2
7. Liftgate
3-48
4. Rear combination lamp
7-61
8. Towing hook
6-22
OAEE016005N
1-3
Your vehicle at a glance
INTERIOR OVERVIEW
1. Door lock/unlock button
3-10
2. Driver position memory system
3-14
3. Side view mirror folding switch
3-36
4. Side view mirror control switch
3-35
5. Central door lock switch
3-11
6. Power window switches
3-38
7. Power window lock switch
3-41
8. Instrument panel illumination control
switch
3-52
9. Blind-spot Collision Warning (BCW)
System
5-38
10. Lane keeping assist (LKA) System
5-59
11. ESC (Electronic Stability Control)
OFF button
5-29
12. Charging door open button
3-50
13. AUTO/LOCK mode selection button
H-15
14. Scheduled charging deactivation
button
H-16
15. Fuse panel
7-43
16. Steering wheel
3-16
17. Steering wheel tilt/telescope lever
3-16
18. Seat
2-4
19. Hood release lever
3-46
The actual shape may differ from the illustration.
OAEE017003N
1-4

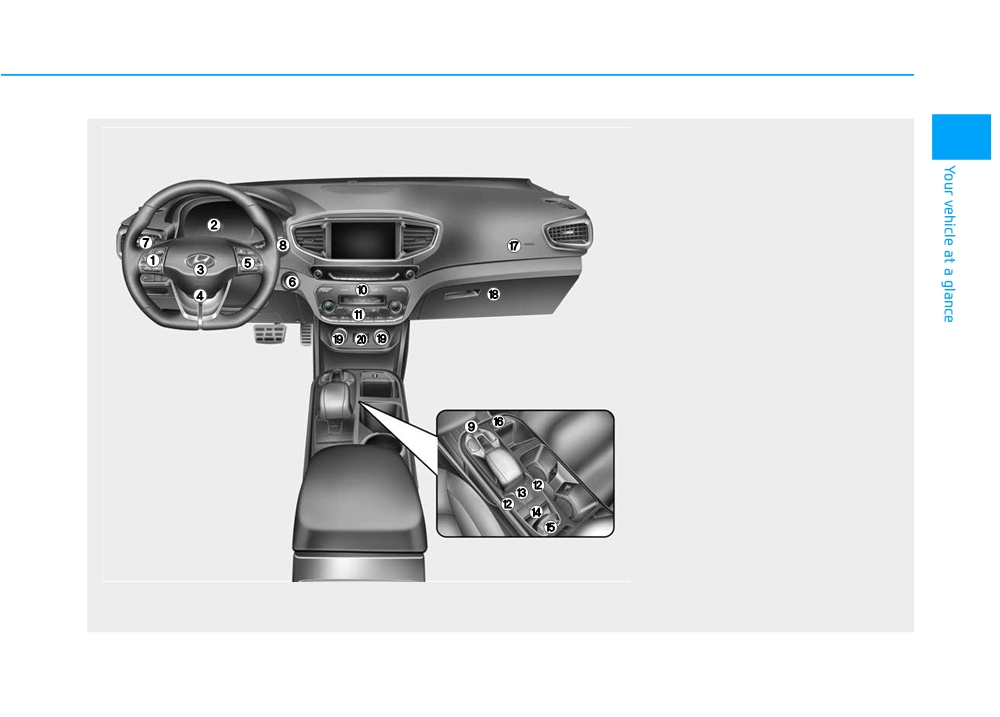

INSTRUMENT PANEL OVERVIEW
1
1. Steering wheel audio controls/
Bluetooth® wireless technology
hands-free controls
4-4
2. Instrument cluster
3-51
3. Horn
3-17
4. Driver’s front air bag
2-49
5. Cruise controls/
5-73
Smart cruise controls
5-78
6. POWER button
5-5
7. Light control/Turn signals
3-95
8. Wiper/Washer
3-108
9. Reduction gear (shift button)
5-10
10. Hazard warning flasher button
6-2
11. Climate control system
3-112
12. Seat warmer
2-20
13. Drive mode integrated control
system
5-36
14. Auto hold
5-23
15. EPB (Electronic Parking brake)
5-18
16. Wireless cellular phone charging
system
3-133
17. Passenger's front air bag
2-49
18. Glove box
3-129
19. Power outlet
3-132
20. AUX, USB and iPod® port
4-2
The actual shape may differ from the illustration.
OAEE016004N
1-5
Your vehicle at a glance

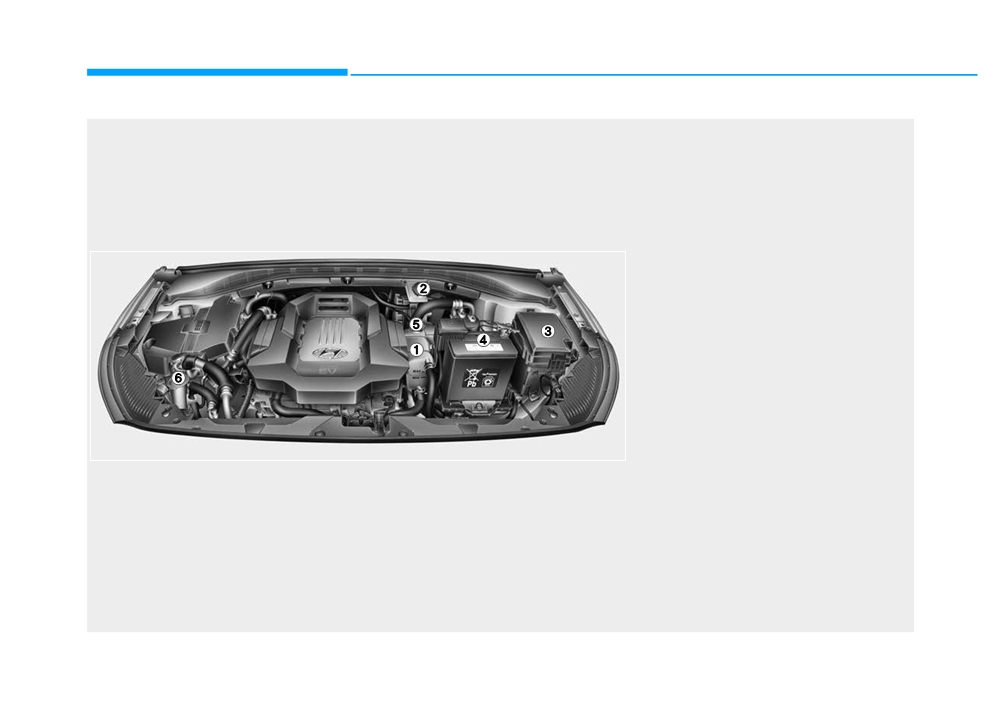

MOTOR COMPARTMENT
1. Coolant reservoir
7-12
2. Brake fluid reservoir
7-16
3. Fuse box
7-44
4. Battery (12 volt)
7-23
5. Coolant cap
7-13
6. Windshield washer fluid reservoir
7-17
The actual motor compartment in the vehicle may differ from the illustration.
OAEE076001N
1-6
Safety system of your vehicle
This chapter provides you with important information about how to protect yourself and your passengers.
It explains how to properly use your seats and seat belts, and how your air bags work.
Additionally, this chapter explains how to properly restrain infants and children in your vehicle.
2
Important Safety Precautions
2-2
Child Restraint System (CRS)
2-36
Always Wear Your Seat Belt
2-2
Children Always in the Rear
2-36
Restrain All Children
2-2
Selecting a Child Restraint System (CRS)
2-37
Air Bag Hazards
2-2
Installing a Child Restraint System (CRS)
2-39
Driver Distraction
2-2
Air Bag
Control Your Speed
2-3
- Advanced Supplemental Restraint System
2-47
Keep Your Vehicle in Safe Condition
2-3
Where Are the Air Bags?
2-49
Seats
2-4
How Does the Air Bag System Operate?
2-53
Safety Precautions
2-5
What to Expect After an Air Bag Inflates
2-57
Front Seats
2-6
Occupant Classification System (OCS)
2-58
Rear Seats
2-12
Why Didn't My Air Bag Go Off in a Collision?
2-63
Head Restraints
2-16
SRS Care
2-68
Seat warmers
2-20
Additional Safety Precautions
2-69
Seat Belts
2-23
Air Bag Warning Labels
2-70
Seat Belt Safety Precautions
2-23
Seat Belt Warning Light
2-24
Seat Belt Restraint System
2-26
Additional Seat Belt Safety Precautions
2-32
Care of Seat Belts
2-35
Safety system of your vehicle
IMPORTANT SAFETY PRECAUTIONS
You will find many safety precautions
Restrain All Children
Driver Distraction
and recommendations throughout
All children under age 13 should ride
Driver distraction presents a serious
this section, and throughout this man-
in your vehicle properly restrained in
and potentially deadly danger, espe-
ual. The safety precautions in this sec-
a rear seat, not the front seat. Infants
cially for inexperienced drivers. Safety
tion are among the most important.
and small children should be
should be the first concern when
restrained in an appropriate child
behind the wheel and drivers need to
Always Wear Your Seat Belt
restraint. Larger children should use
be aware of the wide array of potential
a booster seat with the lap/shoulder
distractions, such as drowsiness,
A seat belt is your best protection in
belt until they can use the seat belt
reaching for objects, eating, personal
all types of accidents. Air bags are
properly without a booster seat.
grooming, other passengers, and
designed to supplement seat belts,
using cellular phones.
not replace them. So even though
your vehicle is equipped with air bags,
Air Bag Hazards
Drivers can become distracted when
they take their eyes and attention off
ALWAYS make sure you and your
While air bags can save lives, they
passengers wear your seat belts, and
the road or their hands off the wheel
can also cause serious or fatal
to focus on activities other than driv-
wear them properly.
injuries to occupants who sit too
ing. To reduce your risk of distraction
close to them, or who are not prop-
or getting into an accident:
erly restrained. Infants, young chil-
dren, and shorter adults are at the
greatest risk of being injured by an
inflating air bag. Follow all instruc-
tions and warnings in this manual.
2-2
•
ALWAYS set up your mobile devices
Control Your Speed
Keep Your Vehicle in Safe
(i.e., MP3 players, phones, naviga-
Condition
Excessive speed is a major factor in
tion units, etc.) when your vehicle is
crash injuries and deaths. Generally,
Having a tire blowout or a mechanical
parked or safely stopped.
the higher the speed, the greater the
failure can be extremely hazardous. To
•
ONLY use your mobile device when
2
risk, but serious injuries can also
reduce the possibility of such prob-
allowed by laws and when conditions
occur at lower speeds. Never drive
lems, check your tire pressures and
permit safe use. NEVER text or
faster than is safe for current condi-
condition frequently, and perform all
email while driving. Most states have
tions, regardless of the maximum
regularly scheduled maintenance.
laws prohibiting drivers from texting.
speed posted.
Some states and cities also prohibit
drivers from using handheld phones.
•
NEVER let the use of a mobile
device distract you from driving. You
have a responsibility to your passen-
gers and others on the road to
always drive safely, with your hands
on the wheel as well as your eyes
and attention on the road.
2-3
Safety system of your vehicle

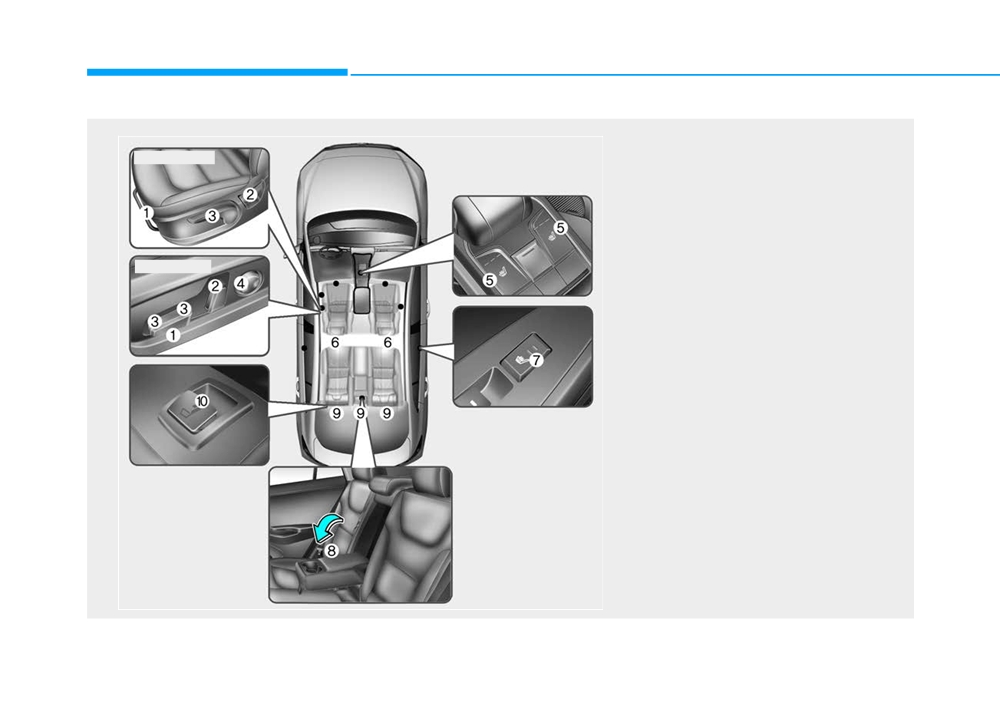

SEATS
■ Manual seat
Front seats
(1) Forward and backward
(2) Seatback angle
(3) Seat cushion height
(4) Lumbar support (Driver's seat)*
■ Power seat
(5) Seat warmer*
(6) Headrest
Rear seats
(7) Seat warmer*
(8) Armrest*
(9) Headrest
(10) Seatback folding
* : if equipped
OAEE036001N
2-4
Safety Precautions
Air bags
WARNING
Adjusting the seats so that you are sit-
You can take steps to reduce the risk
ting in a safe, comfortable position
of being injured by an inflating air
To reduce the risk of serious
plays an important role in driver and
bag. Sitting too close to an air bag
injury or death from an inflating
passenger safety together with the
greatly increases the risk of injury in
2
air bag, take the following pre-
seat belts and air bags in an accident.
the event the air bag inflates.
cautions:
The National Highway Traffic Safety
•
Adjust the driver's seat as far to
WARNING
Administration (NHTSA) recommends
the rear as possible while main-
that drivers allow at least 10 inches
taining the ability to maintain
Do not use a cushion that
(25 cm) between the center of the
full control of the vehicle.
reduces friction between the seat
steering wheel and their chest.
•
Adjust the front passenger seat
and the passenger. The passen-
as far to the rear as possible.
ger's hips may slide under the
•
Hold the steering wheel by the
lap portion of the seat belt during
an accident or a sudden stop.
rim with hands at the 9 o'clock
and 3 o'clock positions to mini-
Serious or fatal internal injuries
could result because the seat
mize the risk of injuries to your
hands and arms.
belt cannot operate properly.
•
NEVER place anything or any-
one between the steering wheel
and the air bag.
•
Do not allow the front passen-
ger to place feet or legs on the
dashboard to minimize the risk
of leg injuries.
2-5
Safety system of your vehicle
Seat belts
Front Seats
WARNING
Always fasten your seat belt before
starting any trip.
WARNING
Take the following precautions
At all times, passengers should sit
when adjusting your seat belt:
upright and be properly restrained.
Take the following precautions
•
NEVER use one seat belt for
when adjusting your seat:
Infants and small children must be
more than one occupant.
restrained in appropriate child restraint
•
NEVER attempt to adjust the
•
Always position the seatback
systems. Adults and children who
seat while the vehicle is mov-
upright with the lap portion of
have outgrown a booster seat must be
ing. The seat could respond
the seat belt snug and low
restrained using the seat belts.
with unexpected movement
across the hips.
and may cause loss of vehicle
•
NEVER allow children or small
control resulting in an acci-
infants to ride in a passenger's
dent.
lap.
•
Do not place anything under
•
Do not route the seat belt
the front seats. Loose objects
across your neck, across sharp
in the driver's foot area could
edges, or reroute the shoulder
interfere with the operation of
strap away from your body.
the foot pedals, causing an
•
Do not allow the seat belt to
accident.
become caught or jammed.
•
Do not allow anything to inter-
fere with the normal position
and proper locking of the seat-
back.
•
Do not place a cigarette lighter
on the floor or seat. When you
operate the seat, gas may exit
out of the lighter causing a fire.
(Continued)
2-6

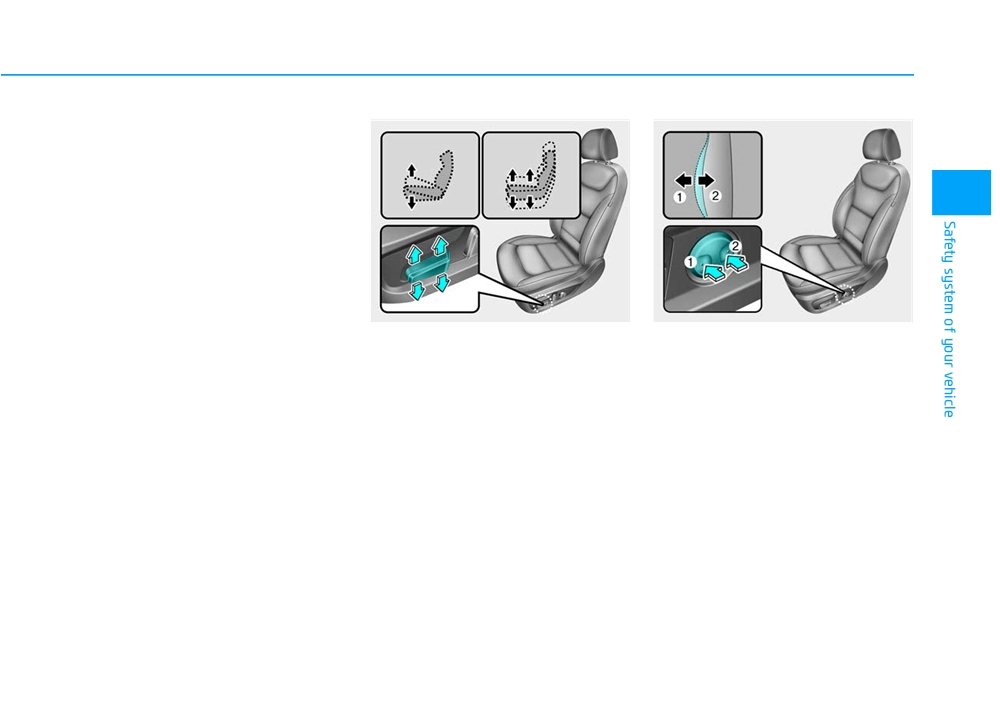

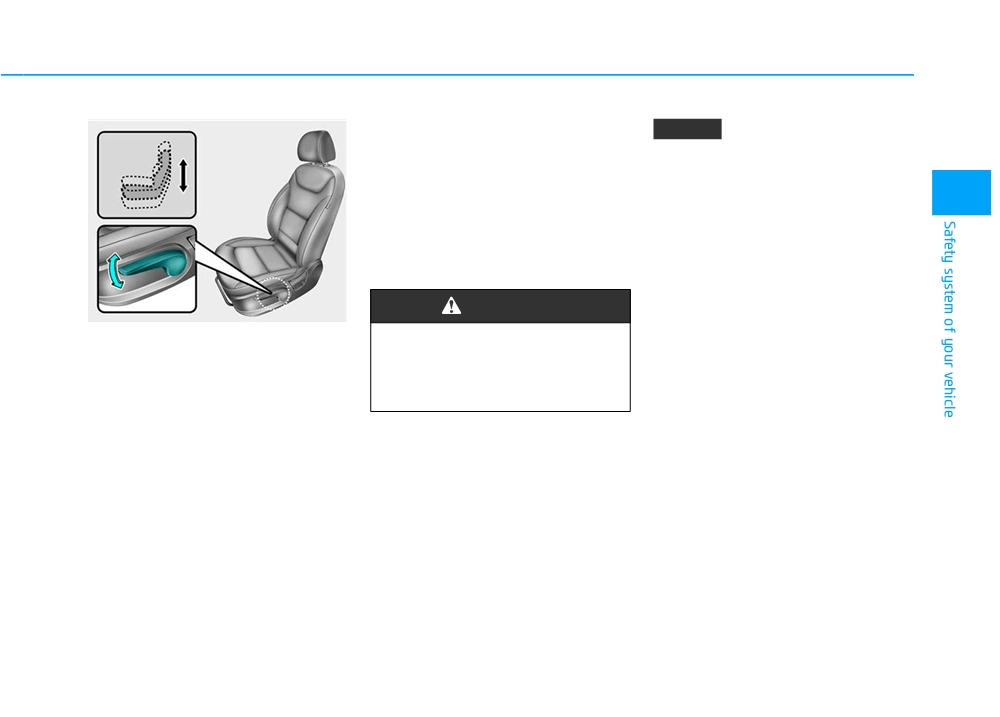

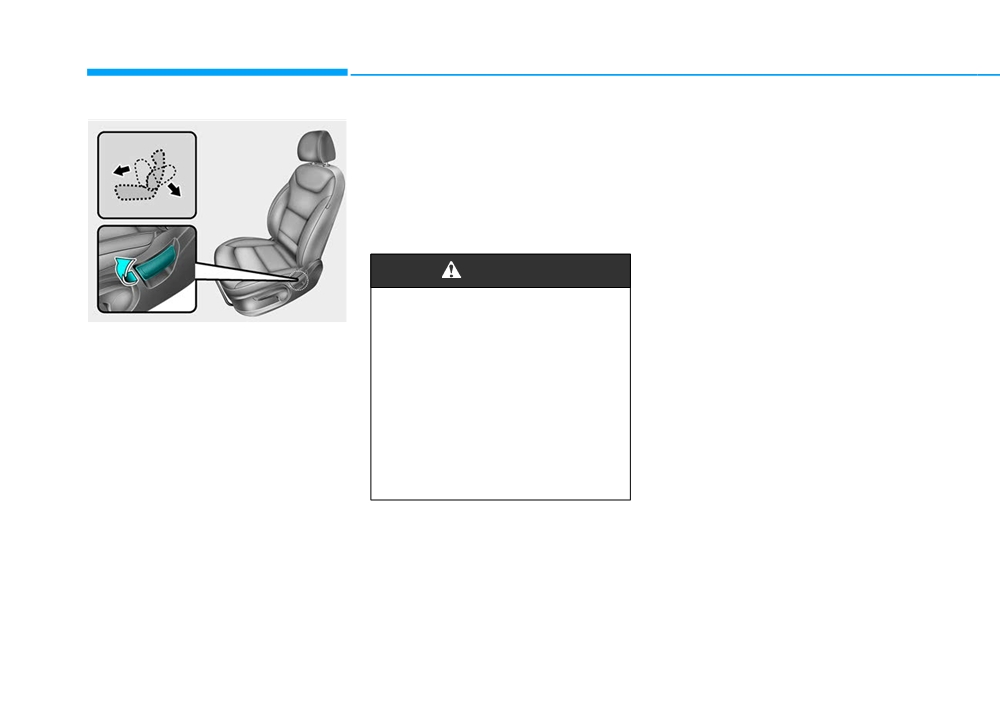

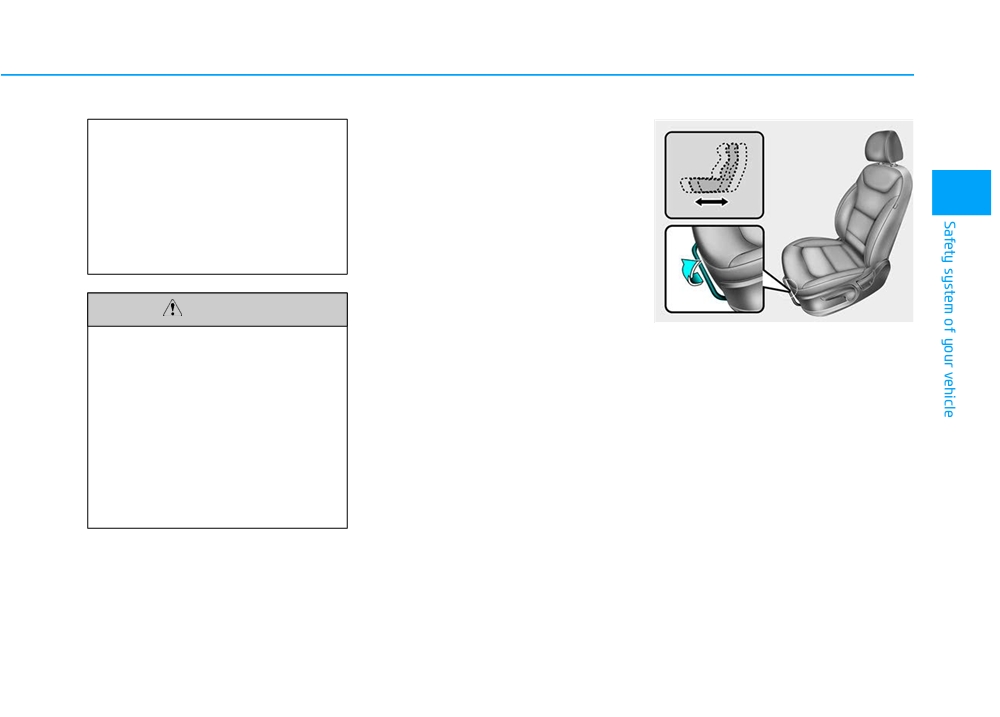

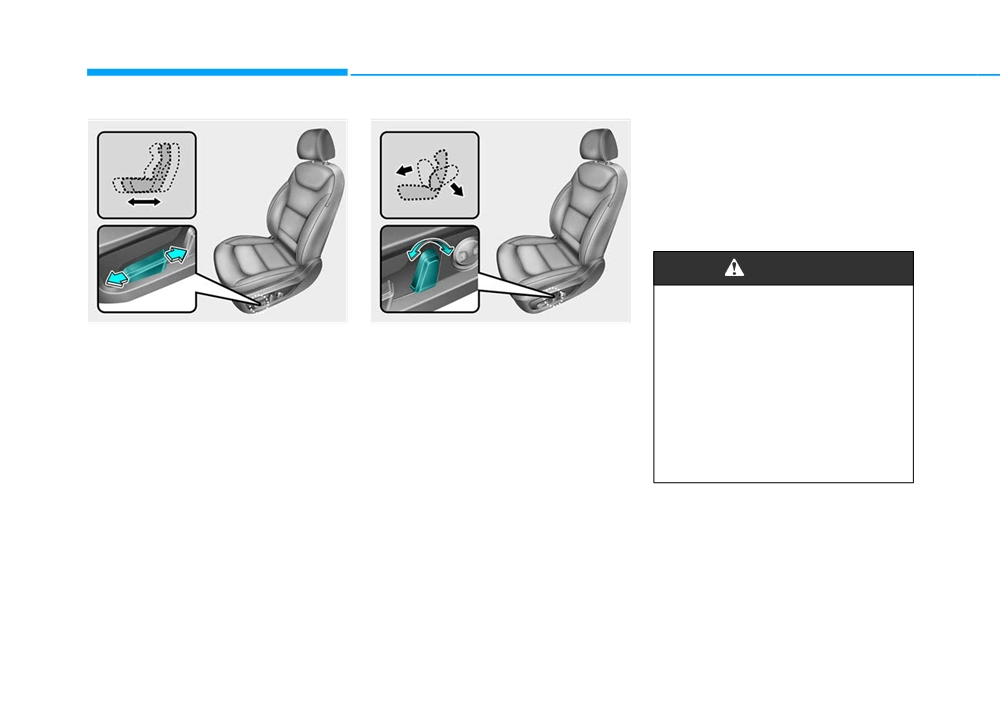

Manual adjustment (if equipped)
(Continued)
The front seat can be adjusted by
• Use extreme caution when
using the levers located on the out-
picking small objects trapped
side of the seat cushion. Before driv-
under the seats or between
ing, adjust the seat to the proper
2
the seat and the center con-
position so that you can easily con-
sole. Your hands might be cut
trol the steering wheel, foot pedals
or injured by the sharp edges
and controls on the instrument
of the seat mechanism.
panel.
CAUTION
OAE036002
Forward and rearward adjustment
To prevent injury:
To move the seat forward or rearward:
• Do not adjust your seat while
1. Pull up the seat slide adjustment
wearing your seat belt.
lever and hold it.
Moving the seat cushion for-
ward may cause strong pres-
2. Slide the seat to the position you
sure on your abdomen.
desire.
• Do not allow your hands or
3. Release the lever and make sure
fingers to get caught in the
the seat is locked in place. Move
seat mechanisms while the
forward and rearward without using
seat is moving.
the lever. If the seat moves, it is not
locked properly.
2-7
Safety system of your vehicle
Reclining seatback
Seat belts must be snug against your
hips and chest to work properly.
Sitting in a reclined position when
When the seatback is reclined, the
the vehicle is in motion can be dan-
shoulder belt cannot do its job
gerous. Even when buckled up, the
because it will not be snug against
protection of your restraint system
your chest. Instead, it will be in front
(seat belts and air bags) is greatly
of you. During an accident, you could
reduced by reclining your seatback.
be thrown into the seat belt, causing
neck or other injuries.
WARNING
The more the seatback is reclined,
the greater chance the passenger's
NEVER ride with a reclined
OAE036003
hips will slide under the lap belt or
seatback when the vehicle is
the passenger's neck will strike the
Seatback angle
moving.
shoulder belt.
To recline the seatback:
Riding with a reclined seatback
1. Lean forward slightly and lift up the
increases your chance of seri-
seatback lever.
ous or fatal injuries in the event
of a collision or sudden stop.
2. Carefully lean back on the seat
and adjust the seatback to the
Drivers and passengers should
position you desire.
ALWAYS sit well back in their
seats, properly belted, and with
3. Release the lever and make sure
the seatbacks upright.
the seatback is locked in place.
(The lever MUST return to its orig-
inal position for the seatback to
lock.)
2-8
Power adjustment
NOTICE
(for driver's seat, if equipped)
To prevent damage to the seats:
The front seat can be adjusted by
•
Always stop adjusting the seats
using the control switches located on
when the seat has been adjust-
2
the outside of the seat cushion. Before
ed as far forward or rearward as
driving, adjust the seat to the proper
possible.
position so that you can easily control
the steering wheel, foot pedals and
•
Do not adjust the seats longer
controls on the instrument panel.
than necessary when the vehicle
is turned off. This may result in
unnecessary battery drain.
WARNING
OAE036004
•
Do not operate two or more
Seat cushion height
NEVER allow children in the
seats at the same time. This may
result in an electrical malfunc-
To change the height of the seat
vehicle unattended. The power
cushion:
seats are operable when the
tion.
vehicle is turned off.
• Push down on the lever several
times, to lower the seat cushion.
• Pull up on the lever several times,
to raise the seat cushion.
2-9
Safety system of your vehicle
Reclining seatback
Sitting in a reclined position when
the vehicle is in motion can be dan-
gerous. Even when buckled up, the
protections of your restraint system
(seat belts and air bags) is greatly
reduced by reclining your seatback.
WARNING
NEVER ride with a reclined seat-
OAE036006
OAE036007
back when the vehicle is moving.
Forward and rearward adjustment
Seatback angle
Riding with a reclined seatback
To move the seat forward or rearward:
To adjust the seatback:
increases your chance of serious
or fatal injuries in the event of a
1. Push the control switch forward or
1. Rotate the top of control switch
collision or sudden stop.
rearward.
forward or rearward.
Driver and passengers should
2. Release the switch once the seat
2. Release the switch once the seat-
ALWAYS sit well back in their
reaches the desired position.
back reaches the desired position.
seats, properly belted, and with
the seatbacks upright.
2-10
Seat belts must be snug against your
hips and chest to work properly.
When the seatback is reclined, the
shoulder belt cannot do its job
because it will not be snug against
2
your chest. Instead, it will be in front
of you. During an accident, you could
be thrown into the seat belt, causing
neck or other injuries.
The more the seatback is reclined,
the greater chance the passenger’s
hips will slide under the lap belt or
OAE036008
OAE036005
the passenger's neck will strike the
Seat cushion height
Lumbar support
shoulder belt.
To change the height of the seat
(for driver's seat, if equipped)
cushion:
To adjust the lumbar support:
1. • Push the front portion of the con-
1. Press the front portion of the
trol switch up to raise or down to
switch (1) to increase support or
lower the front part of the seat
the rear portion of the switch (2) to
cushion.
decrease support.
• Push the rear portion of the con-
2. Release the switch once it reach-
trol switch up to raise or down to
es the desired position.
lower the height of the seat cush-
ion.
2. Release the switch once the seat
reaches the desired position.
2-11
|
|
|
