Hyundai i30 (2018 year). Instruction - part 11

Windshield washers

WARNING

CAUTION

When the outside temperature is

•

To prevent possible damage

below freezing, ALWAYS warm the

to the washer pump, do not

windshield using the defroster to

operate the washer when the

prevent the washer fluid from

fluid reservoir is empty.

freezing on the windshield and

•

To prevent possible damage

3

obscuring your vision which

to the wipers or windshield,

could result in an accident and

do not operate the wipers

serious injury or death.

when the windshield is dry.

•

To prevent damage to the

wiper arms and other compo-

OPDE046062

nents, do not attempt to move

the wipers manually.

In the O position, pull the lever gently

•

To prevent possible damage

toward you to spray washer fluid on

to the wipers and washer sys-

the windshield and to run the wipers

tem, use anti-freezing washer

1-3 cycles. The spray and wiper oper-

fluids in the winter season or

ation will continue until you release

cold weather.

the lever.

If the washer does not work, you may

need to add washer fluid to the wash-

er fluid reservoir.

3-99

Convenient features of your vehicle

Rear window wiper and wash-

Auto rear wiper (if equipped)

er switch (if equipped)

The rear wiper will operate while the

vehicle is in reverse with the front

wiper ON by selecting the function on

the LCD display.

Go to ‘User Settings  Convenience

 Auto Rear Wiper (reverse)’.

OTLE045168

Push the lever away from you to

spray rear washer fluid and to run the

OTLE045167

rear wipers

1~3 cycles. The spray

and wiper operation will continue until

The rear window wiper and washer

you release the lever. (if equipped)

switch is located at the end of the

wiper and washer switch lever.

Turn the switch to the desired posi-

tion to operate the rear wiper and

washer.

2 - High wiper speed

1 - Low wiper speed

O - Off

3-100

DRIVER ASSIST SYSTEM

Rear view camera (if equipped)

WARNING

■ Type A

The rear camera display is not a

safety device. It only serves to

assist the driver in identifying

objects directly behind the mid-

dle of the vehicle. The camera

3

does NOT cover the complete

area behind the vehicle.

OPDE046405

OPD046402

WARNING

■ Type B

The Rear View Camera will activate

when the engine is running and the

•

Never rely solely on the rear

shift lever is in the R (Reverse) posi-

camera display when backing-

tion.

up.

This is a supplemental system that

•

ALWAYS look around your

shows behind the vehicle through

vehicle to make sure there are

the mirror or navigation display while

no objects or obstacles before

backing-up.

moving the vehicle in any

direction to prevent a collision.

OPDE046424

■ Type A

•

Always pay close attention

The rear view camera can be turned

when the vehicle is driven

off by pressing the ON/OFF button

close to objects, particularly

(1) when the rear view camera is acti-

pedestrians, and especially

vated. Press the ON/OFF button (1)

children.

once more to turn on the rear view

camera when the engine is running

and the shift lever is in R (Reverse).

3-101

Convenient features of your vehicle

NOTICE

Rear parking assist system

WARNING

(if equipped)

• Do not spray the camera or its

surrounding area directly with a

•

ALWAYS look around your vehi-

high pressure washer. Shock

cle to make sure there are not

applied from high pressure

any objects or obstacles before

water may cause the device to

moving the vehicle in any direc-

not operate normally.

tion to prevent a collision.

• Do not use any cleanser con-

•

Always pay close attention

taining acid or alkaline deter-

when the vehicle is driven close

gents when cleaning the lens.

to objects, particularly pedestri-

Use only a mild soap or neutral

ans, and especially children.

detergent, and rinse thoroughly

•

Be aware that some objects

with water.

Sensor

may not be visible on the

OPD046400

screen or be detected by the

i

Information

The Rear Parking Assist System

sensors, due to the objects

assists the driver during reverse move-

distance, size or material, all of

Always keep the camera lens clean. The

ment of the vehicle by chiming if any

which can limit the effective-

camera may not work normally if the

object is sensed within the distance of

ness of the sensor.

lens is covered with foreign material.

120 cm (50 inches) behind the vehicle.

This system is a supplemental sys-

tem that senses objects within the

range and location of the sensors, it

cannot detect objects in other areas

where sensors are not installed.

3-102

Operation of the Rear Parking

Types of warning sound and indicator

Assist System

Types of warning sound

Indicator

Operating condition

• This system will activate when

When an object is 120 cm to 60 cm (47 in. to 24 in.) from the rear

backing up with the ignition switch

bumper : Buzzer beeps intermittently.

in the ON position. However, if vehi-

cle speed exceeds 5 km/h (3 mph),

the system may not detect objects.

3

When an object is 60 cm to 30 cm (24 in. to 12 in.) from the rear

• If vehicle speed exceeds 10 km/h (6

bumper : Buzzer beeps more frequently.

mph), the system will not warn you

even though objects are detected.

• When more than two objects are

When an object is within 30 cm (12 in.) of the rear bumper :

sensed at the same time, the clos-

Buzzer beeps continuously.

est one will be recognized first.

NOTICE

• The indicator may differ from the illustration as objects or sensors sta-

tus. If the indicator blinks, we recommend that you have your vehicle

checked by an authorized HYUNDAI dealer.

• If the audible warning does not sound or if the buzzer sounds intermit-

tently when shifting into R (Reverse) position, this may indicate a mal-

function with the Parking Assist System. If this occurs, we recommend

that you have your vehicle checked by an authorized HYUNDAI dealer as

soon as possible.

3-103

Convenient features of your vehicle

To turn off the Rear Parking

Non-operational conditions of

Detecting range may decrease when:

Assist System (if equipped)

Parking Assist System

•

Outside air temperature is extreme-

The Rear Parking Assist System

ly hot or cold.

may not operate normally when:

•

Undetectable objects smaller than

• Moisture is frozen to the sensor.

1 m (40 inches) and narrower than

14 cm (6 inches) in diameter.

• Sensor is covered with foreign mat-

ter, such as snow or water, or the

sensor cover is blocked.

There is a possibility of the Rear

Parking Assist System malfunction

when:

• Driving on uneven road surfaces

such as unpaved roads, gravel,

OPDE046429

bumps, or gradient.

Push the button to turn off the Rear

• Objects generating excessive noise

Parking Assist System. The indicator

such as vehicle horns, loud motor-

light on the button will turn on.

cycle engines, or truck air brakes

can interfere with the sensor.

• Heavy rain or water spray is present.

• Wireless transmitters or mobile

phones are present near the sensor.

• The sensor is covered with snow.

• Any non-factory equipment or acces-

sories have been installed, or if the

vehicle bumper height or sensor

installation has been modified.

3-104

The following objects may not be

Rear parking assist system pre-

•

Do not spray the sensors or its sur-

recognized by the sensor:

cautions

rounding area directly with a high

pressure washer. Shock applied

• Sharp or slim objects such as

•

The rear parking assist system may

from high pressure water may cause

ropes, chains or small poles.

not sound consistently depending on

the device to not operate normally.

• Objects, which tend to absorb sen-

the speed and shapes of the objects

sor frequency such as clothes,

detected.

spongy material or snow.

•

The rear parking assist system may

malfunction if the vehicle bumper

3

height or sensor installation has

WARNING

been modified or damaged. Any

non-factory installed equipment or

Your new vehicle warranty does

accessories may also interfere with

not cover any accidents or dam-

the sensor performance.

age to the vehicle or injuries to

its occupants related to a Rear

•

The sensor may not recognize

Parking Assist System. Always

objects less than 30 cm (11 in.) from

drive safely and cautiously.

the sensor, or it may sense an incor-

rect distance. Use caution.

•

When the sensor is frozen or stained

with snow, dirt, or water, the sensor

may be inoperative until the stains

are removed using a soft cloth.

•

Do not push, scratch or strike the

sensor with any hard objects that

could damage the surface of the

sensor. Sensor damage could occur.

3-105

Convenient features of your vehicle

Parking assist system

This system is a supplemental sys-

Operation of the Parking Assist

(if equipped)

tem that senses objects within the

System

range and location of the sensors, it

■ Front sensor

cannot detect objects in other areas

where sensors are not installed.

WARNING

•

ALWAYS look around your vehi-

cle to make sure there are not

any objects or obstacles before

moving the vehicle in any direc-

Sensors

tion to prevent a collision.

OPDE046401

■ Rear sensor

•

Always pay close attention

OPDE046403

when the vehicle is driven close

to objects, particularly pedestri-

Operating condition

ans, and especially children.

• This system will activate when the

Parking Assist System button is

•

Be aware that some objects

may not be visible on the

pressed with the engine running.

screen or be detected by the

sensors, due to the objects

distance, size or material, all of

which can limit the effective-

Sensor

OPD046400

ness of the sensor.

The Parking Assist System assists

the driver during movement of the

vehicle by chiming if any object is

sensed within the distance of 100 cm

(39 inches) in front and 120 cm (47

inches) behind the vehicle.

3-106

•

The Parking Assist System button

Types of warning sound and indicator

cm (in)

turns on automatically and acti-

vates the Parking Assist System

Warning indicator

Distance

when you move the shift lever to

When driving

When driving

Warning sound

from object

the R (Reverse) position. However,

forward

rearward

if vehicle speed exceeds 10 km/h

61 ~ 100

Buzzer beeps

(6 mph), the system will not warn

Front

-

(24 ~39)

intermittently

you even though objects are

3

detected, and if vehicle speed

61 ~ 120

Buzzer beeps

Rear

-

exceeds 20 km/h (12 mph), the

(24 ~47)

intermittently

system will turn off automatically.

Buzzer beeps

To turn on the system, press the

Front

31 ~ 60

frequently

Parking Assist System button.

(12 ~24)

Buzzer beeps

•

When more than two objects are

Rear

-

frequently

sensed at the same time, the clos-

est one will be recognized first.

Buzzer sounds

Front

30

continuously

(12)

Buzzer sounds

Rear

-

continuously

NOTICE

• The indicator may differ from the illustration as objects or sensors

status. If the indicator blinks, we recommend that the system be

checked by an authorized HYUNDAI dealer.

• If the audible warning does not sound or if the buzzer sounds inter-

mittently when shifting into R (Reverse) position, this may indicate a

malfunction with the Parking Assist System. If this occurs, we rec-

ommend that you have your vehicle checked by an authorized

HYUNDAI dealer as soon as possible.

3-107

DEFROSTER

NOTICE

Rear window defroster

• To activate the rear window defroster,

press the rear window defroster but-

■ Manual climate control system

To prevent damage to the conduc-

ton located in the center facia switch

tors bonded to the inside surface

panel. The indicator on the rear win-

of the rear window, never use

dow defroster button illuminates

sharp instruments or window

when the defroster is ON.

cleaners containing abrasives to

• To turn off the defroster, press the

clean the window.

rear window defroster button again.

3

i

Information

i

Information

If you want to defrost and defog the

• If there is heavy accumulation of

front windshield, refer to “Windshield

OPDE046318

snow on the rear window, brush it off

■ Automatic climate control system

Defrosting and Defogging” in this

before operating the rear defroster.

chapter.

• The rear window defroster automati-

cally turns off after approximately 20

minutes or when the ignition switch is

in the OFF position.

OPDE046319

The defroster heats the window to

remove frost, fog and thin ice from

the interior and exterior of the rear

window, while engine is running.

3-109

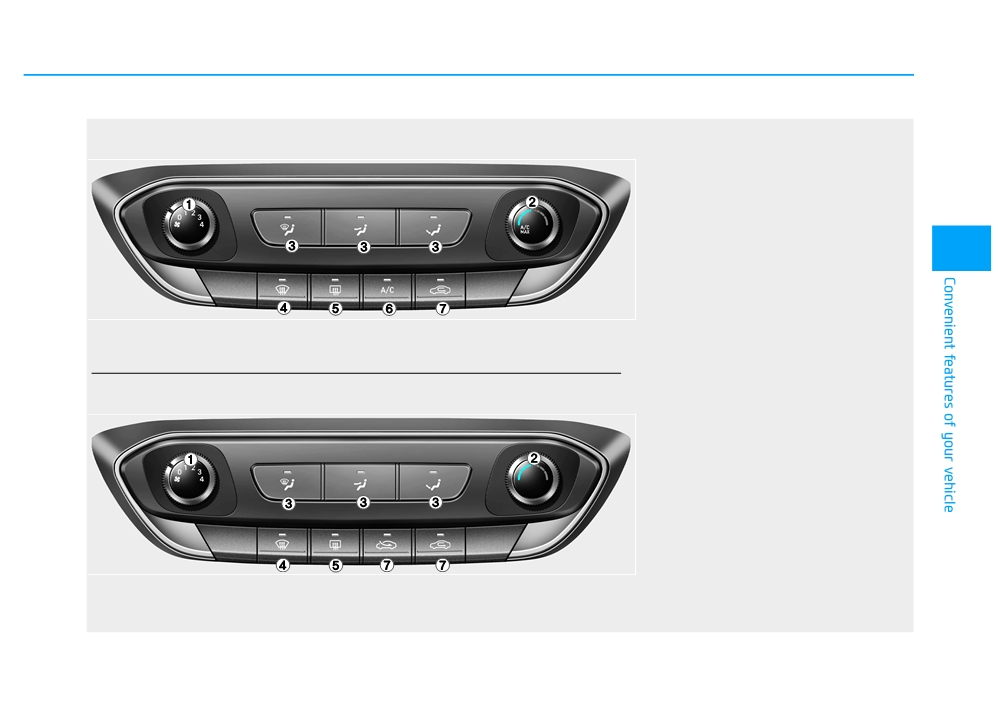

MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)

■ Type A

3

1. Fan speed control knob

2. Temperature control knob

3. Mode selection buttons

4. Front windshield defroster button

5. Rear window defroster button

■ Type B

6. A/C (Air conditioning) button*

7. Air intake control button

* : if equipped

OPDE046301/OPDE046300

3-111

Convenient features of your vehicle

Heating and air conditioning

Mode selection

1. Start the engine.

2. Set the mode to the desired posi-

tion.

To improve the effectiveness of

heating and cooling :

- Heating:

- Cooling:

3. Set the temperature control to the

desired position.

4. Set the air intake control to the

outside (fresh) air position.

5. Set the fan speed control to the

desired speed.

6. If air conditioning is desired, turn

the air conditioning system on.

(if equipped)

(if equipped)

OPDE046307/OPDE046306

The mode selection button controls the direction of the air flow through the

ventilation system.

Air can be directed to the floor, dashboard outlets, or windshield.

3-112

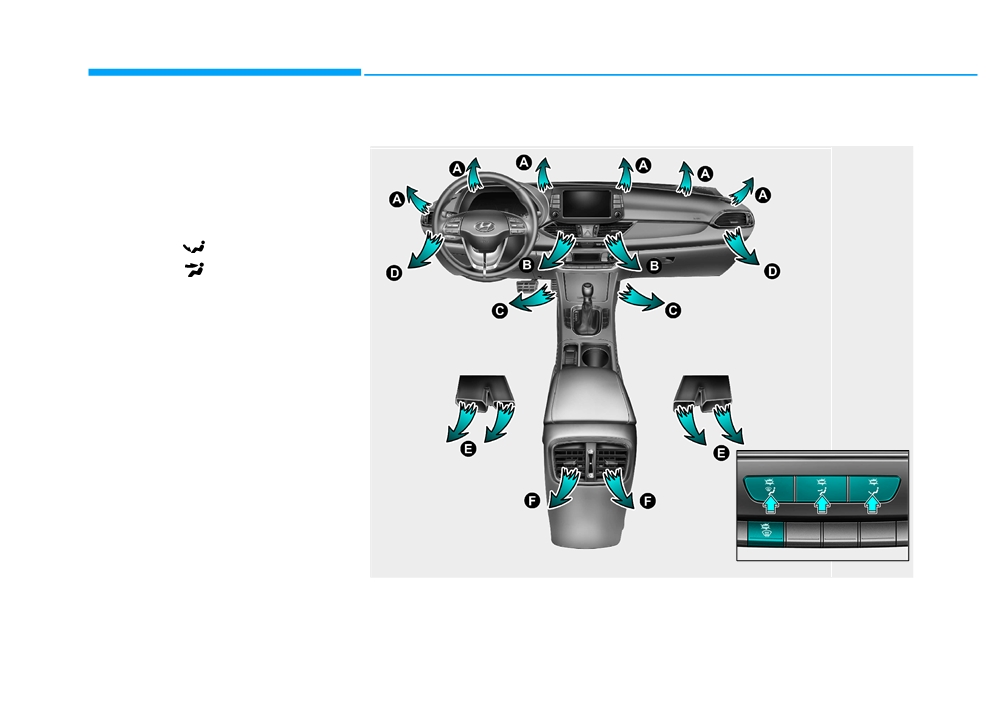

■ Front

Defrost-Level (A, D)

Most of the air flow is directed to the

windshield.

Face-Level (B, D, F)

3

Air flow is directed toward the upper

OPD046309

body and face. Additionally, each

■ Rear (if equpipped)

OPD046308

outlet can be controlled to direct the

MAX A/C-Level (B, D, F)

air discharged from the outlet.

(if equipped)

To operate the MAX A/C, turn the

Floor-Level (A, C, D, E, F)

mode selection knob to extreme left.

Air flow is directed toward the upper

body and face.

Most of the air flow is directed to the

floor.

In this mode, the air conditioning and

the recirculated air position will be

Also you may select 2~3 modes at

OPD046310

selected automatically.

the same time.

Instrument panel vents

- face (

) + floor (

) mode

The outlet vents can be opened (

)

or closed (

) separately using the

- face (

) + defrost (

) mode

thumbwheel.

- floor (

) + defrost (

) mode

Also, you can adjust the direction of

- face (

) + floor (

) +

air delivery from these vents using

defrost (

) mode

the vent control lever as shown.

3-113

Convenient features of your vehicle

Temperature control

Air intake control

Recirculated air position

■ Type A

■ Type B

■ Type A

With the recirculated air

position selected, air from

the passenger compart-

ment will be drawn

through the heating sys-

tem and heated or cooled

according to the function

selected.

Outside (fresh) air position

OPDE046312

■ Type A

With the outside (fresh)

■ Type B

OPD046351

air position selected, air

enters the vehicle from

The temperature will increase by turn-

ing the knob to the right. The tempera-

outside and is heated or

cooled according to the

ture will decrease by turning the knob

■ Type B

to the left.

function selected.

OPDE046313

This is used to select outside (fresh)

air position or recirculated air position.

To change the air intake control posi-

tion, press the control button.

3-114

Fan speed control

i

Information

WARNING

Prolonged use of the air conditioning

with the recirculated air position

•

Continuous operation of the

selected will result in excessively dry

climate control system in the

air in the passenger compartment.

recirculated air position may

allow humidity to increase

inside the vehicle which may

3

fog the glass and obscure vis-

ibility.

•

Do not sleep in a vehicle with

air conditioning or heating

system on. It may cause seri-

ous harm or death due to a

OPD046311

drop in the oxygen level

Turn the knob to the right to increase

and/or body temperature.

the fan speed and airflow. Turn the

•

Continuous operation of the

knob to the left to decrease fan

climate control system in the

speed and airflow.

recirculated air position can

Setting the fan speed control knob to

cause drowsiness or sleepi-

the “0” position turns off the fan.

ness, and loss of vehicle con-

trol. Set the air intake control

NOTICE

to the outside (fresh) air posi-

tion as much as possible

Operating the fan speed when the

while driving.

ignition switch is in the ON posi-

tion could cause the battery to

discharge. Operate the fan speed

when the engine is running.

3-115

Content   ..  9  10  11  12   ..
