Hyundai i30 N (2018 year). Instruction

Convenient features of your vehicle

LCD display modes

Modes

Symbol

Explanation

This mode displays driving information such as the tripmeter, fuel economy, etc.

Trip Computer

For more details, refer to "Trip Computer" in this chapter.

Turn By Turn (TBT)

This mode displays the state of the navigation.

This mode displays the state of :

- Oil Temperature, Torque, Turbo Boost

- Lap Timer

- G-Force

- Lane Keeping Assist System (LKAS)

Assist

- Lane Departure Warning System (LDWS)

- Driver Attention Alert (DAA)

- Tire Pressure

For more details, refer to "Lane Departure Warning System

(LDWS)",

"Lane Keeping Assist System (LKAS)", "Driver Attention Alert (DAA)" in chap-

ter 5 and "Tire Pressure Monitoring System (TPMS)" in chapter 6.

User Settings

In this mode, you can change settings of the doors, lamps, etc.

This mode displays warning messages related to the Autonomous Emergency

Warning

Braking system, etc.

The information provided may differ depending on which functions are applicable to your vehicle.

3-68

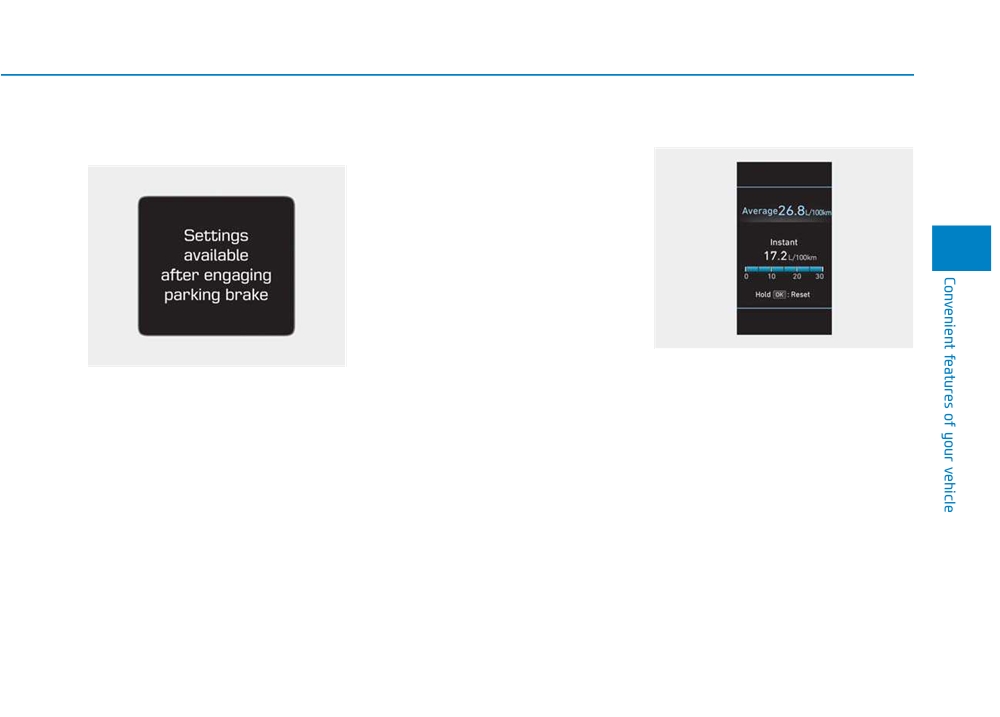

Settings available after engag-

Quick guide (Help, if equipped)

Trip computer mode

ing parking brake

This mode provides quick guides for

the systems in the User Settings

mode.

Select an item, press and hold the

OK button.

For more details about each sys-

tem, refer to this Owner’s Manual.

OPDE046132

OPD047150L

The trip computer mode displays

This warning message illuminates if

information related to vehicle driving

you try to select an item from the

parameters including fuel economy,

User Settings mode while driving.

tripmeter information and vehicle

speed.

For your safety, change the User

Settings after engaging the parking

For more details, refer to "Trip

brake.

Computer" in this chapter.

3-69

Convenient features of your vehicle

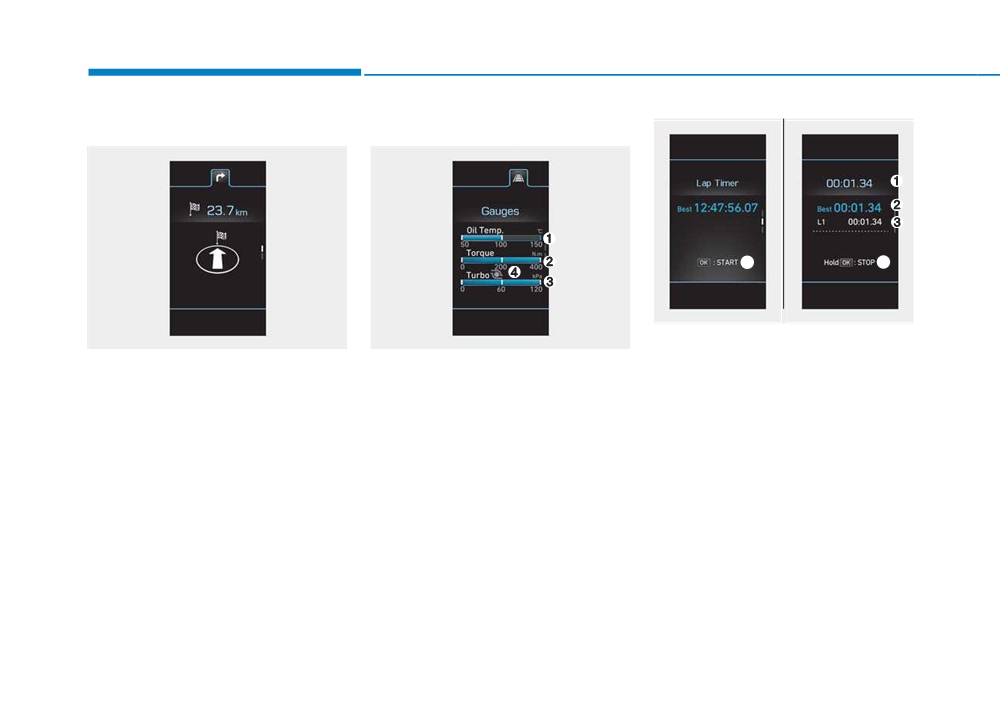

Turn By Turn (TBT) mode

Assist mode

OPDEN047195/OPDEN047196

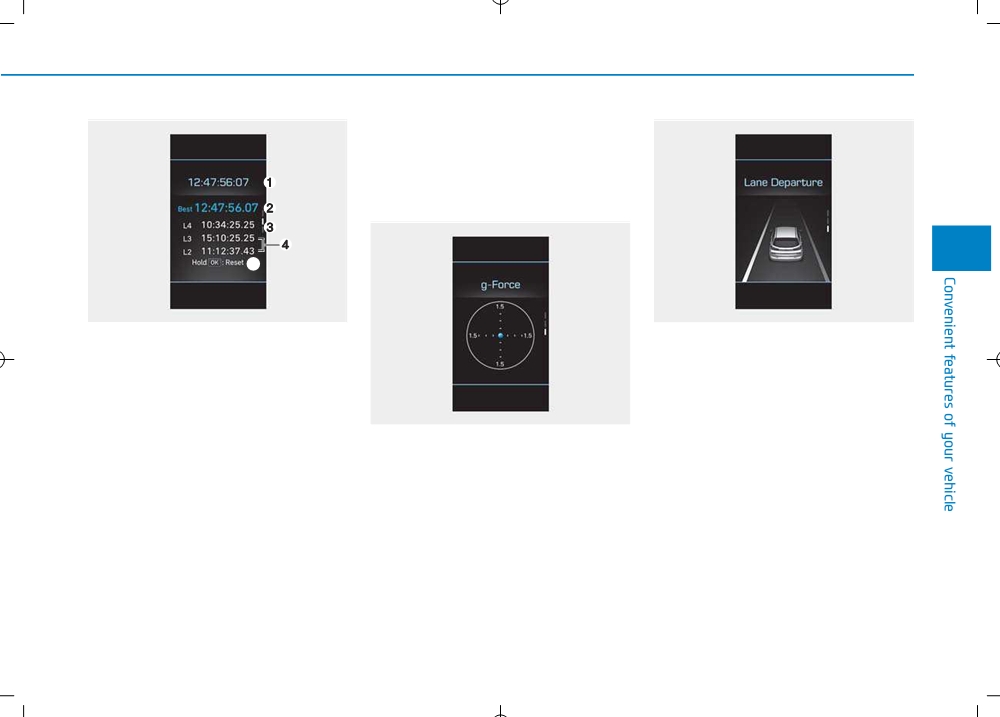

Lap timer

OPDEN047192

OPDEN047173L

(1) Total time

This mode displays the state of the

Gauges

navigation.

(2) Best lap

This mode displays information relat-

ed to your engine such as engine oil

(3) Current lap

temperature (1), current torque (2)

and boost pressure (3) along with an

To start (a):

overboost indicator (4).

Press the OK button shortly on the

steering wheel. The lap timer will

start counting the current lap (3).

To stop (b):

Press and hold the OK button for

more than 1 second on the steering

wheel while the lap timer is counting

the current lap (3).

3-70

The saved laps can be reset when

the current lap is reset.

To start a new lap press the OKAY

button when the current lap is reset.

OPDEN047174L

OPDEN047194

To reset (c):

LKAS/LDWS/DAA

Press and hold the OK button for

This mode displays the state of the

more than 1 second on the steering

Cruise Control, Lane Departure

wheel when the lap timer has

Warning System

(LDWS)/Lane

stopped counting the current lap (3).

Keeping Assist System (LKAS) and

OPDEN047175L

Driver Attention Alert (DAA).

If the OK button is pressed shortly,

G-Force

the lap timer will continue counting

For more details, refer to each

from the time it has been stopped.

This mode displays the force deliv-

system information in chapter 5.

ered to the vehicle laterally while the

vehicle is in motion.

To save laps:

Press the OK button shortly on the

steering wheel while the lap timer is

counting the current lap (3).

The timer can save L1~ L100 (4).

The best lap (2) will be displayed

automatically.

3-71

Convenient features of your vehicle

Warning message mode

User settings mode

In this mode, you can change the

settings of the instrument cluster,

doors, lamps, etc.

1. Driving Assist

2. Door

3. Lights

4. Sound

5. Convenience

6. Service Interval

OPDEN047193

7. Other Features

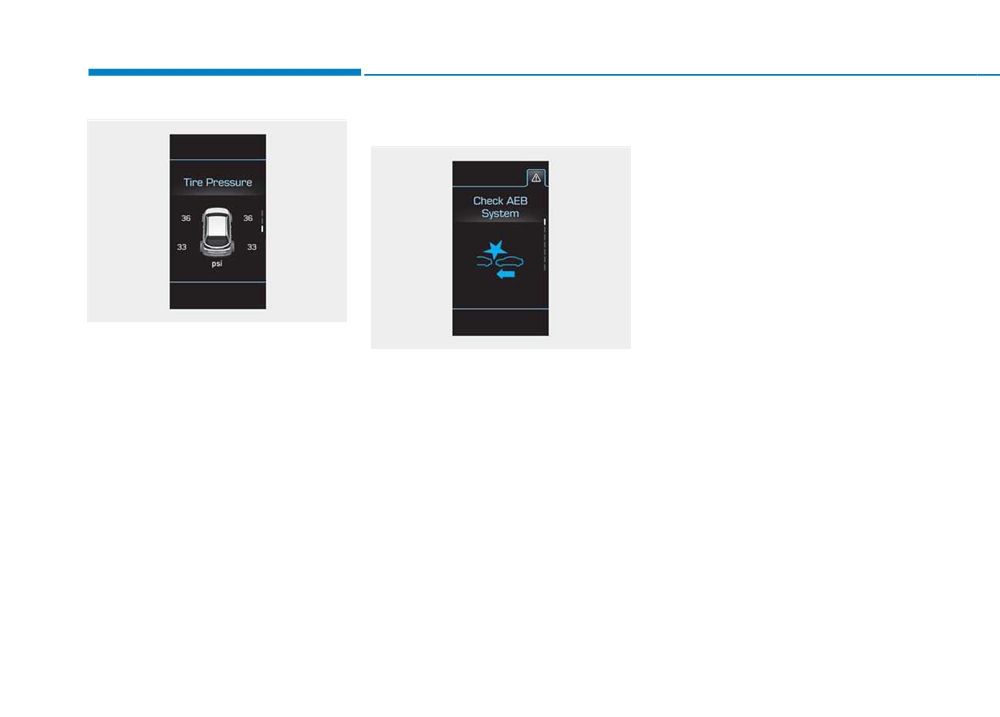

Tire Pressure

OPDEN047191

8. Reset

This mode displays information relat-

If one of followings occurs, warning

ed to Tire Pressure.

The information provided may dif-

messages will be displayed on the

fer depending on which functions

For more details, refer to "Tire

LCD display for several seconds.

are applicable to your vehicle.

Pressure Monitoring System

- LED head lamp malfunction

(TPMS)“ in chapter 6.

- Smart high beam malfunction

1. Driving Assist

(if equipped)

• Lane Keeping Assist System

- Autonomous Emergency Braking

(AEB) malfunction (if equipped)

- Lane Departure Warning/Standard

LKA/Active LKA

- Speed Limit Information Function

(SLIF) malfunction (if equipped)

To adjust the sensitivity of the Lane

Keeping Assist System.

For more details, refer to the

"Lane Keeping Assist System" in

chapter 5.

3-72

• Driver Attention Alert

• Speed Limit Information Function

- On Key Out: All doors will be auto-

matically unlocked when the igni-

- Off/Normal/Early

To activate or deactivate the Speed

tion key is removed from the igni-

Limit Information Function.

To adjust the sensitivity of the Driver

tion switch. (if equipped with remote

Attention Alert (DAA).

For more details, refer to "Speed

key)

Limit Information Function" in

For more details, refer to the

- Driver Door Unlock: All doors will be

chapter 5.

"Driver Attention Alert (DAA)" in

automatically unlocked when the

chapter 5.

driver’s door is opened.

2. Door

• Autonomous Emergency Braking

• Horn Feedback

• Automatic Lock

To activate or deactivate the

To activate or deactivate the horn

- Disable: The auto door lock opera-

Autonomous Emergency Braking

feedback.

tion will be canceled.

(AEB).

If the horn feedback is activated,

- Enable on Speed: All doors will be

after locking the door by pressing the

For more details, refer to

automatically locked when the vehi-

lock button on the remote key, and

"Autonomous Emergency Braking

cle speed exceeds

15km/h

pressing it again within 4 seconds,

(AEB)" in chapter 5.

(9.3mph).

the horn feedback sound will operate

once to indicate that all doors are

• Automatic Unlock

• Forward Collision Warning

locked. (if equipped with remote key)

- Disable: The auto door unlock oper-

- Late/Normal/Early

ation will be canceled.

To adjust the initial warning alert

- Vehicle Off: All doors will be auto-

time for Autonomous Emergency

matically unlocked when the

Braking system.

Engine Star/Stop button is set to

For more details, refer to

the OFF position. (if equipped with

"Autonomous Emergency Braking

smart key)

(AEB)" in chapter 5.

3-73

Convenient features of your vehicle

3. Lights

4. Sound

• Wireless Charging System

• One Touch Turn Signal

• Park Assist System Volume

To activate or deactivate the wireless

charging system in the front seat.

- Off: The one touch turn signal func-

- Softer/Louder

tion will be deactivated.

To adjust the Park Assist System

For more details, refer to "Wireless

Charging System" in this chapter.

- 3, 5, 7 Flashes: The turn signal indi-

volume.

cator will blink 3, 5, or 7 times when

the turn signal lever is moved slightly.

• Wiper/Lights Display

• Welcome Sound

For more details, refer to "Lighting"

To activate or deactivate the Wiper/

To activate or deactivate the wel-

in this chapter.

Light mode.

come sound.

When activated, the LCD display

shows the selected Wiper/Light

• Head Lamp Delay

5. Convenience

mode whenever you changed the

To activate or deactivate the head-

• Seat Easy Access

mode.

lamp delay function.

- Off: The seat easy access function

For more details, refer to "Lighting"

is deactivated.

• Auto Rear Wiper (reverse)

in this chapter

- Normal/Extended: When you turn

To activate or deactivate the rear

off the engine, the driver's seat will

wiper while the vehicle is in reverse

• Welcome Light

automatically move rearward short

with the front wiper ON.

To activate or deactivate the wel-

(Normal) or long (Extended) for you

come light function.

to enter or exit the vehicle more

For more details, refer to "Lighting"

comfortably.

• Shift recommendation light

in this chapter.

For more details, refer to "Driver

- ECO/NORMAL/SPORT/N/

Position Memory System" in this

CUSTOM

chapter.

To select in which mode the shift

lights are displayed.

3-74

6. Service Interval

• Fuel economy unit

i Information

To select the fuel economy unit.

• Service Interval

If any of the following conditions

(km/L, L/100, MPG)

To activate or deactivate the service

occur, the mileage and number of days

interval function.

to service may be incorrect.

• Temperature unit

- The battery cable is disconnected.

To select the temperature unit.

• Adjust Interval

(°C,°F)

- The fuse switch is turned off.

If the service interval menu is acti-

- The battery is discharged.

vated, you may adjust the time and

• Turbo boost pressure unit

distance.

To select the turbo boost pressure

7. Other Features

unit. (psi/kPa/bar)

• Fuel Economy Auto Reset

Information

- Off: The average fuel economy will

To use the service interval menu, con-

• Torque unit

not reset automatically whenever

sult an authorized HYUNDAI dealer.

To select the torques unit. (Nm/lb·ft)

refueling.

If the service interval is activated and

- After Ignition: When the engine has

the time and distance is adjusted,

• Tire pressure unit

been OFF for 4 hours or longer the

messages are displayed in the fol-

average fuel economy will reset

To select the tire pressure unit.

lowing situations each time the vehi-

(psi, kPa, bar)

automatically.

cle is turned on.

- After Refueling: The average fuel

- Service in

8. Reset

economy will reset automatically

: Displayed to inform the driver the

after adding 6 liters (1.6 gallons) of

You can reset the menus in the User

remaining mileage and days to

fuel or more and after driving speed

Settings Mode. All menus in the User

service.

exceeds 1 km/h (1 mph).

Settings Mode are reset to factory

settings, except language and serv-

- Service required

For more details, refer to "Trip

ice interval.

Computer" in this chapter.

: Displayed when the mileage and

days to service has been reached

or passed.

3-75

Convenient features of your vehicle

TRIP COMPUTER

The trip computer is a microcomput-

Trip modes

er-controlled driver information sys-

tem that displays information related

Fuel Economy

to driving.

• Average Fuel Economy

• Instant Fuel Economy

Information

Some driving information stored in the

trip computer (for example Average

Accumulated Info

Vehicle Speed) resets if the battery is

• Tripmeter

disconnected.

• Average Fuel Economy

OPDEN047404

• Elapsed Time

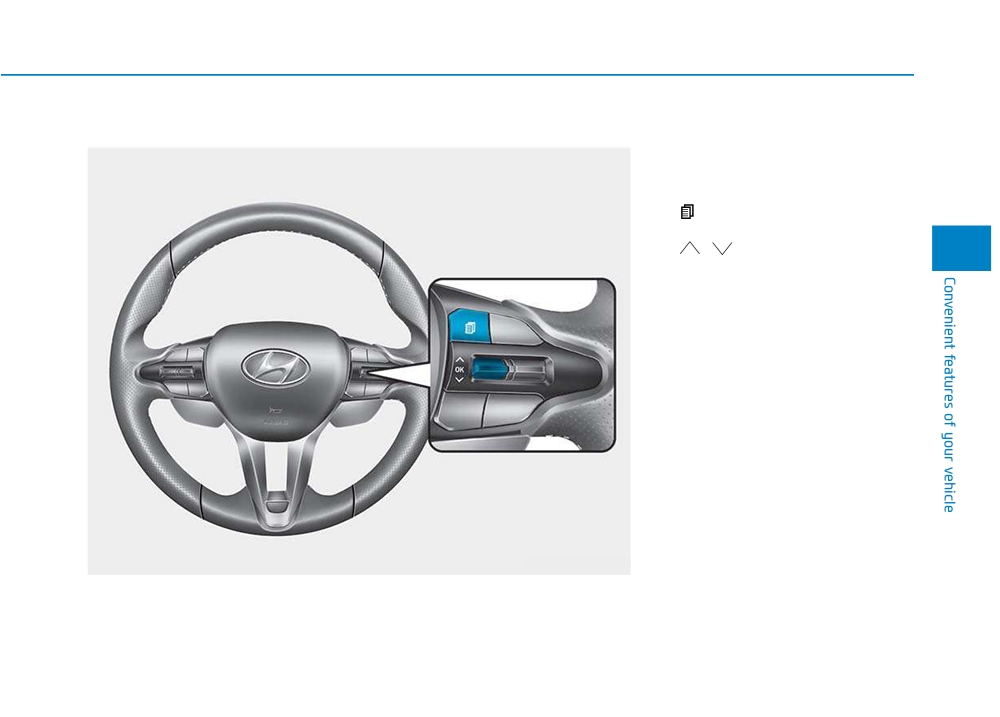

To change the trip mode, toggle the

“

” switch on the steering wheel.

Drive Info

• Tripmeter

• Average Fuel Economy

• Elapsed Time

Digital Speedometer

3-76

Fuel economy

Automatic reset

Accumulated Info display

To automatically reset the average

fuel economy after refueling, select

the "Auto Reset" mode in the User

Settings menu on the LCD display.

- After Ignition: The average fuel

economy will reset automatically

whenever it has passed 4 hours

after turning OFF the engine.

- After Refueling: The average fuel

economy will reset automatically

when driving speed exceeds

OPDE046132

km/h, after adding 6 liters (1.6 gal-

OPDE046134

lons) of fuel or more.

This display shows the accumulated

Average Fuel Economy (1)

trip distance

(1), the average fuel

• The average fuel economy is calcu-

Information

economy (2), and the total driving

lated by the total driving distance

time (3).

The average fuel economy may be

and fuel consumption since the last

inaccurate, when the vehicle drives

The information is accumulated

average fuel economy reset.

shorter than 300 meters (0.19 miles)

starting from the last reset.

• The average fuel economy can be

after turning ON the Engine Start/Stop

To manually reset the information,

reset both manually and automati-

button.

press and hold the OK button when

cally.

viewing the Accumulated driving info.

The trip distance, the average fuel

Instant Fuel Economy (2)

Manual reset

economy, and total driving time will

• This mode displays the instant fuel

To clear the average fuel economy

reset simultaneously.

economy during the last few sec-

manually, press the [OK] button on

onds when the vehicle speed is

the steering wheel for more than 1

more than 10 km/h (6.2 MPH).

second when the average fuel econo-

my is displayed.

3-77

Convenient features of your vehicle

The accumulated driving information

Digital Speedometer

will continue to be counted while the

engine is still running (for example,

when the vehicle is in traffic or

stopped at a stop light).

Information

The vehicle must be driven for a min-

imum of 300 meters (0.19 miles) since

the last ignition key cycle before the

average fuel economy will be recalcu-

lated.

OPDE046146

This message shows the speed of

the vehicle (km/h, MPH).

3-78

LIGHTING

Exterior lights

NOTICE

Lighting control

•

Do not cover or spill anything on

the sensor (1) located on the

instrument panel.

•

Do not clean the sensor using a

window cleaner, the cleanser

may leave a light film which

could interfere with sensor oper-

ation.

•

If your vehicle has window tint

OPDE046036

or other types of metallic coat-

ing on the front windshield, the

AUTO light position (if equipped)

AUTO light system may not work

OPDE046065

When the light switch is in the AUTO

properly.

position, the position lamp and head-

To operate the lights, turn the knob at

lamp will be turned ON or OFF auto-

the end of the control lever to one of

matically depending on the amount

the following positions:

of light outside the vehicle.

(1) O position

(2) AUTO light position (if equipped)

Even with the AUTO light feature in

(3) Position lamp position

operation, it is recommended to

(4) Headlamp position

manually turn ON the lamps when

driving at night or in a fog, or when

you enter dark areas, such as tun-

nels and parking facilities.

3-79

Convenient features of your vehicle

High beam operation

OAE046469L

OAE046467L

Position lamp position (

)

Headlamp position (

)

OAE046453L

The position lamp, license plate lamp

The headlamp, position lamp, license

To turn on the high beam headlamp,

and instrument panel lamp are turned

plate lamp and instrument panel lamp

push the lever away from you. The

ON.

are turned ON.

lever will return to its original position.

The high beam indicator will light

Information

when the headlamp high beams are

The ignition switch must be in the ON

switched on.

position to turn on the headlamp.

To turn off the high beam headlamp,

pull the lever towards you. The low

beams will turn on.

WARNING

Do not use high beam when there

are other vehicles approaching

you. Using high beam could

obstruct the other driver's vision.

3-80

Smart high beam (if equipped)

Operating condition

1.Place the light switch in the AUTO

position.

2.Turn on the high beam by pushing

the lever away from you.

The smart high beam (

) indica-

tor will illuminate.

3.The Smart High Beam will turn on

when vehicle speed is above

45km/h (25mph).

• If the light switch is pushed away

OAE046455L

when the Smart High Beam is

To flash the high beam headlamp,

operating, the Smart High Beam

OPDE046057

pull the lever towards you, then

will turn off and the high beam will

release the lever. The high beams

The Smart High Beam is a system

be on continuously.

that automatically adjusts the head-

will remain ON as long as you hold

• If the light switch is pulled towards

lamp range (switches between high

the lever towards you.

you when the high beam is off, the

beam and low beam) according to

high beam will turn on without the

the brightness of other vehicles and

Smart High Beam canceled.

road conditions.

When you let go of the light switch,

the lever will move to the middle

and the high beam will turn off.

• If the light switch is pulled towards

you when the high beam is on by

the Smart High Beam, the low

beam will be on and the Smart

High Beam will turn off.

• If the light switch is placed to the

headlamp position, the Smart

High Beam will turn off and the

low beam will be on continuously.

3-81

Convenient features of your vehicle

When the Smart High Beam is oper-

Warning light and message

CAUTION

ating, the high beam switches to low

beam in the below conditions.

The system may not operate

When the headlamp of an on-com-

normally in the below condi-

ing vehicle is detected.

tions.

When the tail lamp of a vehicle in

•

When the light from the on-

front is detected.

coming or front vehicle is not

When headlamp/tail lamp of bicy-

detected because of lamp

cle/motorcycle is detected.

damage, hidden from sight,

When the surrounding is bright

etc.

enough high beams are not needed.

•

When the lamp of the on-com-

When streetlights or other lights

ing or front vehicle is covered

ODM046655L

are detected.

with dust, snow or water.

When the Smart High Beam Assist

When the light switch is not in the

•

When the light from the on-

AUTO position.

System is not working properly, the

coming or front vehicle is not

warning message will come on for a

detected because of exhaust

When the Smart High Beam is off.

few second. After the message disap-

fumes, smoke, fog, snow, etc.

When vehicle speed is below 24 km/h

pears, the master warning light (

)

•

When the front window is cov-

(15 mph).

will illuminate.

ered with foreign matter such

We recommend that you take your

as ice, dust, fog, or is dam-

vehicle to an authorized HYUNDAI

aged.

dealer and have the system checked.

(Continued)

3-82

(Continued)

WARNING

•

When there is a similar

• When the front vehicle’s head-

shaped lamp with the front

lamps are off but the fog

•

Do not place any accessories,

vehicle’s lamps.

lamps on.

stickers or tint the windshield.

•

When it is hard to see

• When a vehicle suddenly

•

Have the windshield glass

because of fog, heavy rain or

appears from a around a cor-

replaced by an authorised

snow.

ner.

dealer.

•

When the headlamp is not

• When the vehicle is tilted from

•

Do not remove or impact relat-

repaired or replaced at an

a flat tyre or being towed.

ed parts of the Smart High

authorized dealer.

Beam system.

• When the LDWS (Lane Departure

•

When headlamp aiming is not

Warning System) or LKAS (Lane

•

Be careful that water doesn’t

properly adjusted.

Keeping Assist System) warning

get into the Smart High Beam

light illuminates. (if equipped)

unit.

•

When driving on a narrow

winding road or rough road.

•

Do not place objects on the

instrument panel that reflect

•

When driving downhill or

Information

light such as mirrors, white

uphill.

When you replace or reinstall the

paper, etc. The system may

•

When only part of the vehicle

windshield glass or LDWS/LKAS

malfunction if sunlight is

in front is visible on a cross-

camera (if equipped), We recommend

reflected.

road or on a corner.

that you take your vehicle to an

•

At times, the Smart High

•

When there is a traffic light,

authorized HYUNDAI dealer and

Beam system may not work

reflecting sign, flashing sign

have the system checked.

properly, always check the

or mirror.

road conditions for your safe-

•

When the road conditions are

ty. When the system does not

bad such as being wet or cov-

operate normally, manually

ered with snow.

change between the high

(Continued)

beam and low beam.

3-83

Hyundai i30 N (2018 year). Instruction - part 9
