Antenna
NOTICE
NOTICE
Roof antenna
•
Before entering a place with a
Installation of aftermarket antenna
low height clearance, be sure
may result in water leakage, wind
that the antenna is removed.
noise, rattling & improper radio
operation. We recommend to use
•
Be sure to remove the antenna
before washing the vehicle in an
the antenna available with an
authorized HYUNDAI dealer.
automatic car wash or it may be
damaged.
•
When reinstalling your antenna,
it is important that it is fully tight-
4
ened and adjusted to the upright
position to ensure proper recep-
tion. But it could be removed
OIB044036
when parking the vehicle.
Your car uses a roof antenna to
receive both AM and FM broadcast
signals. This antenna is a removable
type. To remove the antenna, turn it
counterclockwise. To install the
antenna, turn it clockwise.
4-3
Multimedia System
Steering wheel audio control
NOTICE
RADIO mode
(if equipped)
It will function as the PRESET STA-
Do not operate audio remote con-
TION select buttons.
■ Type A
trol buttons simultaneously.
CDP mode
VOLUME (VOL +/-) (1)
It will function as the TRACK
• Press the up button (+) to increase
UP/DOWN button.
volume.
• Press the down button
(-) to
MODE (3)
decrease volume.
Press the MODE button to select
Radio, CD (Compact Disc) or AUX
SEEK/PRESET (
/
) (2)
(Auxiliary, if equipped).
OIB044037
If the SEEK/PRESET button is
■ Type B
pressed for 0.8 second or more, it
MUTE (4, if equipped)
will work as follows in each mode.
• Press the button to mute the
sound.
RADIO mode
• Press the button to turn off the
It will function as the AUTO SEEK
microphone during a telephone
select button. It will SEEK until you
call.
release the button.
CDP mode
Detailed information for audio control
It will function as the FF/REW button.
buttons is included in the following
pages in this chapter.
OIB044168
If the SEEK/PRESET button is
The steering wheel audio control but-
pressed for less than 0.8 second, it
ton is installed to promote safe driving.
will work as follows in each mode.
4-4
How vehicle audio works
This can be due to factors, such as
AM reception
the distance from the radio station,
FM reception
closeness of other strong radio sta-
tions or the presence of buildings,
bridges or other large obstructions in
the area.
4
JBM002
AM broadcasts can be received at
JBM001
greater distances than FM broad-
AM and FM radio signals are broad-
casts. This is because AM radio
cast from transmitter towers located
waves are transmitted at low fre-
around your city. They are intercept-
quencies. These long distance, low
ed by the radio antenna on your vehi-
frequency radio waves can follow the
cle. This signal is then processed by
curvature of the earth rather than
the radio and sent to your vehicle
travelling straight. In addition, they
speakers.
curve around obstructions resulting
When a strong radio signal has
in better signal coverage.
reached your vehicle, the precise
engineering of your audio system
ensures the best possible quality
reproduction. However, in some
cases the signal coming to your vehi-
cle may not be strong and clear.
4-5
Multimedia System
FM radio station
JBM003
JBM004
JBM005

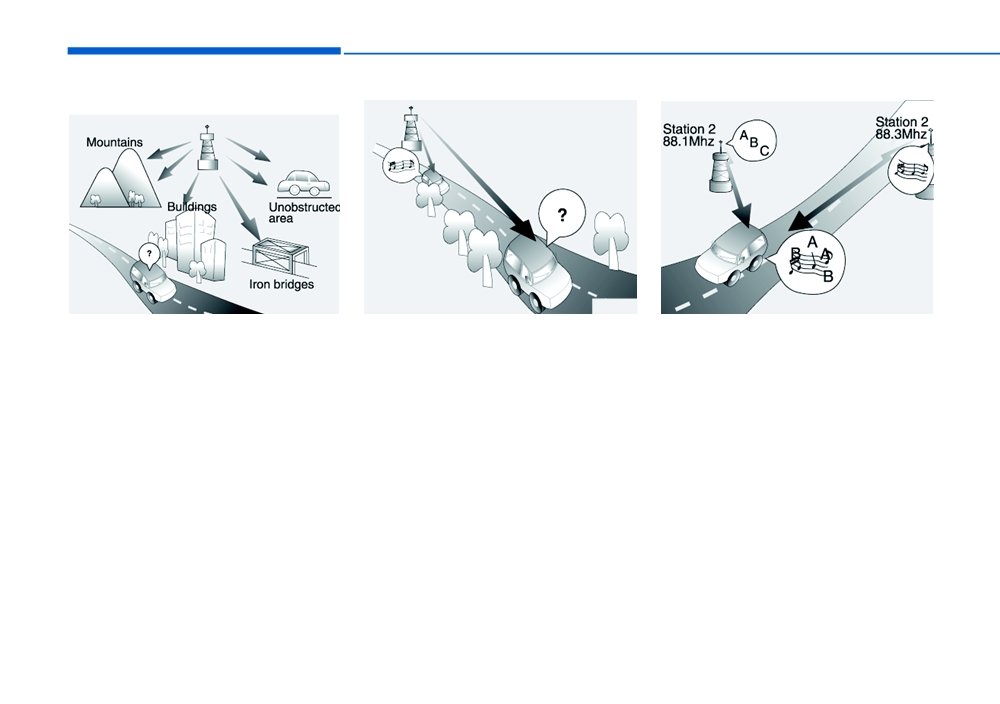

FM broadcasts are transmitted at
•

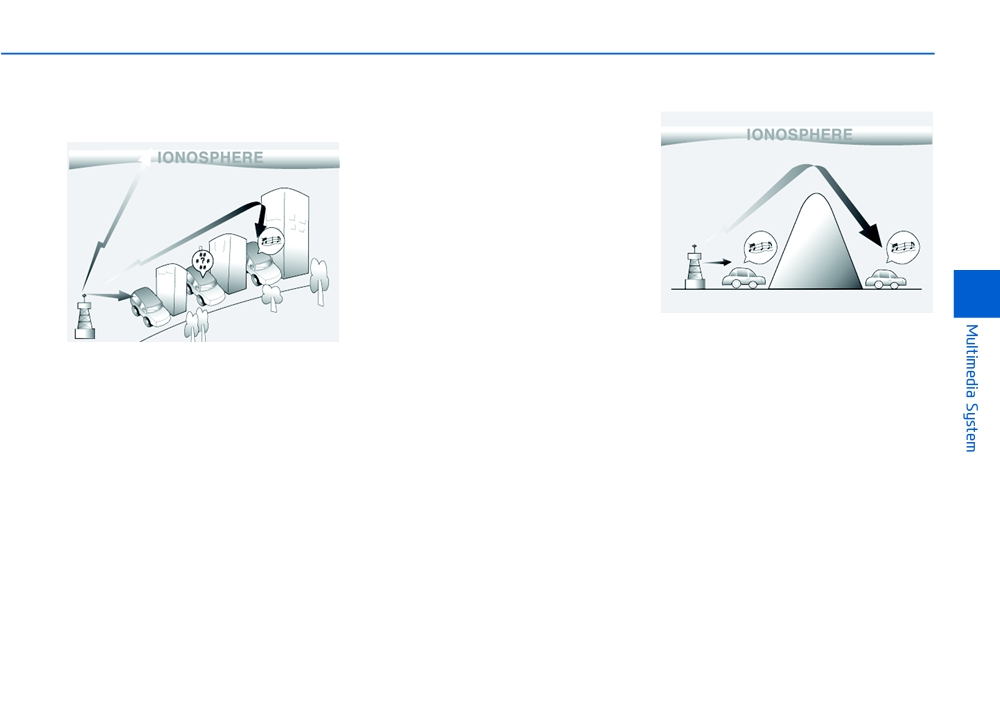

Fading - As your vehicle moves
•
Station Swapping - As an FM signal
high frequencies and do not bend to
away from the radio station, the
weakens, another more powerful
follow the earth's surface. Because
signal will weaken and sound will
signal near the same frequency
of this, FM broadcasts generally
begin to fade. When this occurs,
may begin to play. This is because
begin to fade within short distances
we suggest that you select another
your radio is designed to lock onto
from the station. Also, FM signals are
stronger station.
the clearest signal. If this occurs,
easily affected by buildings, moun-
select another station with a
•
Flutter/Static - Weak FM signals or
tains, and obstructions. This can lead
stronger signal.
large obstructions between the
to undesirable or unpleasant listen-
transmitter and your radio can dis-
•
Multi-Path Cancellation - Radio sig-
ing conditions which might lead you
turb the signal causing static or
nals being received from several
to believe a problem exists with your
fluttering noises to occur. Reducing
directions can cause distortion or
radio. The following conditions are
normal and do not indicate radio
the treble level may lessen this
fluttering. This can be caused by a
trouble:
effect until the disturbance clears.
direct and reflected signal from the
same station, or by signals from two
stations with close frequencies. If
this occurs, select another station
until the condition has passed.
4-6
Caring for disc
• Depending on the type of CD-
MP3 File Information
R/CD-RW CDs, certain CDs may
•
If the temperature inside the car is too
not operate normally according to
high, open the car windows to venti-
• Supported Audio Formats
the manufacturing companies. In
late before using the system.
such circumstances, continued
ISO 9660 Level 1
•
It is illegal to copy and use
use may cause malfunctions to
MP3/WMA files without permission.
your audio system.
File System
ISO 9660 Level 2
Use CDs that are created only by
Romeo / Juliet (128 characters)
lawful means.
i
Information
MPEG1 Audio Layer3
•
Do not apply volatile agents, such
- Playing an Incompatible
MPEG2 Audio Layer3
Audio
as benzene and thinner, normal
Copy Protected Audio CD
MPEG2.5 Audio Layer3
4
cleaners and magnetic sprays
Compression
made for analogue disc onto CDs.
Some copy protected CDs, which do
Windows Media Audio Ver 7.X
not comply with international audio
& 8.X
•
To prevent the disc surface from
CD standards (Red Book), may not
getting damaged, hold CDs by the
play on your car audio. Please note
edges or the center hole only.
❈File formats that do not comply
that inabilities to properly play a copy
•
Clean the disc surface with a piece
with the above formats may not be
protected CD may indicate that the
of soft cloth before playback (wipe
properly recognized or play without
CD is defective, not the CD player.
it from the center to the outside
properly displaying file names or
edge).
other information.
•
Do not damage the disc surface or
attach pieces of sticky tape or
paper.
•
Make certain only CDs are insert-
ed into the CD player (Do not insert
more than one CD at a time).
•
Keep CDs in their cases after use to
protect them from scratches or dirt.
4-7
Multimedia System
• Support for Compressed Files
• For MP3/WMA compression files,
• Language Support
differences in sound quality will
(Unicode Support)
1. Supported Bitrates (Kbps)
occur depending on the bitrate.
1. English: 94 characters
(Higher sound quality can be expe-
MPEG1
MPEG2
MPEG2.5
WMA
rienced with higher bitrates.)
2. Special characters and Symbols :
Layer3
Layer3
Layer3
High Range
986 characters
• This device only recognizes files
32
8
8
48
with MP3/WMA extensions. Other
❈ Languages other than Korean and
40
16
16
64
file extensions may not be properly
English
(including Chinese) are
48
24
24
80
recognized.
not included.
56
32
32
96
3. Text Display (Based on Unicode)
64
40
40
128
3. Maximum number of recognized
- File name: Maximum 64 English
80
48
48
160
folders and files
characters
96
56
56
192
- Folder : 255 folders for CD, 2,000
- Folder name: Max
32 English
112
64
64
folders for USB
characters
128
80
80
- File : 999 files for CD, 6,000 files
❈ Using the scroll feature allows you
160
96
96
for USB
to see the entire name of files with
192
112
112
❈ There are no limitations to the
names that are too long to be dis-
224
128
128
number of recognized folder levels
played at once.
256
144
144
320
160
160
2. Sampling Frequencies (Hz)
MPEG1
MPEG2
MPEG2.5
WMA
44100
22050
11025
32000
48000
24000
12000
44100
3000
16000
8000
48000
4-8
• Compatibility by Disc Type
• Precautions upon Writing CDs
5. Prolonged use of CD-R/CD-RW
discs that do not satisfy related
1. Playing MIXED CDs: First plays
1. In all cases except when creating
standards and/or specifications
the audio CD, then plays the com-
multisession discs, check the
could result in product malfunc-
pressed file(s).
close session option before creat-
tion.
2. Playing EXTRA CDs: First plays
ing the disc. Though product mal-
6. Unauthorized use or duplication of
the audio CD, then plays the com-
functions will not occur, some time
MP3/WMA files is prohibited by
pressed file(s).
may be required for the device to
law.
check whether the session state is
3. Playing multisession CDs: Plays in
closed
(approximately
25 sec-
order of sessions
onds). (Additional time may also
-
MIXED CD : CD type in which
4
be required depending on the
both MP3 and audio CD files are
number of folders or files.)
recognized in one disc.
2. Changing the MP3/WMA file
-
Multisession CD CD type that
extensions or changing files of
includes more than two sessions.
other extensions to MP3/WMA
Different from Extra CDs, multi-
may result in product malfunction.
session CDs are recorded by
sessions and have no media lim-
3. When naming files with
itation.
MP3/WMA file extensions, write
using only Korean and English.
(Languages other than Korean
and English are not supported and
are displayed as blank.)
4. Unauthorized use or duplication of
music files are prohibited by law.
4-9
Multimedia System
Using a cellular phone or a two-
NOTE:
way radio

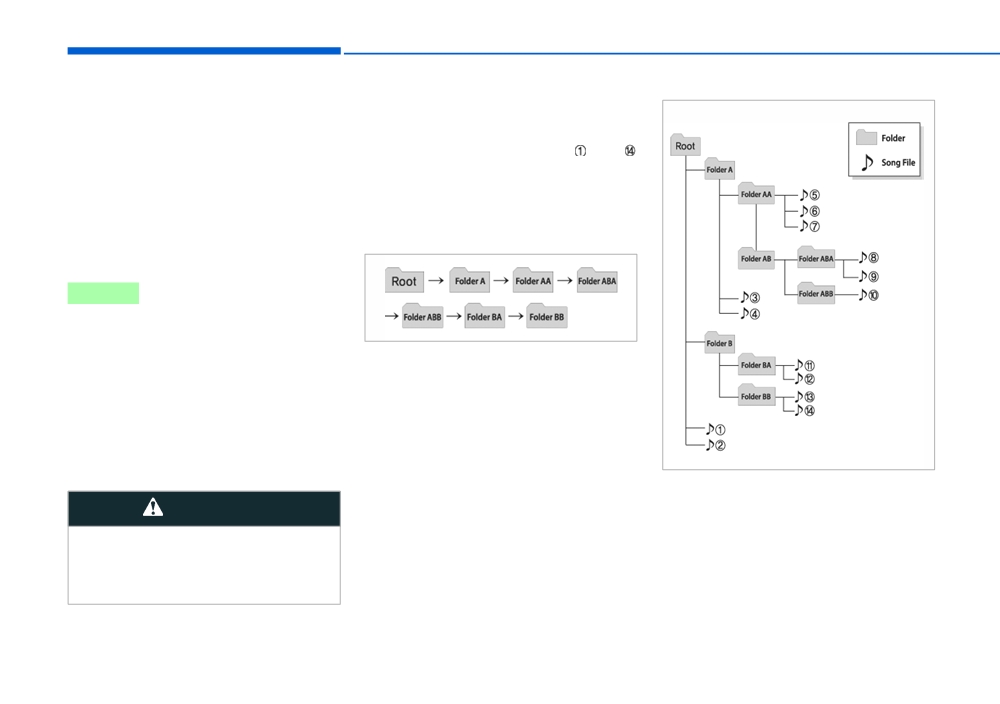

Order of playing files (folders) :
When a cellular phone is used inside
1. Song playing order
:
to
the vehicle, noise may be produced
sequentially.
from the audio system. This does not
2. Folder playing order :
mean that something is wrong with
❋ If no song file is contained in the
the audio equipment. In such a case,
folder, that folder is not displayed.
try to operate mobile devices as far
from the audio equipment as possible.
NOTICE
When using a communication sys-
tem such as a cellular phone or a
radio set inside the vehicle, a sepa-
rate external antenna must be fitted.
When a cellular phone or a radio set
is used with an internal antenna
alone, it may interfere with the vehi-
cle's electrical system and adversely
affect safe operation of the vehicle.
WARNING
Do not use a cellular phone
while driving. Stop at a safe
location to use a cellular phone.
4-10
NOTICE
(Continued)
WARNING
•
Do not place beverages close to
Operating the device while driving
the audio system. Spilling bever-
•
Do not stare at the screen while
could lead to accidents due to a
ages may lead to system mal-
driving. Staring at the screen
lack of attention to external sur-
function.
for prolonged periods of time
roundings. First park the vehicle
could lead to traffic accidents.
•
In case of product malfunction,
before operating the device.
please contact your place of pur-
•
Do not disassemble, assemble,
• Adjust the volume to levels that
chase or After Service center.
or modify the audio system.
allow the driver to hear sounds
Such acts could result in acci-
•
Placing the audio system within
from outside of the vehicle.
dents, fire, or electric shock.
Driving in a state where external
an electromagnetic environment
may result in noise interference.
4
•
Using the phone while driving
sounds cannot be heard may lead
may lead to a lack of attention
to accidents.
•
Prevent caustic solutions such
of traffic conditions and
as perfume and cosmetic oil
• Pay attention to the volume set-
increase the likelihood of acci-
ting when turning the device on.
from contacting the dashboard
dents. Use the phone feature
because they may cause dam-
A sudden output of extreme vol-
after parking the vehicle.
ume upon turning the device on
age or discoloration.
•
Heed caution not to spill water
could lead to hearing impairment.
or introduce foreign objects
(Adjust the volume to a suitable
into the device. Such acts
levels before turning off the
could lead to smoke, fire, or
device.)
product malfunction.
(Continued)
4-11
Multimedia System
(Continued)
(Continued)
i
Information
- Using the discs
•
Clean fingerprints and dust off the
• Do not use abnormally shaped discs
disc surface (coated side) with a soft
(8cm, heart-shaped, octagon-
•
This device has been manufactured
cloth.
shaped) as such discs could lead to
to be compatible with software
malfunctions.
•
The use of CD-R/CD-RW discs
bearing the following logo marks.
attached with labels may result in
• If the disc is straddled on the disc
•
Do not clean discs with chemical
disc slot jams or difficulties in disc
slot without removal for 10 seconds,
solutions, such as record sprays,
removal. Such discs may also result
the disc will automatically be re-
antistatic sprays, antistatic liquids,
in noise while playing.
inserted into the disc player.
benzene, or thinners.
•
Some CD-R/CD-RW discs may not
• Only genuine audio CDs are sup-
•
After using a disc, put the disc back
properly operate depending on the
ported. Other discs may result in
in its original case to prevent disc
disc manufacturer, production
recognition failure (e.g. copy CD-R,
scratches.
method and the record method as
CDs with labels)
•
Hold discs by their edges or within
used by the user. If problems persist,
the center hole to prevent damages
trying using a different CD as con-
to disc surfaces.
tinued use may result in malfunc-
•
Do not introduce foreign substances
tions.
into the disc insert/eject slot.
•
The performance of this product
Introducing foreign substances
may differ depending on the CD-
could damage the device interior.
RW Drive Software.
•
Do not insert two discs simultane-
•
Copy-protected CDs such as S-type
ously.
CDs may not function in the device.
•
When using CD-R/CD-RW discs,
DATA discs cannot be played.
differences in disc reading and play-
(However, such discs may still oper-
ing times may occur depending on
ate but will do so abnormally.)
the disc manufacturer, production
(Continued)
method and the recording method
as used by the user.
(Continued)
4-12
(Continued)
(Continued)
i
Information
- Using the USB device
•
Only products formatted with
•
The amount of time required to rec-
byte/sectors under 64Kbyte will be
ognize the USB device may differ
•
Connect the USB device after turn-
recognized.
depending on the type, size or file
ing on the engine. The USB device
formats stored in the USB. Such dif-
•
This device recognizes USB devices
may become damaged if it is already
ferences in time are not indications
formatted in FAT 12/16/32 file for-
connected when the ignition is
of malfunctions.
mats. This device does not recognize
turned on.The USB device may not
files in NTFS file format.
•
The device only supports USB
operate properly if the car ignition
devices used to play music files.
is turned on or off with the USB
•
Some USB devices may not be sup-
device connected.
ported due to compatibility issues.
•
USB images and videos are not sup-
ported.
4
•
Heed caution to static electricity
•
Avoid contact between the USB con-
when connecting/disconnecting USB
nector with bodily parts or foreign
•
Do not use the USB I/F to charge
devices.
objects.
batteries or USB accessories that
generate heat. Such acts may lead to
•
Encoded MP3 Players will not be
•
Repeated connecting/disconnecting
worsened performance or damage
recognized when connected as an
of USB devices within short periods
to the device.
external device.
of time may result in product mal-
function.
•
The device may not recognize the
•
When connecting an external USB
USB device if separately purchased
device, the device may not properly
•
A strange noise may occur when dis-
recognize the USB is in some states.
connecting the USB.
USB hubs and extension cables are
being used. Connect the USB direct-
(Continued)
•
Make sure to connect/disconnect
ly with the multimedia terminal of
external USB devices with the audio
the vehicle.
power turned off.
(Continued)
(Continued)
4-13
Multimedia System
(Continued)
(Continued)
(Continued)
•
When using mass storage USB
•
The device may not support normal
•
Avoid use of USB mem-
devices with separate logical drives,
operation when using formats such
ory products that can
only files saved to the root drive can
as HDD Type, CF, or SD Memory.
also be used as key
be played.
chains or mobile phone
•
The device will not support files
accessories. Use of such
•
Files may not properly operate if
locked by DRM
(Digital Rights
products may cause damage to the
application programs are installed
Management.)
USB jack.
to the USBs.
•
USB memory sticks used by con-
•
Connecting an MP3 device or phone
•
The device may not operate normal-
necting an Adaptor (SD Type or CF
ly if MP3 Players, cellular phones,
Type) may not be properly recog-
through various channels, such as
AUX/BT or Audio/ USB mode may
digital cameras, or other electronic
nized.
devices (USB devices not recognized
result in pop noises or abnormal
•
The device may not operate proper-
operation.
as portable disk drives) are connect-
ly when using USB HDDs or USBs
ed with the device.
subject to connection failures
•
Charging through the USB may not
caused by vehicle vibrations. (e.g. i-
work for some mobile devices.
stick type)
•
The device may not support normal
(Continued)
operation when using a USB memo-
ry type besides (Metal Cover Type)
USB Memory.
(Continued)
4-14
(Continued)
(Continued)
i
Information
- Using the iPod® device
•
When the EQ features of an exter-
•
If your iPhone® is connected to both
nal device, such as the iPod®, and
the Bluetooth® Wireless Technology
•
iPod® is a registered trademark of
the audio system are both active, EQ
and USB, the sound may not be
Apple Inc.
effects could overlap and cause
properly played. In your iPhone®,
•
In order to use the iPod® while oper-
sound deterioration and distortion.
select the Dock connector or
ating the keys, you must use a dedi-
Bluetooth® Wireless Technology to
Whenever possible, turn off the EQ
cated iPod® cable. (the cable that is
change the sound output (source).
feature within the external device
supplied when purchasing iPod®
upon use by connecting with the
•
iPod mode cannot be operated when
/iPhone® products)
audio system.
the iPod® cannot be recognized due
•
If the iPod® is connected to the vehi-
to versions that do not support com-
•
Noise may occur when an iPod® or
4
cle while it is playing, a high pitch
munication protocols.
AUX device is connected. When
sound could occur for approximate-
such devices are not being used, dis-
•
For fifth generation iPod® Nano
ly
1-2 seconds immediately after
connect the device for storage.
devices, the iPod® may not be recog-
connecting. If possible, connect the
nized when the battery level is low.
•
When the iPod® or AUX device
iPod to the vehicle with the iPod®
Please charge the iPod® for use.
power is connected to the power
stopped/ paused.
jack, playing the external device
•
Search/play orders shown within
•
During ACC ON state, connecting
may result in noise. In such cases,
the iPod® device may differ with the
the iPod® through the iPod® cable
disconnect the power connection
orders shown within the audio sys-
will charge the iPod® through the
before use.
tem.
car audio system.
•
Skipping or improper operation
•
If the iPod® malfunctions due to an
•
When connecting with the iPod®
may occur depending on the charac-
iPod® device defect, reset the iPod®
cable, make sure to fully insert the
teristics of your iPod®/Phone® device.
and try again. (To learn more, refer to
jack to prevent communication
your iPod® manual)
(Continued)
interference.
(Continued)
(Continued)
4-15
Multimedia System
(Continued)
i
Information
i
Information
• Some iPod® may not sync with the
- Using the AUX device
- Before using the Bluetooth®
System depending on its version. If
handsfree
•
If an external device connector is
the Media is removed before the
connected with the AUX terminal,
What is Bluetooth® ?
Media is recognized, then the sys-
then AUX mode will automatically
tem may not properly restore the
•
Bluetooth® refers to a short-distance
operate. Once the connector is dis-
previously operated mode.
(iPad®
wireless networking technology
connected, the previous mode will
charging is not supported.)
which uses a 2.4GHz ~ 2.48GHz fre-
be restored.
quency to connect various devices
•
AUX mode can be used only when
within a certain distance.
an external audio player
(cam-
•
Supported within PCs, external
corder, car VCR, etc.) has been con-
devices, Bluetooth® phones, PDAs,
nected.
various electronic devices, and auto-
•
The AUX volume can be controlled
motive environments, Bluetooth®
separately from other audio modes.
allows data to be transmitted at high
speeds without having to use a con-
•
Connecting a connector jack to the
AUX terminal without an external
nector cable.
device will convert the system to
•
Bluetooth® Handsfree refers to a
AUX mode, but only output noise.
device which allows the user to con-
When an external device is not
veniently make phone calls with
being used, also remove the connec-
Bluetooth® mobile phones through
tor jack.
the audio system.
•
When the external device power is
•
Bluetooth® Handsfree may not be sup-
connected to the power jack, play-
ported in some mobile phones. To learn
ing the external device may output
more about mobile device compatibility.
noise. In such cases, disconnect the
power connection before use.
•
Fully insert the AUX cable to the
AUX jack upon use.
4-16
(Continued)
i
Information
i
Information
•
Park the vehicle when connecting
- Precautions for safe driving
- When connecting a
the head unit with the mobile phone.
Bluetooth® phone
•
Bluetooth® Handsfree is a feature
•
Bluetooth® connection may become
that enables drivers to practice safe
•
Before connecting the head unit
intermittently disconnected in some
driving. Connecting the head unit
with the mobile phone, check to see
mobile phones. Follow these steps to
with a Bluetooth® phone allows the
that the mobile phone supports
try again.
user to conveniently make and
Bluetooth® features.
receive calls and use contacts.
1. Within the mobile phone, turn the
•
Even if the phone supports
Before using Bluetooth®, carefully
Bluetooth® function off/on and try
Bluetooth®, the phone will not be
read the contents of this user’s man-
again.
found during device searches if the
4
ual.
phone has been set to hidden state
2. Turn the mobile phone power
•
Excessive use or operations while
or the Bluetooth® power is turned
Off/On and try again.
driving may lead to negligent driv-
off. Disable the hidden state or turn
3. Completely remove the mobile
ing practices and result in accidents.
on the Bluetooth® power prior to
phone battery, reboot, and then
Refrain from excessive operations
searching/connecting with the Head
again.
while driving.
unit.
4. Reboot the Audio System and try
•
Viewing the screen for prolonged
•
Bluetooth phone is automatically
again.
periods of time is dangerous and
connected when the ignition on.
5. Delete all paired devices, pair and
may lead to accidents. When driv-
•
If you do not want automatic con-
try again.
ing, view the screen only for short
nection with your Bluetooth® device,
•
Handsfree call quality and volume
periods of time.
turn off the Bluetooth® feature with-
may differ depending on the model
in your mobile phone.
of your mobile phone.
•
The Handsfree call volume and
quality may differ depending on the
mobile phone.
(Continued)
4-17
Multimedia System
■ CD Player : AC102C7GG,AC111C7GN
4-18
Name
Description
SYSTEM CONTROLLERS AND FUNCTIONS
• Each time the key is pressed, the mode is
❈ Display and settings may differ depending on the
changed in order of CD, USB, iPod®, AUX, My
Music modes.
selected audio.
❈ In Setup>Display, the media pop up screen will
be displayed when [Mode Pop up] is turned

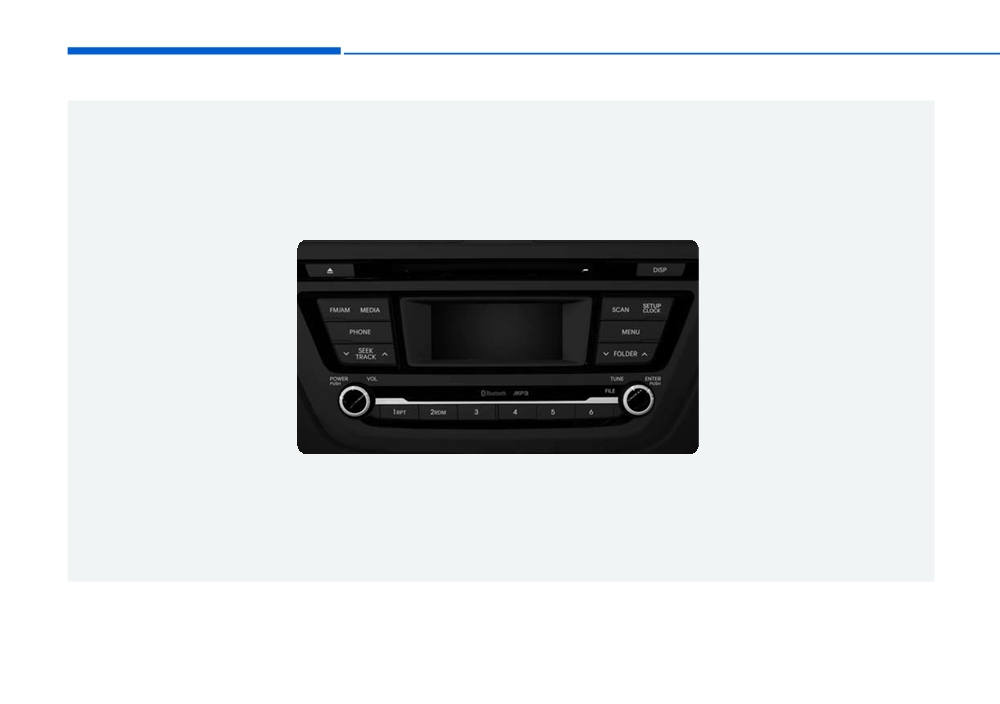

Audio Head Unit
MEDIA
On
When the pop up screen is displayed, use the
TUNE knob or keys
1
~
4
to select
the desired mode.
• Operates Phone Screen
PHONE
4
❈ When a phone is not connected, the connec-
(if equipped)
tion screen is displayed.
• Radio Mode : Automatically searches for broad-
cast frequencies.
• CD, USB, iPod®, My Music modes :
SEEK
- Shortly press the key : Moves to next or previ-
TRACK
ous song(file)
- Press and hold the key : Rewinds or fast-for-
wards the current song(file)
•
Power Knob : Turns power On/Off by press-
Name
Description
PWR/
ing the knob
Ejects the disc.
VOL knob
•
Volume Knob : Sets volume by turning the
• Changes to FM mode.
knob left/right
FM/AM
• Each time the key is pressed, the mode changed
• Radio Mode: Saves frequencies (channels) or
in order of FM1 ➟ FM2.
receives saved frequencies (channels)
• CD, USB, iPod®, My Music mode
1
~
6
-
1 RPT
: Repeat
(Preset)
-
2 RDM
: Random
• In the Radio, Media, Setup, and Menu pop up
screen, the number menu is selected.
4-19
